PRODUCT DETAILS
Description

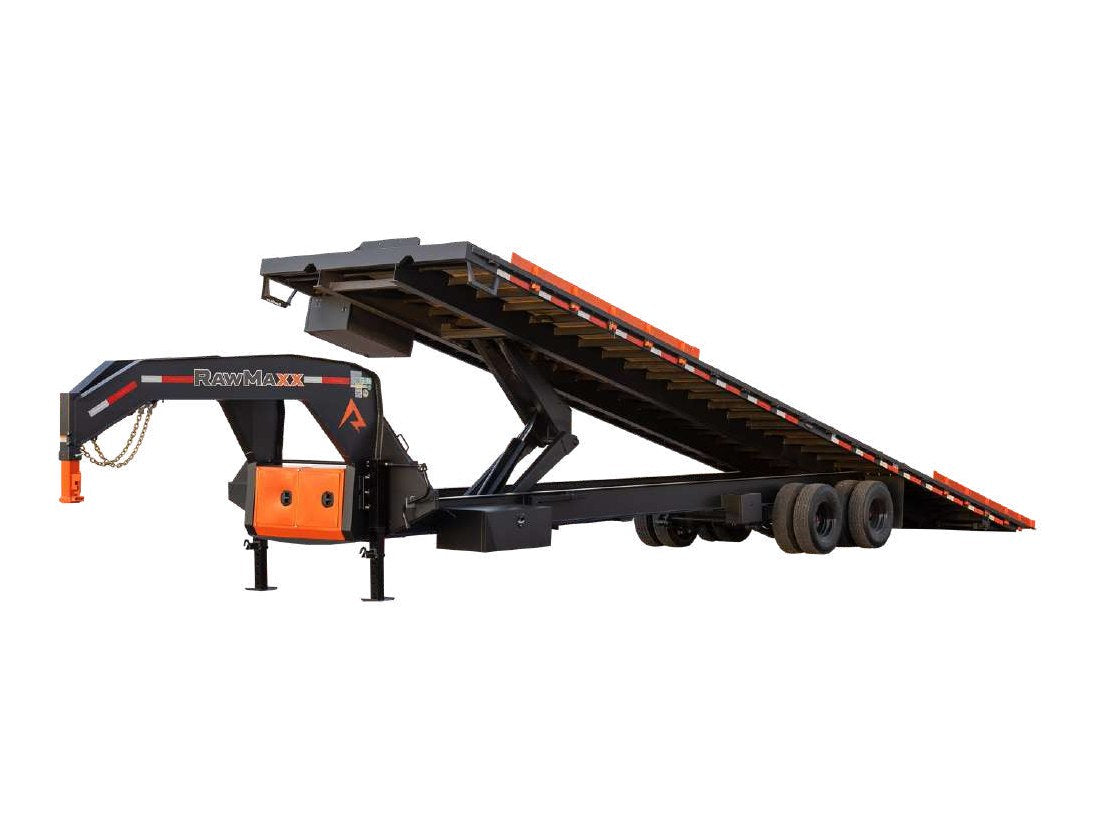

Build your RawMaxx CNX Gooseneck Dual Container Tilt Trailer to order in 4 configurations from 24' to 40'. Pick your length and model to see its list price, choose your color and options, then send us your build for your final price.
List price by model
- 24' 20,000 lbs GVWR: $23,591
- 24' 24,000 lbs GVWR: $24,524
- 40' 20,000 lbs GVWR: $27,898
- 40' 24,000 lbs GVWR: $31,567
List prices are RawMaxx MSRP for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 24' to 40'
- GVWR: 20,000 lbs, 24,000 lbs
- Axles: Tandem
- Hitch: Gooseneck
- Colors: Jet Black, Midnight Black, Shadow Grey, Lava Grey, Cobalt Blue, Army Green, Sunny Beige, Desert Tan, Ruby Red, Classic Orange; premium colors (Chalk White, Ghost White, Minion Yellow, Limon Green) add $386
Standard features
20,000 lbs GVWR
- 2-5/16" Ball 25,000 lbs Square Coupler
- 12" x 19 lbs I-Beam Main Frame
- Cross-Members: 3" Channel/16" OC
- 6" Channel Outer Deck Frame
- Rub Rail: 2" x 3/8" Flat Bar
- 3-7/8" x 1-13/16" (ID) Stake Pockets
- Chain Spool: 1 5/8" OD
- 2 Side Wind Drop Leg Jacks - 10,000 lbs
- Full Hydraulic Tilt Deck 6 30 Cylinder (6 20 Cylinder on 24' & 26')
- 3/8" x 8" Perimeter Flat Track
- 4-10’ Removable Guide Rails
- Flooring: 2” Treated Lumber Deck
- Front Tool Box: Between Risers
- Grade 50, One-Piece Gooseneck
- Winch Plate
- Winch Trough
- Chain Rack
- 8 - 10 Ply 235/80/R16 - Tires
- HDSS Spring Suspension
- 2 - 10,000 lbs Axles With Ele. Brakes
- 3/8" G70 Safety Chains
- 3M DOT Compliant Reflective Tape
- All Weather Wiring Harness
- Powder Coat Paint
- 5 Year Dexter Axle Warranty
- 3 Year Structural/1 Year Paint
- 10W Solar Panel
- Wireless Remote on a KTI Pump
24,000 lbs GVWR
- 2-5/16" Ball 25,000 lbs Square Coupler
- 12" x 19 lbs I-Beam Main Frame
- Cross-Members: 3" Channel/16" OC
- 6" Channel Outer Deck Frame
- Rub Rail: 2" x 3/8" Flat Bar
- 3-7/8" x 1-13/16" (ID) Stake Pockets
- Chain Spool: 1 5/8" OD
- 2 Side Wind Drop Leg Jacks - 10,000 lbs
- Full Hydraulic Tilt Deck 6 30 Cylinder.
- 3/8" x 8" Perimeter Flat Track
- 4-10’ Removable Guide Rails
- Flooring: 2” Treated Lumber Deck
- Front Tool Box: Between Risers
- Grade 50, One-Piece Gooseneck
- Winch Plate
- Winch Trough
- Chain Rack
- 8 - 10 Ply 235/80/R16 - Tires
- HDSS Spring Suspension
- 2 - 12,000 lbs Axles With Ele./Hyd. Brakes
- 3/8" G70 Safety Chains
- 3M DOT Compliant Reflective Tape
- All Weather Wiring Harness
- Powder Coat Paint
- 5 Year Dexter Axle Warranty
- 3 Year Structural/1 Year Paint
- 10W Solar Panel
- Wireless Remote on a KTI Pump
Available options
- Deck (3): 12" Center Cross-members Per Ft; Deck On Neck; G12 Tread Plate Deck
- Load Management (4): Weld on D-Rings; Slide Track For Ratchets Per Ft; Slide Ratchets; Weld On Ratchets
- Jack (2): Dual 12,000 lbs Hydraulic Jacks; 2 - 12,000 lbs 2 Speed Jacks
- Toolboxes (2): Underbody Toolbox; Dunnage Rack
- Electrical Add Ons (5): 1 - Top LED Light Bar; 2 - Side LED Pod Lights; Extra Marker Lights ( Every 2' ); Extra Marker Lights ( Every 4' )…
- Winch (1): 17,500 Lbs. Electric Winch
- Tire (5): Spare - 10 Ply Tire 235/80/R16 - Dual Wheel; 8 - 14 Ply Tires 235/85/R16 - Dual Wheels; Spare - 14 Ply Tire 235/85/R16 - Dual Wheel; 8 - 18 Ply Tires 235/75/R17.5 - Dual Wheel…
