PRODUCT DETAILS
Description

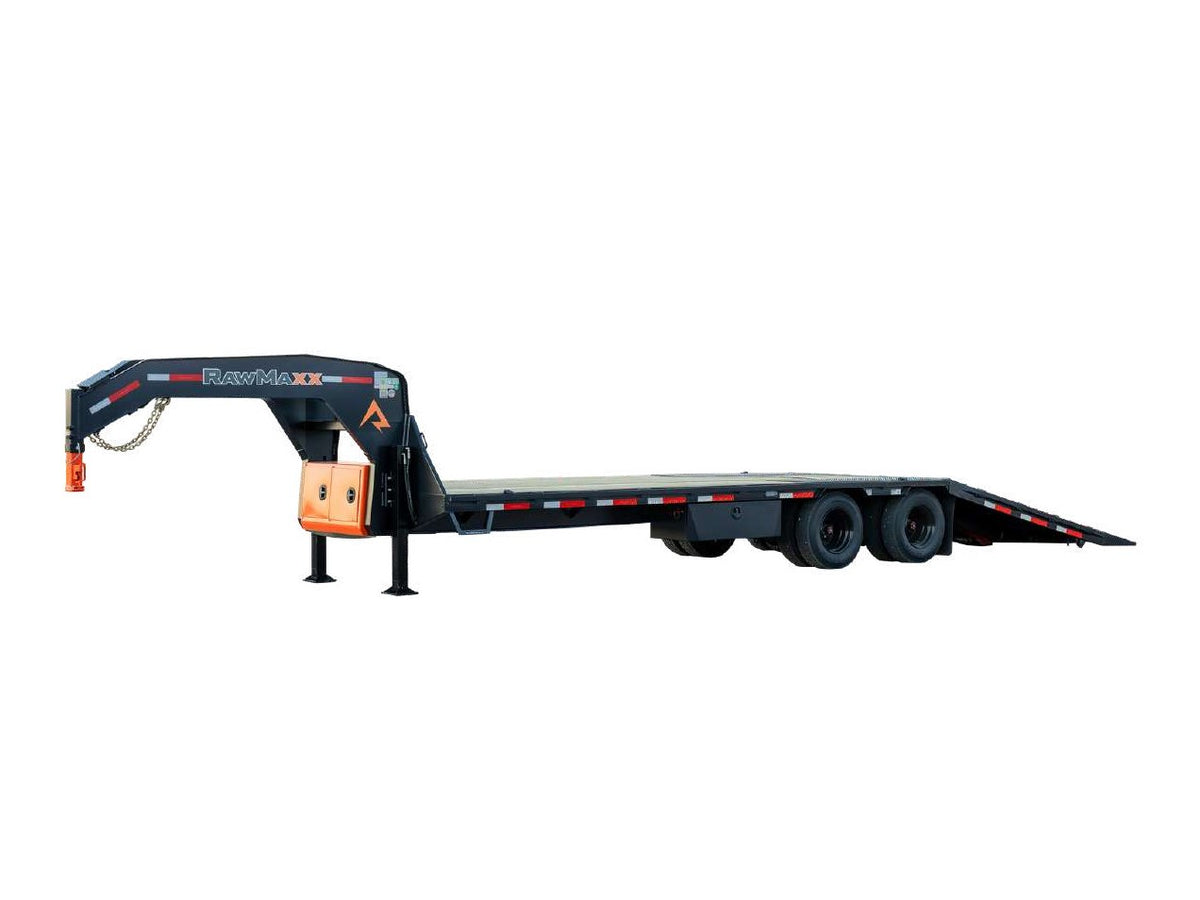

Build your RawMaxx HTX Gooseneck Dual Wheel Hydraulic Tail Deckover to order in 6 configurations from 32' to 40'. Pick your length and model to see its list price, choose your color and options, then send us your build for your final price.
List price by model
- 32' 24,000 lbs GVWR: $26,776
- 32' 30,000 lbs GVWR: $31,104
- 36' 24,000 lbs GVWR: $27,949
- 36' 30,000 lbs GVWR: $32,278
- 40' 24,000 lbs GVWR: $29,122
- 40' 30,000 lbs GVWR: $33,452
List prices are RawMaxx MSRP for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 32' to 40'
- GVWR: 24,000 lbs, 30,000 lbs
- Axles: Tandem
- Hitch: Gooseneck
- Colors: Jet Black, Midnight Black, Shadow Grey, Lava Grey, Cobalt Blue, Army Green, Sunny Beige, Desert Tan, Ruby Red, Classic Orange; premium colors (Chalk White, Ghost White, Minion Yellow, Limon Green) add $386
Standard features
24,000 lbs GVWR
- 2-5/16" Ball 25,000 lbs Square Coupler
- 12" Engineered I-Beam Frame
- Cross-Members: 3" Channel/12" OC
- 6" Channel Outer Deck Frame
- Rub Rail: 2" x 3/8" Flat Bar
- 3-7/8" x 1-13/16" (ID) Stake Pockets
- Chain Spool: 1 5/8" OD
- 2 Side Wind Drop Leg Jacks. - 10,000 lbs
- 11' Hydraulic Lift Tail (10,000 lbs Lift Capacity)
- Dual Cylinder Hyd. lift
- Self-locking Hyd. Tail.
- Flooring: 2” Treated Lumber Deck
- 4 D-Rings
- Front Tool Box: Between Risers
- Grade 50, One-Piece Gooseneck
- Winch Plate - Chain Rack
- Torque Tube
- 8 - 10 Ply ST235/80R16 Tires
- HDSS Spring Suspension
- 2 - 12,000 lbs Axles With Ele./Hyd.
- 3/8" G70 Safety Chains
- 3M DOT Compliant Reflective Tape
- All Weather Wiring Harness
- Powder Coat Paint
- 5 Year Dexter Axle Warranty
- 3 Year Structural/1 Year Paint
- 10W Solar Panel
- Wireless Remote on a KTI Pump
30,000 lbs GVWR
- 2-5/16” Ball 30,000 lbs. Square Coupler
- 12" Engineered I-Beam Frame
- Cross-Members: 3" Channel/12" OC
- 6" Channel Outer Deck Frame
- Rub Rail: 2" x 3/8" Flat Bar
- 3-7/8" x 1-13/16" (ID) Stake Pockets
- Chain Spool: 1 5/8" OD
- 2 Side Wind Drop Leg Jacks. - 10,000 lbs
- 11' Hydraulic Lift Tail (10,000 lbs Lift Capacity)
- Dual Cylinder Hyd. lift
- Self-locking Hyd. Tail.
- Flooring: 2” Treated Lumber Deck
- 4 D-Rings
- Front Tool Box: Between Risers
- Grade 50, One-Piece Gooseneck
- Winch Plate - Chain Rack
- Torque Tube
- 8 - 18 Ply ST235/75R17.5 Tires
- HDSS Spring Suspension
- 2 - 16,000 lbs Axles With Ele./Hyd.
- 3/8" G70 Safety Chains
- 3M DOT Compliant Reflective Tape
- All Weather Wiring Harness
- Powder Coat Paint
- 5 Year Dexter Axle Warranty
- 3 Year Structural/1 Year Paint
- 10W Solar Panel
- Wireless Remote on a KTI Pump
Available options
- Deck (3): Deck On Neck; Pro Wood Per Ft; G12 Tread Plate Deck Per Ft
- Load Management (6): Weld on D-Rings; Slide Track For Ratchets Per Ft; Slide Ratchets; Weld On Ratchets…
- Jack (2): Dual 12,000 Lbs. Hydraulic Jacks - Includes Pump; 2 - 12,000 Lbs. 2 Speed Jacks
- Toolboxes (2): Underbody Toolbox; Dunnage Rack
- Electrical Add Ons (7): 17,500 Lbs. Electric Winch (Includes Battery & Charger); Wireless Remote on a KTI Pump; 1 - Top LED Light Bar; 2 - Side LED Pod Lights…
- Tire (5): Spare - 10 Ply Tire 235/80/R16 - Dual Wheel; 8 - 14 Ply Tires 235/85/R16 - Dual Wheels; Spare - 14 Ply Tire 235/85/R16 - Dual Wheel; 8 - 18 Ply Tires 235/75/R17.5 - Dual Wheel…
