PRODUCT DETAILS
Description

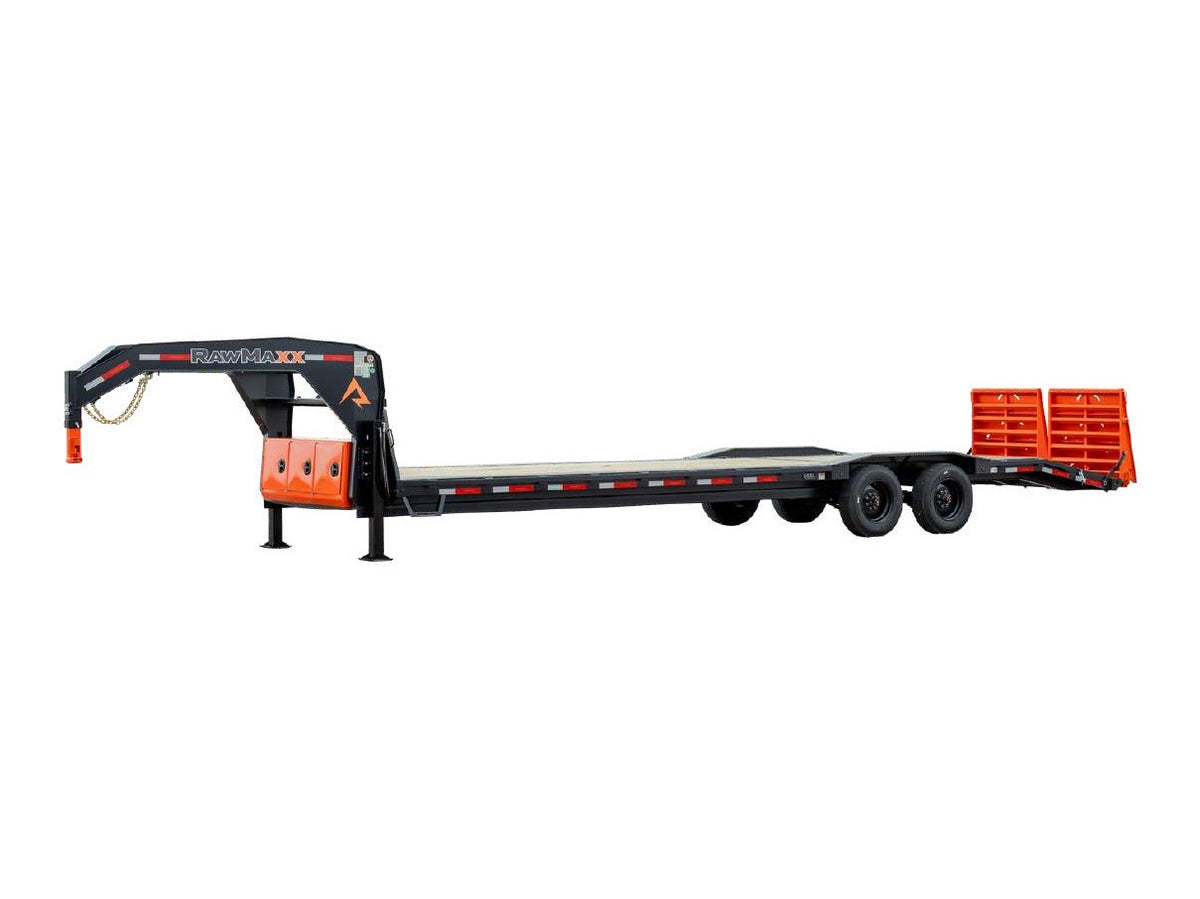

Build your RawMaxx LDX Gooseneck Equipment Trailer to order in 5 configurations from 28' to 44'. Pick your length and model to see its list price, choose your color and options, then send us your build for your final price.
List price by model
- 28': $17,643
- 32': $18,451
- 36': $19,098
- 40': $19,910
- 44': $17,699
List prices are RawMaxx MSRP for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 28' to 44'
- GVWR: 20,000 lbs, 21,000 lbs
- Axles: Tandem
- Hitch: Gooseneck
- Colors: Jet Black, Midnight Black, Shadow Grey, Lava Grey, Cobalt Blue, Army Green, Sunny Beige, Desert Tan, Ruby Red, Classic Orange; premium colors (Chalk White, Ghost White, Minion Yellow, Limon Green) add $386
Standard features
20,000 lbs GVWR
- 2-5/16” Ball 25,000 lbs Square Coupler
- 2 Side Wind Drop Leg Jacks -10,000 lbs.
- 10" x 15 lbs I-Beam Main Frame
- 3" Channel/16" OC
- Bridge Frame: 4" x 4" Angle Iron
- Strait deck: 7.5' Slide-In Channel Ramps
- 6" Channel Outer Deck Frame
- 3-5/8" x 1-1/2" (ID) Stake Pockets
- Fenders: 3/16” Thread Plate (Drive-Over)
- Flooring: 2” Treated Lumber Deck
- D-Rings: 4 D-Rings
- Front Tool Box: Between Risers
- Grade 50, One-Piece Gooseneck
- Winch Plate
- Chain Rack
- 3/8" G70 Safety Chains
- 4 - 18 Ply ST235/75R17.5 Tires
- Spring Suspension
- 2 - 10,000 lbs Axles With Brakes
- 3M DOT Compliant Reflective Tape
- All Weather Wiring Harness
- Powder Coat Paint
- 5 Year Dexter Axle Warranty
- 3 Year Structural/1 Year Paint
21,000 lbs GVWR
- 2-5/16” Ball 25,000 lbs Square Coupler
- 2 Side Wind Drop Leg Jacks -10,000 lbs
- 10" x 15 lbs I-Beam Main Frame
- 3" Channel/16" OC
- Bridge Frame: 4" x 4" Angle Iron
- Strait deck: 7.5' Slide-In Channel Ramps
- 6" Channel Outer Deck Frame
- 3-5/8" x 1-1/2" (ID) Stake Pockets
- Fenders: 3/16” Thread Plate (Drive-Over)
- Flooring: 2” Treated Lumber Deck
- D-Rings: 4 D-Rings
- Front Tool Box: Between Risers
- Grade 50, One-Piece Gooseneck
- Winch Plate
- Chain Rack
- 3/8" G70 Safety Chains
- 6 - 10 Ply ST235/80R16 Tires
- Spring Suspension
- 3 - 7,000 lbs Axles With Brakes
- 3M DOT Compliant Reflective Tape
- All Weather Wiring Harness
- Powder Coat Paint
- 5 Year Dexter Axle Warranty
- 3 Year Structural/1 Year Paint
Available options
- Deck (5): 12" Center Cross-members; Pro Wood; G12 Tread Plate Deck; Deck On Neck…
- Ramp (1): Maxx Ramps
- Load Management (4): Weld on D-Rings; Slide Track For Ratchets; Slide Ratchets; Weld On Ratchets
- Jack (1): Dual 12,000 lbs Hydraulic Jacks (Includes Pump, Battery & Charger)
- Electrical Add Ons (7): 10W Solar Panel; 1 - Top LED Light Bar; 2 - Side LED Pod Lights; Wireless Remote on a KTI Pump…
- Winch (2): 12,000 Lbs. Electric Winch; 17,500 Lbs. Electric Winch
- Tire (1): Spare - 18 Ply Tire 235/75/R17.5 - Single Wheel
