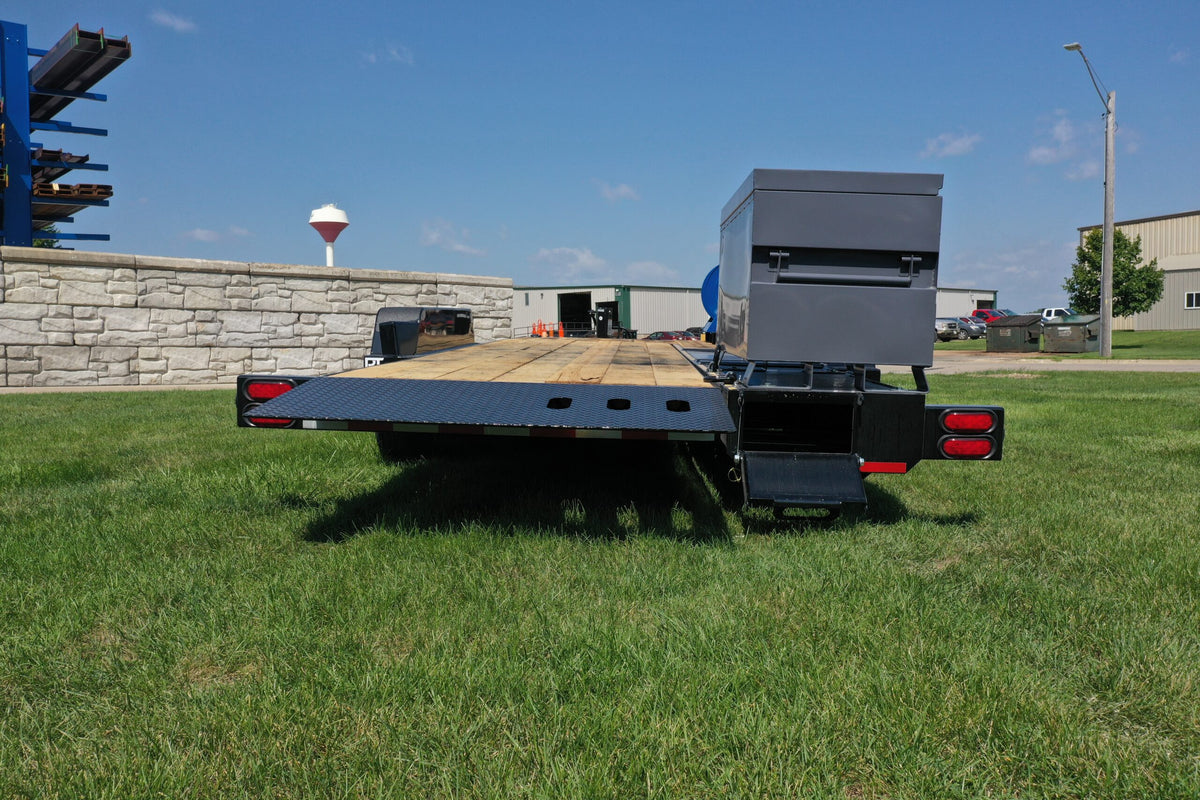

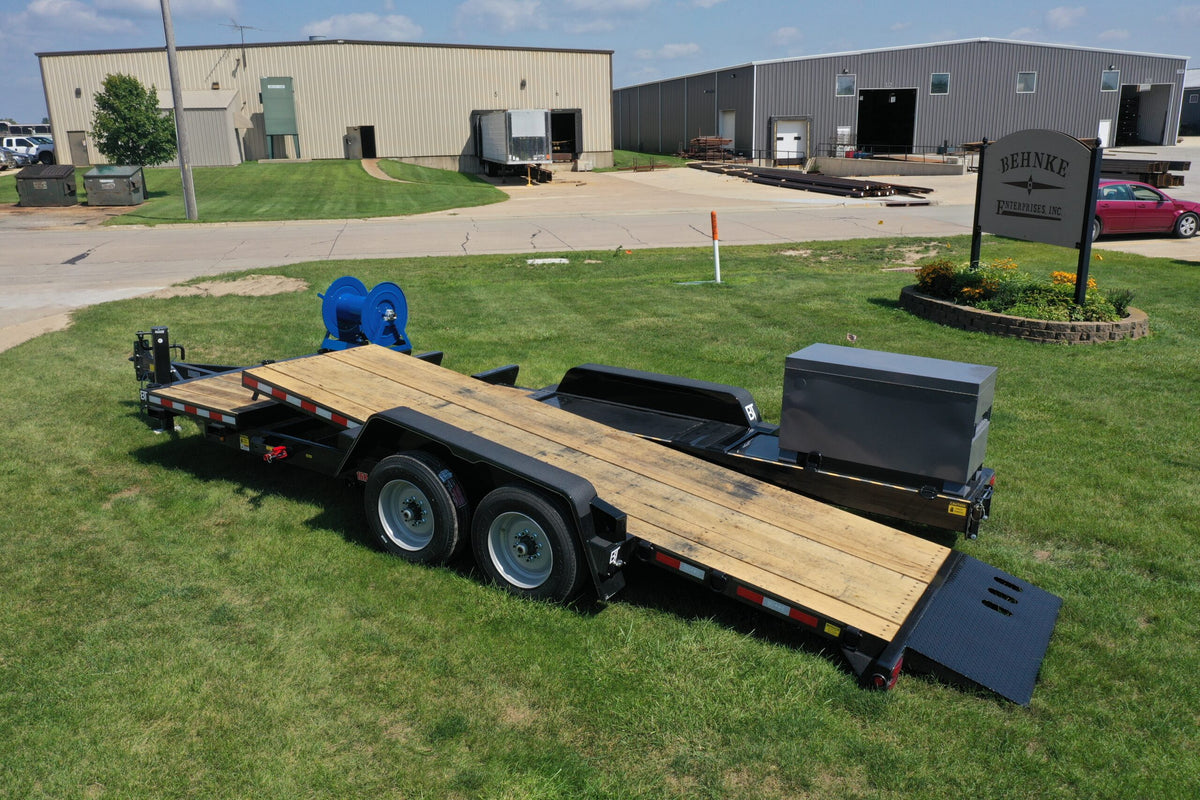

Behnke Directional Drill Tilt Trailer - Build to Order

PRODUCT DETAILS

Description

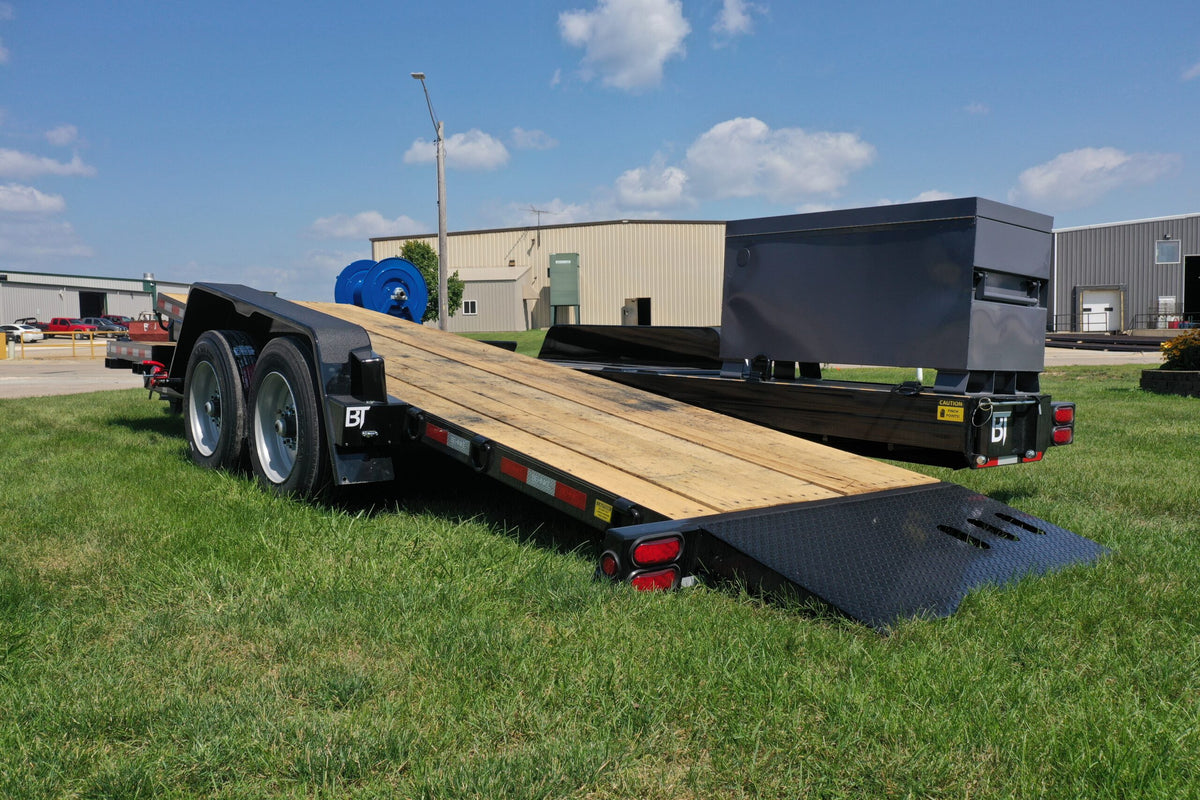

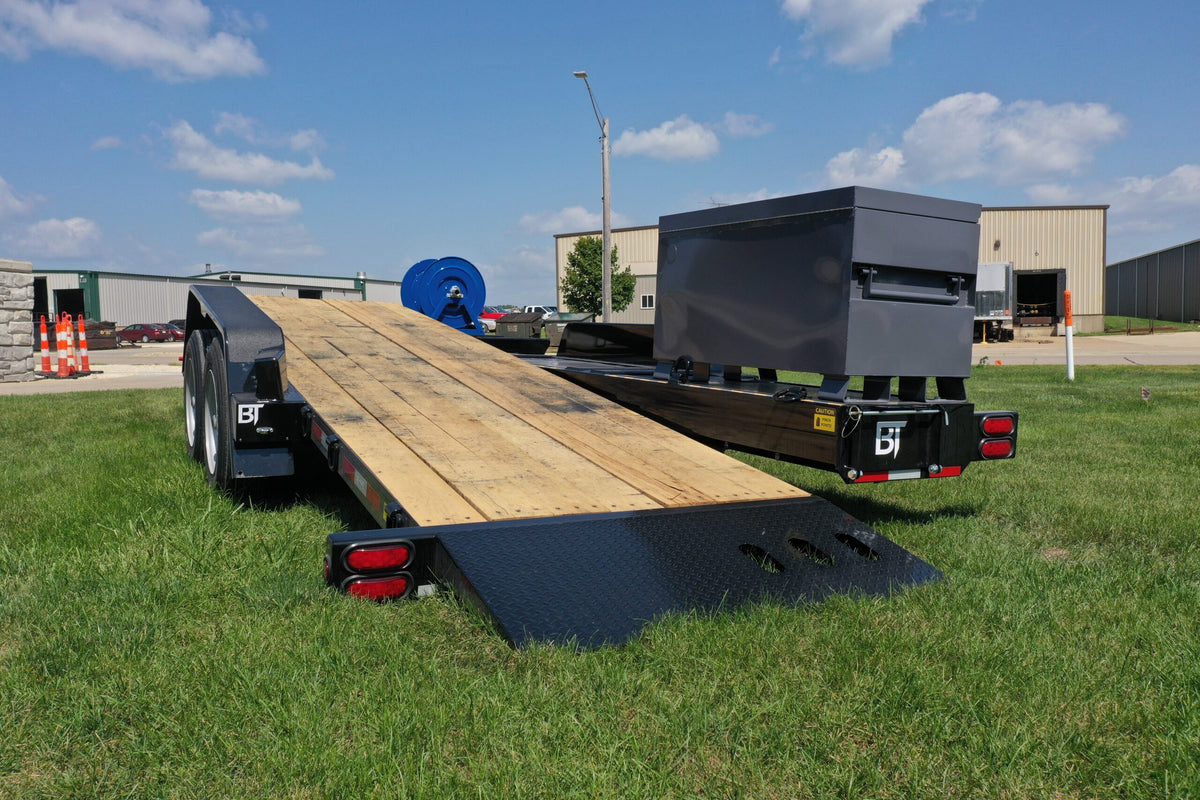

The directional drill trailer is a beast of a trailer, with no peers in its class. This patented design utilizes a tilting deck on the driver side and fixed deck on the passenger side. Operators can load their directional drill on driver side, while bolting down their tanks, mixers, reels, etc. on the fixed passenger side. With no ramps to hassle with, this trailer is no doubt the safest way to load your directional drill.

Built to order by Behnke Enterprises. Request your price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.

Specifications

• GVWR: 16,000 lb. - 24,000 lb.
• Weight: (2220 = 6,200 lb.) (2224 = 6,700 lb.)
• Length: (4' + 18') OR (6' + 18') OR (8' + 18')
• Width: Tilt deck width = 55.5"; Stationary width = 26.5"; 83" between fenders
• Frame: 5" x 5" x 5/16" Angle upper frame; 2" x 8" Tube lower frame
• Unloaded Deck Height: 25"
• Side Rails: 5 x 5 x 5/16 angle (flush floor)
• Crossmembers: 3" channels (12" ¢'s)
• Fenders: HD Fully Welded 11 gauge
• Jack: Single 12K dropleg
• Hitch: 2 5/16" adj. coupler or pintle
• Safety Chains: (2) 3/8" Gr. 70
• Tie-Downs: Stake pockets and (4) D-rings
• Storage: Chain tray in tongue
• Axles: 8K, 10K or 12K Torflex Dexter
• Suspension: Torflex
• Tire and Wheel: 215-75R-17.5 (8K); 235/75R-17.5 16 ply (6,005 lb. load rating) super single (10K or 12K)
• Decking: 1 1/2" No 1. Treated Pine or 1-11/16" white oak decking
• Lights: LED flush mount
• Elect. Plug: RV plug
• Finish and Paint: Bead blasted, acid washed, zinc rich primed, powder coated

Details

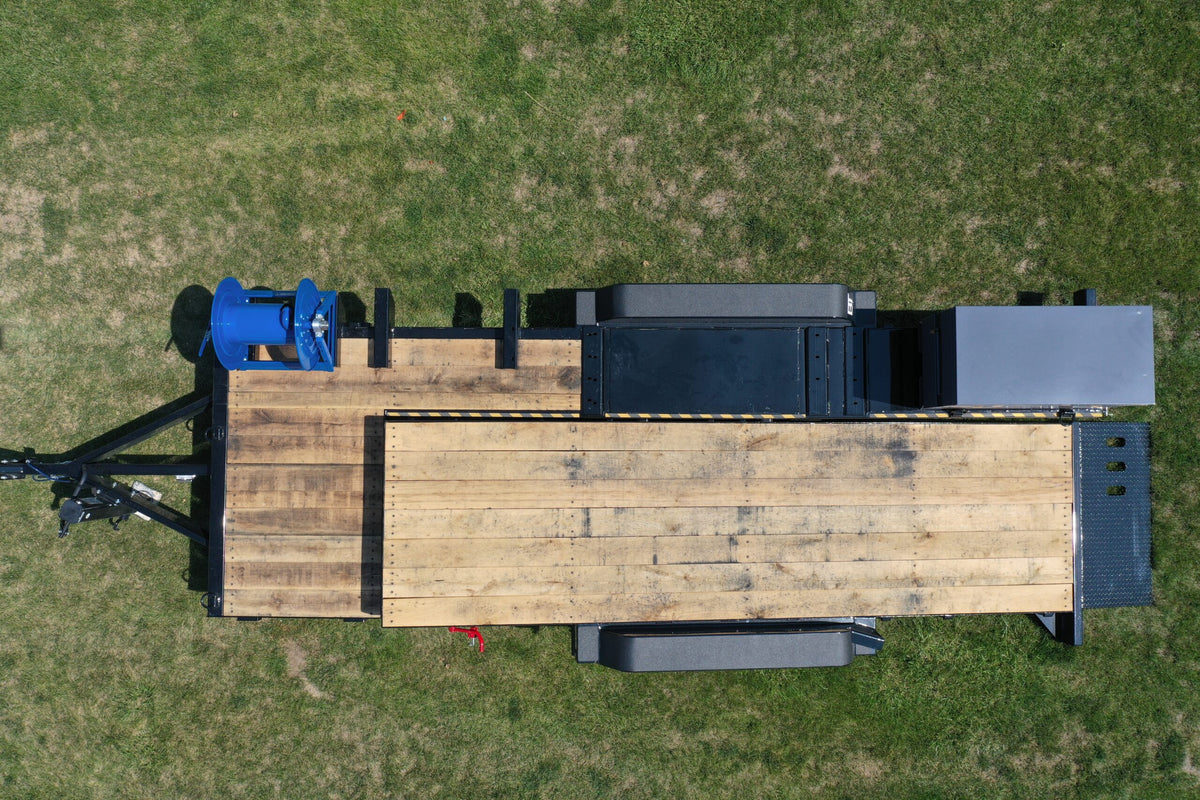

• Tilting deck on driver's side (can be passenger side); Tilt deck is 55.5" wide; Stationary is 26.5" wide
• Bolt-on D-rings standard for the tilt deck
• Machine stops, boring bar holders, tank mounts, etc. are optional
• Patent 11,440,455

Download the Behnke brochure (PDF)
