PRODUCT DETAILS
Description

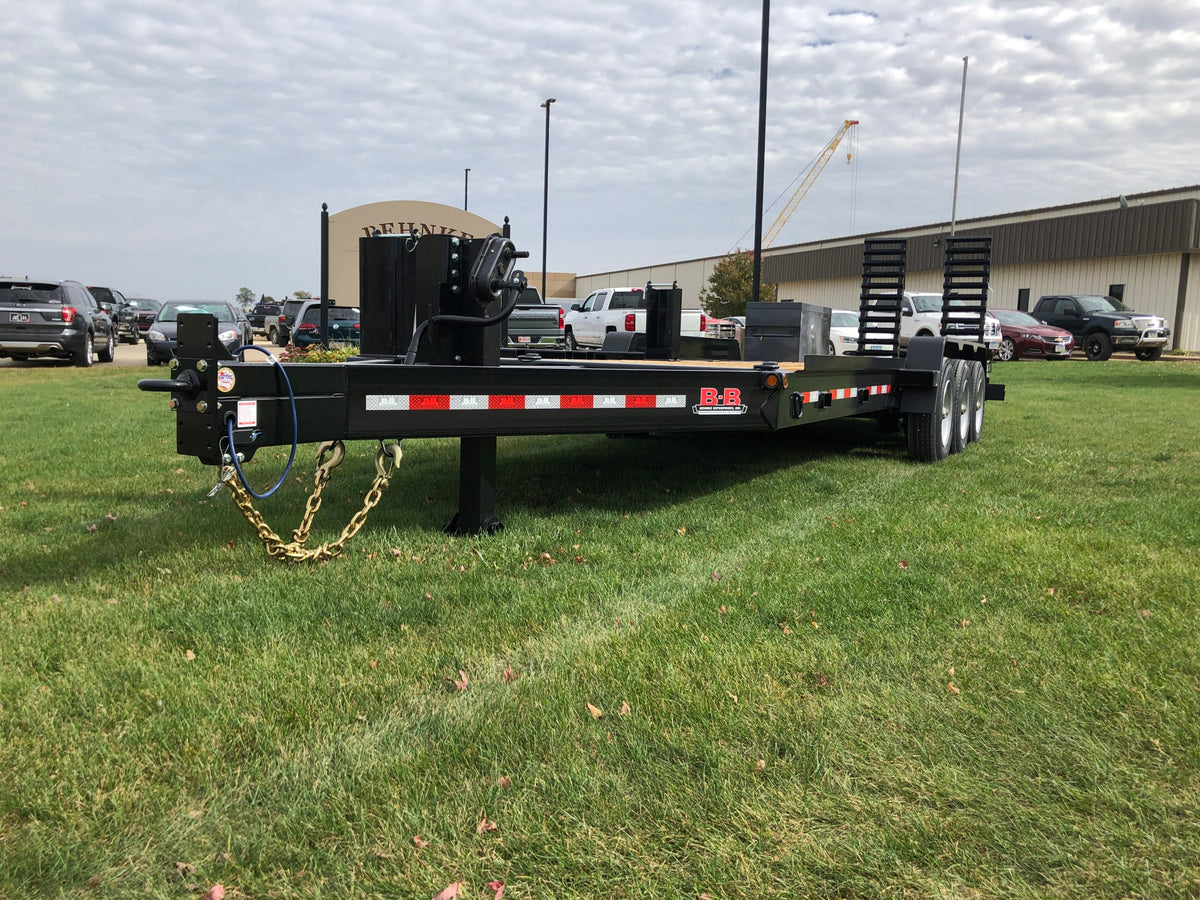

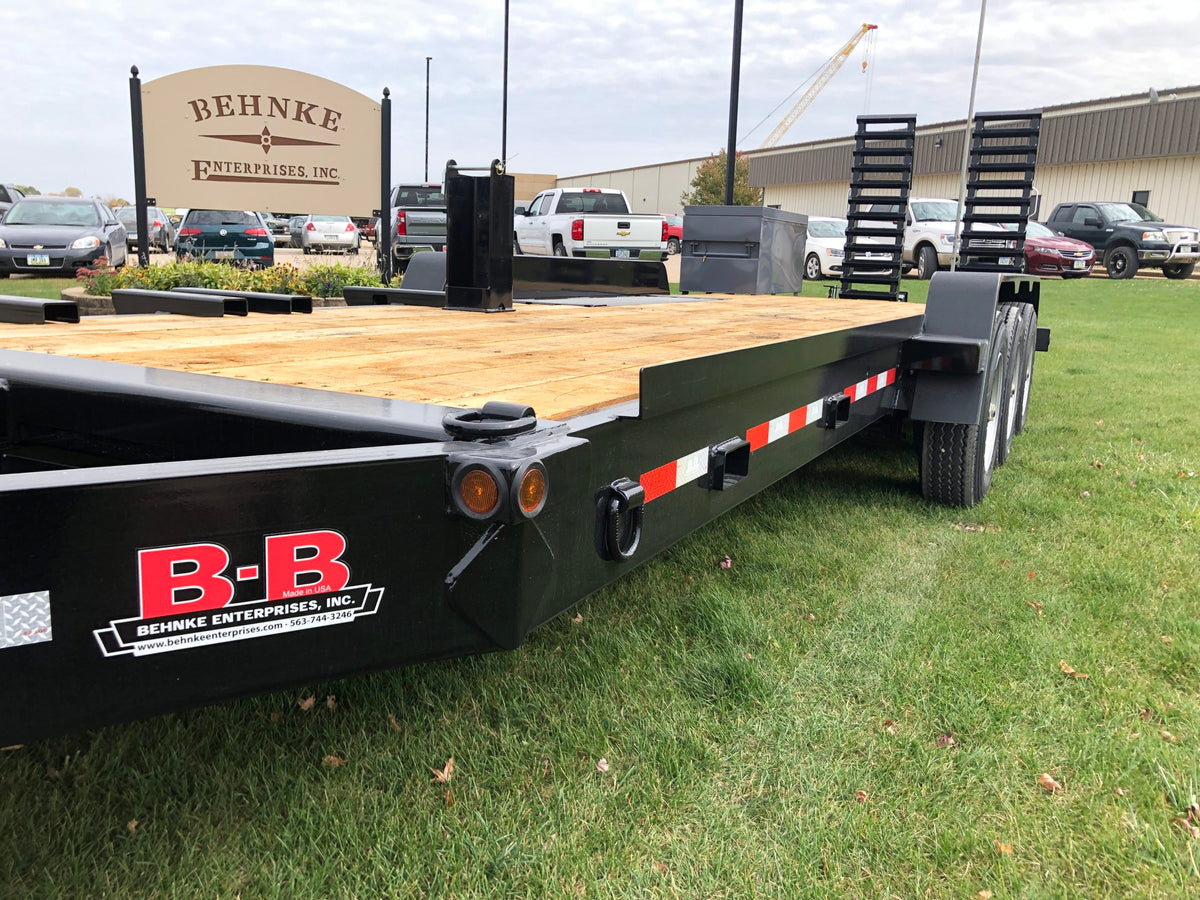

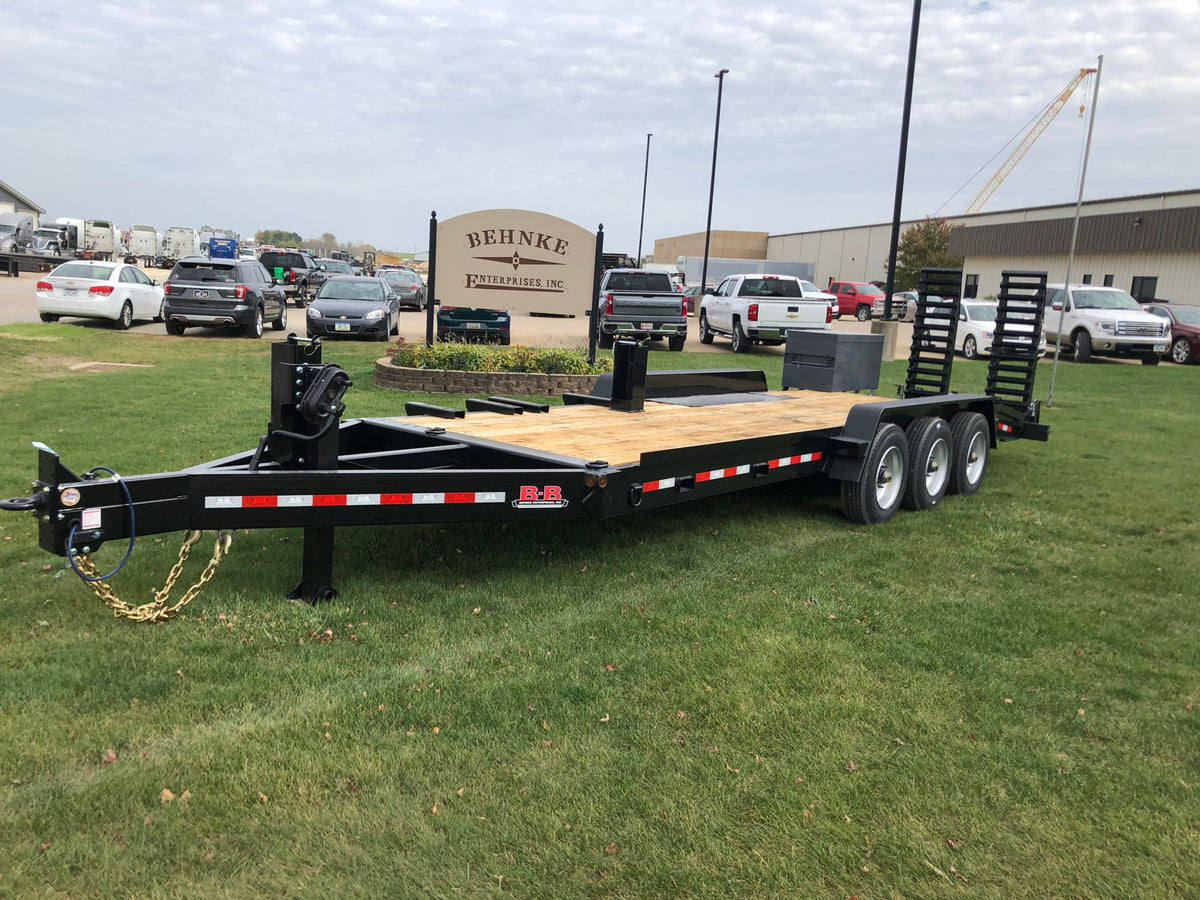

The triple axle directional drill ramp trailer is available in a 30,000 GVW. These trailers are specifically for hauling directional drills and come standard with spring suspension and an industry leading 26" deck height. The lower deck height allows for a shorter 3' beavertail with traction cleats. Heavy duty tube ramps are offset to the driver side and are kept in place with a ramp pin. These ramps are heavier and wider then the competition and the ramp pins eliminate the need for a ramp bar. Ramps offset to the passenger side for curbside loading is also available. With standard features, such as mixer and tank mounts, reel mounts, toolbox mounts, machine stops, and boring bar holders we separate ourselves from the competition.
Built to order by Behnke Enterprises. Request your price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
Specifications
- GVWR: 30,000 lbs.
- Weight: 7,440 lbs.
- Length: 92" tongue, 21' bed w/3' steel tail w/traction cleats
- Width: 83" between fenders
- Frame: Continuous 10" x 25# channel for whole frame
- Unloaded Deck Height: 26"
- Side Rails: Lip on Driver Side of Trailer
- Crossmembers: 3" channels
- Fenders: HD Fully Welded 11 gauge
- Jack: Semi-style jack
- Hitch: Pintle
- Safety Chains: (2) 1/2" Gr. 70
- Tie-Downs: (4) 5/8" D-rings for machine tie-down
- Storage: Large Chain tray in tongue (V-toolbox optional)
- Axles: 10,000 GD Dexter Axles
- Suspension: Dexter Spring
- Tire and Wheel: 235/75R-17.5 18 ply super single
- Decking: 1 11/16" rough oak
- Lights: LED flush mount
- Elect. Plug: RV plug
- Finish and Paint: Bead blasted, acid washed, zinc rich primed, powder coated
Details

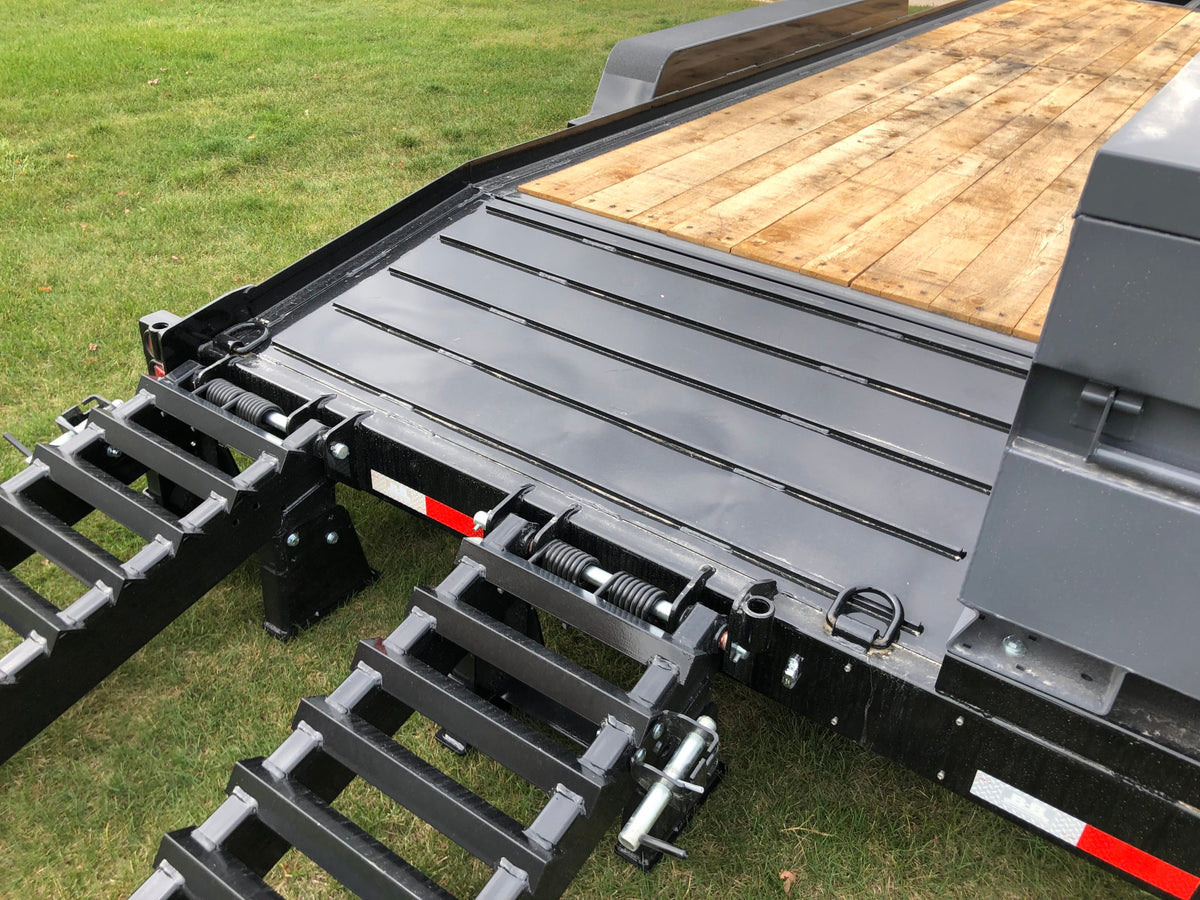

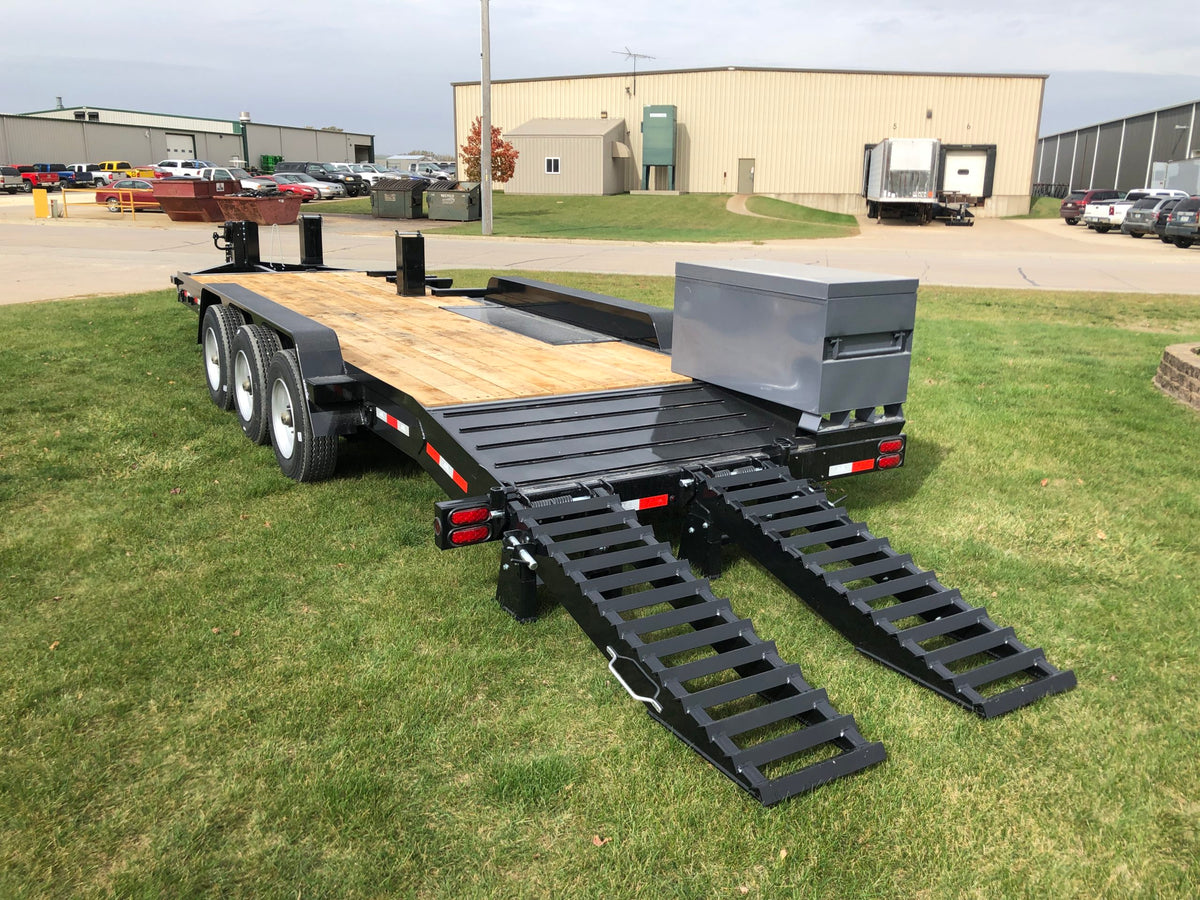

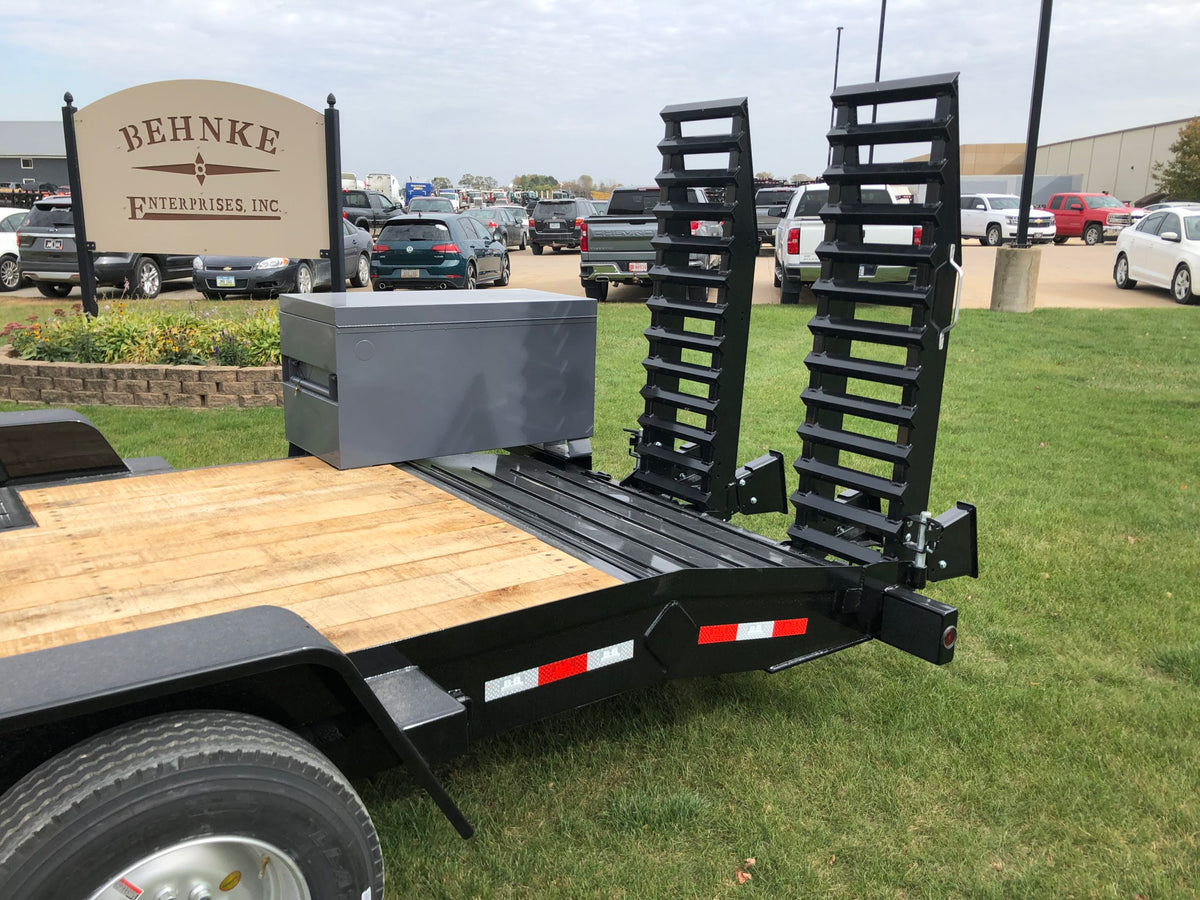

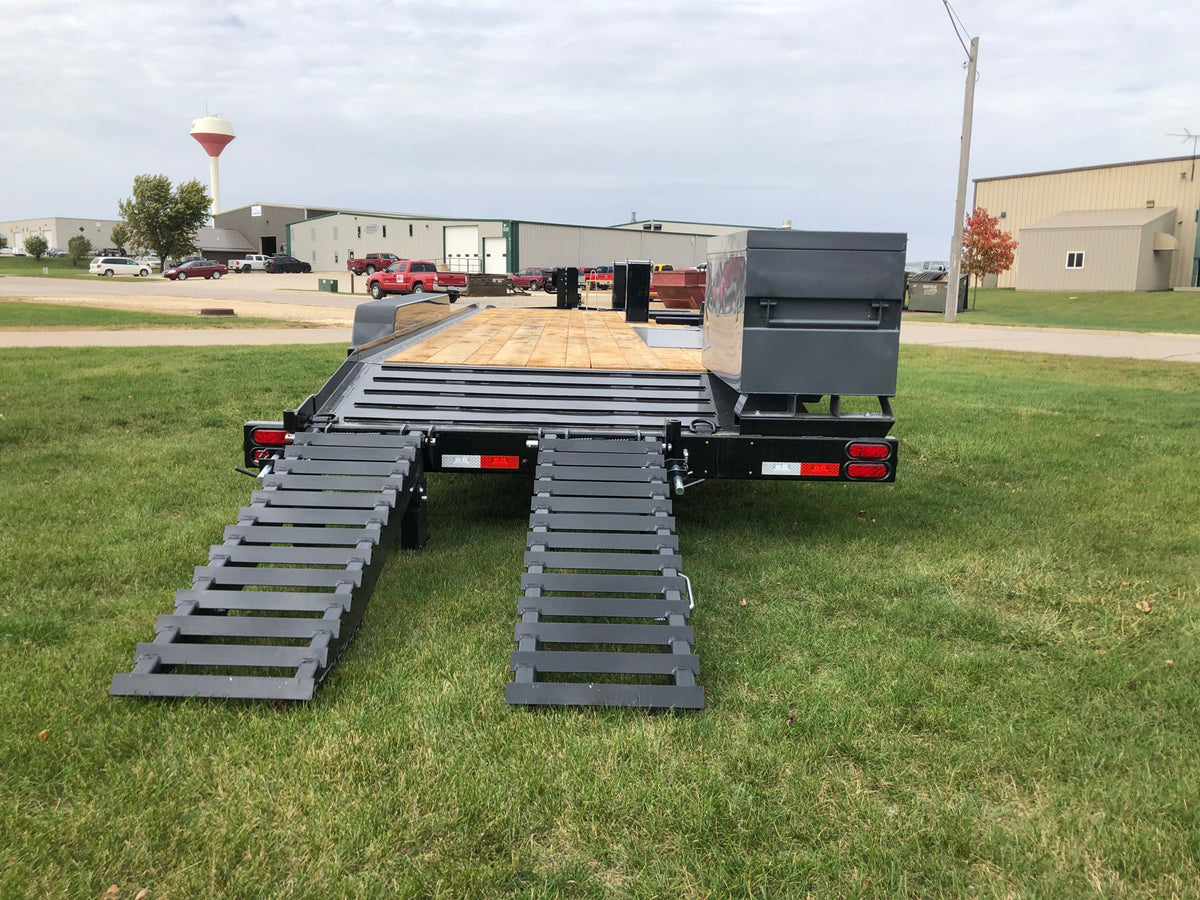

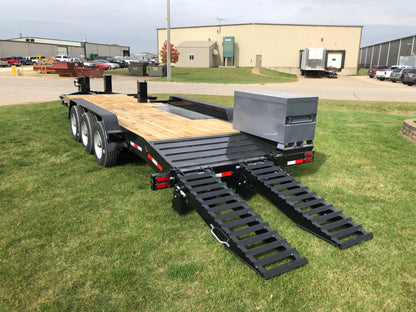

- HD 23" wide tube ramps w/pin style lock

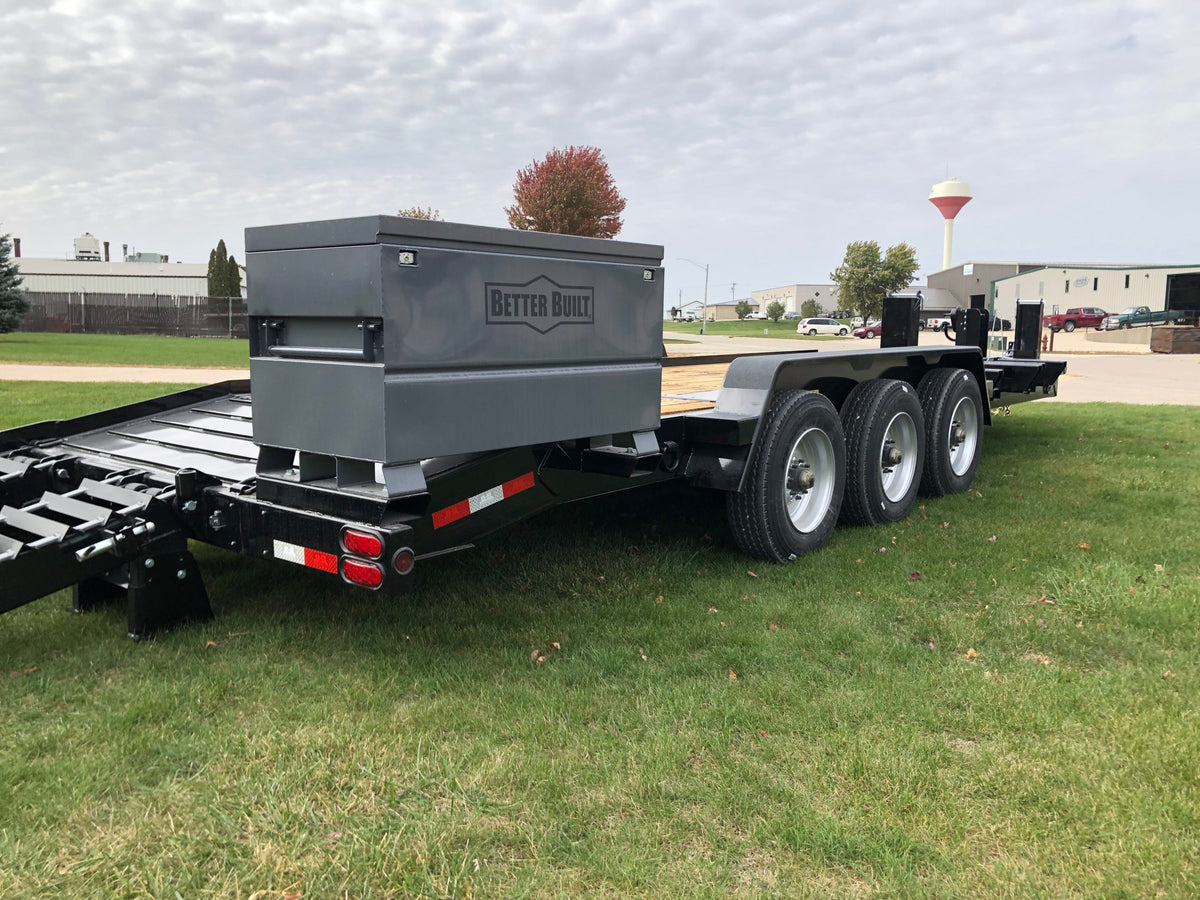

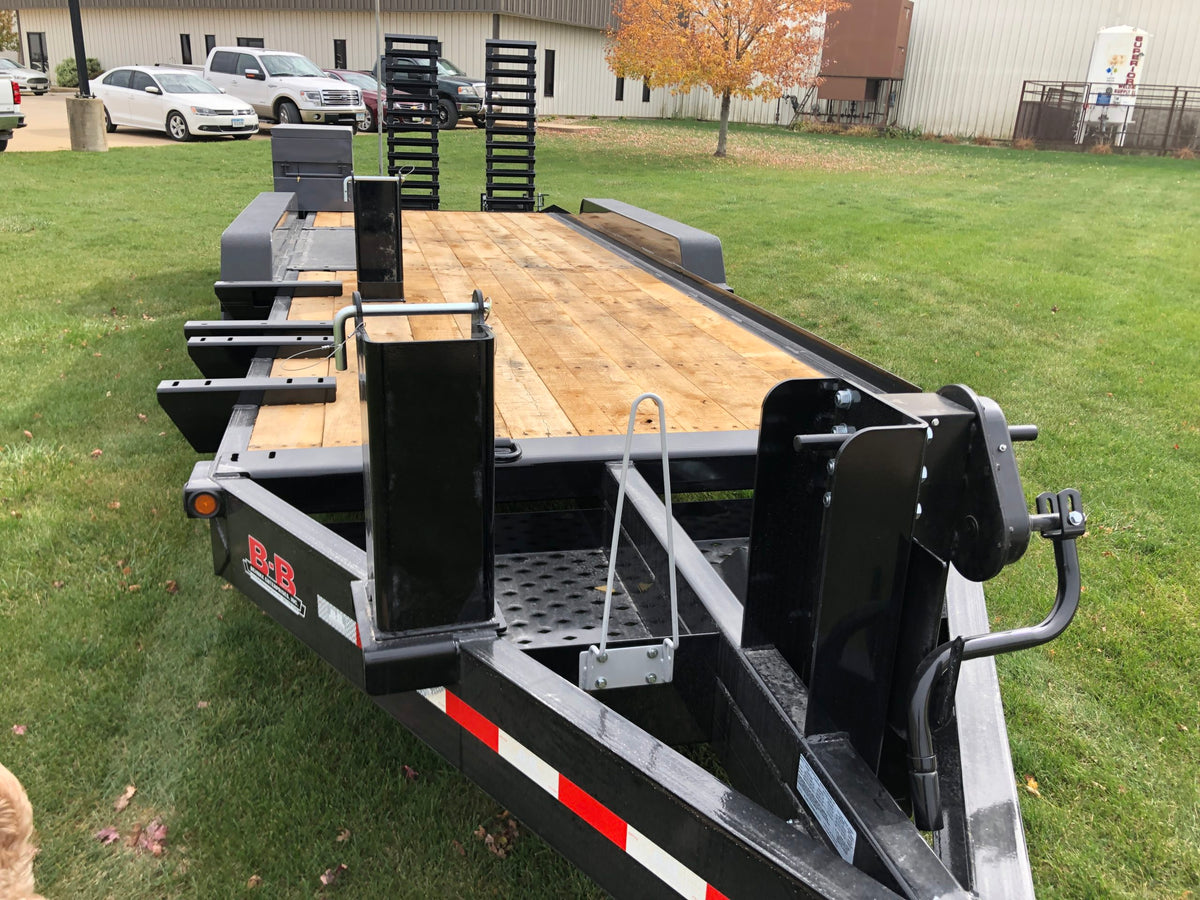

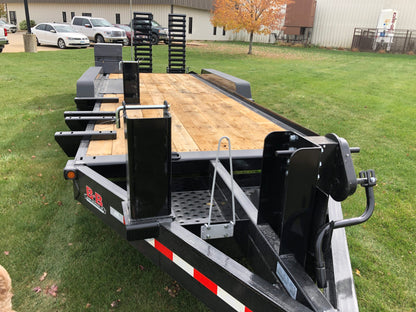

- Completely drill ready with tank, mixer, reel, and toolbox mounts, as well as boring rod holders and machine stops
- Trailer can be customized to meet certain dealerships mounting specs
- Industry low deck heights on spring suspension
- Custom tongue, deck, and beavertail lengths available
