PRODUCT DETAILS
Description

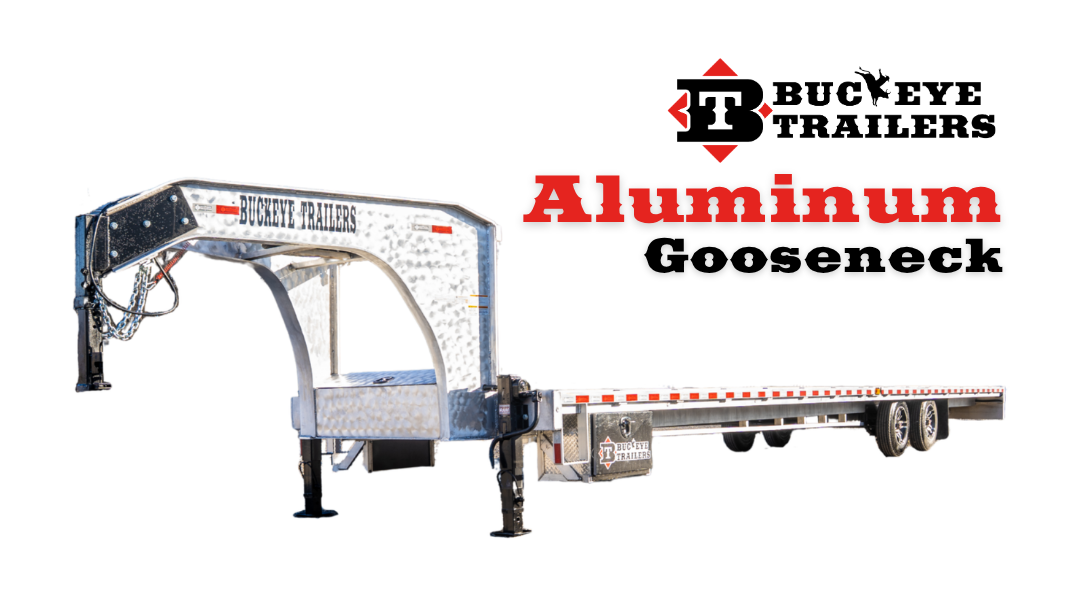

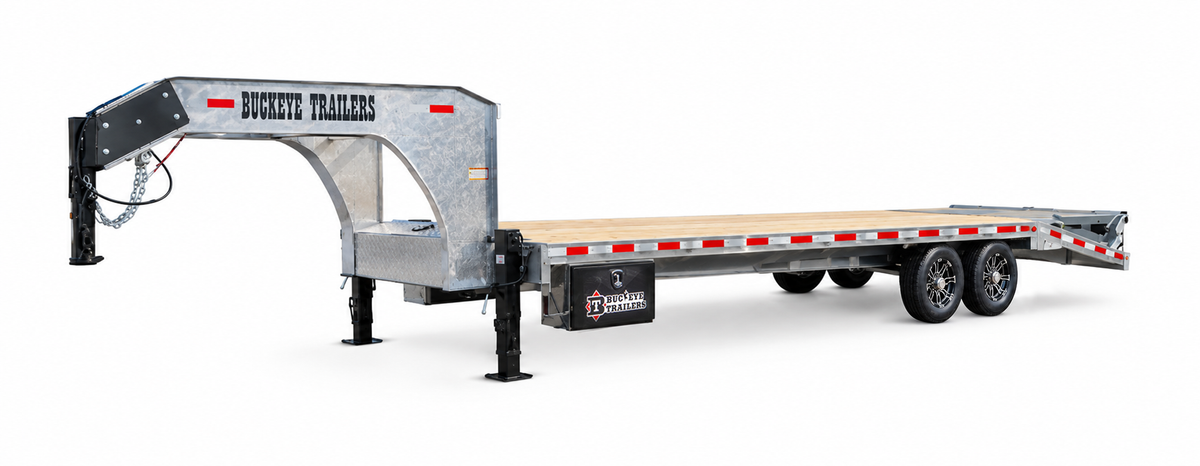

The A GN 16K is a full aluminum gooseneck built for operators who need heavy-duty capacity with the long-term advantages of an all-aluminum build. With deck lengths from 20' to 40', a 5' dovetail, a 14,000–17,500 lb GVWR, and an extruded 10" channel frame, you get the strength to handle serious loads with the weight savings that put more payload in your pocket. Tandem 8K HD Lippert axles, Load Range G tires, premium aluminum 16" wheels, and DOT-approved LED lighting make it work-ready from day one.
Trailer Town is a Buckeye Trailers dealer. Pick your deck length and the upgrades you need, then send us your build. Prices shown are Buckeye's minimum advertised price (MAP), FOB the Buckeye factory: freight, delivery, tax, tag and registration are extra.
Standard features
| Trailer | 20' Flat Deck 5' dove tail |
|---|---|
| GVWR | 14,000 - 17,500 lb |
| Payload | 9,800 - 13,000 lb |
| Empty Weight | Est 4,200 lb |
| Deck Length | 20' + 5' |
| Deck Width | 102" Wide |
| Deck Height | 36" |
| Frame | Extruded 10" Channel |
| Suspension | Heavy-Duty Slipper Spring with 48" Axle Spread |

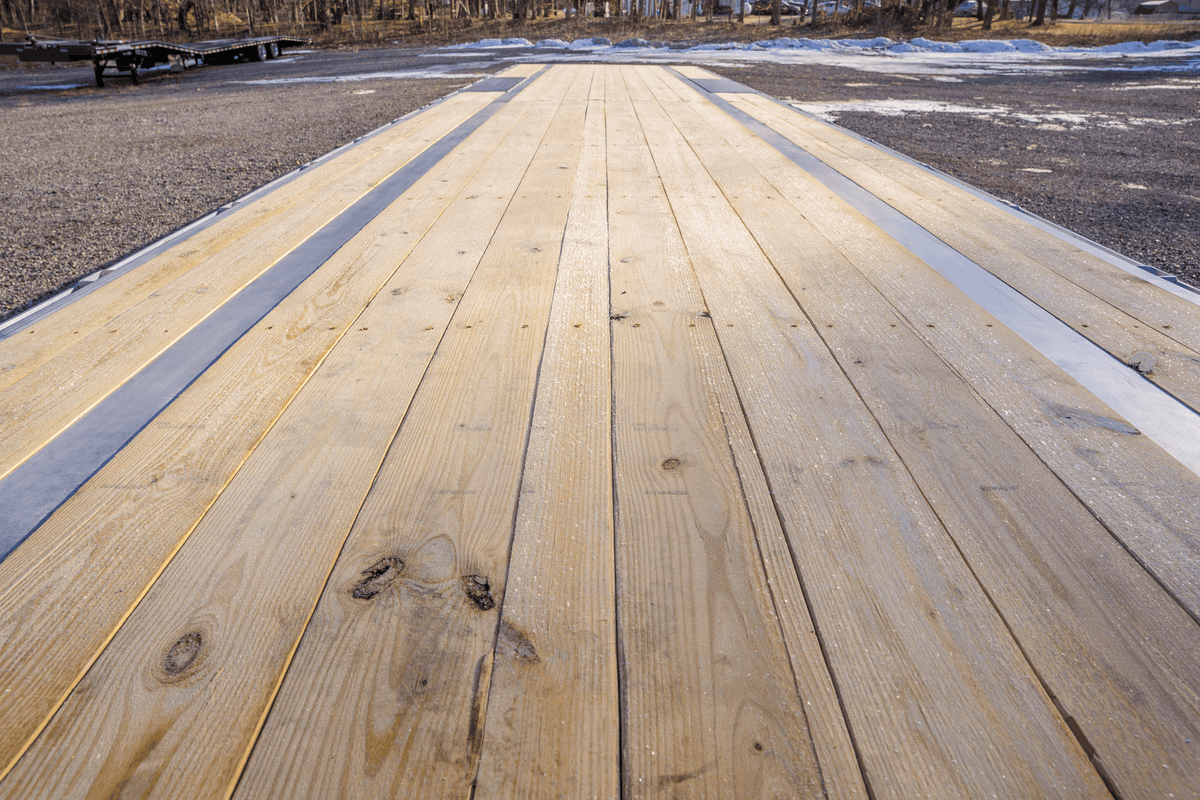

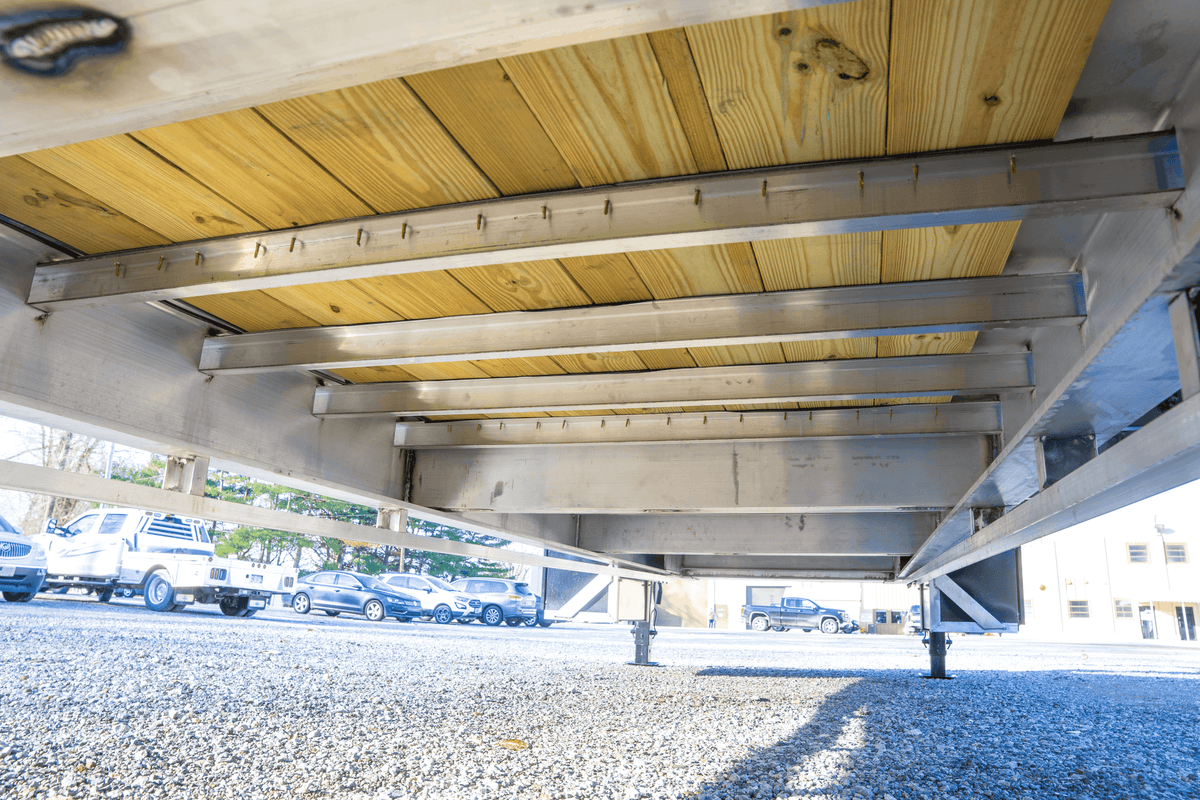

| Floor | 2 x 6 Southern Yellow Pine |

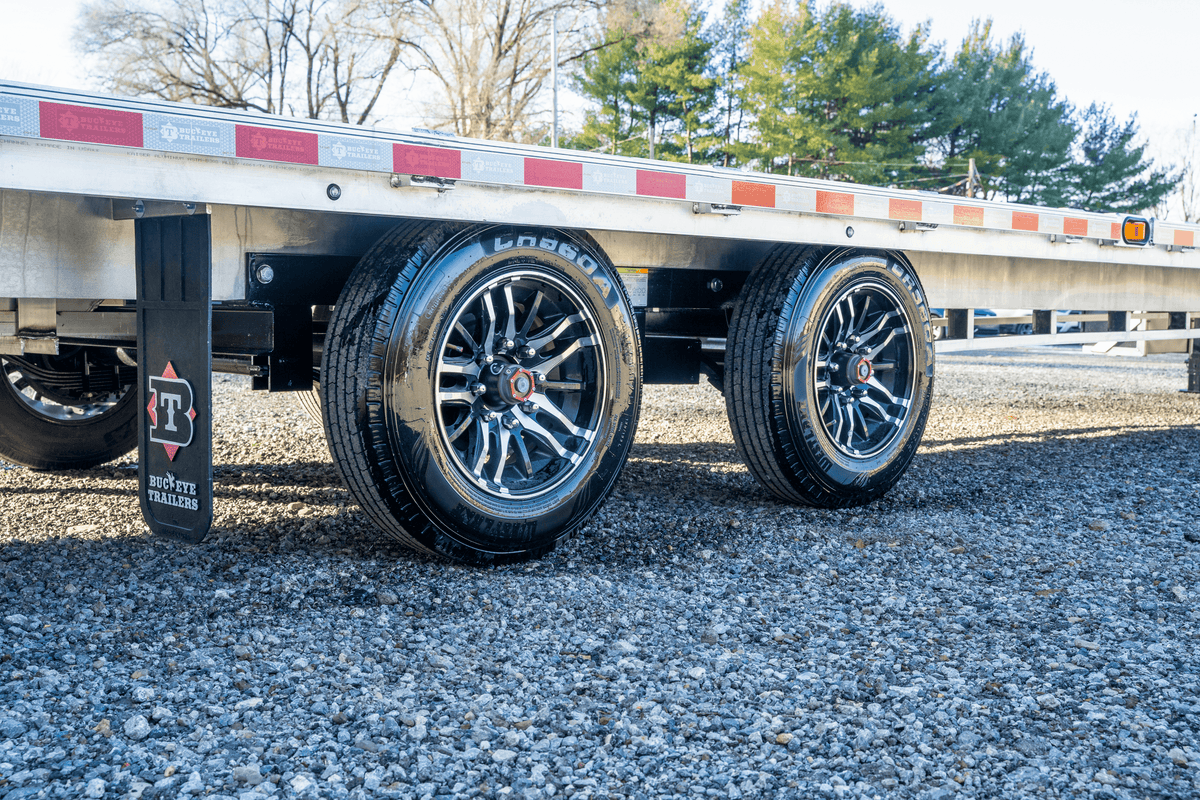

| Axles | Tandem 8k Heavy-Duty Lippert Axle |
| Tires | 235/80R16 Load Range G |
| Wheels | Premium Heavy-Duty Aluminum 16" |
| Bolt Pattern | 8-Lug on 6.5" Bolt Pattern |

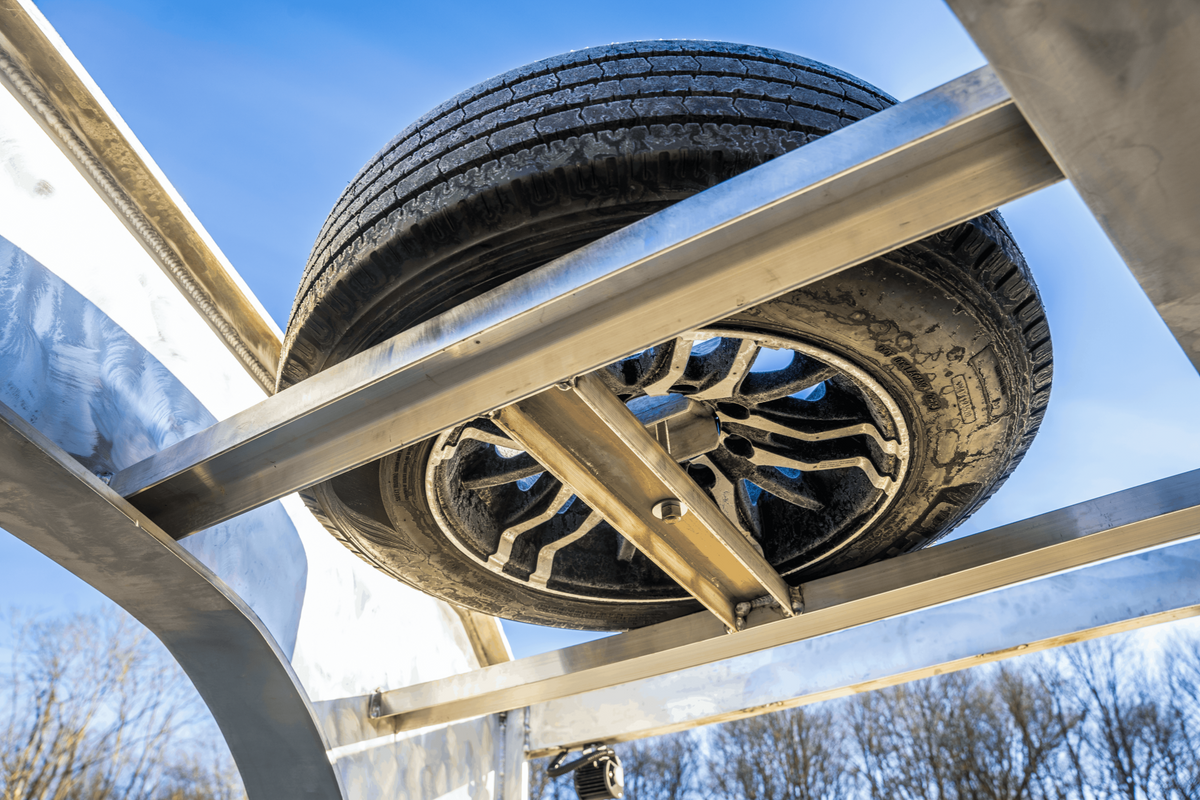

| Spare Mount | Standard Spare Mount |

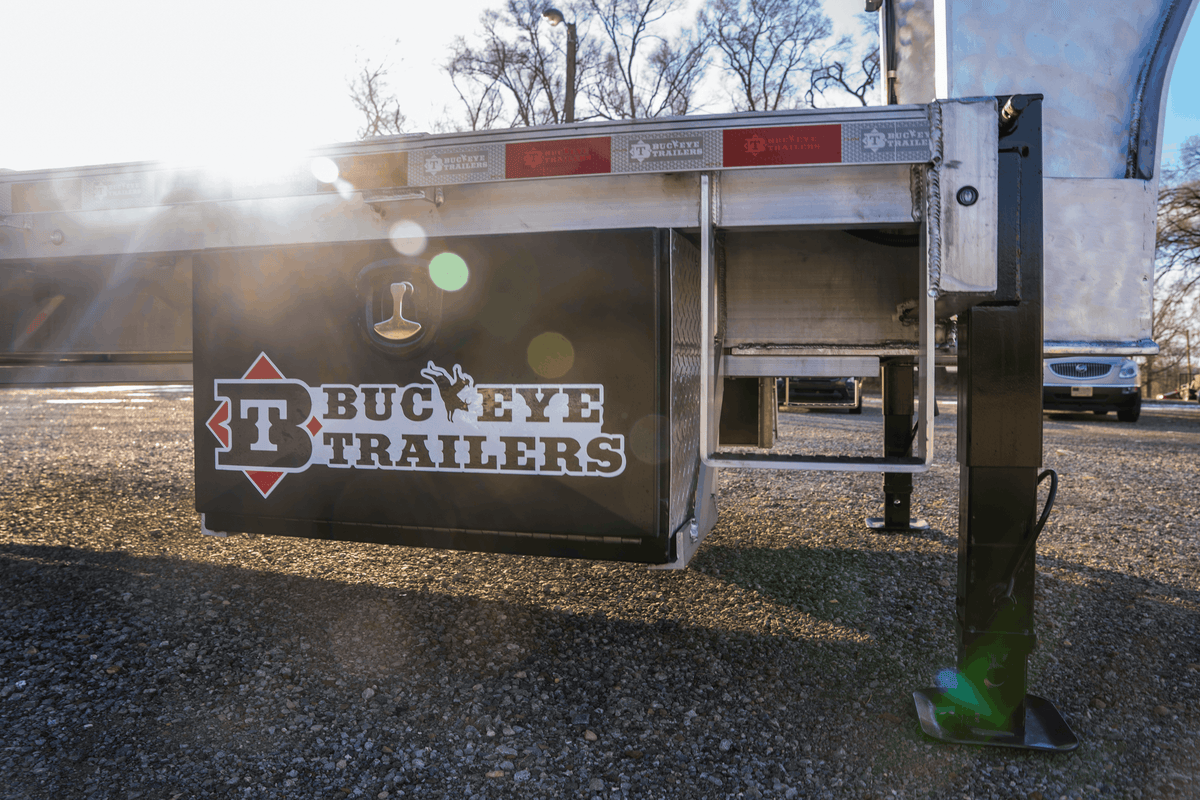

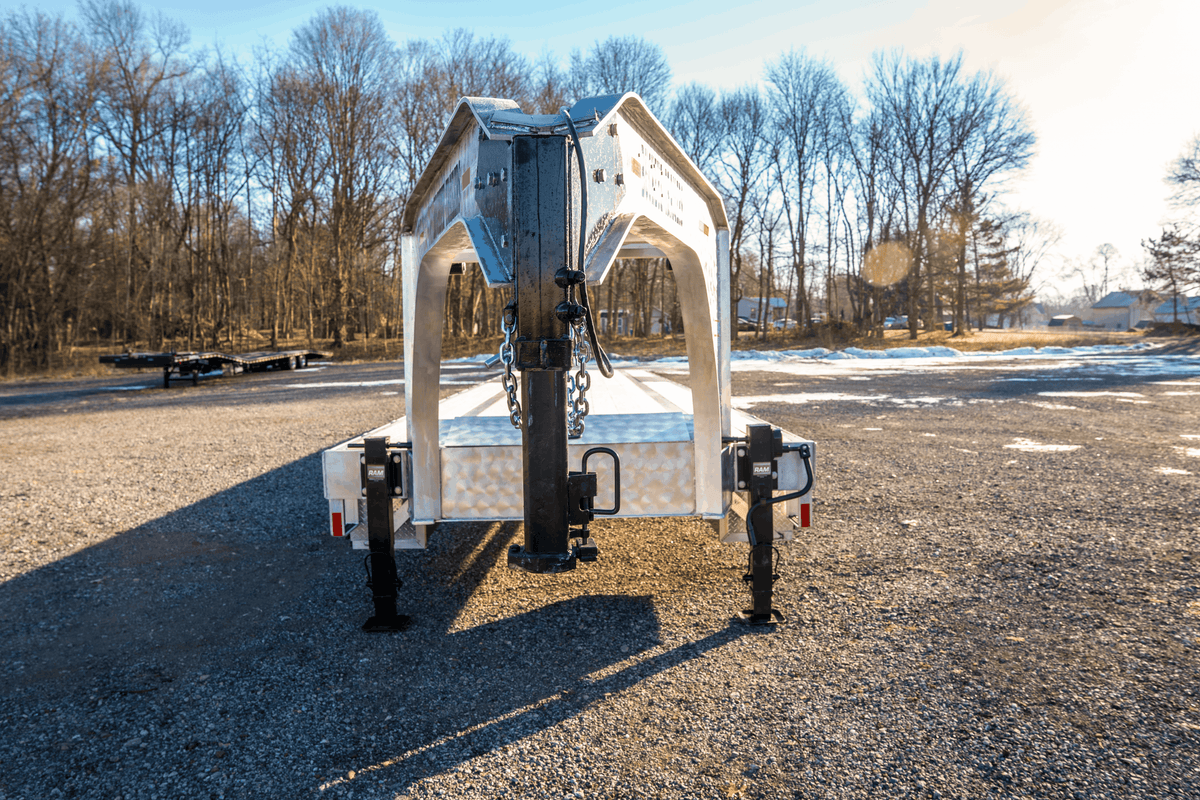

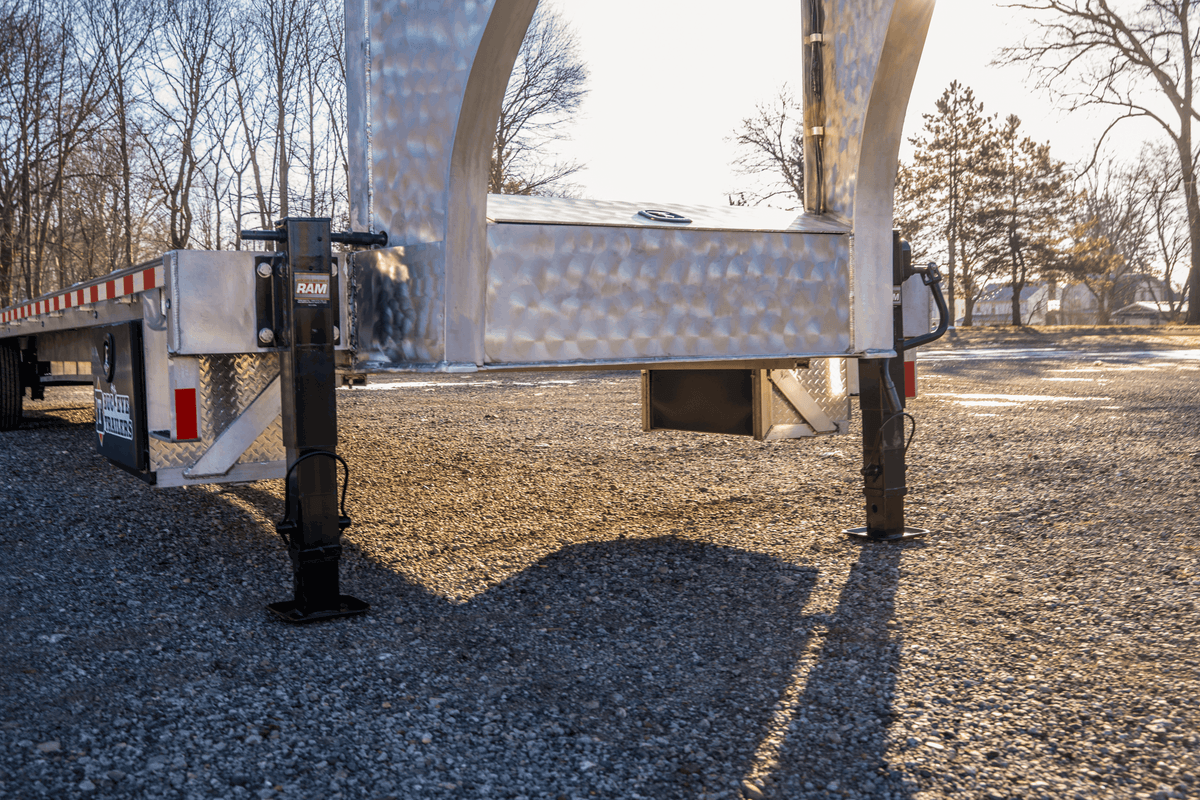

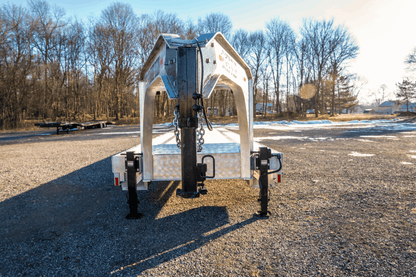

| Jacks | 2 Dual-Speed 12K Spring Loaded Drop Leg Jack |
| Brakes | Electric Brakes |
| Coupler | 2 5/16" Ball |
| Tie Downs | 3" x 3/8" Rub Rail, Stake Pocket and Chain Spools Every 18" |
| Ramps | 5' Stand Up Ramps |
| Safety | DOT-Approved Reflective Tape |
| Trailer Plug | 7-Way RV |
| Breakaway Kit | Breakaway Kit and Battery Box |
| Safety Chains | Heavy-Duty 3/8" Safety Chains |

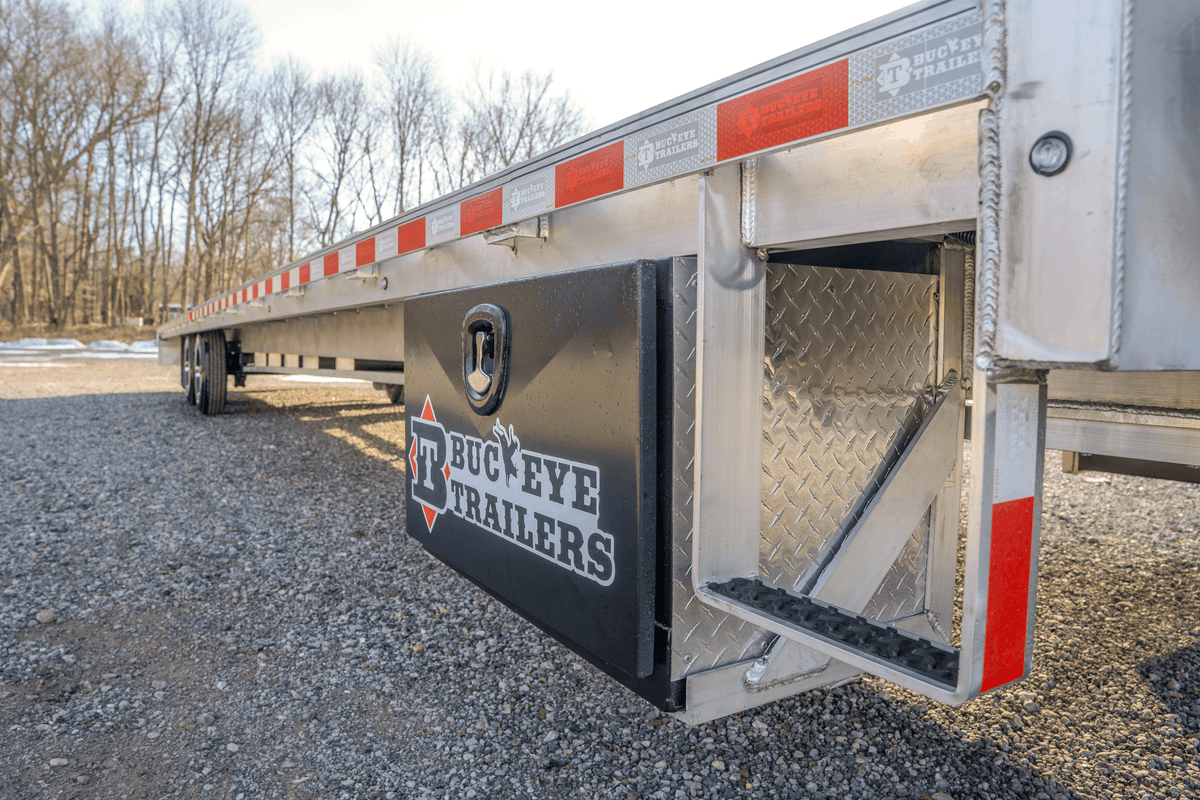

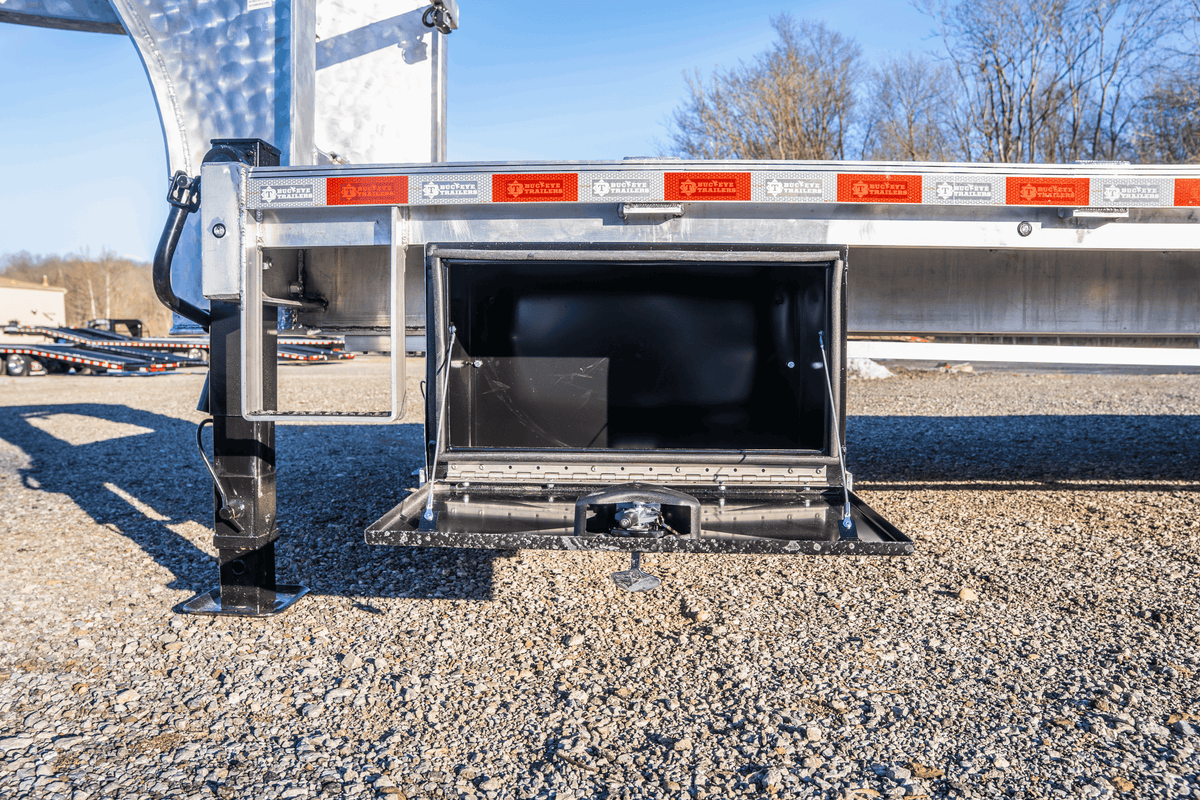

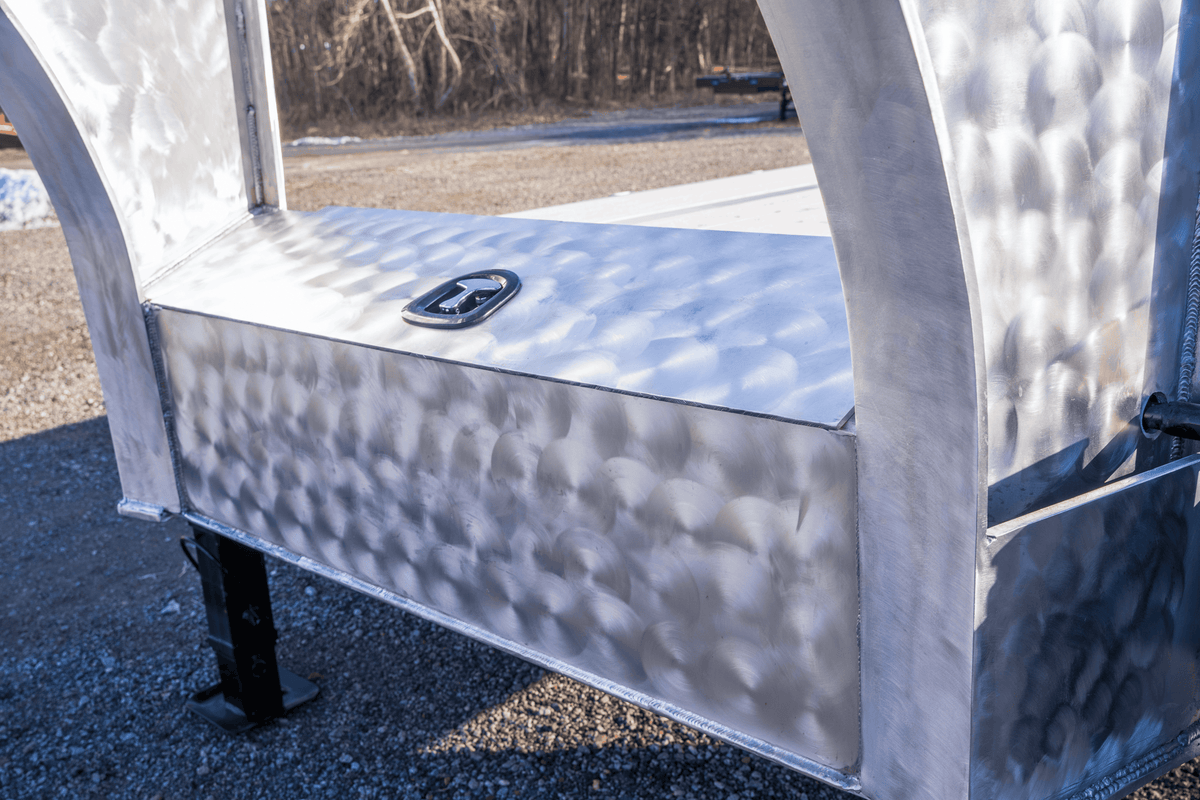

| Storage | Box For Transport Chains Between Uprights |

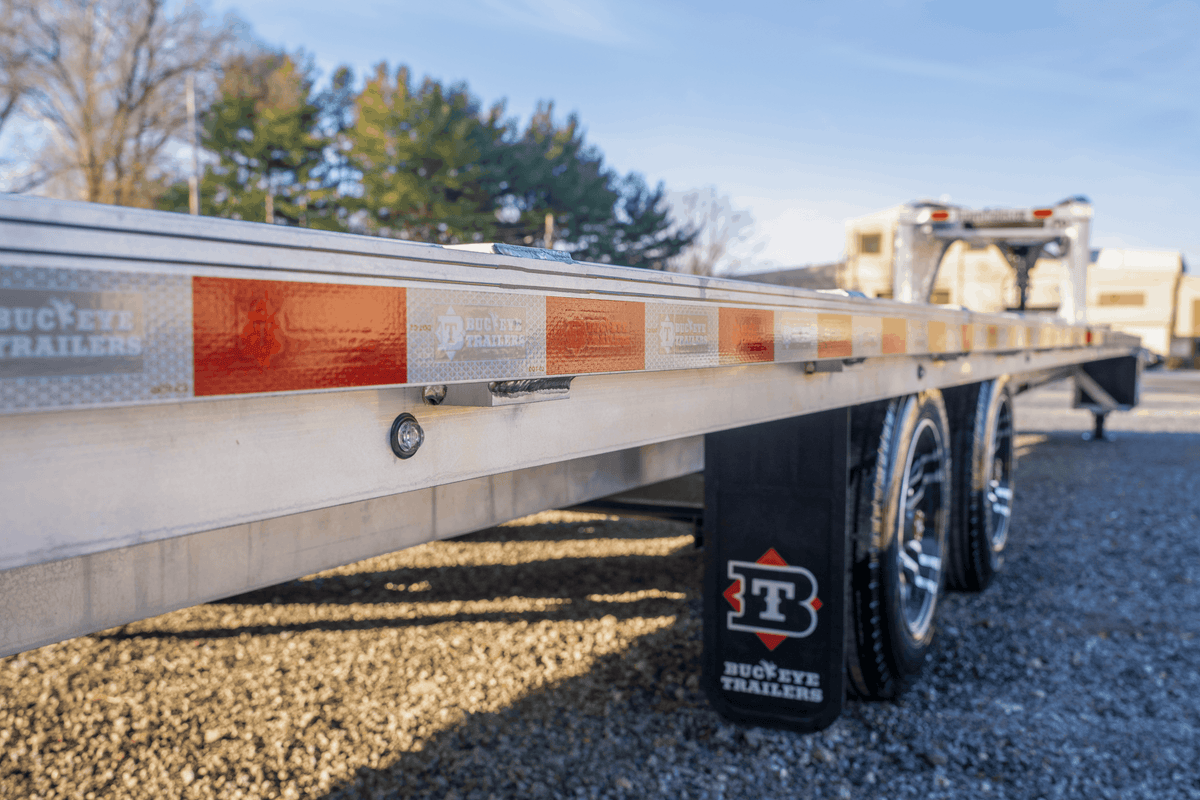

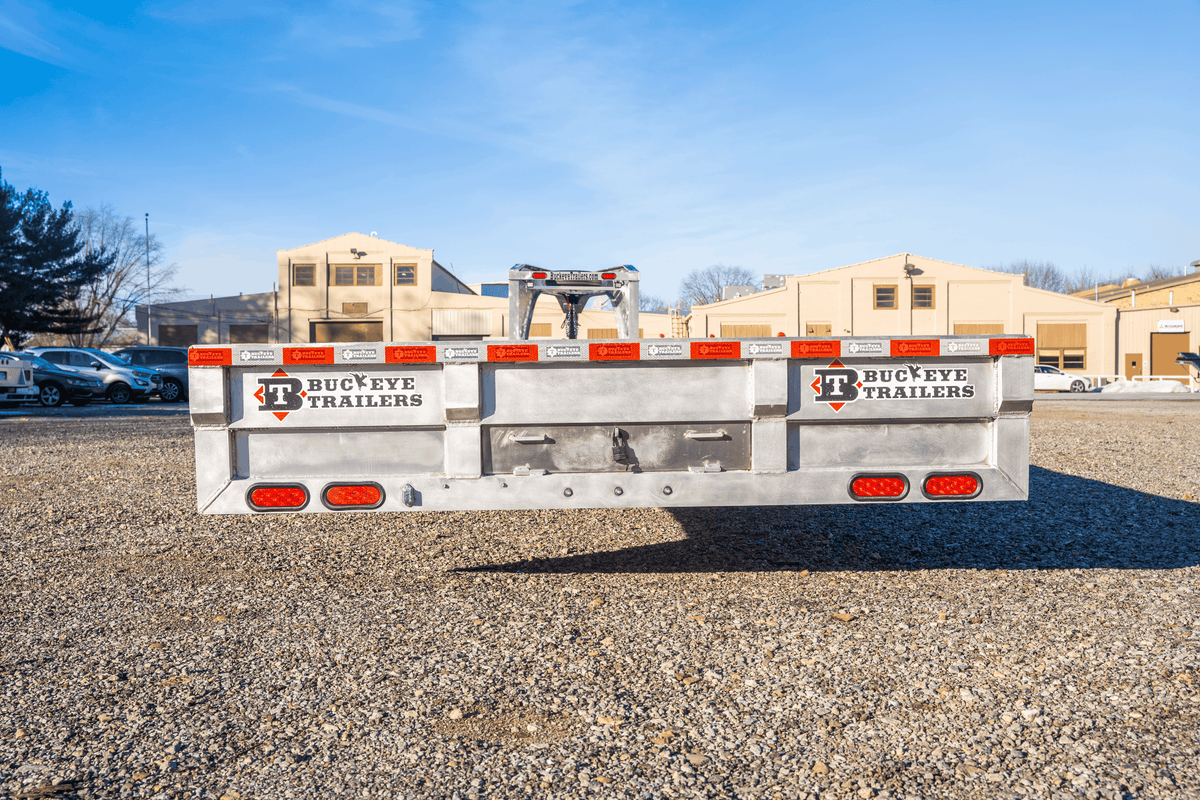

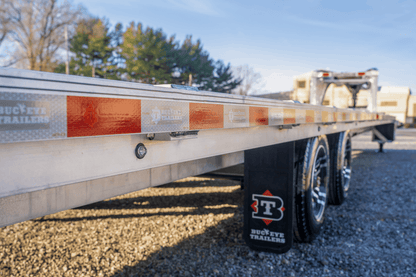

| Lights | DOT-Approved LED Lighting, 8 Extra Bullet Markers, and Floodlights on The Neck |
| Finish | Aluminum |
| Warranty | 2 Year Structural Frame |
Not included: Runners.
Specifications and pricing from Buckeye Trailers; subject to change without notice.
