PRODUCT DETAILS
Description

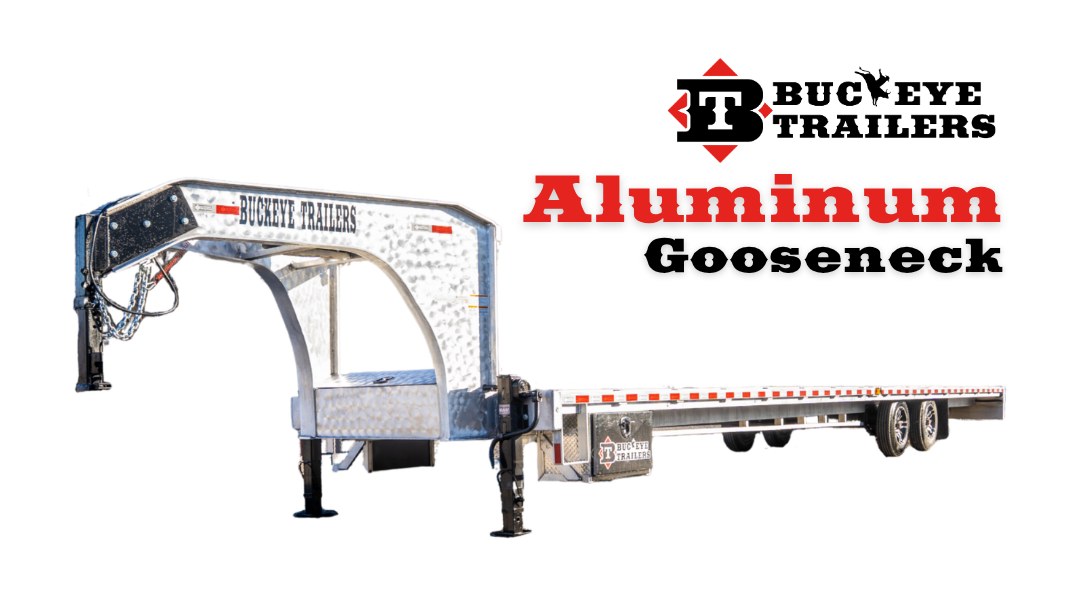

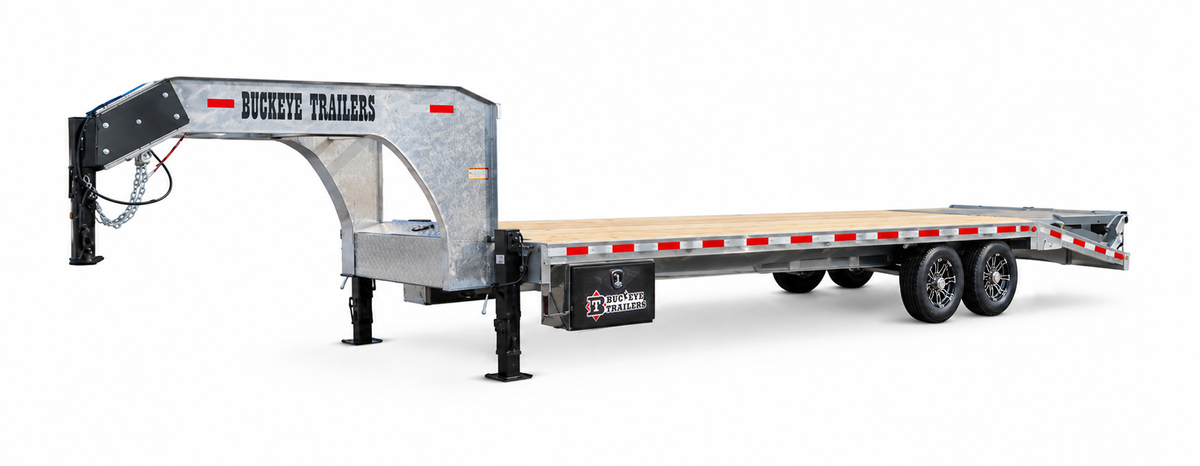

The A GN 20K-SS and 24-SS are full aluminum heavy-duty goosenecks engineered for operators who haul big and haul often. With a massive extruded 12" channel frame, deck lengths from 20' to 40', and a GVWR ranging from 20,000 to 30,000 lbs, these trailers handle the heaviest loads on the road without the weight penalty of steel. Dual 10K HD Dexter oil bath axles, standard layflat ramps, premium aluminum 17.5" wheels, and a full upgrade list mean it's ready to work exactly the way you need it.
Trailer Town is a Buckeye Trailers dealer. Pick your deck length and the upgrades you need, then send us your build. Prices shown are Buckeye's minimum advertised price (MAP), FOB the Buckeye factory: freight, delivery, tax, tag and registration are extra.
Standard features
| Trailer | 20' Flat Deck with 5' stand up ramps |
|---|---|
| GVWR | 20,000 - 30,000 lb |
| Payload | 14,300 - 24,300 lb |
| Empty Weight | Est 5,700 lb |
| Deck Length | 20 + 5' |
| Deck Width | 102" Wide |
| Deck Height | 35" |
| Frame | Extruded 12" Channel with 5" Flange |
| Suspension | Heavy-Duty Slipper Spring with 48" Axle Spread |

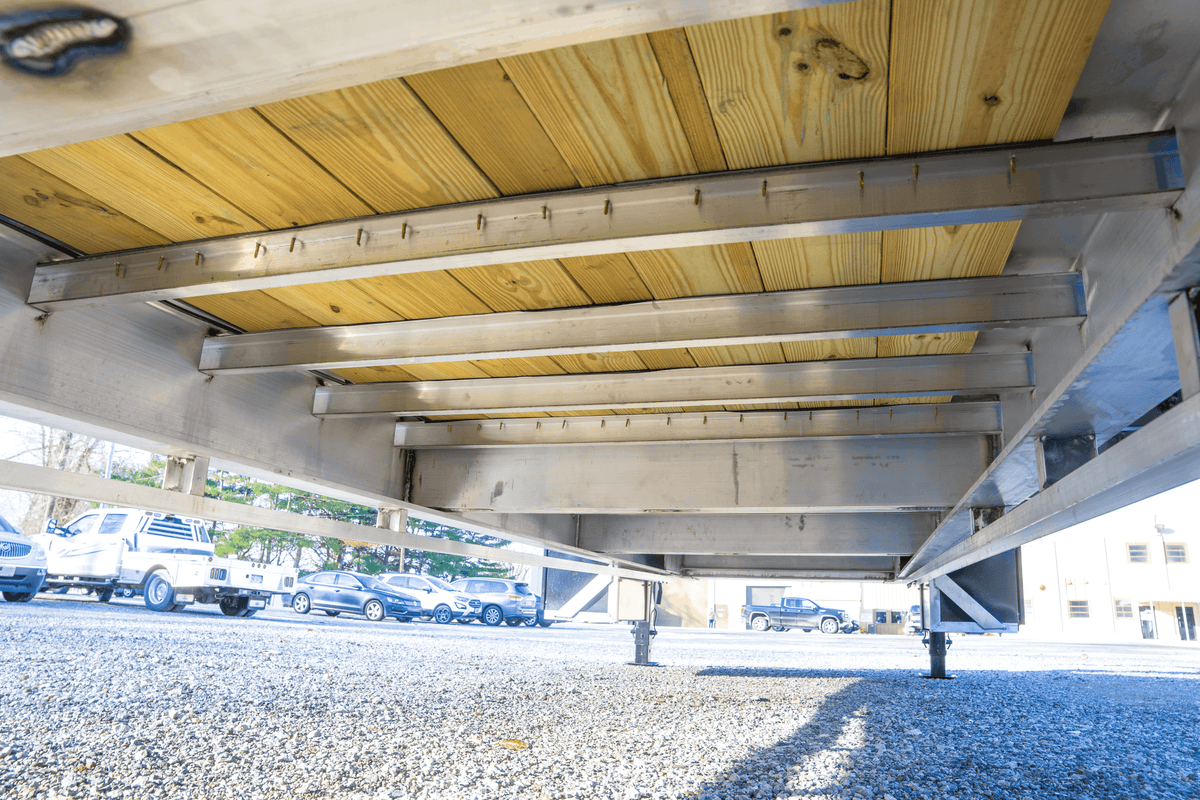

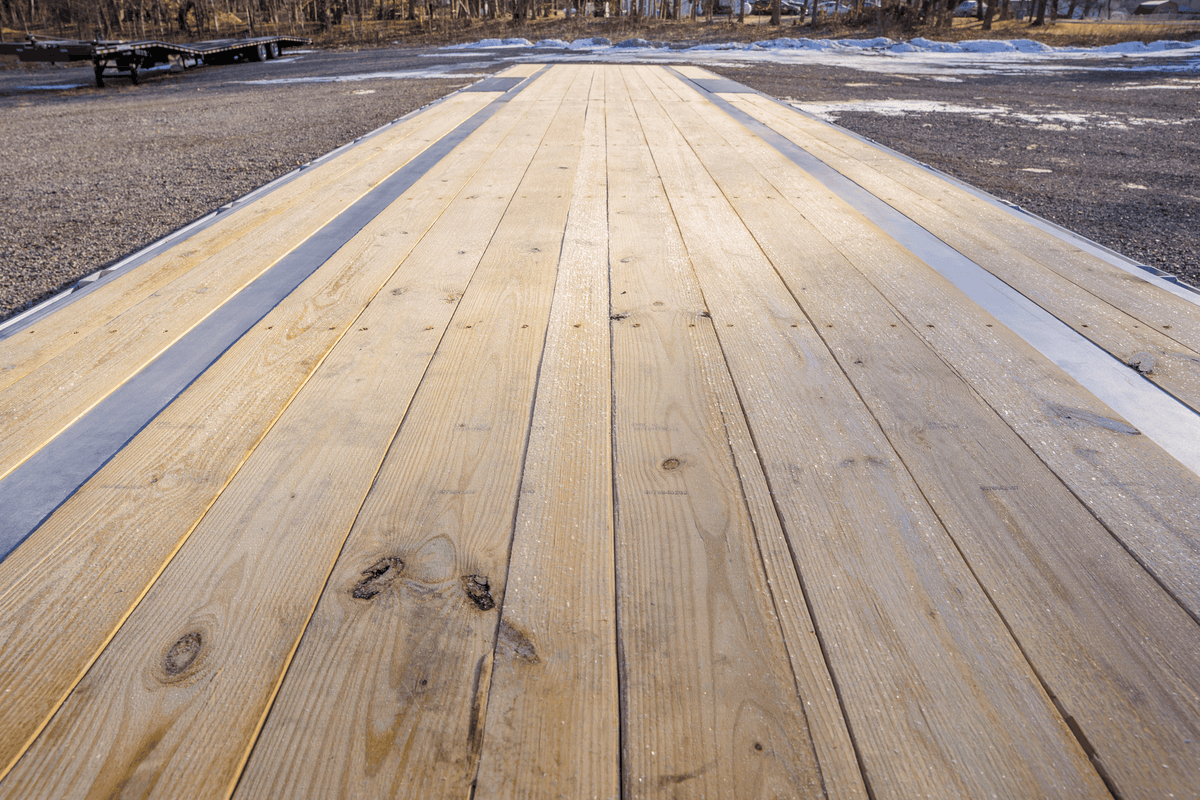

| Floor | 2 x 6 Southern Yellow Pine |
| Axles | Dual 10K Heavy-Duty Dexter Oil Bath Axles 5-Year Warranty |
| Tires | 235/75R17.5 |

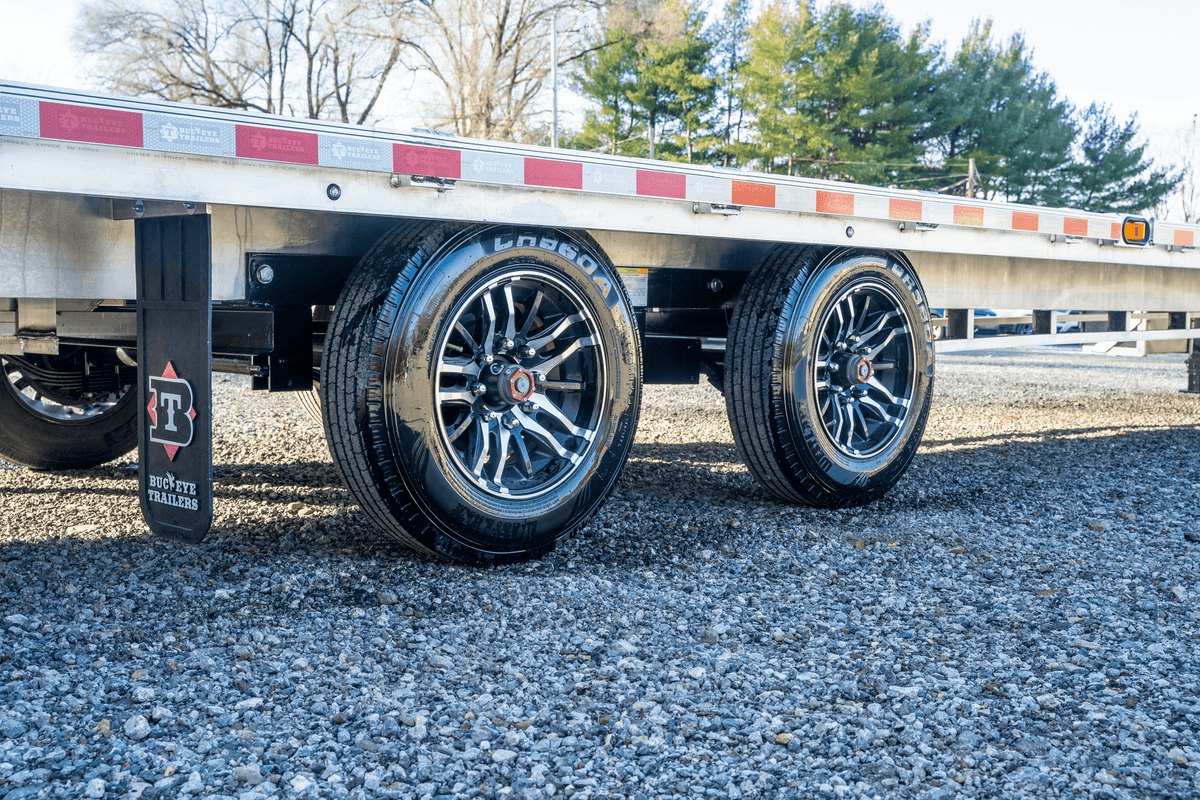

| Wheels | Premium Aluminum 17.5" |
| Bolt Pattern | 8-Lug on 6.5" Bolt Pattern |

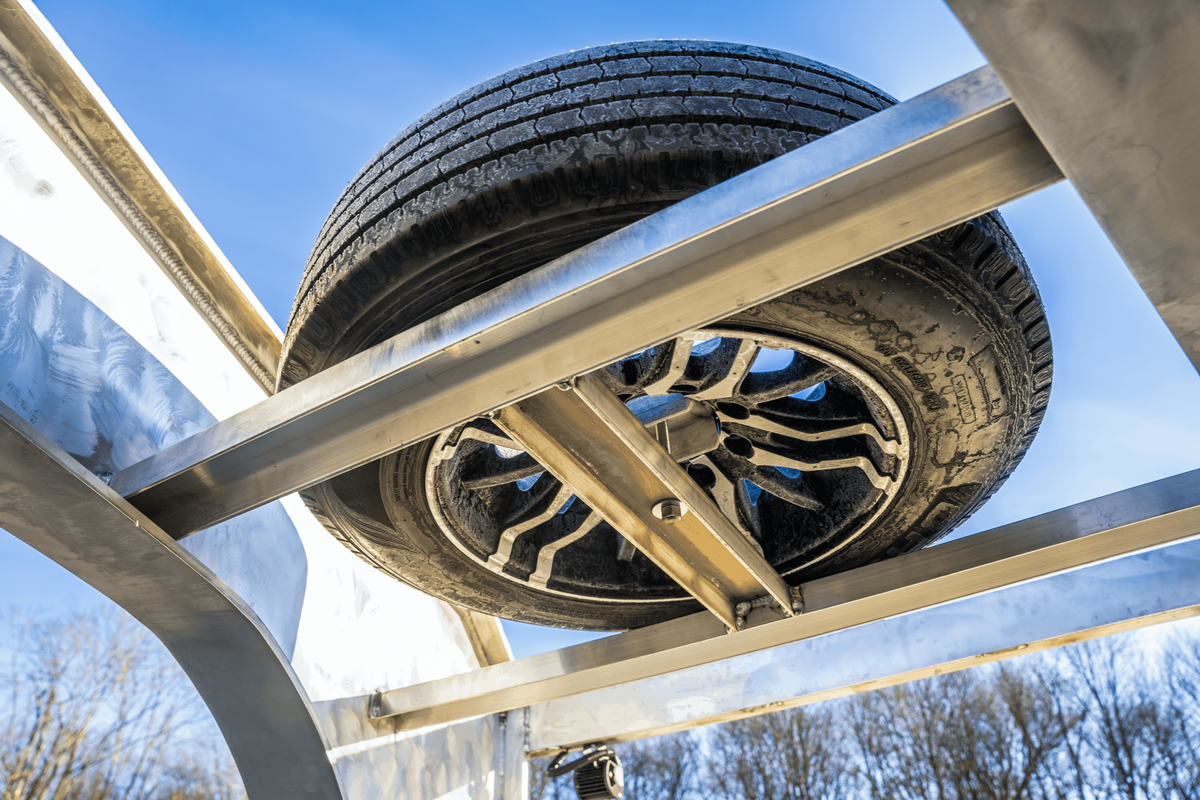

| Spare Mount | Spare mount |

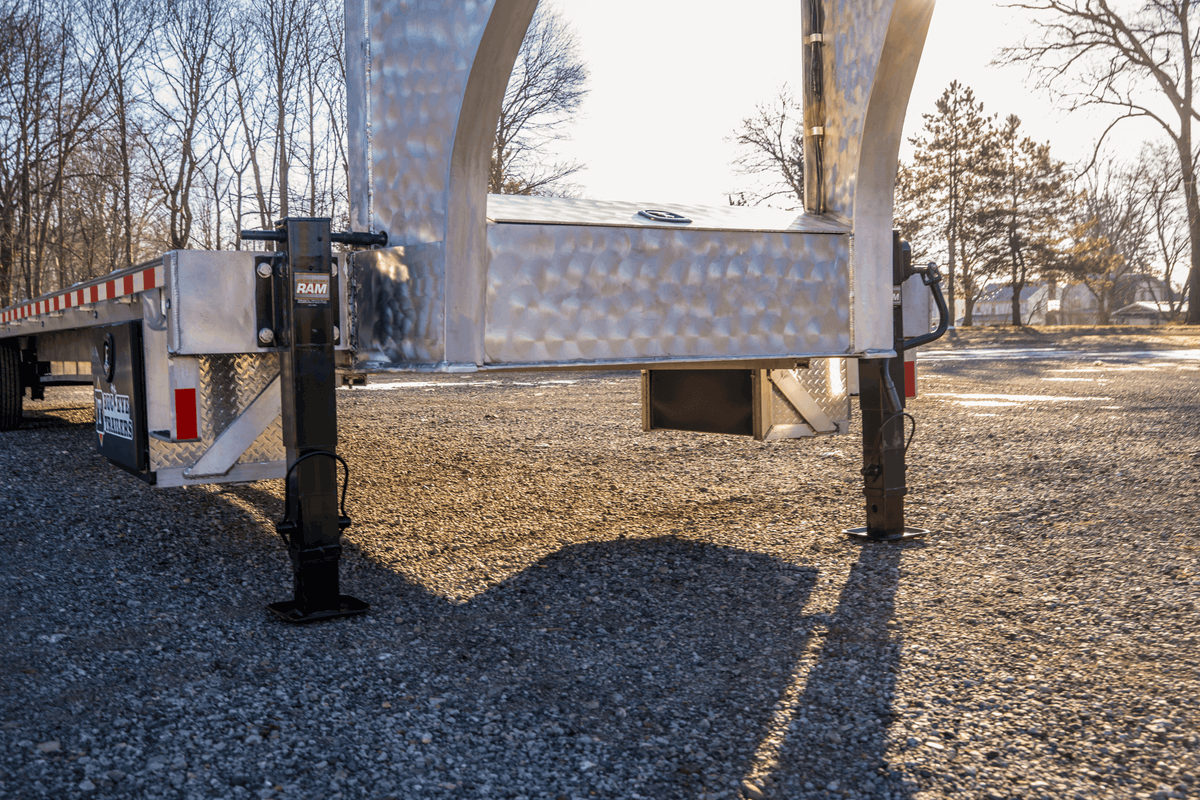

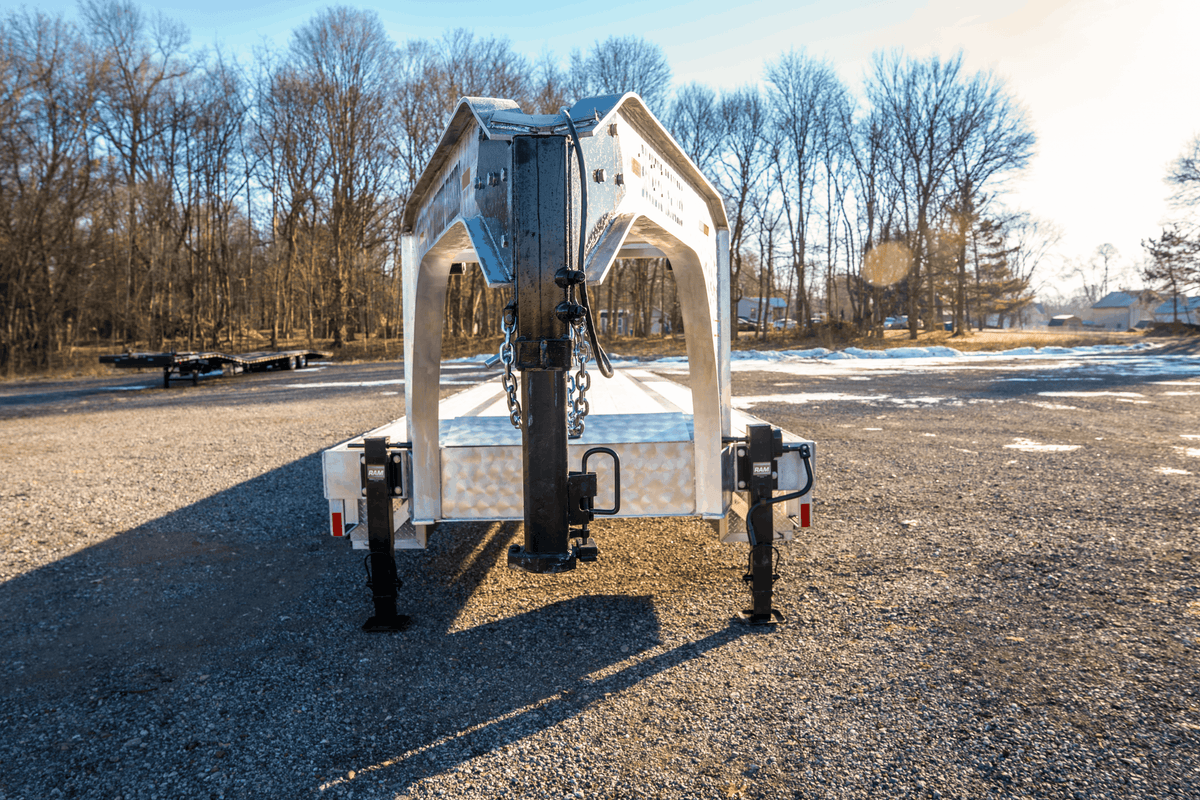

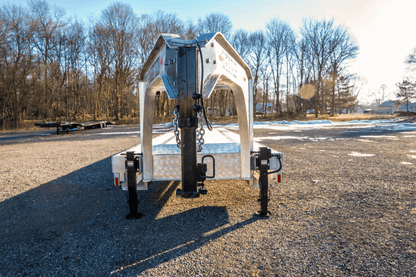

| Jacks | 2 Dual-Speed 12K Spring Loaded Drop Leg Jack |
| Brakes | Electric Brakes |
| Coupler | 2 5/16" Ball |

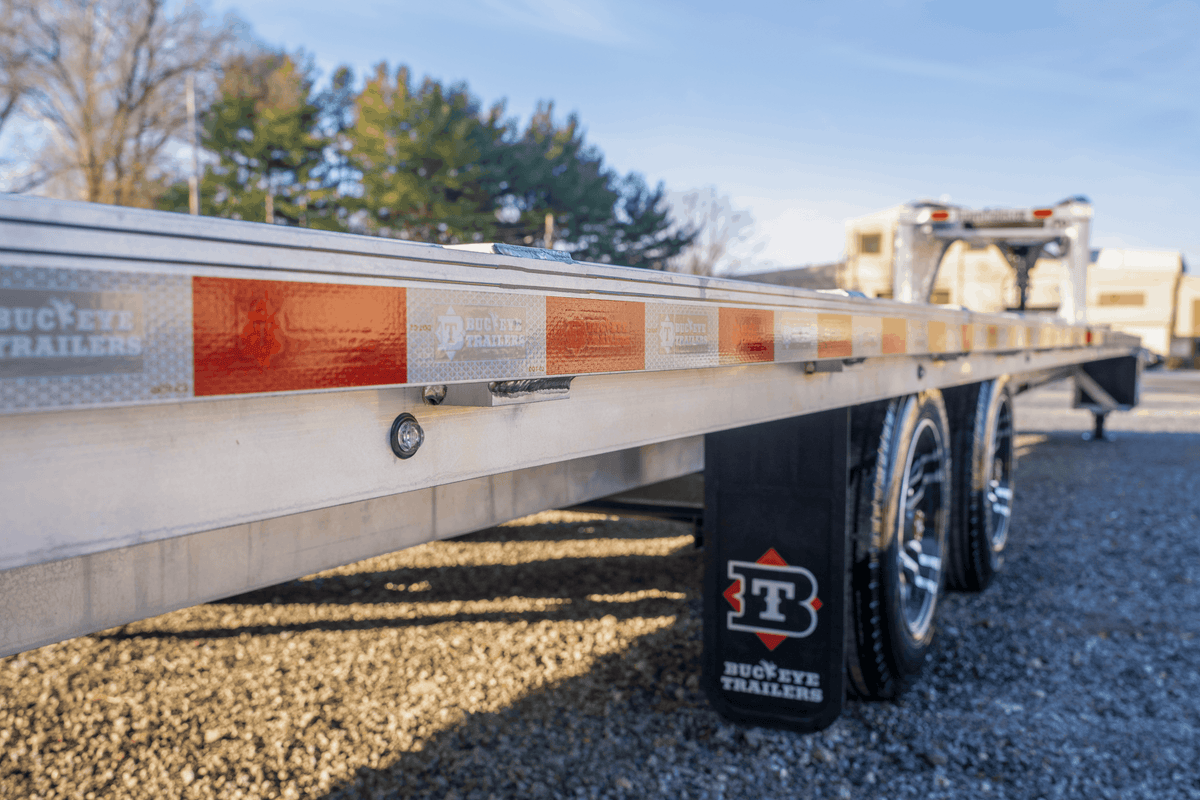

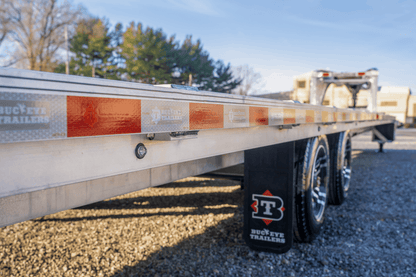

| Tie Downs | 3" x 3/8" Rub Rail, Stake Pocket and Chain Spools Every 18" |
| Ramps | 5' Stand-Up Ramps |
| Safety | DOT-Approved Reflective Tape |
| Trailer Plug | 7-Way RV |

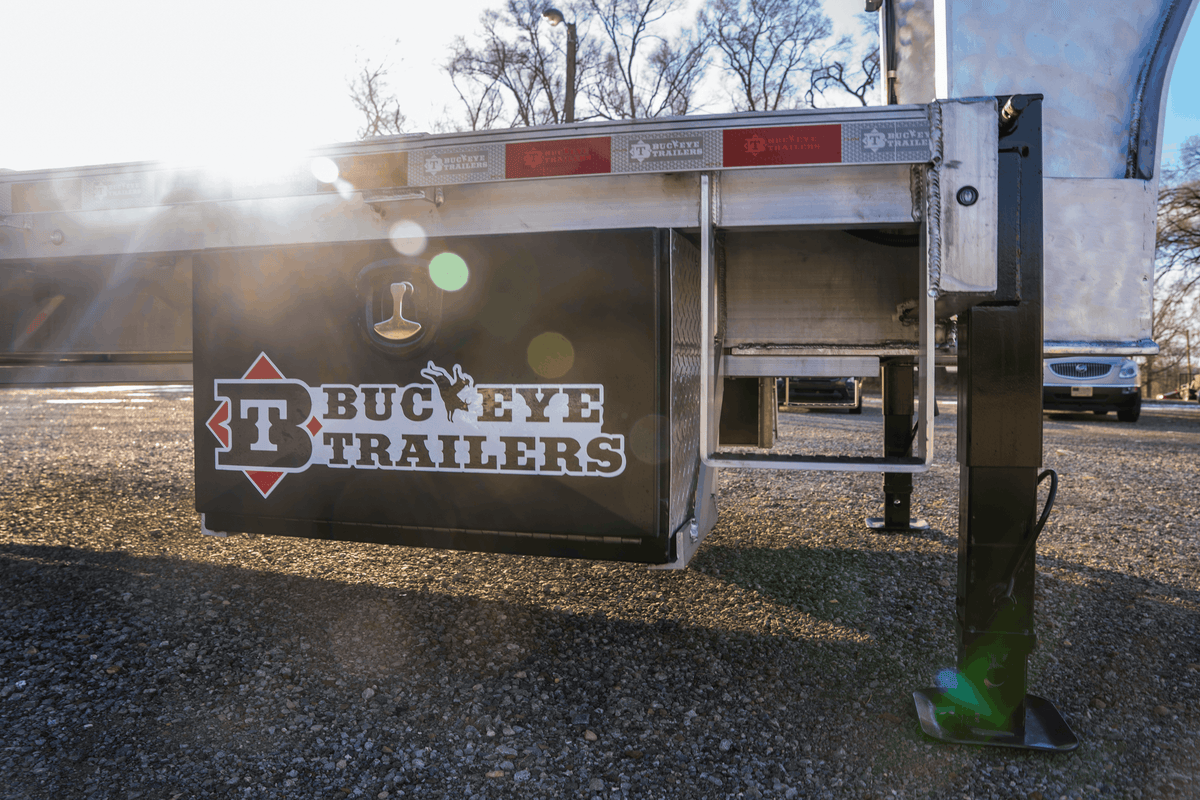

| Breakaway Kit | Breakaway Kit and Battery Box |
| Safety Chains | Heavy-Duty 3/8" Safety Chains |

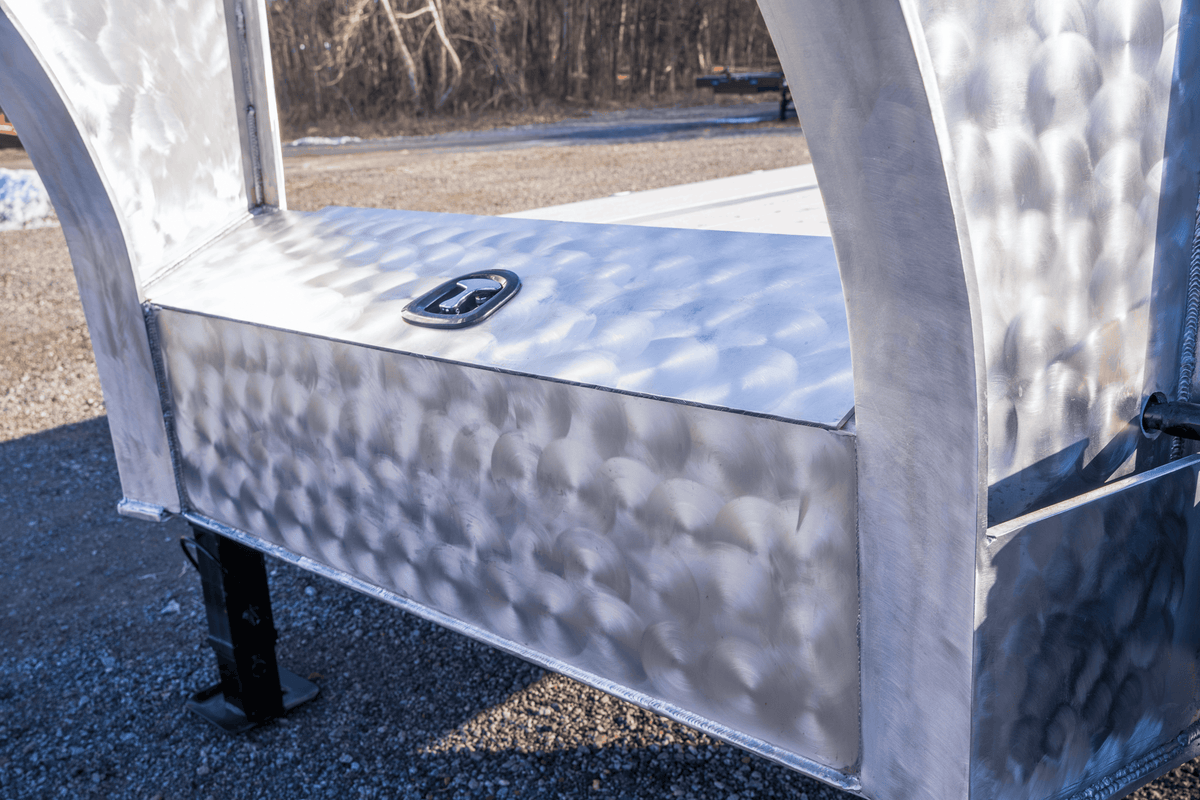

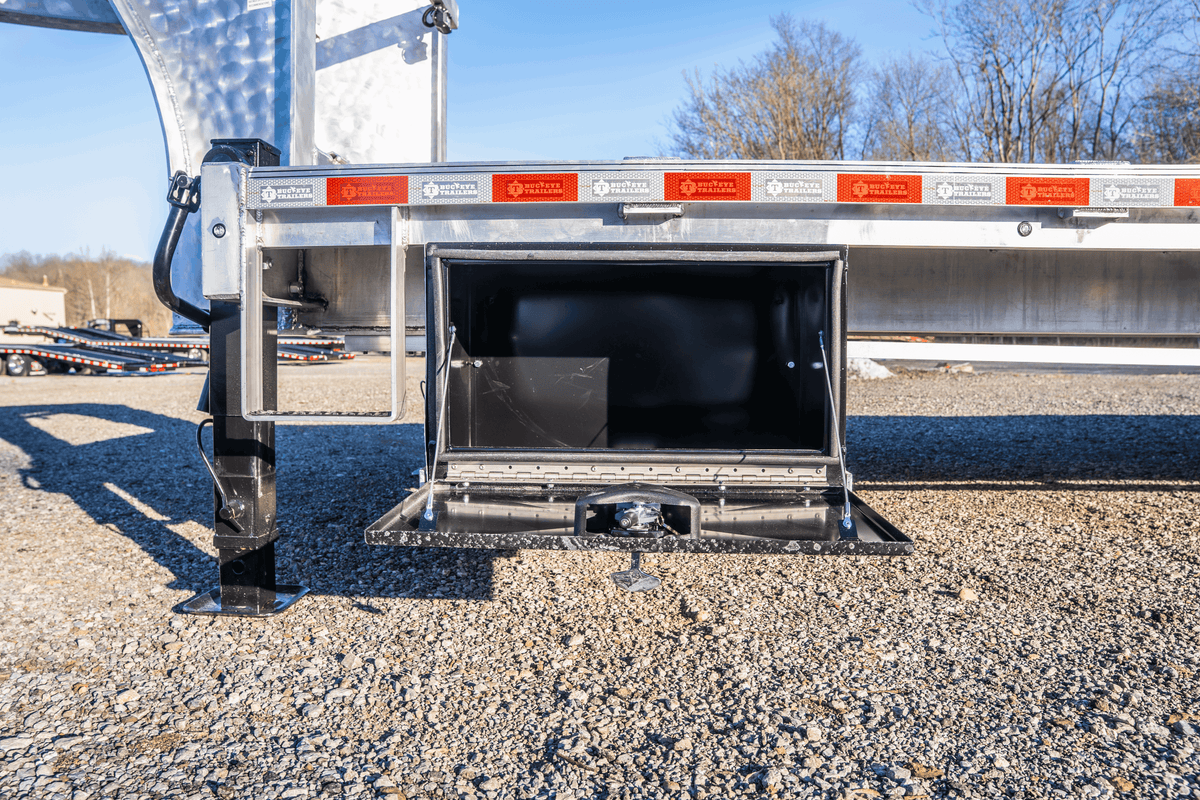

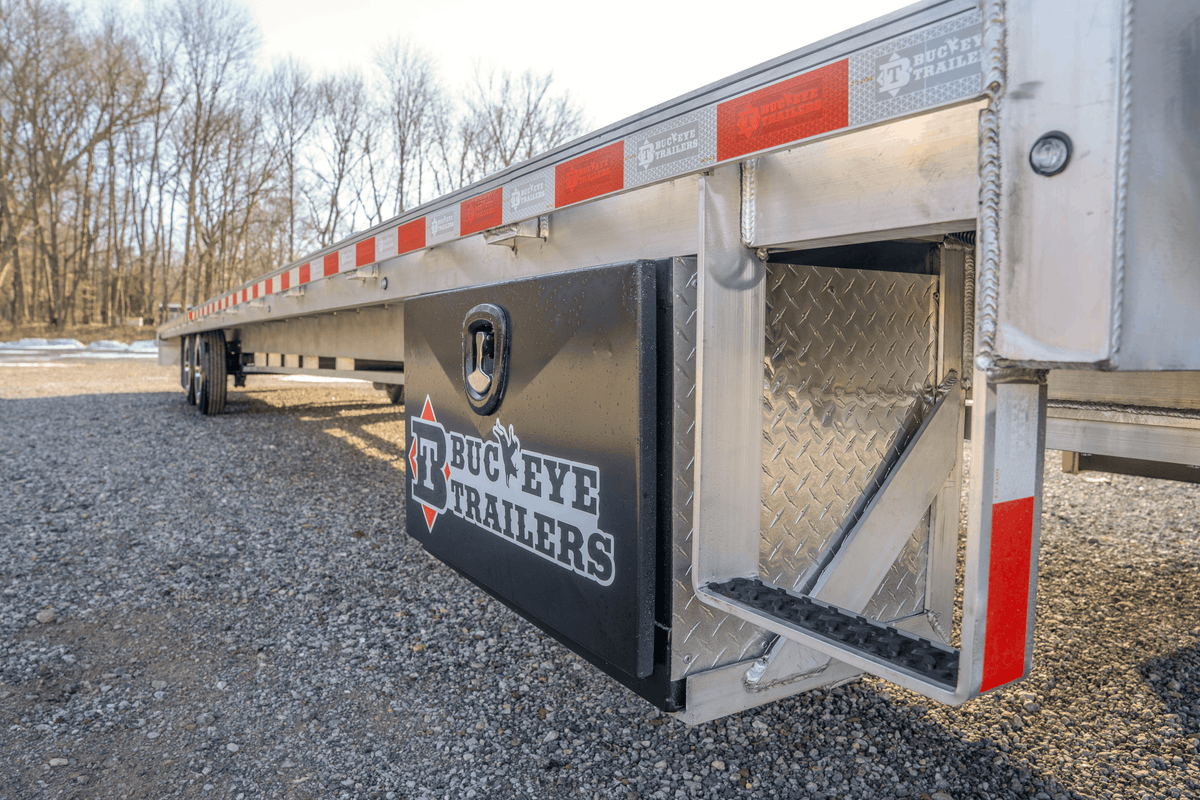

| Storage | Box For Transport Chains Between Uprights |

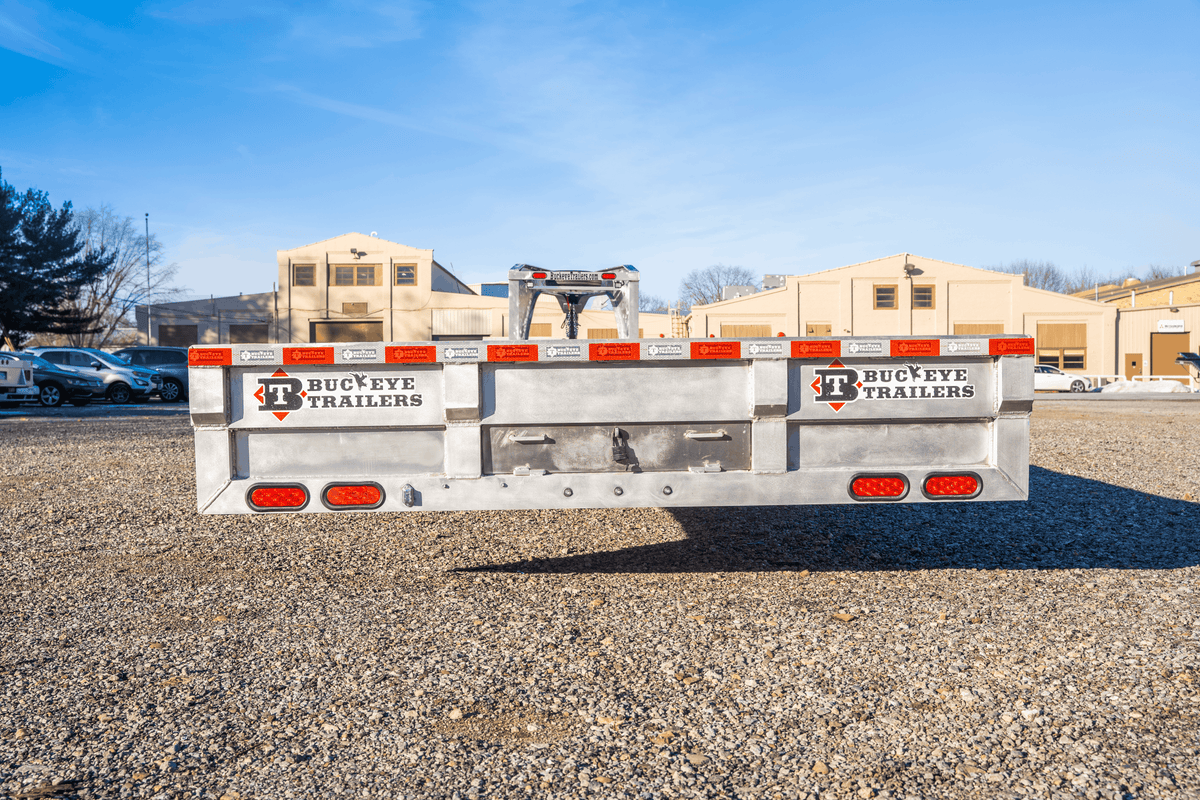

| Lights | DOT-Approved LED Lighting, 8 Extra Bullet Markers, and Floodlights on The Neck |
| Finish | Aluminum |
| Warranty | 2 Year Structural Frame |
Not included: Runners.
Specifications and pricing from Buckeye Trailers; subject to change without notice.
