PRODUCT DETAILS
Description

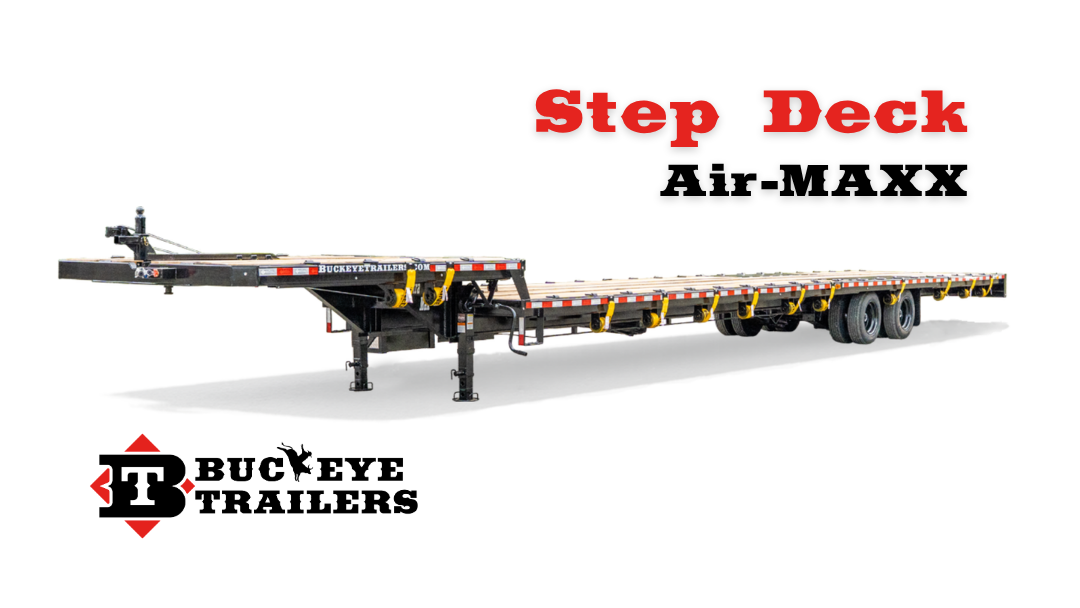

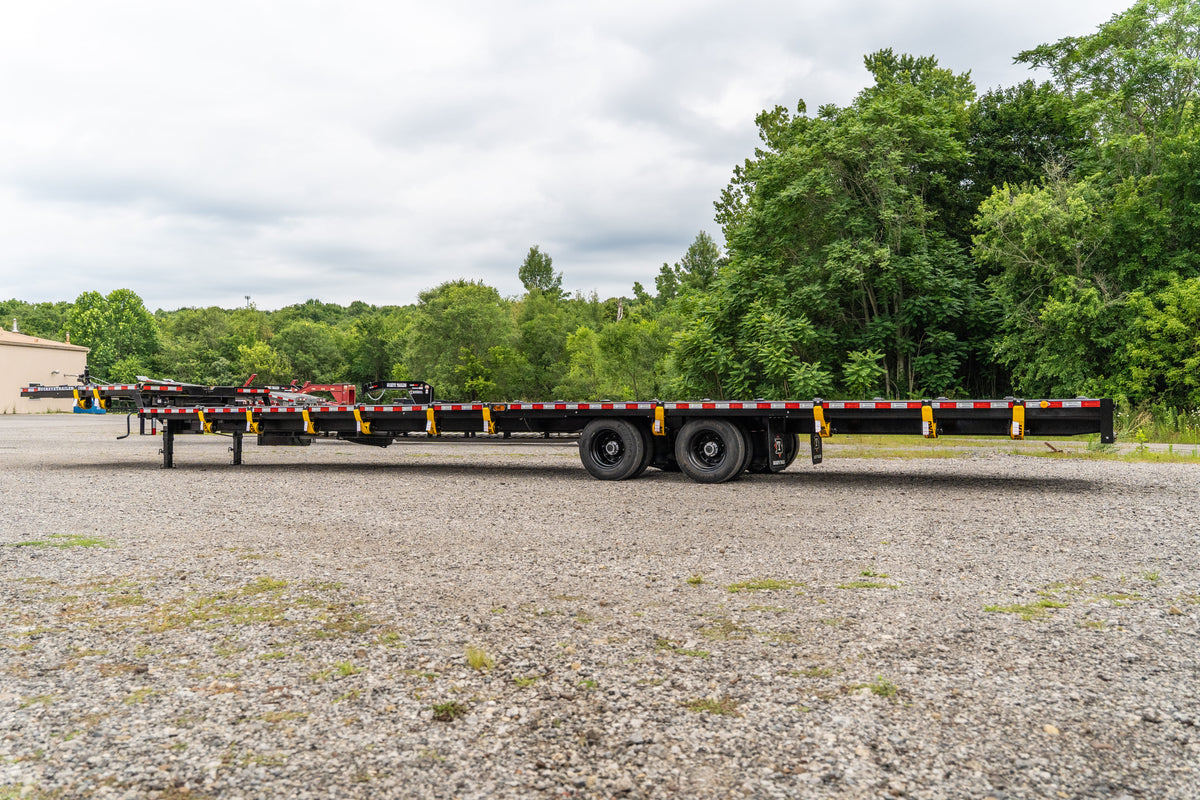

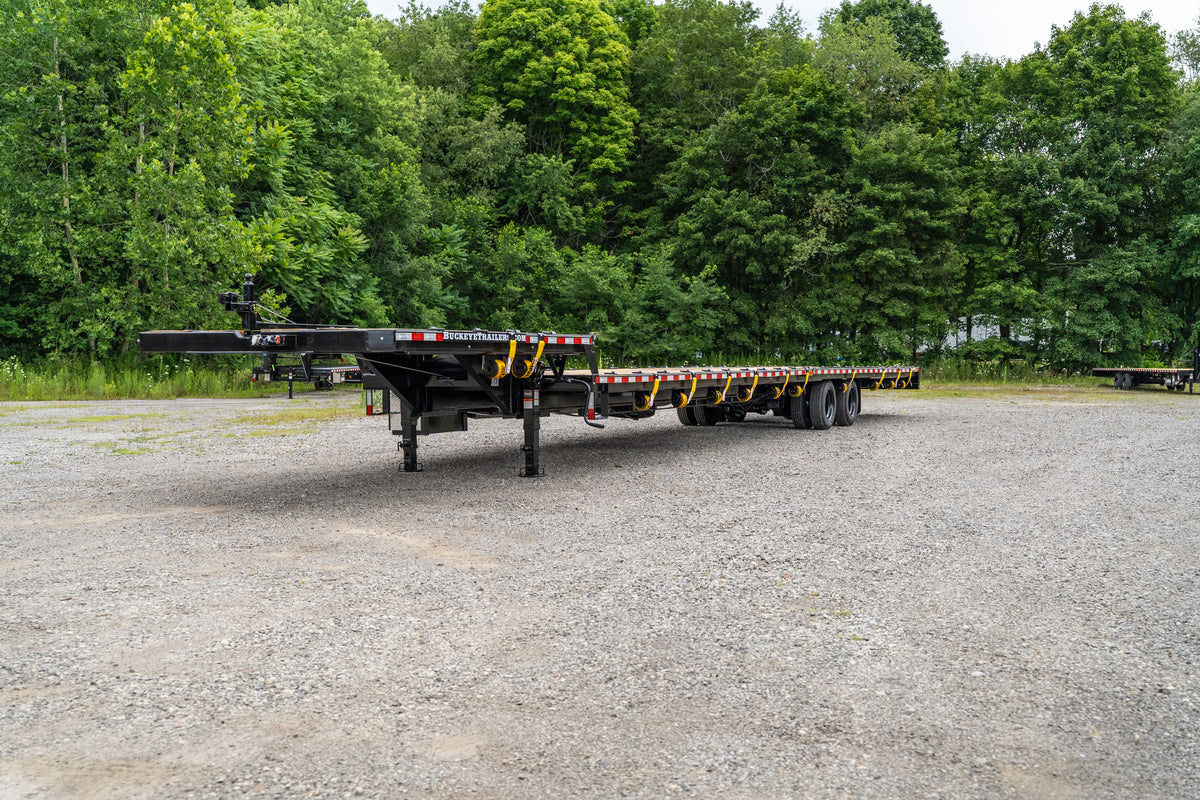

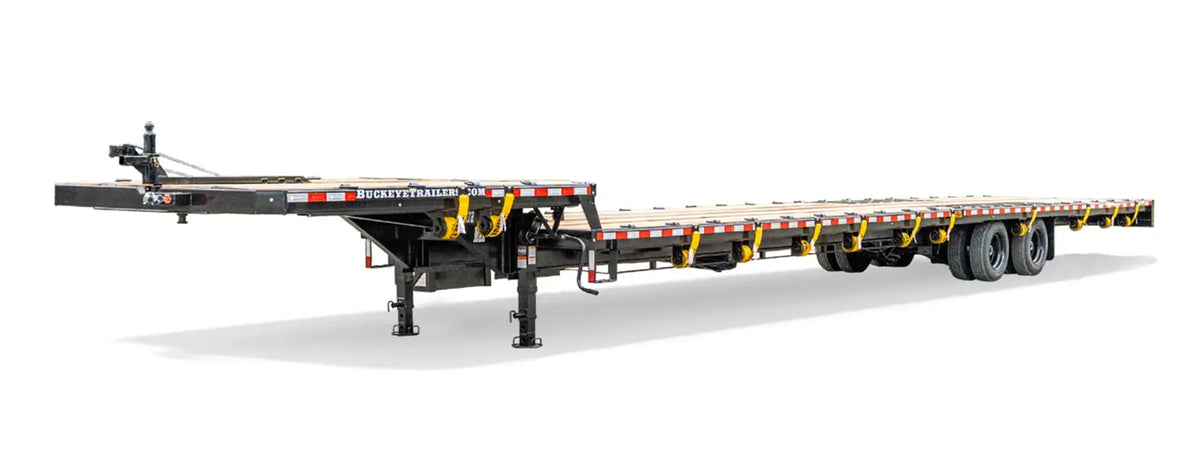

The Step Deck Air-MAXX 56K is a high-capacity step deck trailer built for demanding equipment and freight hauling. With GVWR ratings from 45,500 to 56,000 lb and payloads up to 44,500 lb, it features a 10’ upper deck and 38’ flat deck with a 102” width and 36” lower deck height. A heavy-duty cambered I-beam frame, Hutch 9700 suspension with a 49” axle spread, and dual 25,000 lb oil bath axles provide strength and stability. Equipped with 18-Ply 215/75R17.5 tires, dual 25K jacks, air brakes with ABS, 20,000 lb aluminum ramps, and DOT-approved LED lighting, the Air-MAXX 56K is built for heavy-duty performance.
Trailer Town is a Buckeye Trailers dealer. Pick your deck length and the upgrades you need, then send us your build. Prices shown are Buckeye's minimum advertised price (MAP), FOB the Buckeye factory: freight, delivery, tax, tag and registration are extra.
Standard features
| Trailer | Step Deck |
|---|---|
| GVWR | 45,500 - 56,000 lb |
| Payload | 34,000 - 44,500 lb |
| Empty Weight | 11,500 lb |
| Deck Length | 10' Upper-Deck 38' Flat Deck |
| Deck Width | 102" |
| Deck Height | 36" Lower-Deck, Upper-Deck 8.5" Above the Fifth Wheel |
| Frame | Heavy-Duty Cambered I-Beam |
| Suspension | Hutch 9700 Suspension, 49” Axle Spread |

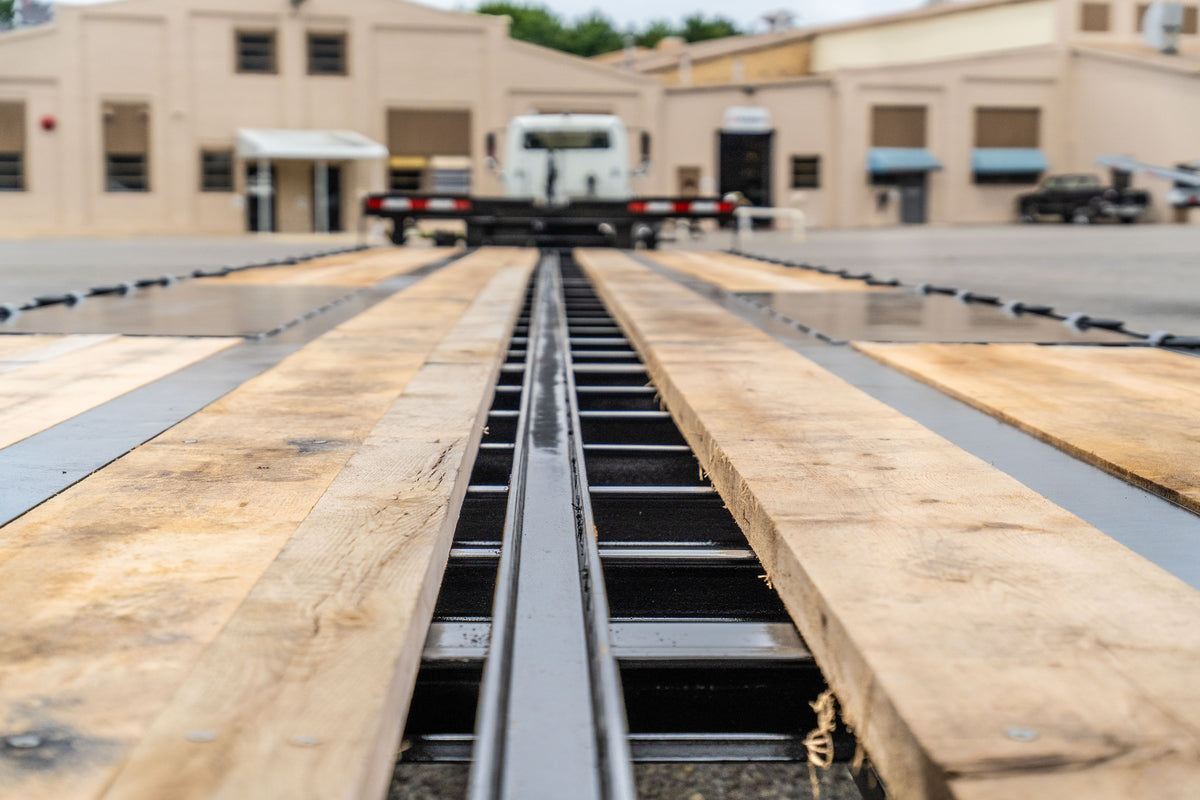

| Floor | 2” Nominal Oak Decking |

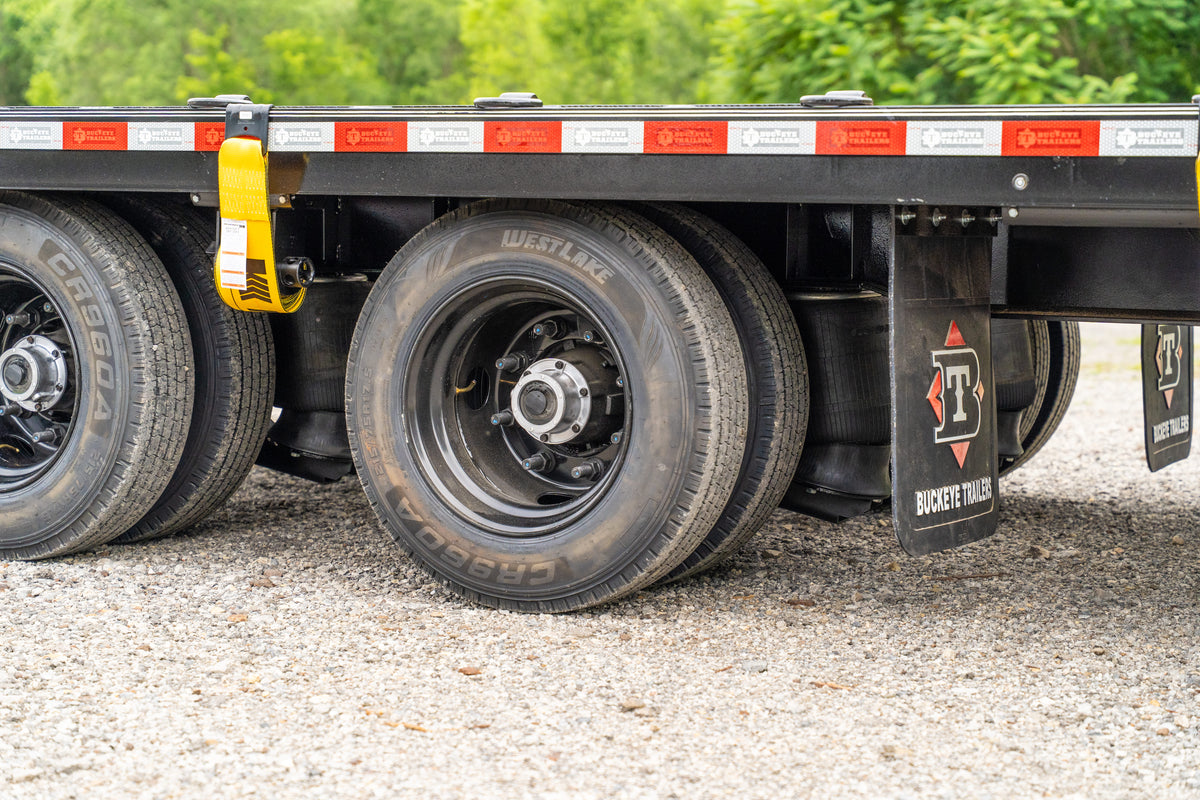

| Axles | 2 x 25,000 lb Heavy Wall Oil Bath Axles |
| Tires | 215/75R17.5 18-Ply Tires |
| Wheels | 17.5” Rims |
| Bolt Pattern | 8-Lug on 275 mm |
| Spare Mount | Undercarriage Spare Mount |
| Jacks | 2 Dual-Speed 25K Jacks |

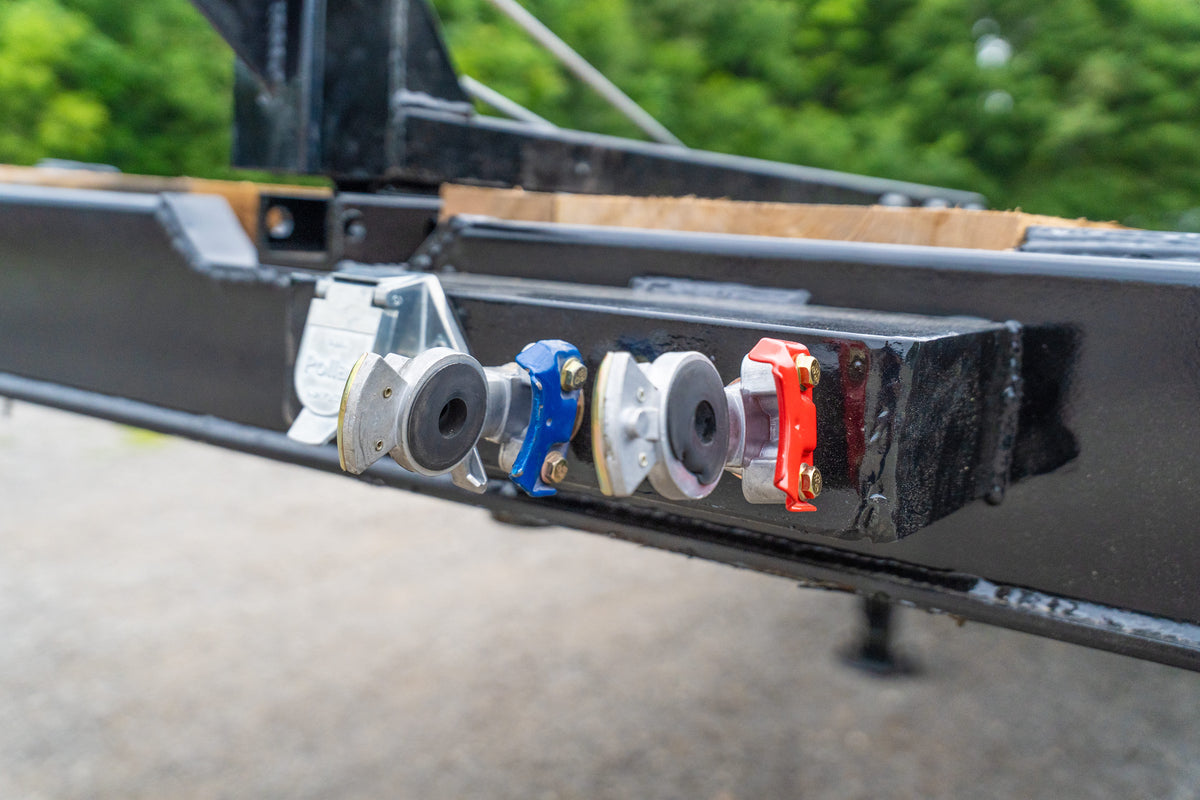

| Brakes | Air Brakes on All Hubs, 2S/1M ABS, T3030 Air Chambers |
| Coupler | King Pin with a Fifth Wheel; Height of 45" - 48" |

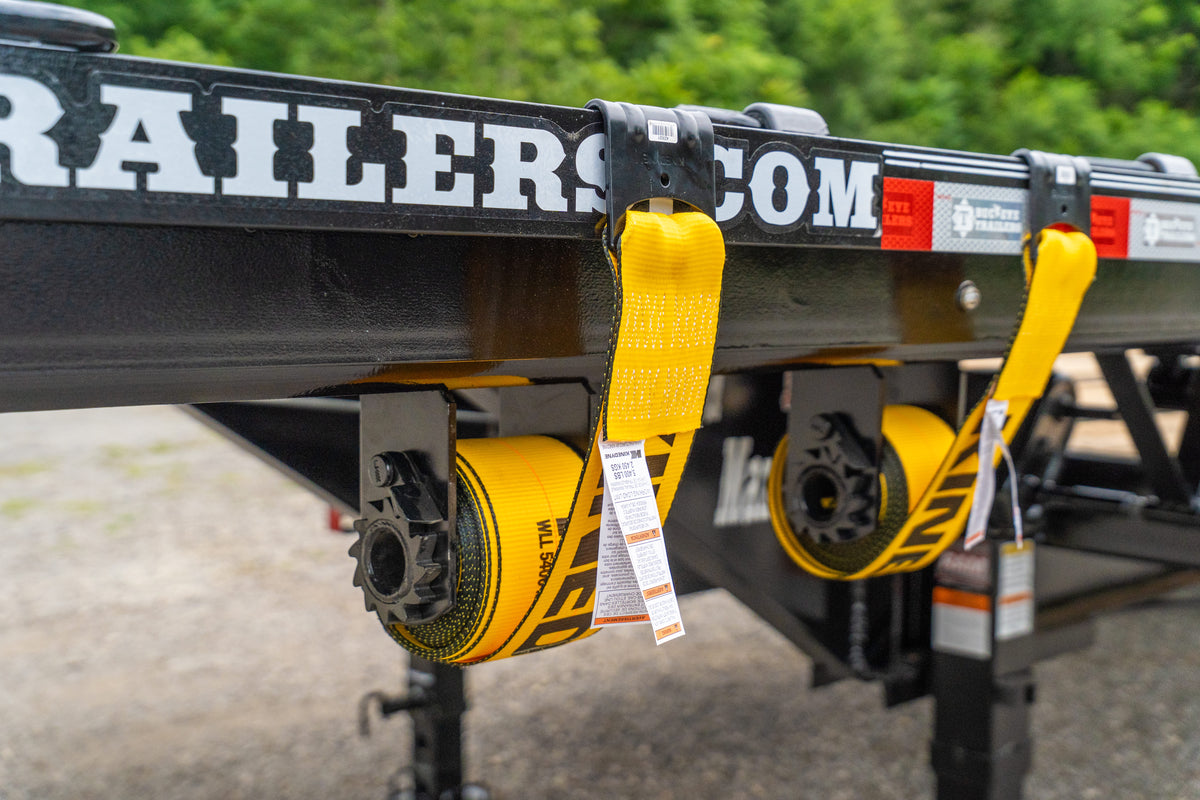

| Stake Pockets & Rub Rails | 3" Rub Rail with Integrated Stake Pockets Along Both Sides, Chain Tie-Down Spools |
| Ramps | 20,000 lb Aluminum Ramps, 96" x 18" |
| Safety | DOT-Approved Reflective Tape |
| Trailer Plug | 7-Way RV |
| Breakaway Kit | Breakaway Kit and Battery Box |
| Storage | Options for Side Mount Storage |

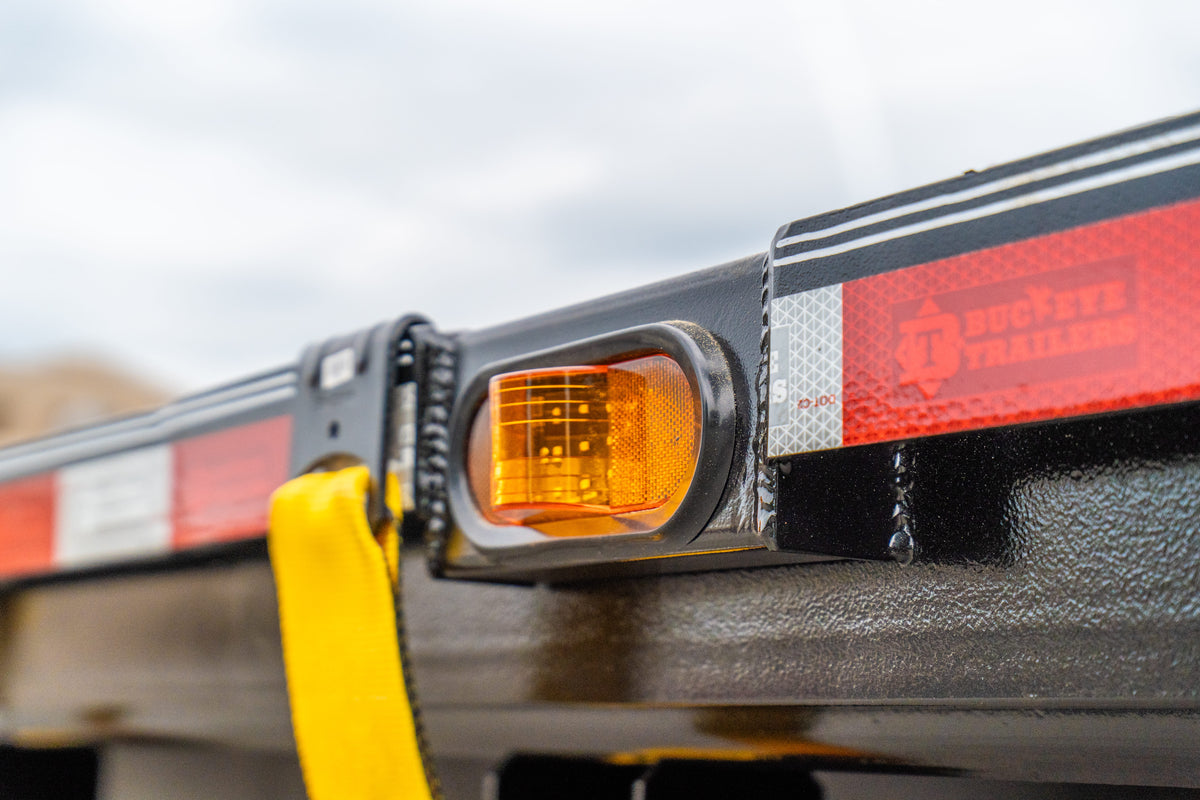

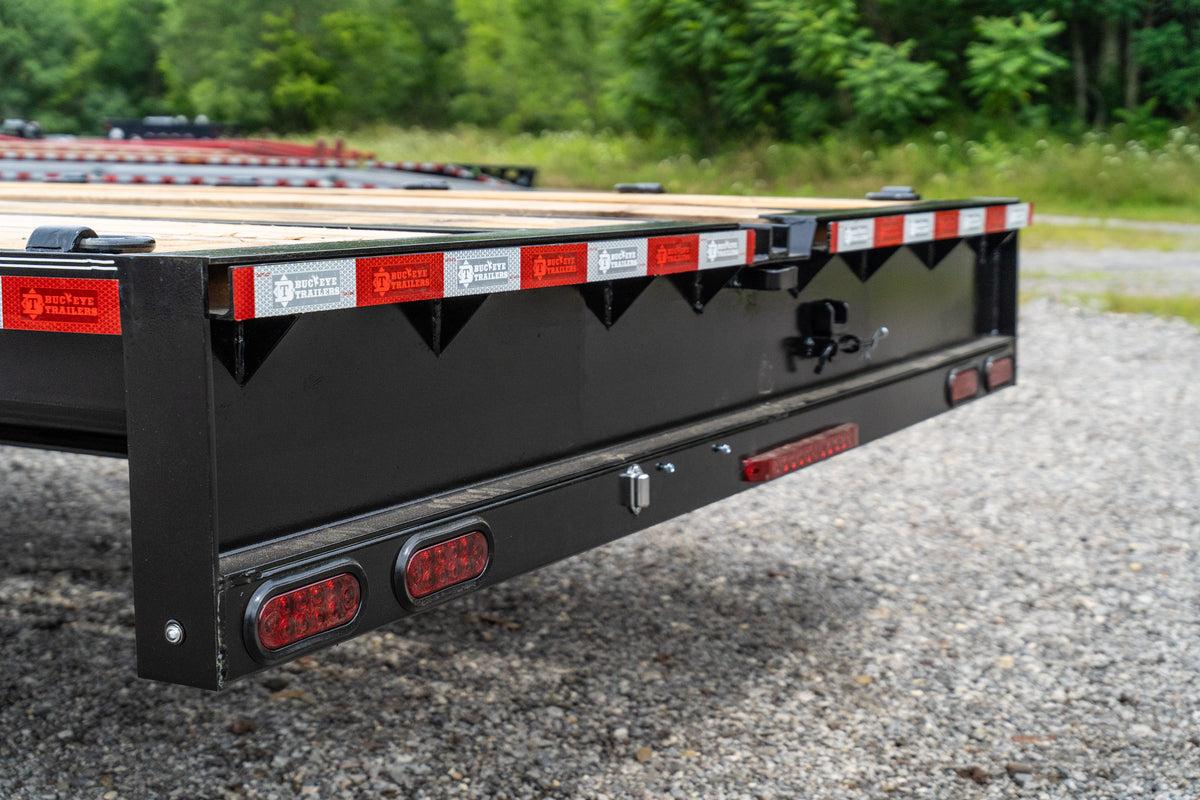

| Lights | DOT-Approved LED Lighting, 8 Extra Bullet Markers |
| Finish | Automotive-Grade Epoxy Primer with Two Top Coats of Industrial Urethane |
| Warranty | 2 Year Structural Frame |
Not included: Runners, Tie Downs, Safety Chains.
Specifications and pricing from Buckeye Trailers; subject to change without notice.
