PRODUCT DETAILS
Description

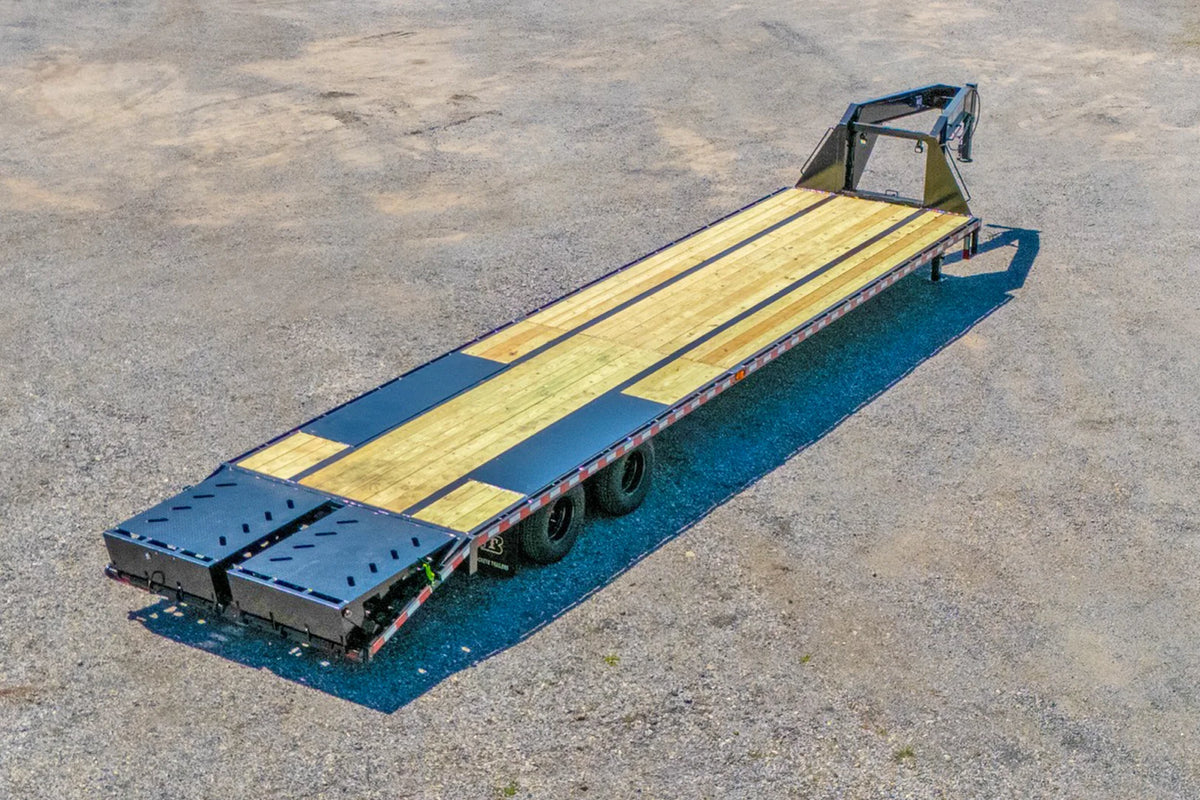

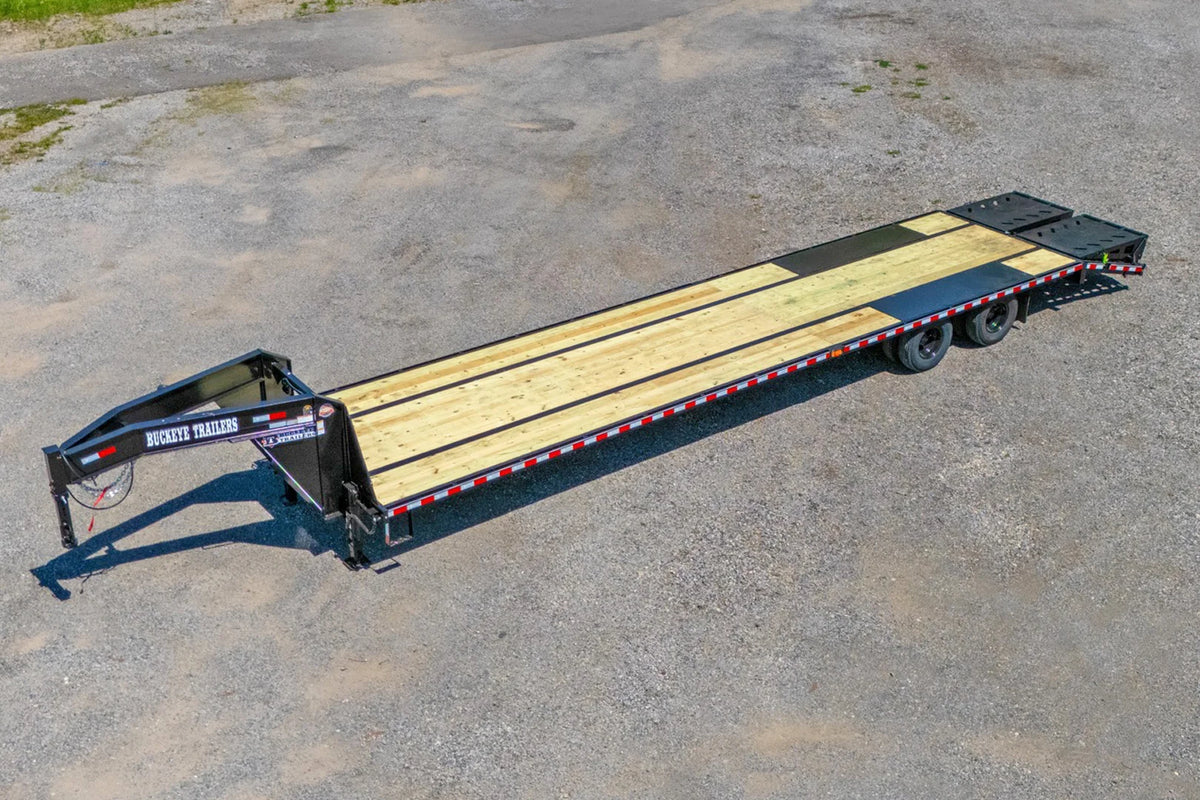

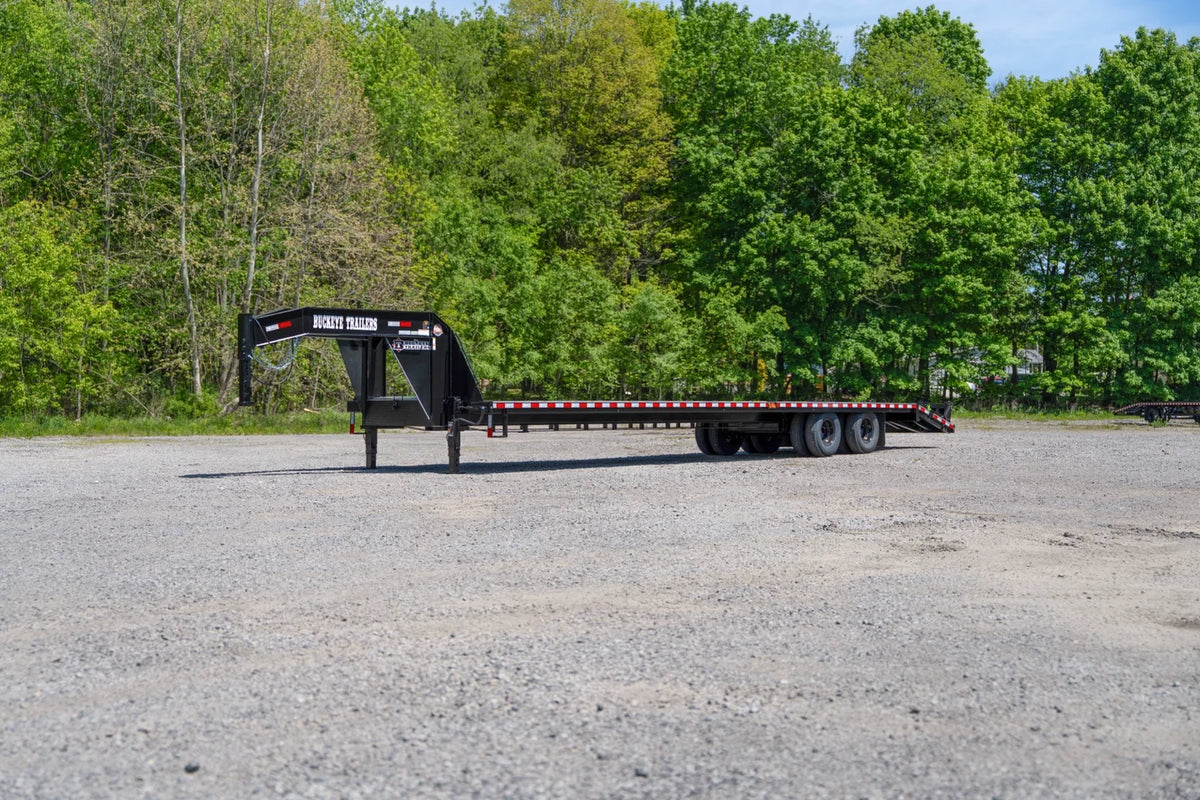

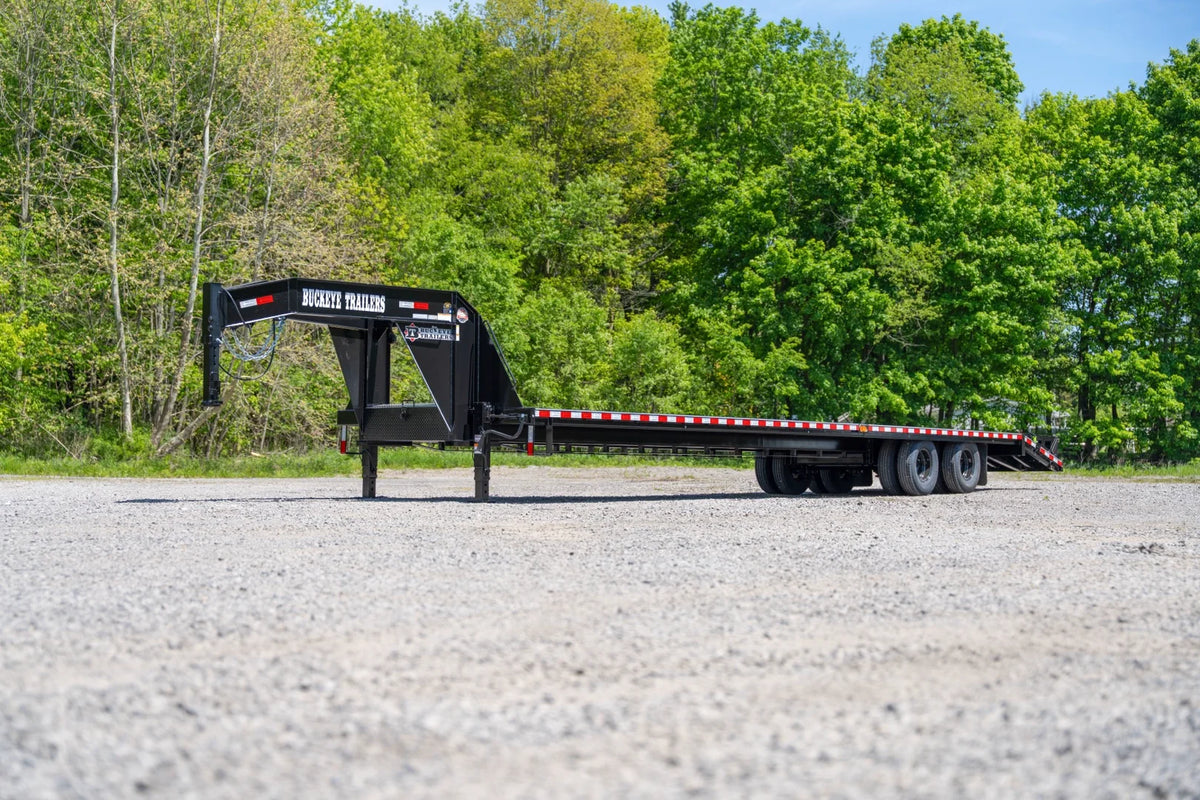

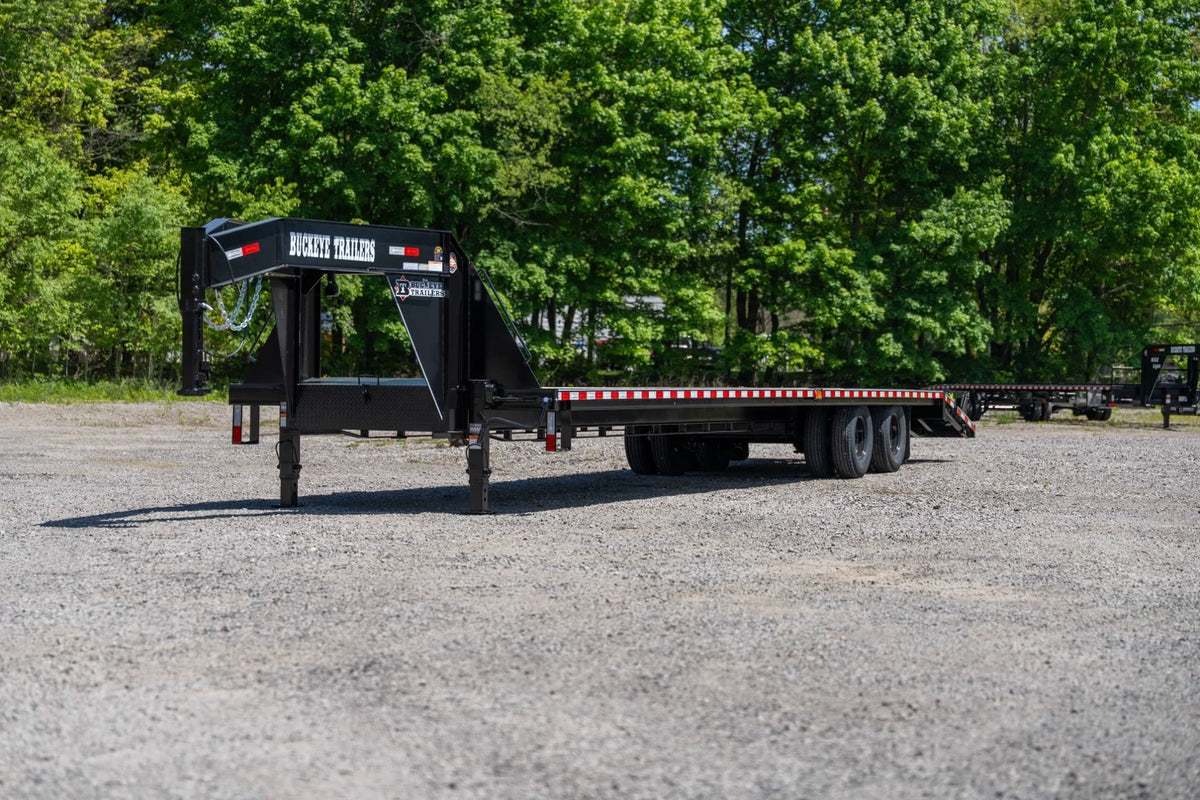

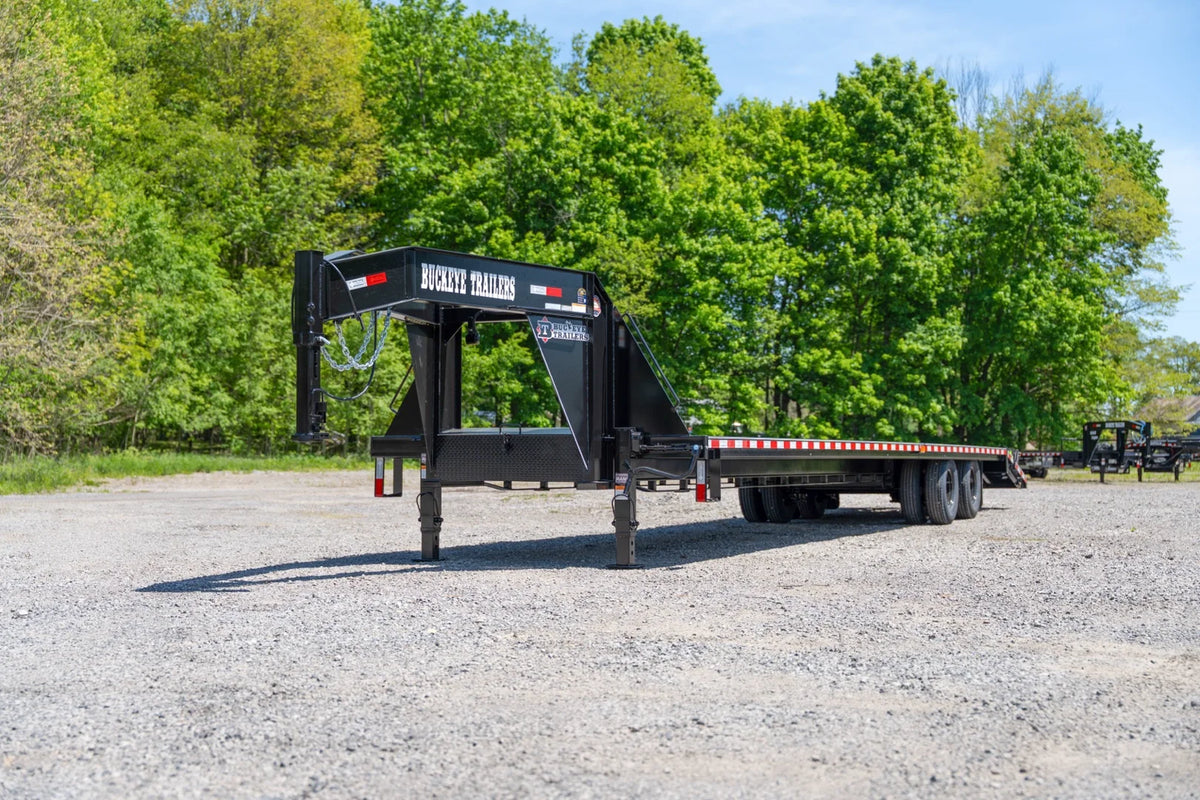

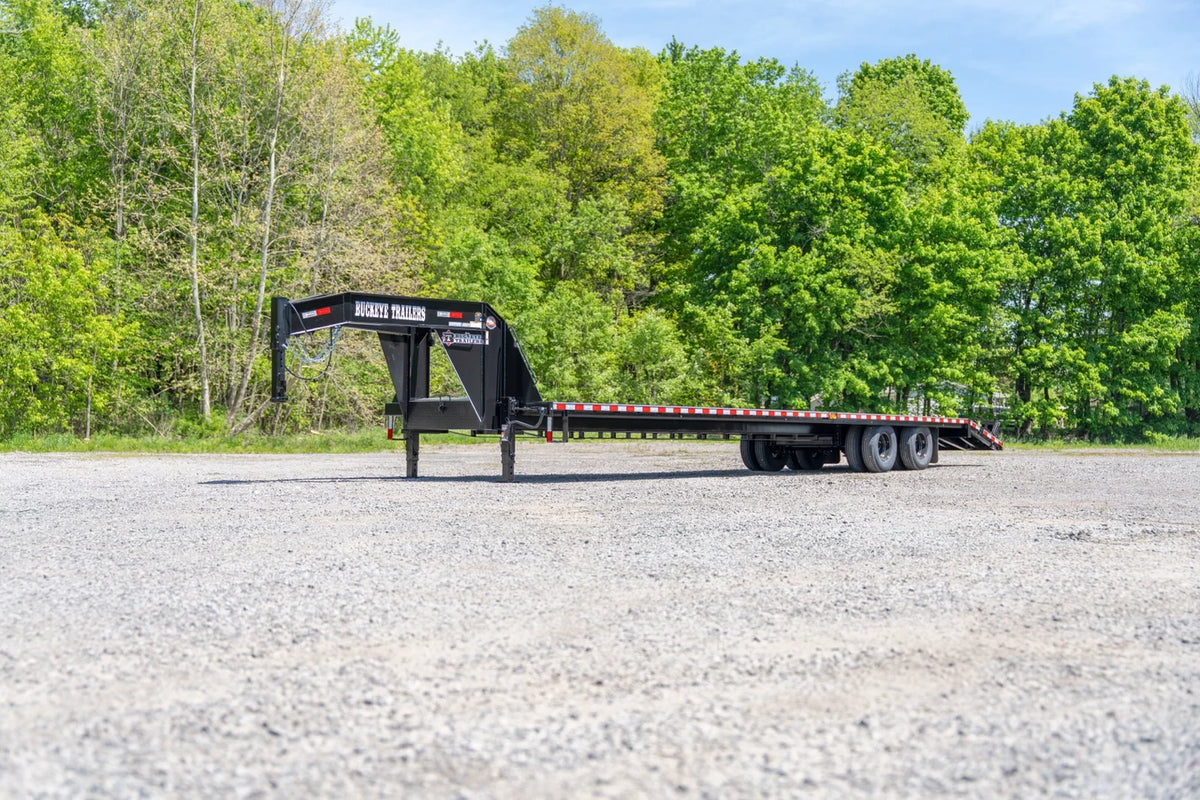

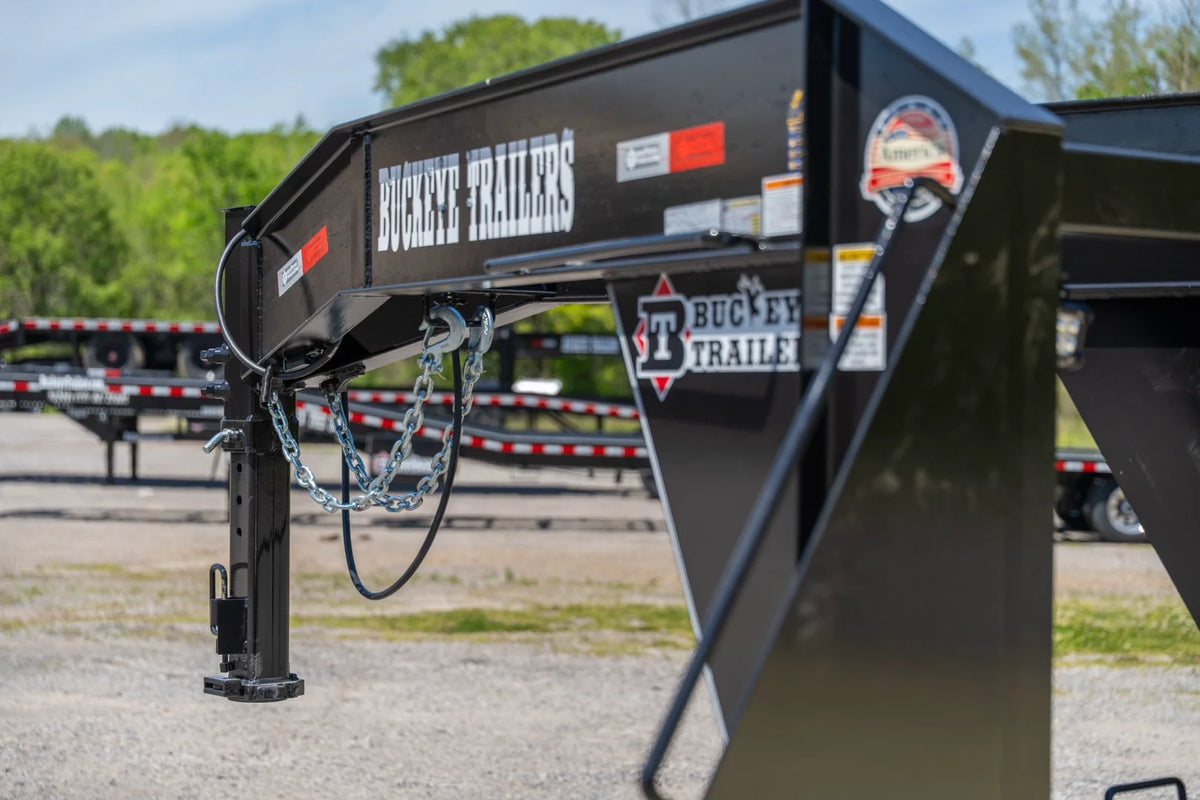

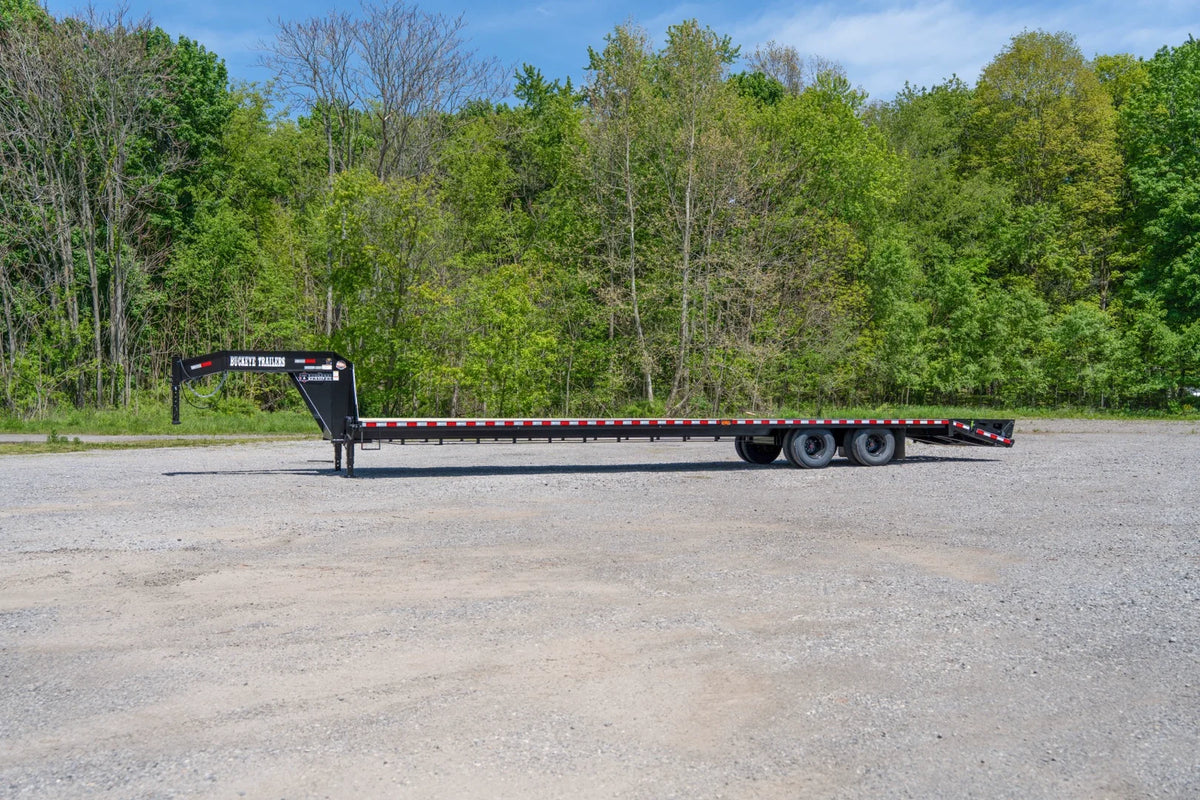

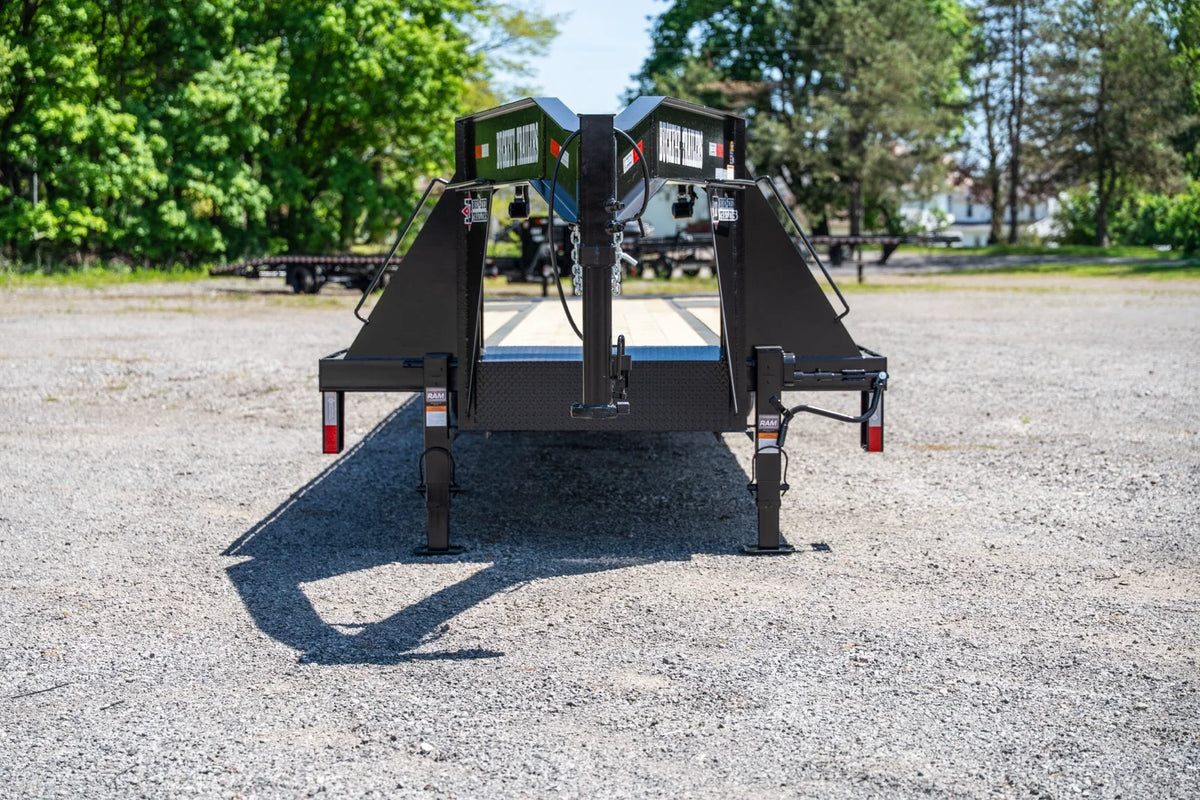

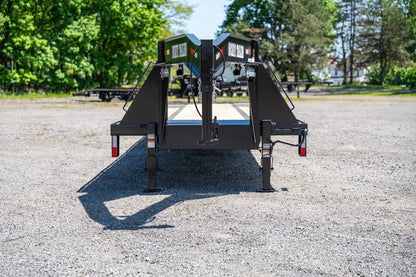

The B-MAXX GN 20K is built for heavier jobs where capacity and stability matter most. Available in deck lengths from 25’ to 40’ with a 5’ self-cleaning dovetail, a 24,000–40,000 lb GVWR, and a reinforced cambered I-beam frame with underbridge framing, this gooseneck is designed to handle serious equipment with confidence. Dual 10K oil-bath axles, Load Range G tires, a wide axle spread, and heavy-duty components throughout make it dependable under load, while a broad range of options—from upgraded axles to ramps, lighting, and neck decks—lets you configure it exactly for your operation. When the job demands more weight, more strength, and more control, the B-MAXX GN 20K delivers.
Trailer Town is a Buckeye Trailers dealer. Pick your deck length and the upgrades you need, then send us your build. Prices shown are Buckeye's minimum advertised price (MAP), FOB the Buckeye factory: freight, delivery, tax, tag and registration are extra.

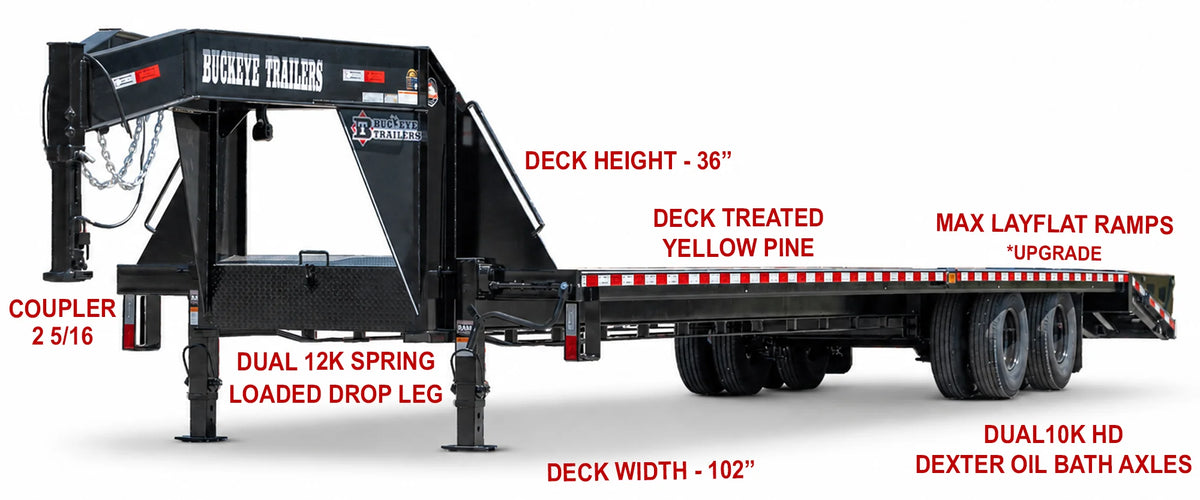

Standard features
| Trailer | Deck-Over Gooseneck |
|---|---|
| GVWR | 20,000 - 24,000 lb |
| Payload | 13,500 - 20,000 lb |
| Empty Weight | 8,000 lb |
| Deck Length | 25' to 40' |
| Deck Width | 102" |
| Deck Height | 36" |
| Frame | 12" Cambered I-Beam (16 lb) with Underbridge Framing; 19 lb I-Beam on 30' and Longer |
| Suspension | Heavy-Duty Slipper Spring with 48" Axle Spread |
| Floor | Treated Yellow Pine |

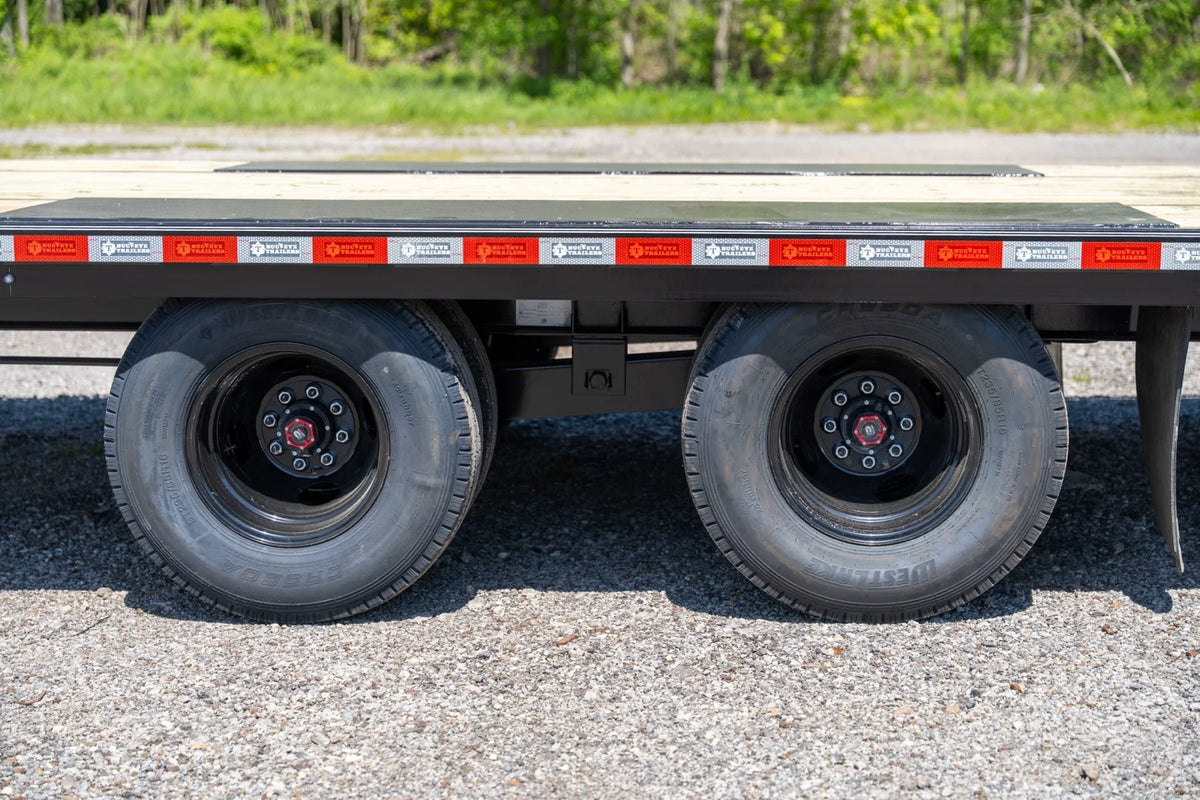

| Axles | Dual 10K HD Dexter Oil Bath Axles 5-Year Warranty |
| Tires | 235/80R16 Load Range G |
| Wheels | HD Steel Dual 16" |
| Bolt Pattern | 8-Lug on 6.5" Bolt Pattern |
| Spare Mount | Standard Spare Mount |

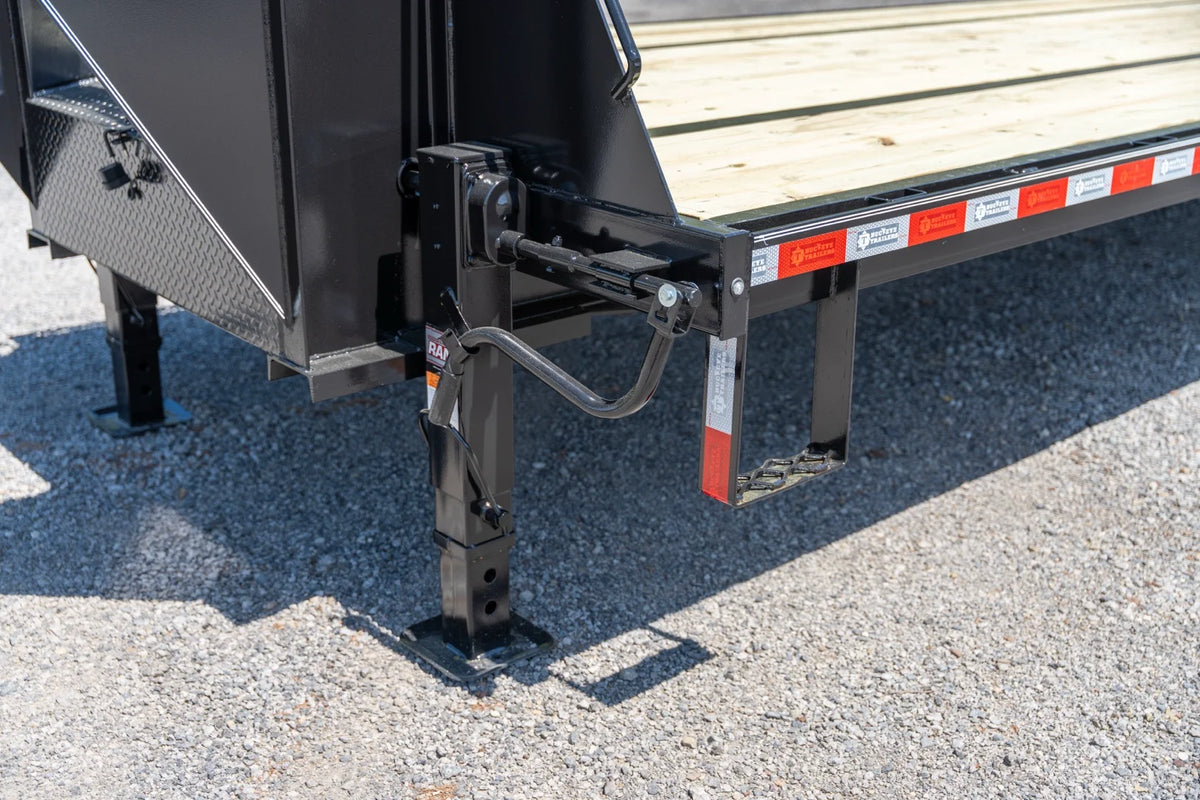

| Jacks | 2 Dual-Speed 12K Spring Loaded Drop Leg Jacks |
| Brakes | Electric Brakes |
| Coupler | 2" x 5/16" Gooseneck Ball Coupler (3" Ball GVWR Above 30,000 lb) |
| Tie Downs | 3" x 3/8" Rub Rail, Stake Pockets Along Both Sides, Chain Spools |

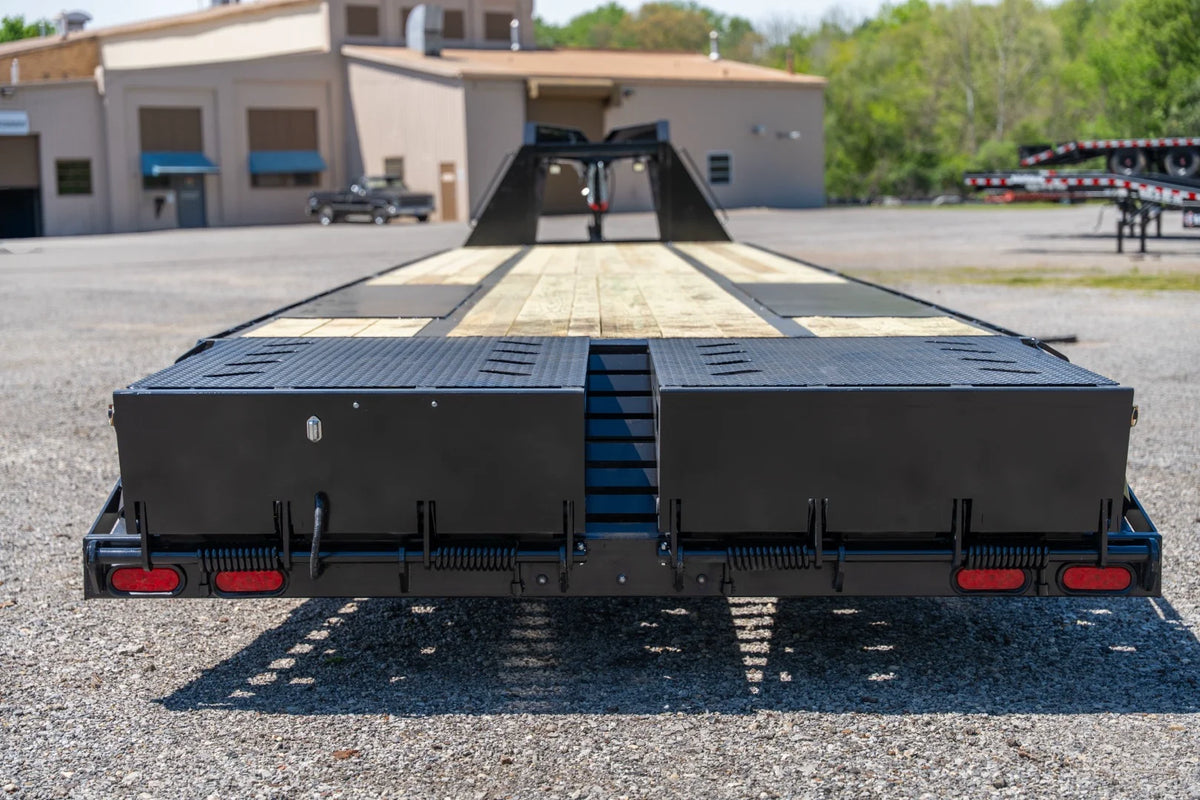

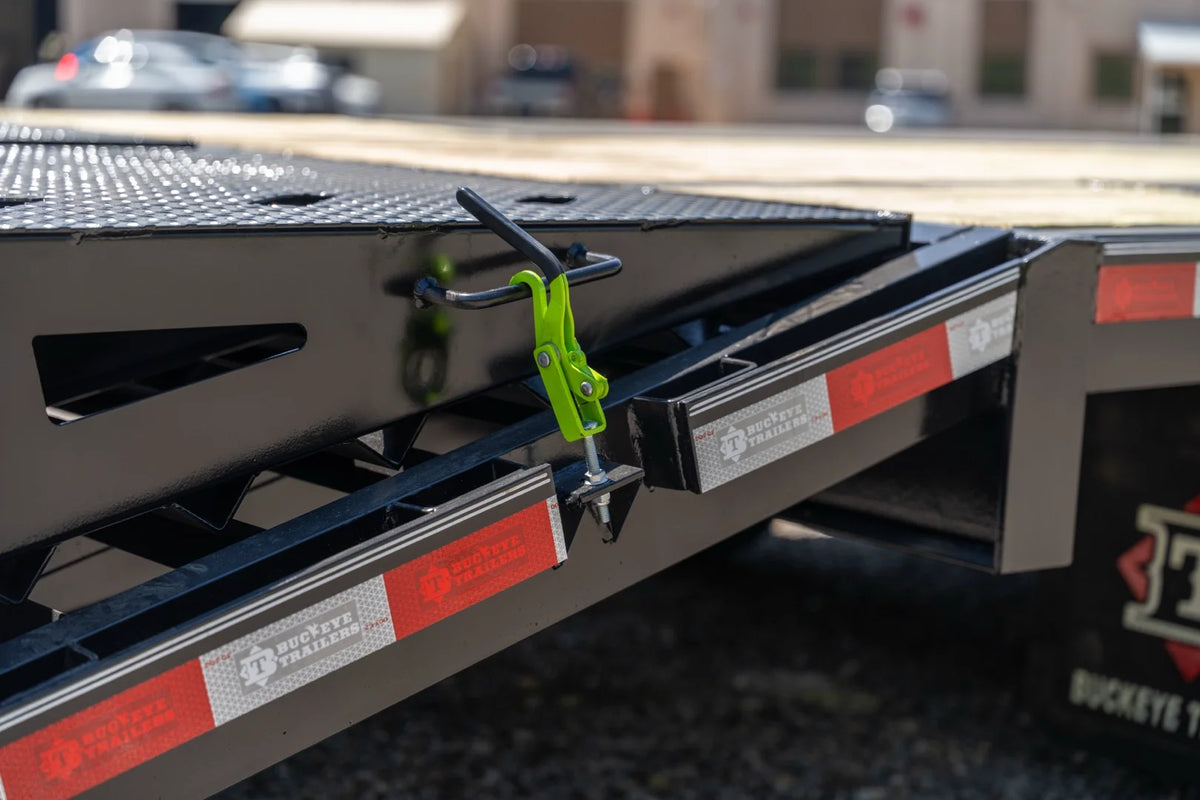

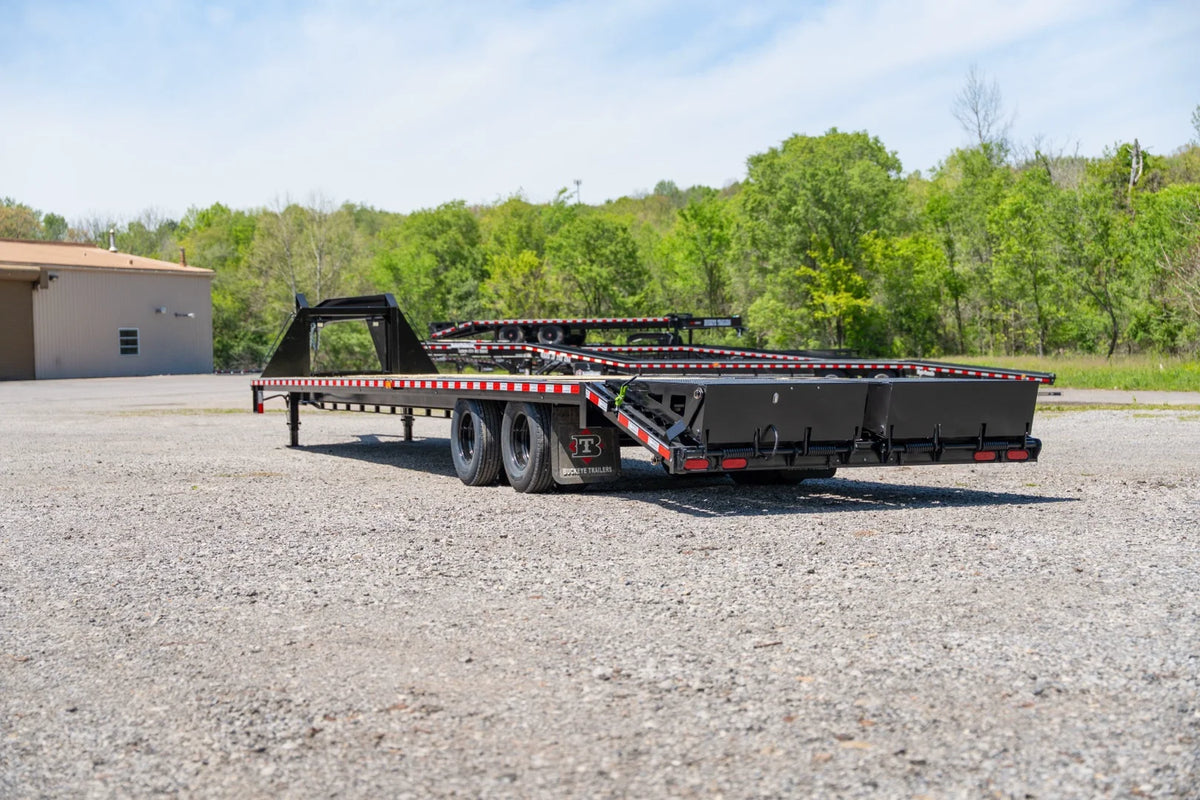

| Ramps | 5' Stand-Up Spring Assist |
| Safety | Side Steps, Hand Rails, and DOT Reflective Tape |
| Trailer Plug | 7-Way RV |
| Breakaway Kit | Breakaway Kit and Battery Box |
| Safety Chains | Heavy-Duty 3/8" Safety Chains |
| Storage | Chain Box with a Lockable Lid in Between the Uprights |

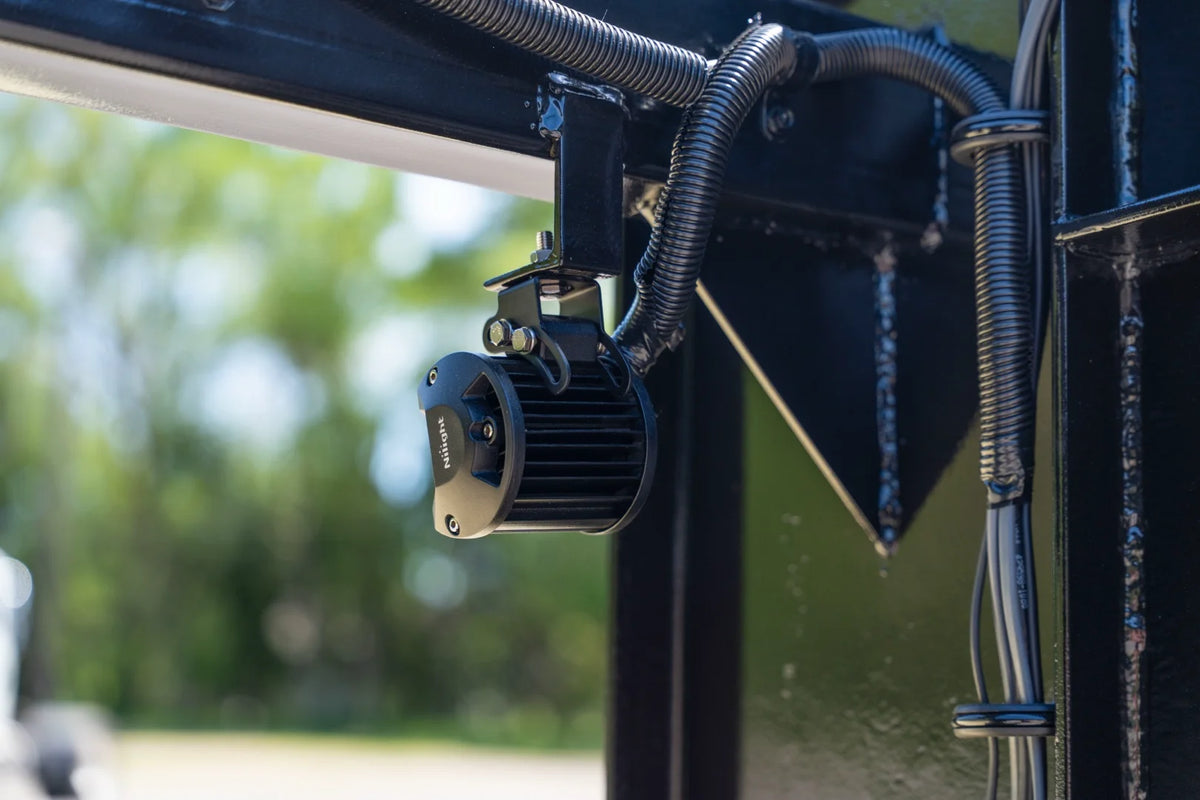

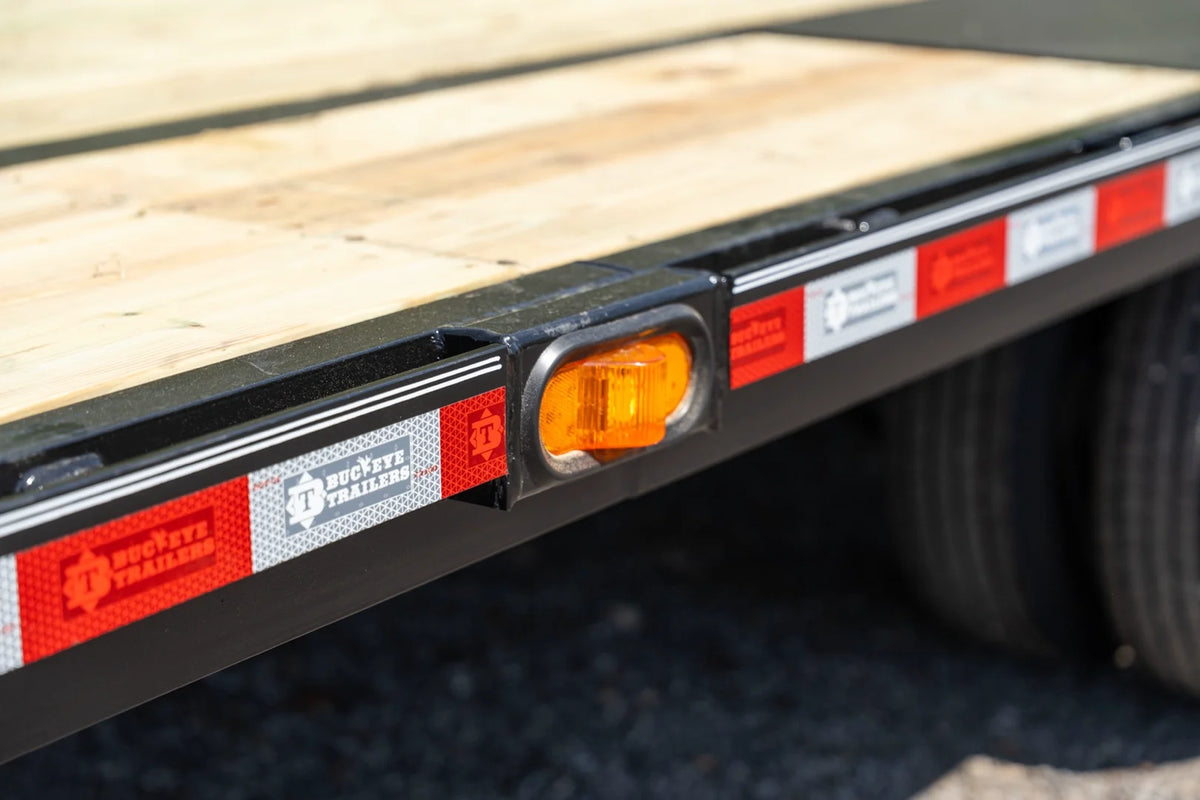

| Lights | DOT-Approved LED Lighting, 4 Extra Bullet Markers, and Floodlights on The Neck |
| Finish | Automotive-Grade Epoxy Primer with Two Top Coats of Industrial Urethane |
| Warranty | 2 Year Structural Frame |
Not included: Runners.
Specifications and pricing from Buckeye Trailers; subject to change without notice.
