PRODUCT DETAILS
Description

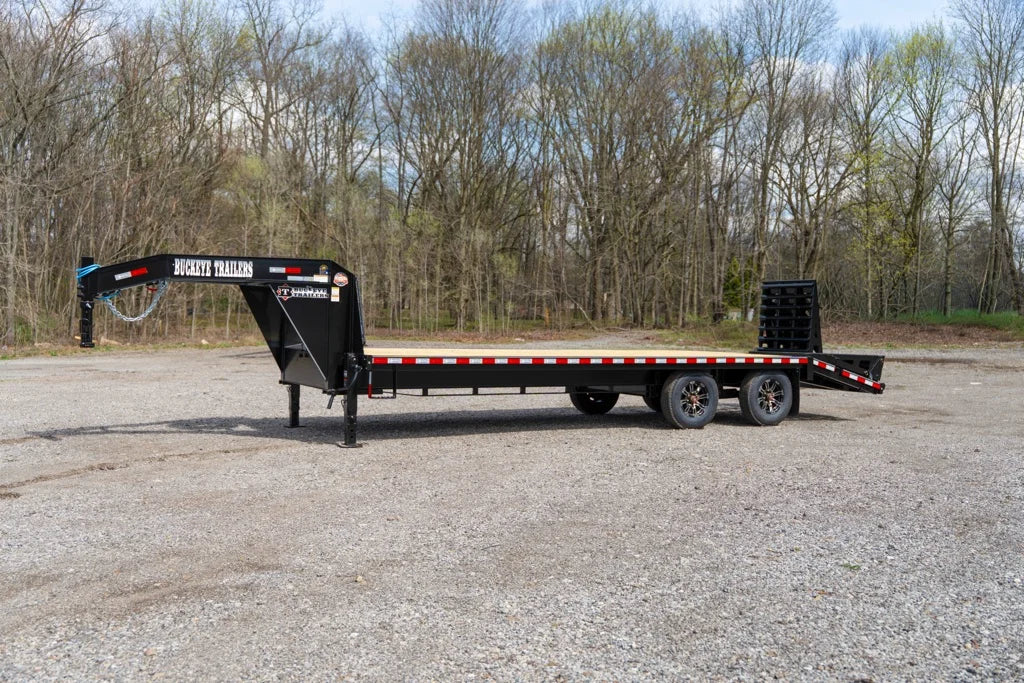

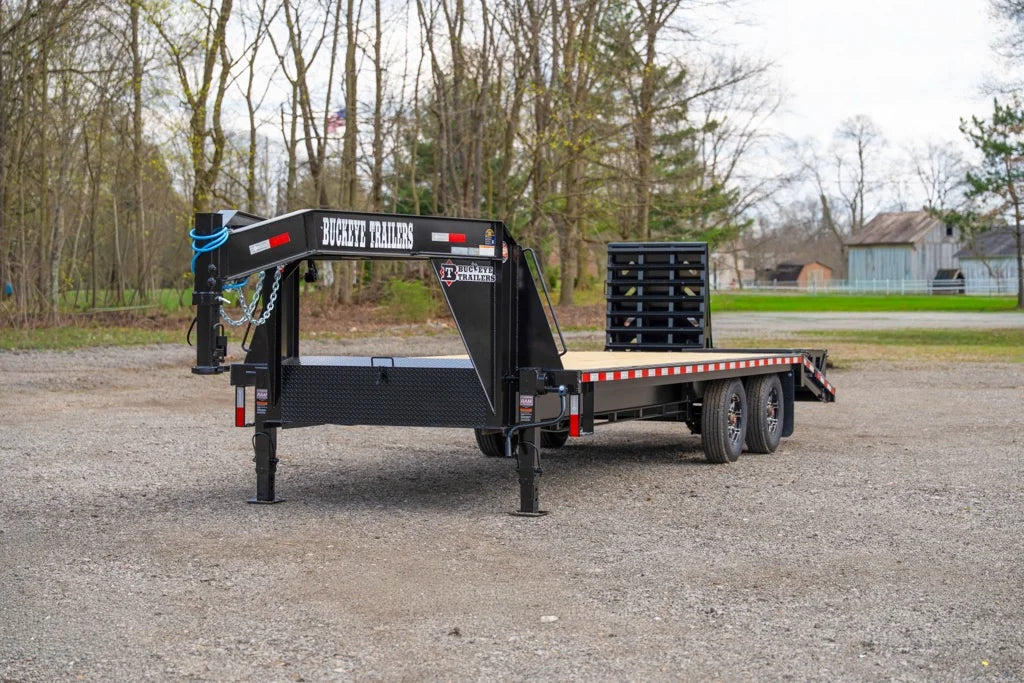

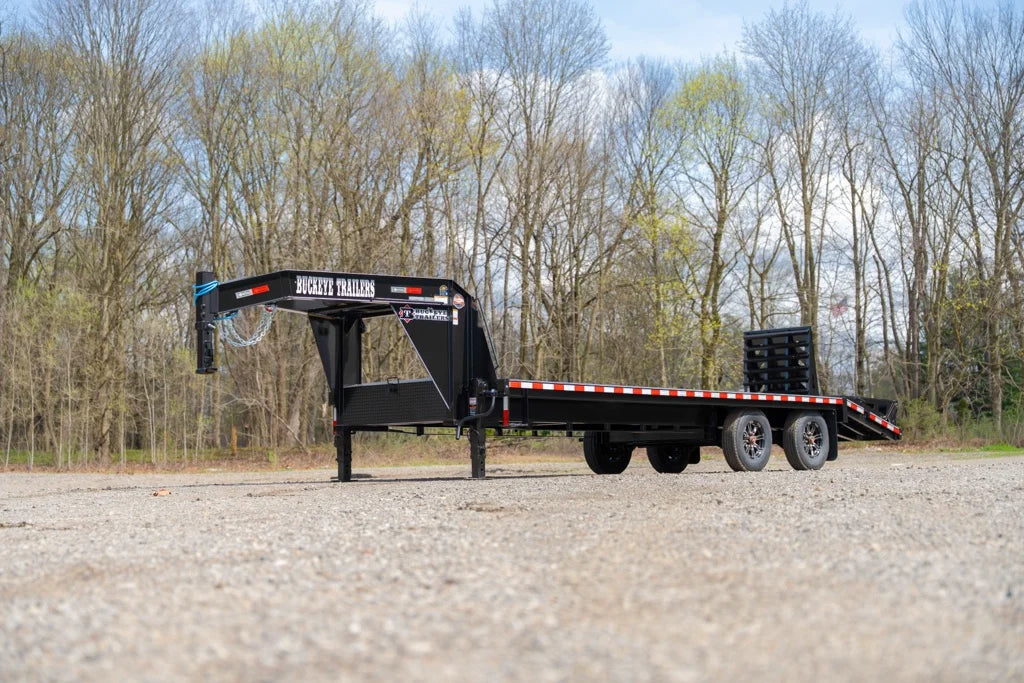

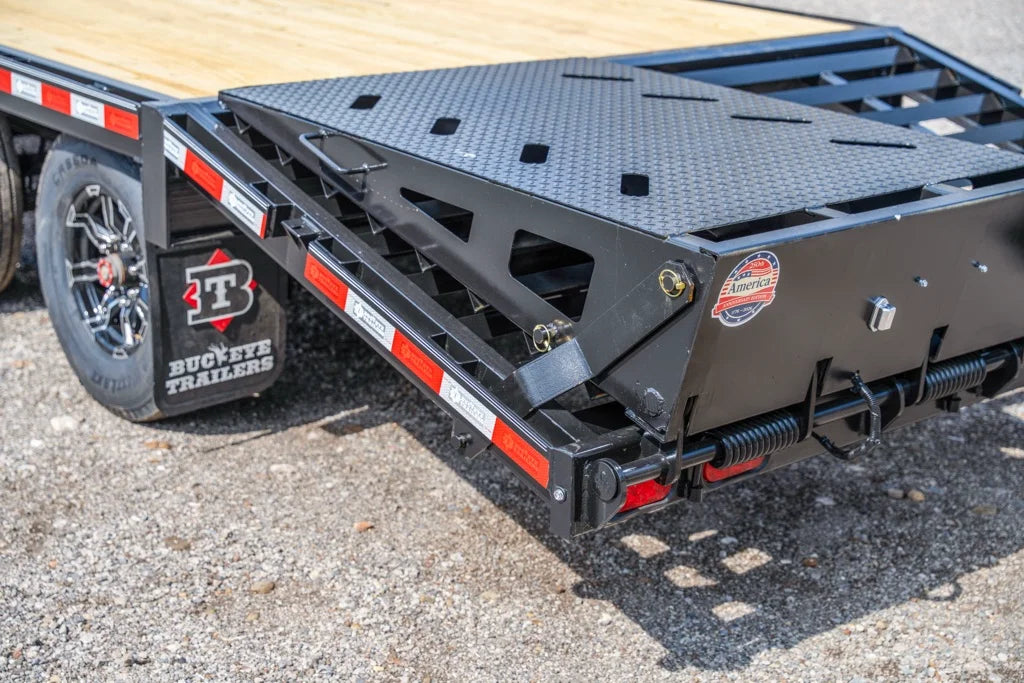

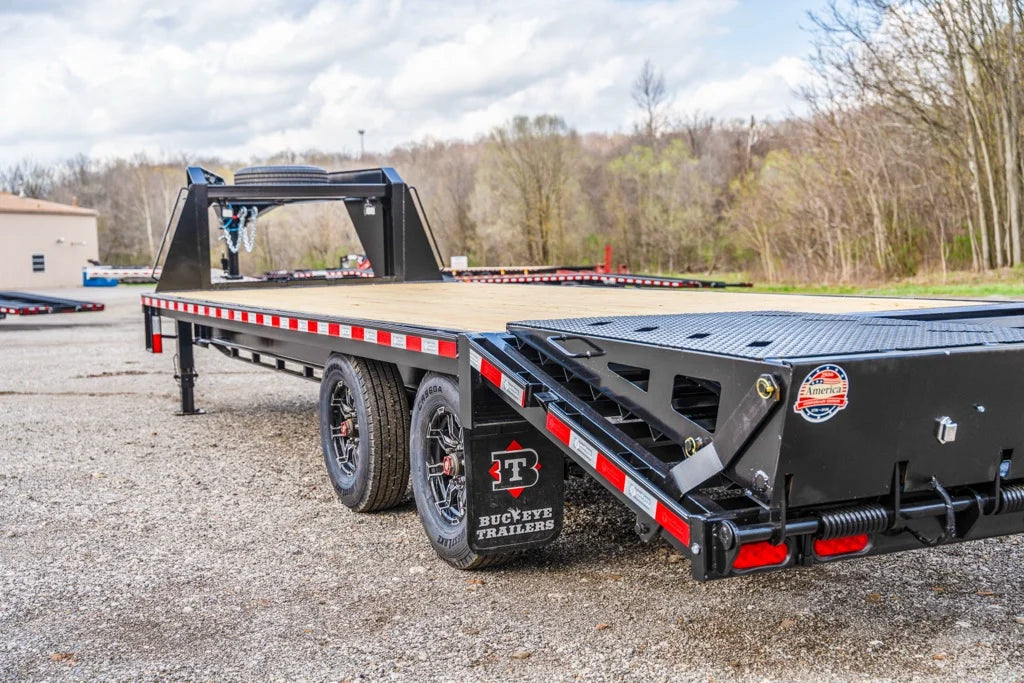

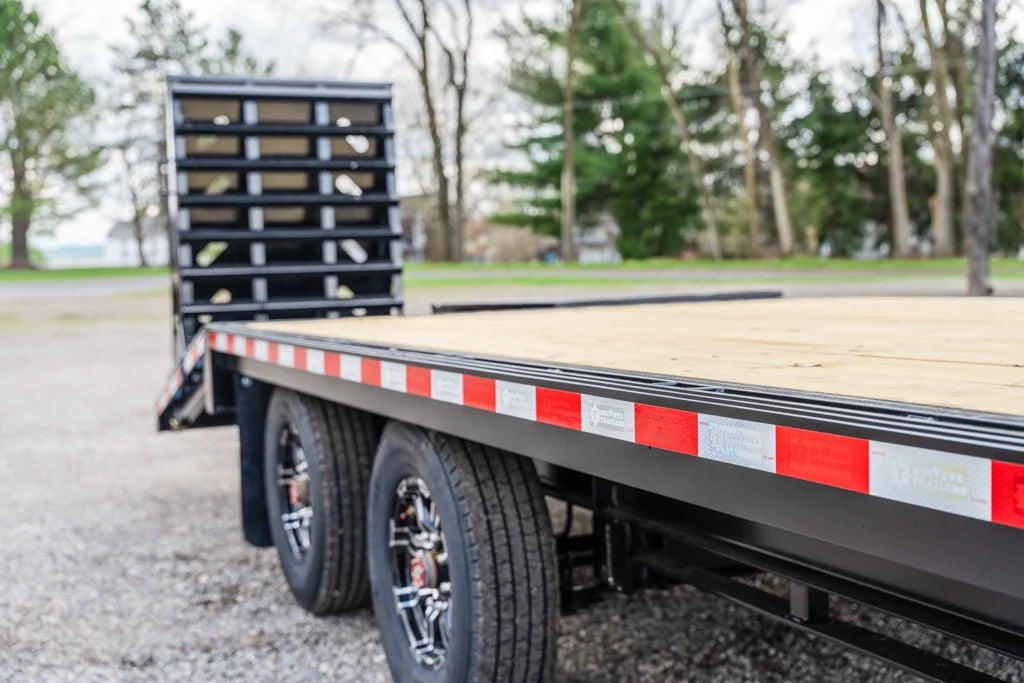

The B-MAXX GN 20K-SS delivers the strength of the 20S platform with the efficiency and ride benefits of super single wheels. Available in deck lengths from 25’ to 40’ with a 5’ self-cleaning dovetail, a 16,000–26,000 lb GVWR, and a cambered I-beam frame with underbridge framing, this trailer is designed for stable, heavy hauling without unnecessary weight. Standard 10K oil-bath axles, 17.5” super singles, heavy-duty components, and job-ready features make it dependable right off the lot, while a wide range of options—ranging from ramps and neck decks to lighting and hydraulic dovetails—allows you to tailor it to your operation. The B-MAXX GN 20K-SS is a smart choice for operators who want capacity, efficiency, and durability in one tough package.
Trailer Town is a Buckeye Trailers dealer. Pick your deck length and the upgrades you need, then send us your build. Prices shown are Buckeye's minimum advertised price (MAP), FOB the Buckeye factory: freight, delivery, tax, tag and registration are extra.

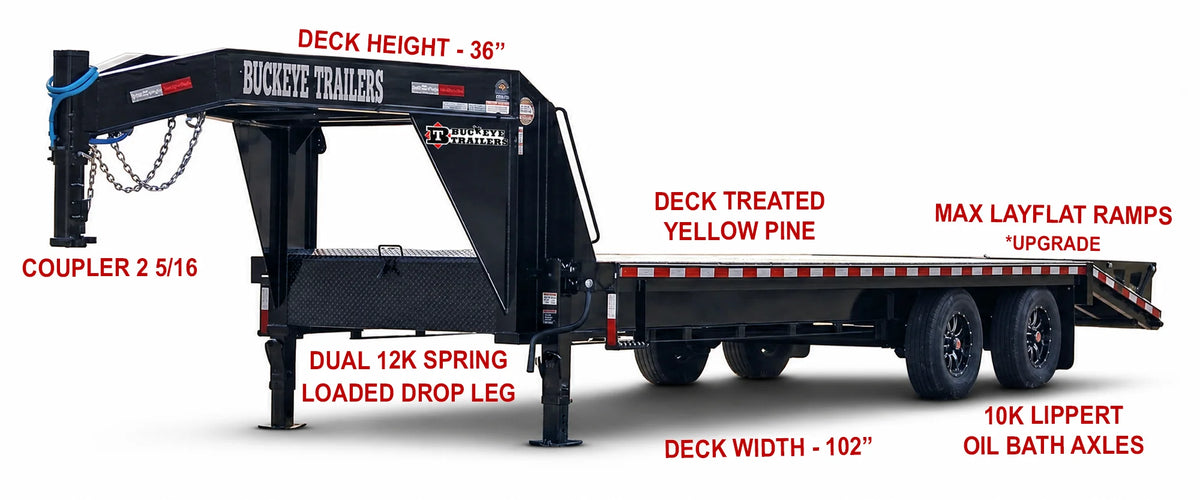

Standard features
| Trailer | Deck-Over Gooseneck |
|---|---|
| GVWR | 20,000 - 24,000 lb |
| Payload | 13,500 - 19,500 lb |
| Empty Weight | 6,000 lb |
| Deck Length | 25' to 40' |
| Deck Width | 102" |
| Deck Height | 36" |
| Frame | 12" Cambered I-Beam (16 lb) with Underbridge Framing; 19 lb I-Beam for 30' and Longer |
| Suspension | Heavy-Duty Slipper Spring with Rubber Bushings |
| Floor | Treated Yellow Pine |
| Axles | 10K Lippert Oil Bath Axles 5-Year Warranty |
| Tires | 215/75R17.5 Super Singles |
| Wheels | 17.5 Heavy-Duty Steel Wheel |
| Bolt Pattern | 8 on 6.5" Bolt Pattern |

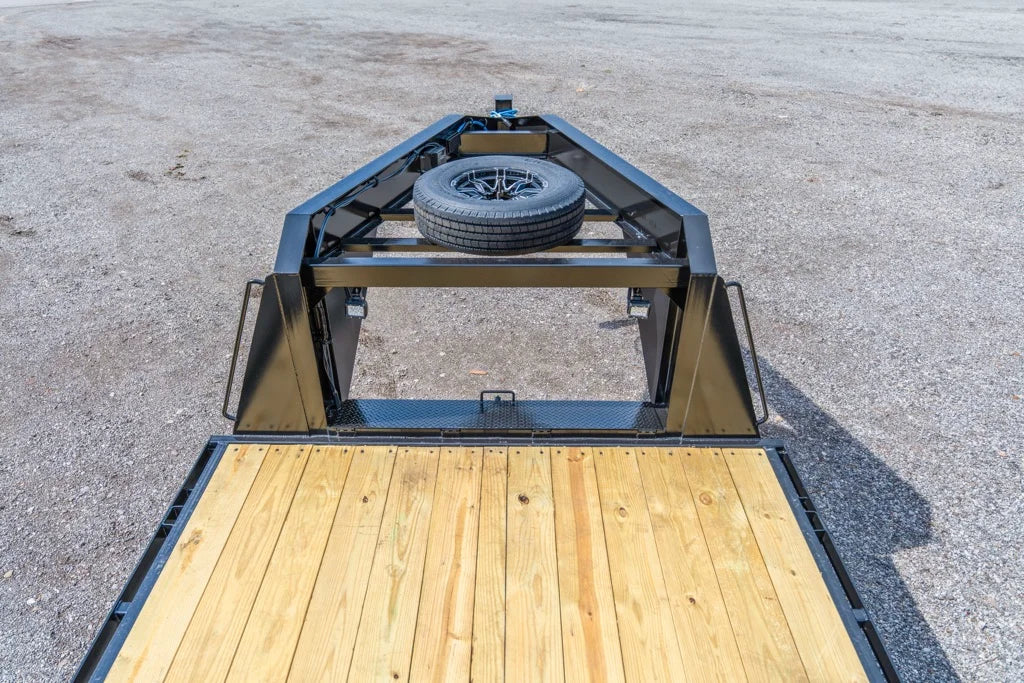

| Spare Mount | Standard Spare Mount |

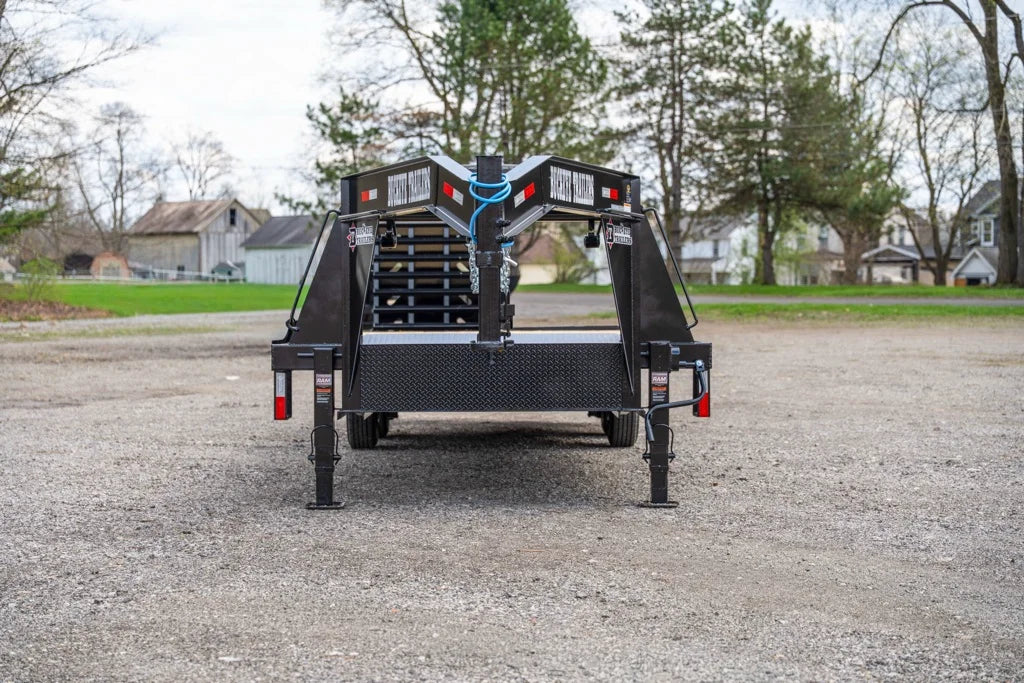

| Jacks | 2 Dual-Speed 12K Spring Loaded Drop Leg Jacks |
| Brakes | Electric Brakes |
| Coupler | 2"x 5/16" Gooseneck Ball Coupler |
| Tie Downs | 3" x 3/8" Rub Rail, Stake Pockets Along Both Sides, Chain Spools |

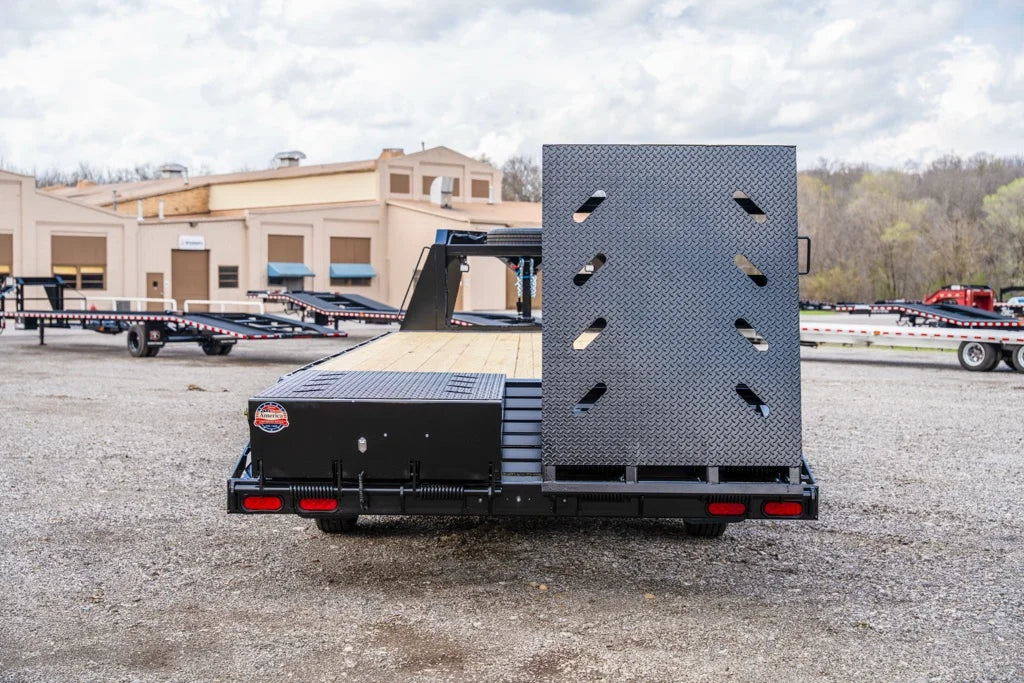

| Ramps | 5' Stand-Up Spring Assist |
| Safety | Side Steps, Hand Rails, and DOT Reflective Tape |
| Trailer Plug | 7-Way RV |
| Breakaway Kit | Breakaway Kit and Battery Box |
| Safety Chains | Heavy-Duty 3/8" Safety Chains |
| Storage | Chain Box with a Lockable Lid in Between the Uprights |
| Lights | DOT-Approved LED Lighting, 4 Extra Bullet Markers, and Floodlights on The Neck |
| Finish | Automotive-Grade Epoxy Primer with Two Top Coats of Industrial Urethane |
| Warranty | 2 Year Structural Frame |
Not included: Runners.
Specifications and pricing from Buckeye Trailers; subject to change without notice.
