PRODUCT DETAILS
Description

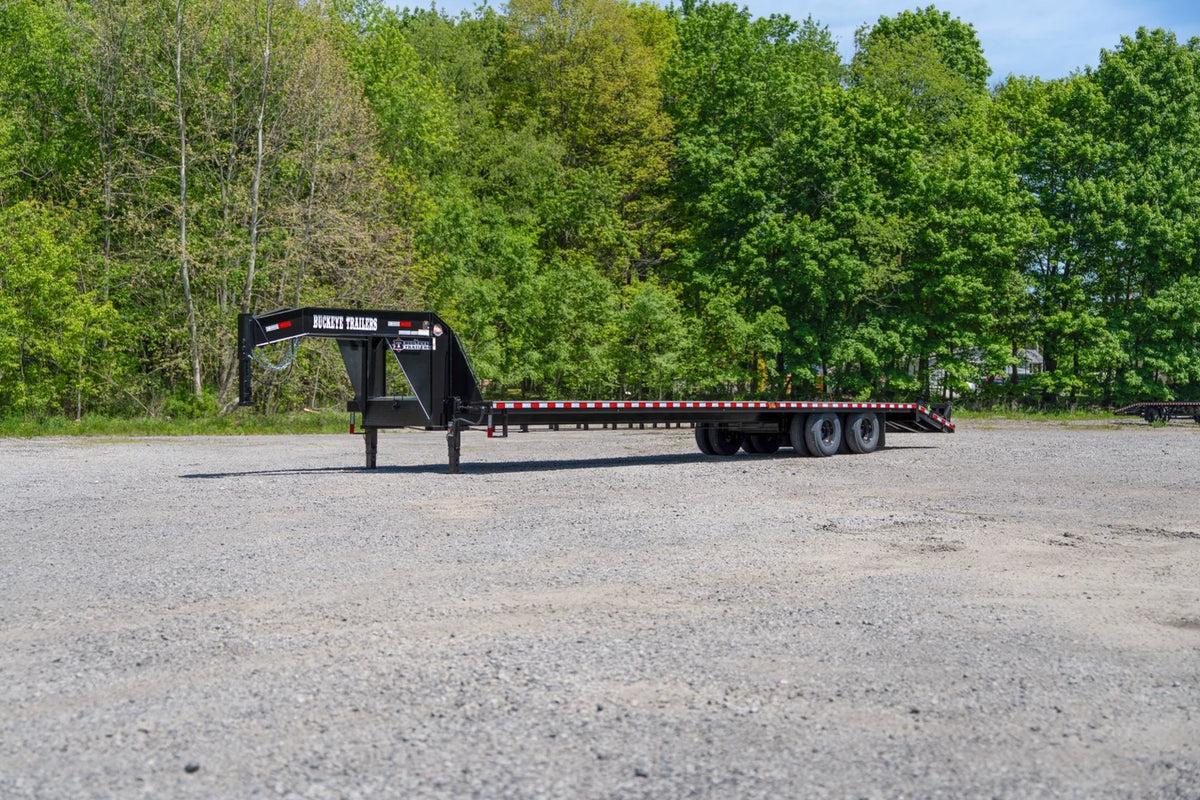

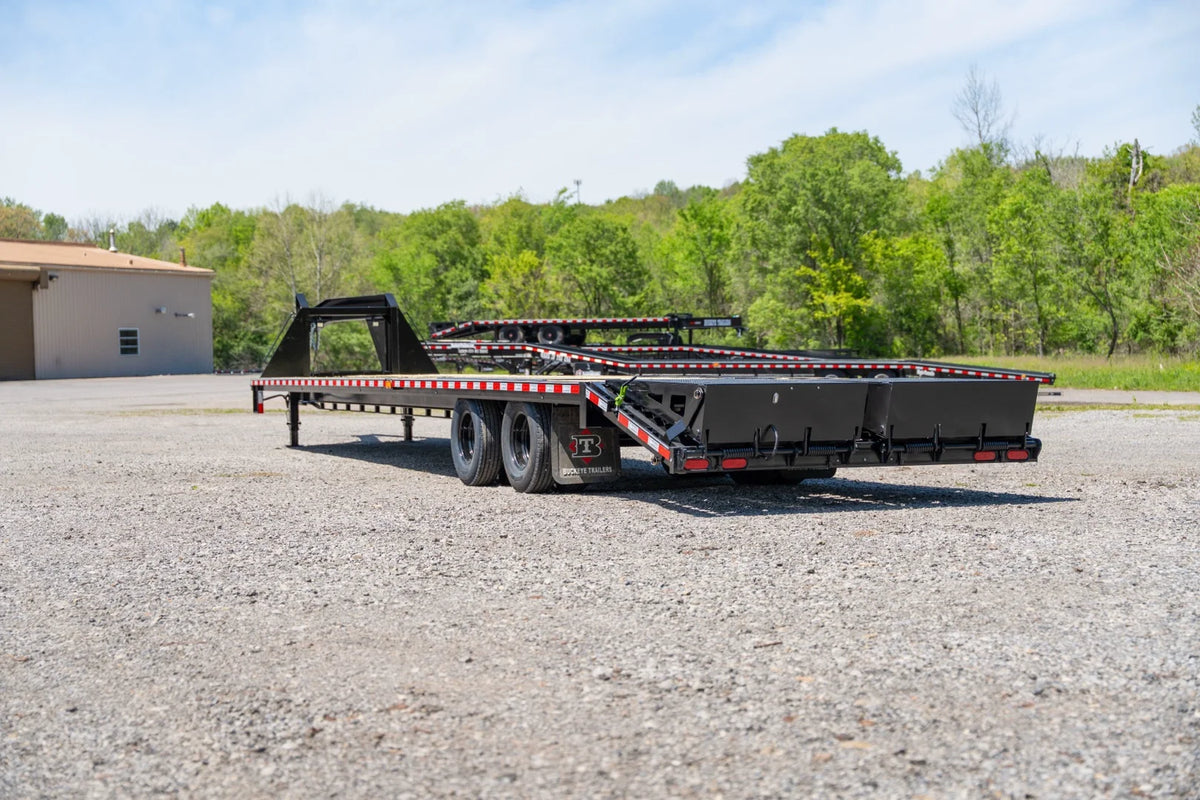

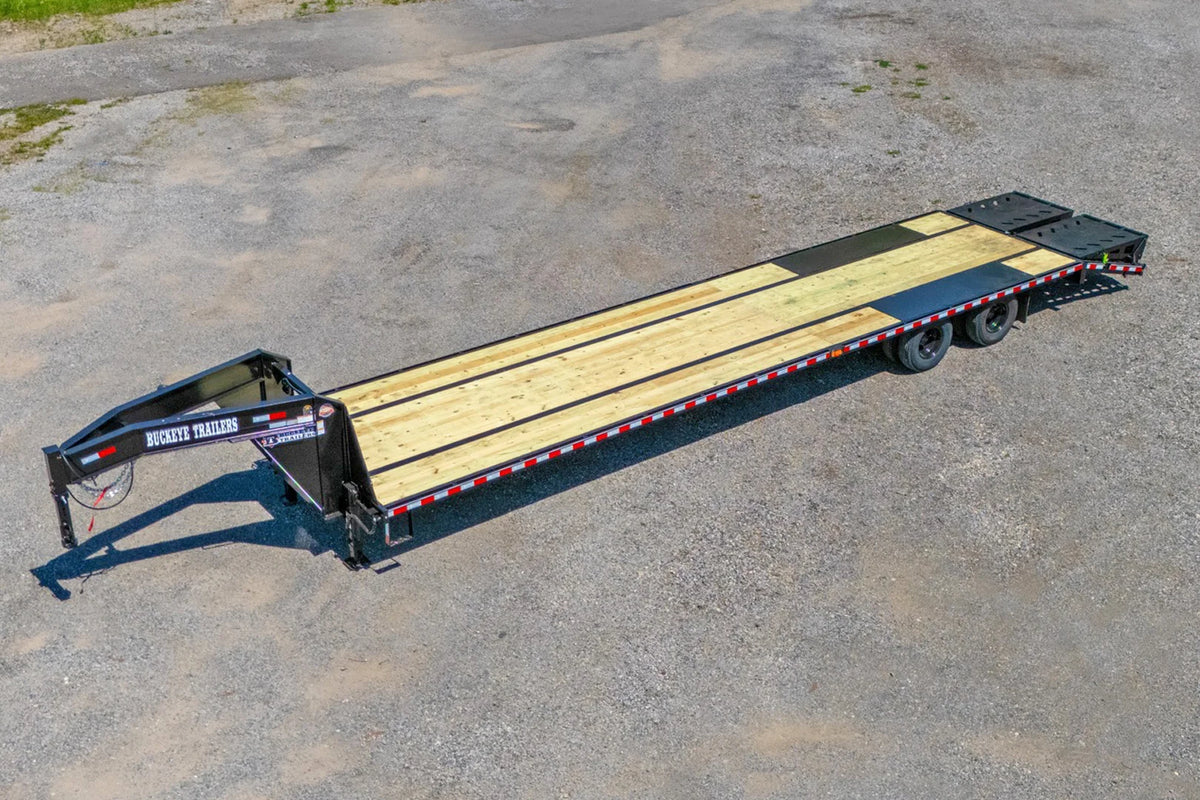

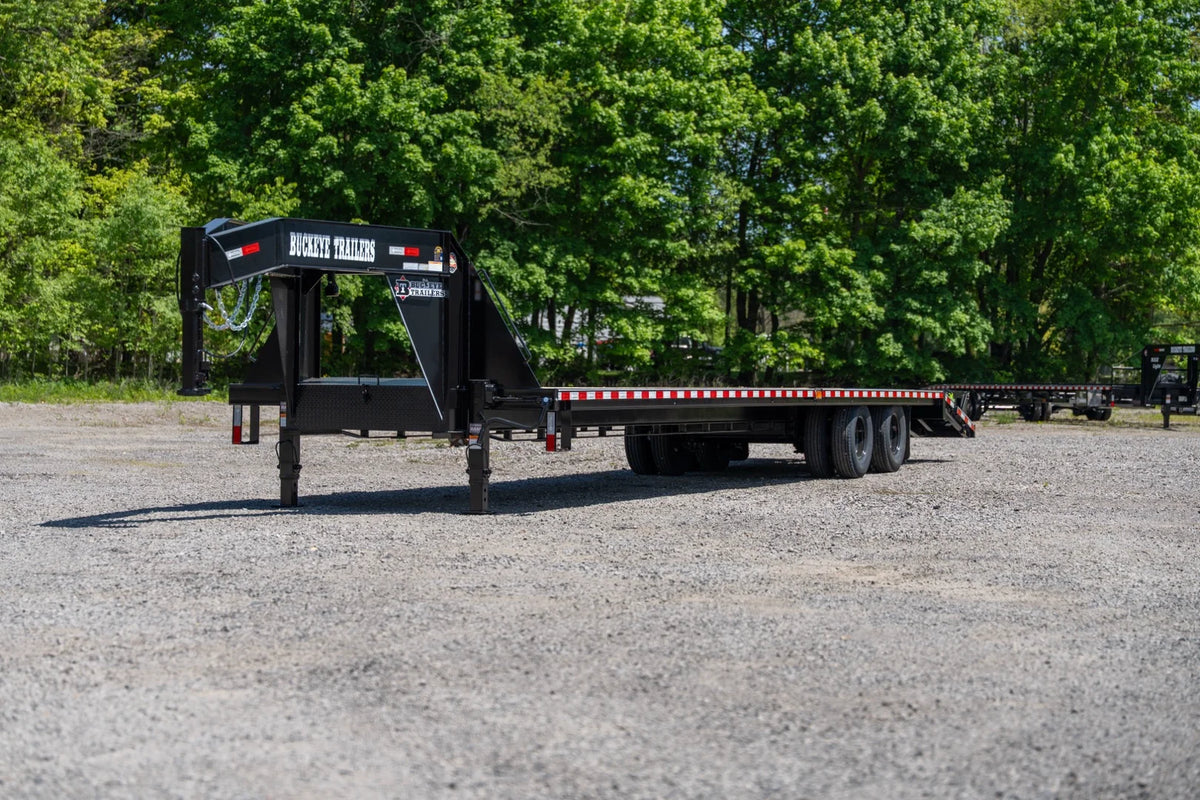

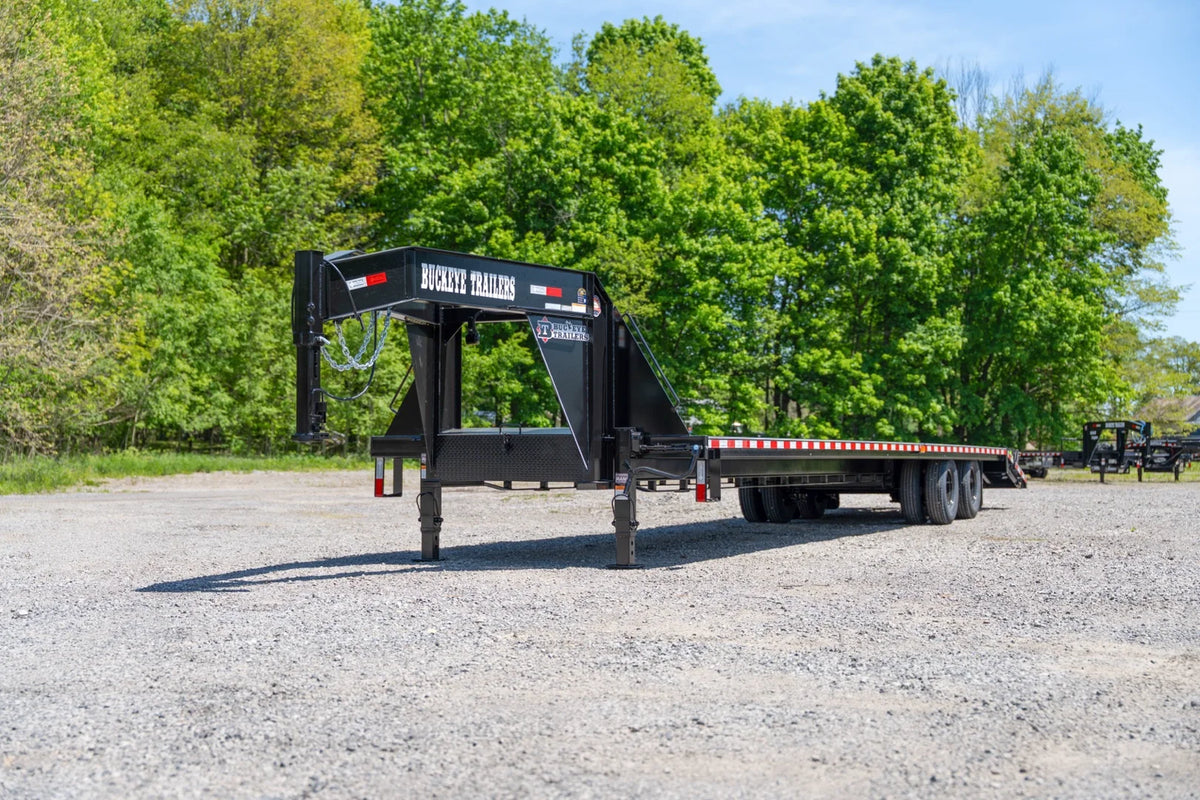

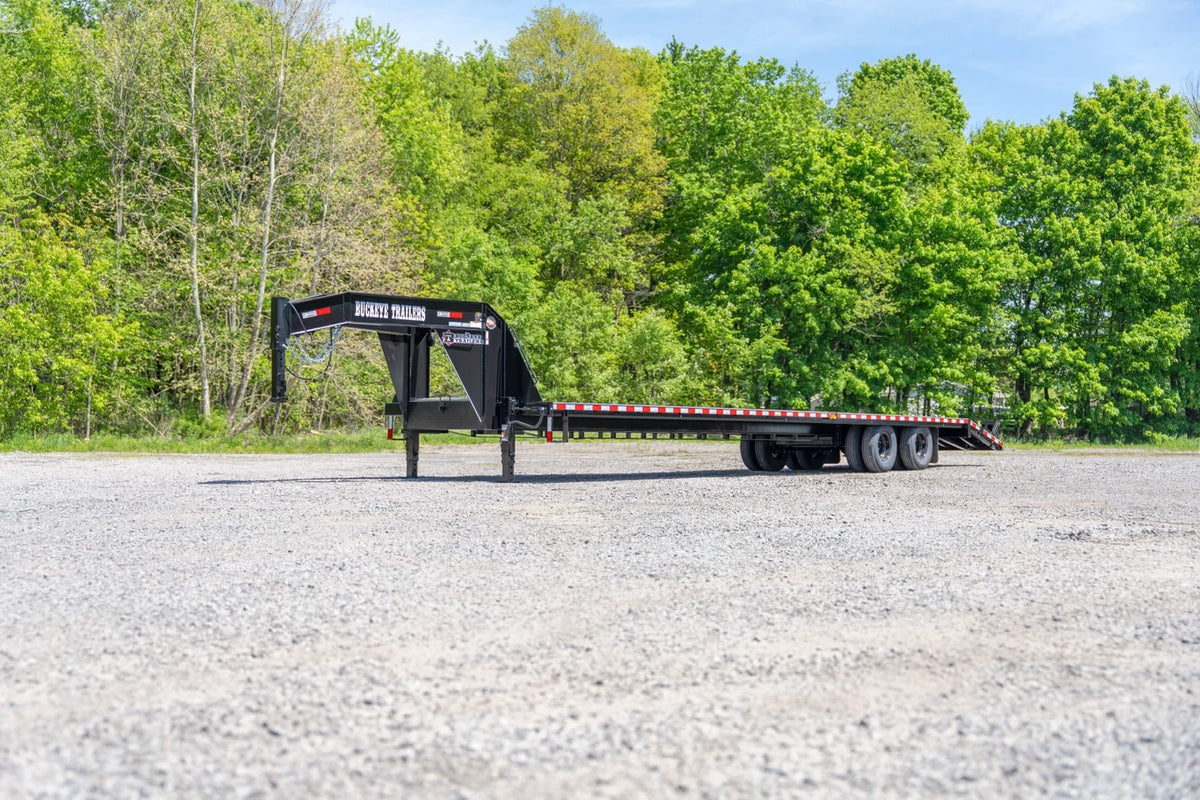

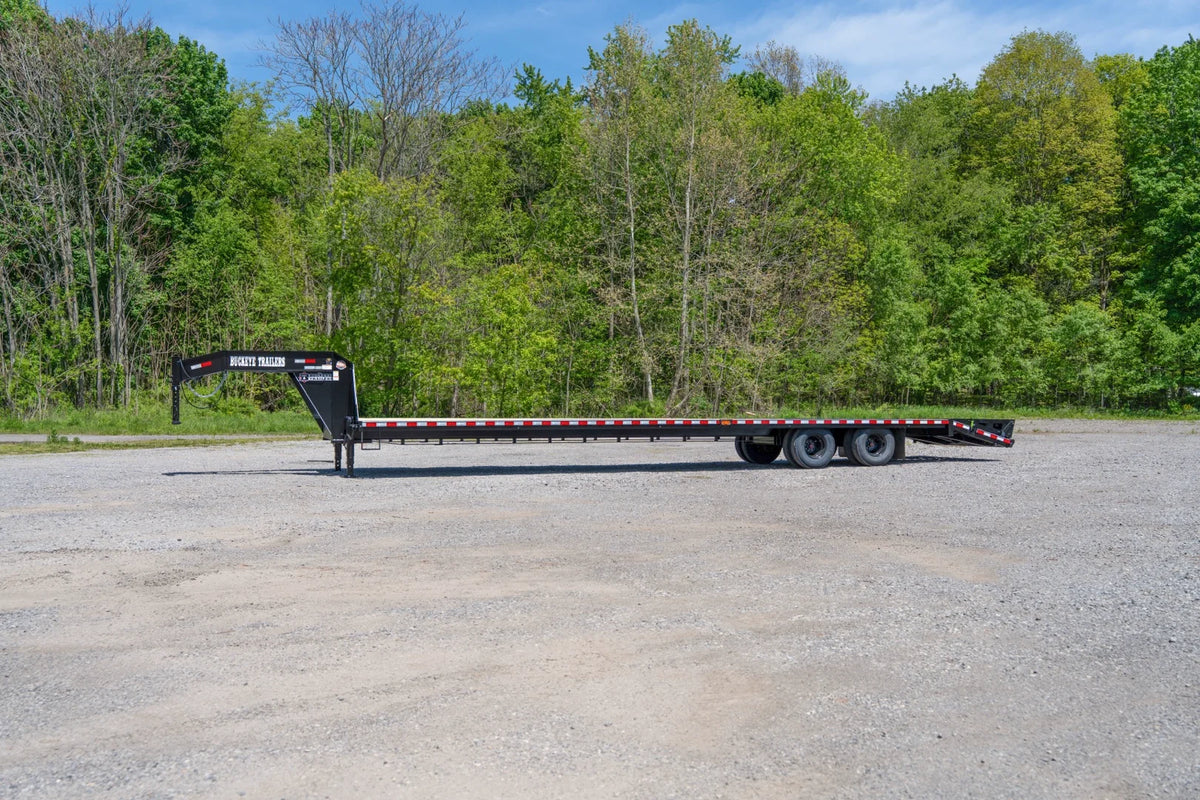

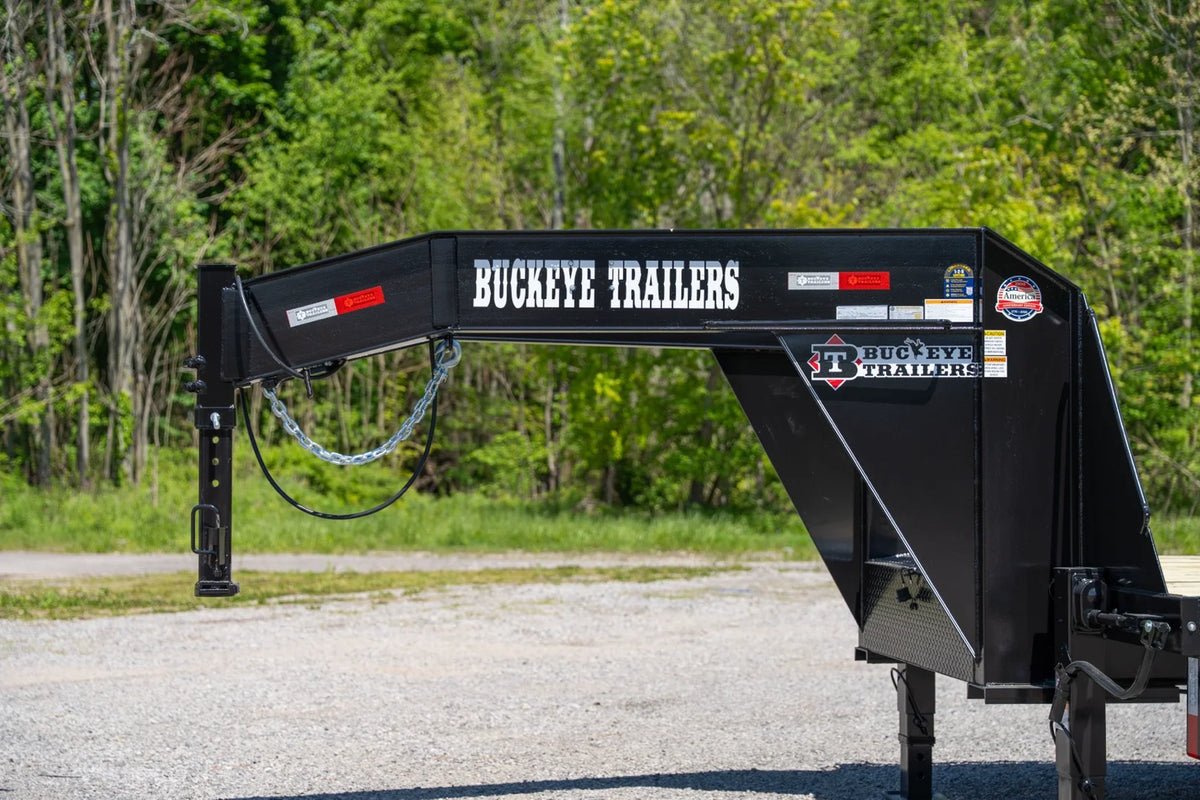

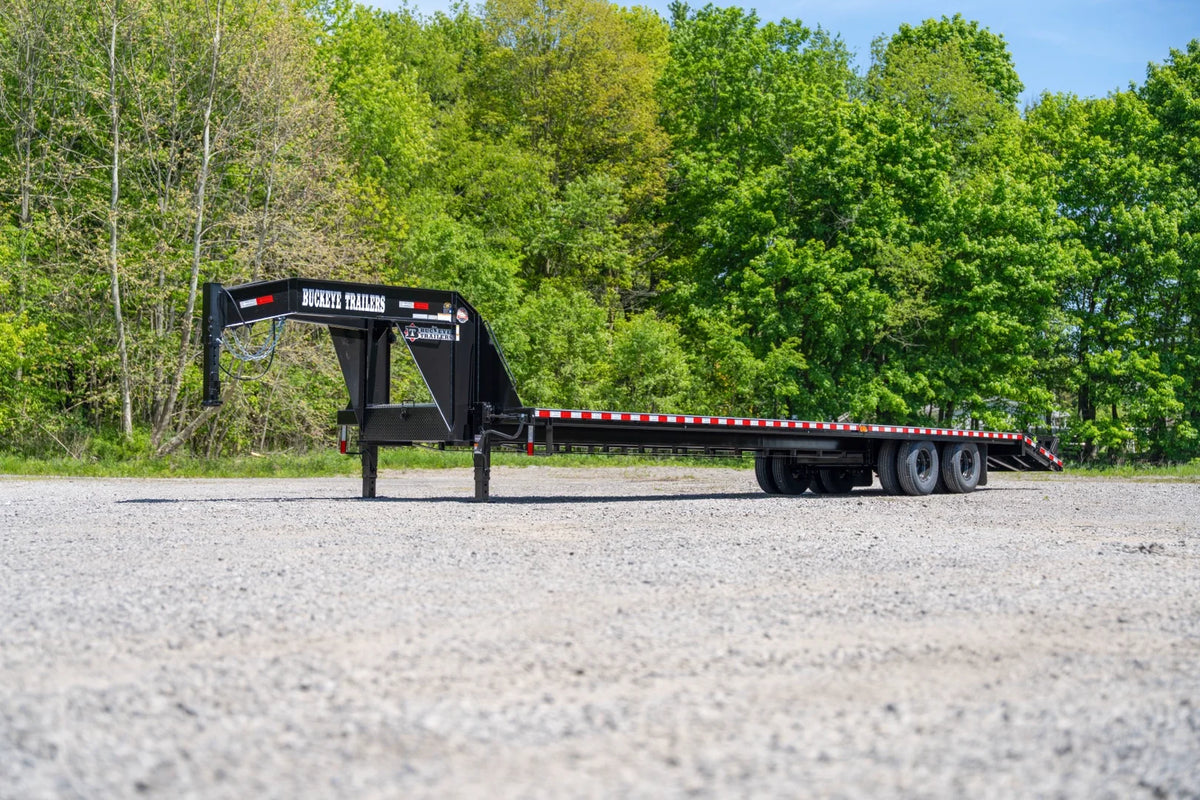

The B-MAXX GN 24K is engineered for operators who need maximum hauling capability without compromise. Available in deck lengths from 25’ to 40’ with a 5’ self-cleaning dovetail, this model offers a 24,000–40,000 lb GVWR and a reinforced cambered I-beam frame with underbridge framing, making it ideal for heavy equipment and demanding jobs. Dual 12K oil-bath axles, a wide axle spread, Load Range G tires, and heavy-duty components throughout provide stability and confidence under load. With a full suite of job-ready standard features and a broad range of upgrade options—including ramps, neck decks, lighting packages, and hydraulic dovetails—the B-MAXX GN 24K is built to work hard, haul heavy, and last for the long haul.
Trailer Town is a Buckeye Trailers dealer. Pick your deck length and the upgrades you need, then send us your build. Prices shown are Buckeye's minimum advertised price (MAP), FOB the Buckeye factory: freight, delivery, tax, tag and registration are extra.
Standard features

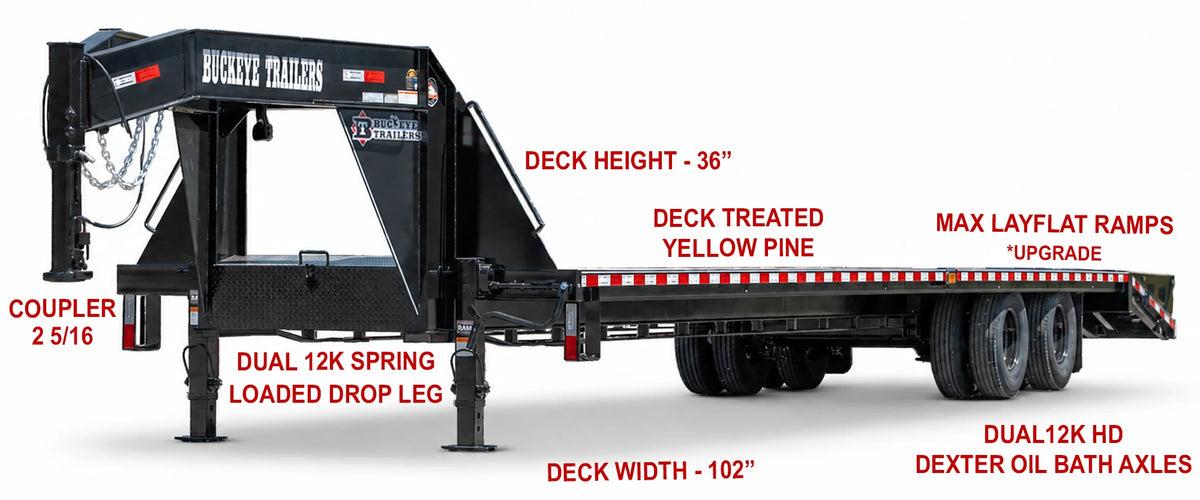

| Trailer | Deck-Over Gooseneck |
|---|---|
| GVWR | 24,000 - 30,000 lb |
| Payload | 13,500 - 22,000 lb |
| Empty Weight | 8,000 lb |
| Deck Length | 25' to 40' |
| Deck Width | 102" |
| Deck Height | 36" |
| Frame | 12" Cambered I-Beam (16 lb) with Underbridge Framing; 19 lb I-Beam for 30' and Longer |
| Suspension | Heavy-Duty Slipper Spring with 48" Axle Spread |

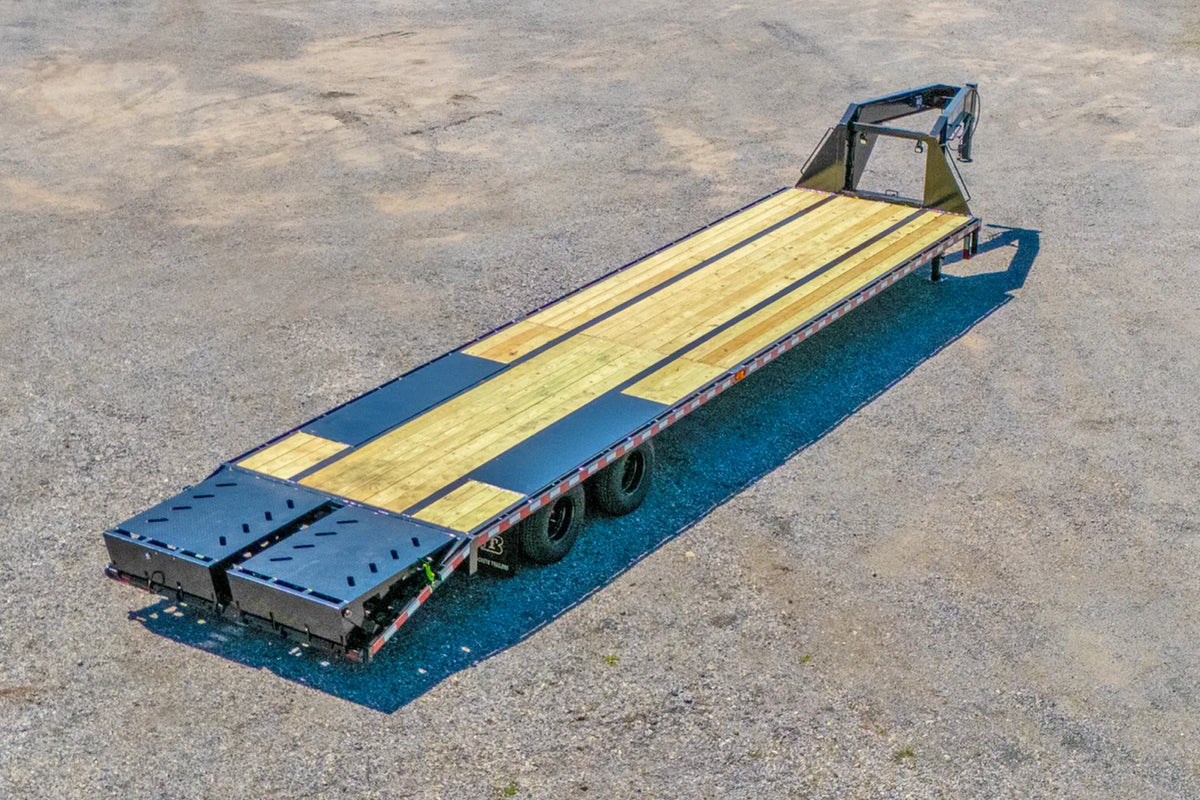

| Floor | Treated Yellow Pine |

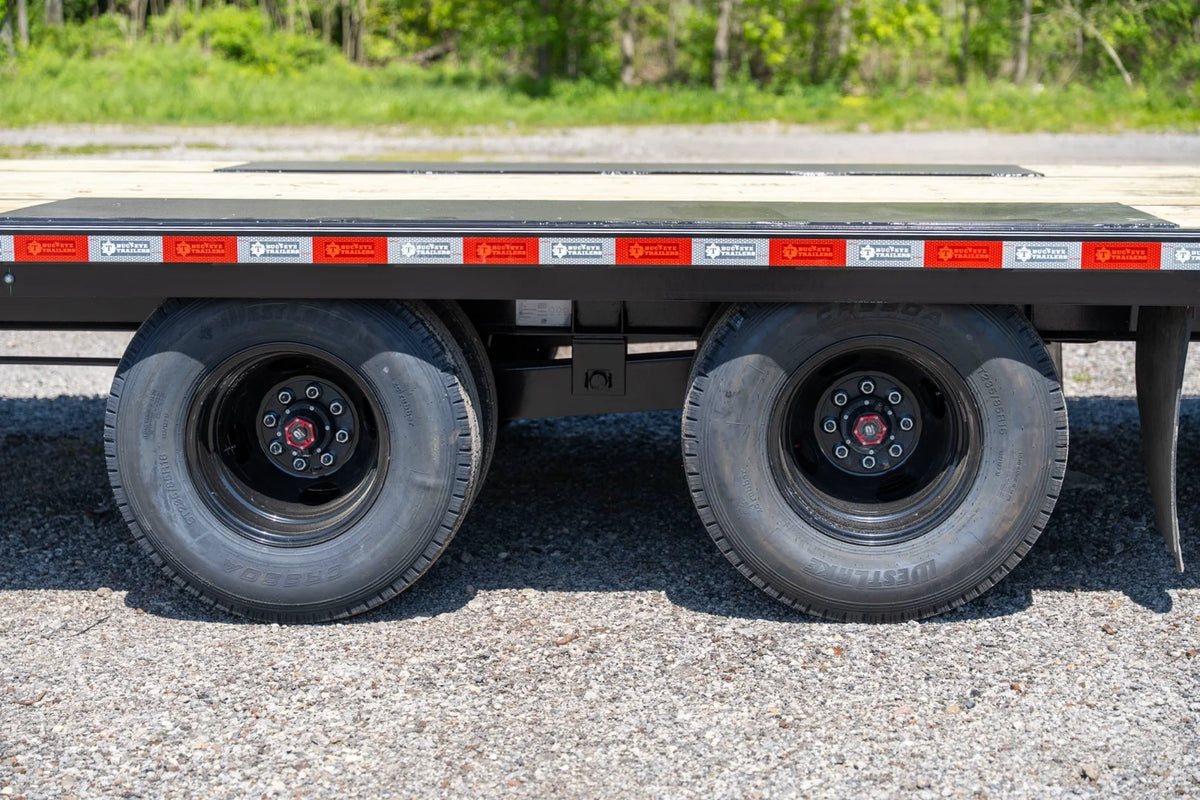

| Axles | Dual 12K Heavy-Duty Dexter Oil Bath Axles 5-Year Warranty |
| Tires | 235/80R16 Load Range G |
| Wheels | Heavy-Duty Steel Dual 16" |
| Bolt Pattern | 8-Lug on 6.5" Bolt Pattern |
| Spare Mount | Standard Spare Mount |

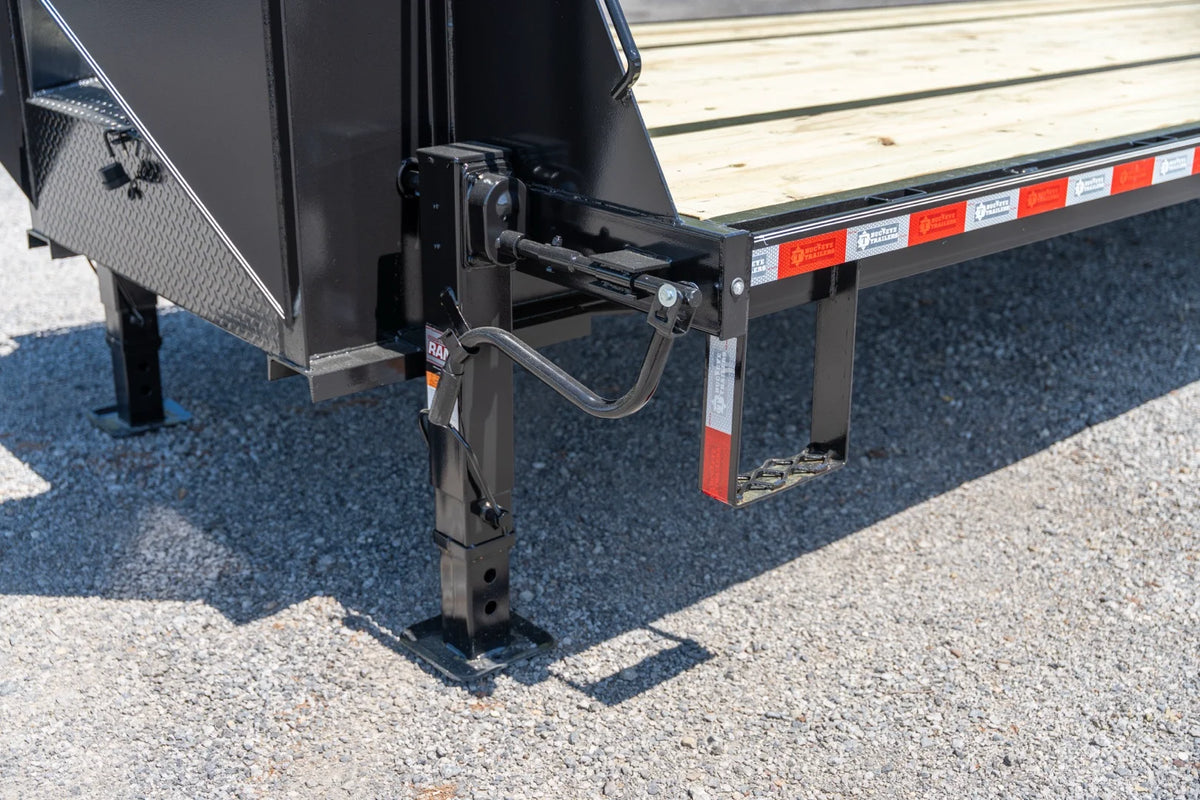

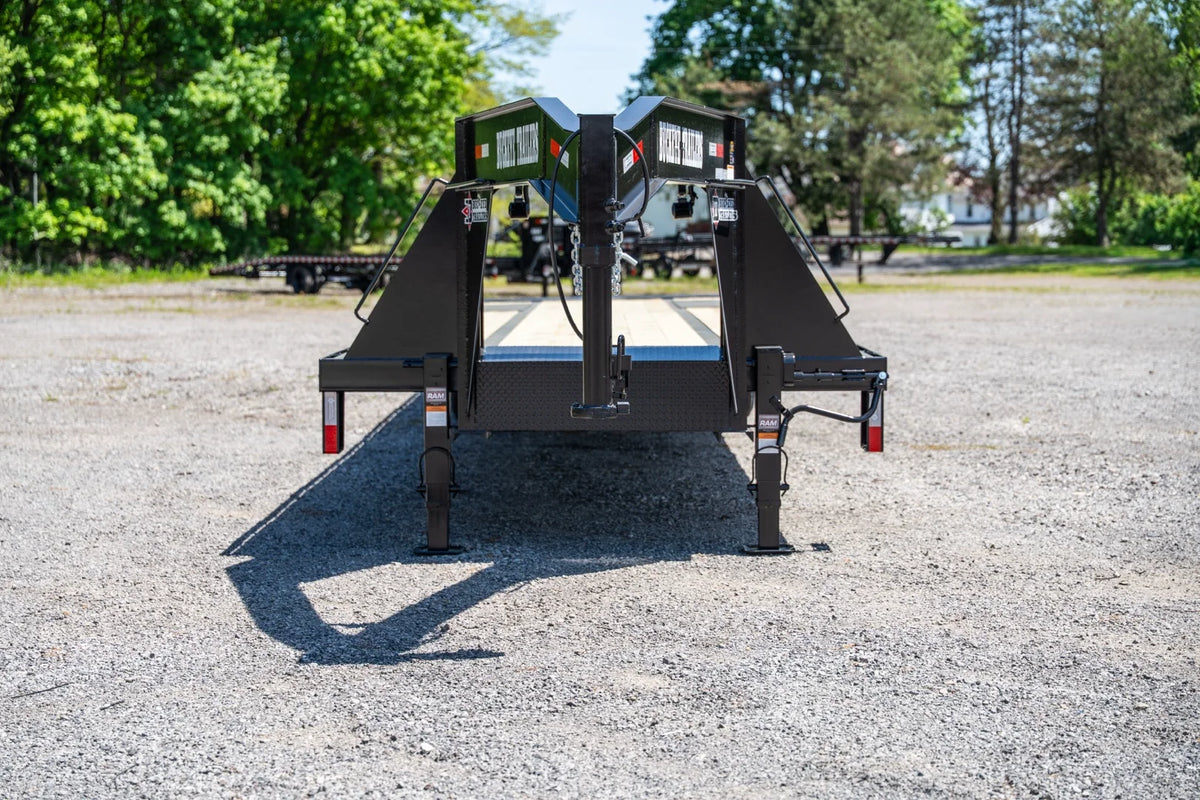

| Jacks | 2 Dual-Speed 12K Spring Loaded Drop Leg Jacks |
| Brakes | Electric Brakes |

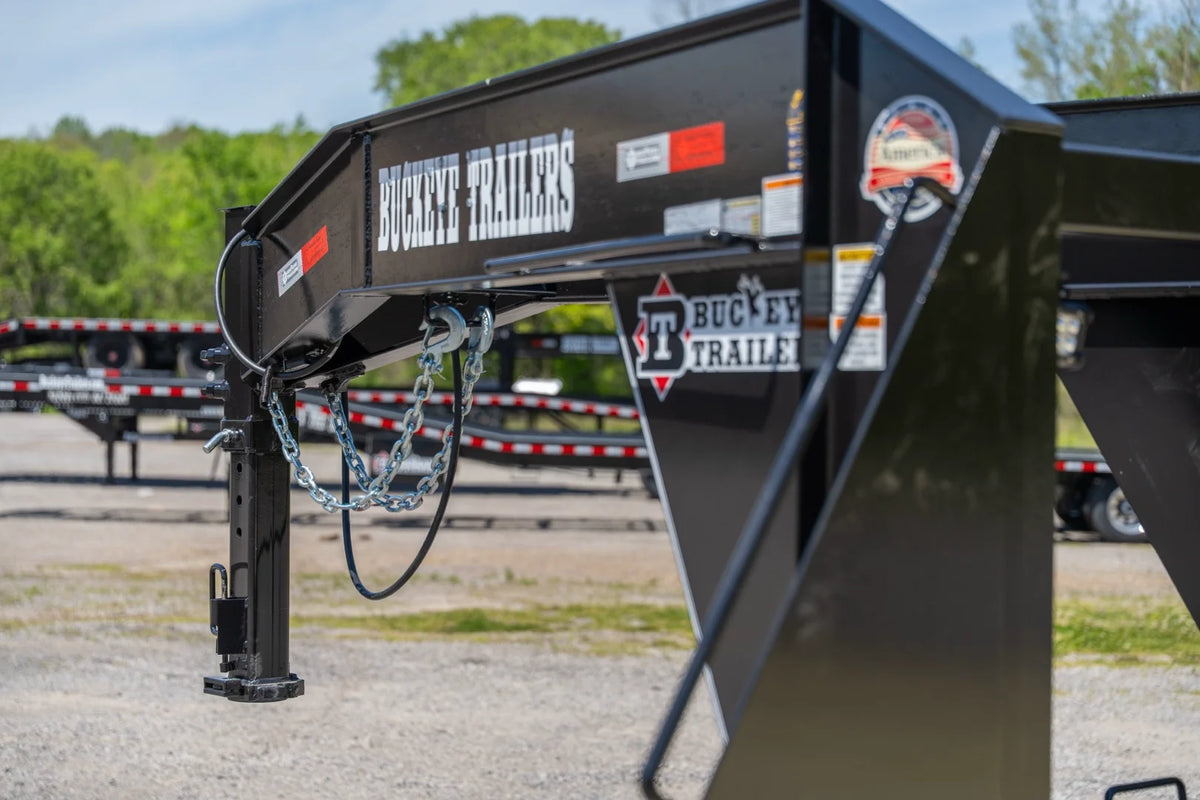

| Coupler | 2" x 5/16" Gooseneck Ball Coupler (3" Ball GVWR Above 30,000 lb) |
| Tie Downs | 3" x 3/8" Rub Rail, Stake Pockets Along Both Sides, Chain Spools |

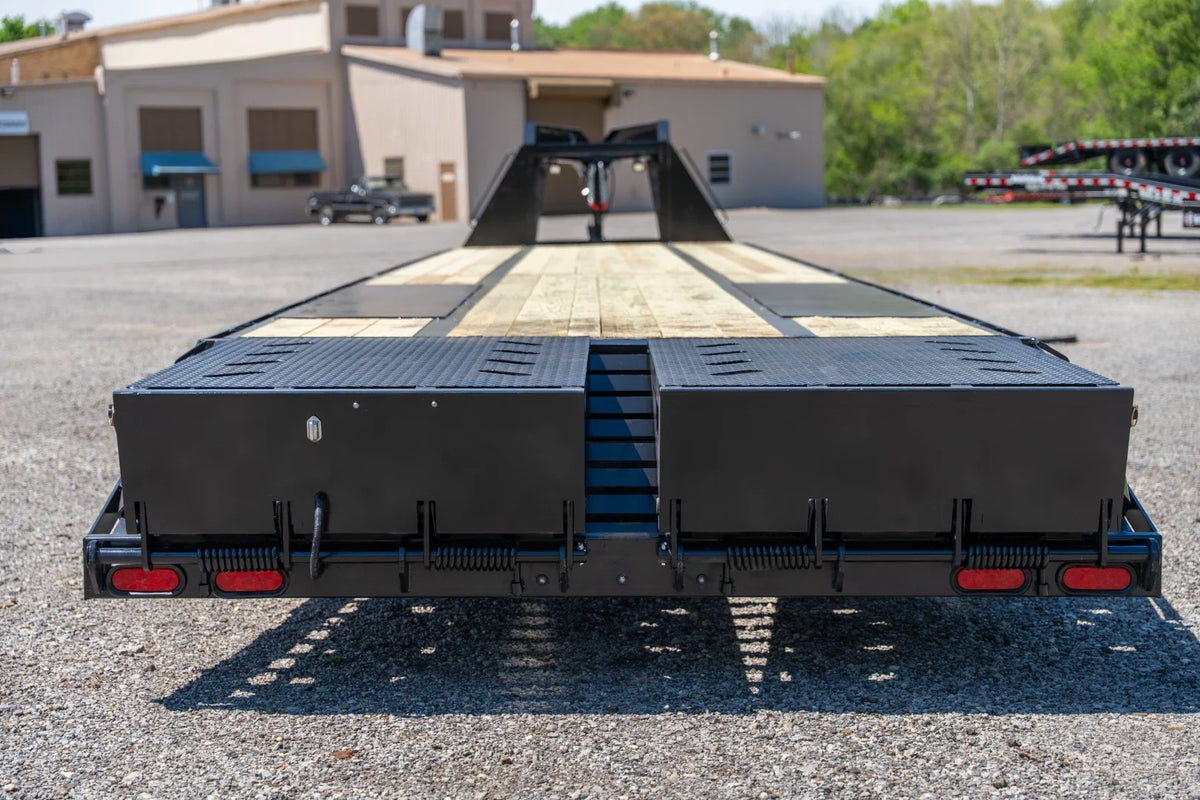

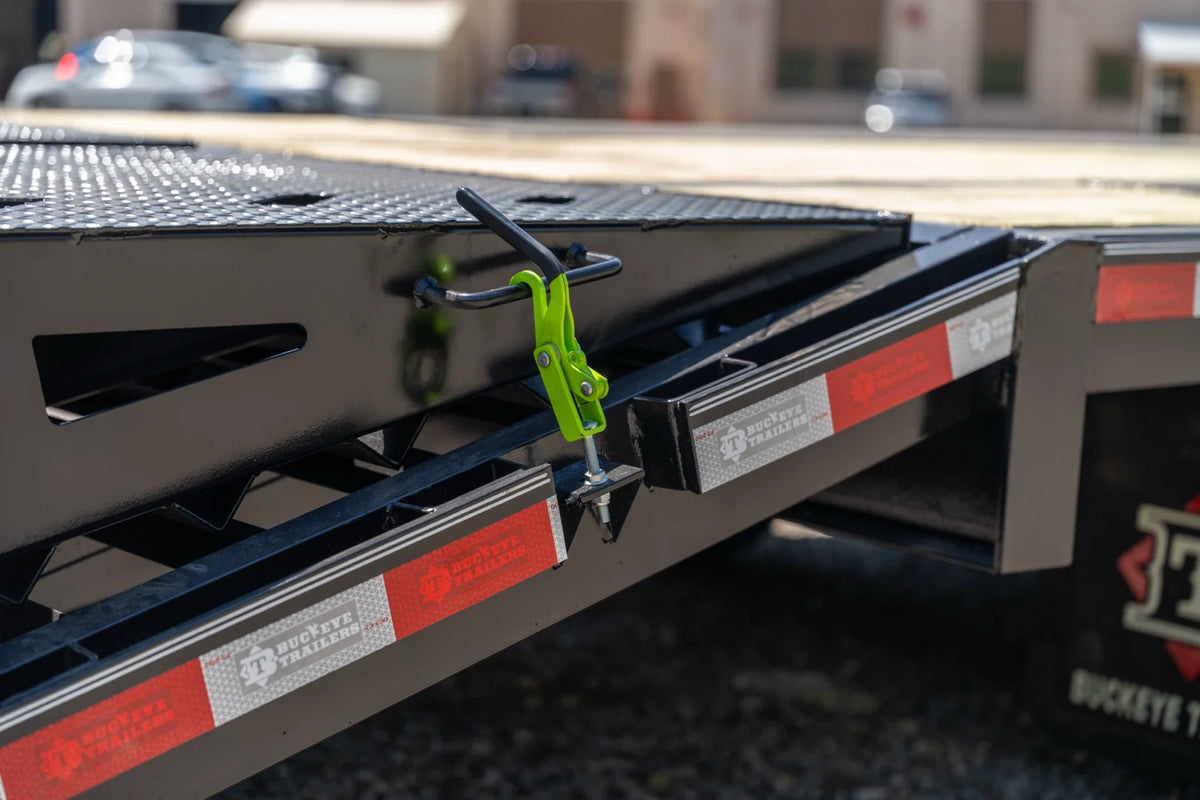

| Ramps | 5' Standup Ramps |
| Safety | Side Steps, Hand Rails, and DOT Reflective Tape |
| Trailer Plug | 7-Way RV |
| Breakaway Kit | Breakaway Kit and Battery Box |
| Safety Chains | Heavy-Duty 3/8" Safety Chains |
| Storage | Chain Box with a Lockable Lid in Between the Uprights |

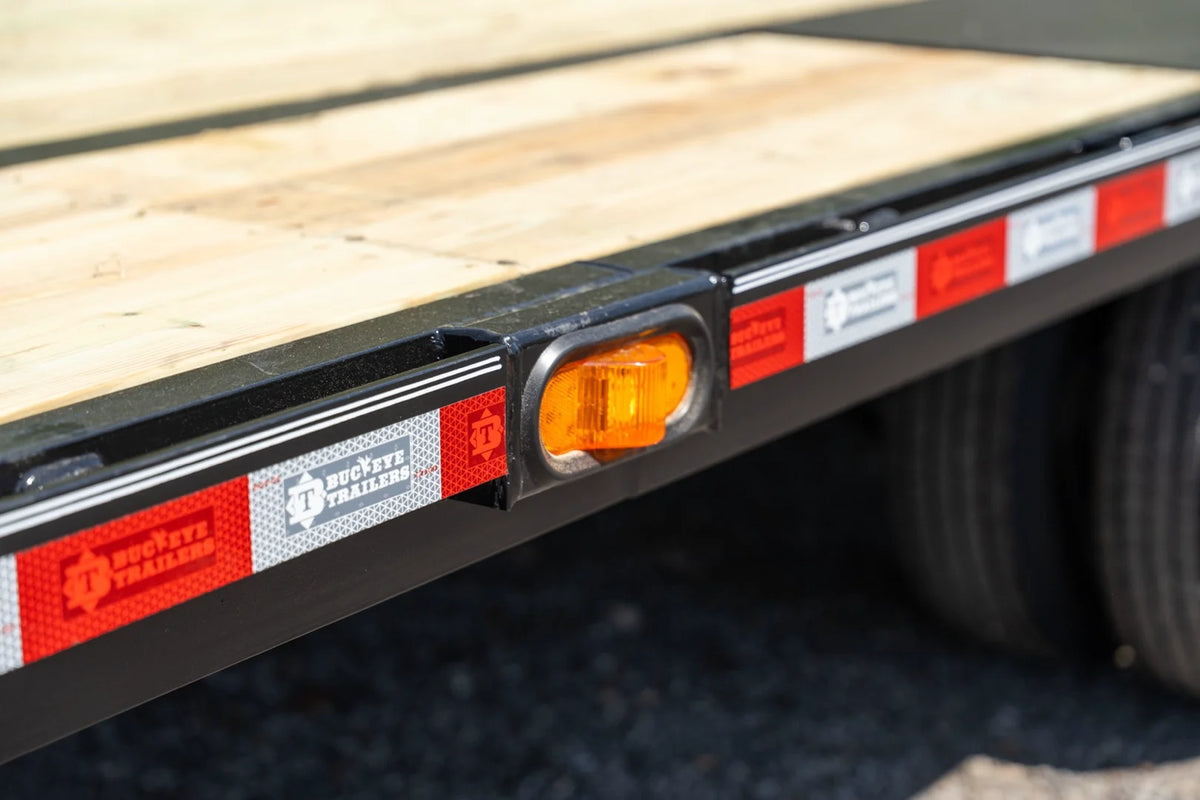

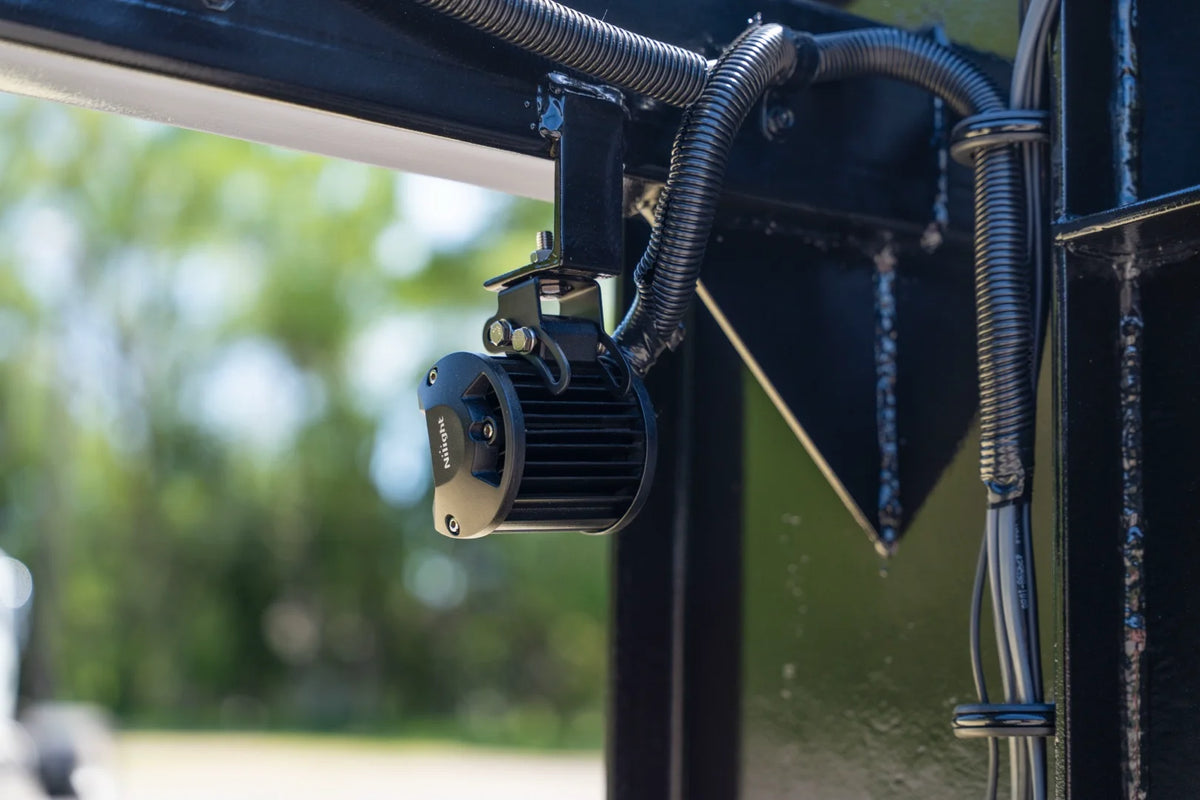

| Lights | DOT-Approved LED Lighting, 4 Extra Bullet Markers, and Floodlights on The Neck |
| Finish | Automotive-Grade Epoxy Primer with Two Top Coats of Industrial Urethane |
| Warranty | 2 Year Structural Frame |
Not included: Runners.
Specifications and pricing from Buckeye Trailers; subject to change without notice.
