PRODUCT DETAILS
Description

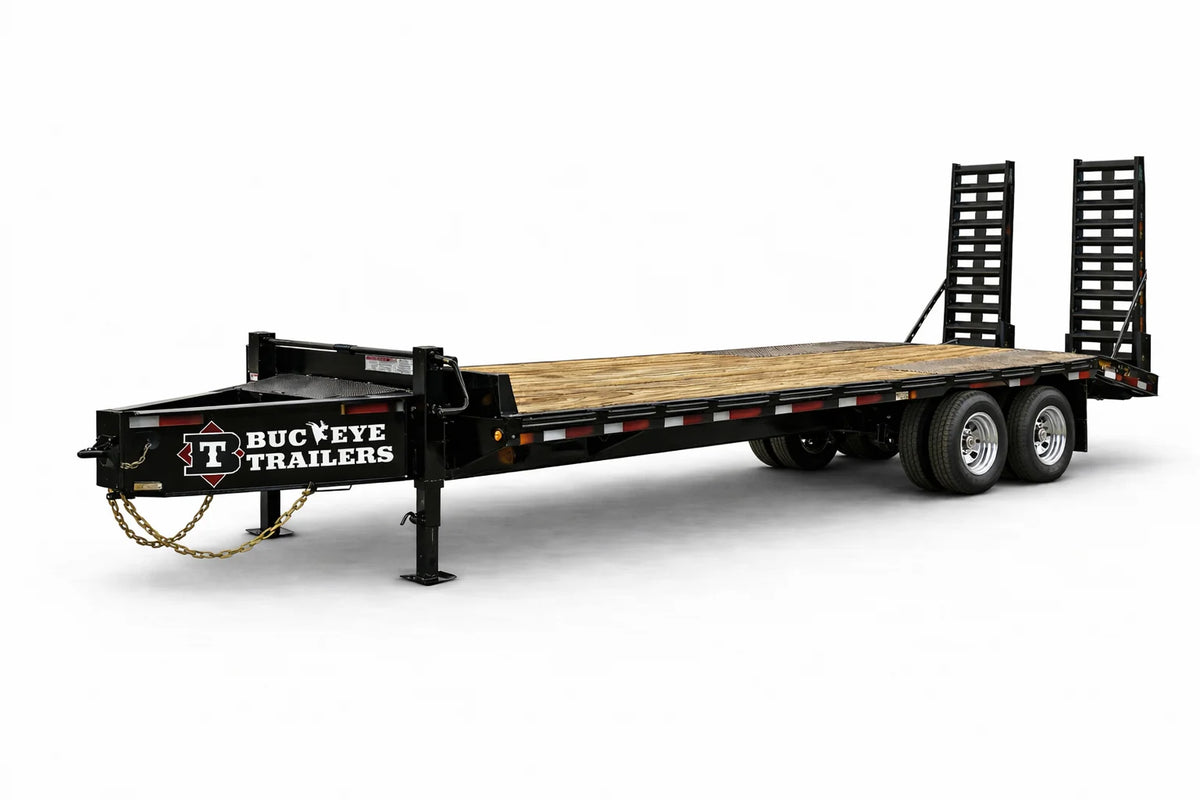

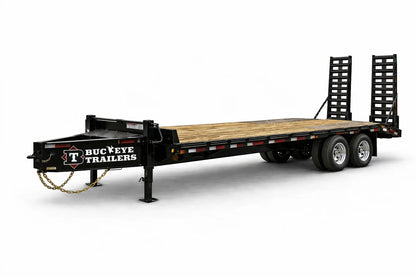

The B-MAXX PH 20K is built for serious hauling with a 20,000–24,000 lb GVWR and payload capacity up to 30,000 lbs. Featuring a 16" cambered 12 lb I-beam frame with underbridge framing, this deck-over pintle trailer delivers dependable strength job after job. Equipped with dual 10K oil bath axles, heavy-duty slipper spring suspension with 48" axle spread, electric brakes, and a 25,000 lb adjustable coupler or pintle ring. Finished with treated yellow pine decking, spring-assist ramps, LED lighting, and dual 12K jacks — all backed by a 2-year structural frame warranty.
Trailer Town is a Buckeye Trailers dealer. Pick your deck length and the upgrades you need, then send us your build. Prices shown are Buckeye's minimum advertised price (MAP), FOB the Buckeye factory: freight, delivery, tax, tag and registration are extra.
Standard features
| Trailer | Deck-Over Pintle Hook |
|---|---|
| GVWR | 20,000 - 24,000 lb |
| Payload | 14,500 - 18,000 lb |
| Empty Weight | 6,000 lb |
| Deck Length | Length 25' - 30' |
| Deck Width | 102" |
| Deck Height | 36" |
| Frame | 12" Cambered I-Beam (16 lb) with Underbridge Framing; 19 lb I-beam on 30' and longer |
| Suspension | Heavy-Duty Slipper Spring with 48" Axle Spread |
| Floor | Treated Yellow Pine |
| Axles | Dual 10K Heavy-Duty Dexter Oil Bath Axles 5-Year Warranty |
| Tires | 235/80R16 Load Range G |
| Wheels | Heavy-Duty Steel Dual 16" |
| Bolt Pattern | 8-Lug on 6.5" Bolt Pattern |
| Spare Mount | Standard Spare Mount |
| Jacks | 2 Dual-Speed 12K Spring-Loaded Drop Leg Jacks |
| Brakes | Electric Brakes |
| Coupler | 25,000 lb 2-5/16" Adjustable Ball Coupler or Pintle Ring |
| Tie Downs | 3" x 3/8" Rub Rail, Stake Pockets Along Both Sides, Chain Spools |
| Ramps | 5' Stand-Up Spring-Assist |
| Safety | Side Steps, Hand Rails, and DOT Reflective Tape |
| Trailer Plug | 7-Way RV |
| Breakaway Kit | Breakaway Kit and Battery Box |
| Safety Chains | Heavy-Duty 3/8" Safety Chains |
| Storage | Chain Box with a Lockable Lid |
| Lights | DOT-Approved LED Lighting, 4 Marker Lights per Side |
| Finish | Automotive-Grade Epoxy Primer with Two Top Coats of Industrial Urethane |
| Warranty | 2 Year Structural Frame |
Not included: Runners.
Specifications and pricing from Buckeye Trailers; subject to change without notice.
