PRODUCT DETAILS
Description

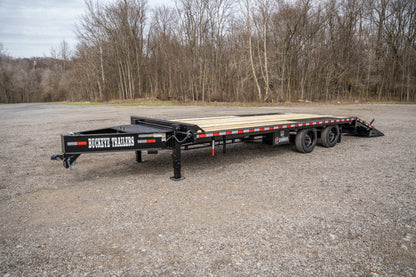

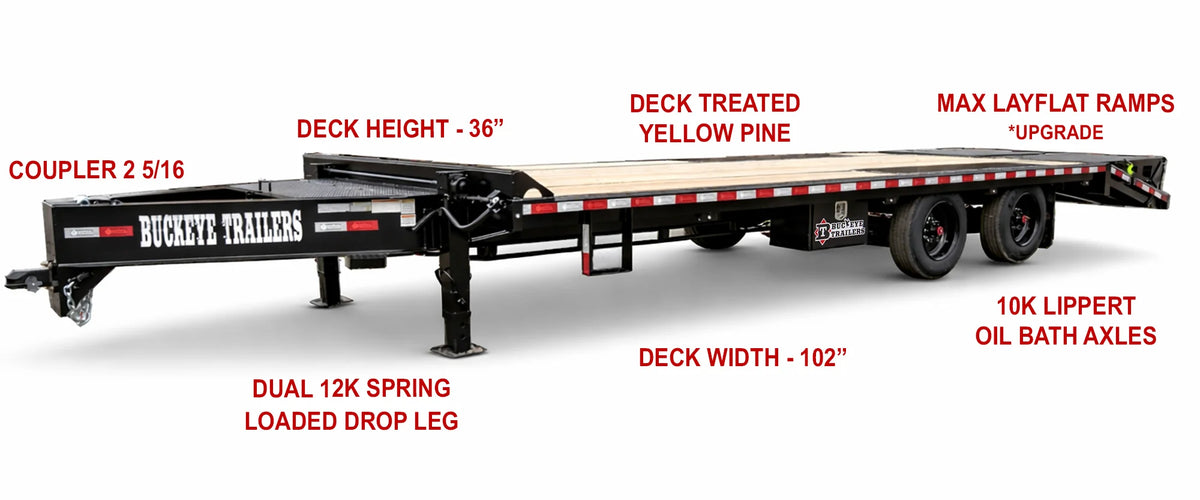

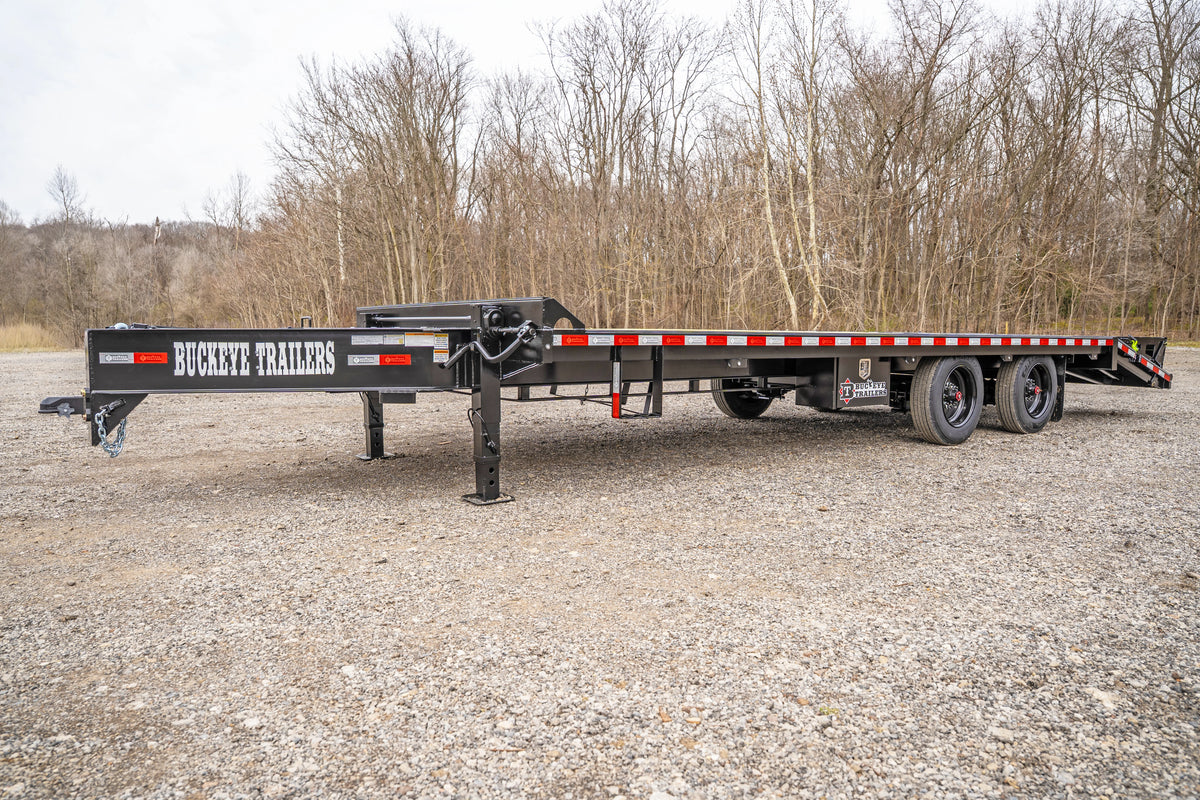

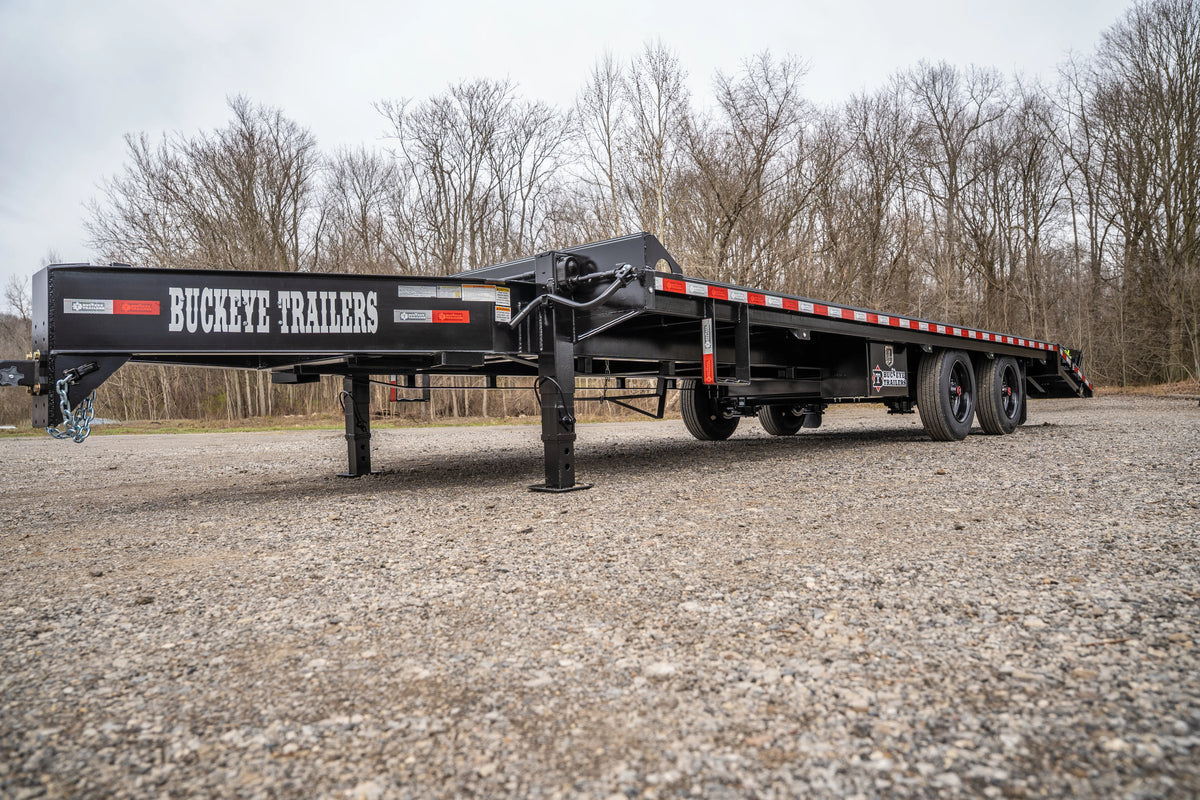

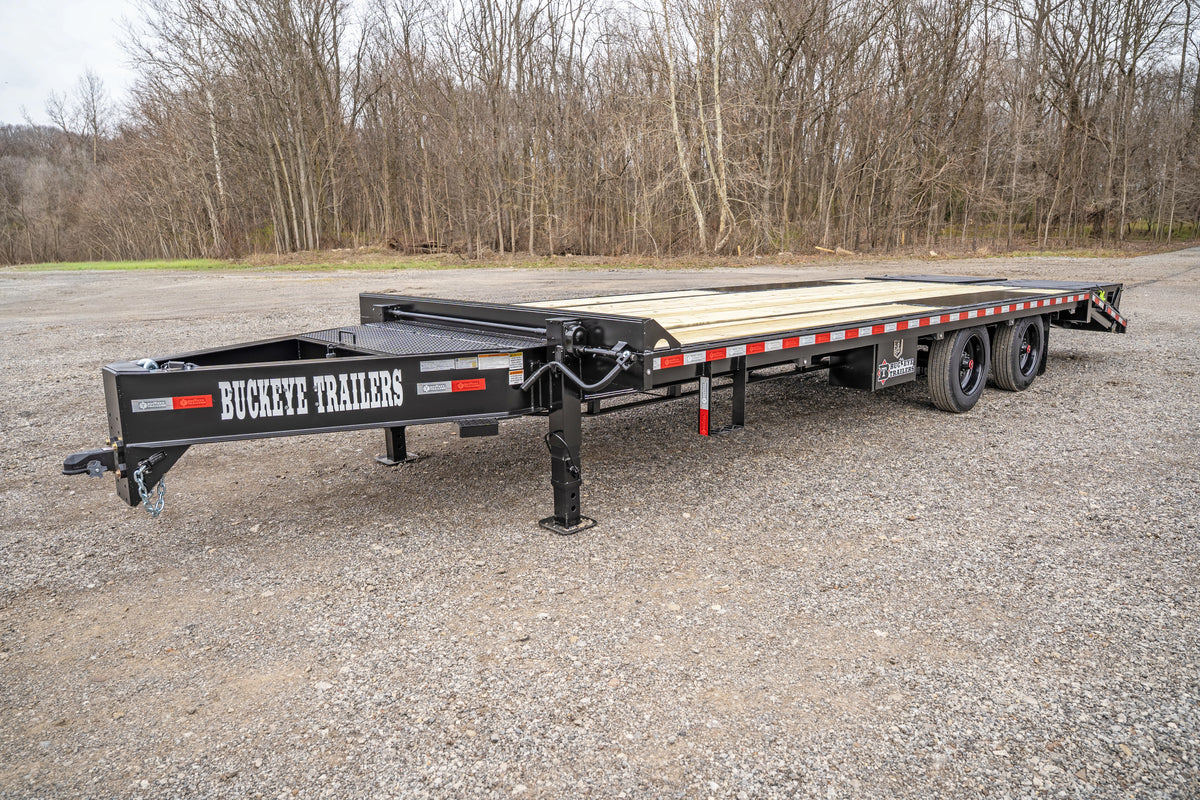

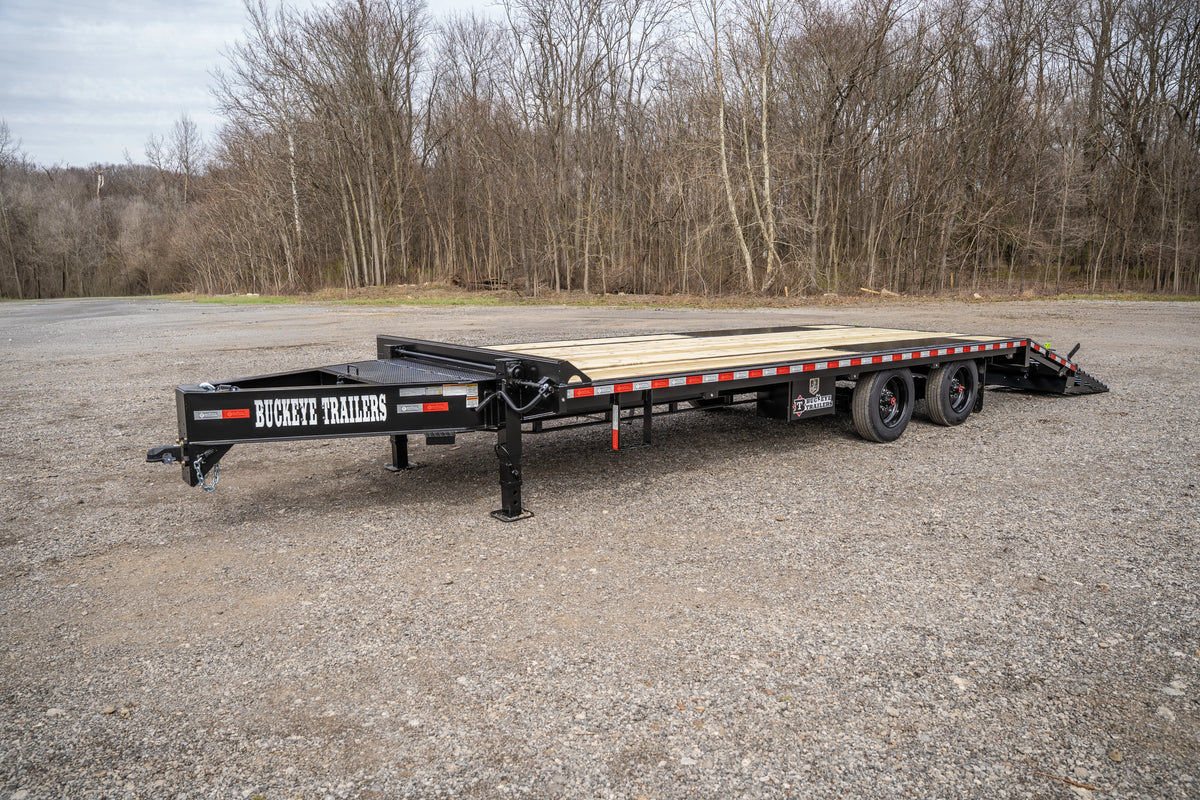

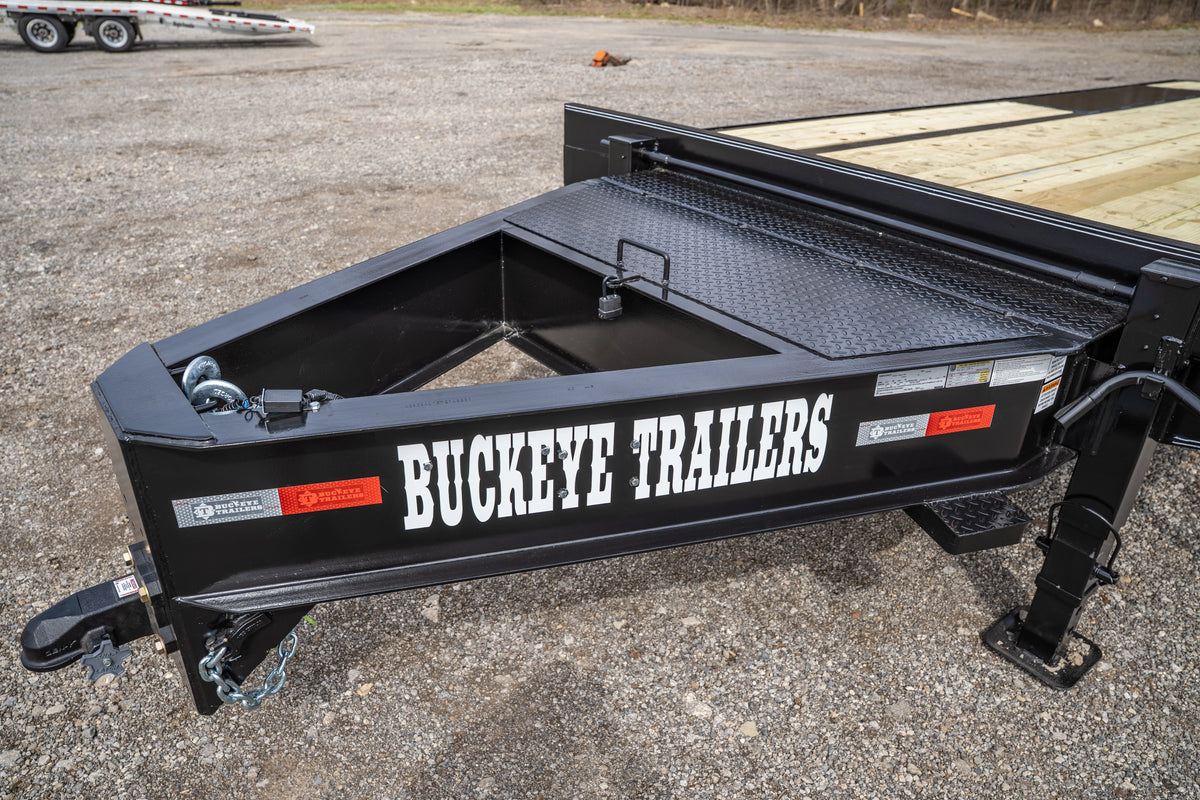

The B-MAXX PH 20K-SS delivers serious capability with a 20,000–24,000 lb GVWR and payloads up to 19,500 lbs. Built on a cambered 12" I-beam frame with underbridge framing, it’s designed for strength and dependable performance. Standard features include 10K Dexter Lippert oil bath axles, 215/75R17.5 super single tires, dual 12K drop leg jacks, electric brakes, and a 25,000 lb 2-5/16" ball coupler or pintle ring. Finished with treated yellow pine decking, rub rail with stake pockets and chain spools, 5' stand-up spring-assist ramps, DOT LED lighting, and backed by a 2-year structural frame warranty.
Trailer Town is a Buckeye Trailers dealer. Pick your deck length and the upgrades you need, then send us your build. Prices shown are Buckeye's minimum advertised price (MAP), FOB the Buckeye factory: freight, delivery, tax, tag and registration are extra.
Standard features
| Trailer | Deck-Over Pintle Hook |
|---|---|
| GVWR | 20,000 - 24,000 lb |
| Payload | 14,500 - 18,000 lb |
| Empty Weight | 6,000 lb |
| Deck Length | Length 25' - 30' |
| Deck Width | 102" |
| Deck Height | 36" |
| Frame | 12" Cambered I-Beam (16 lb) with Underbridge Framing; 19 lb I-beam on 30' and Longer |
| Suspension | Heavy-Duty Slipper Spring with Rubber Bushings |

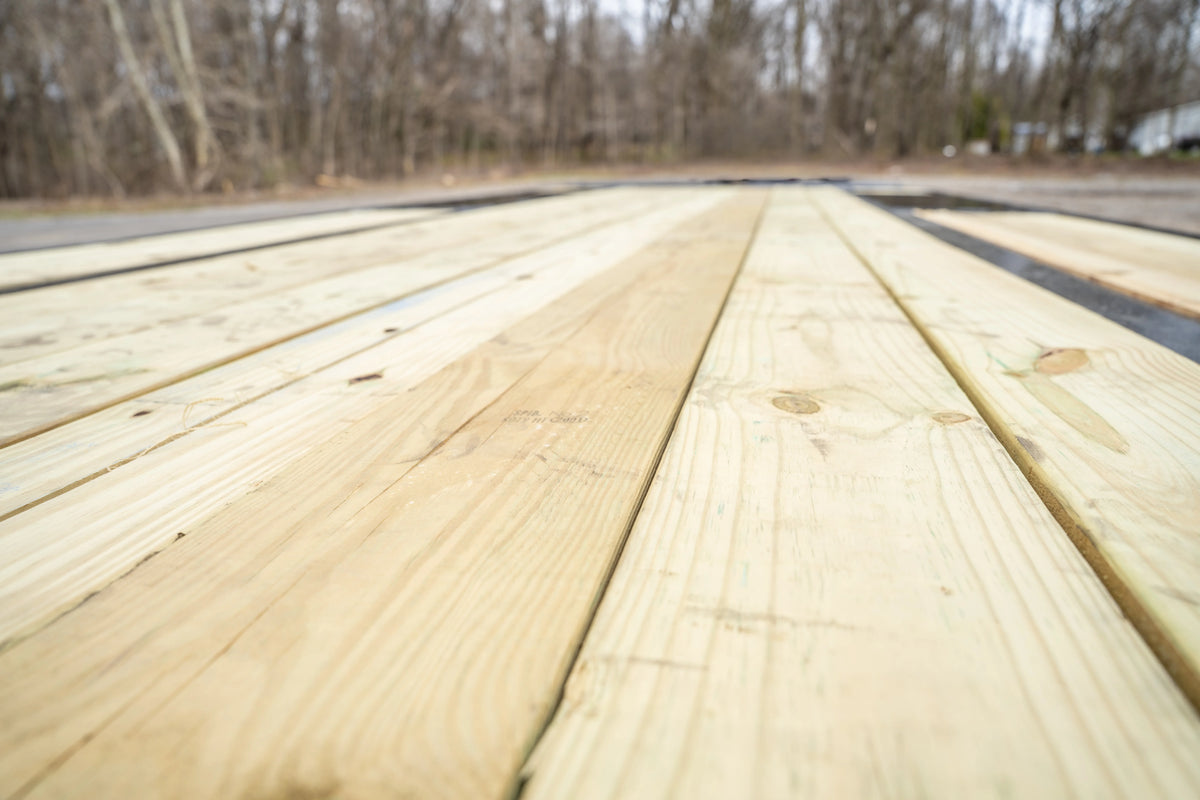

| Floor | Treated Yellow Pine |
| Axles | 10K Lippert Oil Bath Axles 5-Year Warranty |

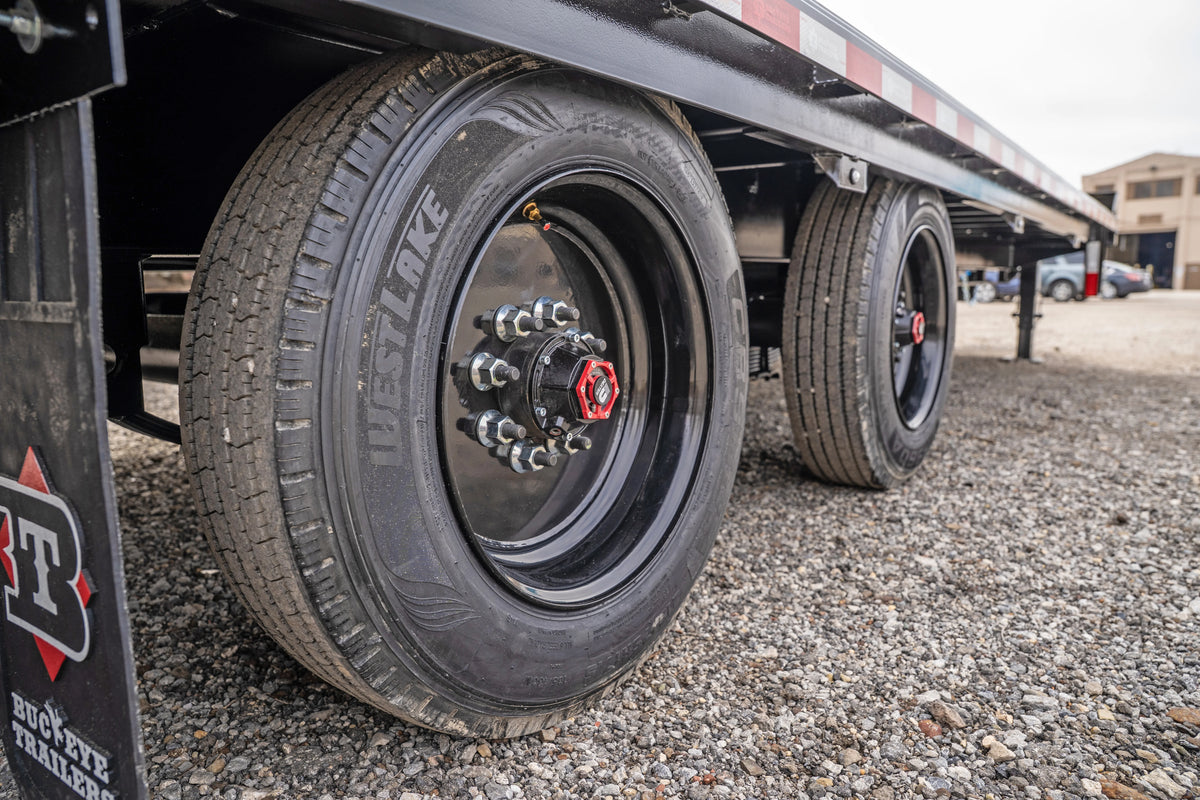

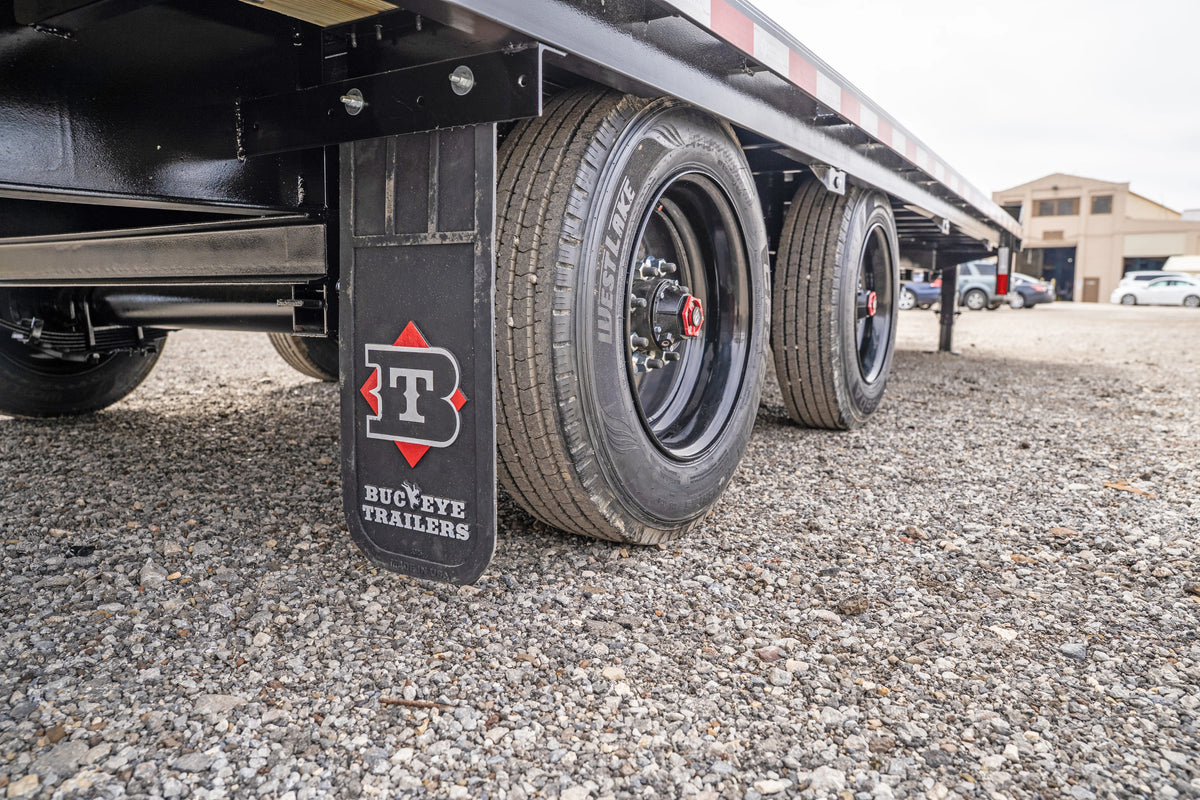

| Tires | 215/75R17.5 Super Singles |
| Wheels | 17.5 Heavy-Duty Steel Wheel |
| Bolt Pattern | 8-Lug on 6.5" Bolt Pattern |
| Spare Mount | Standard Spare Mount |

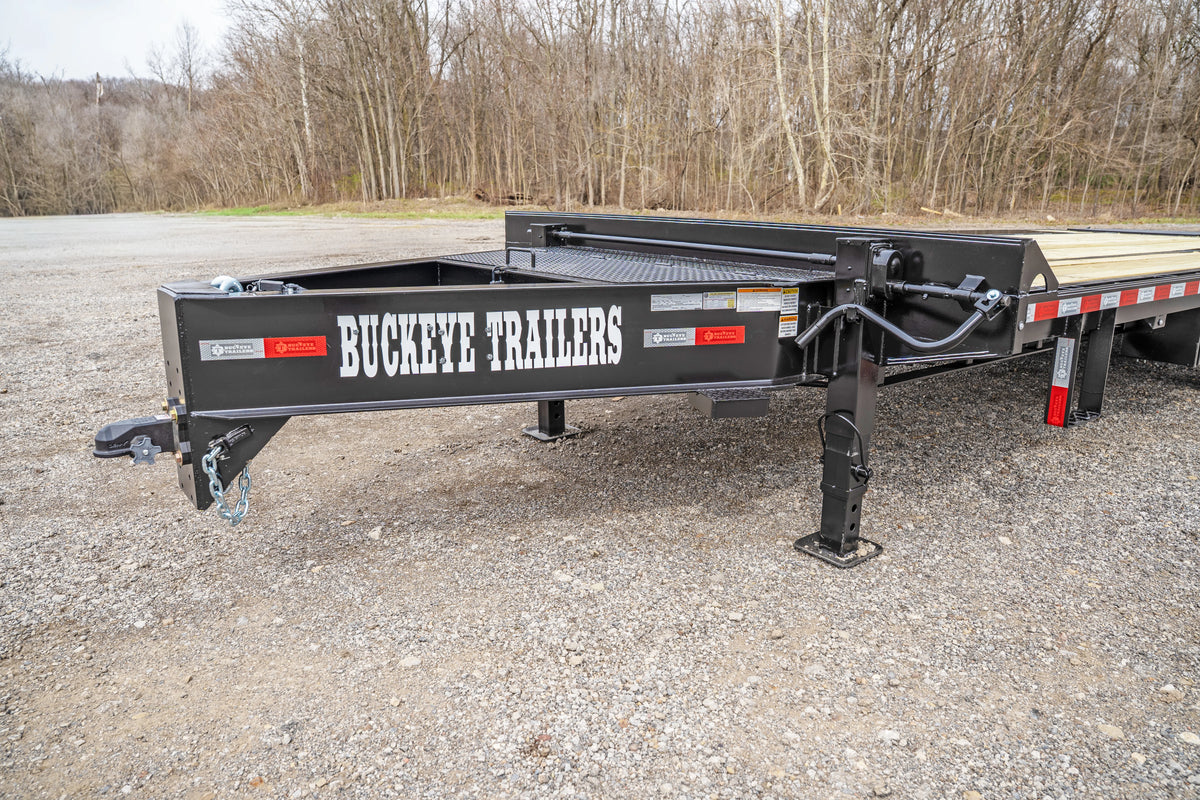

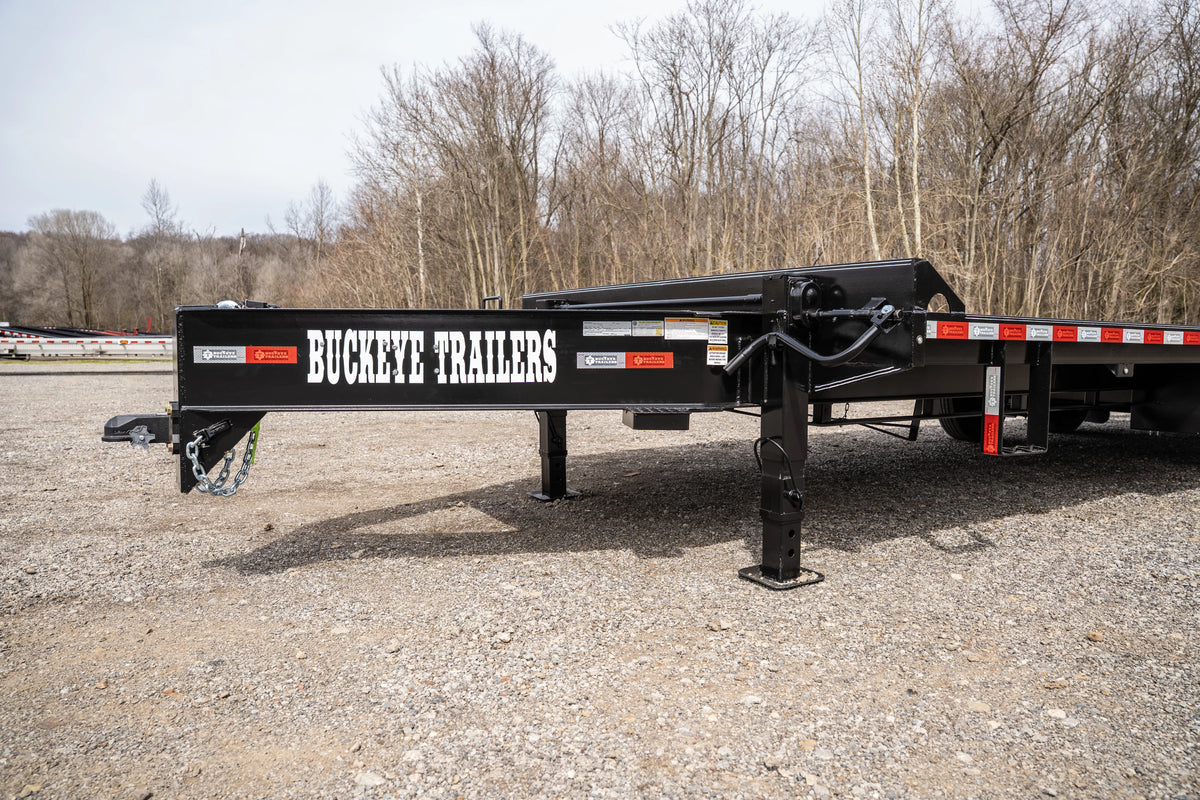

| Jacks | 2 Dual-Speed 12K Spring-Loaded Drop Leg Jacks |
| Brakes | Electric Brakes |

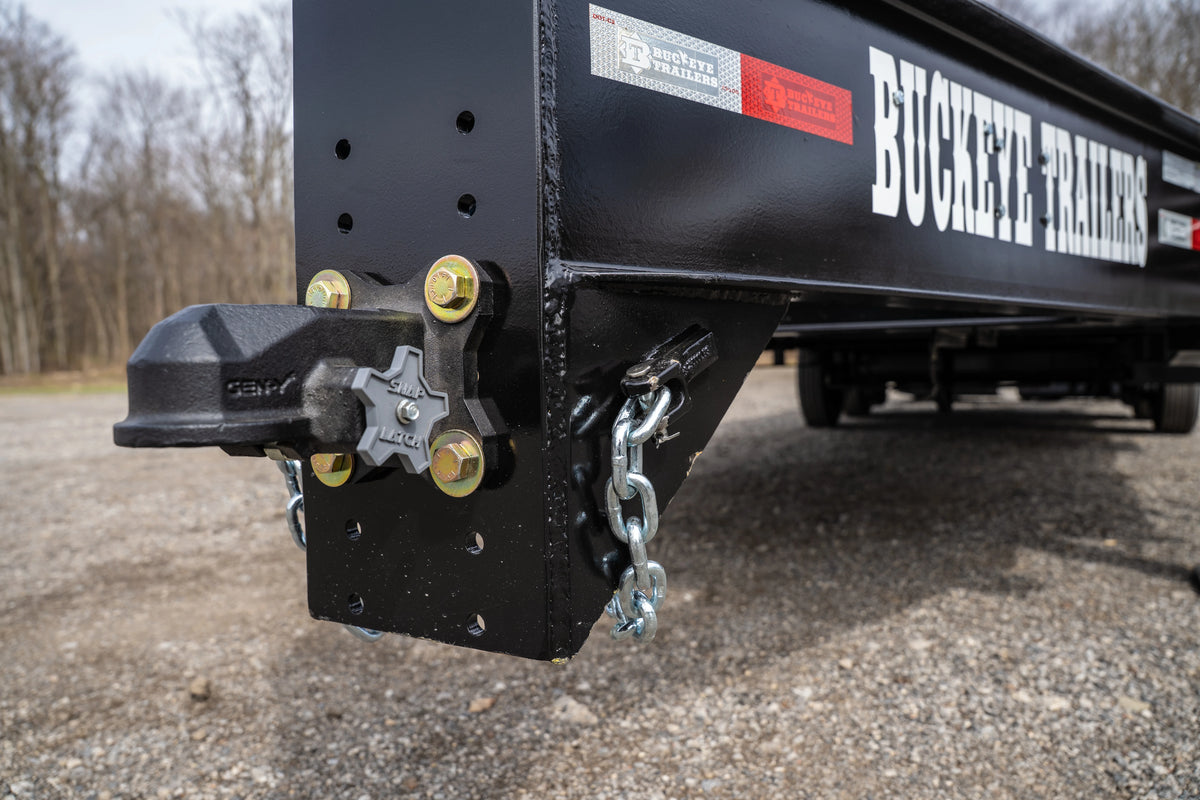

| Coupler | 25,000 lb 2-5/16" Ball Coupler or Pintle Ring |
| Tie Downs | 3" x 3/8" Rub Rail, Stake Pockets Along Both Sides, Chain Spools |

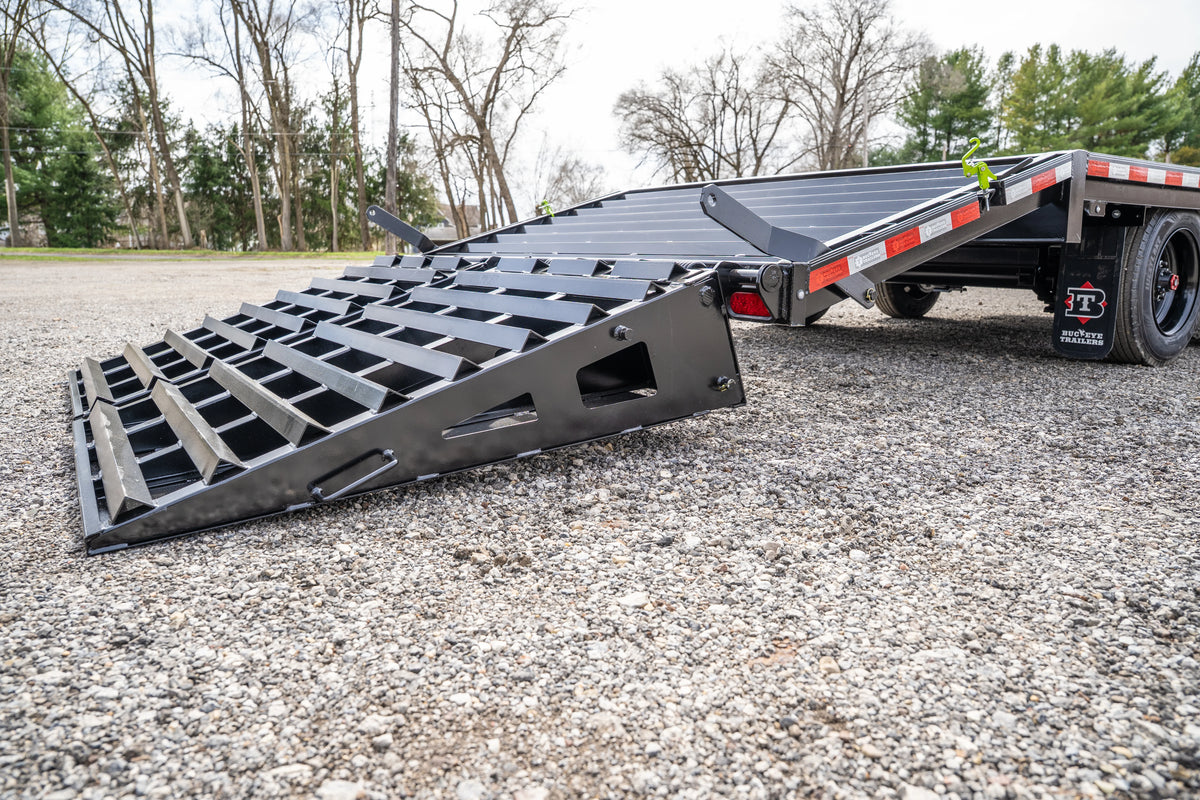

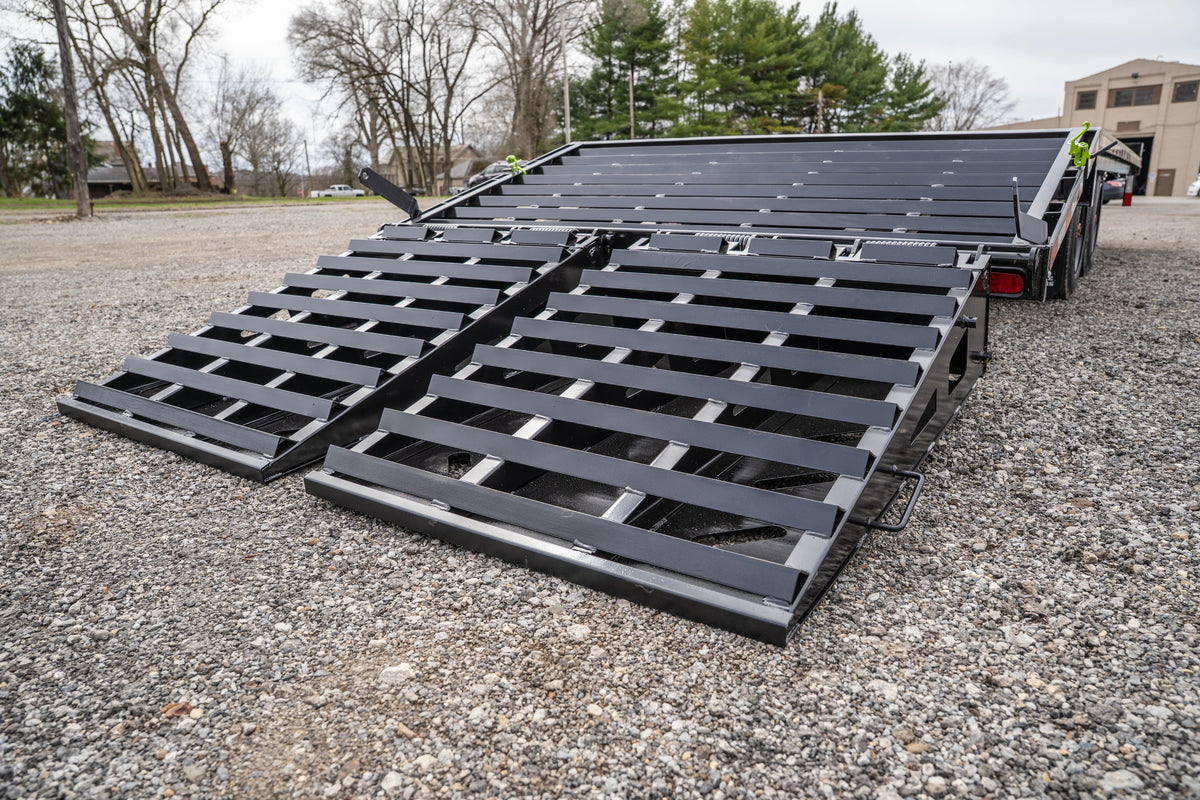

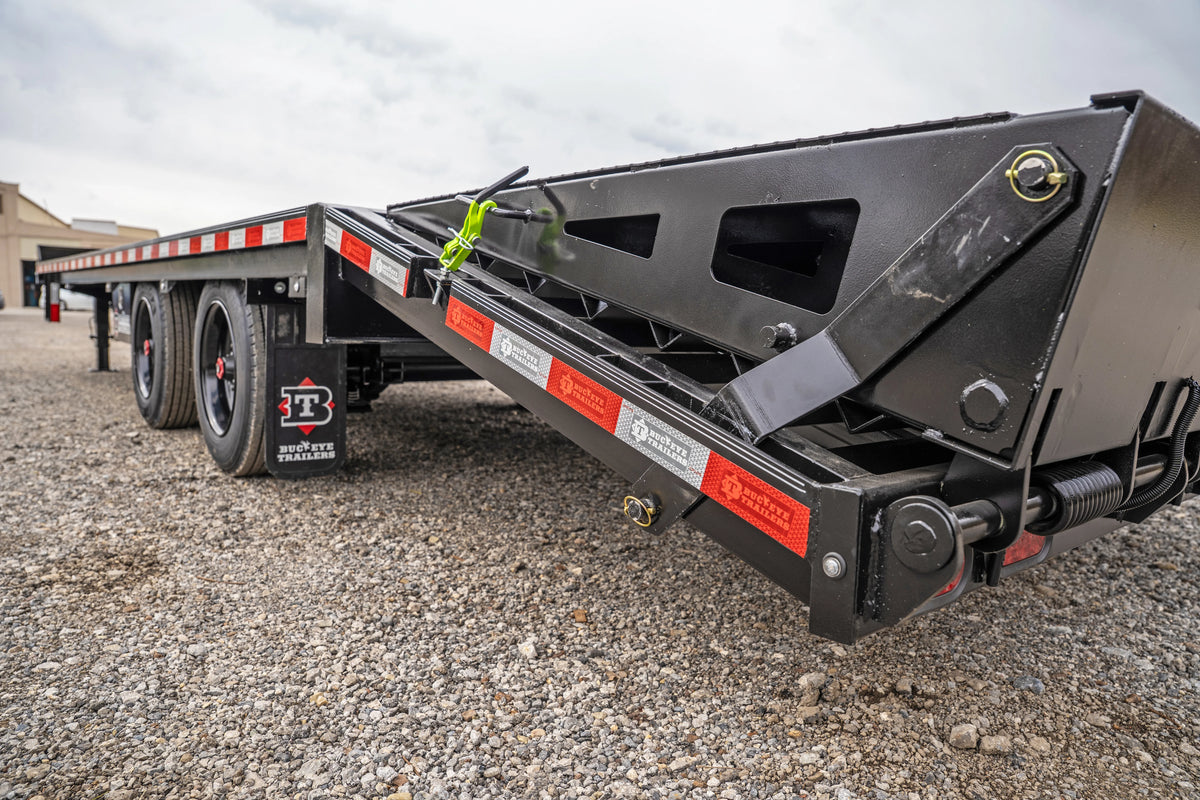

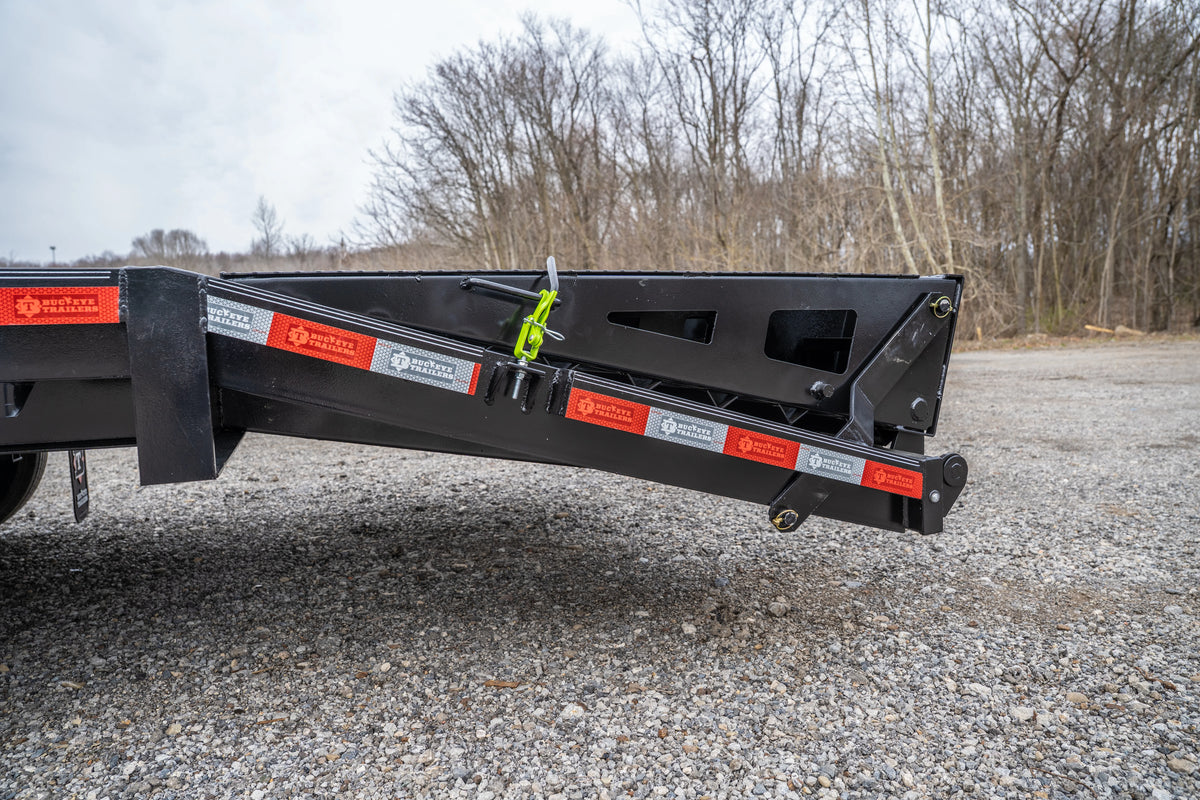

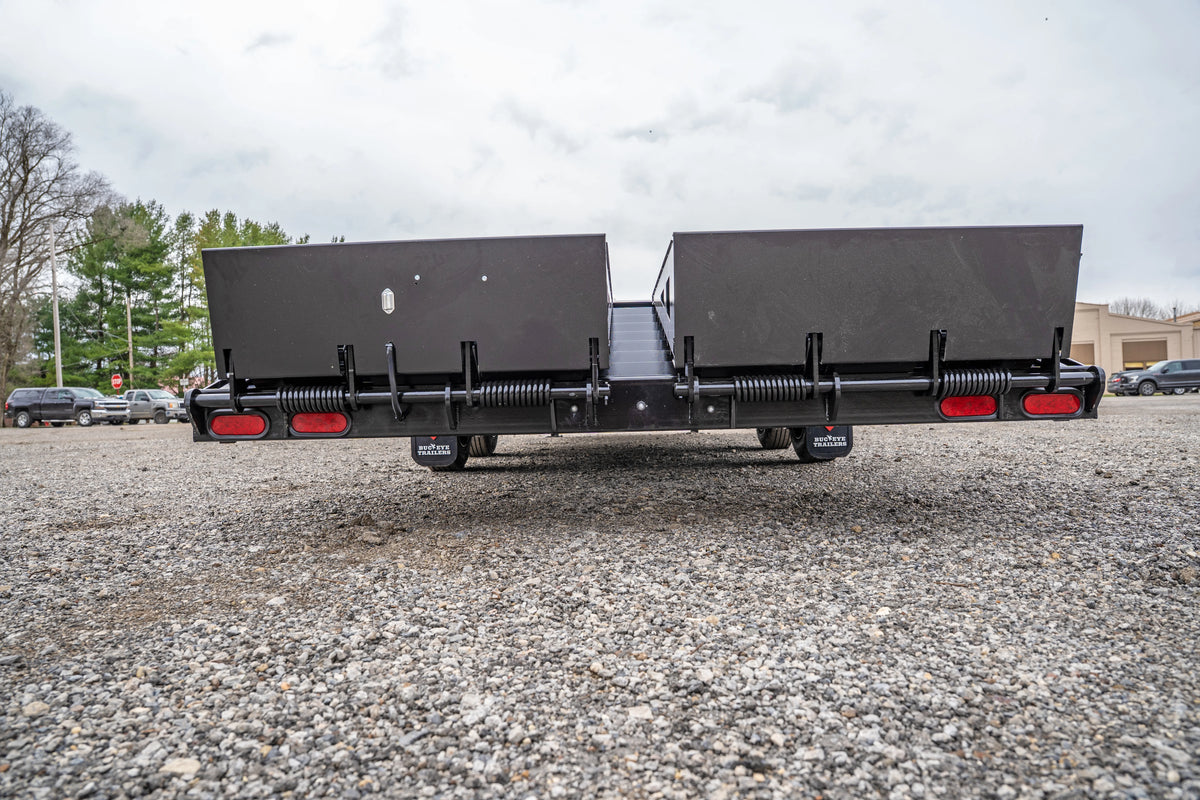

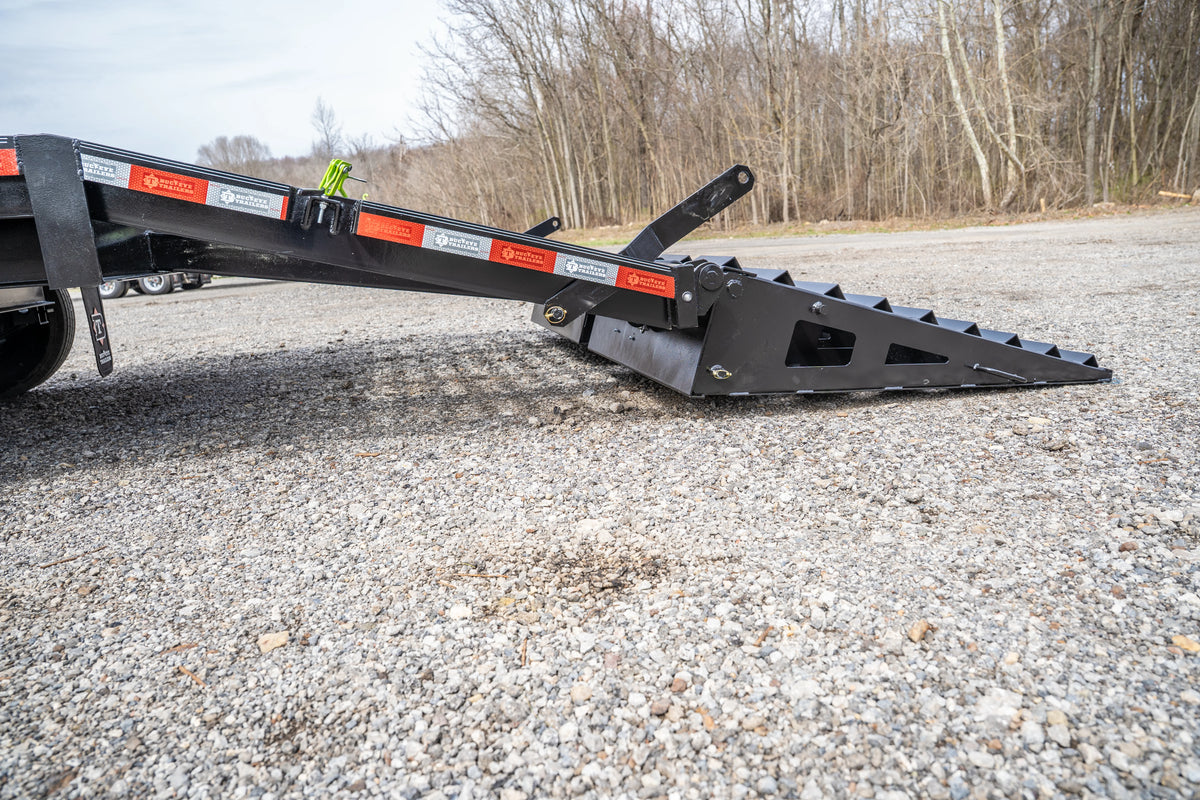

| Ramps | 5' Stand-Up Spring-Assist |

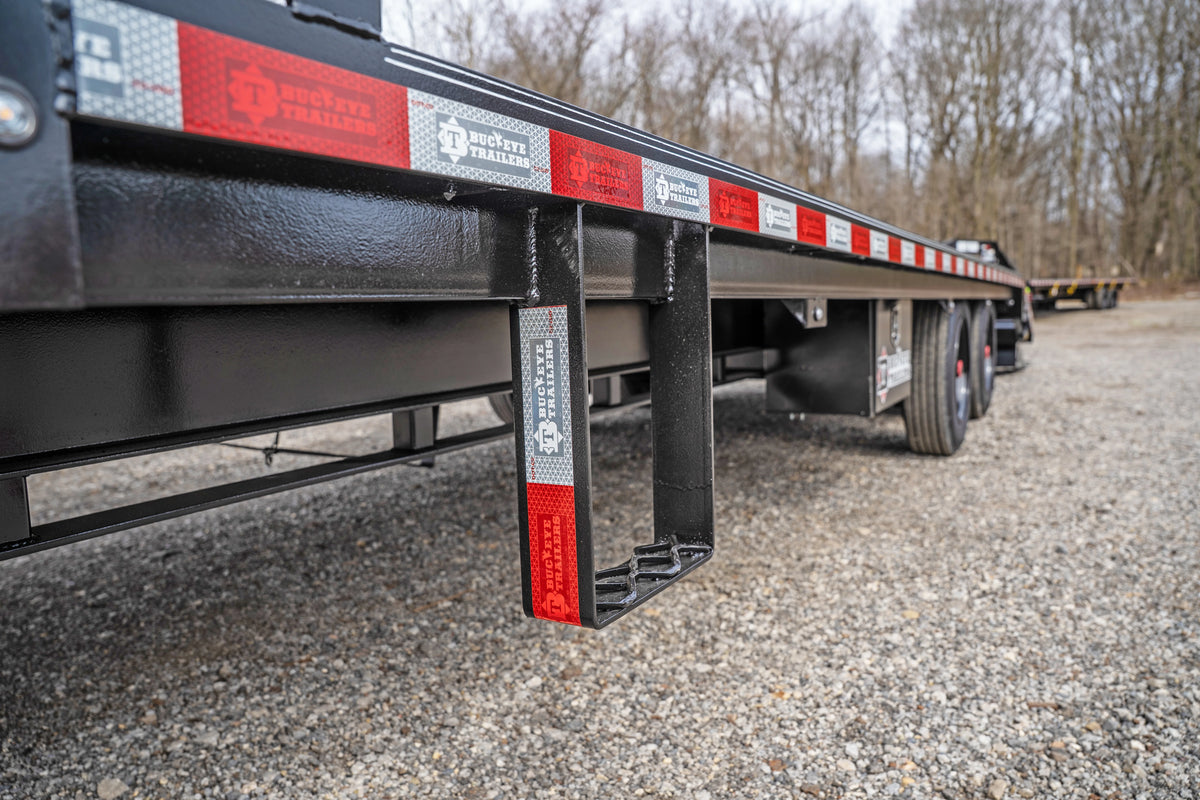

| Safety | Side Steps, Hand Rails, and DOT Reflective Tape |
| Trailer Plug | 7-Way RV |

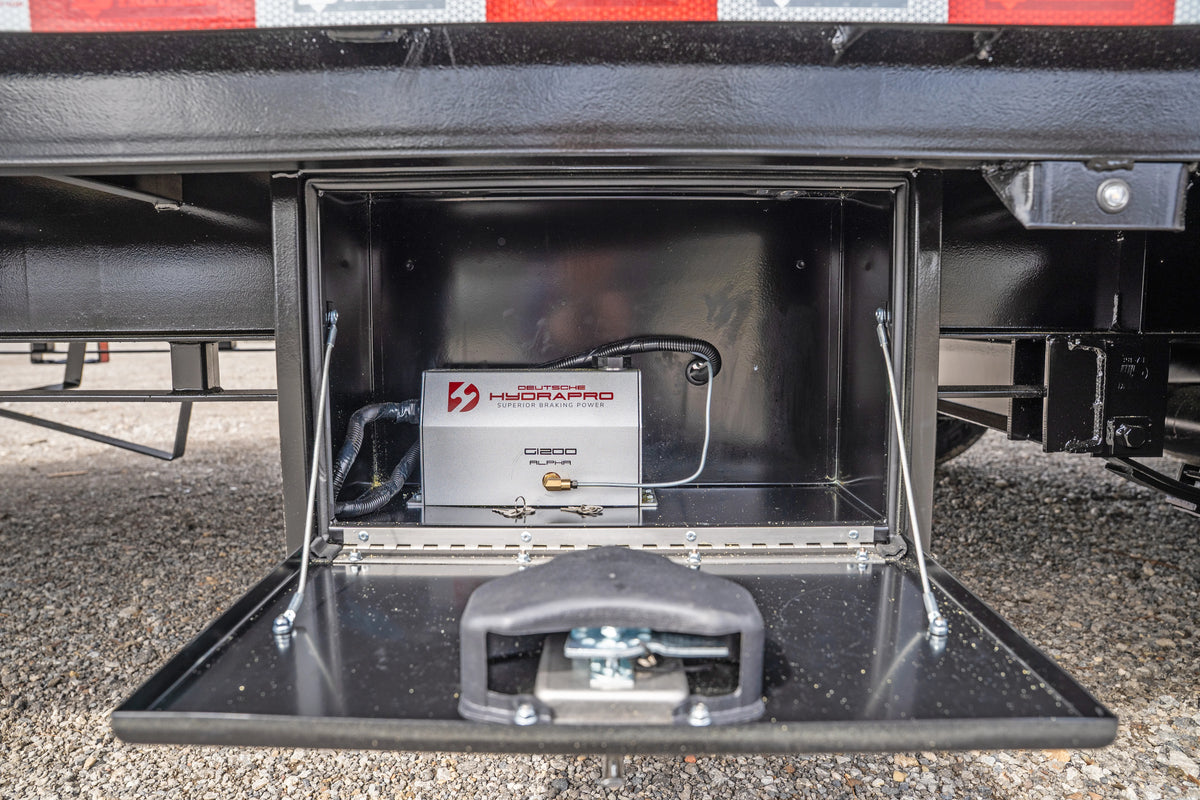

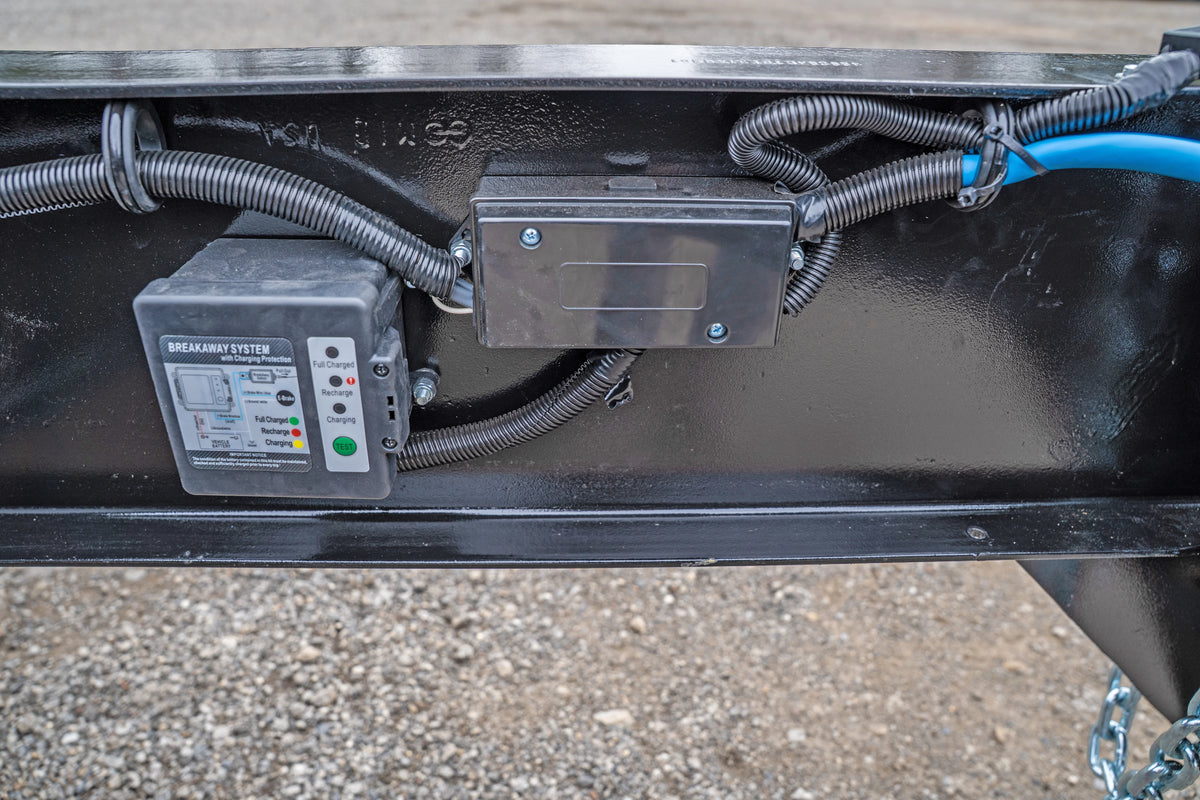

| Breakaway Kit | Breakaway Kit and Battery Box |

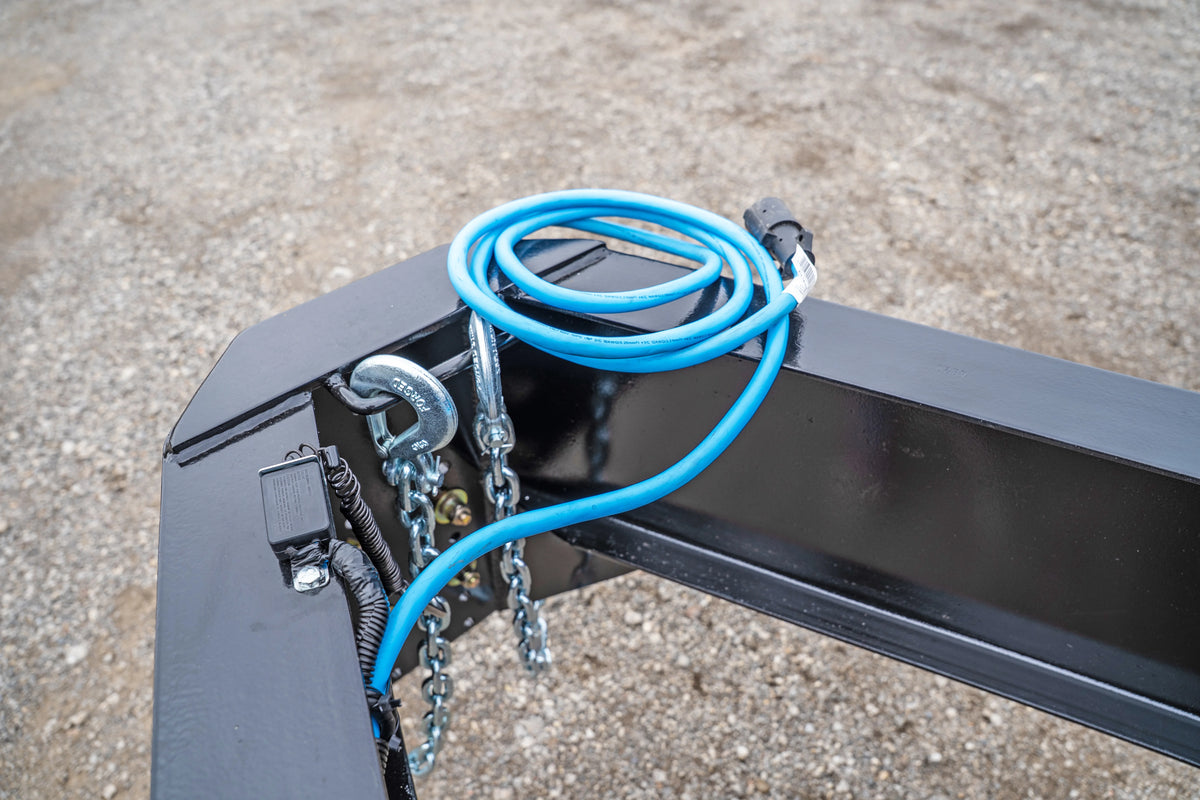

| Safety Chains | Heavy-Duty 3/8" Safety Chains |

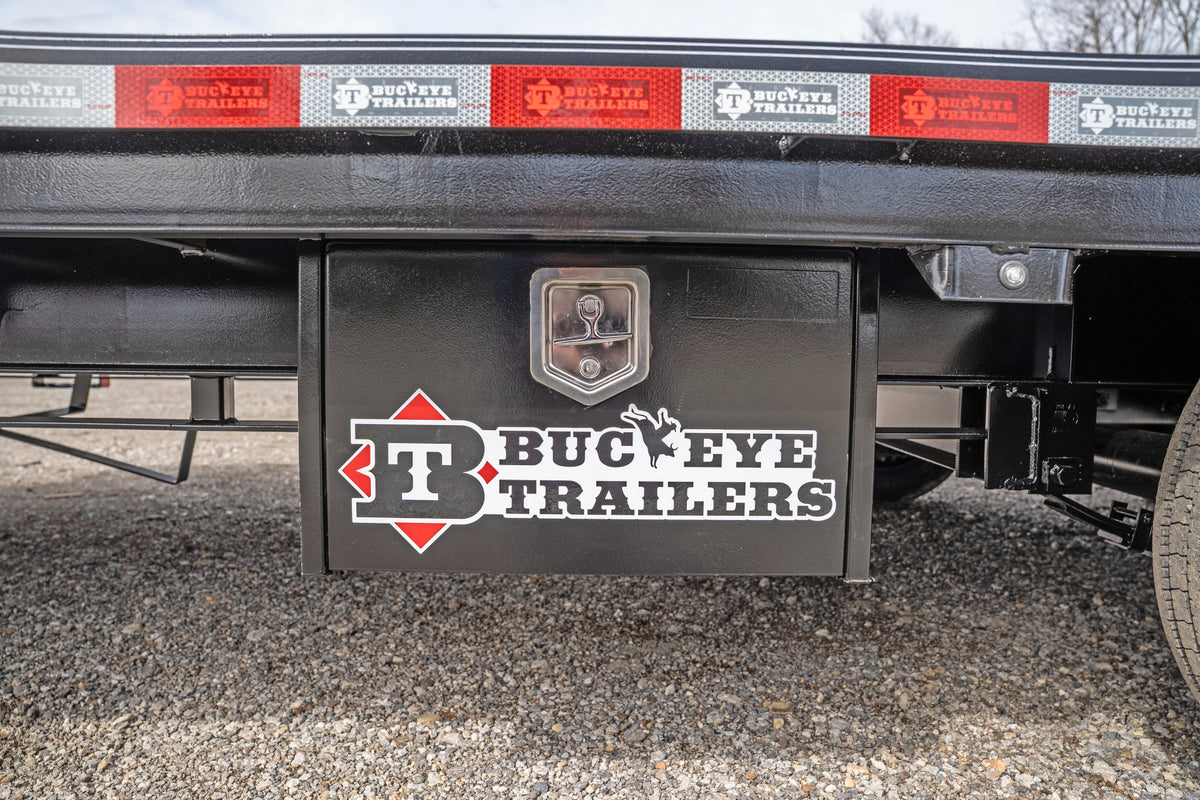

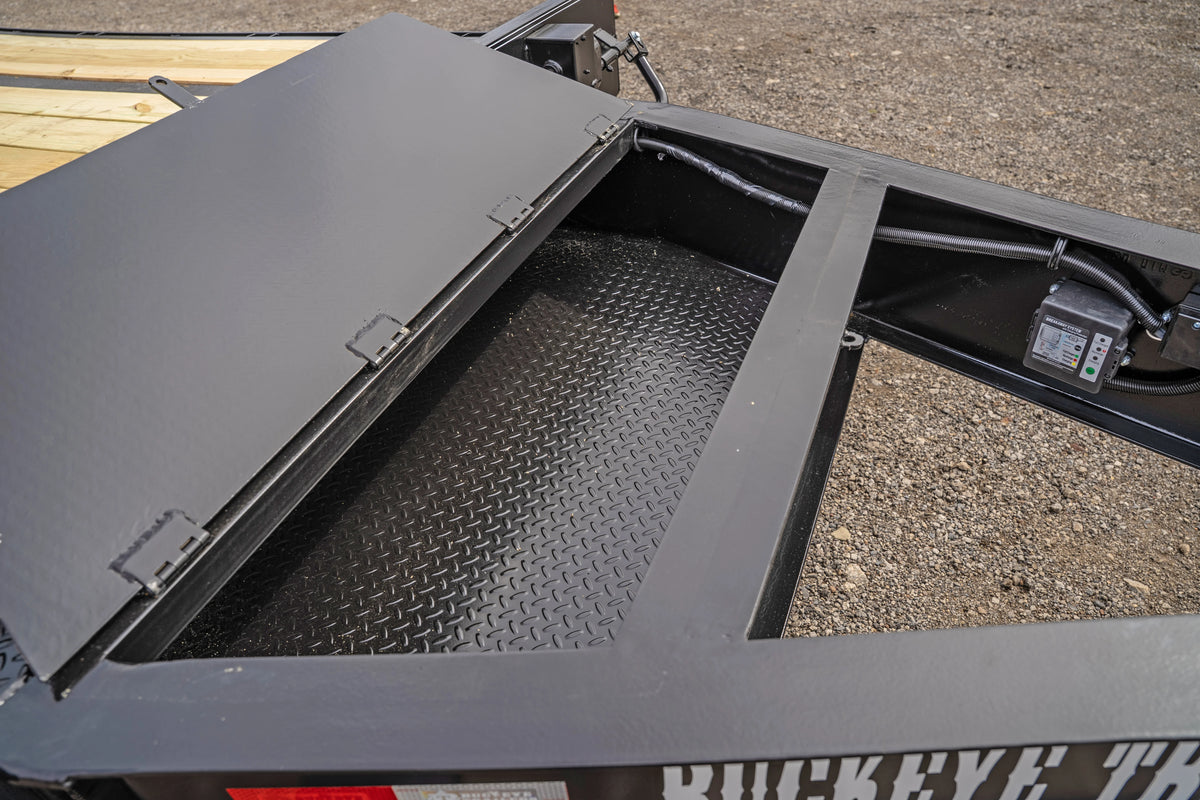

| Storage | Chain Box with a Lockable Lid |
| Lights | DOT-Approved LED Lighting, 4 Marker Lights per Side |
| Finish | Automotive-Grade Epoxy Primer with Two Top Coats of Industrial Urethane |
| Warranty | 2 Year Structural Frame |
Not included: Runners.
Specifications and pricing from Buckeye Trailers; subject to change without notice.
