PRODUCT DETAILS
Description

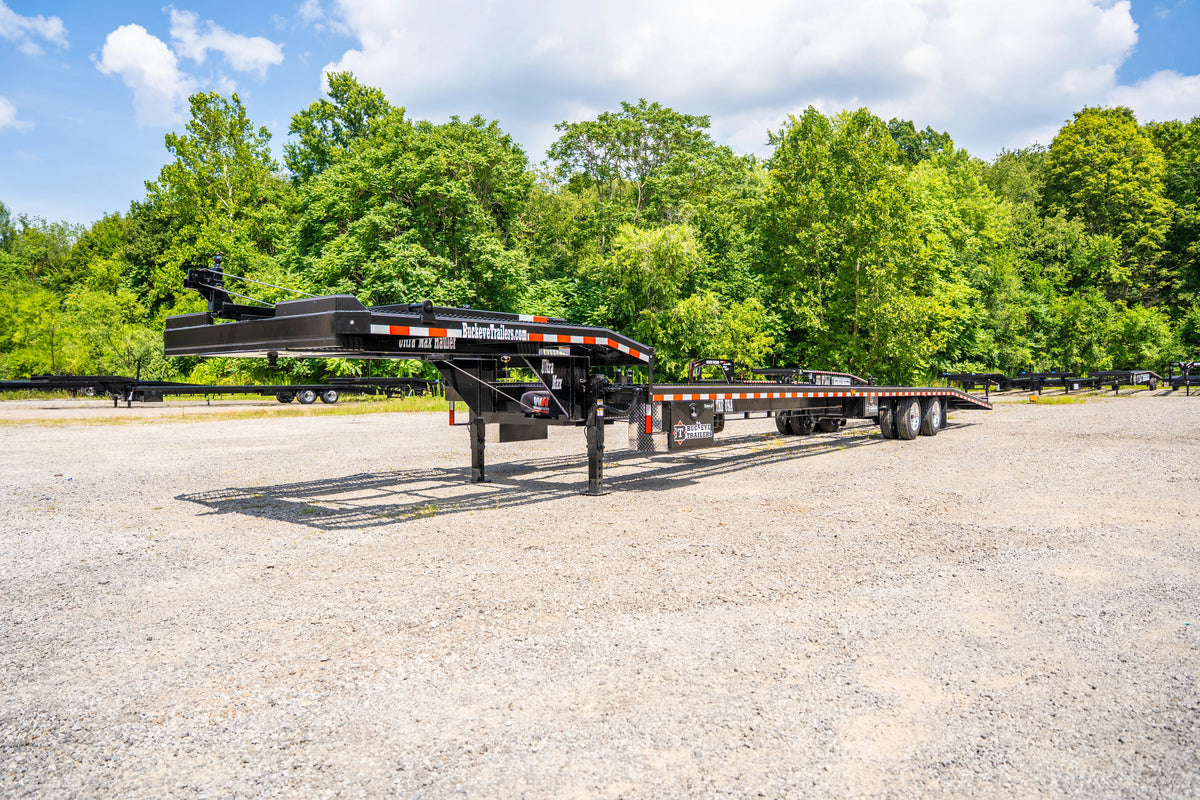

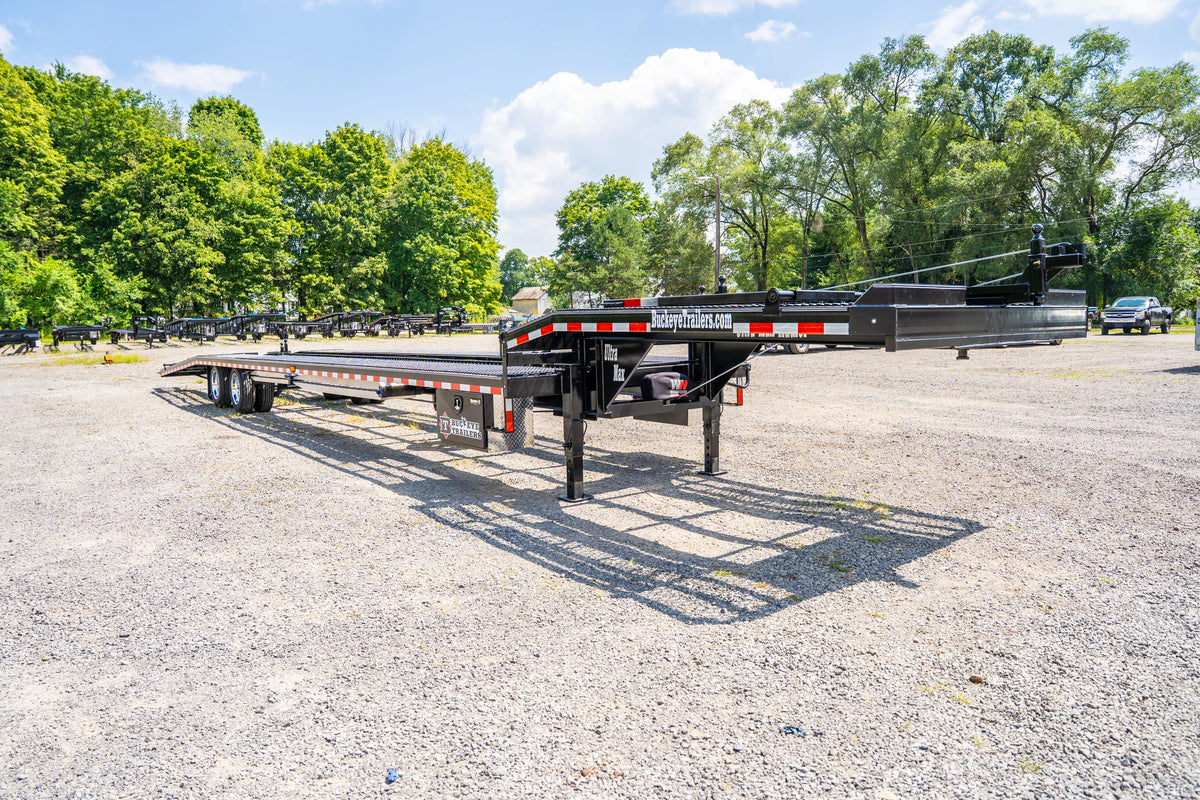

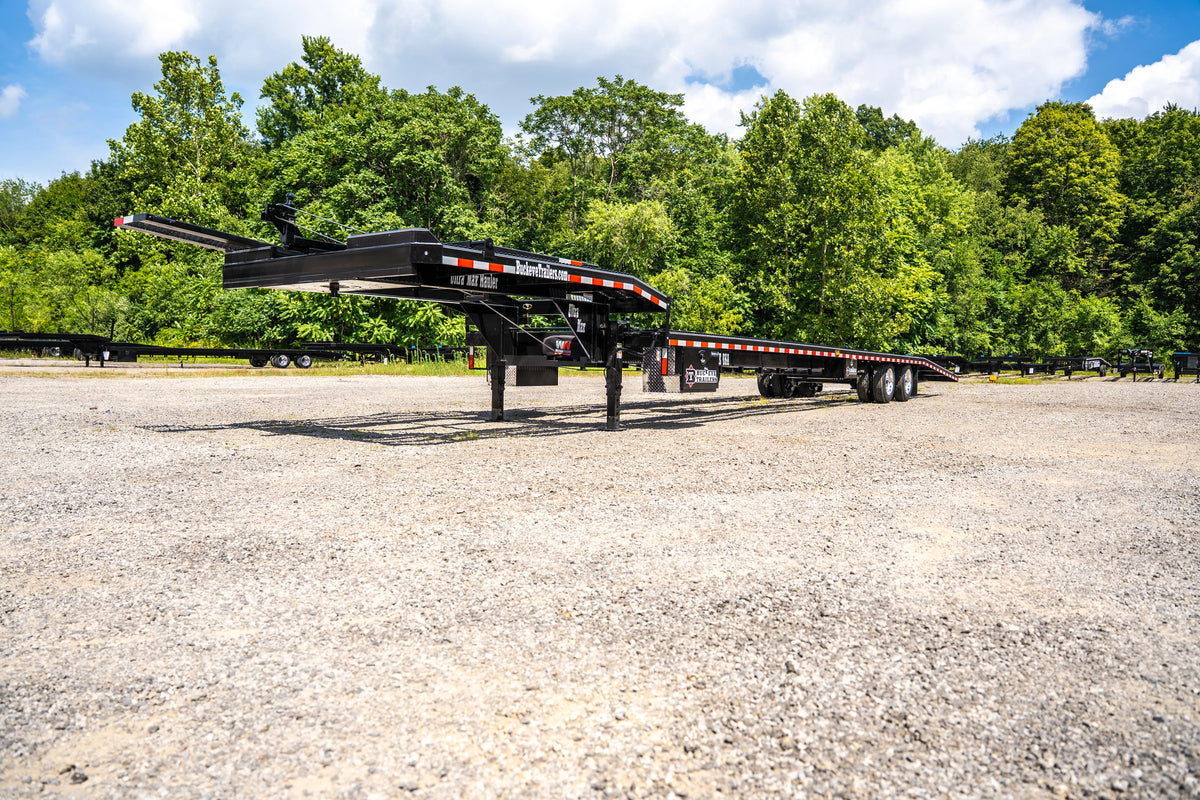

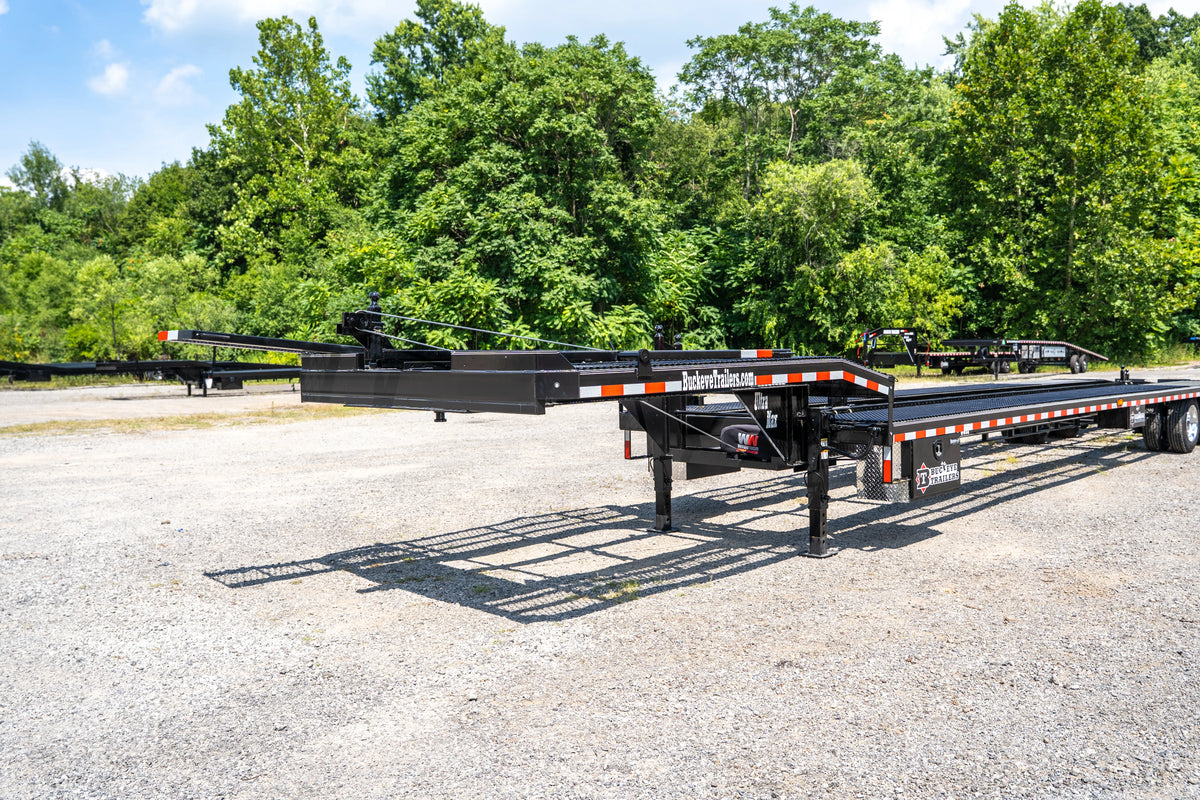

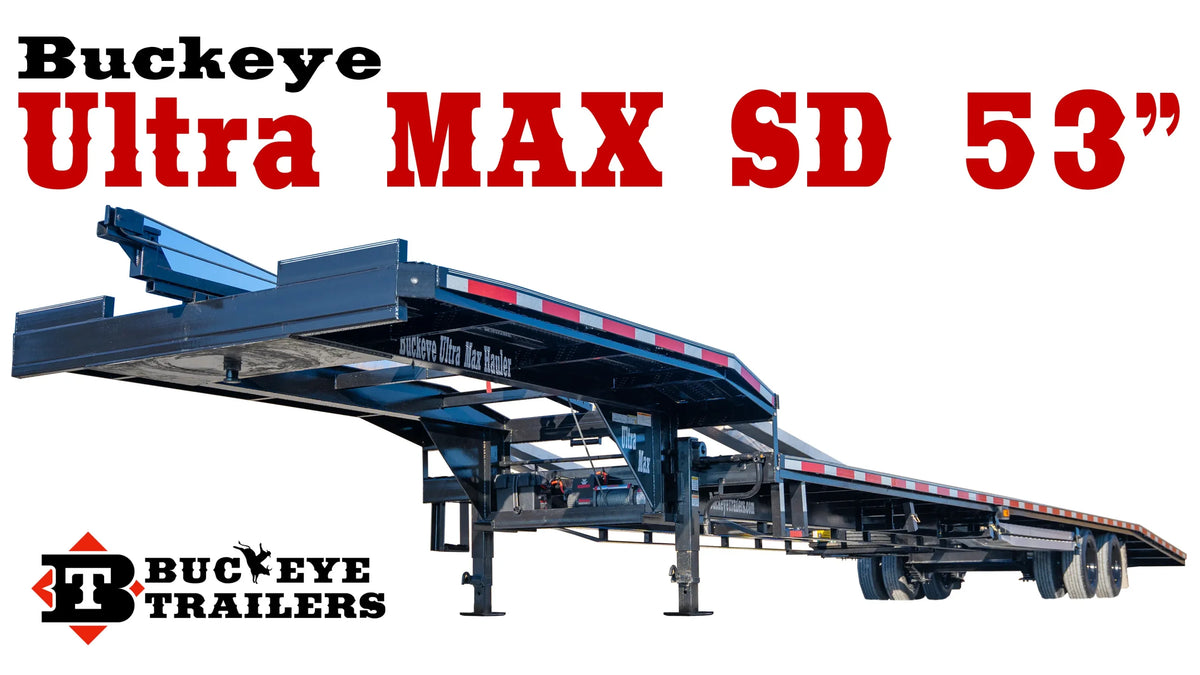

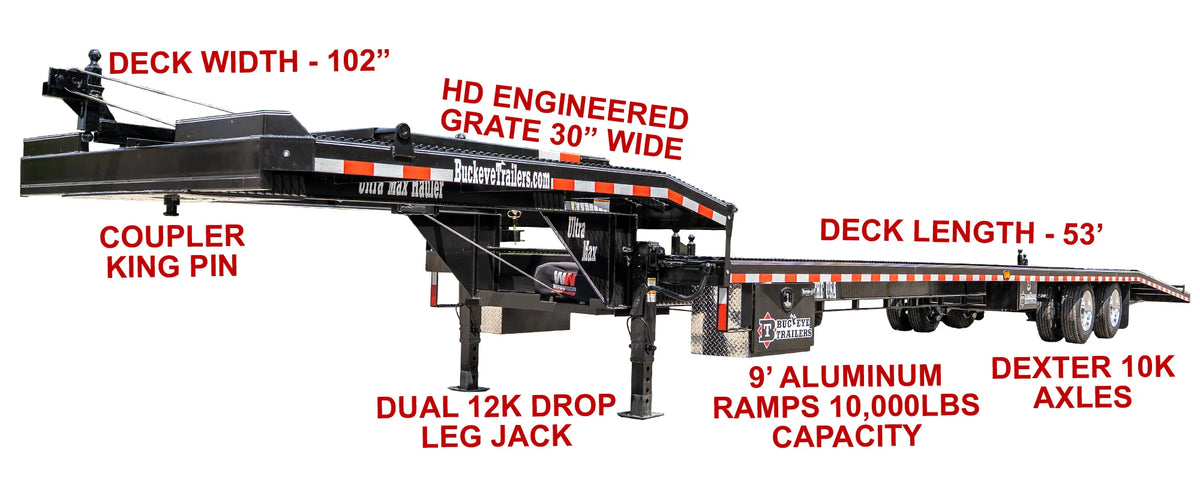

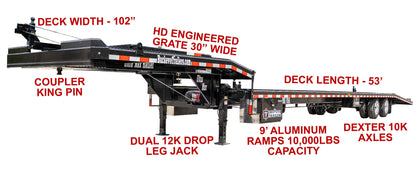

The Ultra Max SD 53’ (RV) is a step deck car and RV hauler designed for efficient loading, secure transport, and dependable performance. With GVWR ratings from 24,000 to 30,000 lb and payloads up to 20,500 lb, it features a 53’ deck, 102” width, and deck heights of 33.5” on the lower deck and 50” on the upper deck for improved clearance and accessibility. A heavy-duty fabricated I-beam frame, slipper spring suspension, and 10K HD Dexter oil bath axles backed by a 5-year warranty provide reliable hauling capability. Outfitted HD grate flooring and runners, 9’ aluminum ramps with 6’ upper deck ramps, dual locking toolboxes, and DOT-approved LED lighting, the Ultra Max SD 53’ is built to work from day one.
Trailer Town is a Buckeye Trailers dealer. Pick your deck length and the upgrades you need, then send us your build. Prices shown are Buckeye's minimum advertised price (MAP), FOB the Buckeye factory: freight, delivery, tax, tag and registration are extra. Trailers over 26,000 lb GVWR are subject to Federal Excise Tax (FET), which is not included.
Standard features
| Trailer | Step Deck Car/RV Hauler |
|---|---|
| GVWR | 24,000 - 30,000 lb |
| Payload | 14,500 - 20,500 lb |
| Empty Weight | 9,440 lb |
| Deck Length | 53' |
| Deck Width | 102" |
| Deck Height | 33.5" Lower-Deck, 50" Upper-Deck |
| Frame | Heavy-Duty Fabricated I-Beam |
| Suspension | Heavy-Duty Slipper Spring |

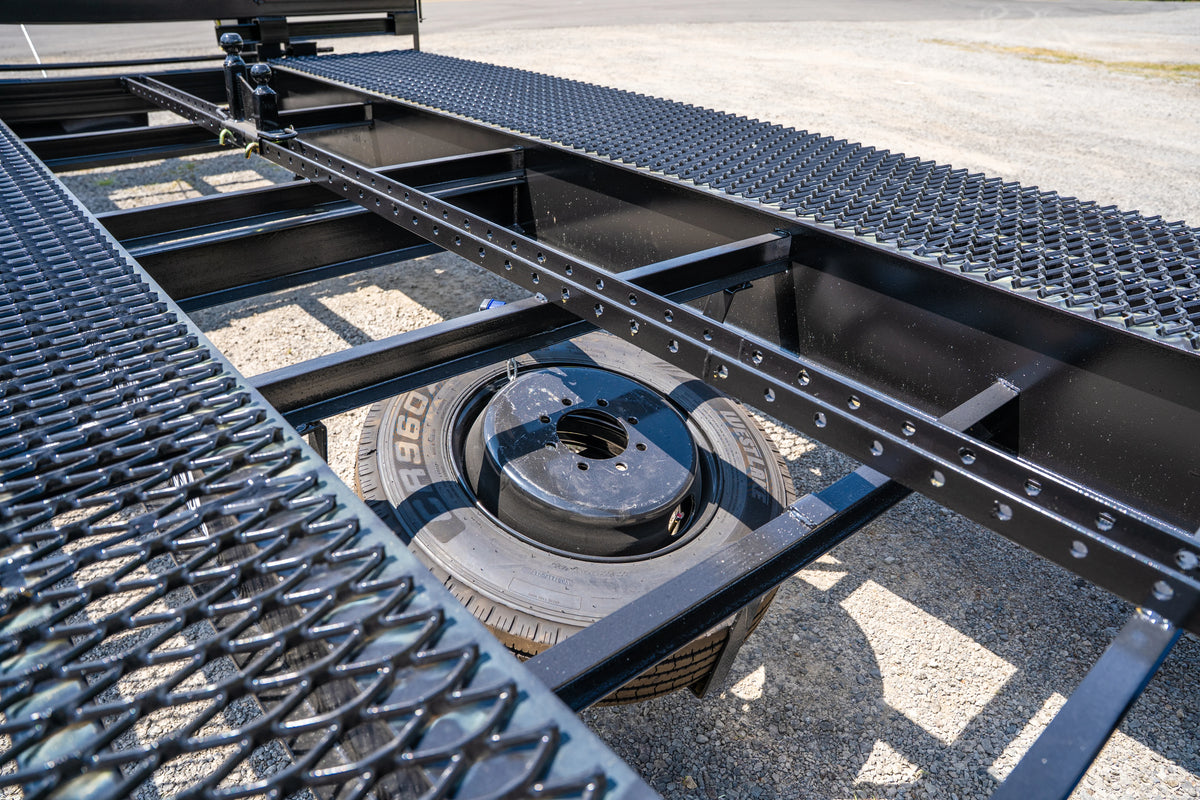

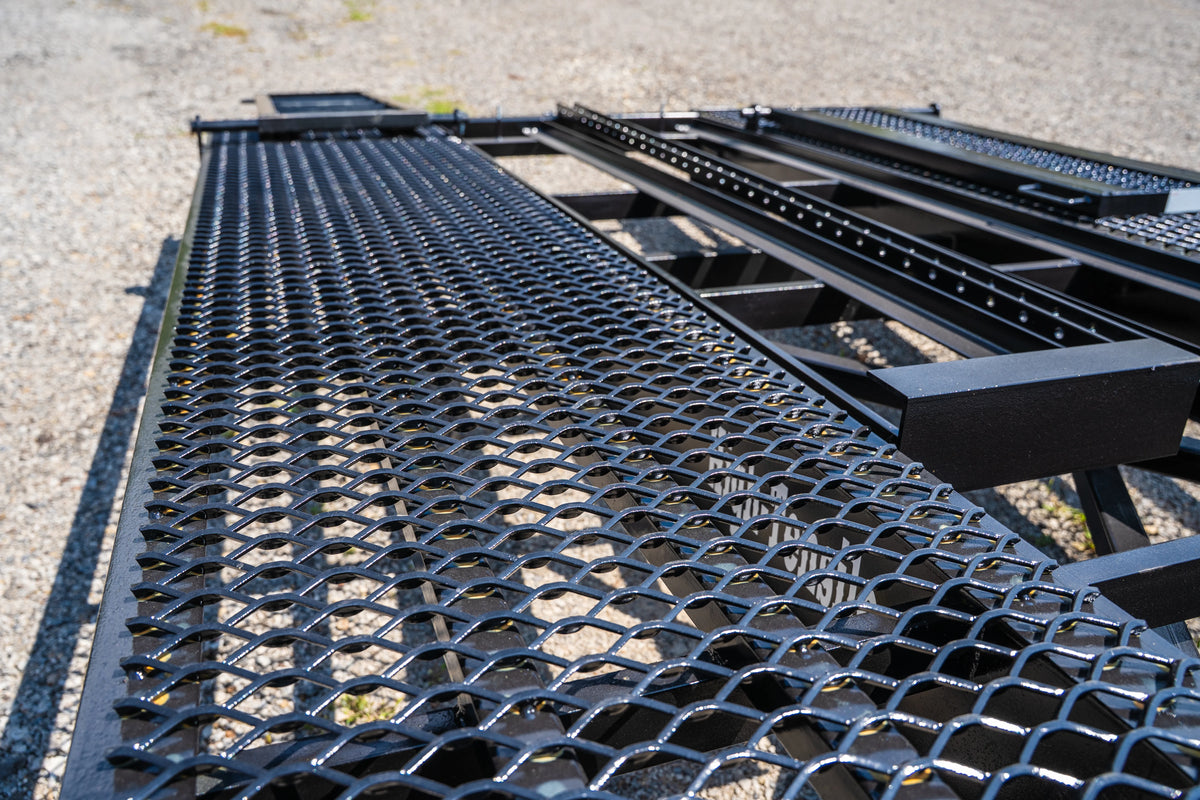

| Floor | Heavy-Duty Grate Engineered For 3-Point Soft Tie System |
| Axles | 10K Heavy-Duty Dexter Oil Bath Axles 5-Year Warranty |

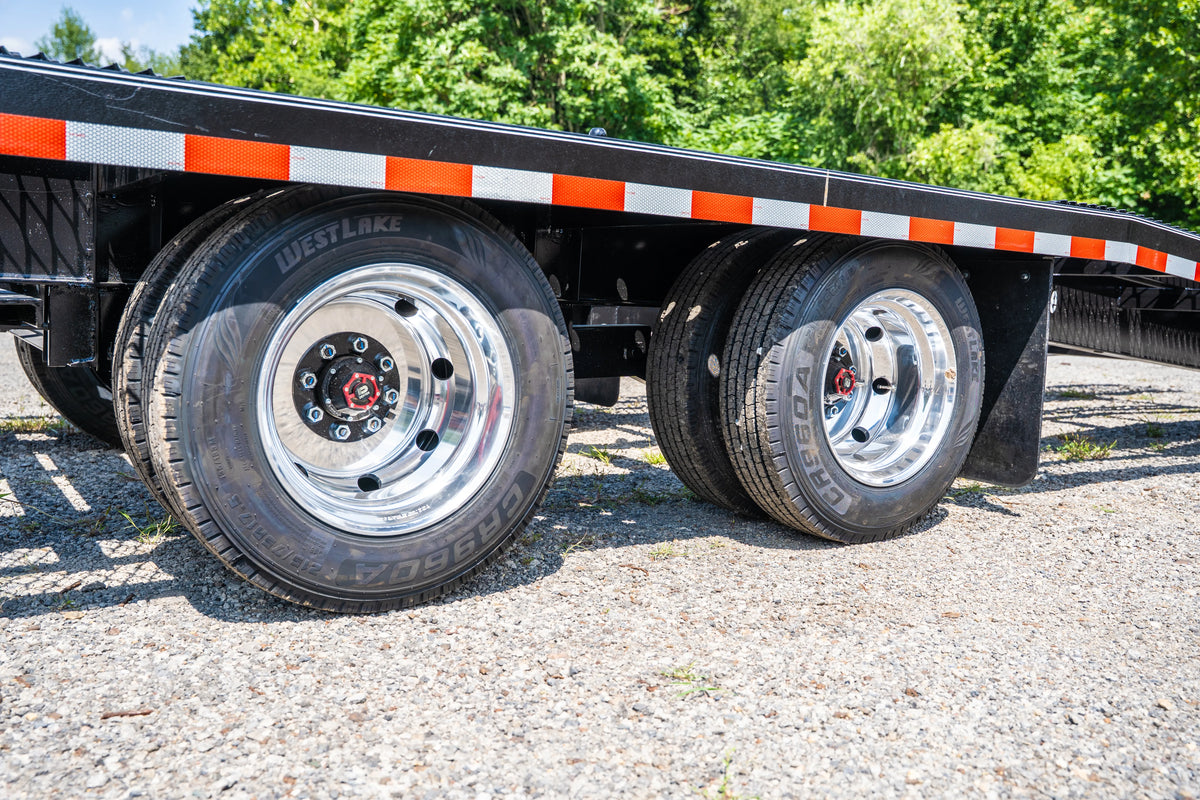

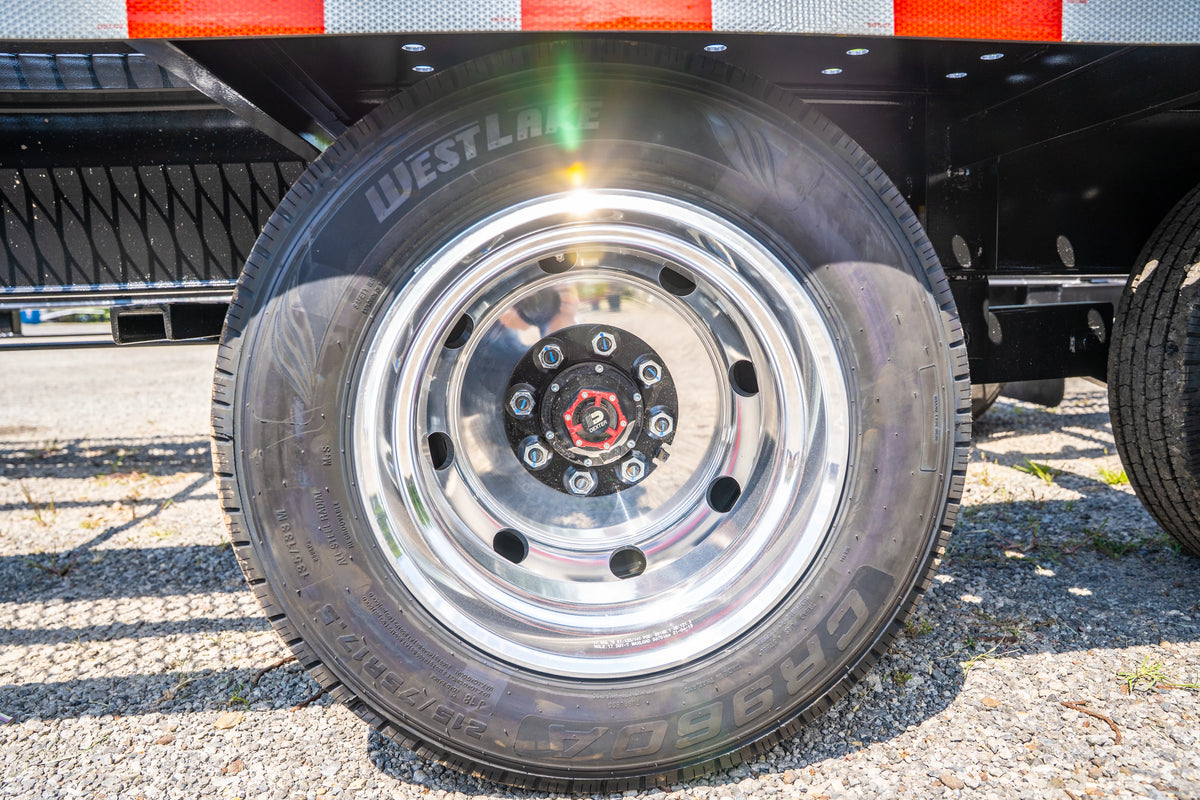

| Tires | 235/80R16 Load Range G |
| Wheels | Heavy-Duty Steel Dual 16" |
| Bolt Pattern | 8-Lug on 6.5" Bolt Pattern |
| Spare Mount | 235/80R16 Load Range G |

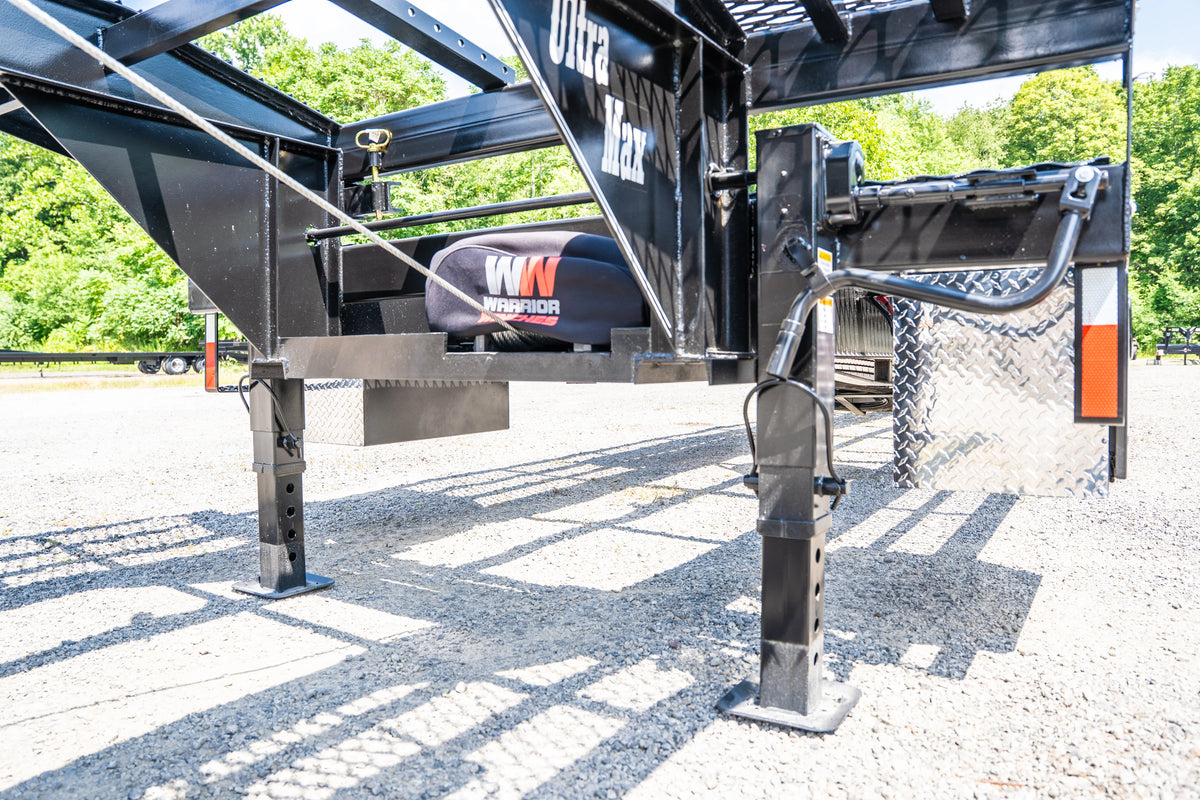

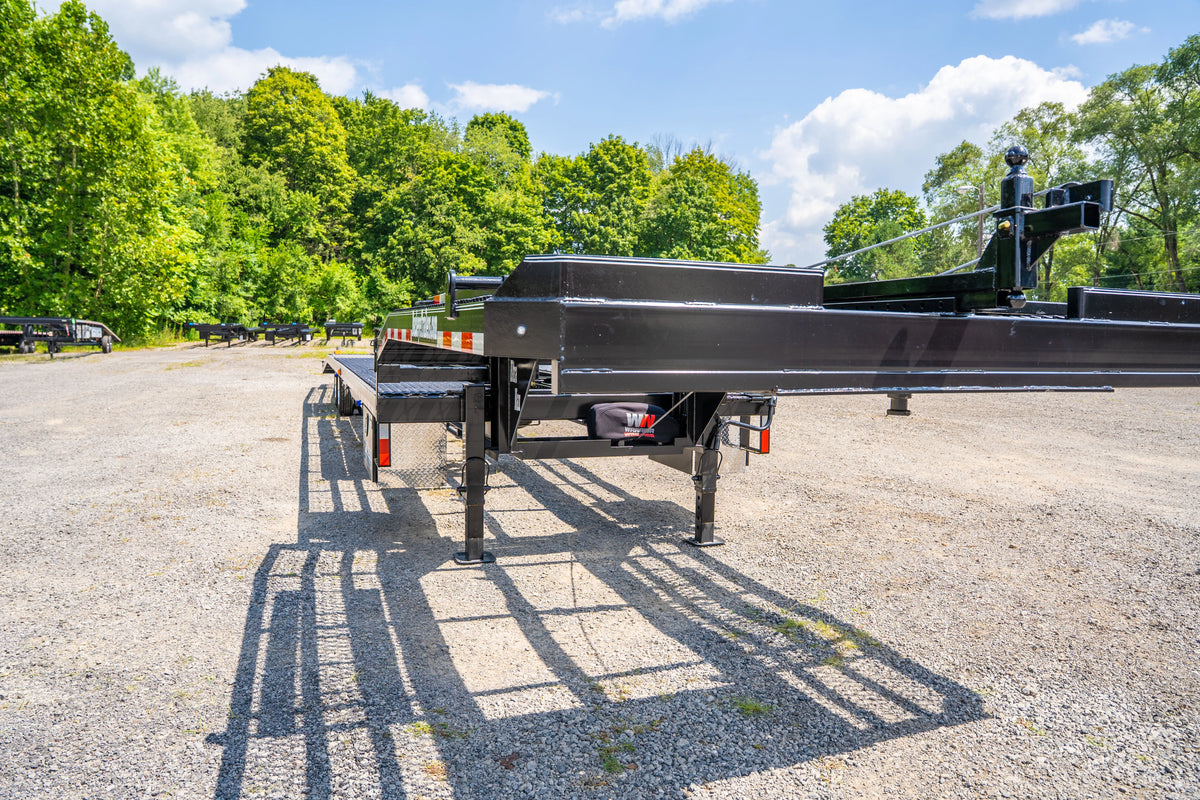

| Jacks | 2 Dual-Speed 12K Spring Loaded Drop Leg Jacks |
| Brakes | Electric Brakes |
| Coupler | King Pin with a Fifth Wheel - Height of 45"-48" |

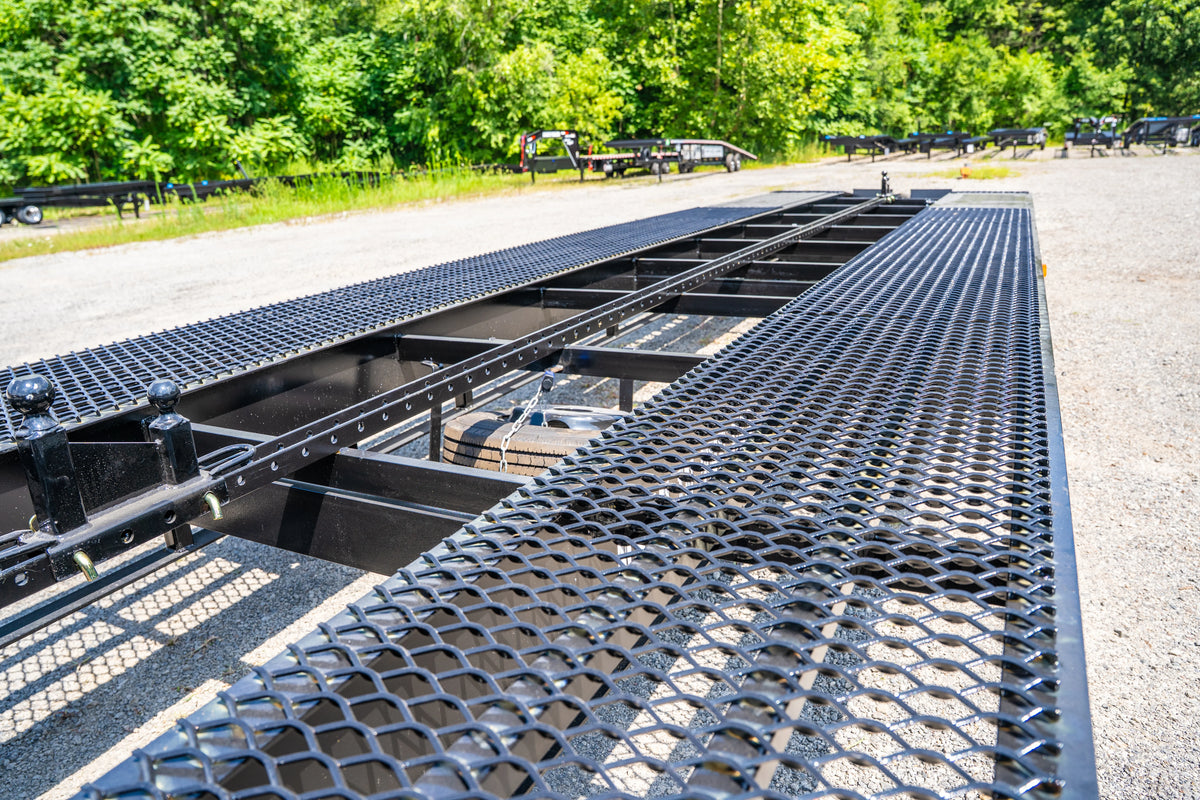

| Runners | 30" Wide Heavy Duty Engineered Grate |
| Tie Downs | Engineered Floor for 3-Point Soft Tie System |

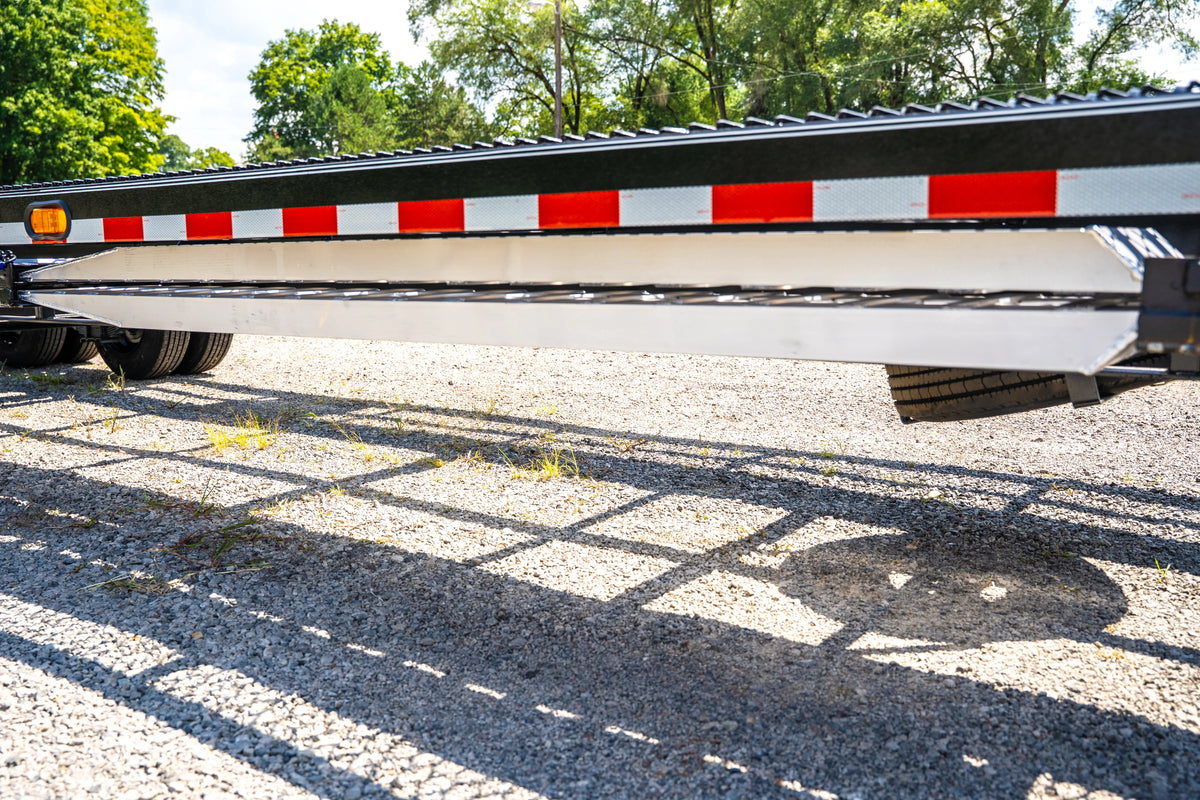

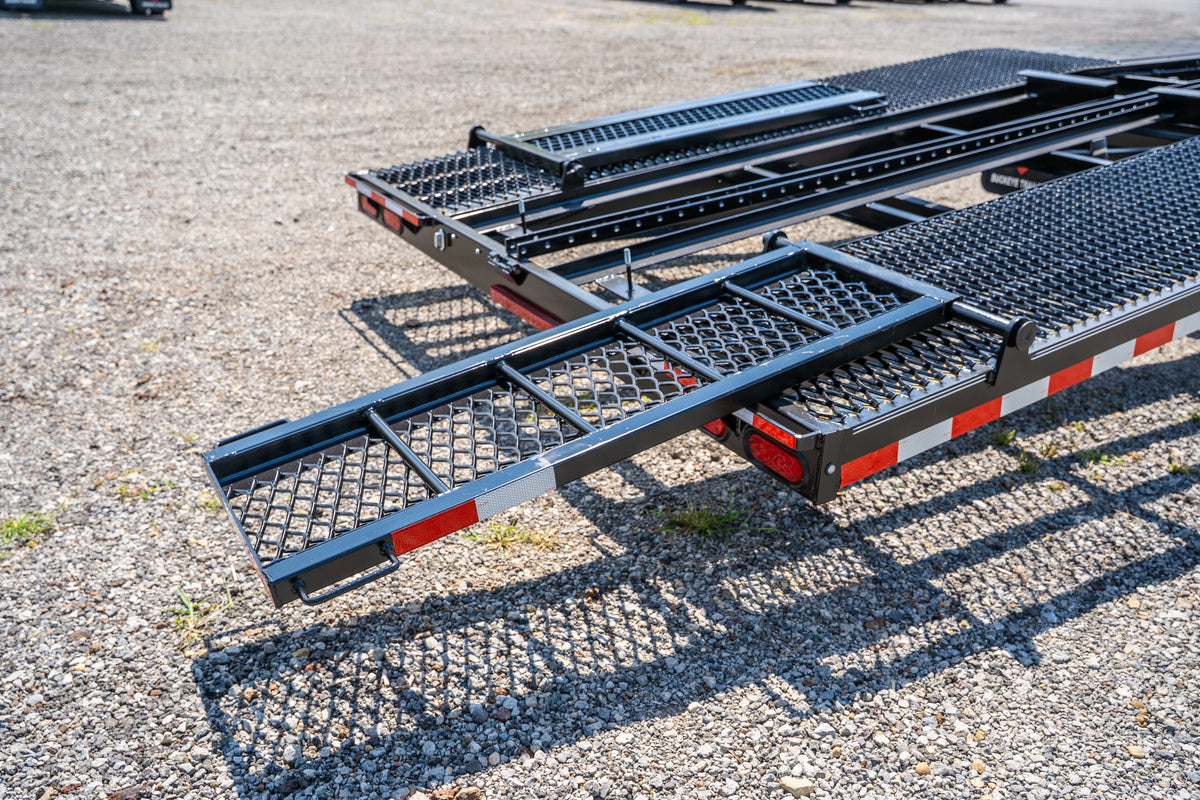

| Ramps | 9' Aluminum Ramps Rated for 10,000 lb, 6' Ramps to Access Upper-Deck |

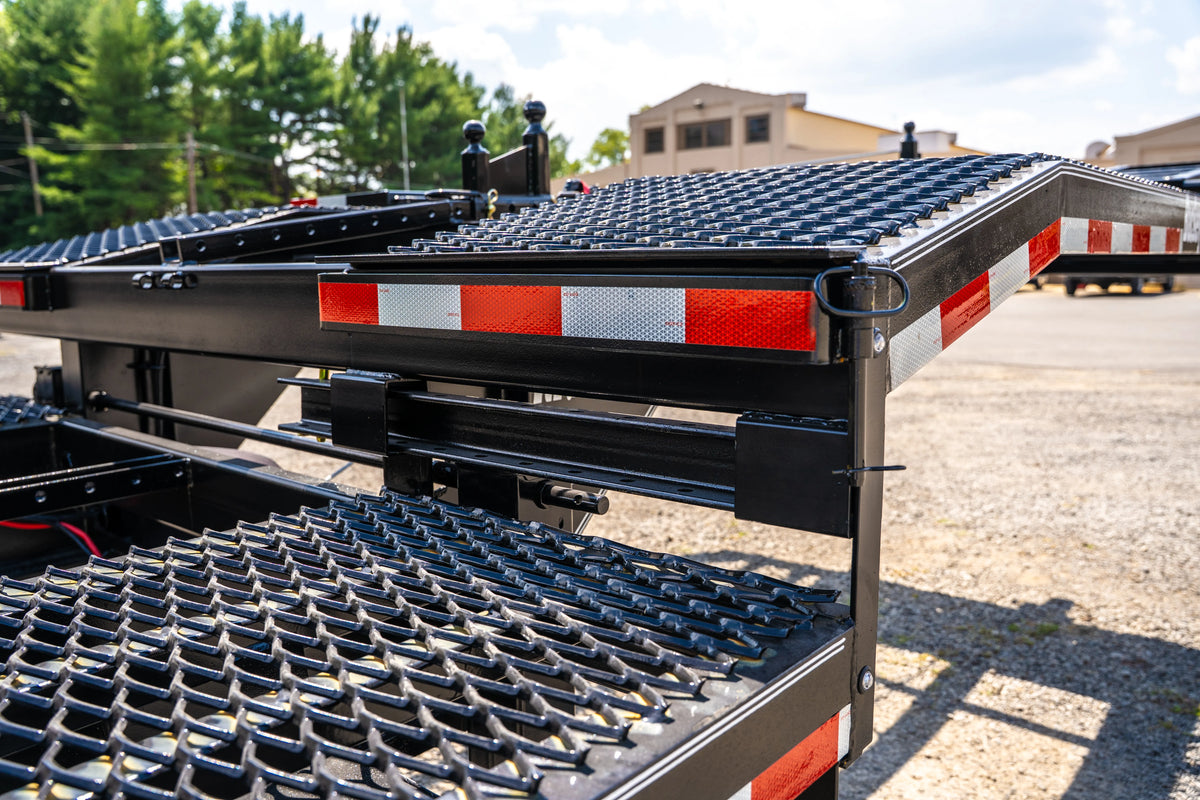

| Safety | DOT-Approved Reflective Tape |
| Trailer Plug | 7-Way RV |

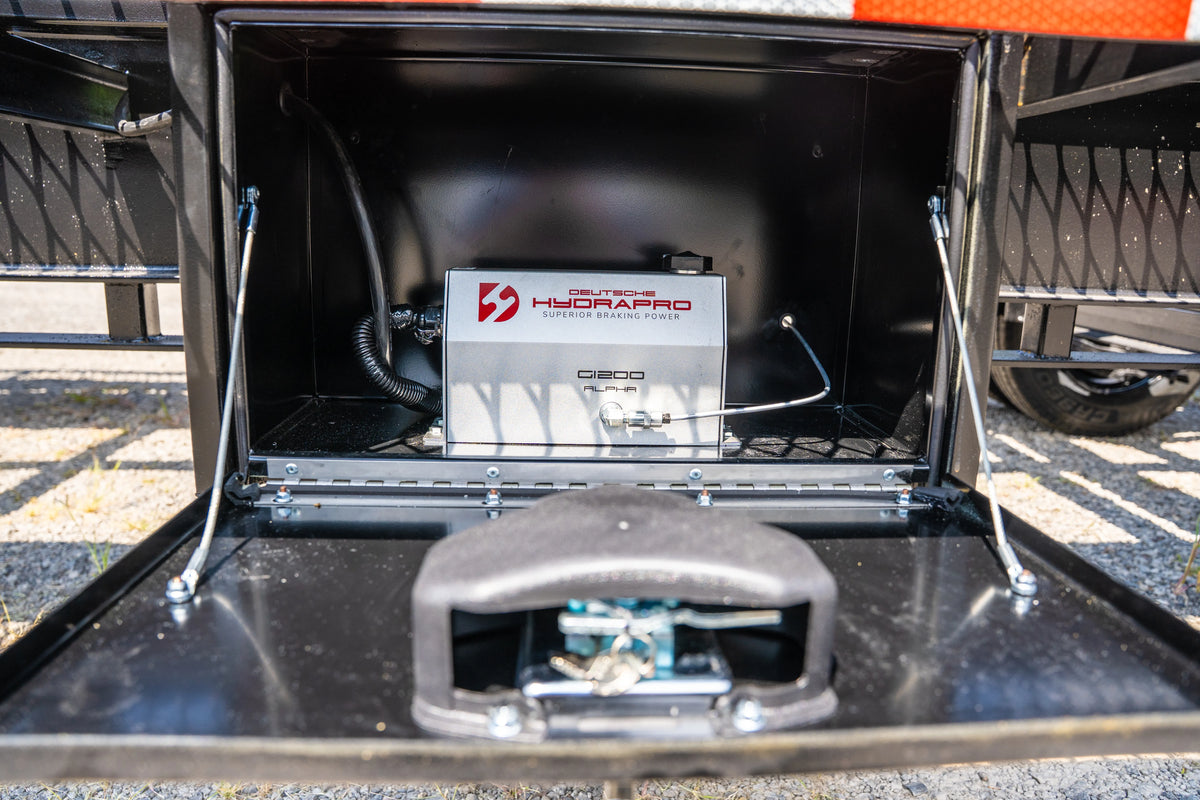

| Breakaway Kit | Breakaway Kit and Battery Box |

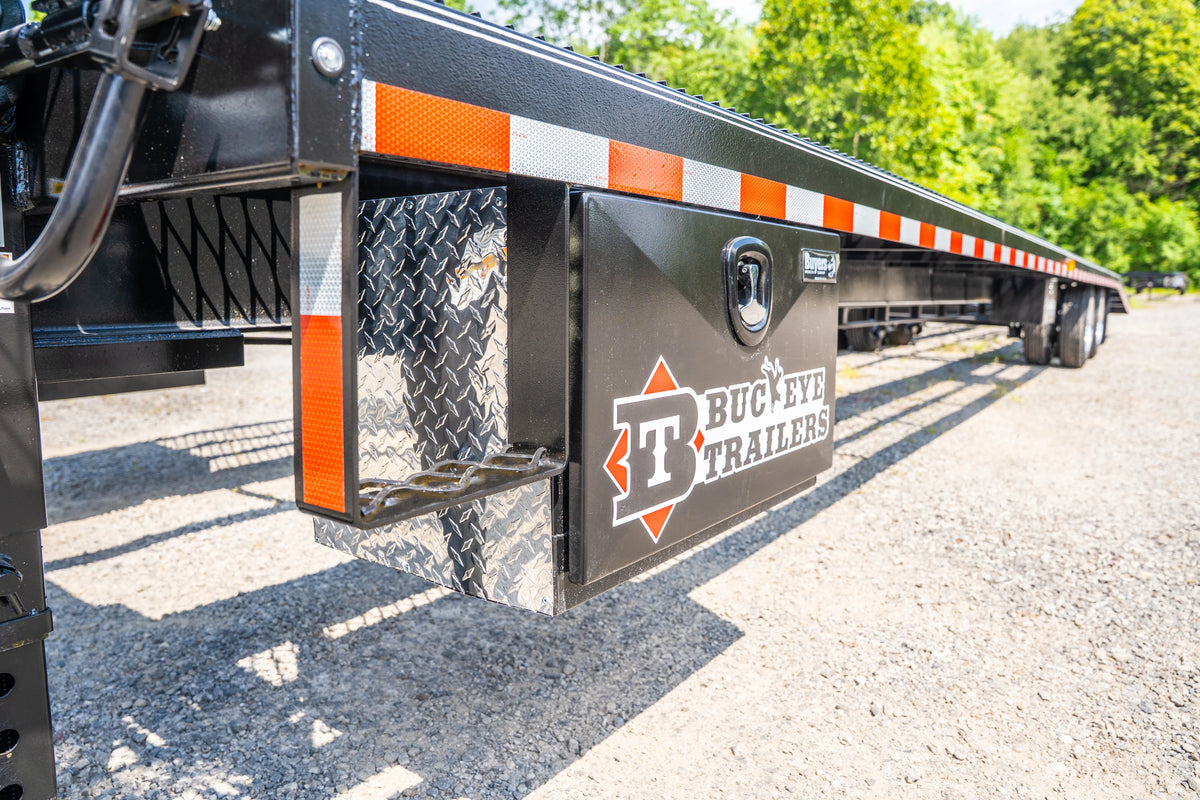

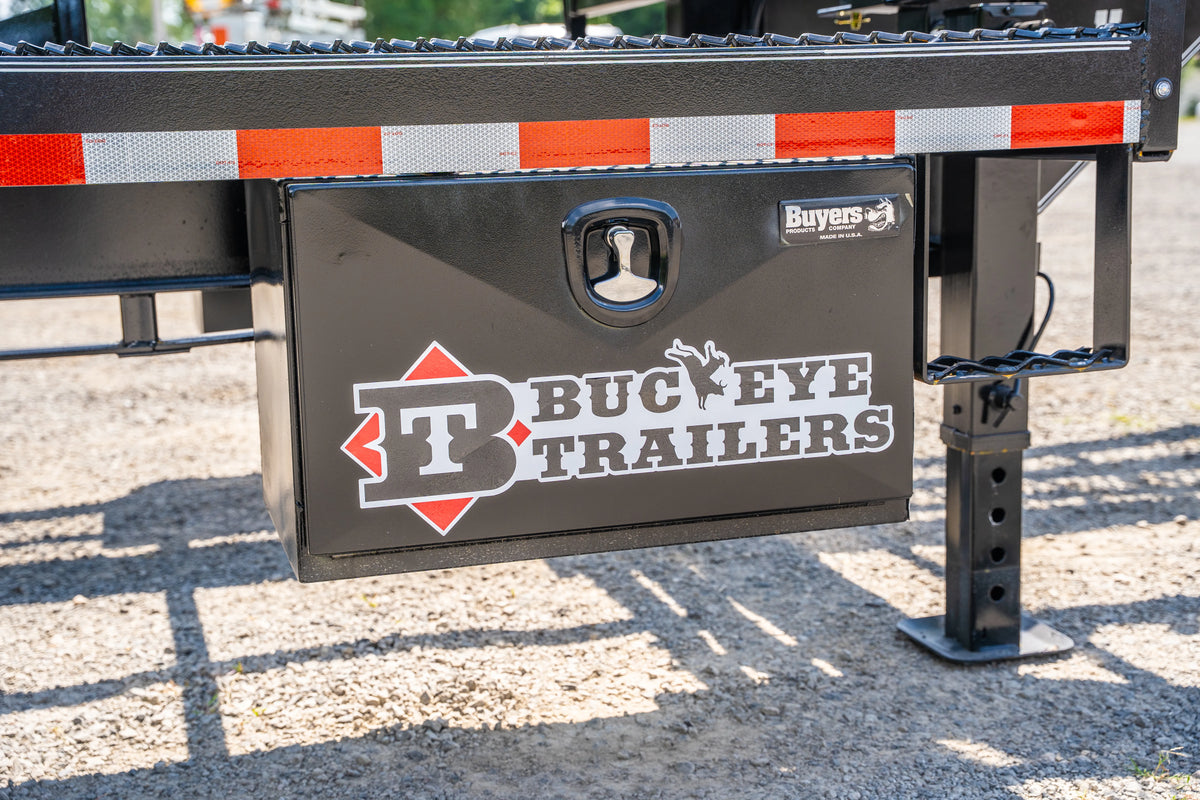

| Storage | 2 Steel Side Mount Toolboxes with Lock |

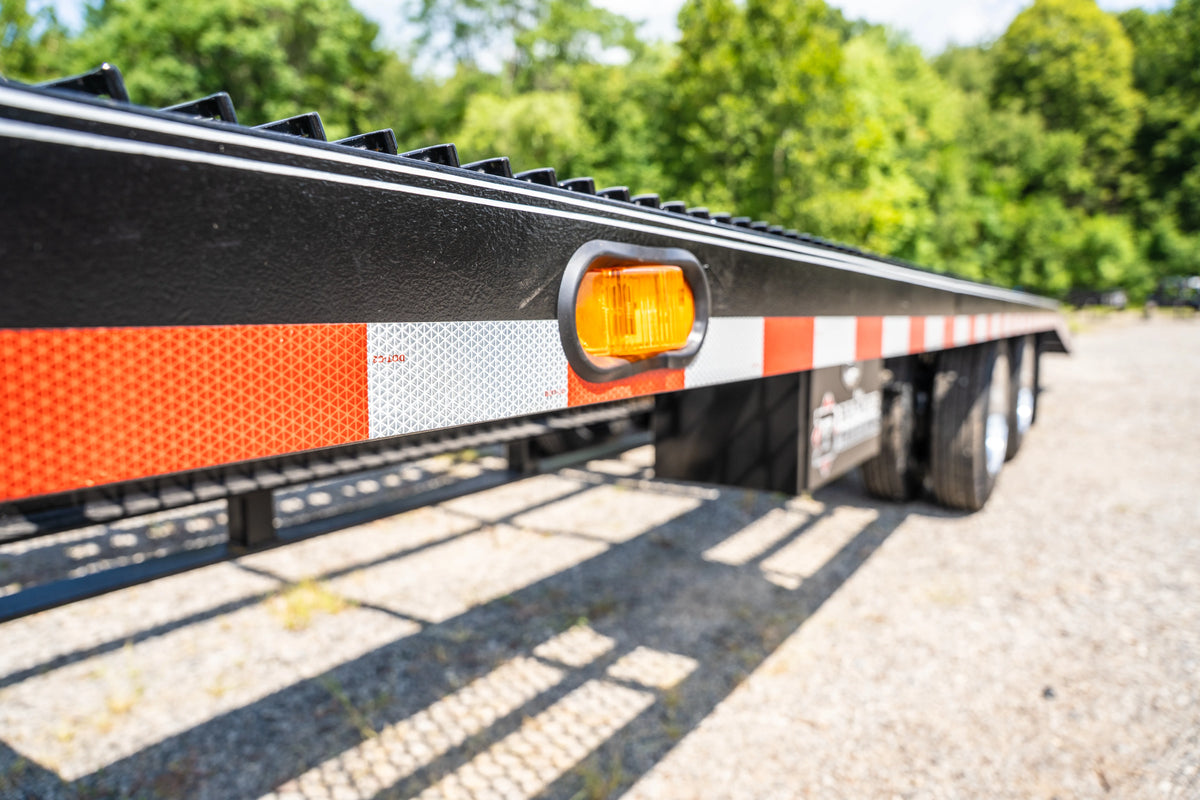

| Lights | DOT-Approved LED Lighting |
| Finish | Automotive-Grade Epoxy Primer with Two Top Coats of Industrial Urethane |
| Warranty | 2 Year Structural Frame |
Not included: Stake Pockets & Rub Rails, Safety Chains.
Specifications and pricing from Buckeye Trailers; subject to change without notice.
