PRODUCT DETAILS
Description

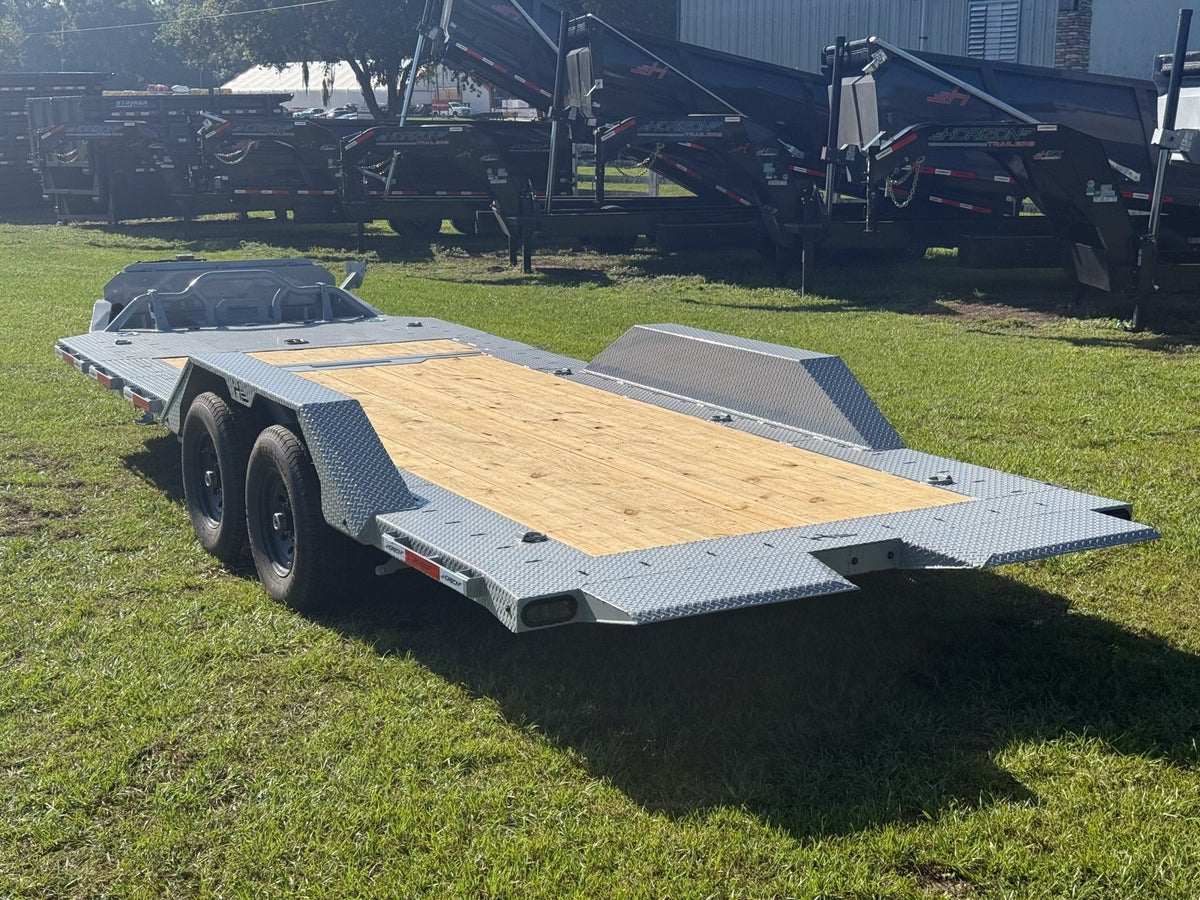

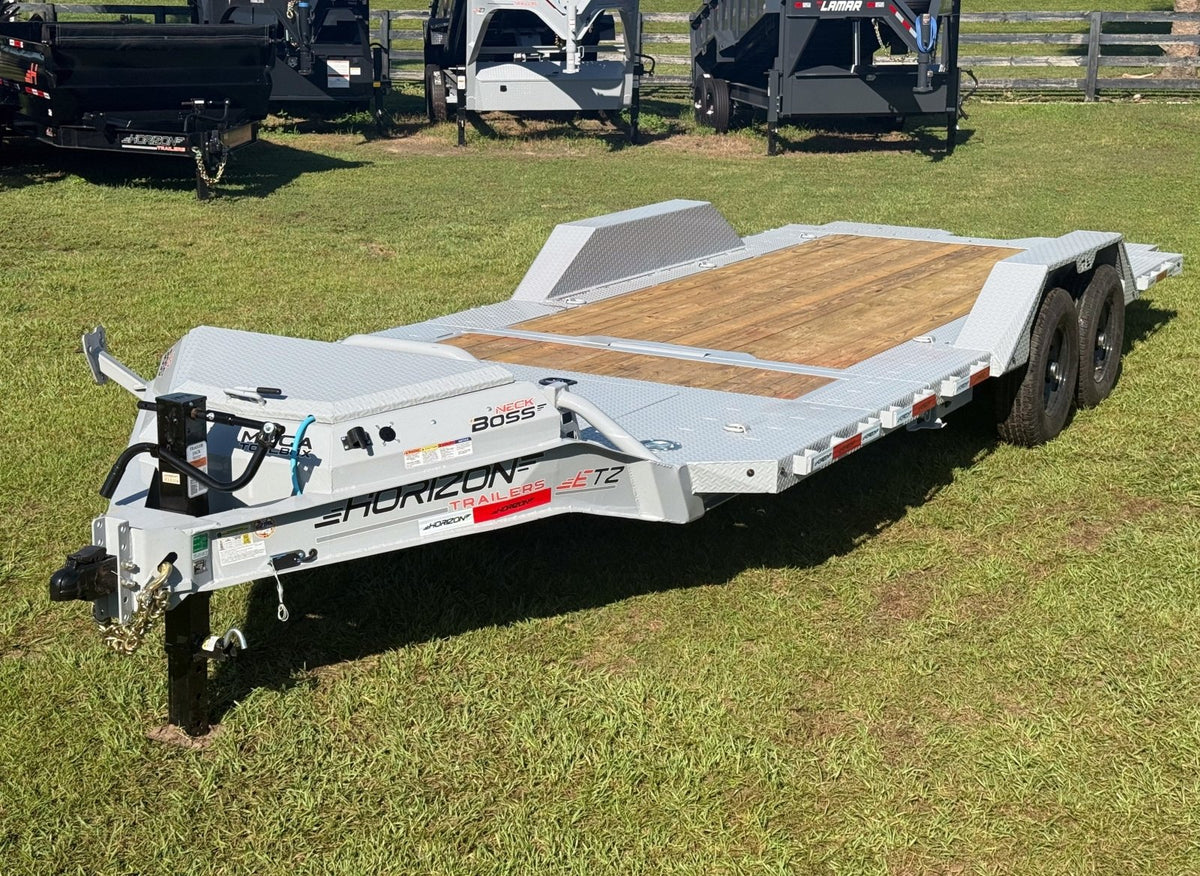

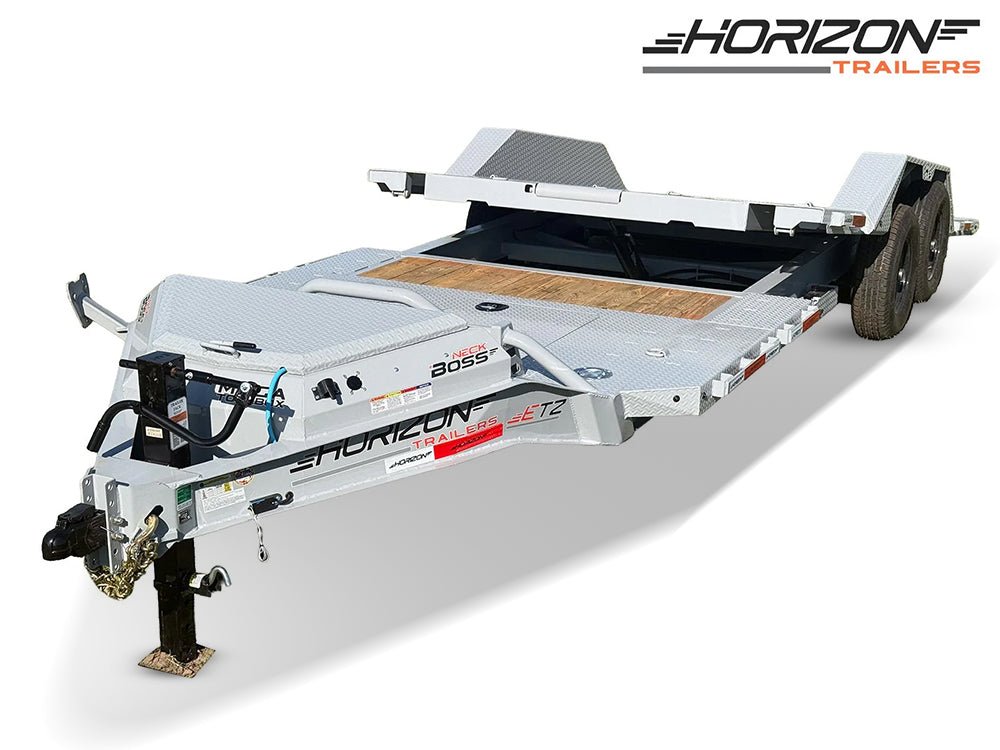

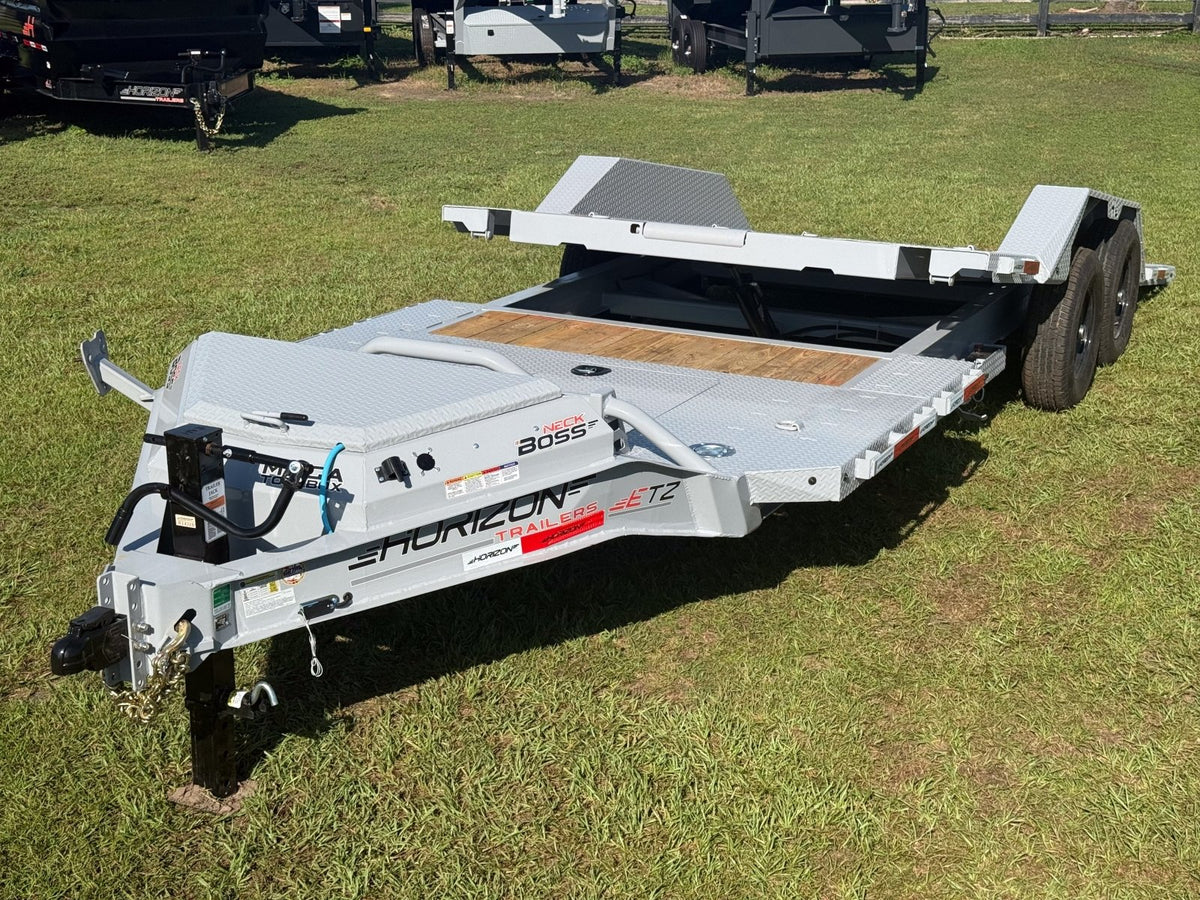

Build your Horizon ETZ Bumper Pull Equipment Tilt Trailer to order in 3 configurations from 20' to 24'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 20': $12,433
- 22': $12,746
- 24': $13,153
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 20' to 24'
- GVWR: 15,200 lbs
- Axles: 2 - 7k Electric Brake EZ Lube Torsion Axles
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Coupler: Adjustable Auto Latch 2-5/16" Bp Coupler (17,000 lbs)
- Deck Width: 83"
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 15,200 lbs

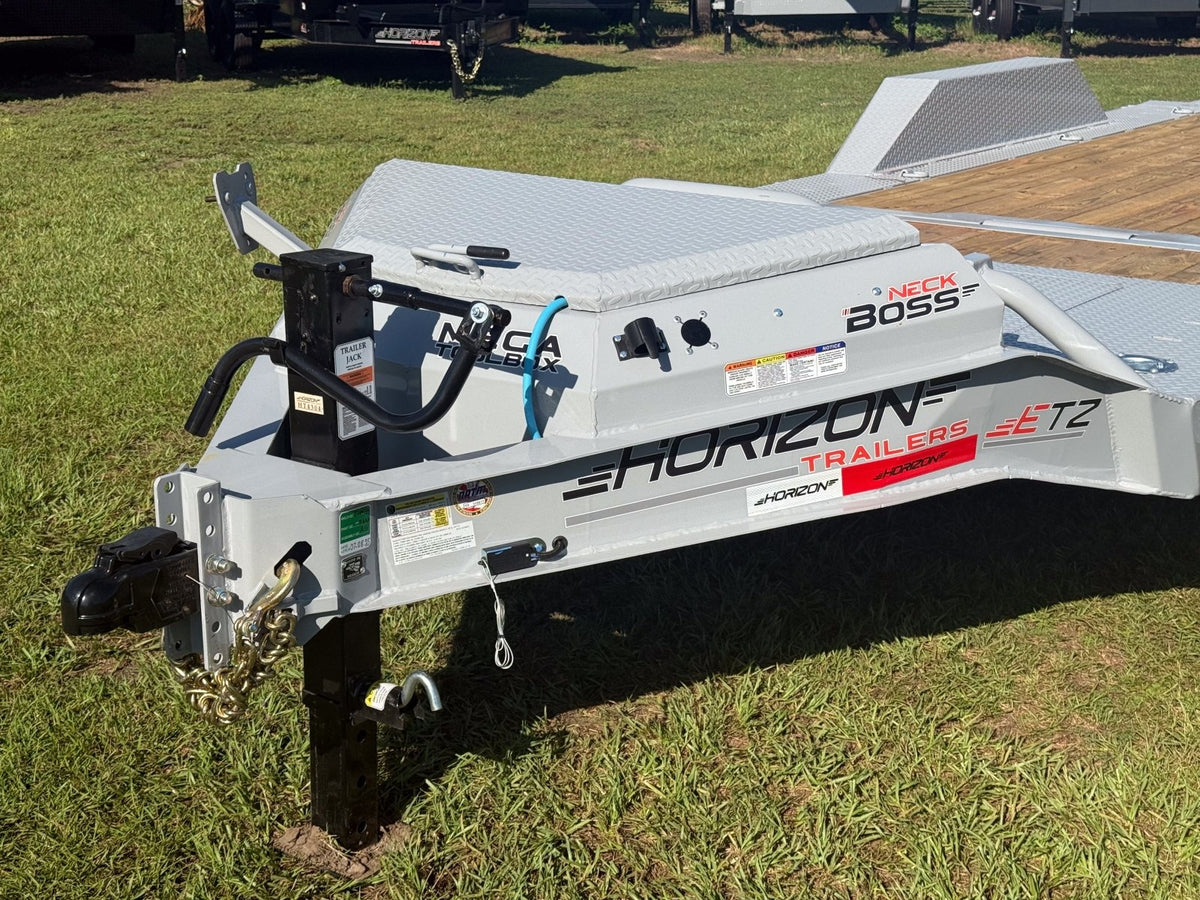

Tongue
- Tongue: Neckboss 8" Tapered Engineered I-Beam

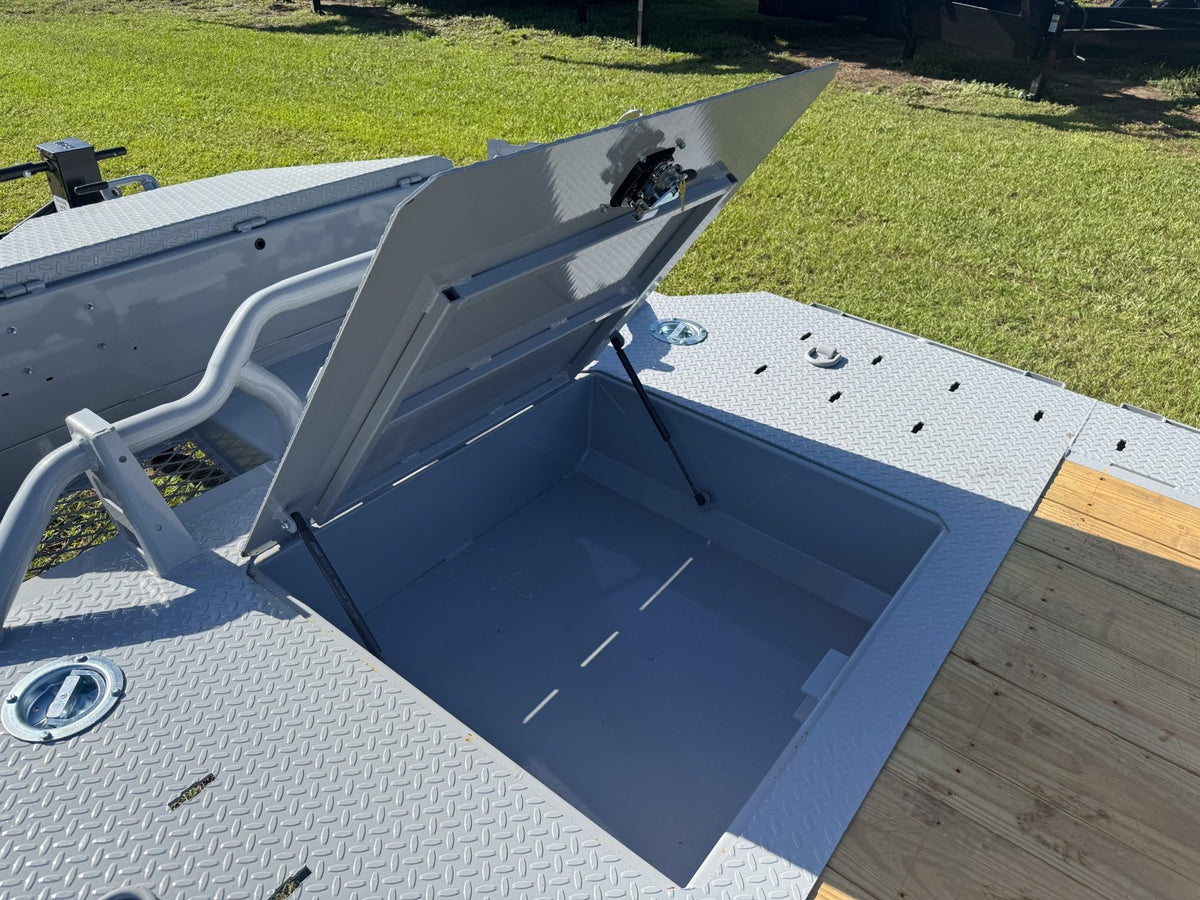

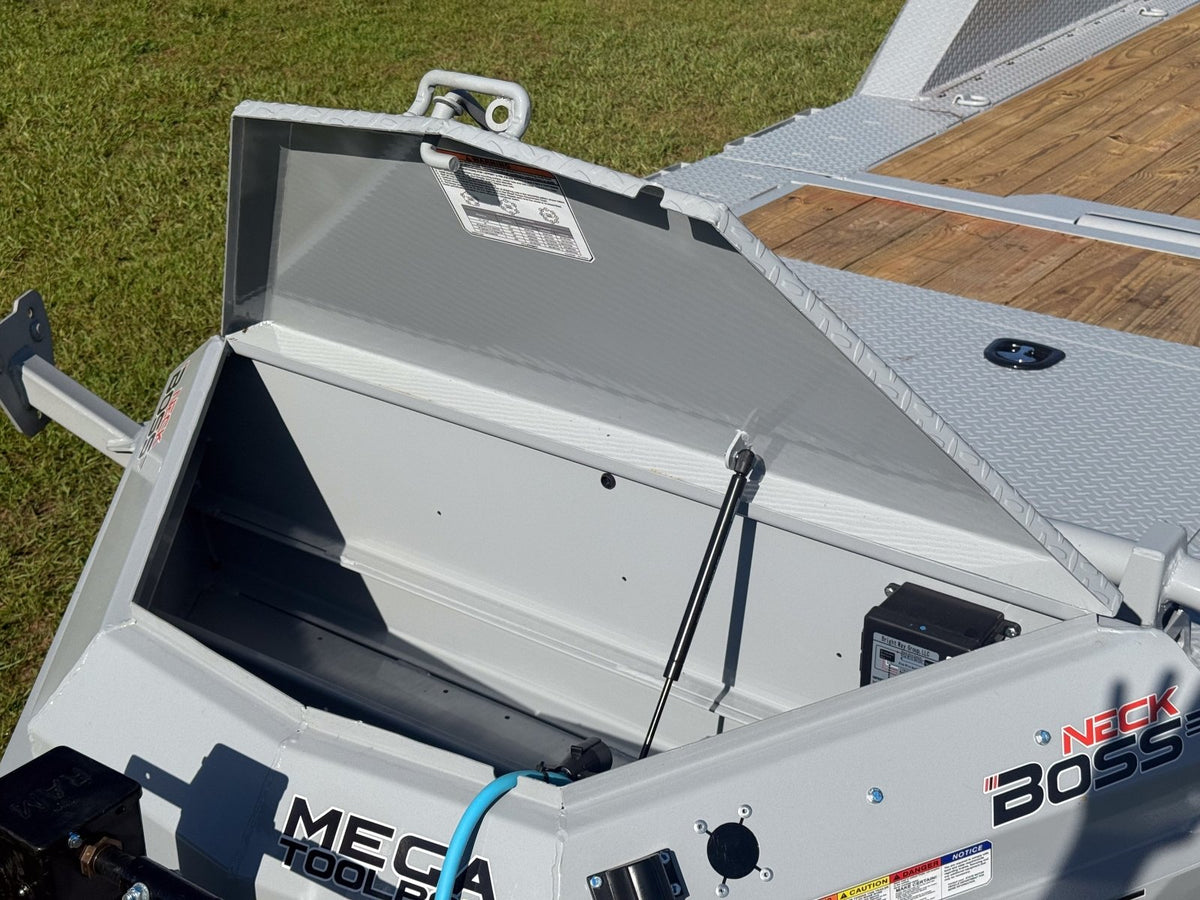

- Toolbox: Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)
- Coupler: Adjustable Auto Latch 2-5/16" Bp Coupler (17,000 lbs)
- Jack: 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount

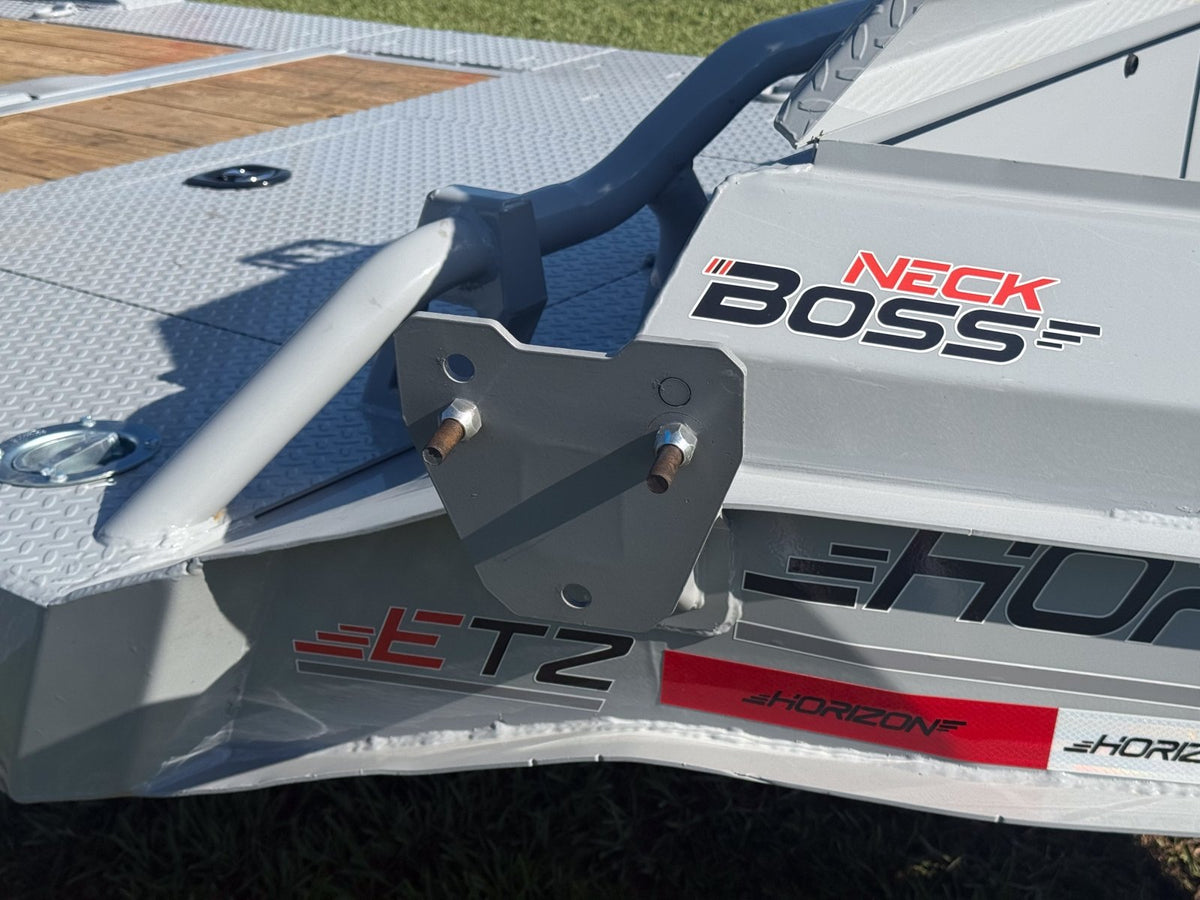

- Winch Plate: Winch Plate Behind Neck
Chassis
- Main Frame: 8" I-Beam (13 lbs/ft)
Deck

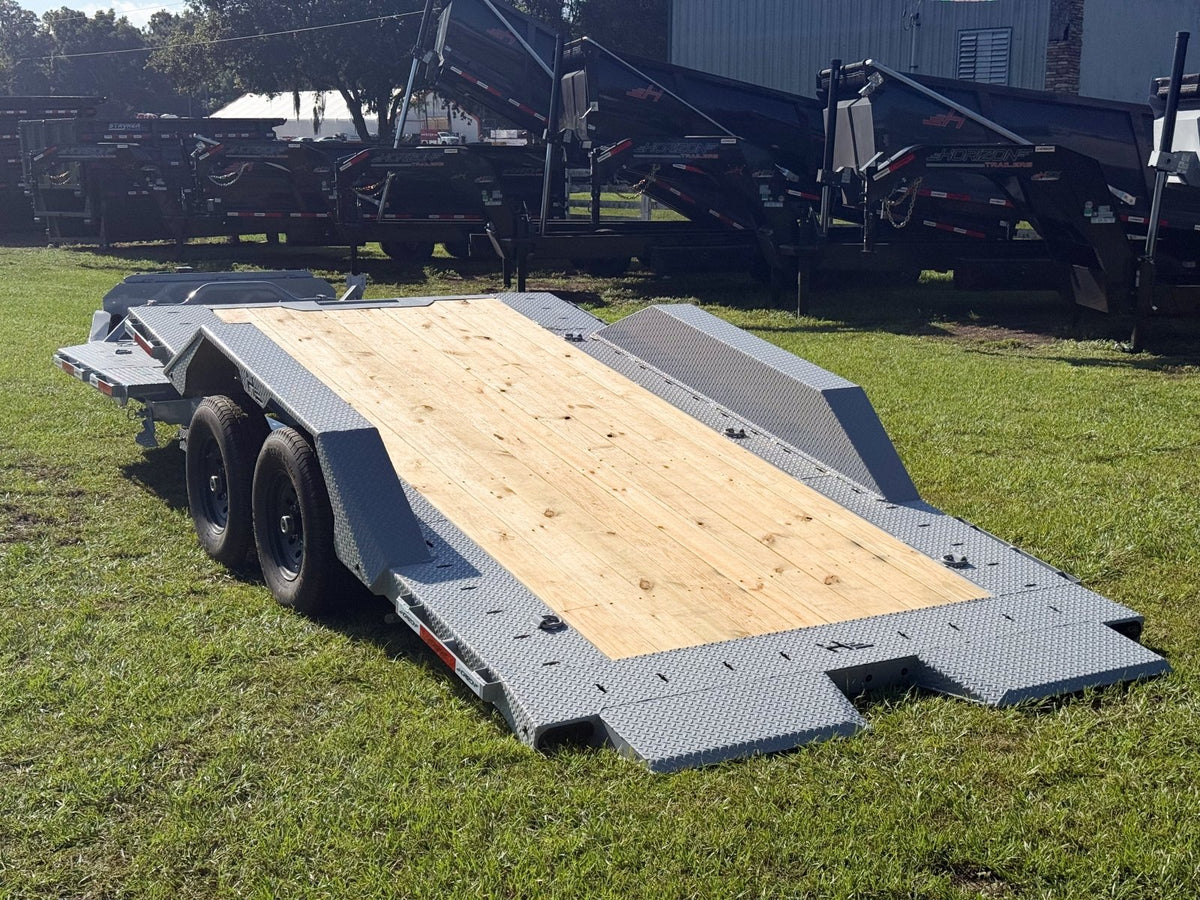

- Deck: 16' Tilt Deck
- Deck Width: 83"
- Width Between Fenders: 83"
- Flooring: Pine Lumber Floor
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 2 - D-Rings In Between Fenders
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")

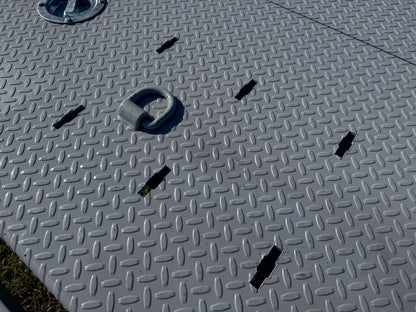

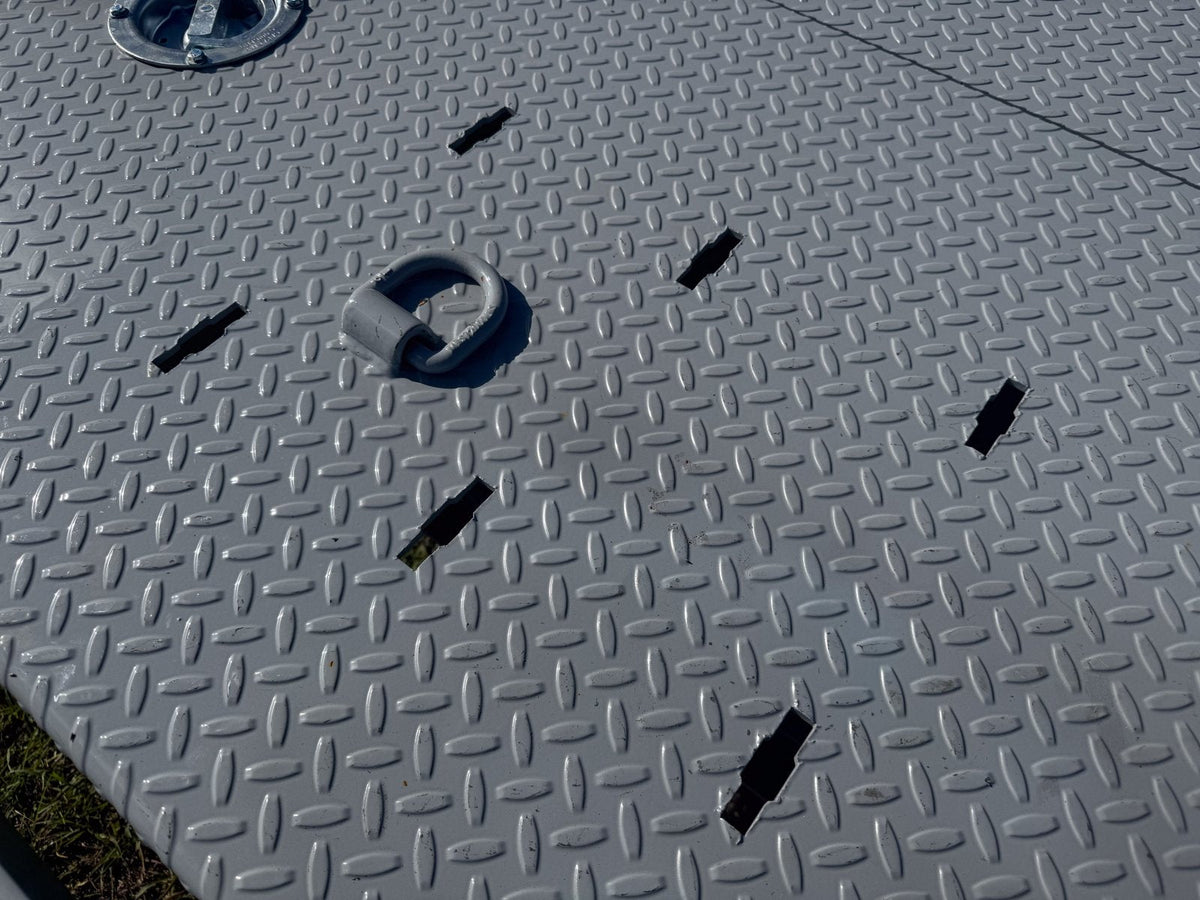

- Tie Down Slots: Slots for Latch On Tie Down Fittings Front End Of Deck

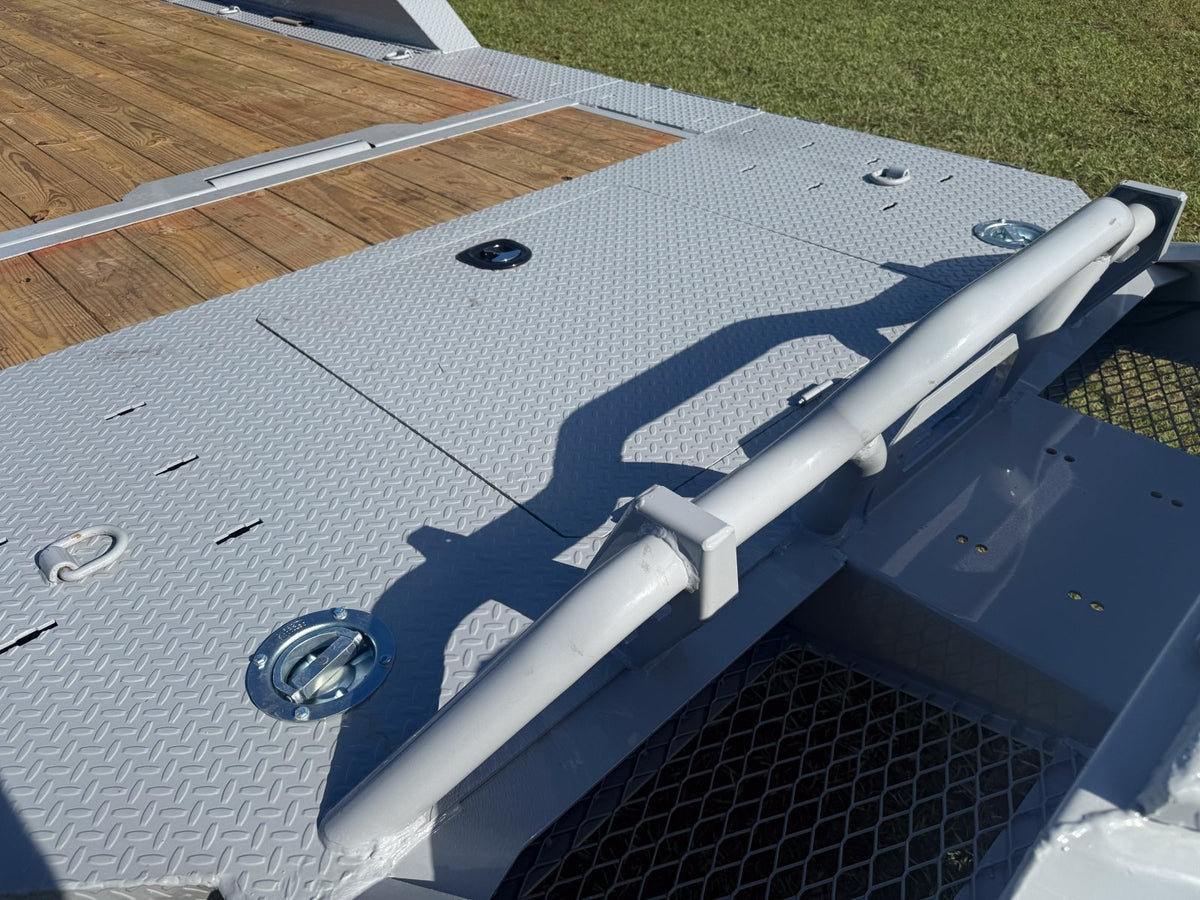

- Bolt On Swivel D-Rings: 2 - Flush Mount Galvanized Swivel D-Rings Front Of Trailer
- Fenders: 12ga. Removable Diamond Plate Steel Fenders
- Front: Front Guard Rail
Tilt System
- Frame: 2" x 6" x 7ga. Tubing Bed Frame (Tilt)
- System: Gravity Up / Down
- Cylinder: 1 - 3" x 16" Cylinder
- Tank: Large Reservoir
- Valve: 3 Way Valve
Running Gear

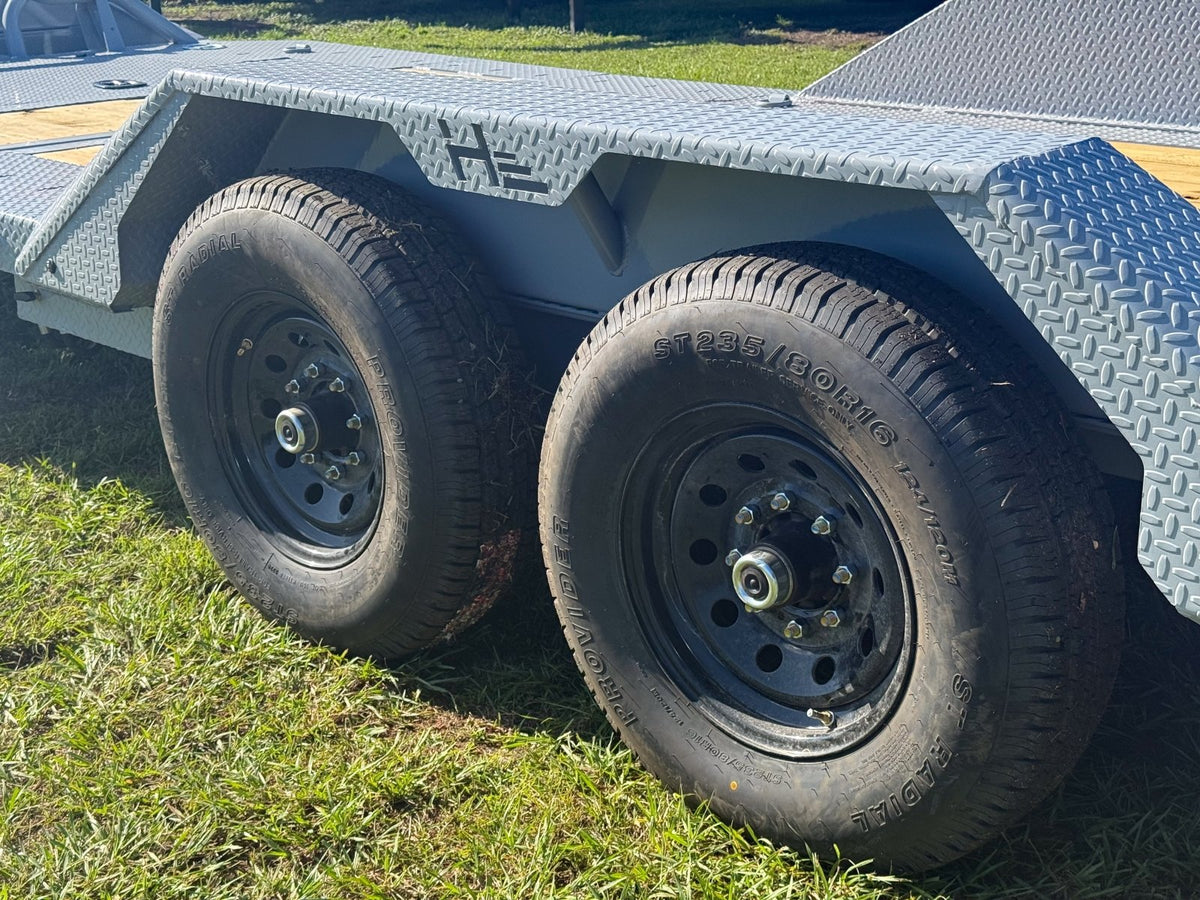

- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Rims: 16" Black Mod Wheels
- Axles: 2 - 7k Electric Brake EZ Lube Torsion Axles
- Suspension: Torsion
Electrical and Lighting
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Tongue, jacks & toolbox (3): 12k Ram 2 Speed Jack; 12k Hydraulic Jack; 12k Hydraulic Jack w/ Low Temperature Hydraulic Oil
- Frame & undercarriage (1): 8" I-Beam (15 lbs/ft) Frame Upgrade
- Deck, tie-downs & ramps (10): 102" Wide With 3/16" Thick Drive Over Fenders (1,500 lbs p/ fender) When Weight Distributed Across Length Of Fender; 12" Crossmember Spacing; Full Deck Blackwood "Classic" Rubber Infused Lumber; 12ga. Diamond Plate Steel Deck…
- Remotes & winch (6): Tuff Wireless 2 Button Remote (Hydraulic Jacks); Tuff Wireless 4 Button Remote (Hydraulic Jacks - Winch); 13.5k Steel Cable Winchmax Winch; 13.5k Synthetic Rope Winchmax Winch…
- Axles, suspension & tires (11): ST235/85R16 14 Ply Tires Singles (4,400 lbs); Aluminum Rims w/ ST235/80R16 10 Ply Tires (3,520 lbs); Aluminum Rims w/ ST235/85R16 14 Ply Tires (4,400 lbs); ST235/80R16 10 Ply Tire Single (3,520 lbs)…
- Electrical & lighting (1): 7.5 Watt Solar Panel
- Paint & finish (2): 20ft & Up Zinc Primer Undercoat; Fenders Painted Black
