PRODUCT DETAILS
Description

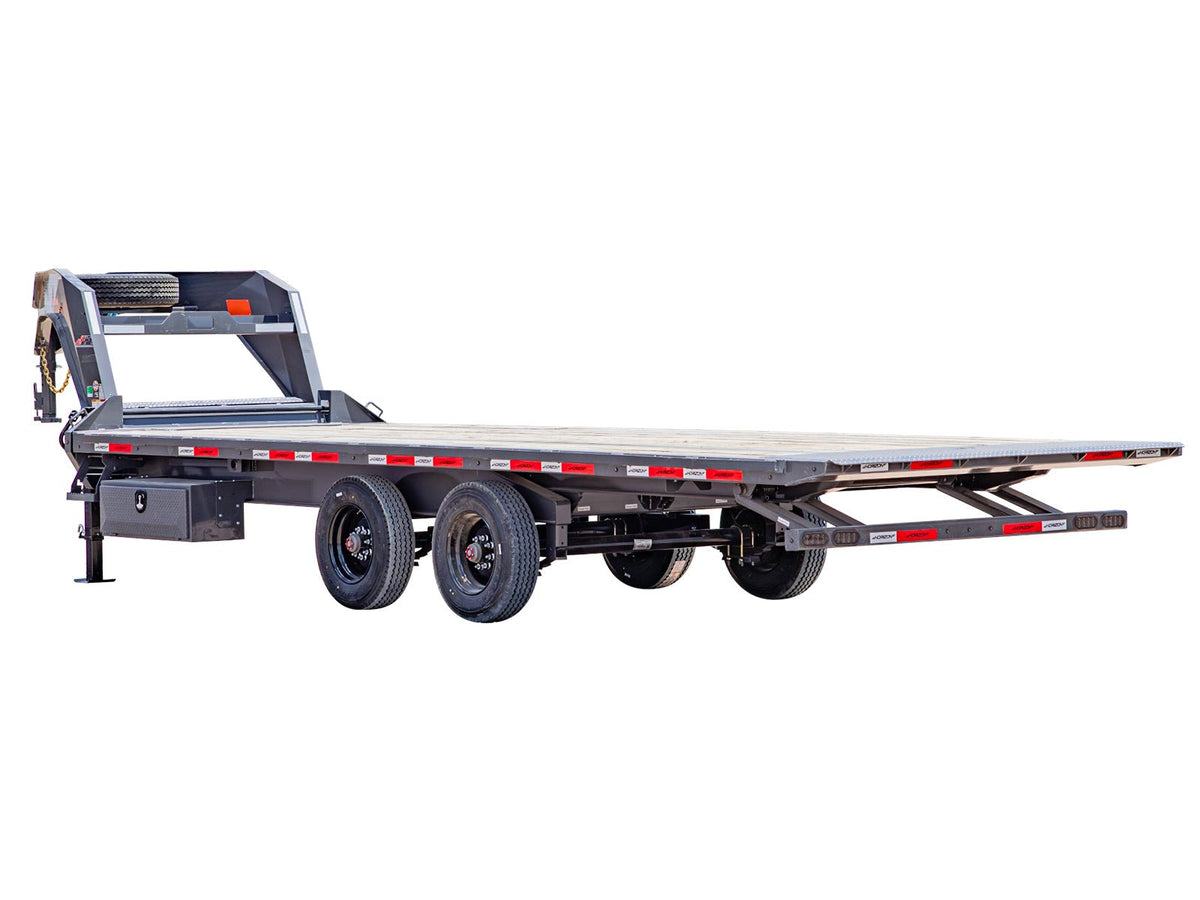

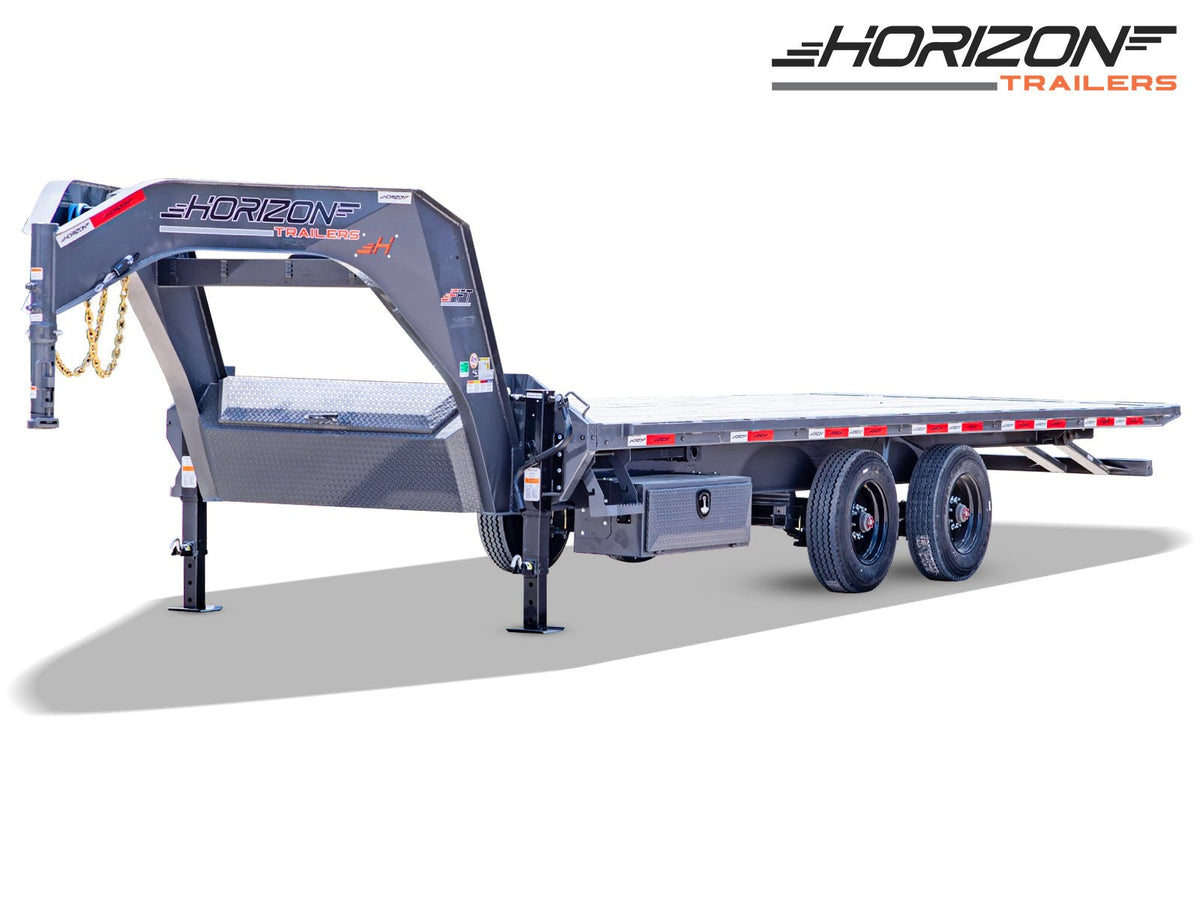

Build your Horizon FFT Gooseneck Full Tilt Deckover Trailer to order in 4 configurations from 22' to 28'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 22': $16,973
- 24': $17,293
- 26': $17,838
- 28': $18,071
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 22' to 28'
- GVWR: 15,700 lbs
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Coupler: Adjustable 2-5/16" GN Coupler (30,000 lbs)
- Deck Height: 36"
- Sides: Slide In Side Step On Both Sides
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 15,700 lbs

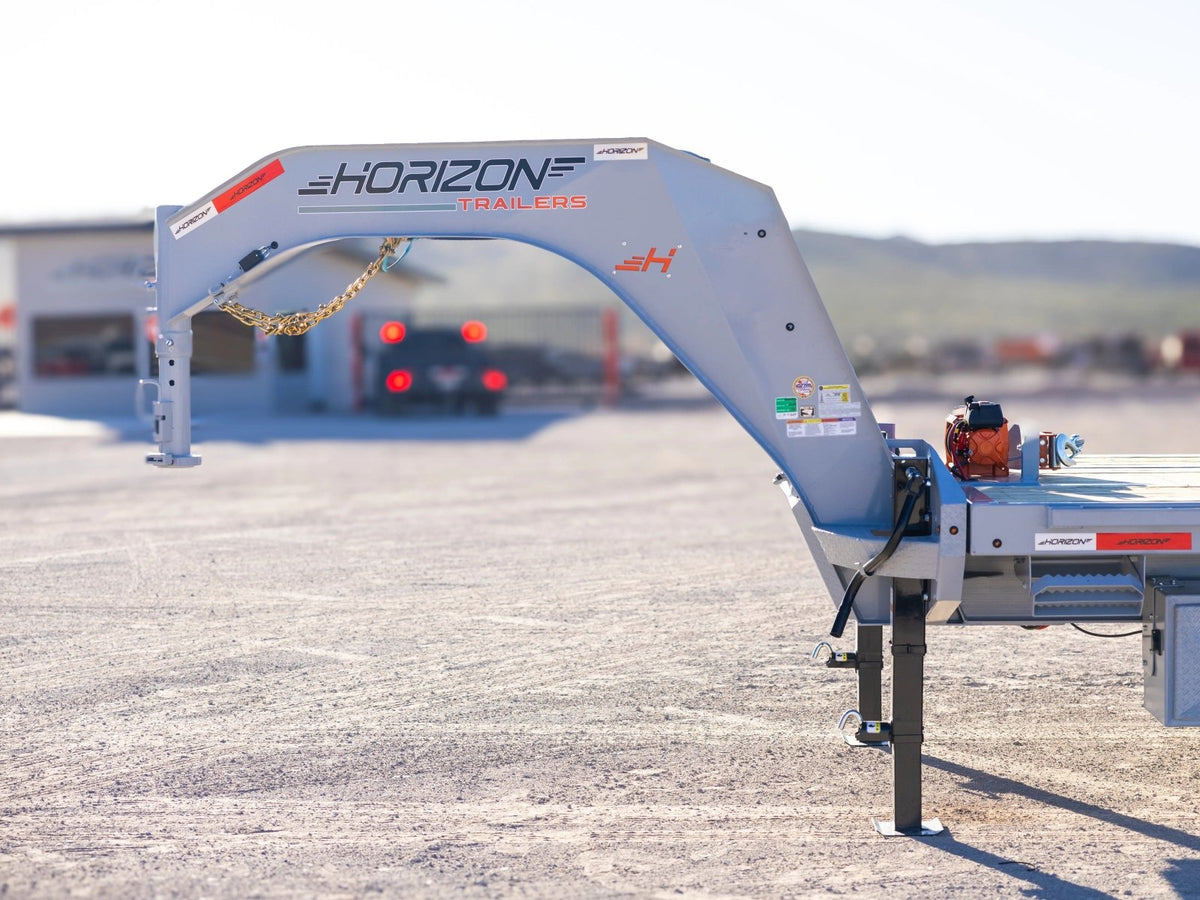

Tongue
- Tongue: Neckboss 10" Engineered I-Beam
- Toolbox: Mega Lockable Toolbox
- Coupler: Adjustable 2-5/16" GN Coupler (30,000 lbs)
- Jacks: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
- Storage Behind Neck: Storage Box
Chassis
- Main Frame: 12" I-Beam (14 lbs/ft)

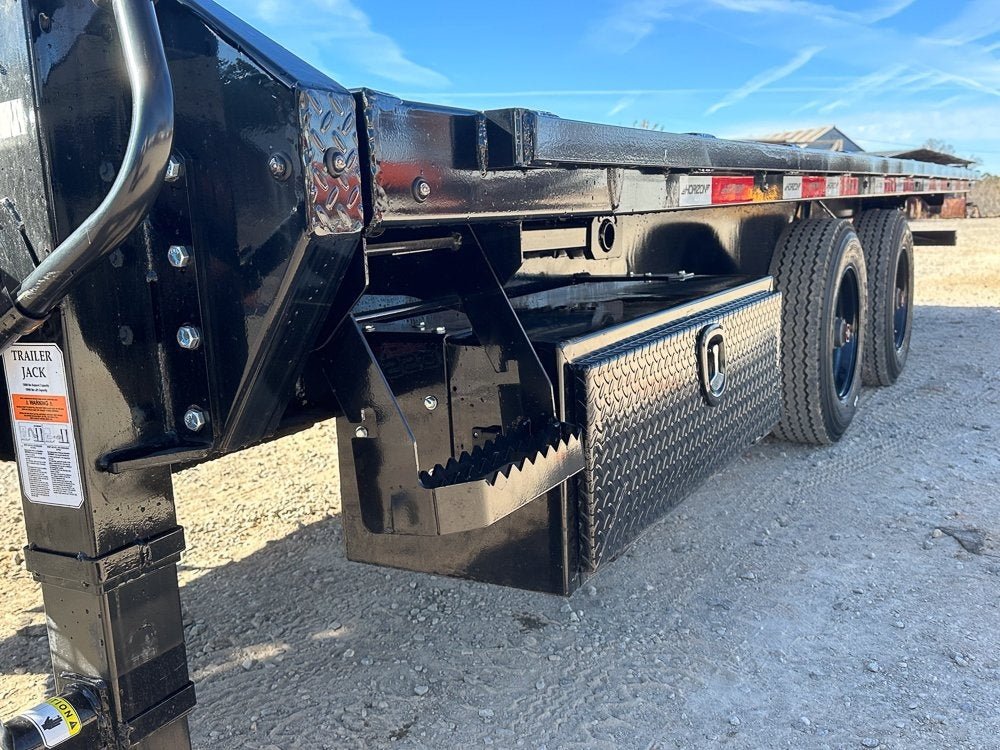

- Sides: Slide In Side Step On Both Sides

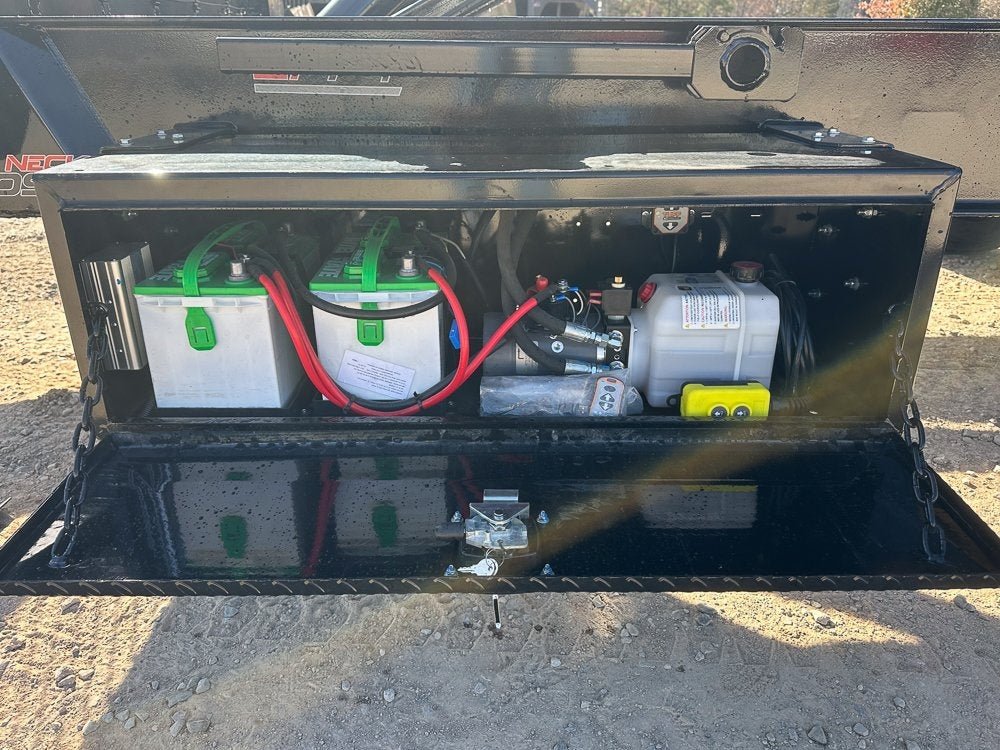

- Left Side: Lockable Toolbox (Houses Batteries And Pump)

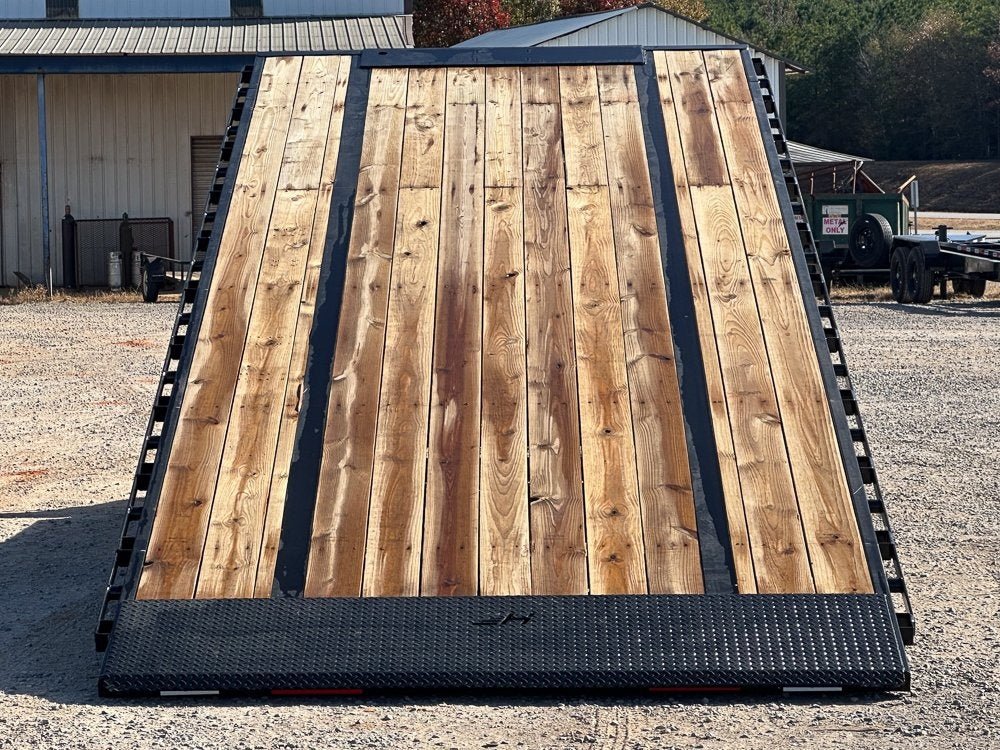

Full Tilt Deck
- Deck Height: 36"
- Deck: Straight Deck
- Flooring: Pine Lumber Floor
- Frame: 2" x 5" x 11ga. Tubing Bed Frame
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
- Winch Plate: Winch Plate On Deck

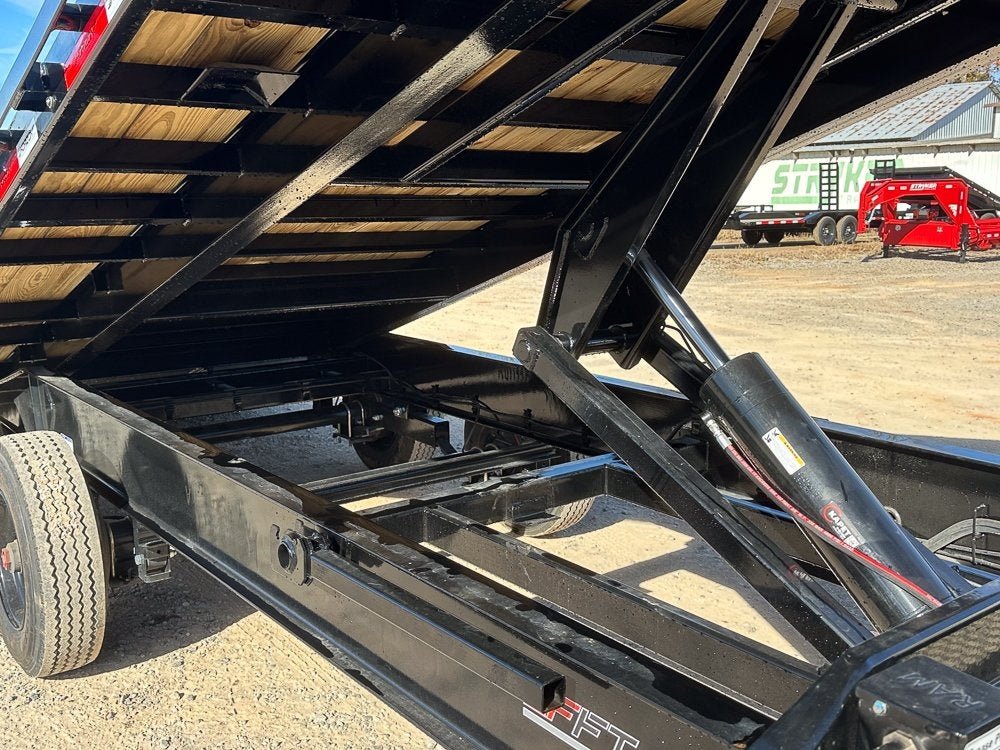

Lift System
- KTI 12V Hydraulic Pump: 2 Button Hydraulic - Power Up / Power Down
- Controller: 14' Control Cable
- Remote: Tuff Wireless 2 Button Remote
- Lift Cylinder: Hoist w/ 6" x 21" Single Push Cylinder (20,000 lbs)
- Lift Capacity: 15,000 lbs When Weight Distributed Across Length Of Deck

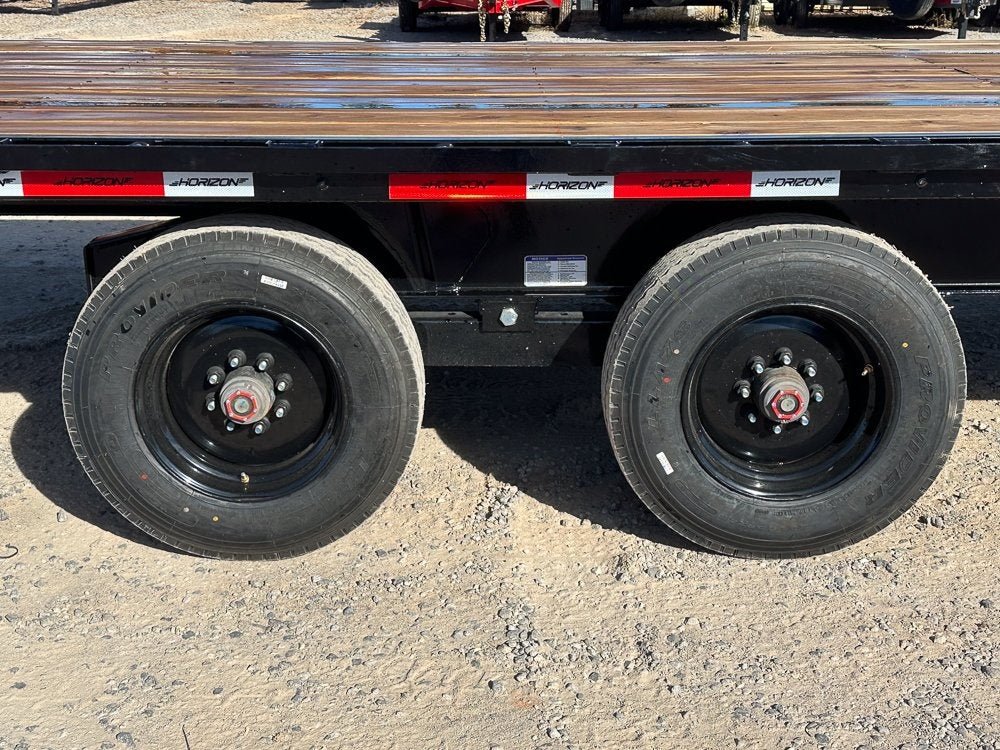

Running Gear
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Rims: 16" Black Mod Wheels
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Suspension: Spring
Electrical and Lighting
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Gooseneck, jacks & toolbox (9): 12k Ram 2 Speed Jacks; 12k Hydraulic Jacks; Locker Style Toolbox; 6" GN Riser Increase…
- Frame & undercarriage (6): 12" I-Beam (16 lbs/ft) Frame Upgrade; I-Beam Bridge Frame Upgrade; 20' - 44' Deck 1 - Side Mount Undercarriage Toolbox (44"L x 17"W x 14"H); 20' - 44' Deck 2 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)…
- Deck, tie-downs & ramps (17): 12" Crossmember Spacing; Deck Sides Blackwood "Classic" Rubber Infused Lumber; Full Deck Blackwood "Classic" Rubber Infused Lumber; Ratchet Slide Track Left Side…

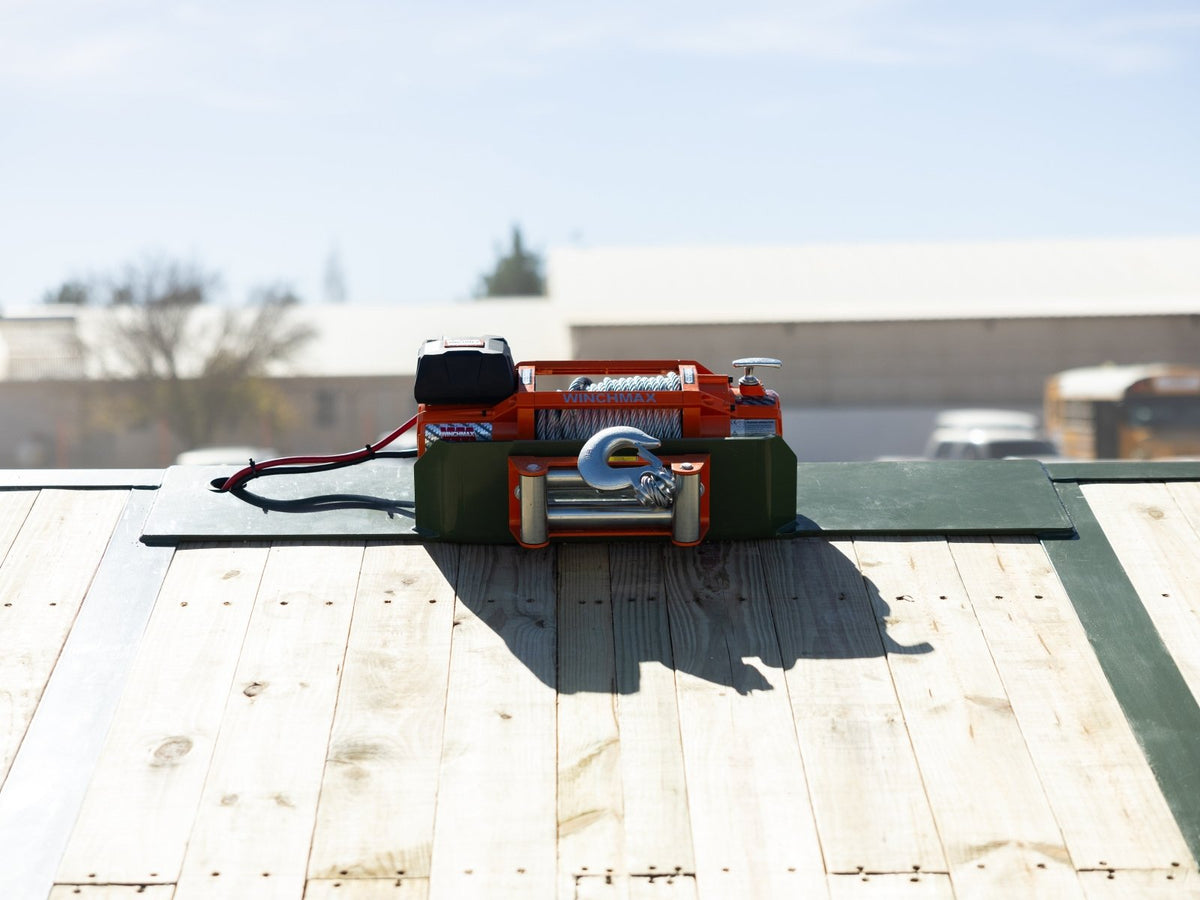

- Remotes & winch (8): Tuff Wireless 2 Button Remote (Hoist - Hydraulic Jacks); Tuff Wireless 4 Button Remote (Hoist - Winch); Tuff Wireless 8 Button Remote (Hoist - Hydraulic Jacks - Winch); 13.5k Steel Cable Winchmax Winch…
- Axles, suspension & tires (13): ST235/85R16 14 Ply Tires Singles (4,400 lbs); Aluminum Rims w/ ST235/80R16 10 Ply Tires (3,520 lbs); Aluminum Rims w/ ST235/85R16 14 Ply Tires (4,400 lbs); ST235/80R16 10 Ply Tire Single (3,520 lbs)…
- Electrical & lighting (2): 7.5 Watt Solar Panel; 2 - Cargo Lights Mounted On Riser
- Paint & finish (3): 20ft & Up Zinc Primer Undercoat; Side Mount Undercarriage Toolboxes Painted Black; Side Mount Undercarriage Dunnage Racks Painted Black
