PRODUCT DETAILS
Description

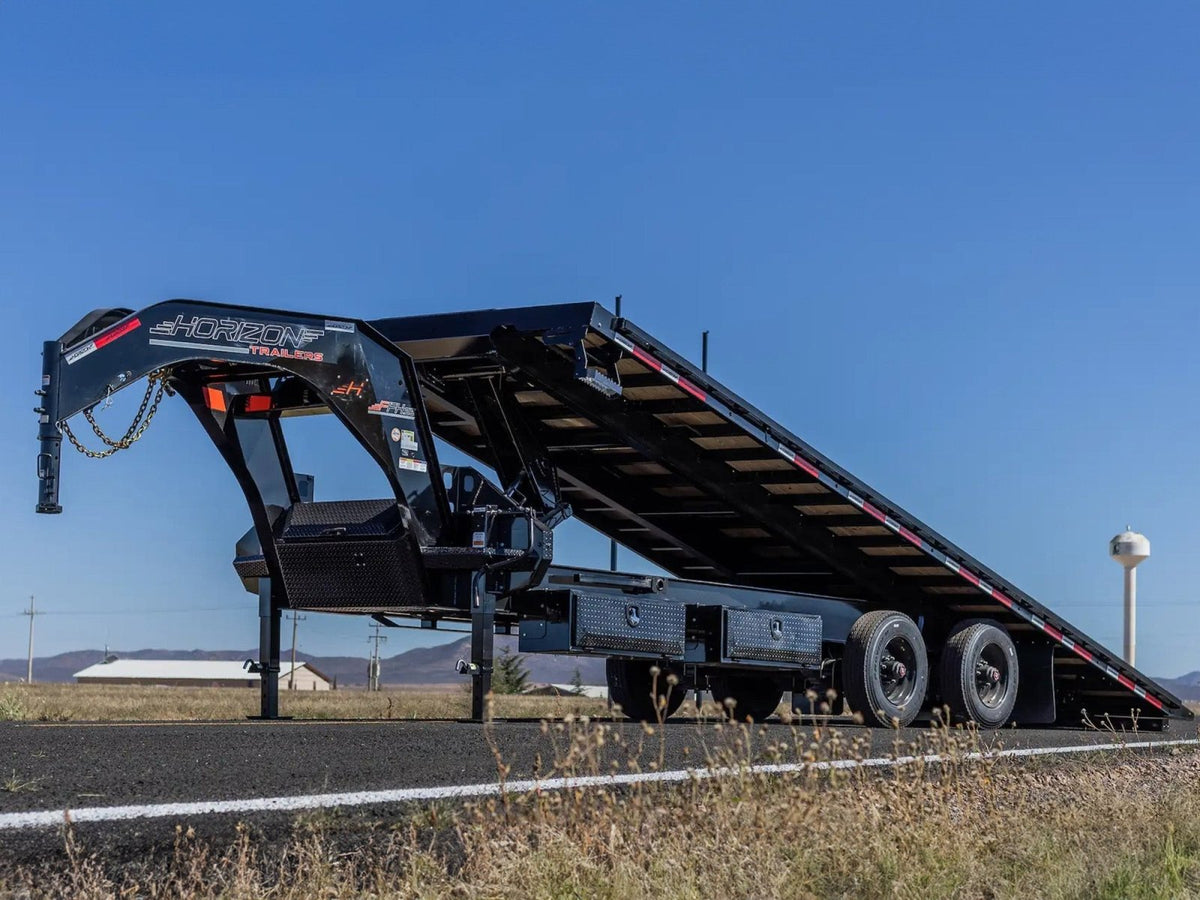

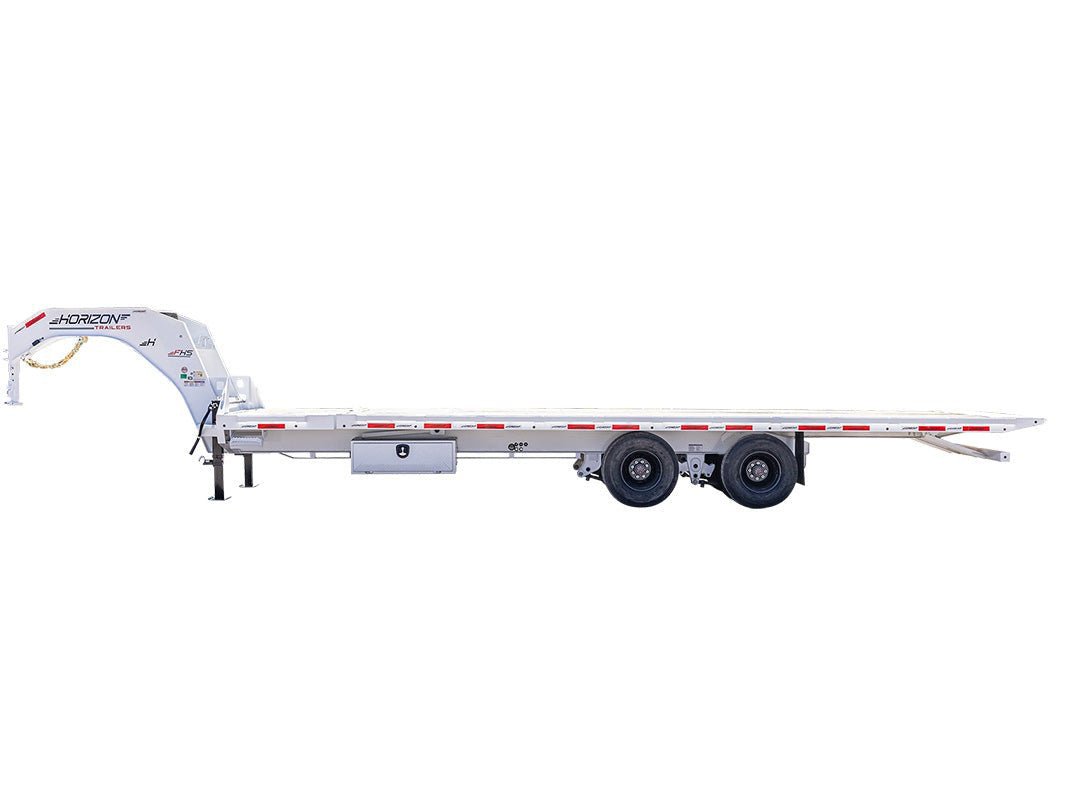

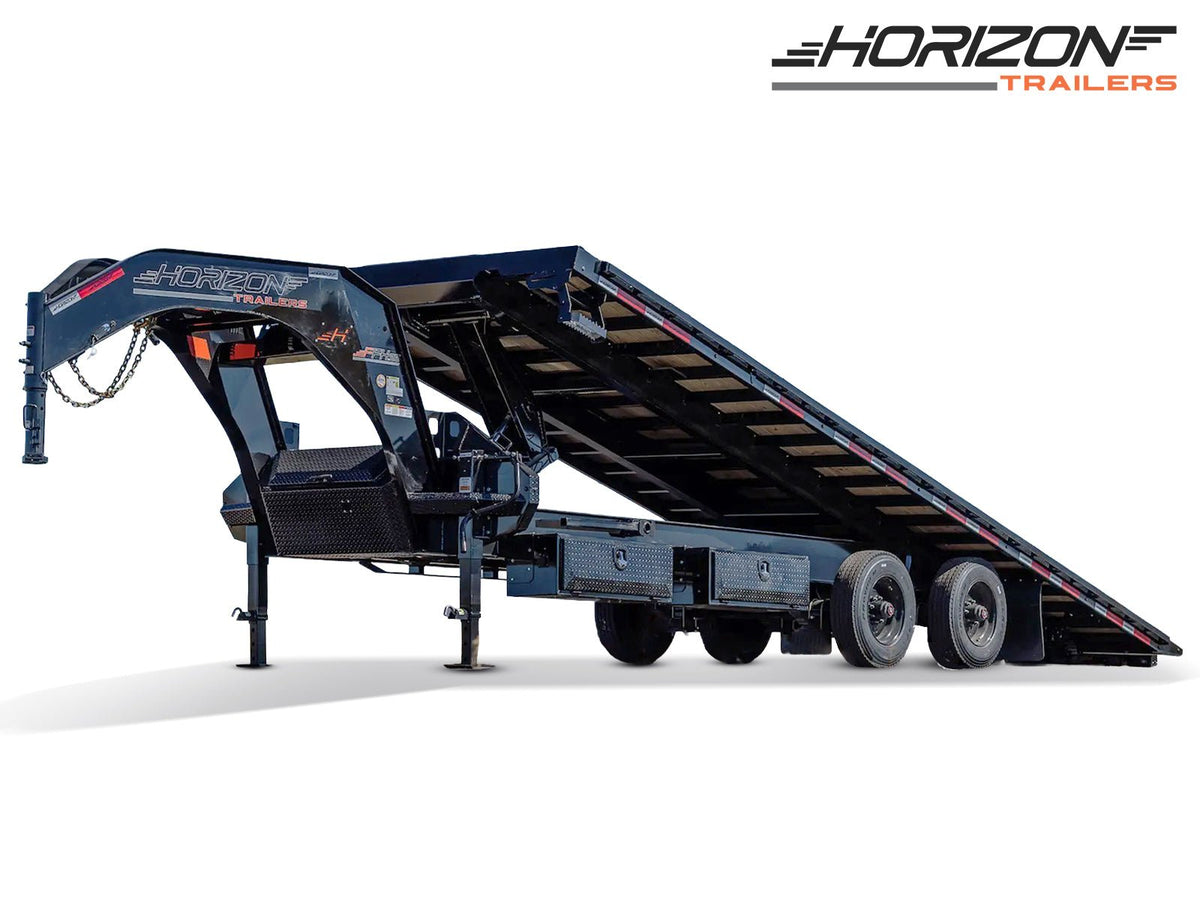

Build your Horizon FHSSS Gooseneck Super Single Split Tilt Deckover Trailer to order in 7 configurations from 28' to 40'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 28' (25K GVWR): $26,939
- 30' (25K GVWR): $27,536
- 32' (25K GVWR): $27,972
- 34' (25K GVWR): $28,329
- 36' (25K GVWR): $28,531
- 38' (25K GVWR): $28,591
- 40' (25K GVWR): $30,577
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 28' to 40'
- GVWR: 25,000 lbs
- Axles: 2 - 10k Electric Brake Super Single Oil Bath Spring Axles
- Tires: ST235/75R17.5 18 Ply Tires Super Single (6,005 lbs)
- Coupler: Adjustable 2-5/16" GN Coupler (30,000 lbs)
- Deck Height: 38"
- Sides: Slide In Side Step On Both Sides
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 25,000 lbs
Tongue

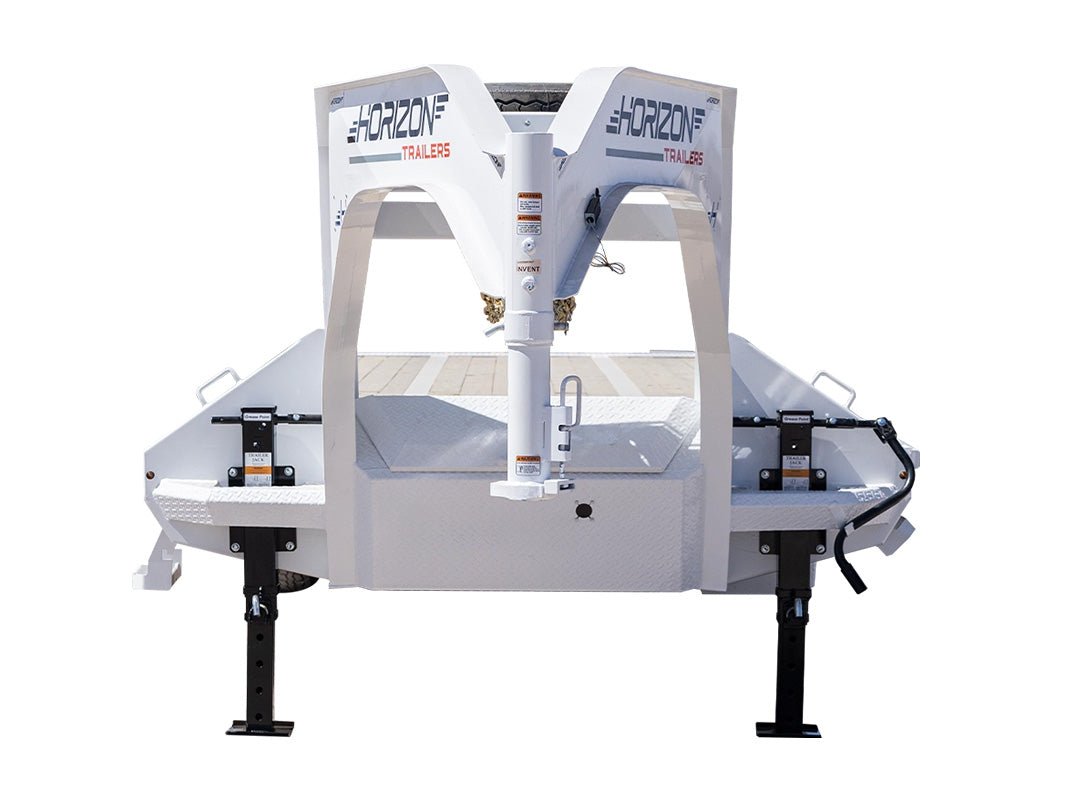

- Tongue: Neckboss 12" Engineered I-Beam
- Toolbox: Mega Lockable Toolbox
- Coupler: Adjustable 2-5/16" GN Coupler (30,000 lbs)
- Jacks: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)

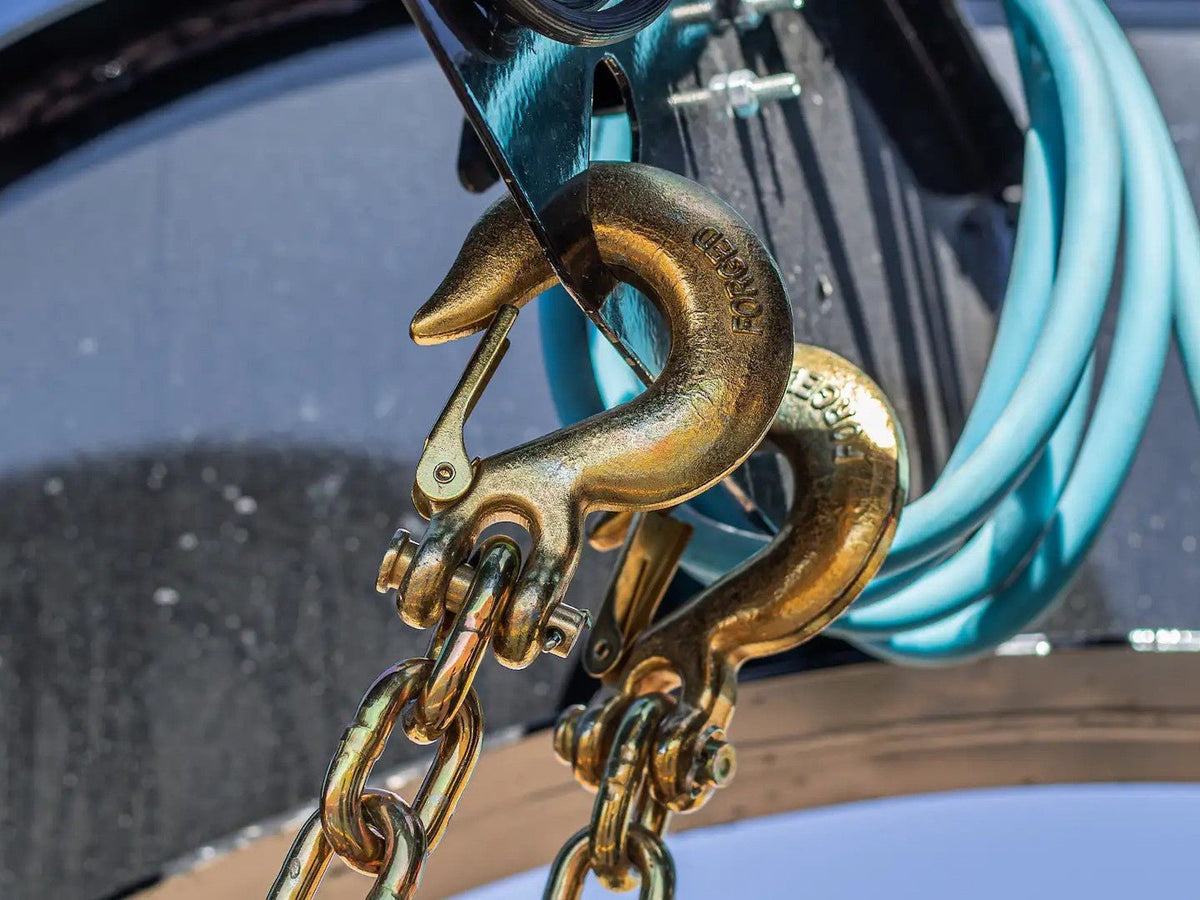

- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
- Storage Behind Neck: Storage Box / Winch Ready
Chassis
- Main Frame: Bridged 12" I-Beam (19 lbs/ft)
- Sides: Slide In Side Step On Both Sides
Deck
- Deck Height: 38"

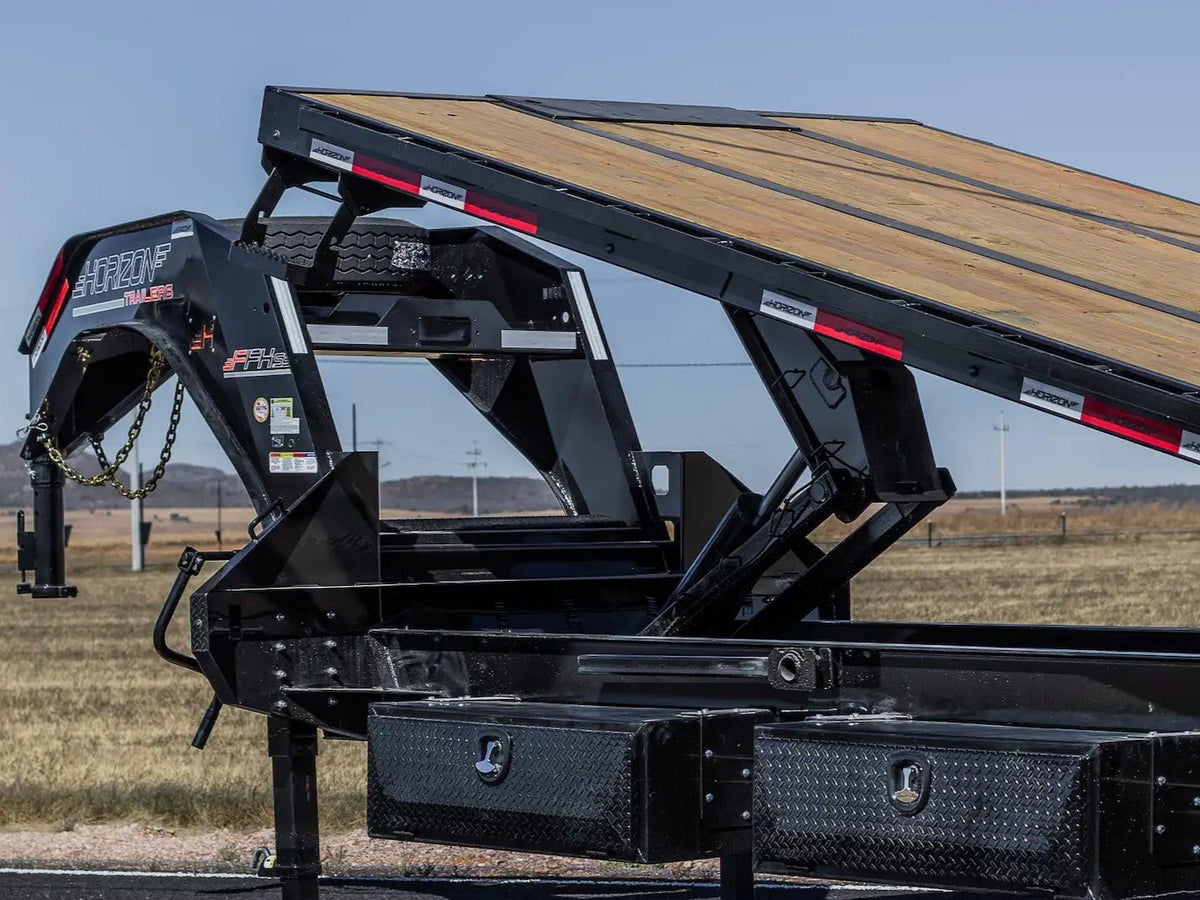

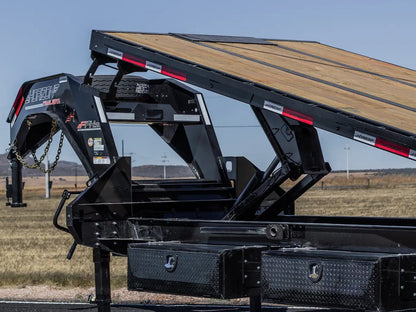

- Deck: 24' Hydraulic Tilt Deck
- Flooring: Pine Lumber Floor
- Frame: 2" x 6" x 7ga. Tubing Bed Frame
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
- Torque Tube 30' & Up Only: 4,1/2" Tube
Lift System
- Winch Plate: Winch Plate On Deck
- KTI 12V Hydraulic Pump: 2 Button Hydraulic - Power Up / Power Down
- Controller: 14' Control Cable
- Remote: Tuff Wireless 2 Button Remote
- Lift Cylinder: Hoist w/ 6" x 21" Single Push Cylinder (20,000 lbs)
Running Gear
- Tires: ST235/75R17.5 18 Ply Tires Super Single (6,005 lbs)
- Rims: 17.5" Black Mod Wheels
- Axles: 2 - 10k Electric Brake Super Single Oil Bath Spring Axles
- Suspension: Spring
Electrical and Lighting
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Gooseneck, jacks & toolbox (10): 12k Ram 2 Speed Jacks; 17.5k Jost 2 Speed Jacks; 12k Hydraulic Jacks; Locker Style Toolbox…
- Frame & undercarriage (7): 20' - 44' Deck 1 - Side Mount Undercarriage Toolbox (44"L x 17"W x 14"H); 20' - 44' Deck 2 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H); 30' - 44' Deck 3 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H); 30' - 44' Deck 4 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)…
- Deck, tie-downs & ramps (17): 12" Crossmember Spacing; Deck Sides Blackwood "Classic" Rubber Infused Lumber; Full Deck Blackwood "Classic" Rubber Infused Lumber; 4 Additional D-Rings Welded Across Deck (1/2" - 12,000 lbs)…
- Remotes & winch (10): Tuff Wireless 2 Button Remote (Hoist - Hydraulic Jacks); Tuff Wireless 4 Button Remote (Hoist - Winch); Tuff Wireless 8 Button Remote (Hoist - Hydraulic Jacks - Winch); 13.5k Steel Cable Winchmax Winch…
- Axles, suspension & tires (16): 2 - 10k Elec / Hydraulic Disc Brake S/ Single Oil Bath Spring Axles w/ Hydrastar CAM; 2 - 12k Electric Brake S/ Single Oil Bath Spring Axles; 2 - 12k Elec / Hydraulic Disc Brake S/ Single Oil Bath Spring Axles w/ Hydrastar CAM; Standard 10k S/ Single Axles w/ Heavy Duty Suspension…
- Electrical & lighting (2): 7.5 Watt Solar Panel; 2 - Cargo Lights Mounted On Riser
- Paint & finish (3): Zinc Primer Undercoat; Side Mount Undercarriage Toolboxes Painted Black; Side Mount Undercarriage Dunnage Racks Painted Black
