If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your door!
Build & price yours
Pick a deck length, color and the options you need. Your list price updates as you go.
1
Deck length
List price includes all standard features2
Color
Powder coat color is included. Swatches are approximate; ask to see a sample.
3
Options
Open a section to add options. Where only one choice makes sense, picking one replaces the other.
·
Loading options…
PRODUCT DETAILS
Description

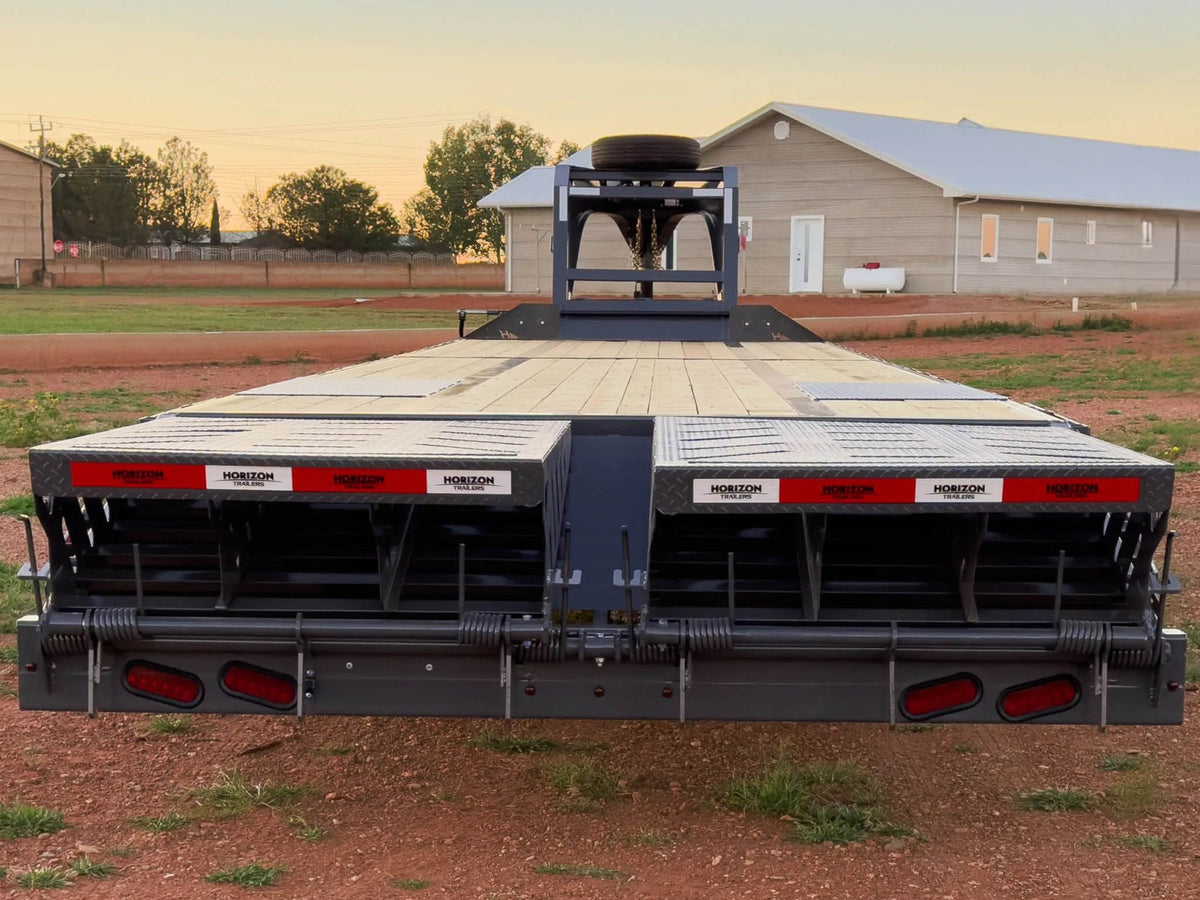

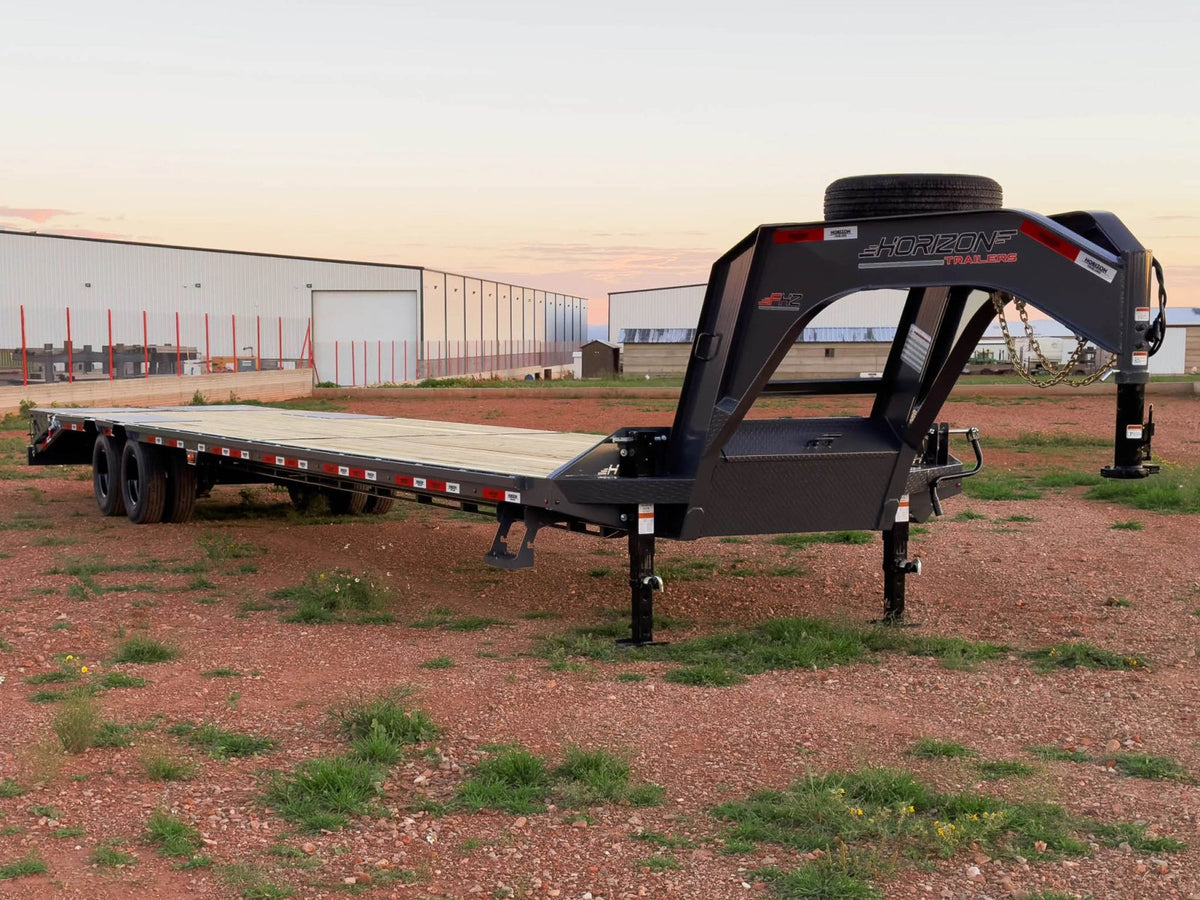

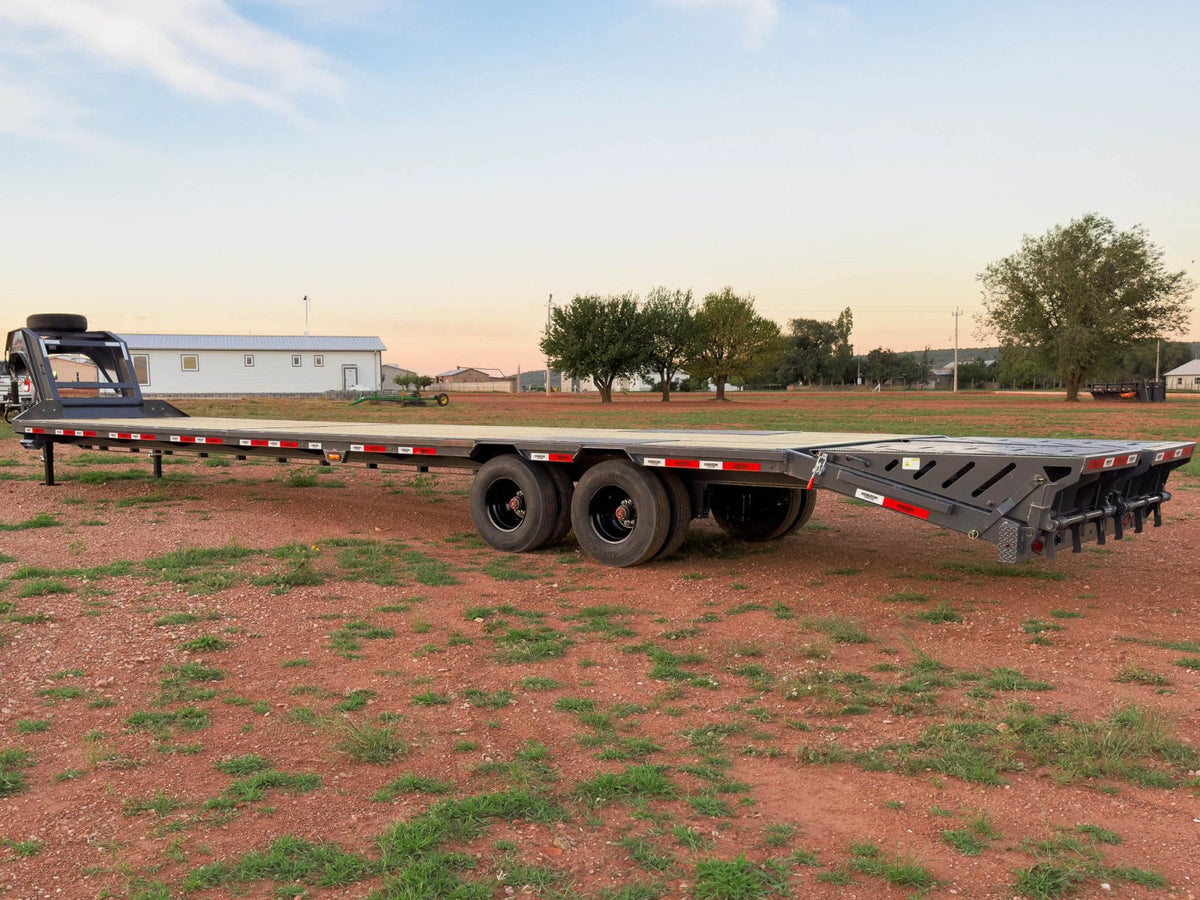

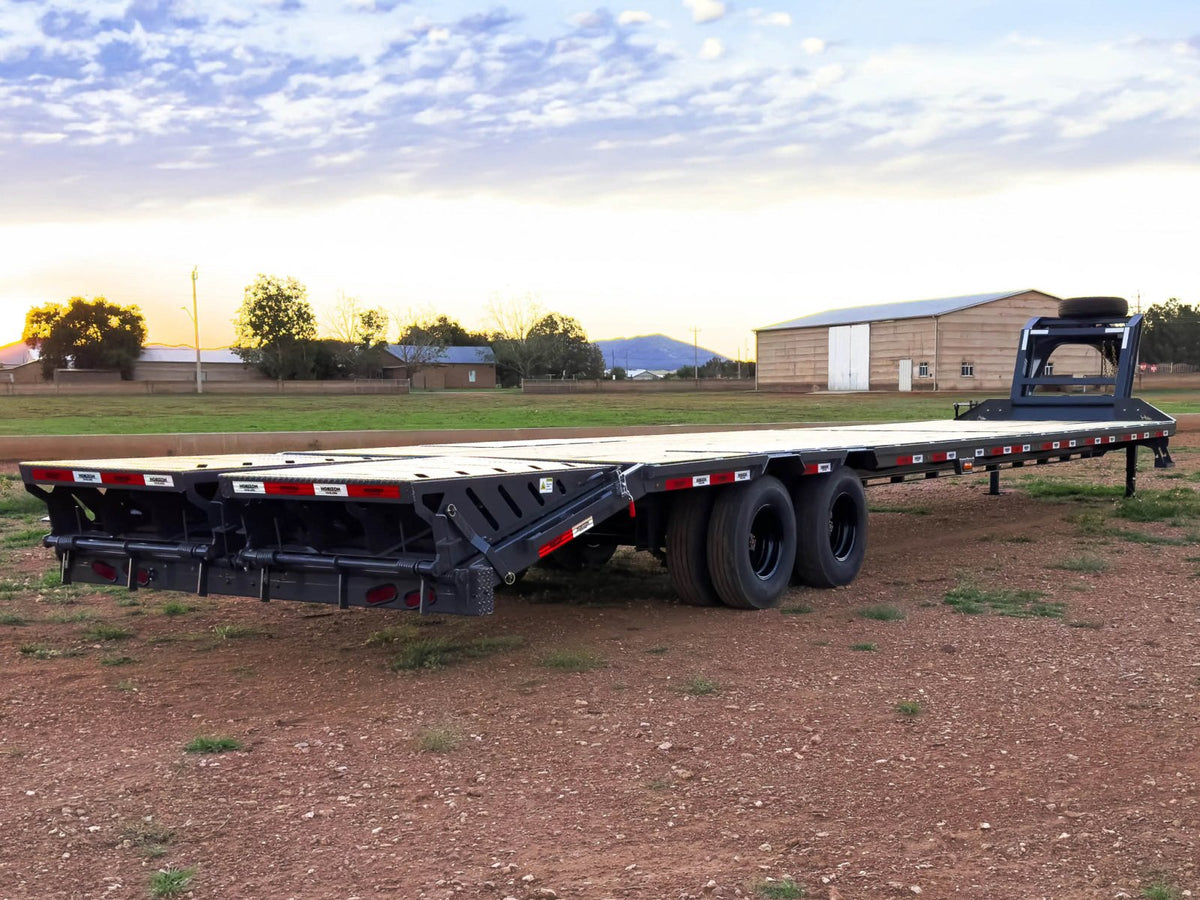

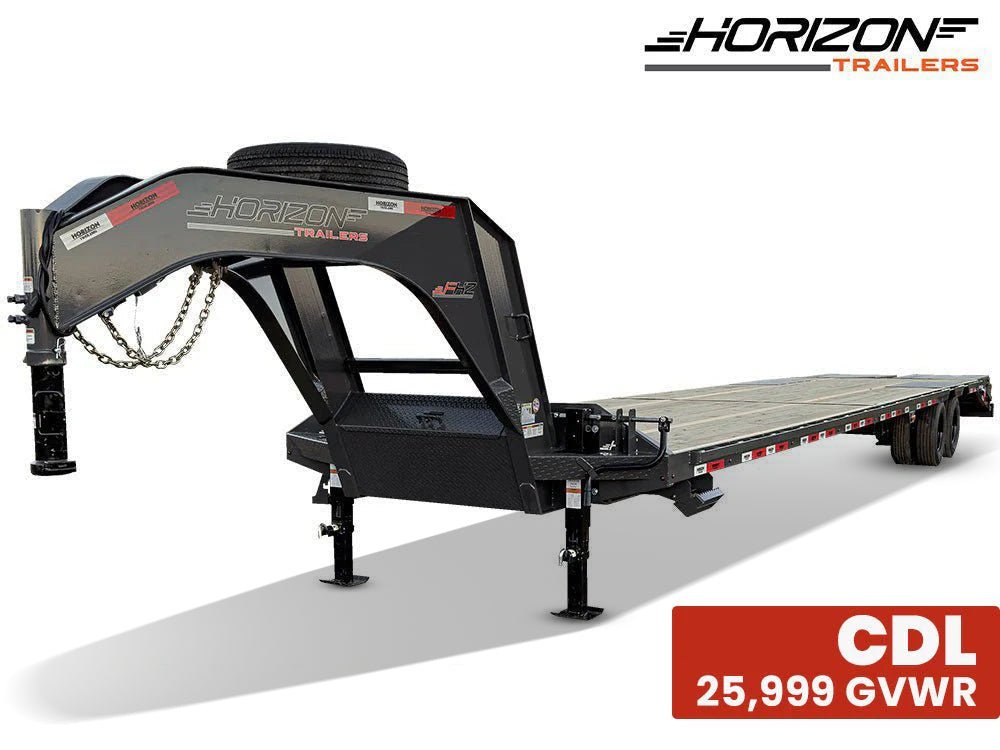

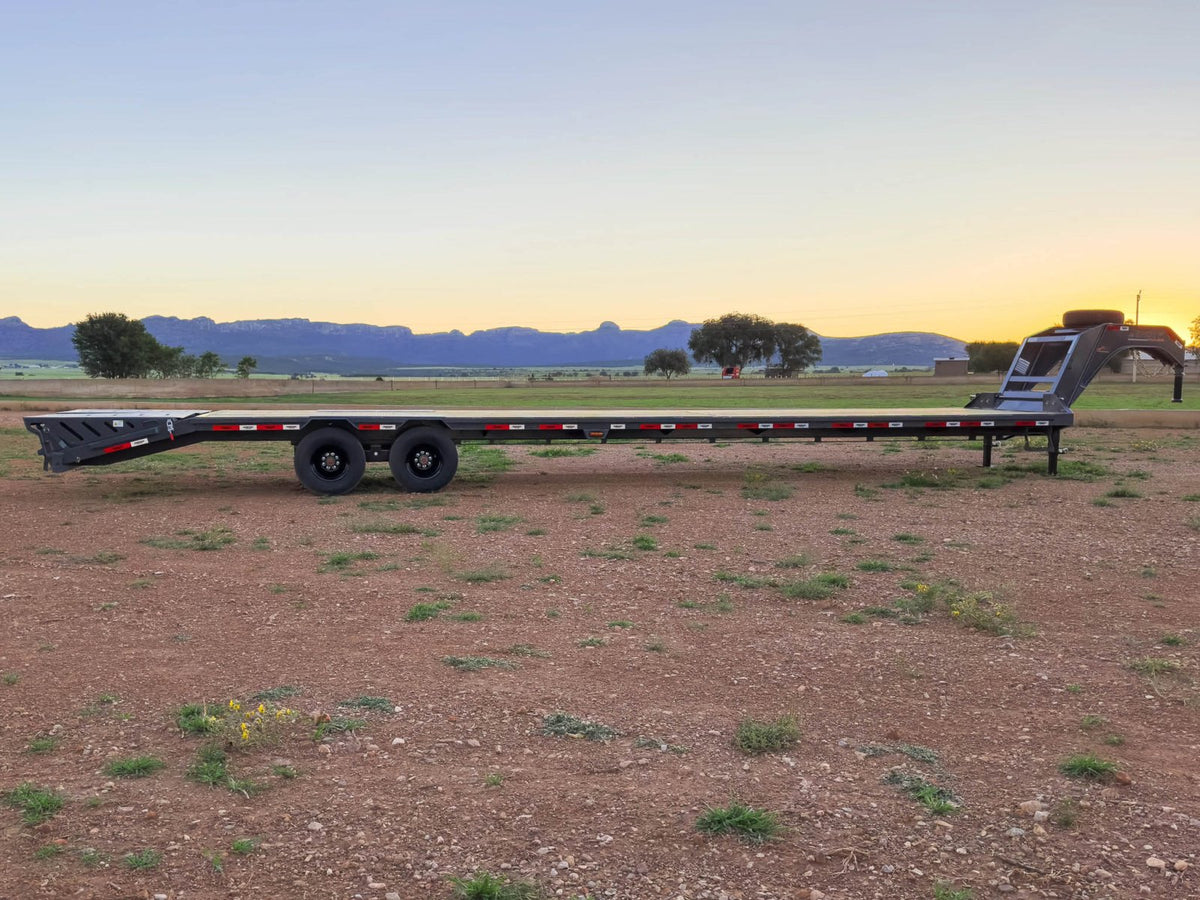

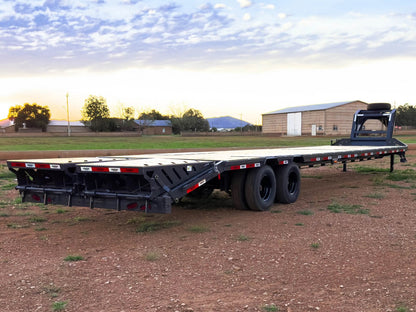

Build your Horizon FHZ Gooseneck Deckover to order in 13 deck lengths from 20' to 44'. Pick your deck length to see its list price, then choose your color and upgrades and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by deck length
- 20': $15,503
- 22': $16,383
- 24': $17,424
- 26': $18,449
- 28': $18,820
- 30': $19,337
- 32': $19,781
- 34': $20,152
- 36': $20,588
- 38': $20,814
- 40': $21,774
- 42': $23,549
- 44': $23,760
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Deck lengths: 20'–44' (2' increments)
- Width: 102"
- Deck height: 34"
- GVWR: 25,000 lbs standard, up to 30,000 lbs with axle upgrades
- Axles: 2 × 10K electric brake dual oil bath spring axles
- Coupler: Adjustable 2-5/16" gooseneck coupler (30,000 lbs)
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 25,000 lbs

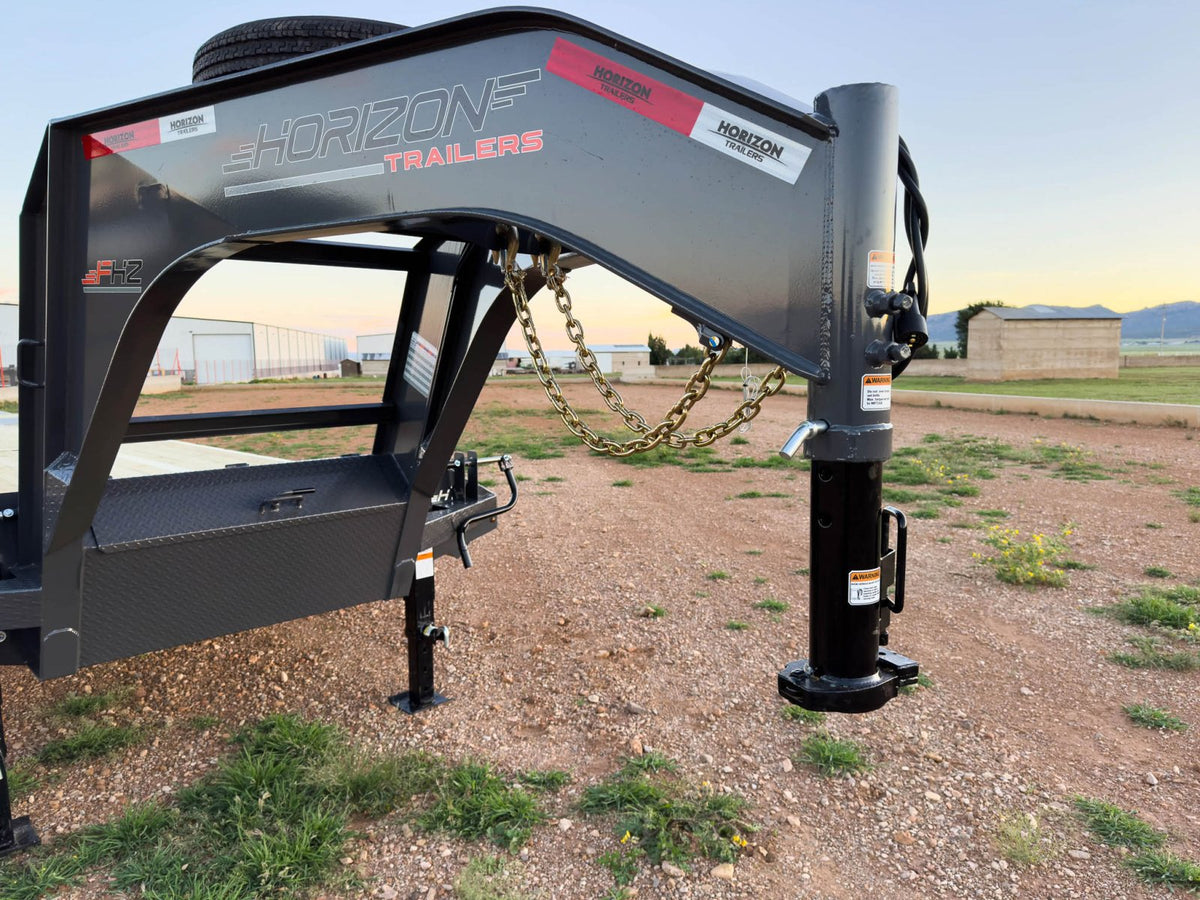

Tongue
- Tongue: Neckboss 12" Engineered I-Beam
- Toolbox: Mega Lockable Toolbox
- Coupler: Adjustable 2-5/16" Gn Coupler (30,000 lbs)

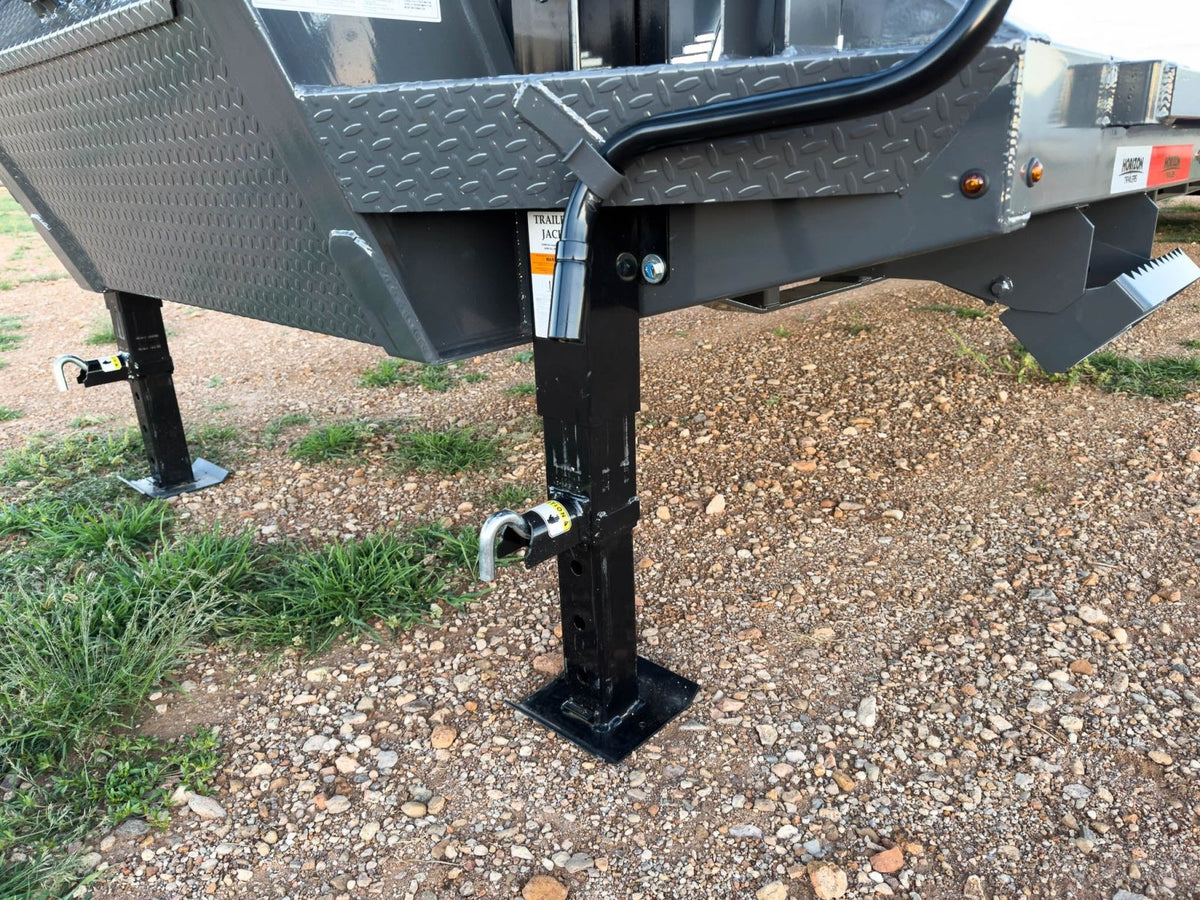

- Jacks: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
- Storage Behind Neck: Storage Box / Winch Ready
Chassis
- Main Frame: Bridged 12" I-Beam (19 lbs/ft)
- Torque Tube 30' & Up Only: 4,1/2" Tube
- Sides: Slide In Side Step On Both Sides
Deck
- Deck Height: 34"
- Deck: Straight Deck
- Flooring: Pine Lumber Floor
- Frame: 2" x 6" x 11ga. Tubing Bed Frame
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")

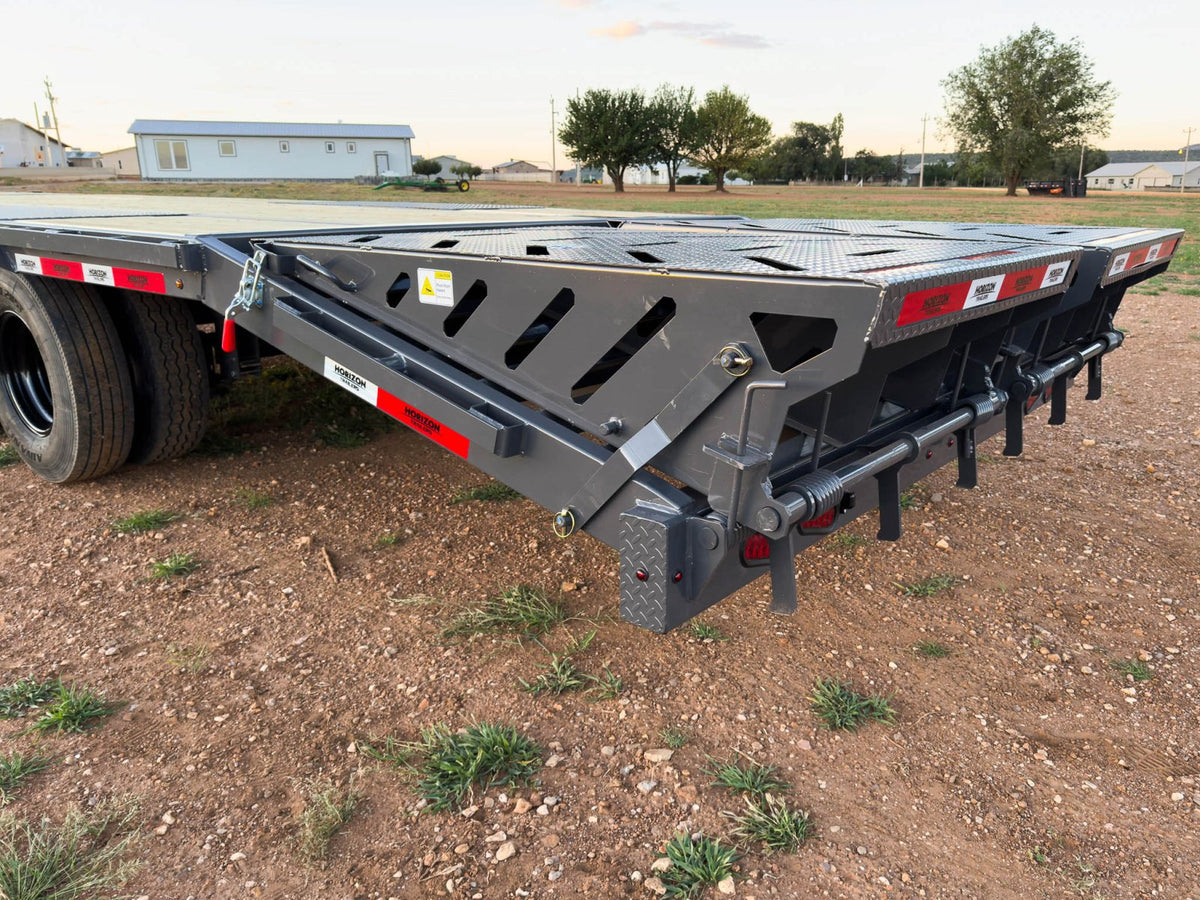

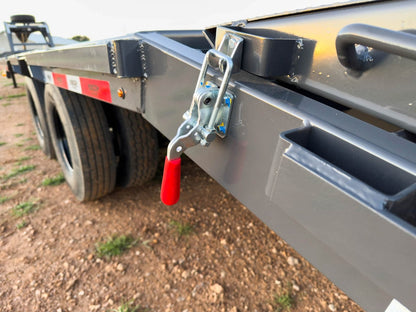

- Ramps: Ramp Pockets w/ 8' Long Heavy Duty Slide In 4" Channel Ramps (5,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
Running Gear
- Tires: ST235/80R16 10 Ply Tires Dual (3,080 lbs)
- Rims: 16" Black Mod Wheels
- Axles: 2 - 10k Electric Brake Dual Oil Bath Spring Axles
- Suspension: Spring
Electrical And Lighting
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Popular upgrades
- 12K hydraulic or 17.5K Jost jacks, Shocker Hitch coupler, 6" riser, Deck on the Neck, locker-style toolbox
- 12K and 16K axle packages, heavy-duty slipper spring, Ridewell air ride and lift-axle suspensions
- Winchmax winches, sliding and weld-on ratchets, extra D-rings, Blackwood decking
- Undercarriage toolboxes and dunnage racks, 5' dovetail with ramps, solar panel and cargo lights
