PRODUCT DETAILS
Description

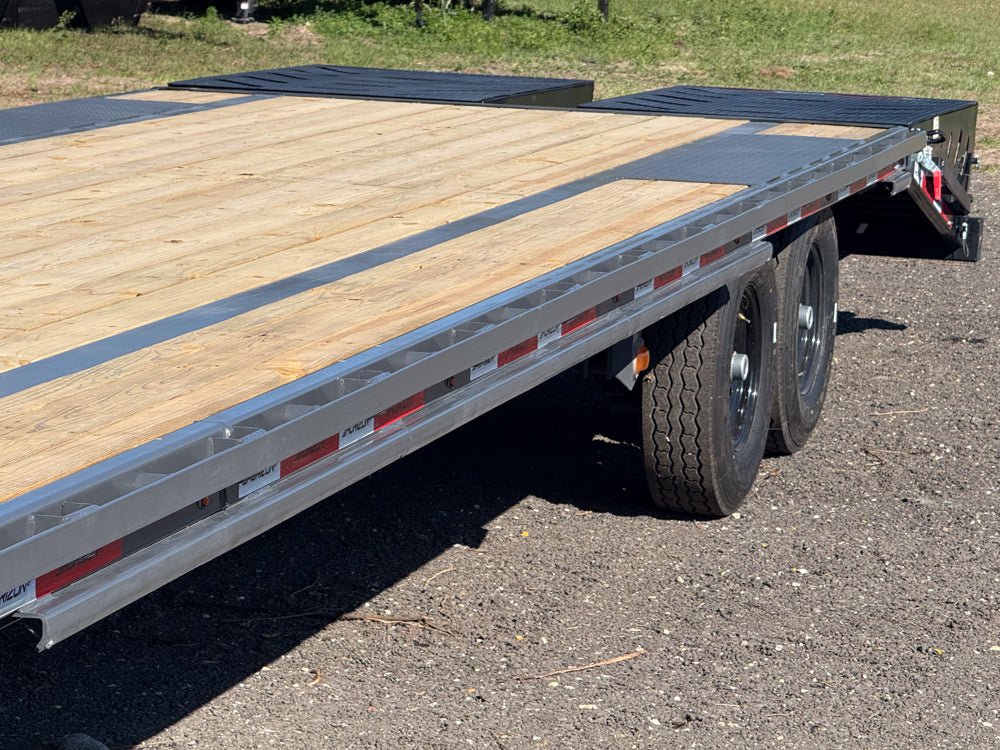

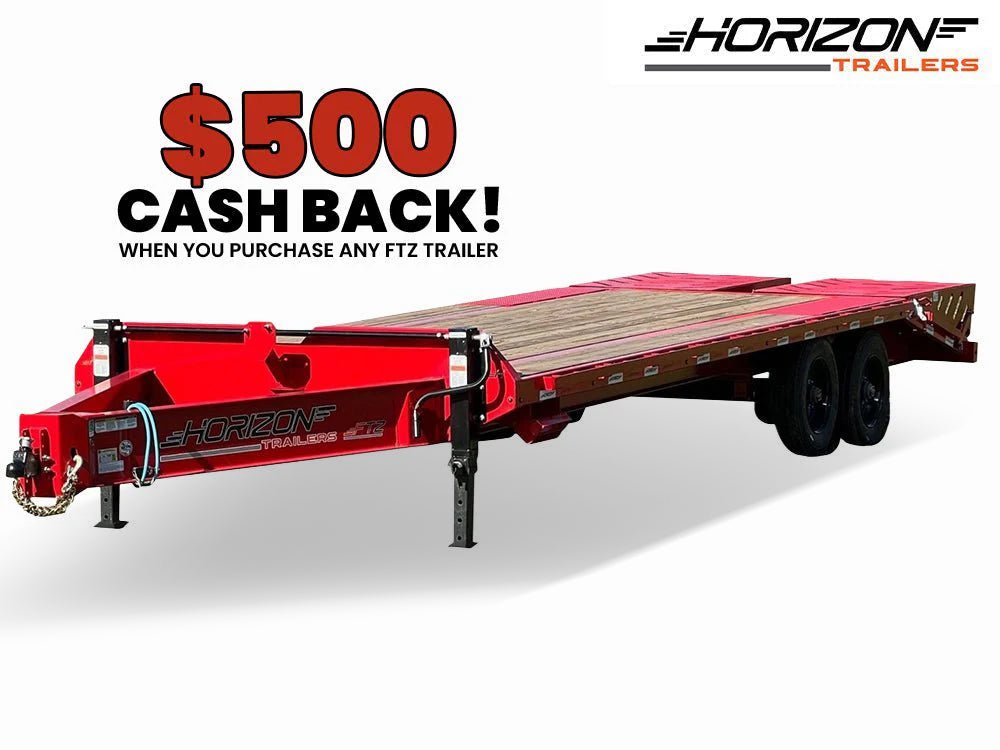

Build your Horizon FTZ Bumper Pull Deckover Trailer to order in 7 configurations from 20' to 32'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 20' (15.2K GVWR): $12,506
- 22' (15.2K GVWR): $12,709
- 24' (15.2K GVWR): $13,342
- 26' (15.2K GVWR): $13,561
- 28' (15.2K GVWR): $14,121
- 30' (15.2K GVWR): $14,557
- 32' (15.2K GVWR): $14,863
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 20' to 32'
- GVWR: 15,200 lbs
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Deck Height: 34"
- Sides: Slide In Side Step On Both Sides
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 15,200 lbs
Tongue
- Tongue: Neckboss 12" Tapered Engineered I-Beam
- Toolbox: Diamond Mesh Wire Floor Storage
- 15.2K - 17K GVWR Standard Coupler: Adjustable Auto Latch 2-5/16" BP Coupler (17,000 lbs)
- 21K GVWR Standard Coupler: Adjustable Auto Latch 2-5/16" BP Coupler (21,000 lbs)
- Jack: 2 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)

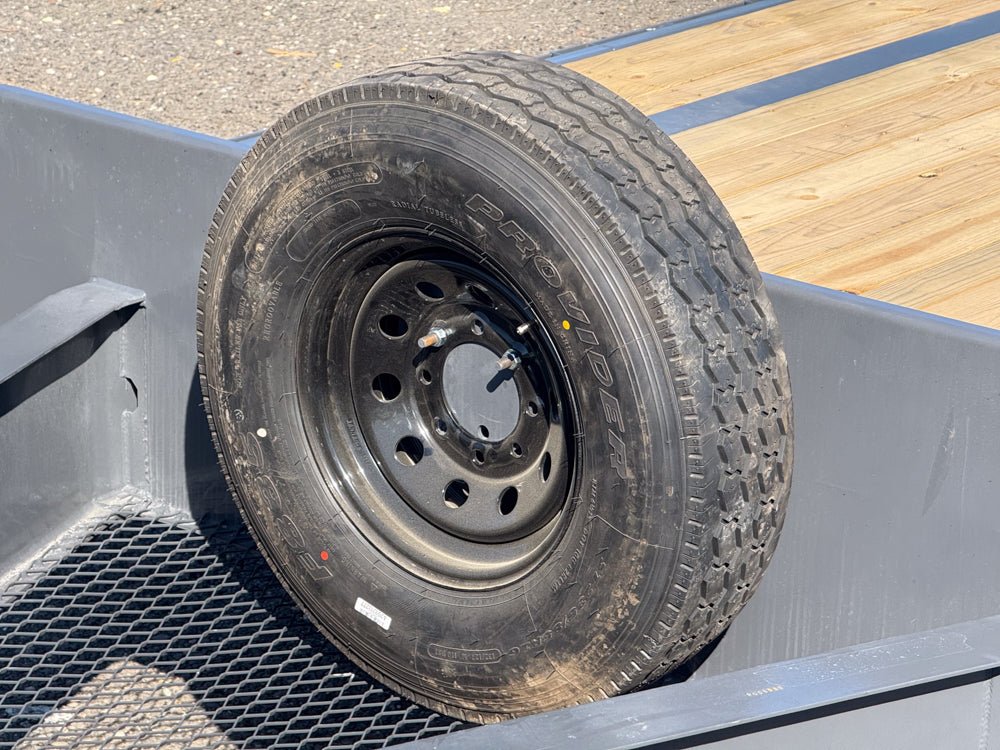

- Spare: Weld On Spare Tire Mount
Chassis
- Main Frame: 12" I-Beam (14 lbs/ft)
- Torque Tube 30' & Up Only: 4,1/2" Tube
- Sides: Slide In Side Step On Both Sides
Deck
- Deck Height: 34"
- Deck: Straight Deck
- Flooring: Pine Lumber Floor
- Frame: 2" x 5" x 11ga. Tubing Bed Frame
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
- Ramps: Ramp Pockets w/ 8' Long Heavy Duty Slide In 4" Channel Ramps (5,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
Running Gear

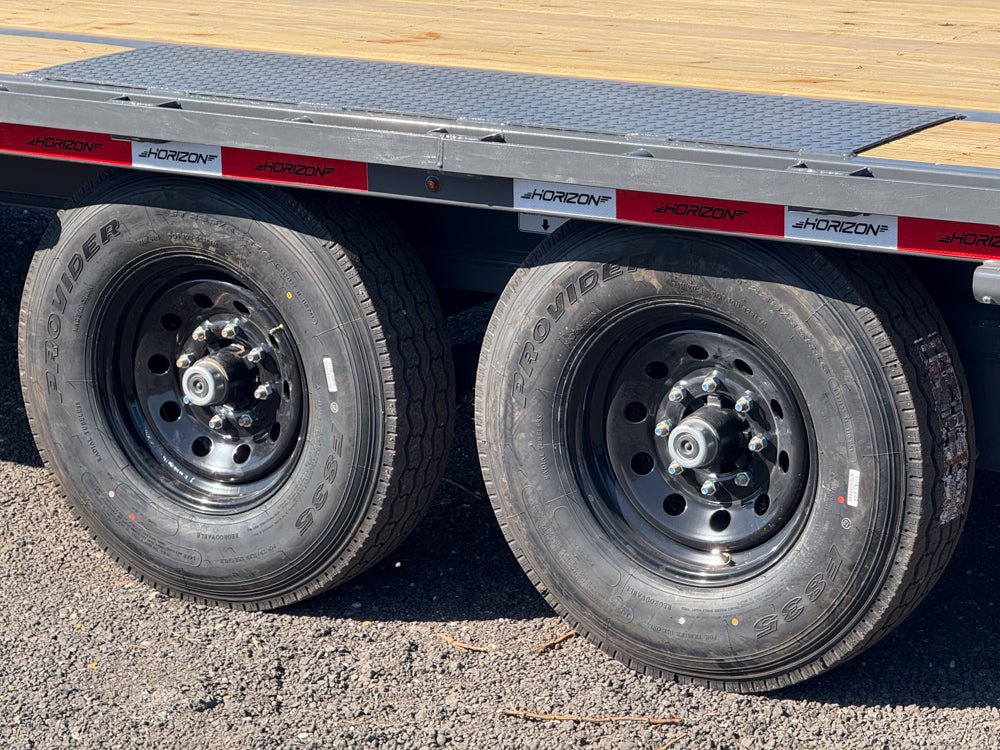

- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Rims: 16" Black Mod Wheels
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Suspension: Spring
Electrical and Lighting
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Tongue, jacks & toolbox (4): 12k Ram 2 Speed Jack; 12k Hydraulic Jacks; 12k Hydraulic Jacks w/ Low Temperature Hydraulic Oil; Mega Lockable Toolbox

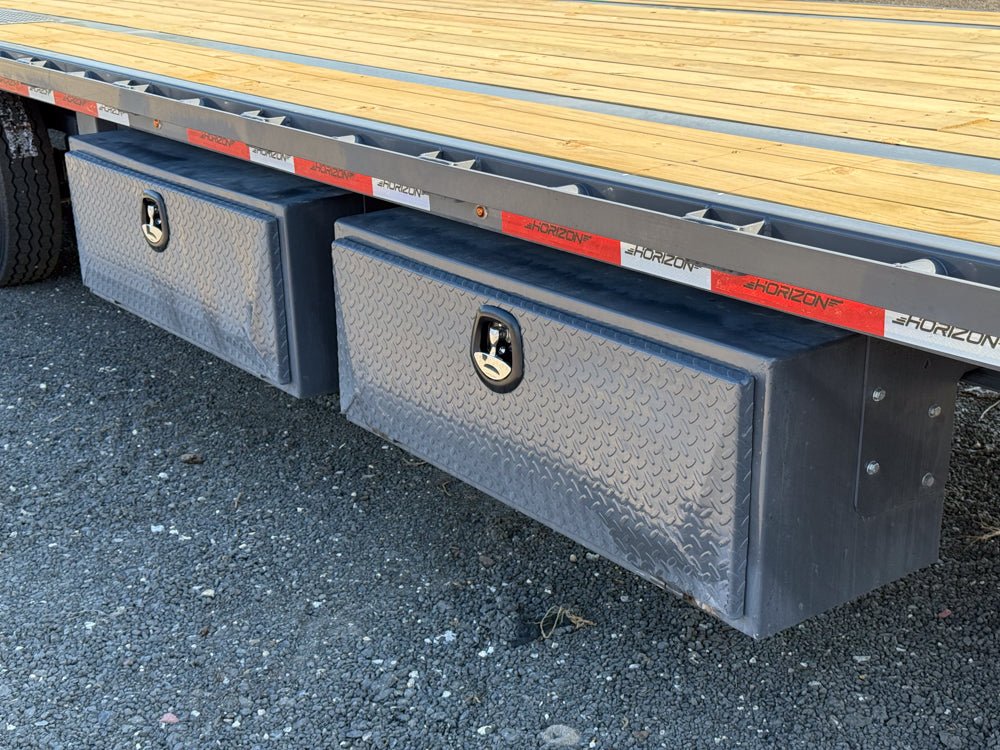

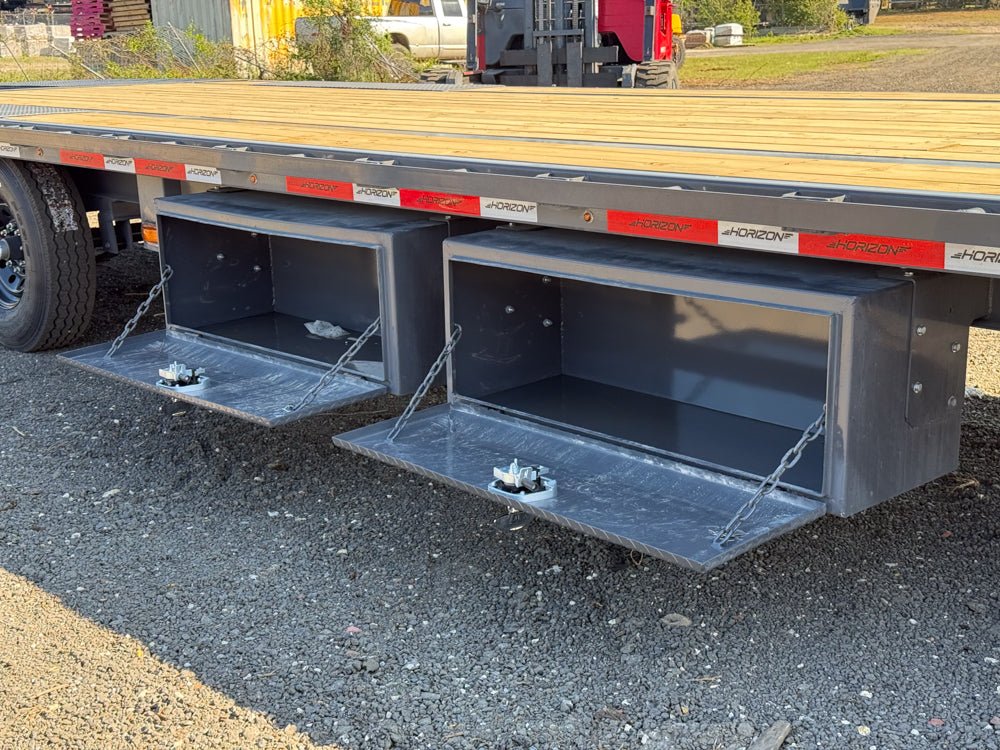

- Frame & undercarriage (8): 20' - 44' Deck 1 - Side Mount Undercarriage Toolbox (44"L x 17"W x 14"H); 20' - 44' Deck 2 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H); 30' - 44' Deck 3 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H); 30' - 44' Deck 4 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)…

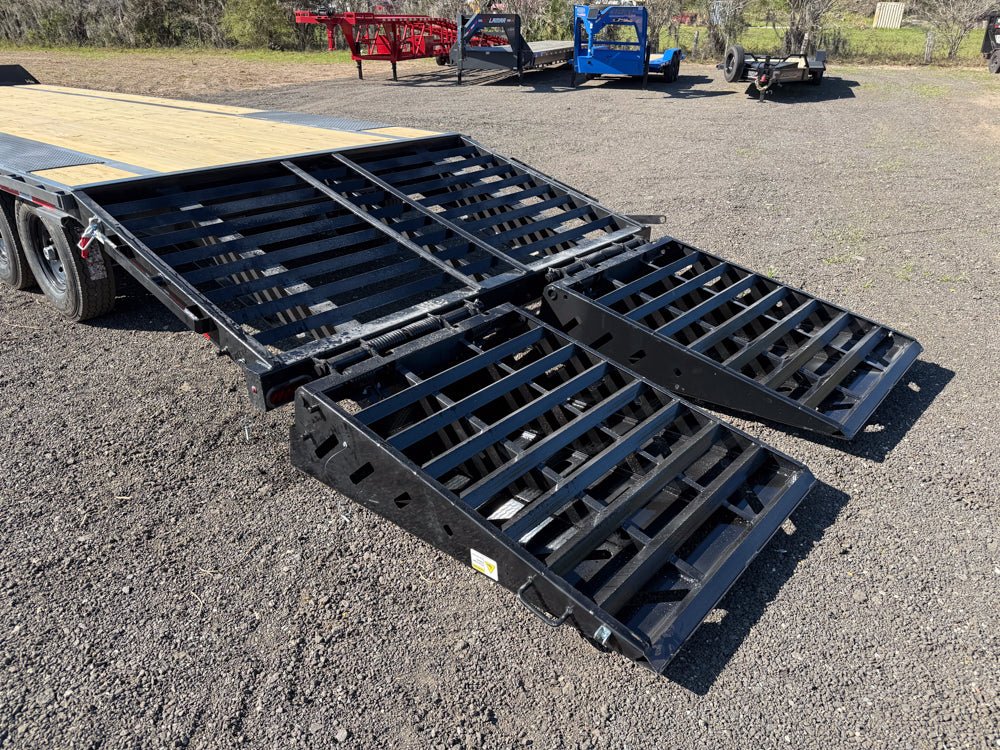

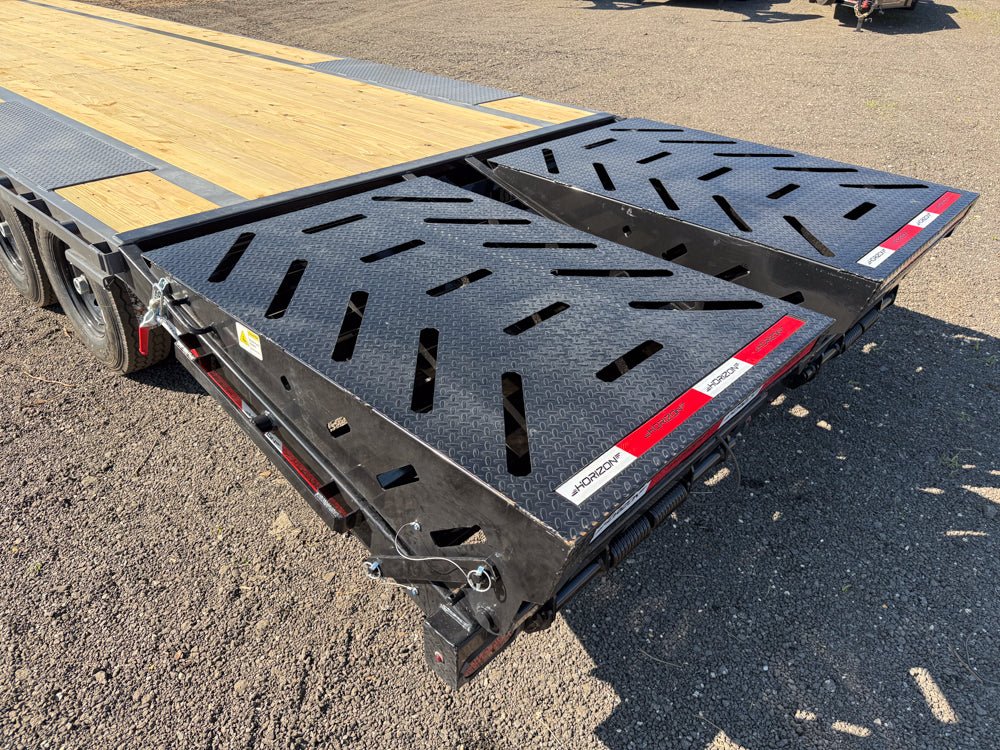

- Deck, tie-downs & ramps (19): 5' Dovetail With 2 Mountain Ramps; 5' Dove Tail Lumber Floor w/ 24" x 5' Heavy Duty 4" Channel Stand Up - Fold Down Ramps w/ 10ga. Mesh Covering (6,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE); 12" Crossmember Spacing; Deck Sides Blackwood "Classic" Rubber Infused Lumber…
- Remotes (1): Tuff Wireless 2 Button Remote (Hydraulic Jacks)
- Axles, suspension & tires (17): ST235/85R16 14 Ply Tires Singles (4,400 lbs); Aluminum Rims w/ ST235/80R16 10 Ply Tires (3,520 lbs); Aluminum Rims w/ ST235/85R16 14 Ply Tires (4,400 lbs); 3 - 7k Electric Brake EZ Lube Spring Axles (12" I-Beam (16 LBS/FT) Frame Upgrade / 16"-10 PLY Tires Included)…
- Electrical & lighting (1): 7.5 Watt Solar Panel
- Paint & finish (4): Zinc Primer Undercoat; Ramps Painted Black; Side Mount Undercarriage Toolboxes Painted Black; Side Mount Undercarriage Dunnage Racks Painted Black
