PRODUCT DETAILS
Description

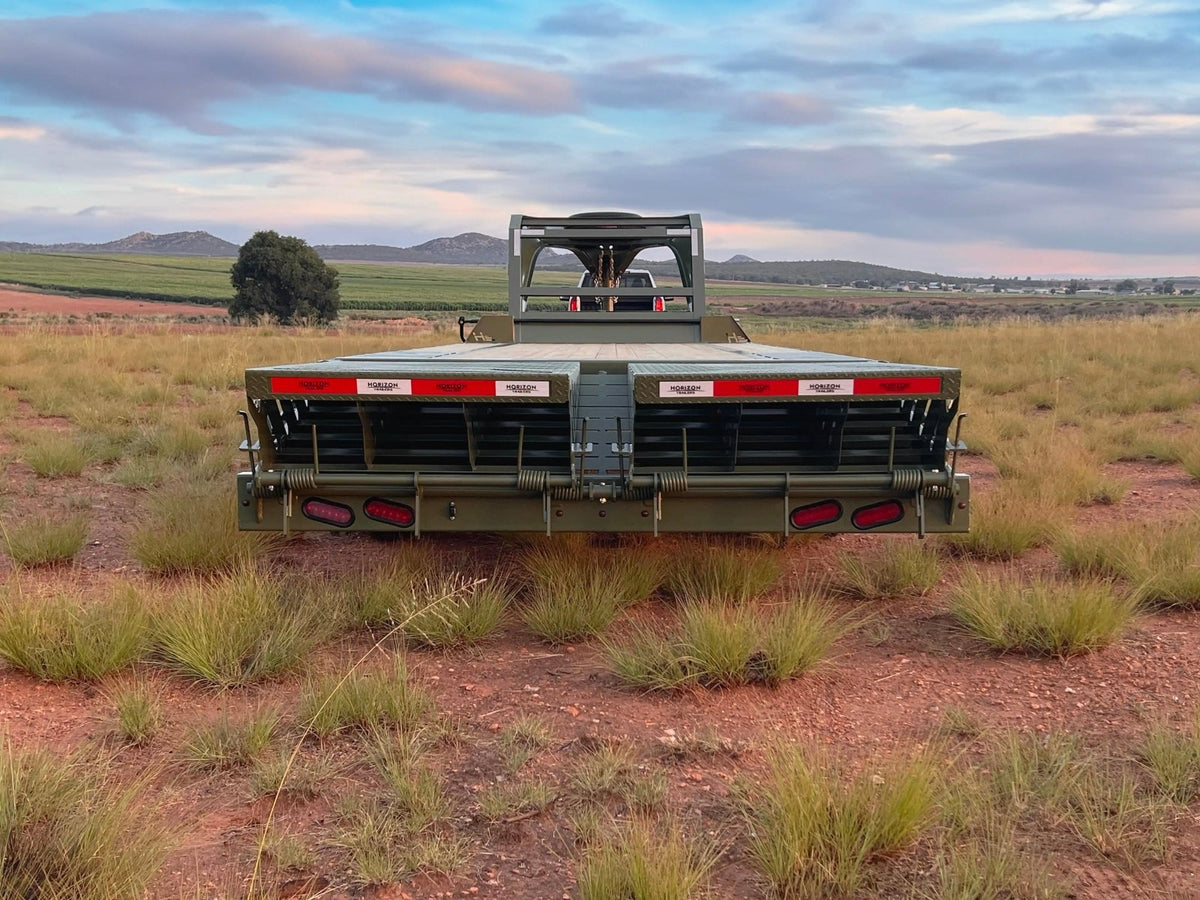

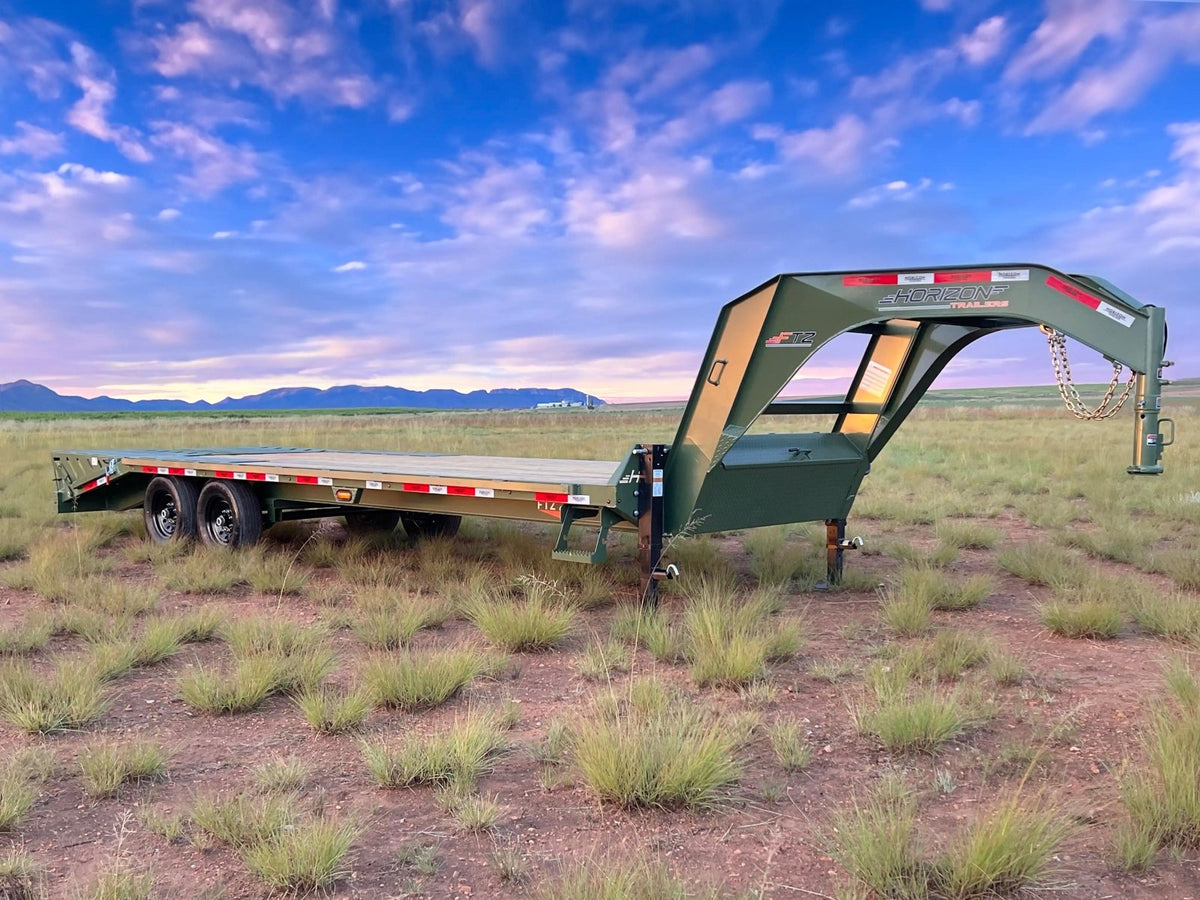

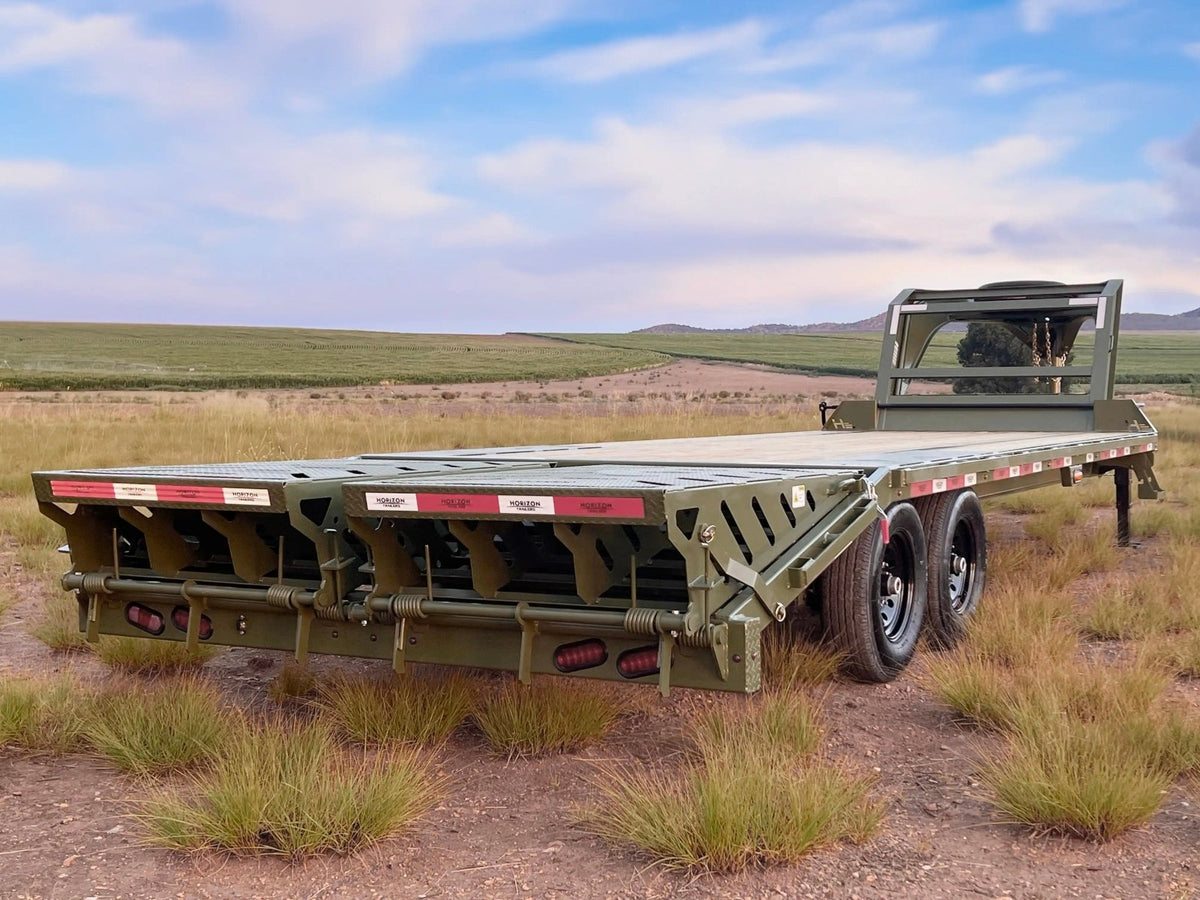

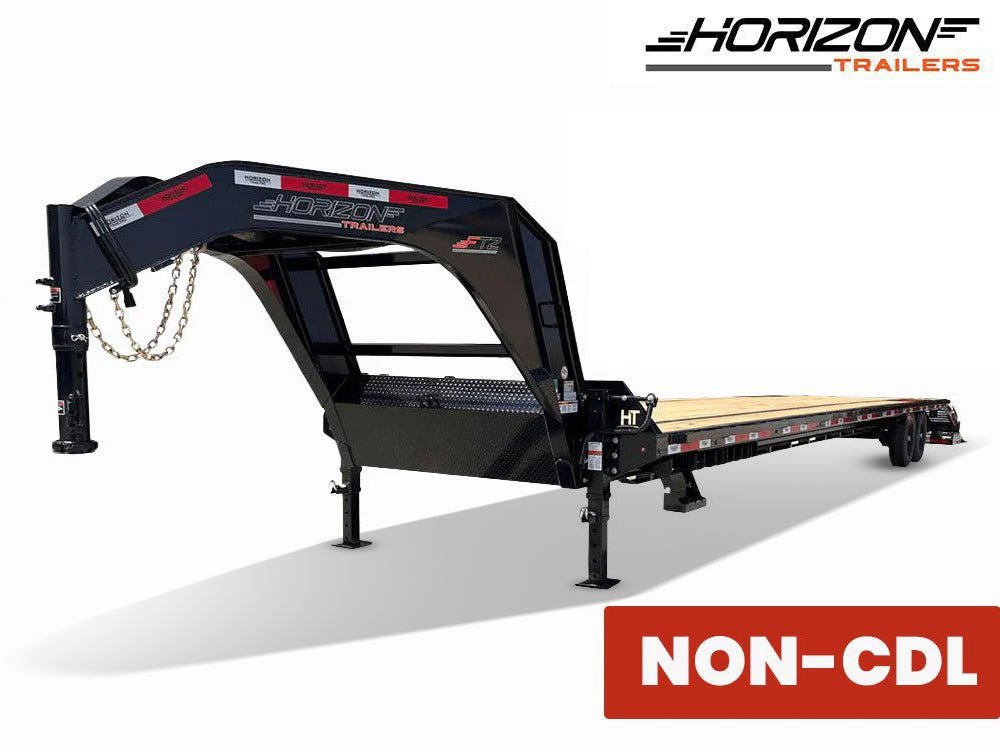

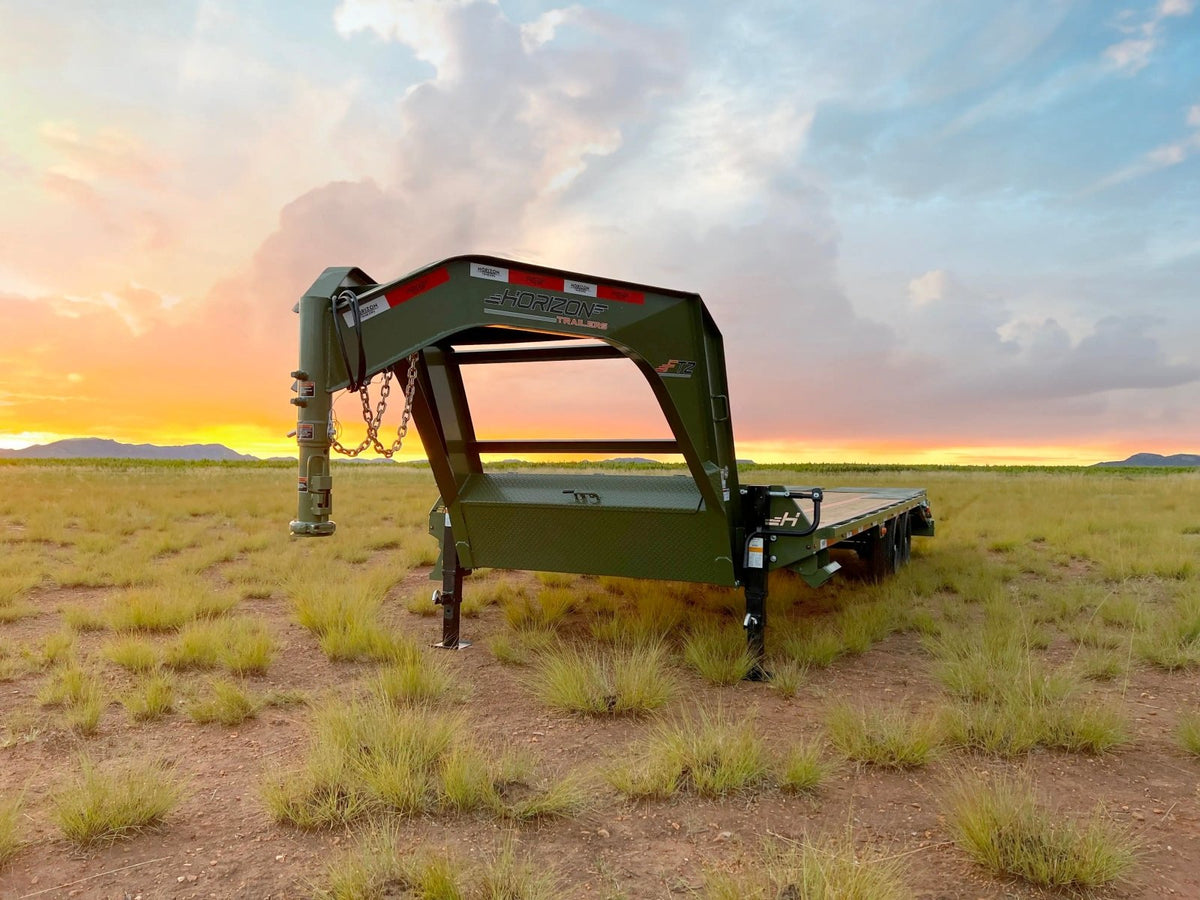

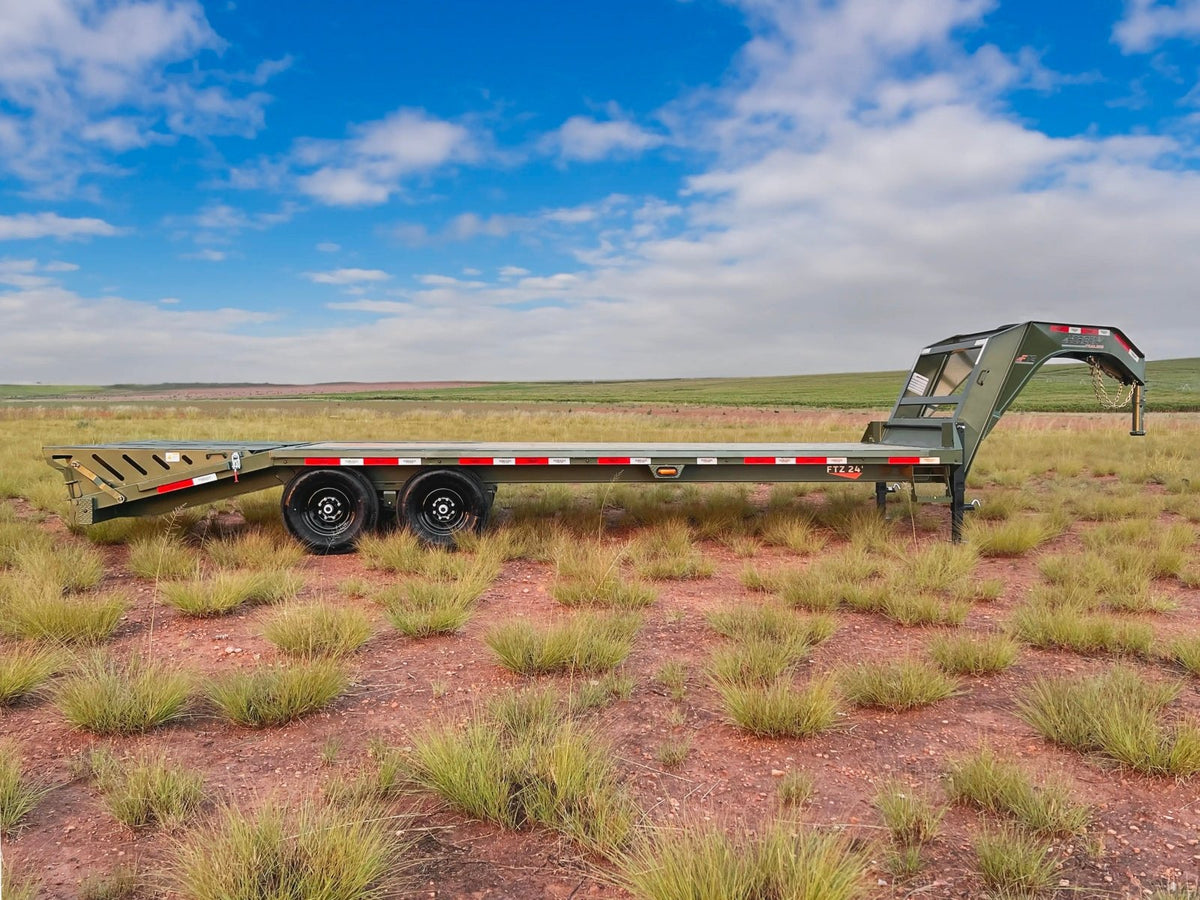

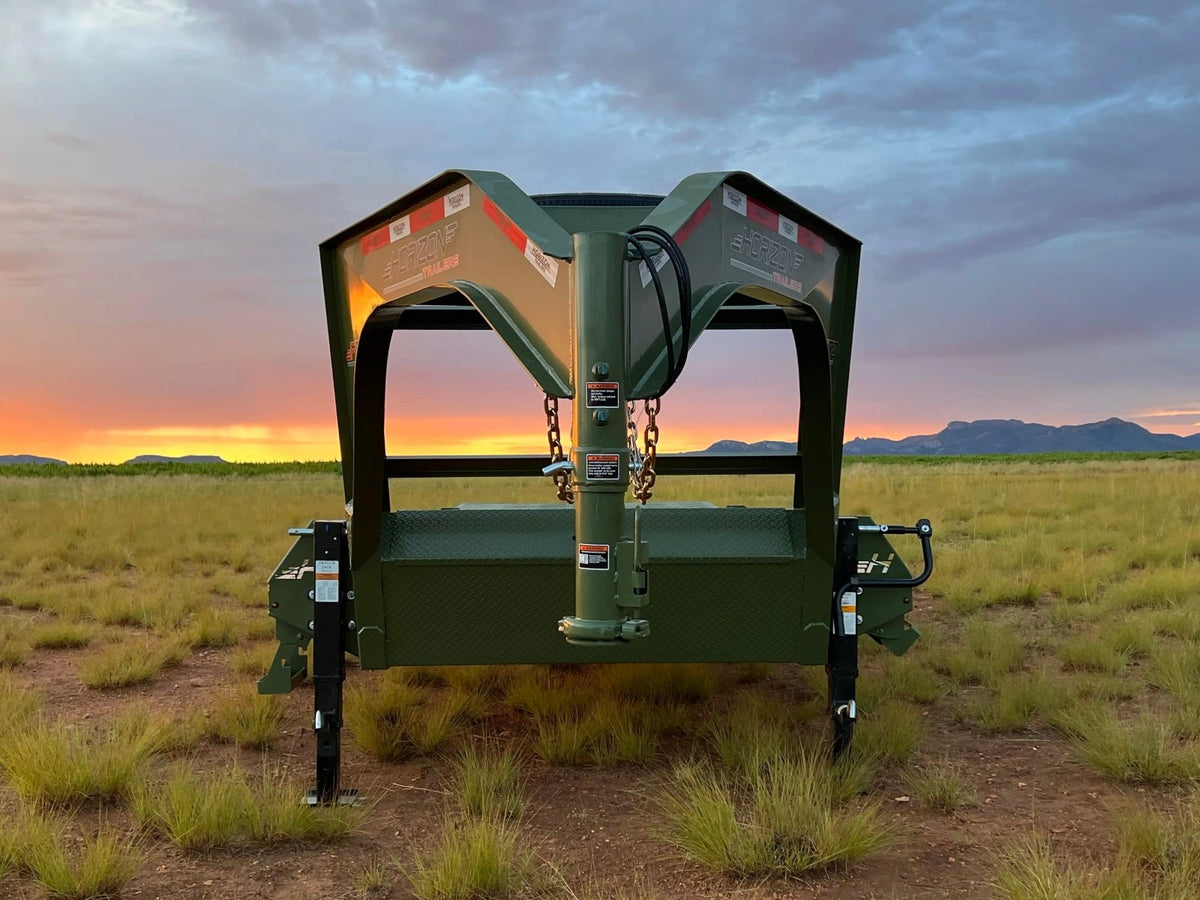

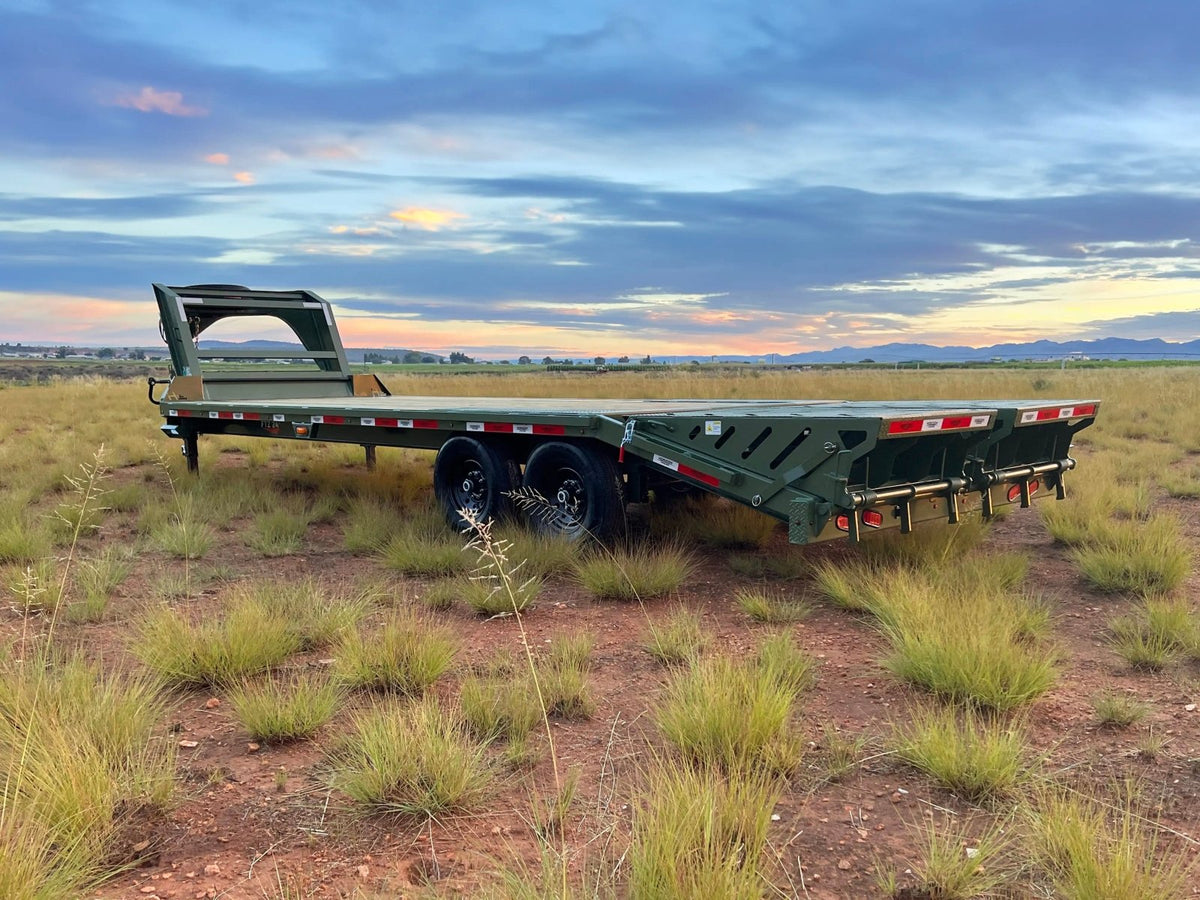

Build your Horizon FTZ Gooseneck Deckover Trailer to order in 13 configurations from 20' to 44'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 20' (15.7K GVWR): $13,655
- 22' (15.7K GVWR): $13,953
- 24' (15.7K GVWR): $14,252
- 26' (15.7K GVWR): $14,696
- 28' (15.7K GVWR): $15,132
- 30' (15.7K GVWR): $15,365
- 32' (15.7K GVWR): $15,721
- 34' (15.7K GVWR): $16,238
- 36' (15.7K GVWR): $16,609
- 38' (15.7K GVWR): $16,980
- 40' (15.7K GVWR): $17,125
- 42' (15.7K GVWR): $17,576
- 44' (15.7K GVWR): $17,853
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 20' to 44'
- GVWR: 15,700 lbs
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Coupler: Adjustable 2-5/16" GN Coupler (30,000 lbs)
- Deck Height: 34"
- Sides: Slide In Side Step On Both Sides
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 15,700 lbs
Tongue
- Tongue: Neckboss 10" Engineered I-Beam
- Toolbox: Mega Lockable Toolbox
- Coupler: Adjustable 2-5/16" GN Coupler (30,000 lbs)
- Jacks: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
- Storage Behind Neck: Storage Box / Winch Ready
Chassis
- Main Frame: 12" I-Beam (14 lbs/ft)
- Torque Tube 30' & Up Only: 4,1/2" Tube
- Sides: Slide In Side Step On Both Sides
Deck
- Deck Height: 34"
- Deck: Straight Deck
- Flooring: Pine Lumber Floor
- Frame: 2" x 5" x 11ga. Tubing Bed Frame
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
- Ramps: Ramp Pockets w/ 8' Long Heavy Duty Slide In 4" Channel Ramps (5,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
Running Gear
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Rims: 16" Black Mod Wheels
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Suspension: Spring
Electrical and Lighting
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Gooseneck, jacks & toolbox (9): 12k Ram 2 Speed Jacks; 12k Hydraulic Jacks; 12k Hydraulic Jacks w/ Low Temperature Hydraulic Oil; Locker Style Toolbox…
- Frame & undercarriage (8): 20' - 44' Deck 1 - Side Mount Undercarriage Toolbox (44"L x 17"W x 14"H); 20' - 44' Deck 2 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H); 30' - 44' Deck 3 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H); 30' - 44' Deck 4 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)…
- Deck, tie-downs & ramps (19): 5' Dovetail With 2 Mountain Ramps; 5' Dove Tail Lumber Floor w/ 24" x 5' Heavy Duty 4" Channel Stand Up - Fold Down Ramps w/ 10ga. Mesh Covering (6,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE); 12" Crossmember Spacing; Deck Sides Blackwood "Classic" Rubber Infused Lumber…
- Remotes & winch (6): Tuff Wireless 2 Button Remote (Hydraulic Jacks); Tuff Wireless 4 Button Remote (Hydraulic Jacks - Winch); 13.5k Steel Cable Winchmax Winch; 13.5k Synthetic Rope Winchmax Winch…
- Axles, suspension & tires (17): ST235/85R16 14 Ply Tires Singles (4,400 lbs); Aluminum Rims w/ ST235/80R16 10 Ply Tires (3,520 lbs); Aluminum Rims w/ ST235/85R16 14 Ply Tires (4,400 lbs); 3 - 7k Electric Brake EZ Lube Spring Axles (12" I-Beam (16 LBS/FT) Frame Upgrade / 16"-10 PLY Tires Included)…
- Electrical & lighting (2): 7.5 Watt Solar Panel; Cargo Lights Mounted On Riser
- Paint & finish (4): Zinc Primer Undercoat; Ramps Painted Black; Side Mount Undercarriage Toolboxes Painted Black; Side Mount Undercarriage Dunnage Racks Painted Black
