PRODUCT DETAILS
Description

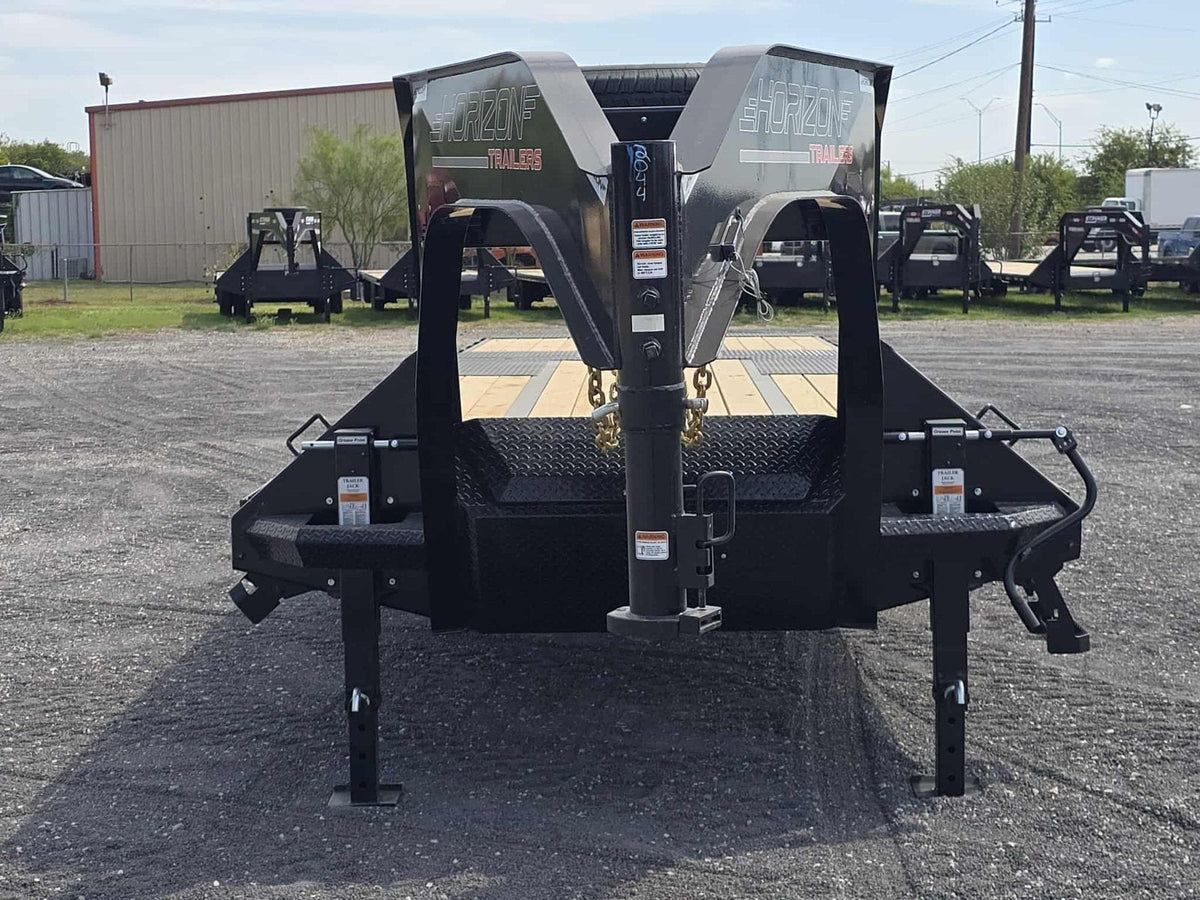

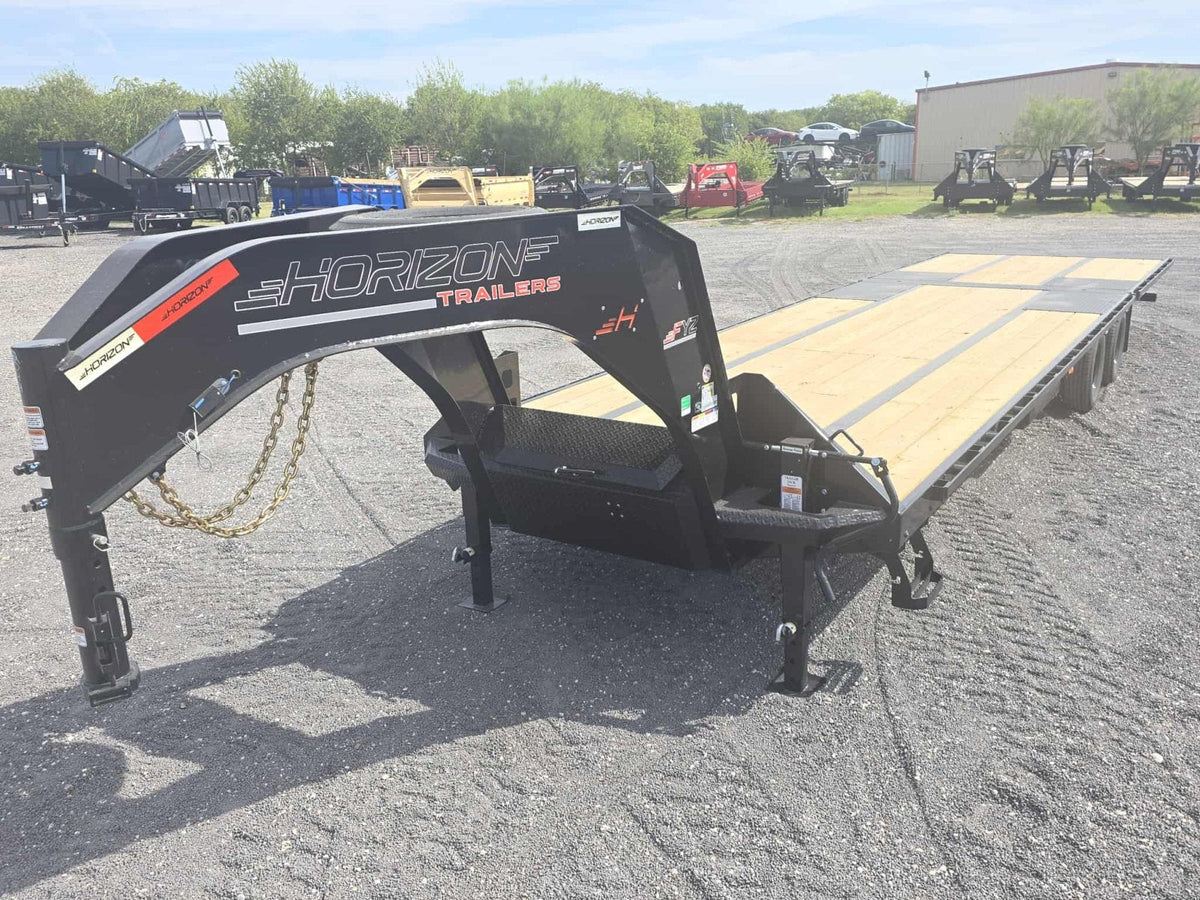

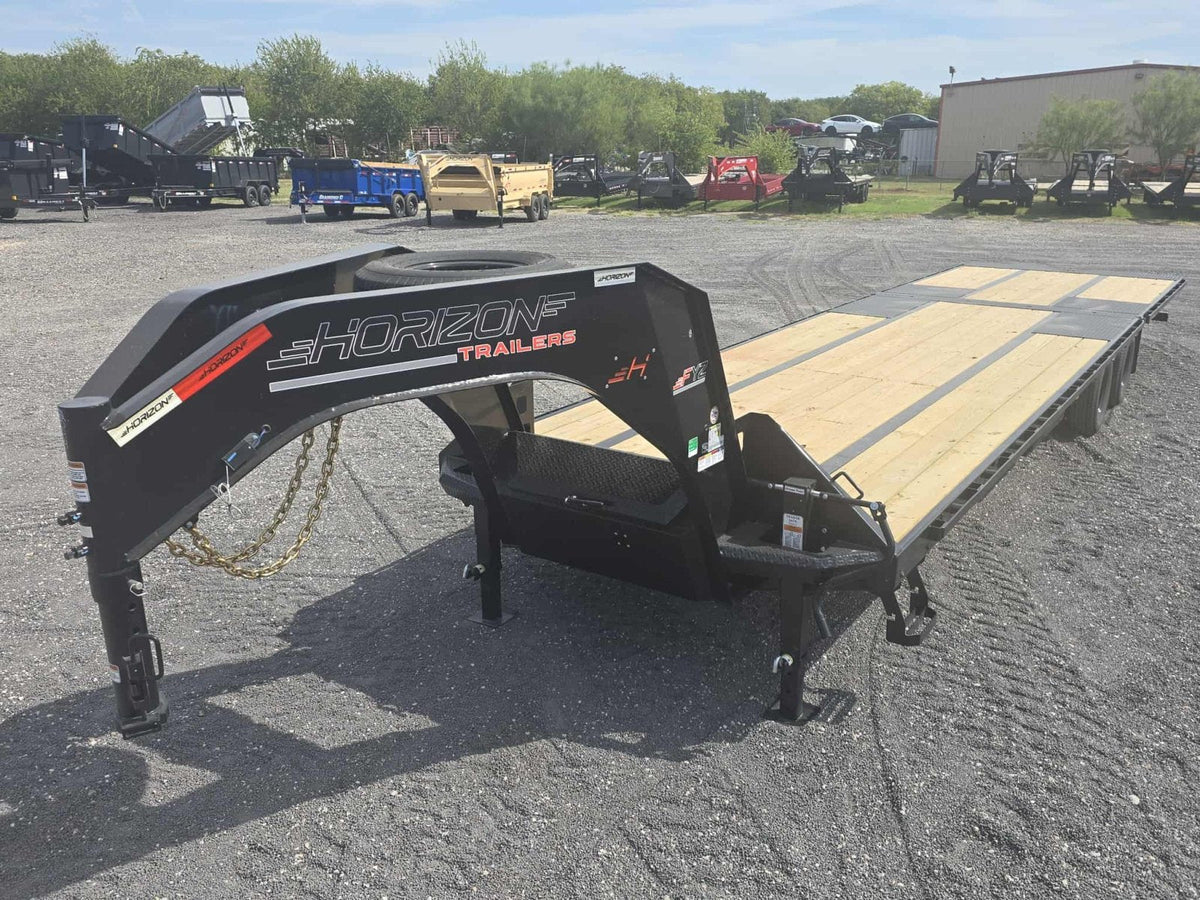

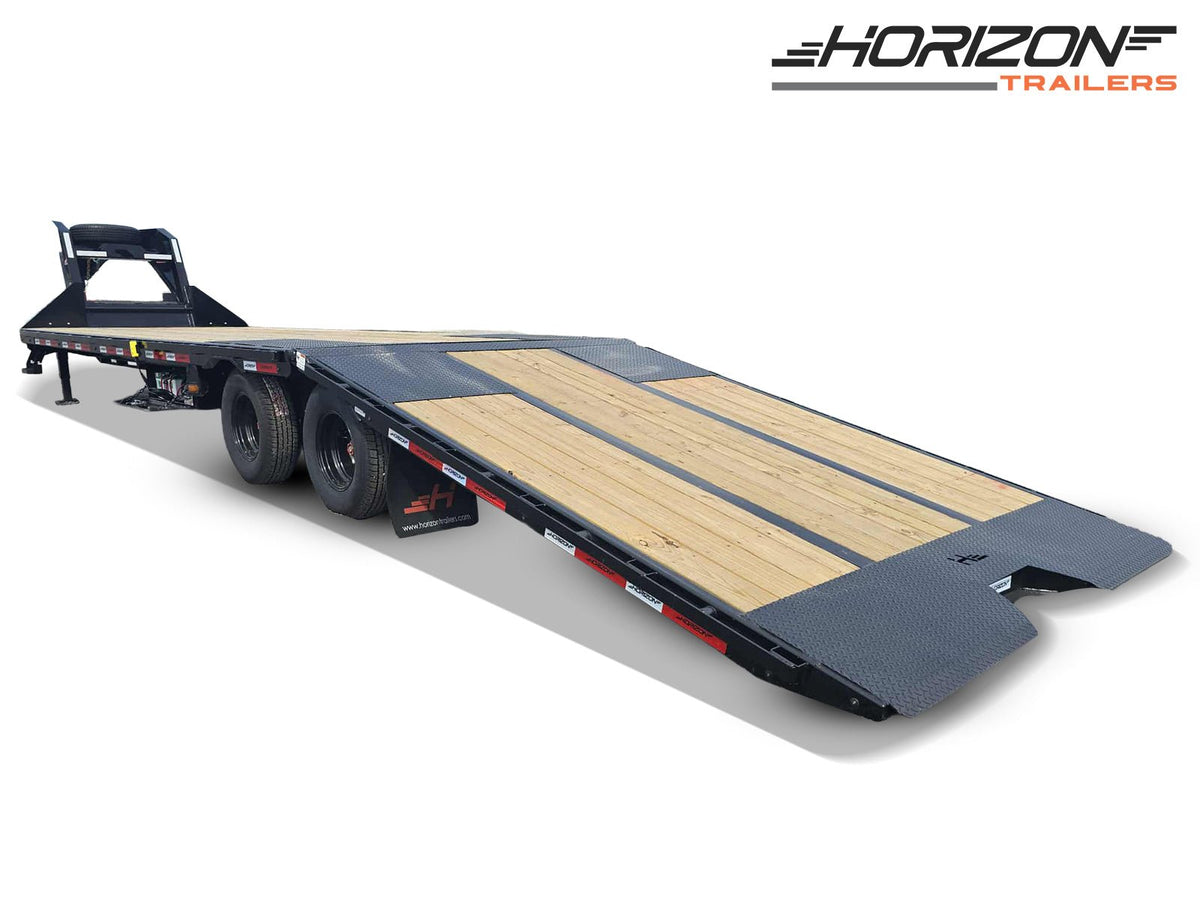

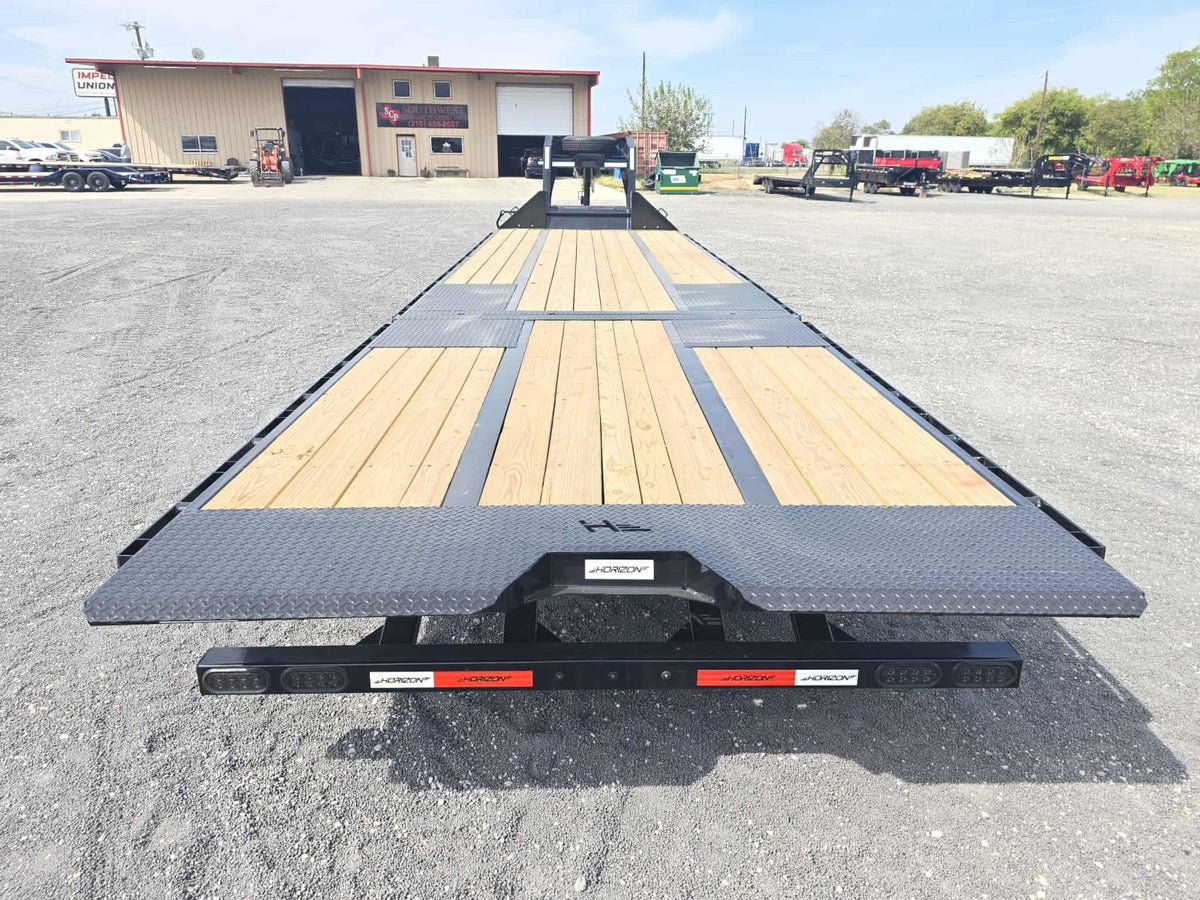

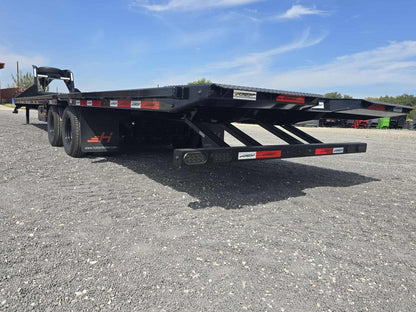

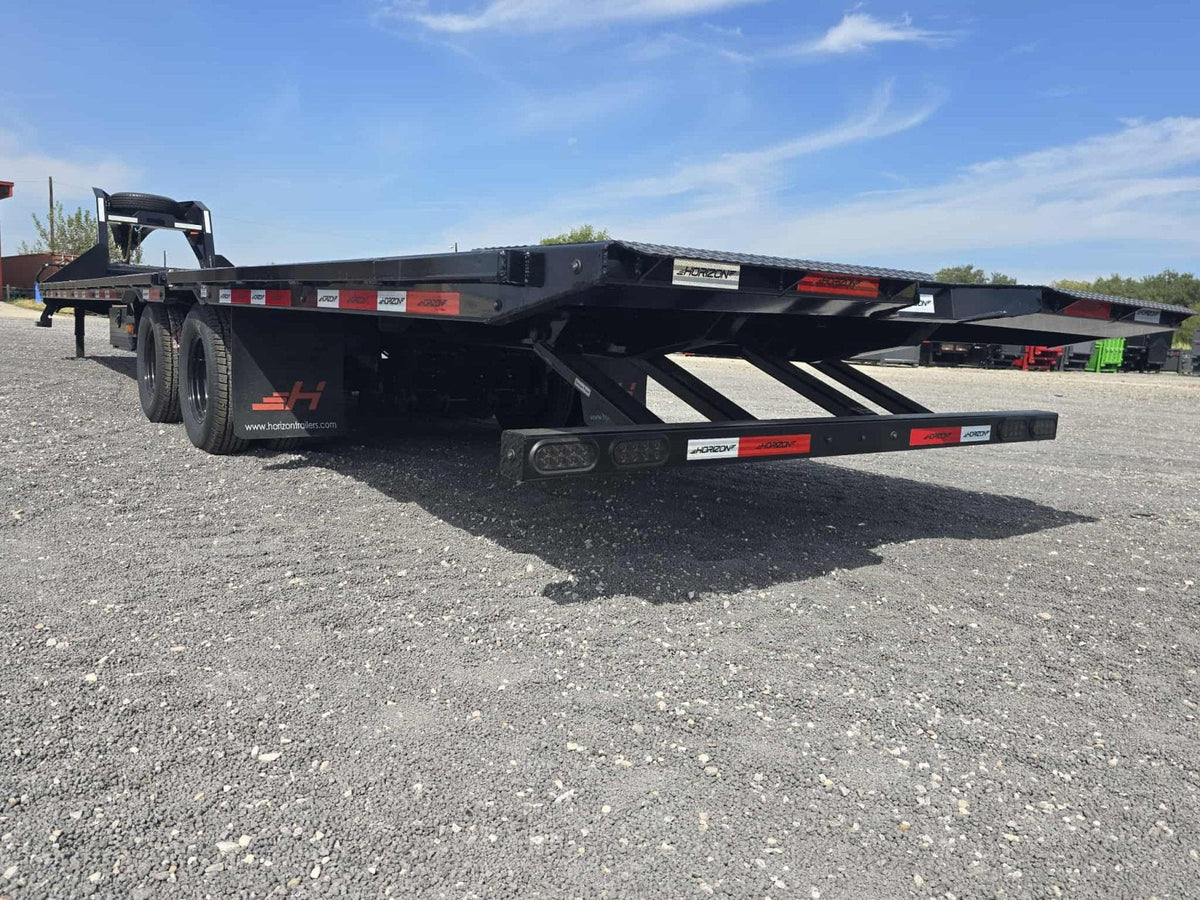

Build your Horizon FYZ Gooseneck Hydraulic Dovetail Deckover Trailer to order in 8 configurations from 30' to 44'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 30': $26,852
- 32': $27,580
- 34': $27,943
- 36': $28,671
- 38': $29,398
- 40': $30,126
- 42': $30,919
- 44': $31,501
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 30' to 44'
- GVWR: 25,000 lbs
- Axles: 2 - 10k Electric Brake Dual Oil Bath Spring Axles
- Tires: ST235/80R16 10 Ply Tires Dual (3,080 lbs)
- Coupler: Adjustable 2-5/16" GN Coupler (30,000 lbs)
- Deck Height: 34"
- Sides: Slide In Side Step On Both Sides
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Rating
- GVWR: 25,000 lbs

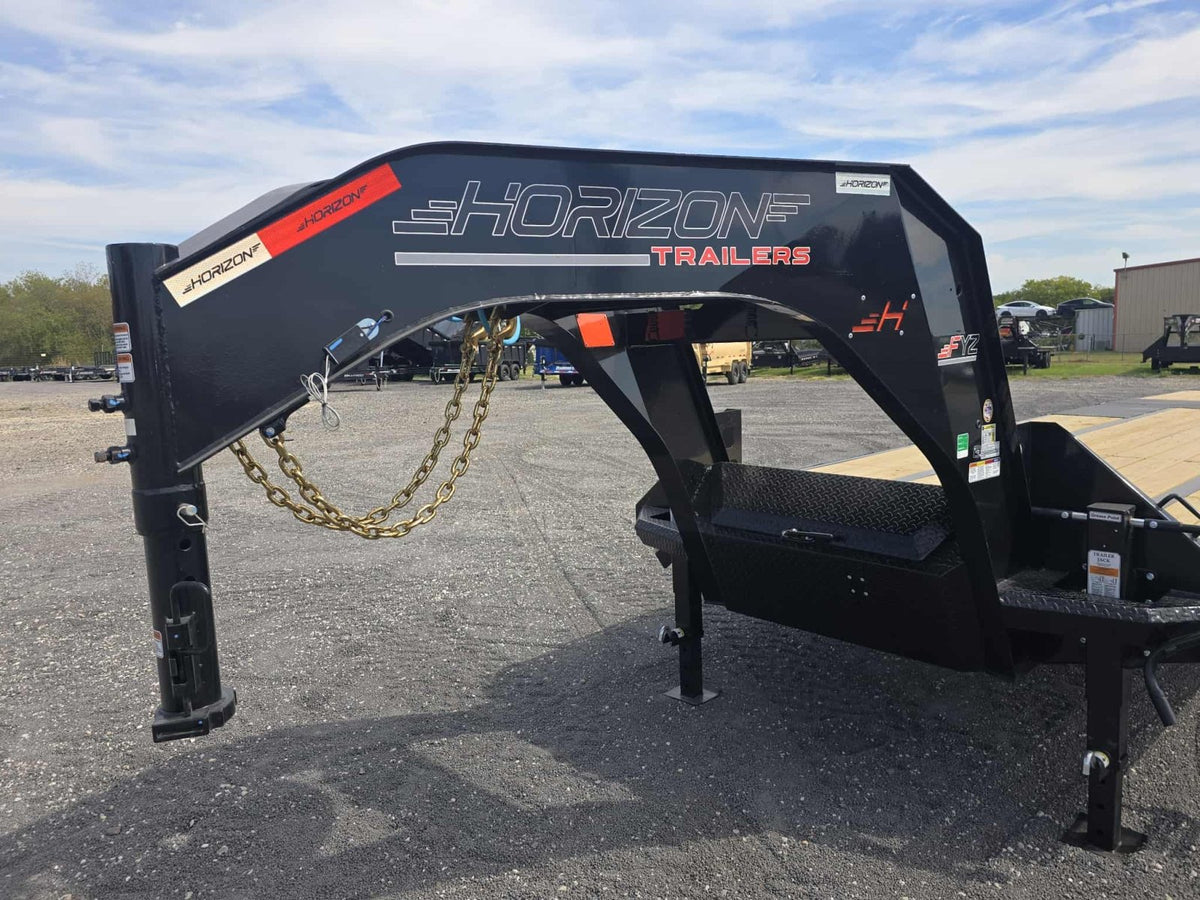

Tongue
- Tongue: Neckboss 12" Engineered I-Beam
- Toolbox: Mega Lockable Toolbox
- Coupler: Adjustable 2-5/16" GN Coupler (30,000 lbs)

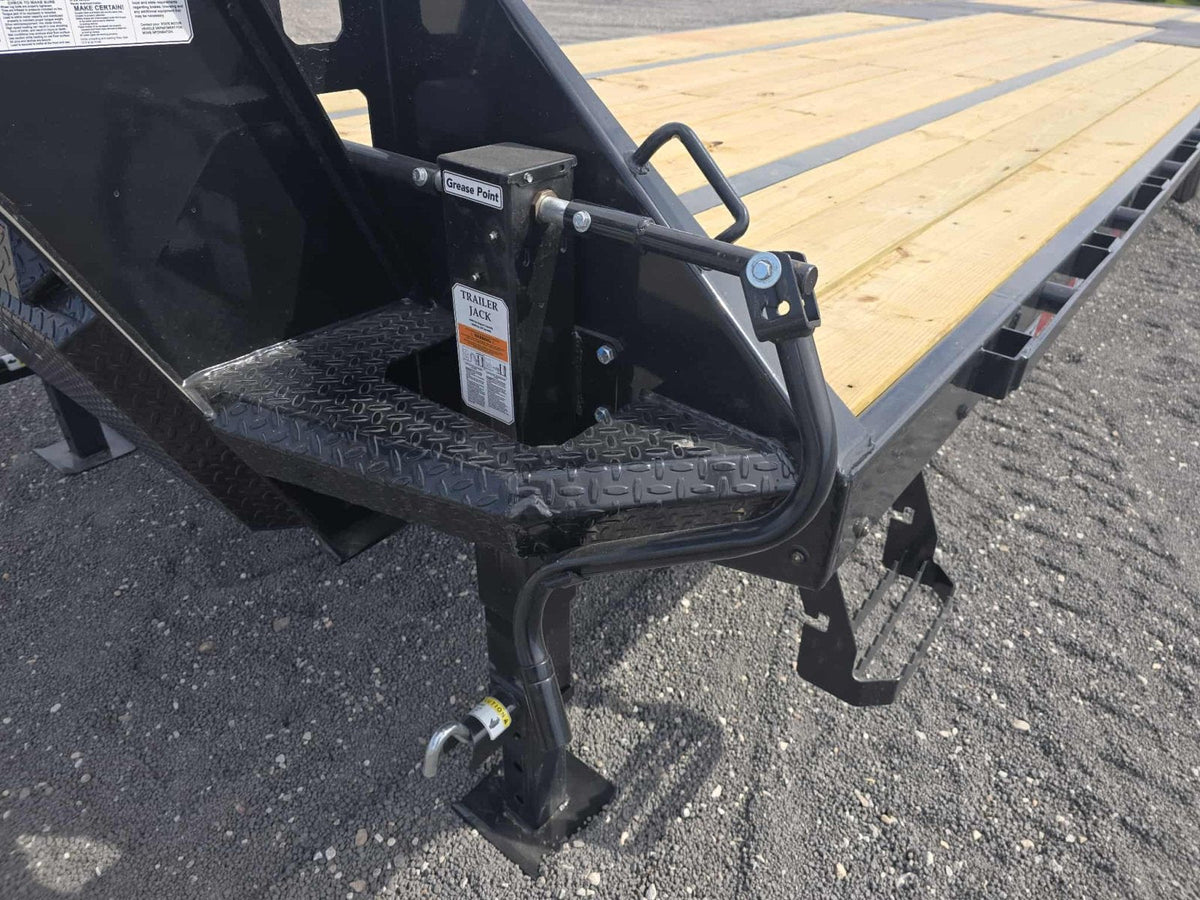

- Jacks: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
- Storage Behind Neck: Storage Box / Winch Ready
Chassis
- Main Frame: Bridged 12" I-Beam (19 lbs/ft)
- Torque Tube: 4,1/2" Tube
- Left Side: Full Steel Runners With 1" Traction Cleats
- Sides: Slide In Side Step On Both Sides
- Dovetail Main Frame: 10" Engineered High-Tensil Steel I-Beam
Deck
- Deck Height: 34"

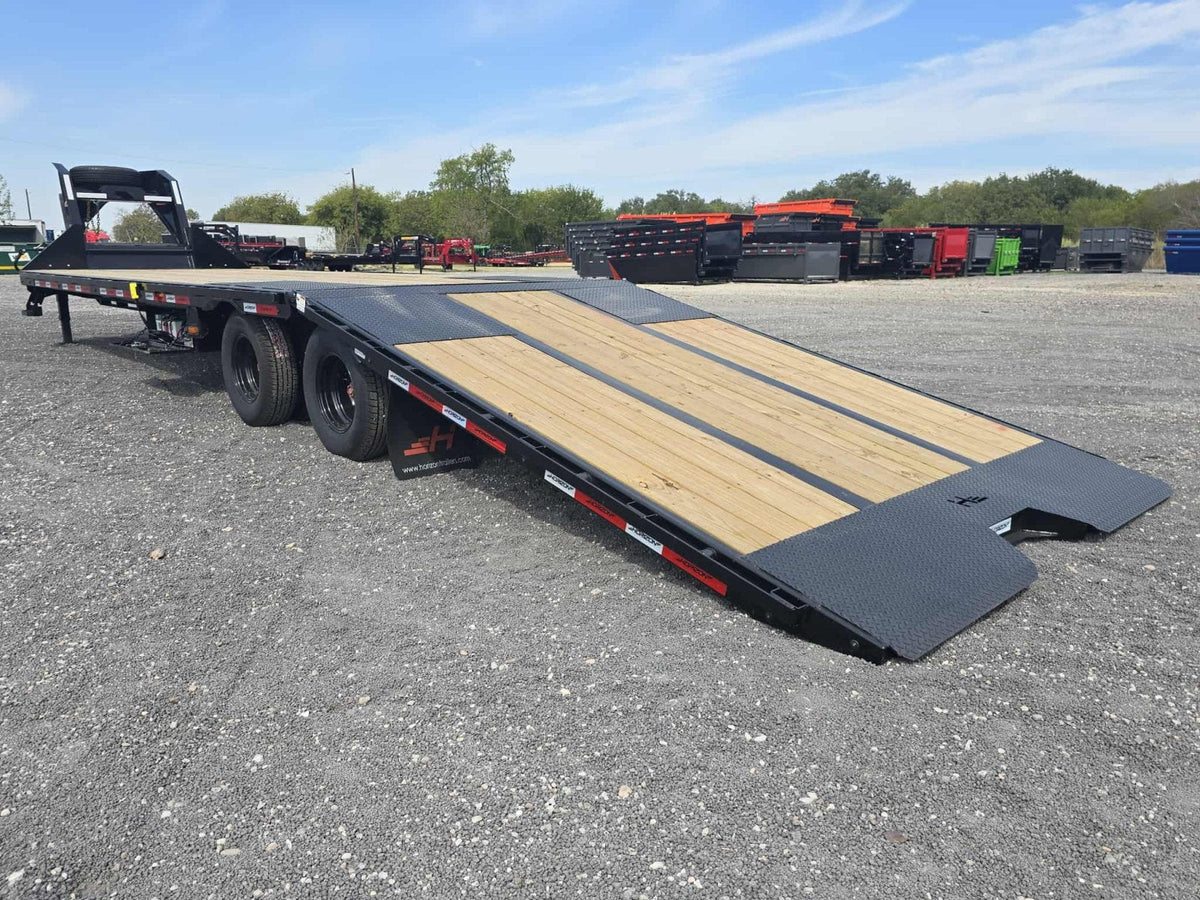

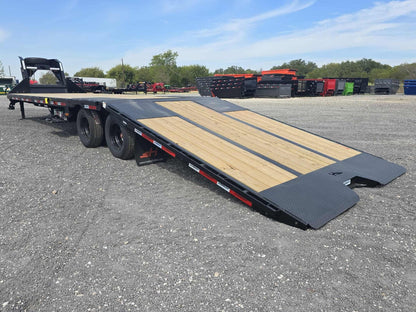

- Deck: 12' Hydraulic Dovetail
- Flooring: Full Steel Runners With 1" Traction Cleats
- Frame: 2" x 6" x 7ga." Tubing Bed Frame
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
- Dovetail Hauling Capacity: 10,000 lbs When Weight Distributed Across Length Of Deck

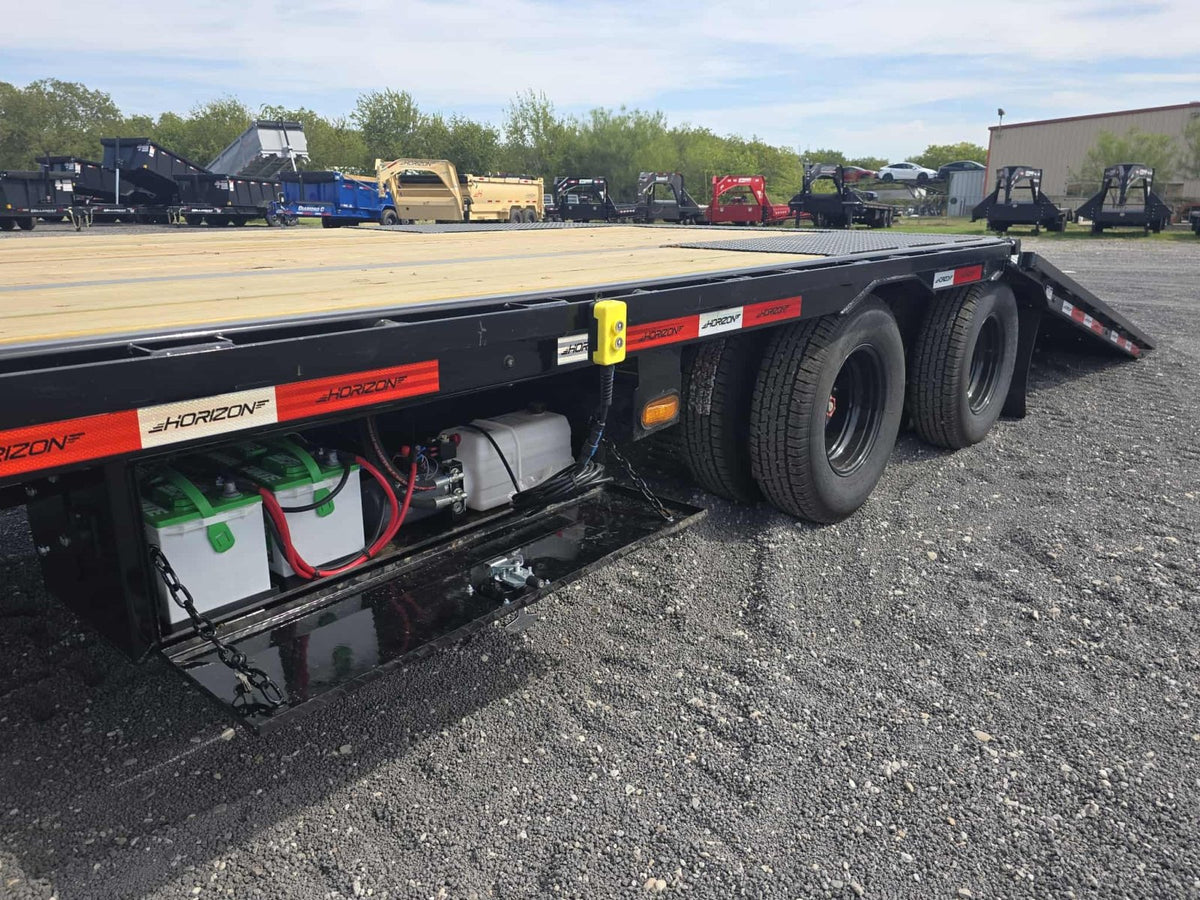

Lift System
- KTI 12V Hydraulic Pump: 2 Button Hydraulic - Power Up / Power Down
- Pump: KTI 12V Hydraulic Pump
- Controller: 14' Control Cable
- Remote: Tuff Wireless 2 Button Remote (Dovetail)
- Cylinders: 2 - 4" X 16" Single Push Cylinders
- Lift Capacity: 10,000 lbs When Weight Distributed Across Length Of Deck

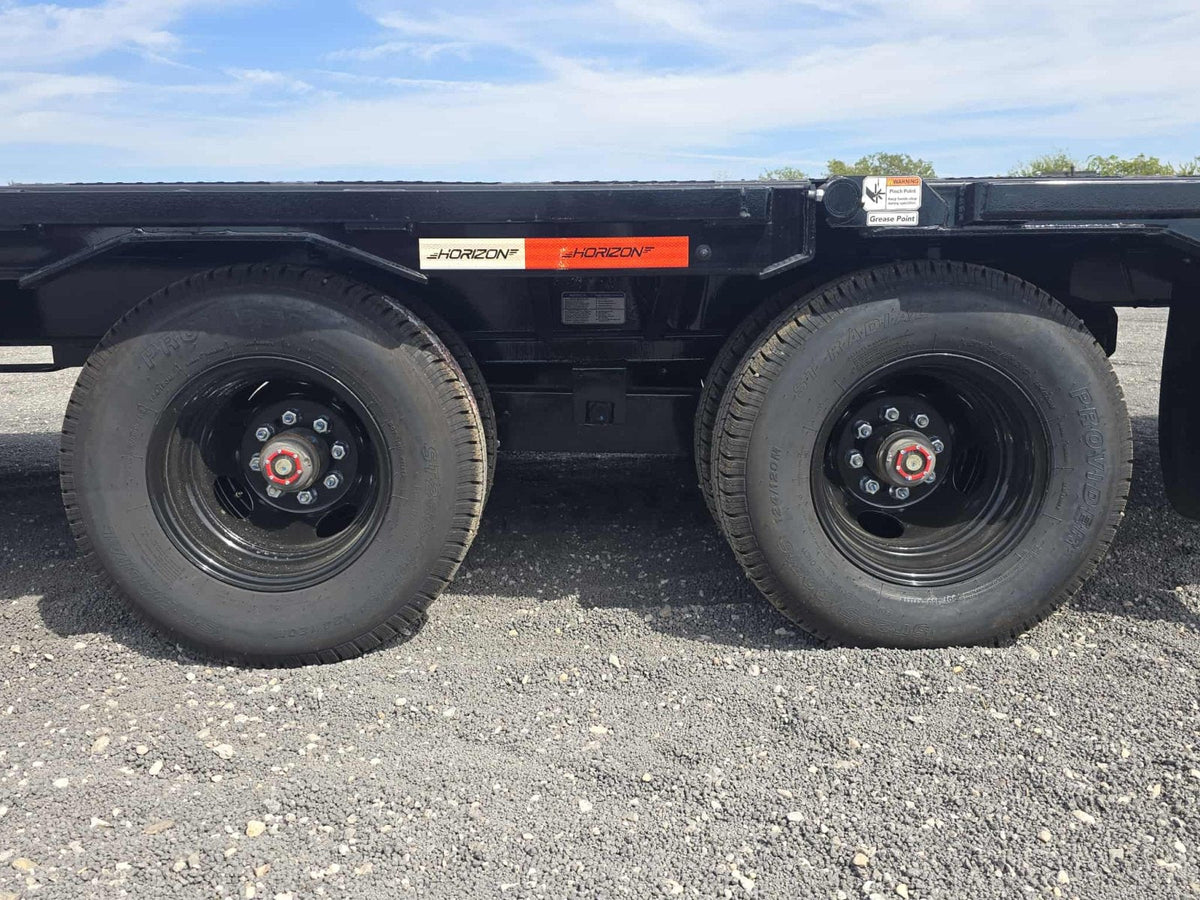

Running Gear
- Tires: ST235/80R16 10 Ply Tires Dual (3,080 lbs)
- Rims: 16" Black Mod Wheels
- Axles: 2 - 10k Electric Brake Dual Oil Bath Spring Axles
- Suspension: Spring
Electrical and Lighting
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Gooseneck, jacks & toolbox (10): 12k Ram 2 Speed Jacks; 17.5k Jost 2 Speed Jacks; 12k Hydraulic Jacks; Locker Style Toolbox…
- Frame & undercarriage (7): 20' - 44' Deck 1 - Side Mount Undercarriage Toolbox (44"L x 17"W x 14"H); 20' - 44' Deck 2 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H); 30' - 44' Deck 3 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H); 30' - 44' Deck 4 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)…
- Deck, tie-downs & ramps (17): 12" Crossmember Spacing; Deck Sides Blackwood "Classic" Rubber Infused Lumber; Full Deck Blackwood "Classic" Rubber Infused Lumber; 4 Additional D-Rings Welded Across Deck (1/2" - 12,000 lbs)…
- Dovetail (3): Dovetail 12" Crossmember Spacing; Dovetail Deck Sides Blackwood "Classic" Rubber Infused Lumber; Dovetail Full Deck Blackwood "Classic" Rubber Infused Lumber
- Remotes & winch (10): Tuff Wireless 4 Button Remote (Dovetail - Hydraulic Jacks); Tuff Wireless 4 Button Remote (Dovetail - Winch); Tuff Wireless 8 Button Remote (Dovetail - Hydraulic Jacks - Winch); 13.5k Steel Cable Winchmax Winch…
- Axles, suspension & tires (30): 2 - 10k Elec / Hydraulic Disc Brake Dual Oil Bath Spring Axles w/ Hydrastar CAM; 2 - 12k Electric Brake Dual Oil Bath Spring Axles; 2 - 12k Elec / Hydraulic Disc Brake Dual Oil Bath Spring Axles w/ Hydrastar CAM; Standard 10k Dual Axles w/ Heavy Duty Suspension…
- Electrical & lighting (2): 7.5 Watt Solar Panel; 2 - Cargo Lights Mounted On Riser
- Paint & finish (3): Zinc Primer Undercoat; Side Mount Undercarriage Toolboxes Painted Black; Side Mount Undercarriage Dunnage Racks Painted Black
