PRODUCT DETAILS
Description

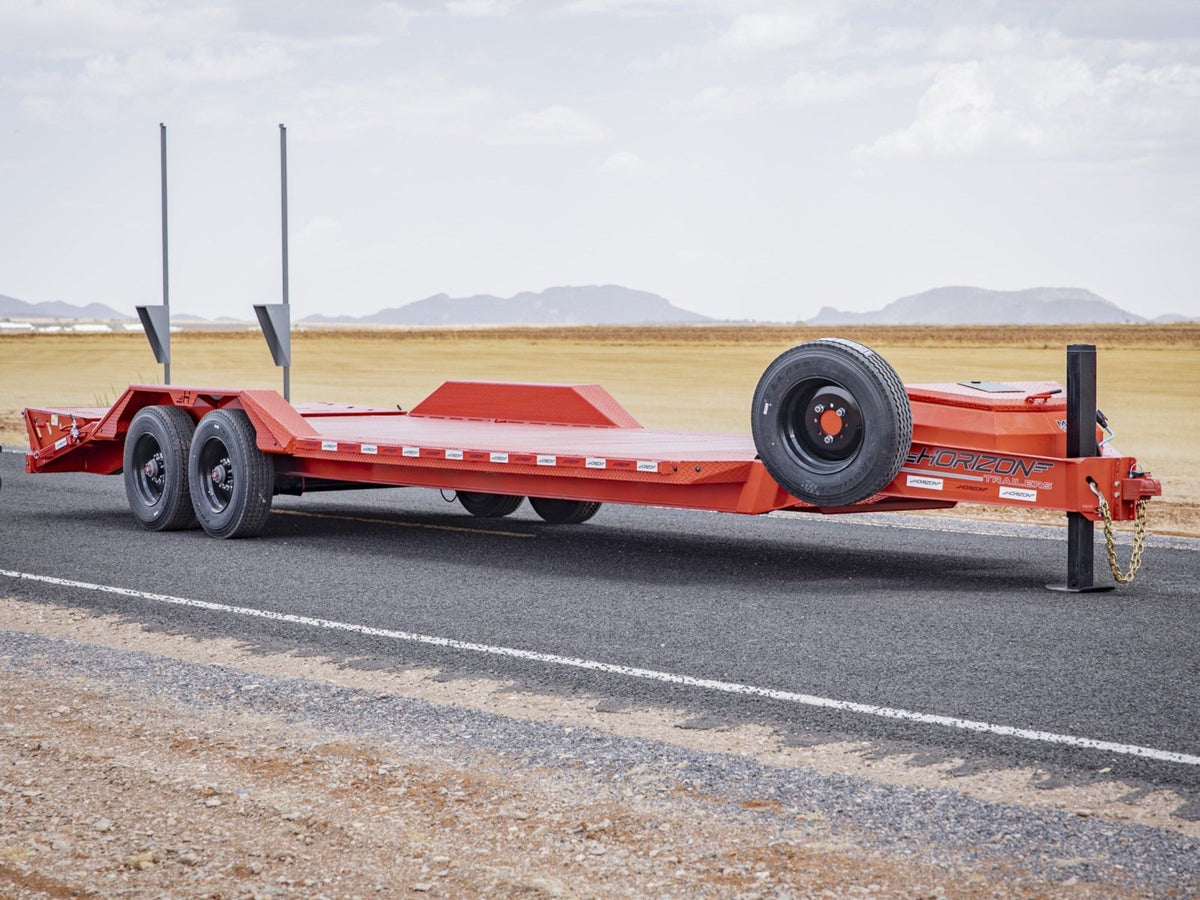

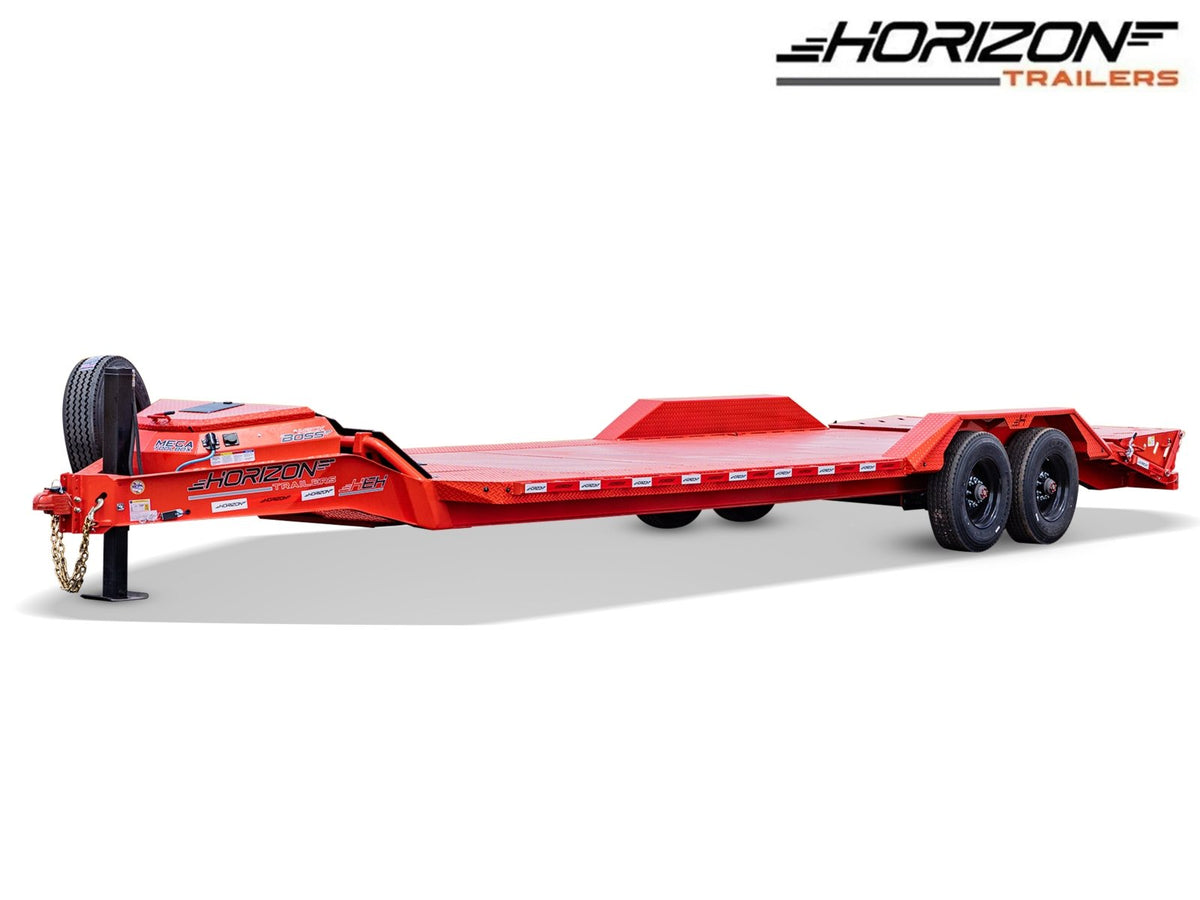

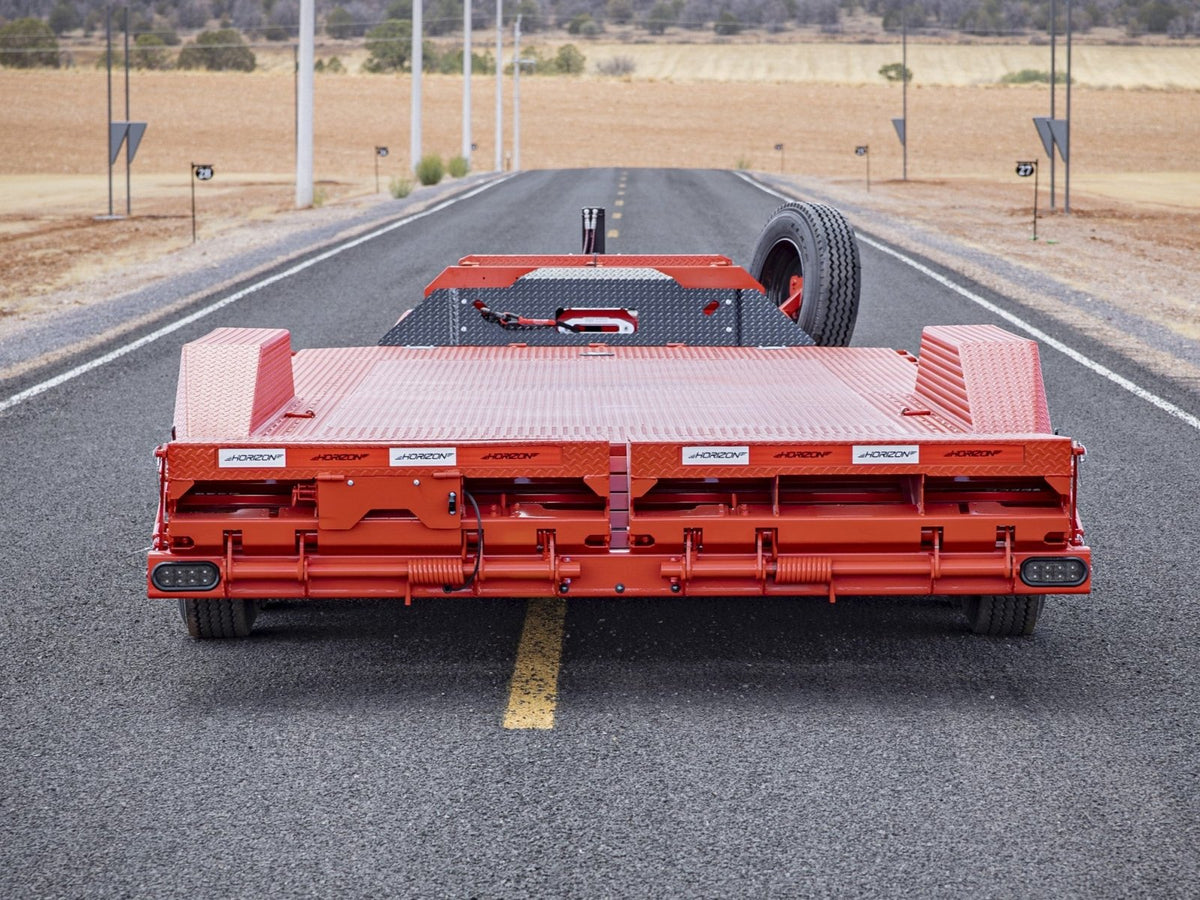

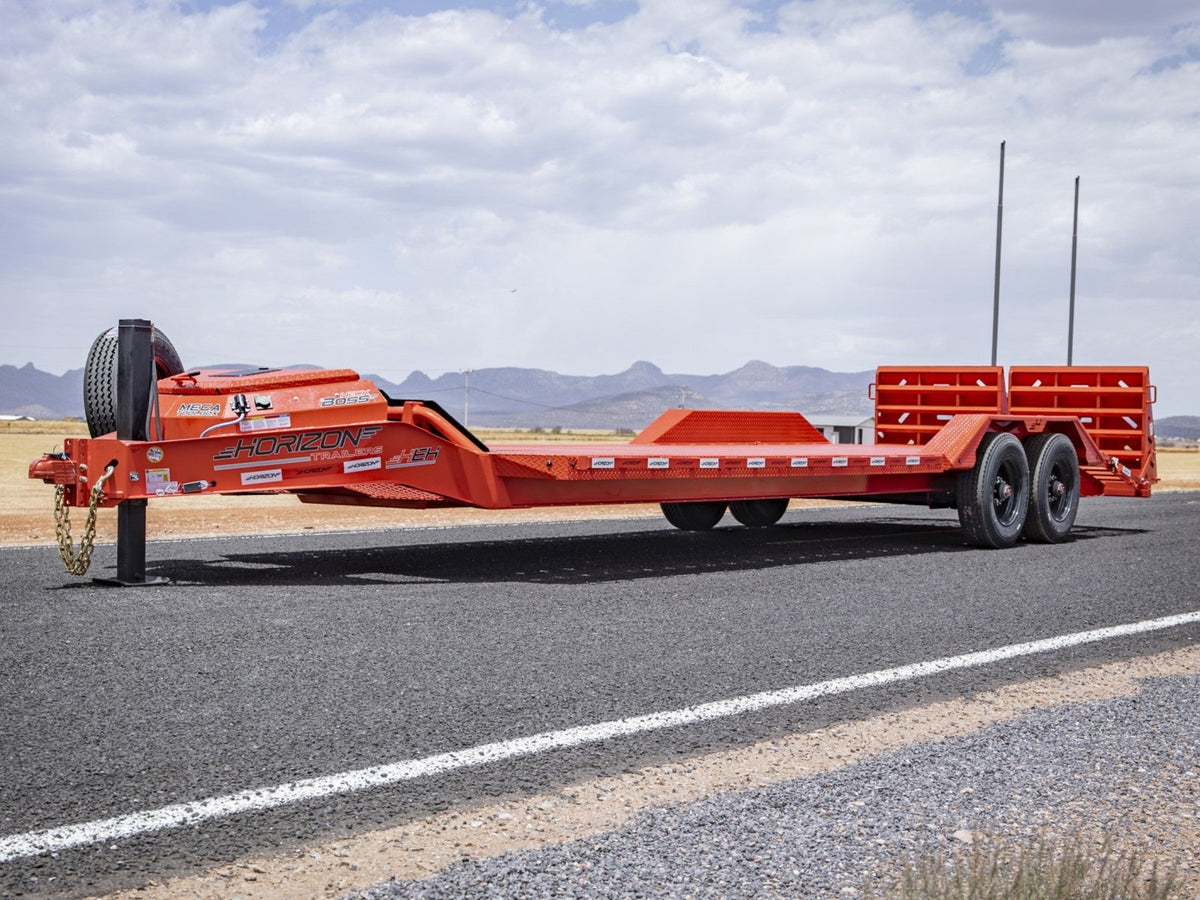

Build your Horizon HEH Bumper Pull Heavy Duty Equipment Trailer to order in 3 configurations from 20' to 24'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 20': $15,350
- 22': $15,809
- 24': $16,121
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 20' to 24'
- GVWR: 21,000 lbs
- Axles: 2 - 10k Electric Brake Super Single Oil Bath Torsion Axles
- Tires: ST235/75R17.5 18 Ply Tires Super Single (6,005 lbs)
- Coupler: Adjustable Auto Latch 2-5/16" BP Coupler (21,000 lbs)
- Deck Width: 82"
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 21,000 lbs

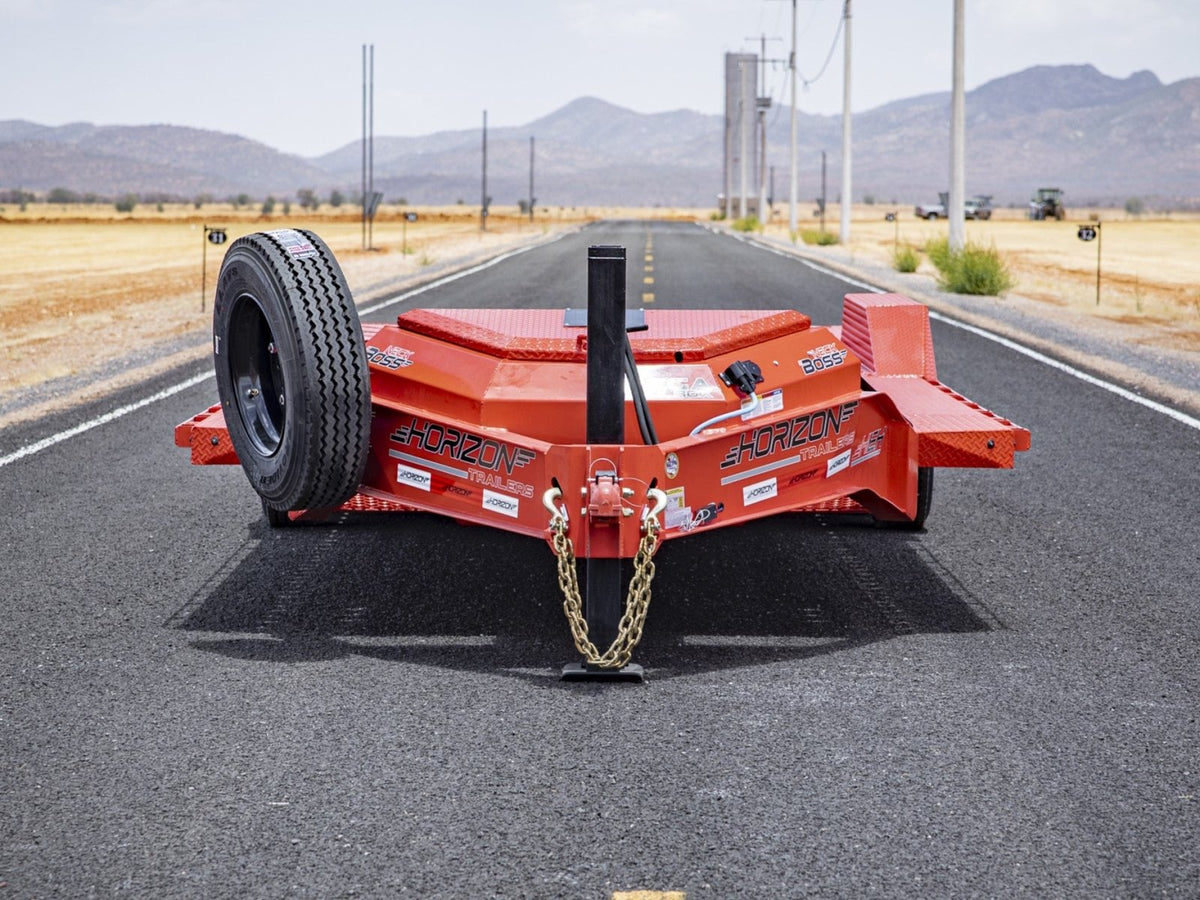

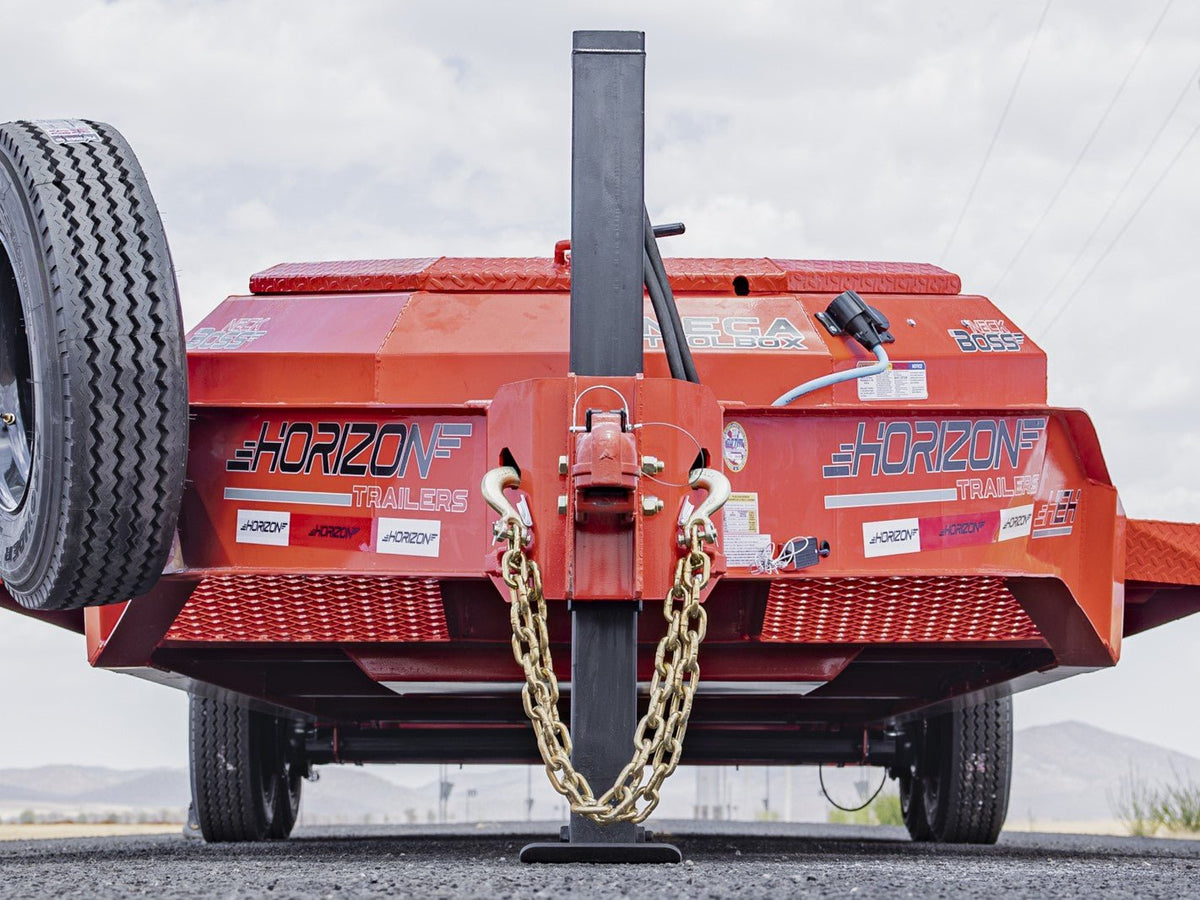

Tongue

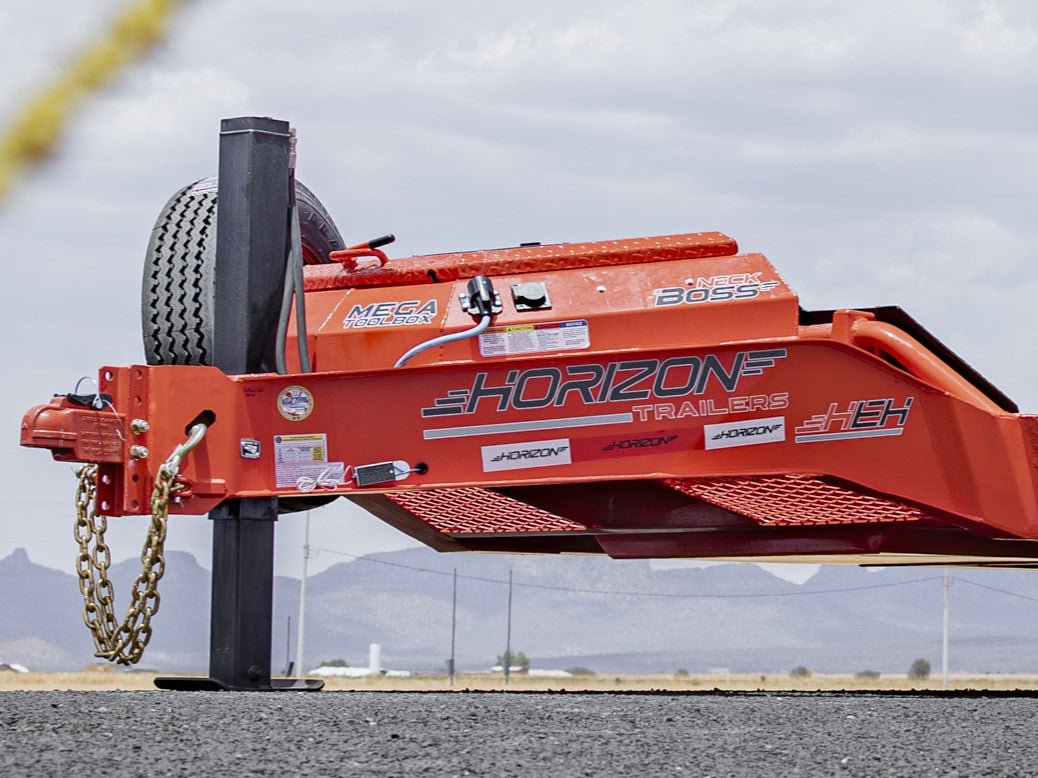

- Tongue: Neckboss 10" Tapered Engineered I-Beam

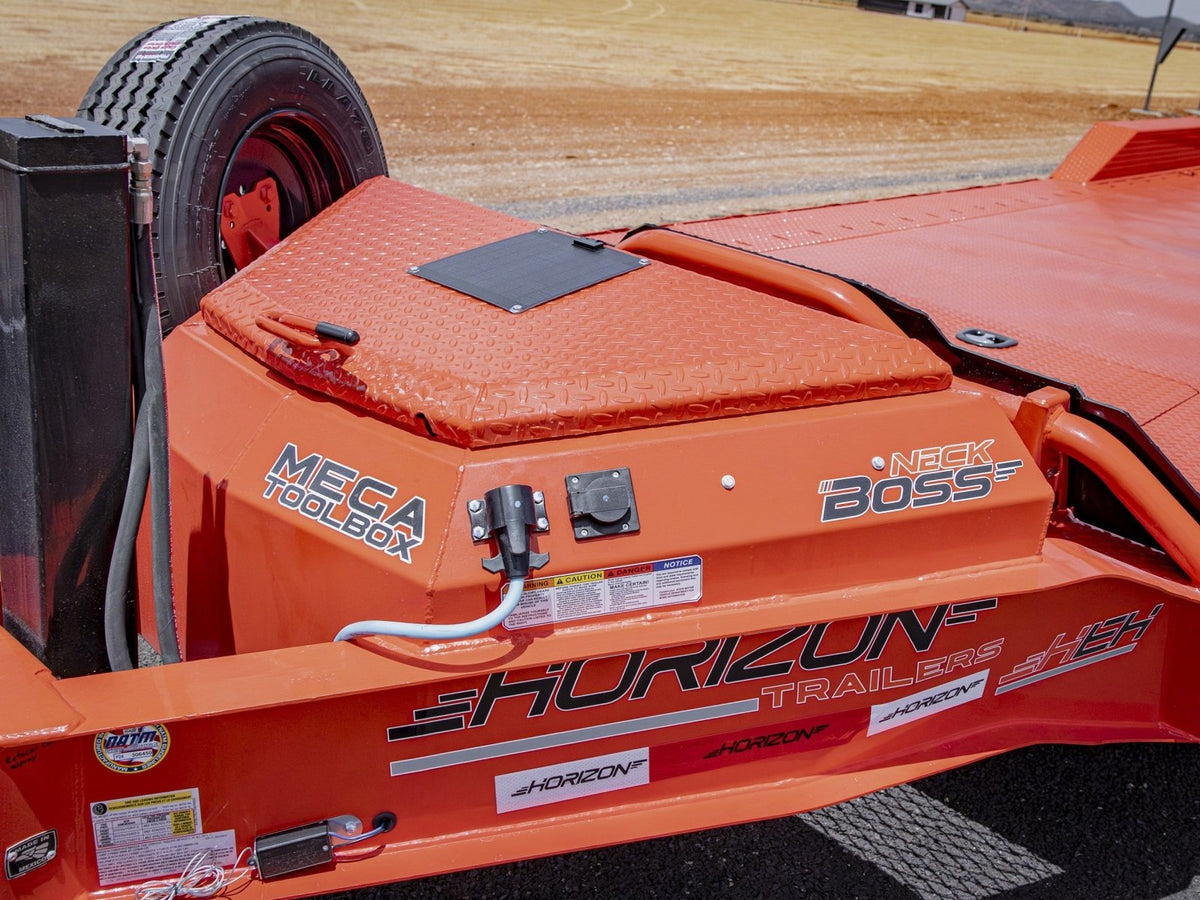

- Toolbox: Mega Lockable Toolbox
- Coupler: Adjustable Auto Latch 2-5/16" BP Coupler (21,000 lbs)
- Jack: 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)

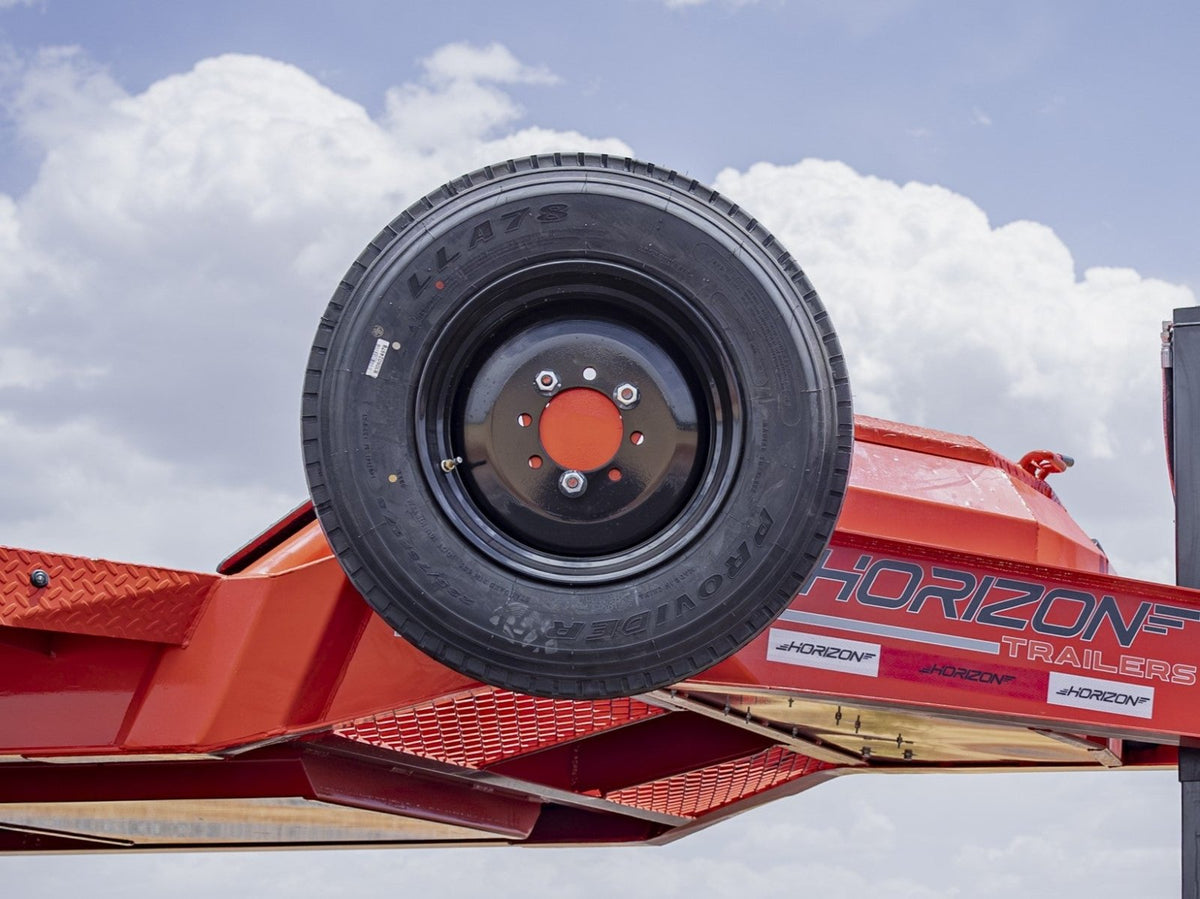

- Spare: Weld On Spare Tire Mount
Chassis
- Main Frame: 10" I-Beam (17 lbs/ft)
Deck
- Deck: 2' Dovetail
- Deck Width: 82"
- Width Between Fenders: 82"
- Flooring: Pine Lumber Floor

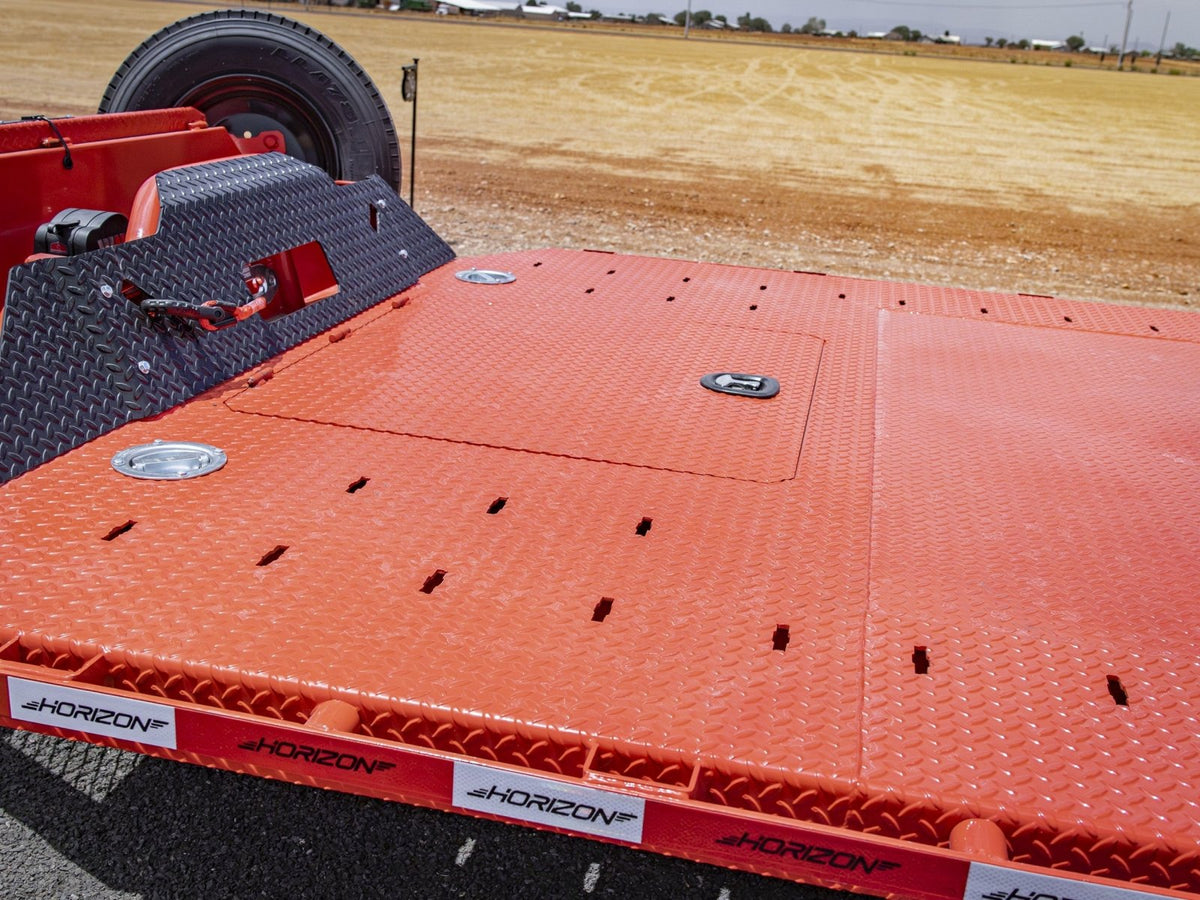

- Outer Deck: Fabricated 1/4" Diamond Plate
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 2 - D-Rings In Between Fenders
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
- Ramps: Ramp Pockets w/ 5' 6" Long Heavy Duty Slide In 4" Channel Ramps (7,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
- Tie Down Slots: Slots for Latch On Tie Down Fittings Front End Of Deck
- Bolt On Swivel D-Rings: 2 - Flush Mount Galvanized Swivel D-Rings Front Of Trailer
- Fenders: 12ga. Removable Diamond Plate Steel Fenders
- Front: Front Guard Rail
Running Gear
- Tires: ST235/75R17.5 18 Ply Tires Super Single (6,005 lbs)
- Rims: 17.5" Black Mod Wheels

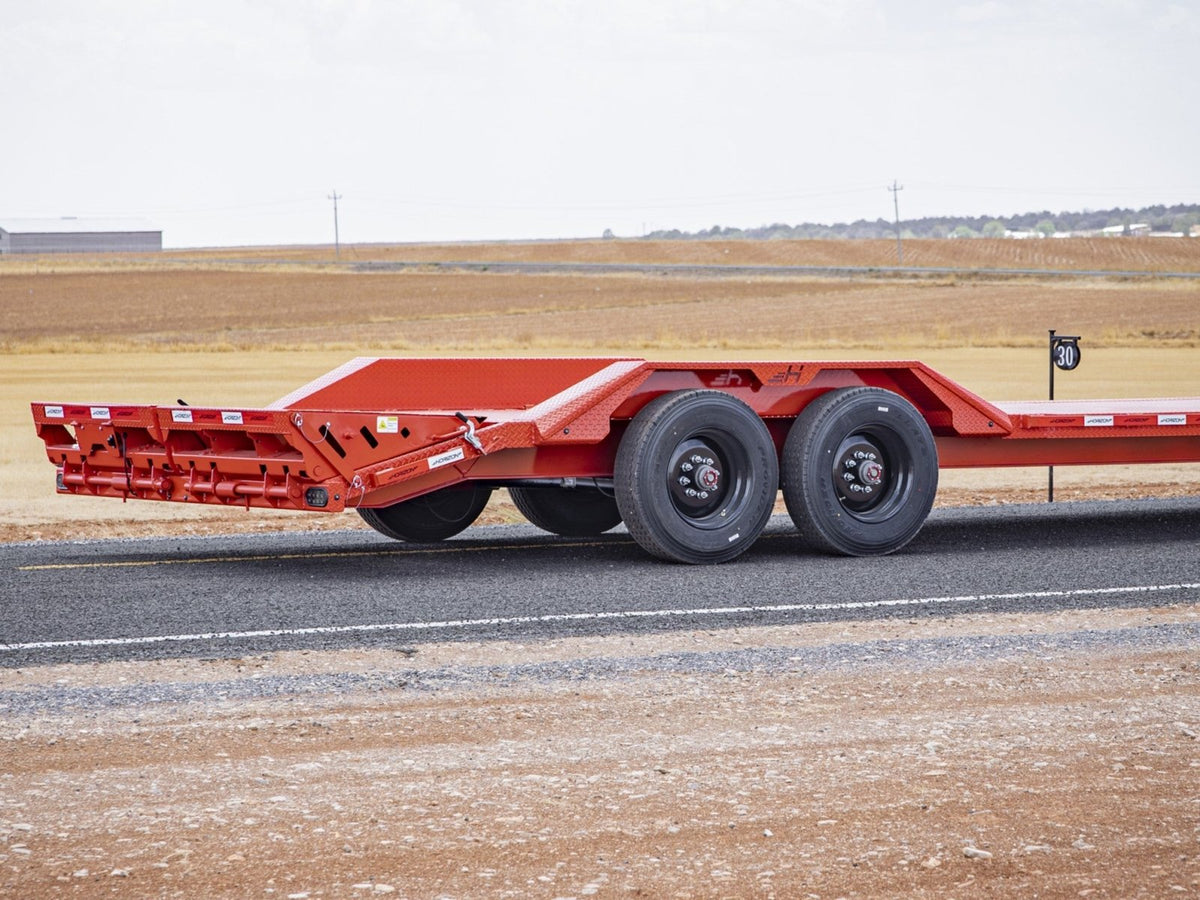

- Axles: 2 - 10k Electric Brake Super Single Oil Bath Torsion Axles
- Suspension: Torsion
Electrical and Lighting
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Tongue, jacks & toolbox (3): 12k Ram 2 Speed Jack; 12k Hydraulic Jack; 12k Hydraulic Jack w/ Low Temperature Hydraulic Oil

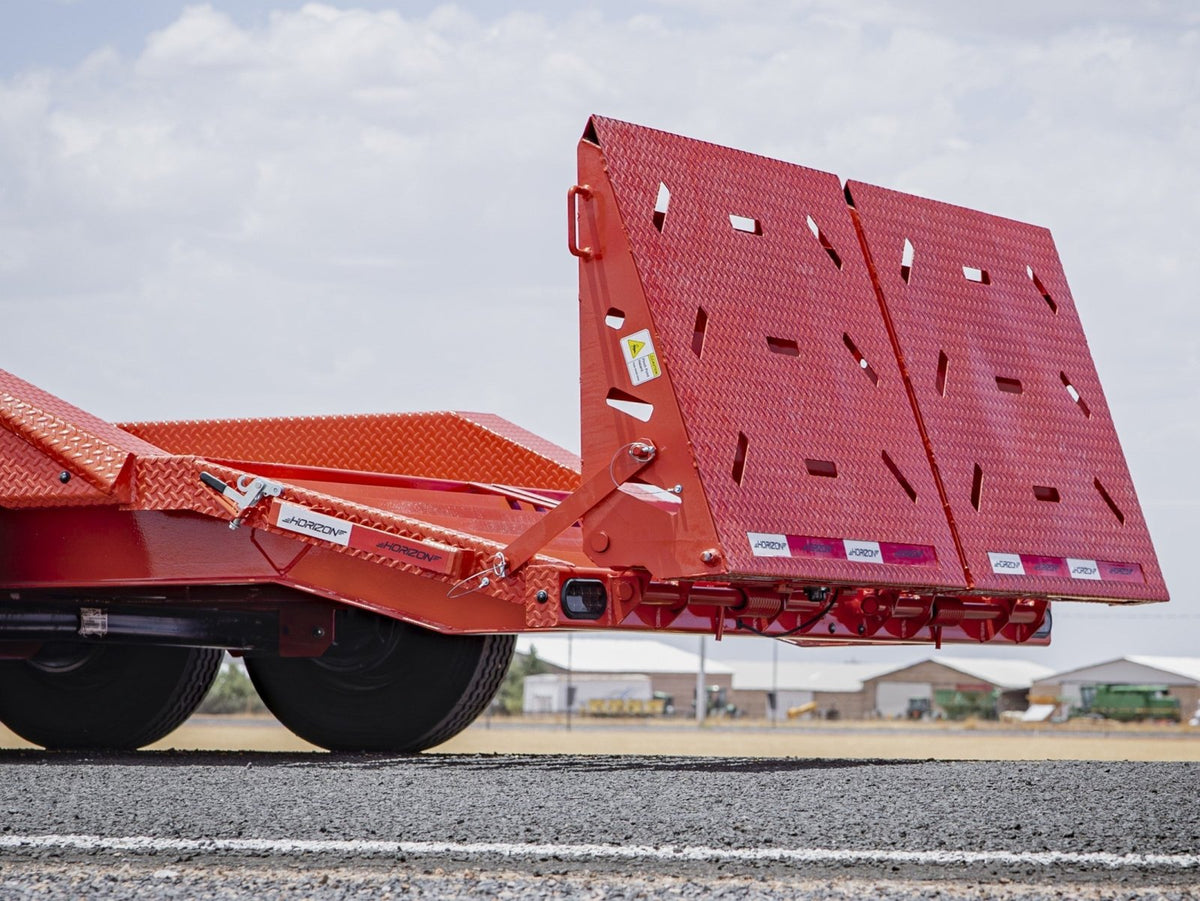

- Deck, tie-downs & ramps (12): 102" Wide With 1/4" Thick Drive Over Fenders (2,500 lbs p/ fender) When Weight Distributed Across Length Of Fender; 2' Dove Tail w/ 2 - 24" x 5' 6" Long Heavy Duty (4" Channel) w/ Mesh Covering Stand Up Ramps (6,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE); 3' Dove Tail With 2 Mountain Ramps; 12" Crossmember Spacing…
- Remotes & winch (6): Tuff Wireless 2 Button Remote (Hydraulic Jacks); Tuff Wireless 4 Button Remote (Hydraulic Jacks - Winch); 13.5k Steel Cable Winchmax Winch; 13.5k Synthetic Rope Winchmax Winch…
- Axles, suspension & tires (1): 1 - ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)
- Electrical & lighting (1): 7.5 Watt Solar Panel
- Paint & finish (3): 20ft & Up Zinc Primer Undercoat; Fenders Painted Black; Ramps Painted Black
