PRODUCT DETAILS
Description

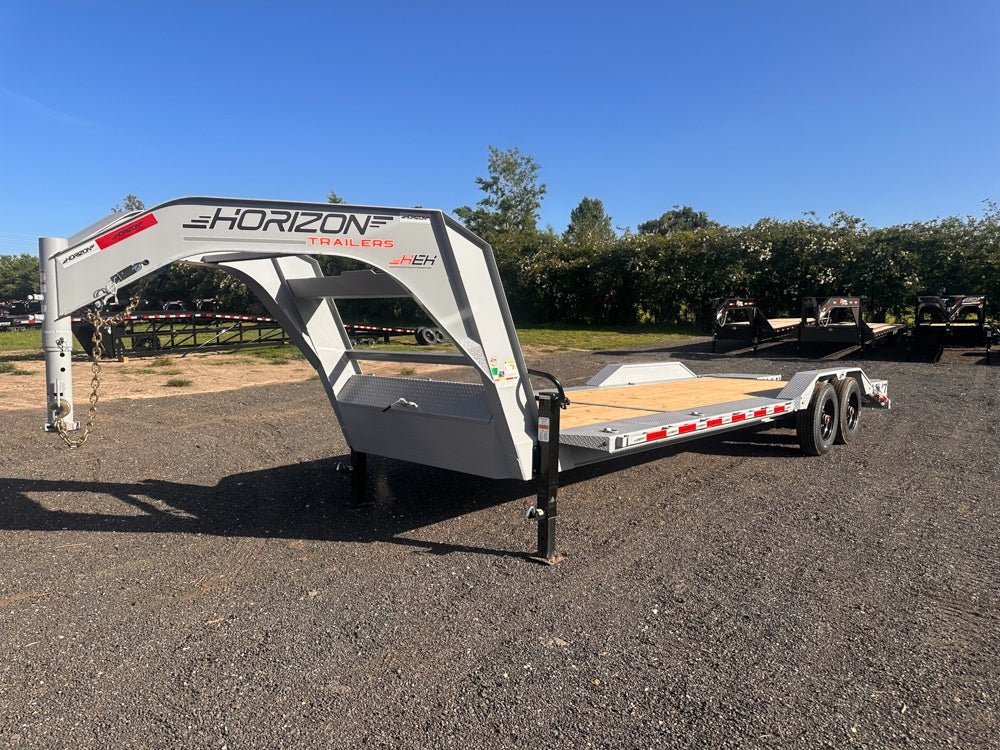

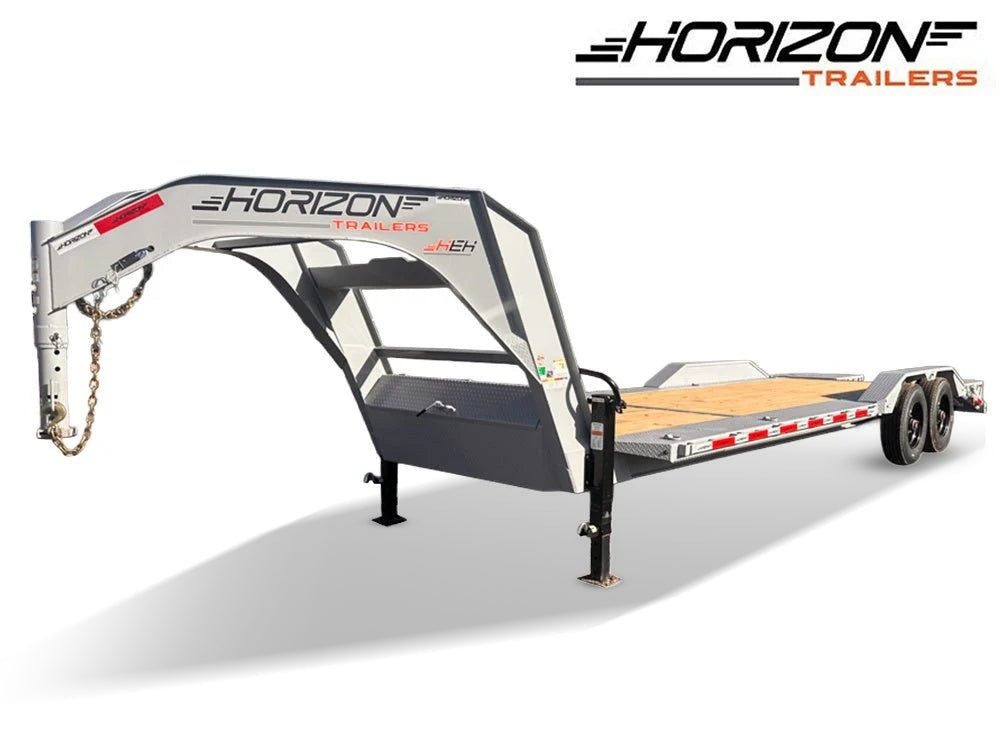

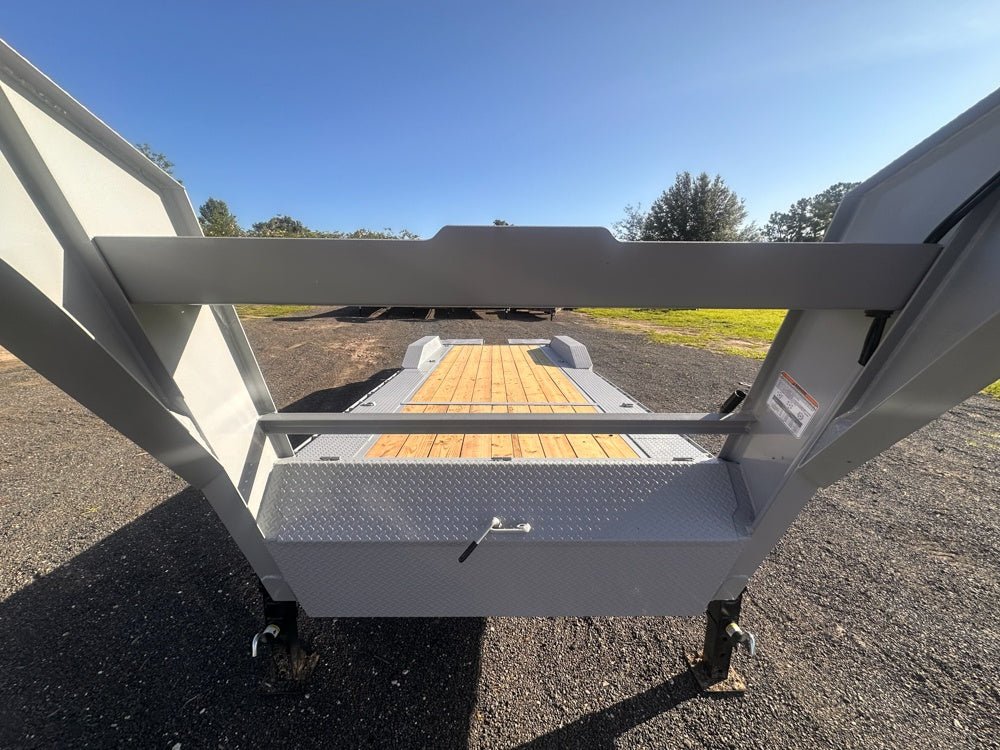

Build your Horizon HEH Gooseneck Heavy Duty Equipment Trailer to order in 4 configurations from 20' to 26'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 20': $16,070
- 22': $16,543
- 24': $16,863
- 26': $17,089
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 20' to 26'
- GVWR: 22,400 lbs
- Axles: 2 - 10k Electric Brake Super Single Oil Bath Torsion Axles
- Tires: ST235/75R17.5 18 Ply Tires Super Single (6,005 lbs)
- Coupler: Adjustable 2-5/16" GN Coupler (30,000 lbs)
- Deck Width: 82"
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 22,400 lbs

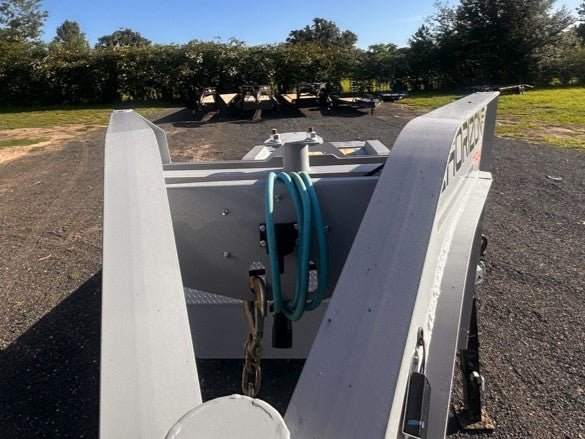

Tongue
- Tongue: Neckboss 10" Engineered I-Beam
- Toolbox: Mega Lockable Toolbox
- Coupler: Adjustable 2-5/16" GN Coupler (30,000 lbs)
- Jacks: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)

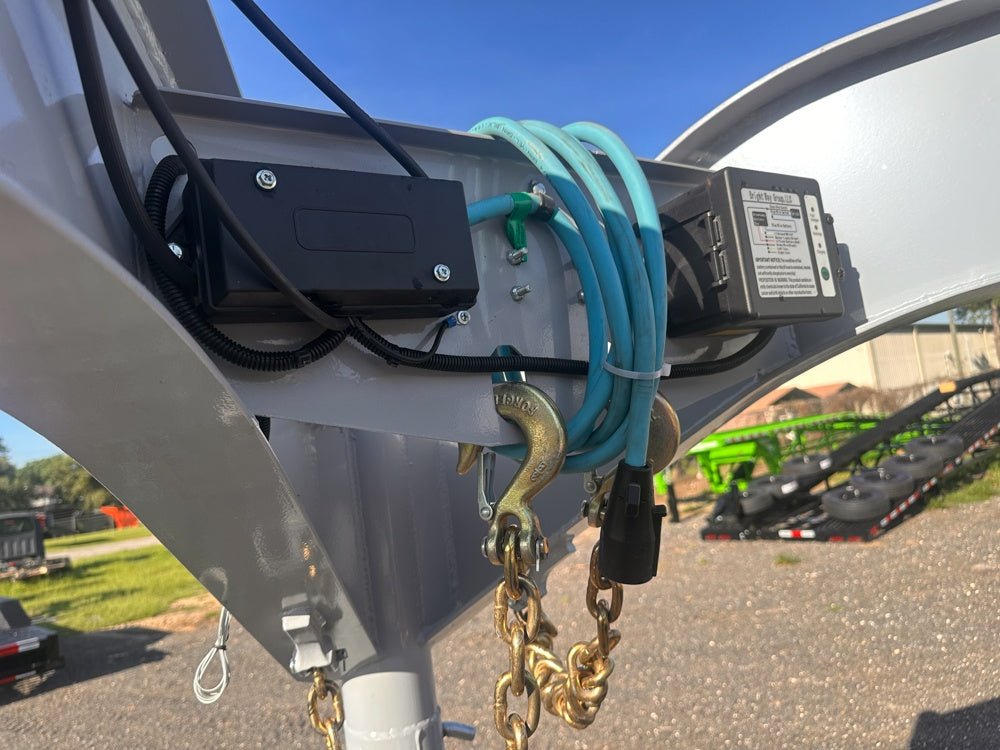

- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
- Storage Behind Neck: Chain Rack & Storage Box / Winch Ready
Chassis
- Main Frame: 10" I-Beam (17 lbs/ft)

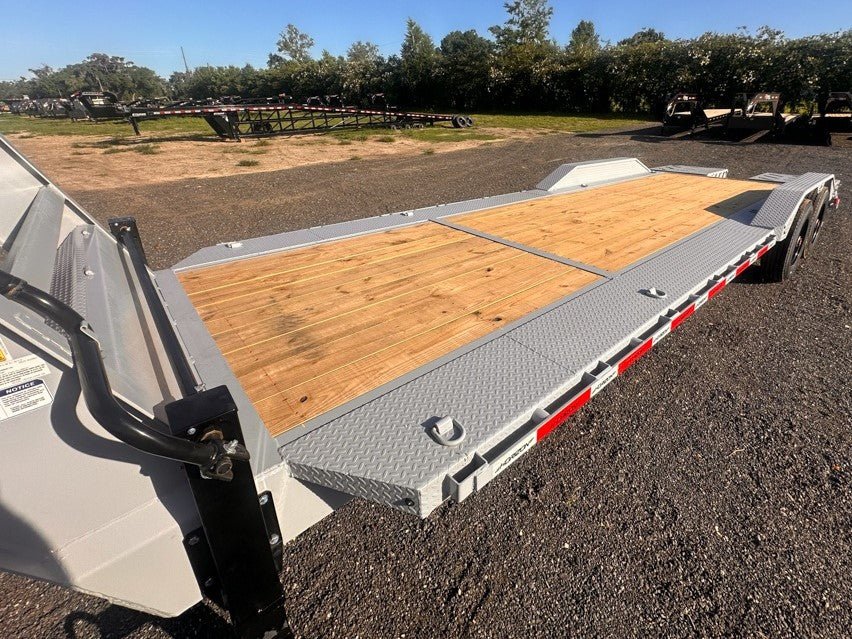

Deck
- Deck: 2' Dovetail
- Deck Width: 82"
- Width Between Fenders: 82"
- Flooring: Pine Lumber Floor
- Outer Deck: Fabricated 1/4" Diamond Plate
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 2 - D-Rings In Between Fenders
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")

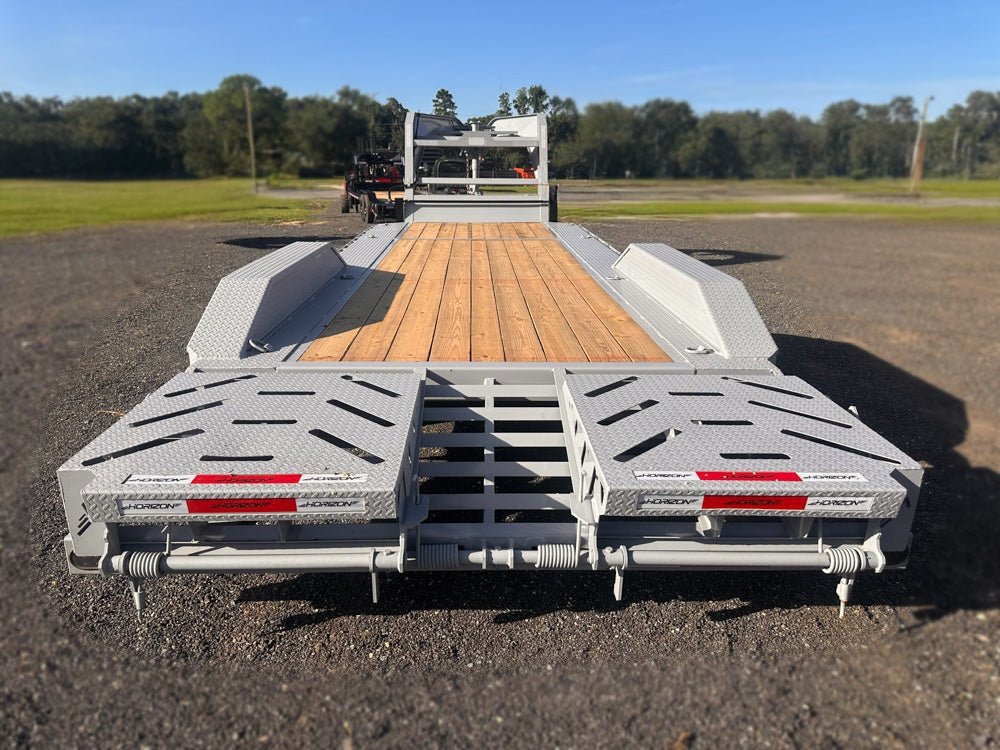

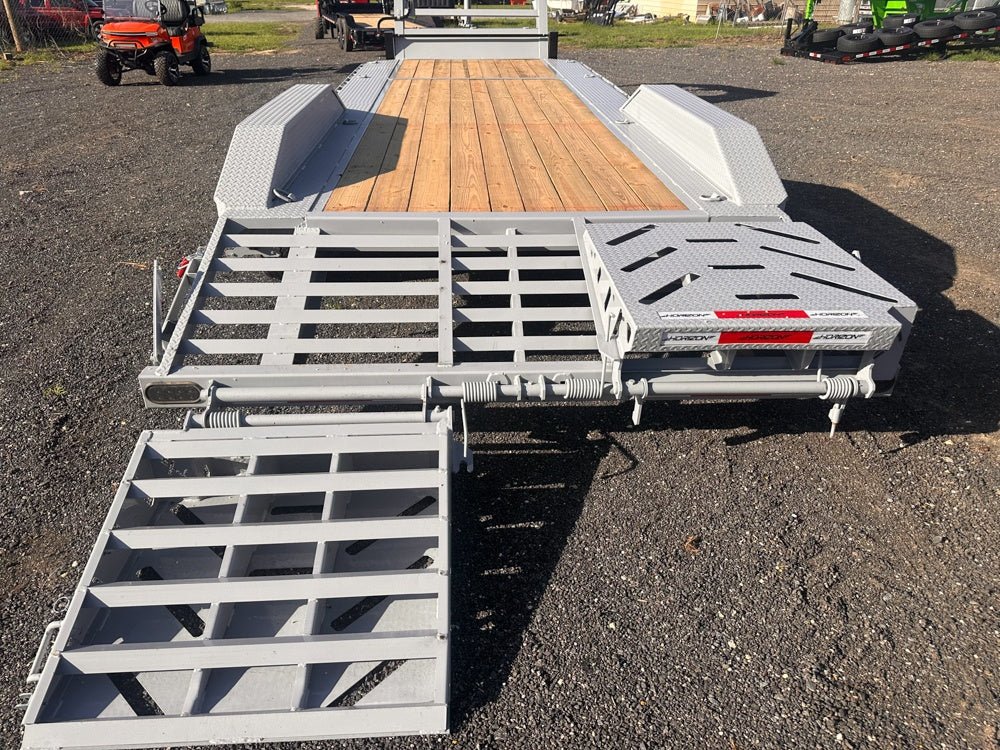

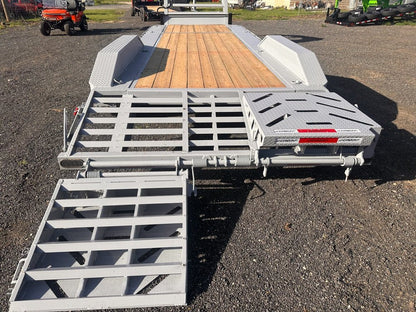

- Ramps: Ramp Pockets w/ 5' 6" Long Heavy Duty Slide In 4" Channel Ramps (7,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
- Tie Down Slots: Slots for Latch On Tie Down Fittings Front End Of Deck
- Bolt On Swivel D-Rings: 2 - Flush Mount Galvanized Swivel D-Rings Front Of Trailer
- Fenders: 12ga. Removable Diamond Plate Steel Fenders

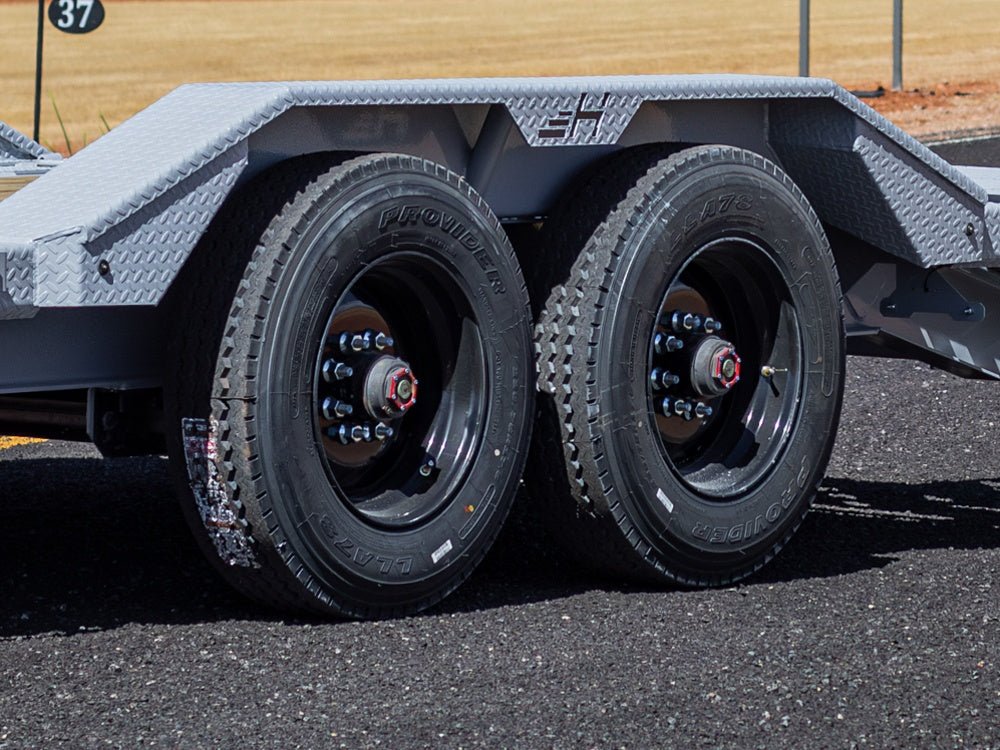

Running Gear
- Tires: ST235/75R17.5 18 Ply Tires Super Single (6,005 lbs)
- Rims: 17.5" Black Mod Wheels
- Axles: 2 - 10k Electric Brake Super Single Oil Bath Torsion Axles
- Suspension: Torsion
Electrical and Lighting
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Gooseneck, jacks & toolbox (5): 12k Ram 2 Speed Jacks; 12k Hydraulic Jacks; 6" GN Riser Increase; Shocker Hitch 2,5/16" GN Coupler (30,000 lbs)…
- Deck, tie-downs & ramps (12): 102" Wide With 1/4" Thick Drive Over Fenders (2,500 lbs p/ fender) When Weight Distributed Across Length Of Fender; 2' Dove Tail With 24" x 5' 6" Long Heavy Duty (4" Channel) w/ Mesh Covering Stand Up Ramps (6,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE); 3' Dove Tail With 2 Mountain Ramps; 12" Crossmember Spacing…
- Remotes & winch (6): Tuff Wireless 2 Button Remote (Hydraulic Jacks); Tuff Wireless 4 Button Remote (Hydraulic Jacks - Winch); 13.5k Steel Cable Winchmax Winch; 13.5k Synthetic Rope Winchmax Winch…
- Axles, suspension & tires (1): ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)
- Electrical & lighting (1): 7.5 Watt Solar Panel
- Paint & finish (3): 20ft & Up Zinc Primer Undercoat; Fenders Painted Black; Ramps Painted Black
