PRODUCT DETAILS
Description

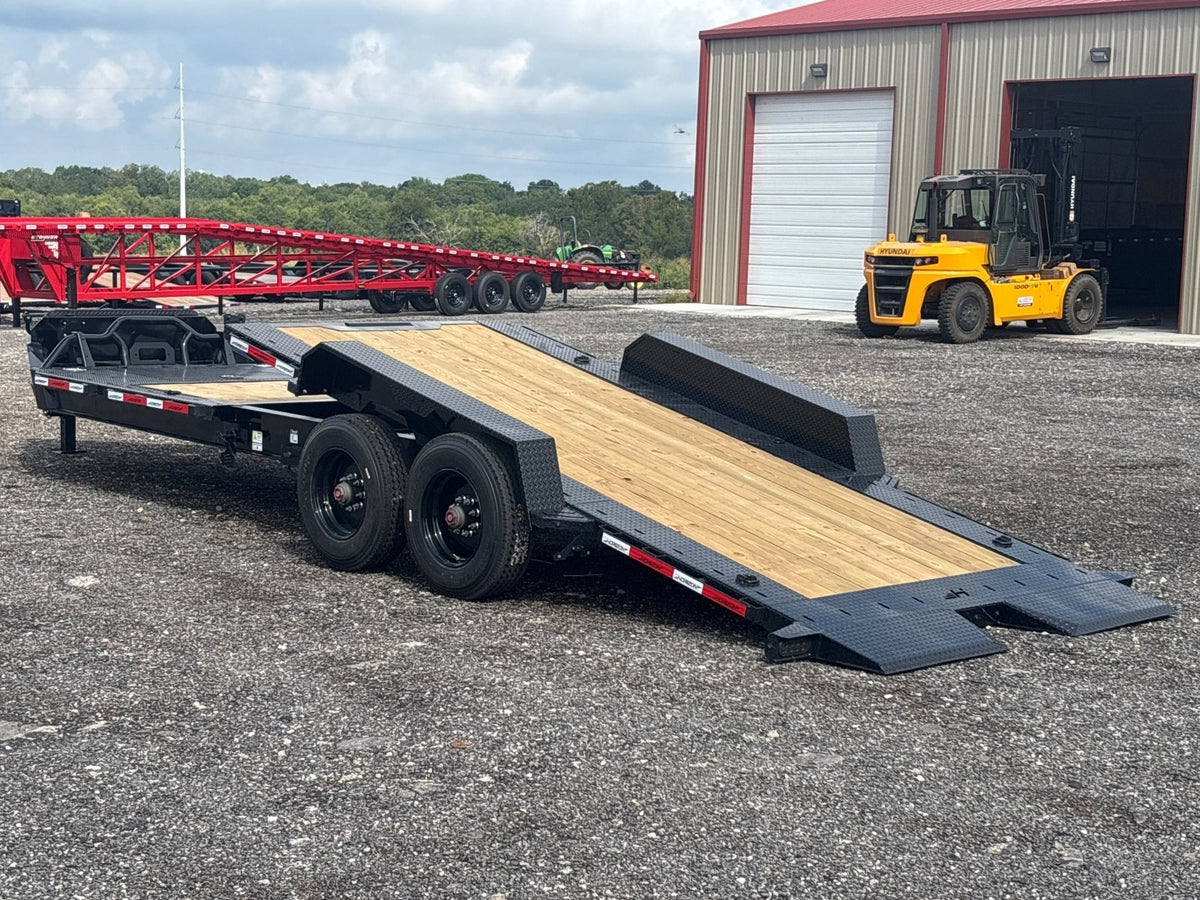

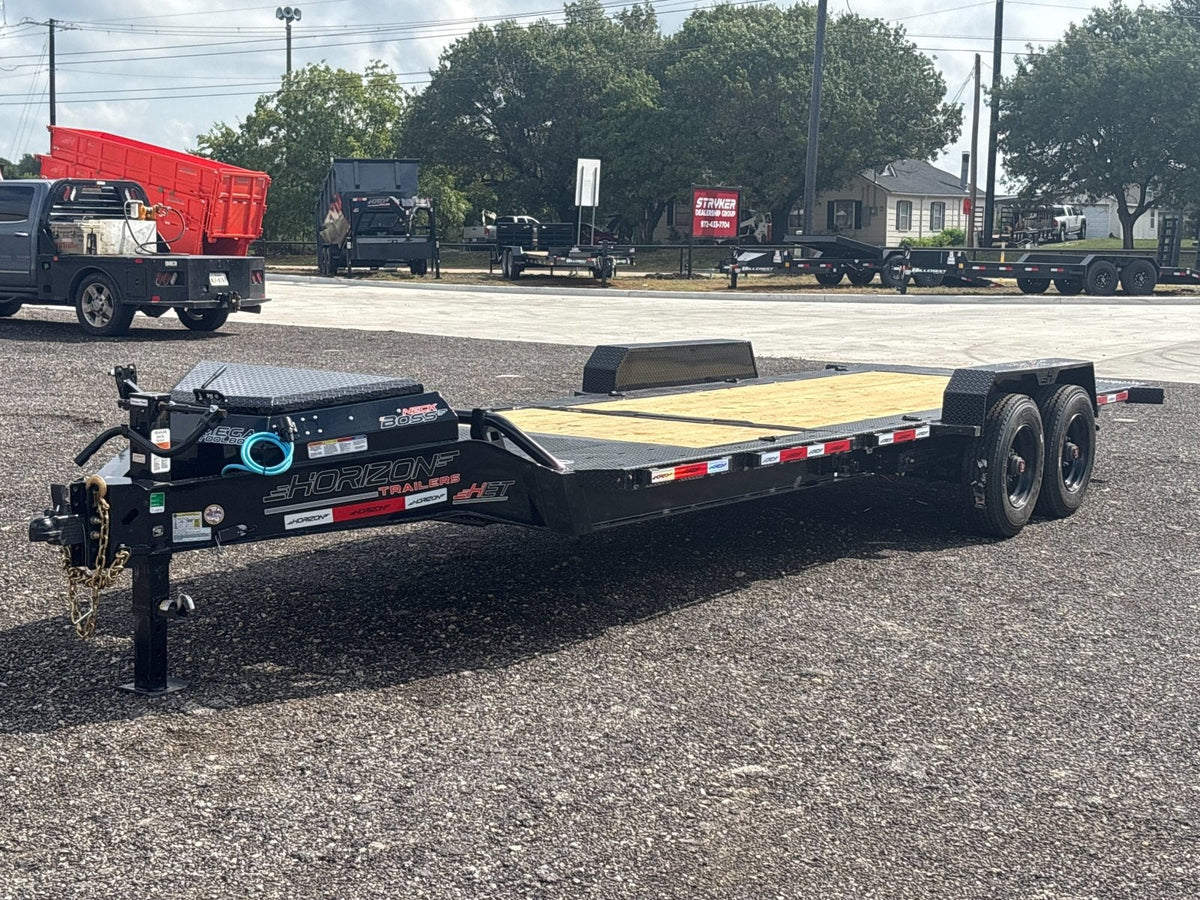

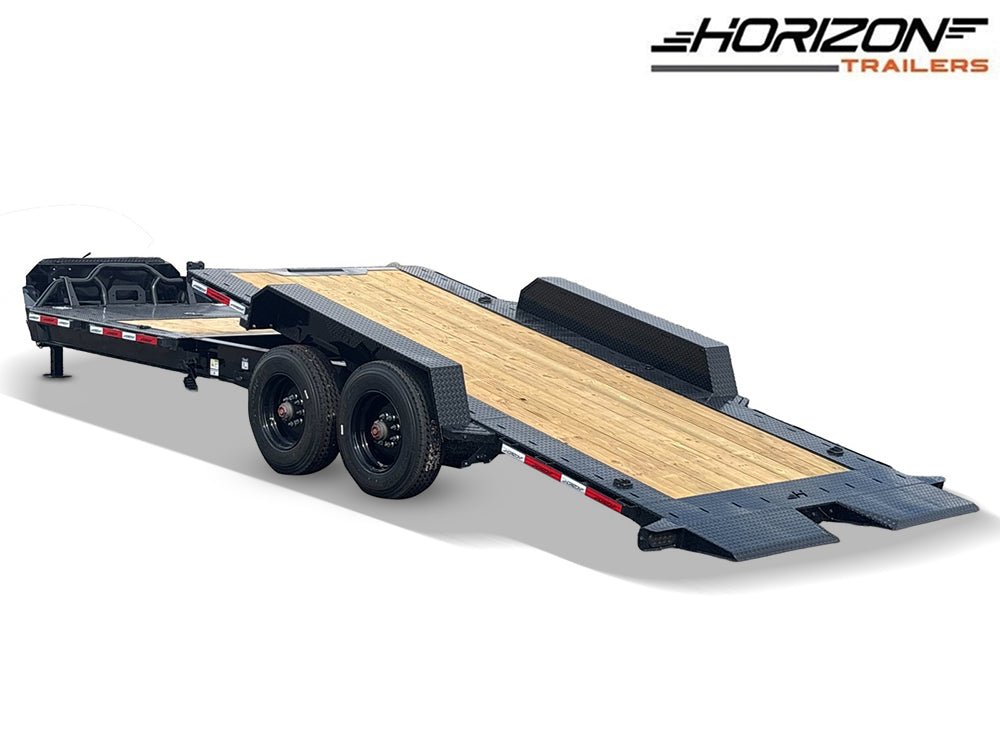

Build your Horizon HET Bumper Pull Deckover Gravity Tilt Trailer to order in 4 configurations from 20' to 26'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 20' (21K GVWR): $19,199
- 22' (21K GVWR): $19,795
- 24' (21K GVWR): $20,057
- 26' (21K GVWR): $20,639
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 20' to 26'
- GVWR: 21,000 lbs
- Axles: 2 - 10k Electric Brake Super Single Oil Bath Torsion Axles
- Tires: ST235/75R17.5 18 Ply Tires Super Single (6,005 lbs)
- Coupler: Adjustable Auto Latch 2-5/16" BP Coupler (21,000 lbs)
- Deck Width: 82"
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 21,000 lbs

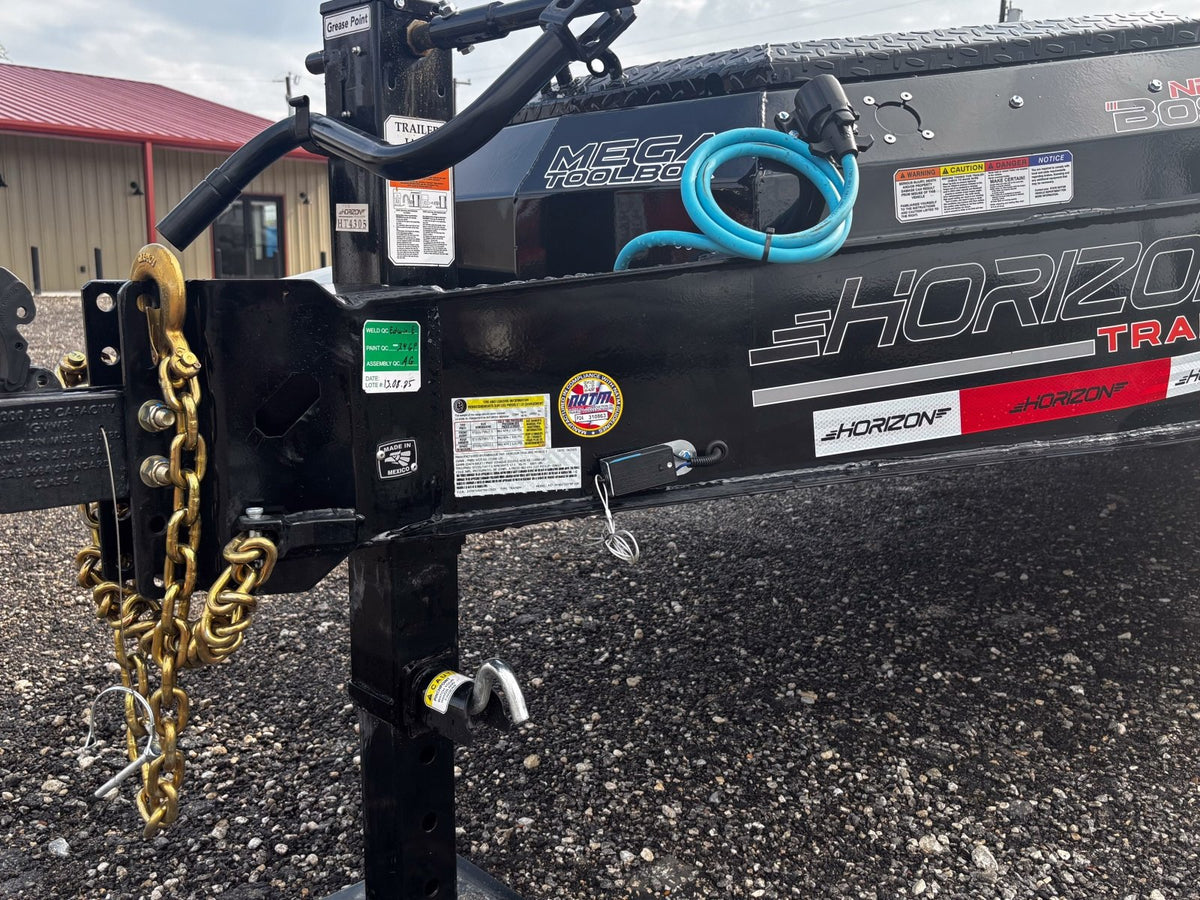

Tongue

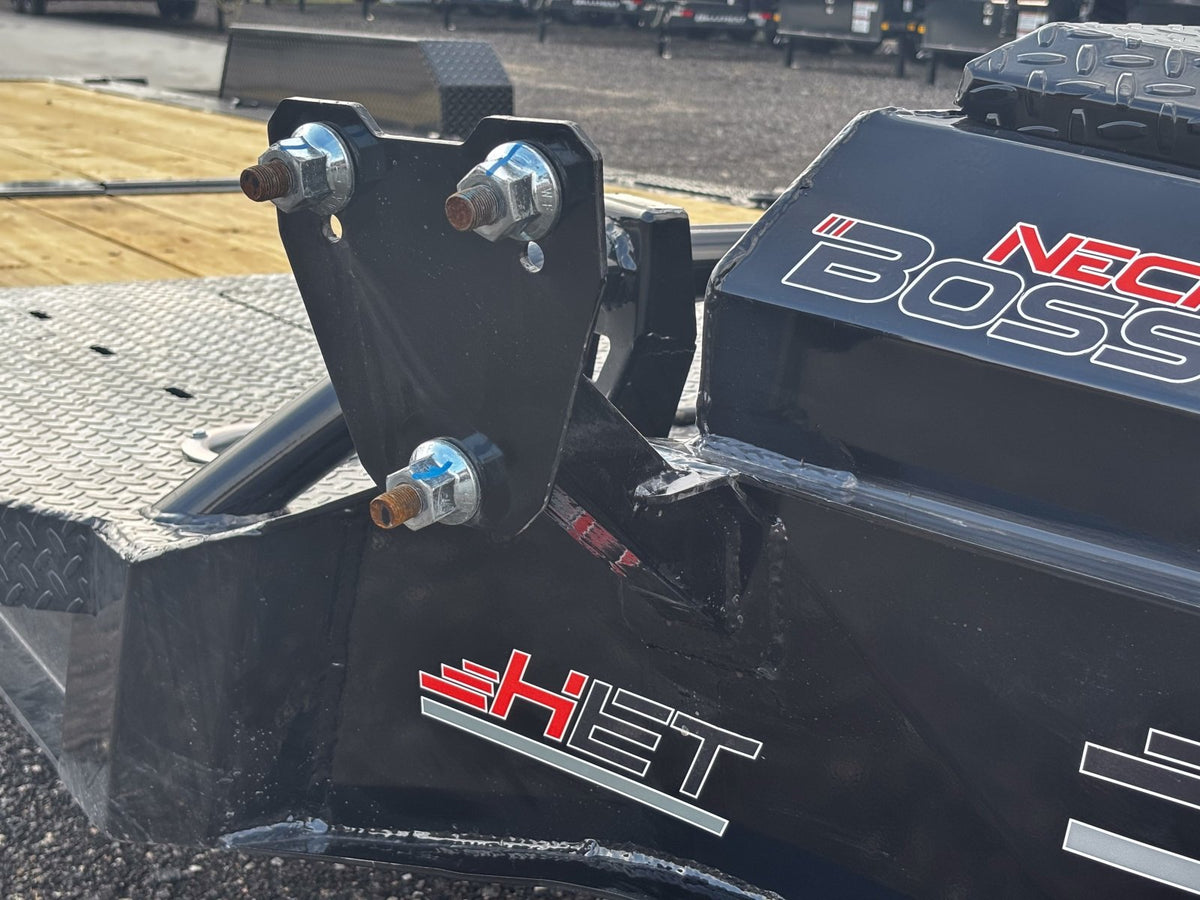

- Tongue: Neckboss 10" Tapered Engineered I-Beam

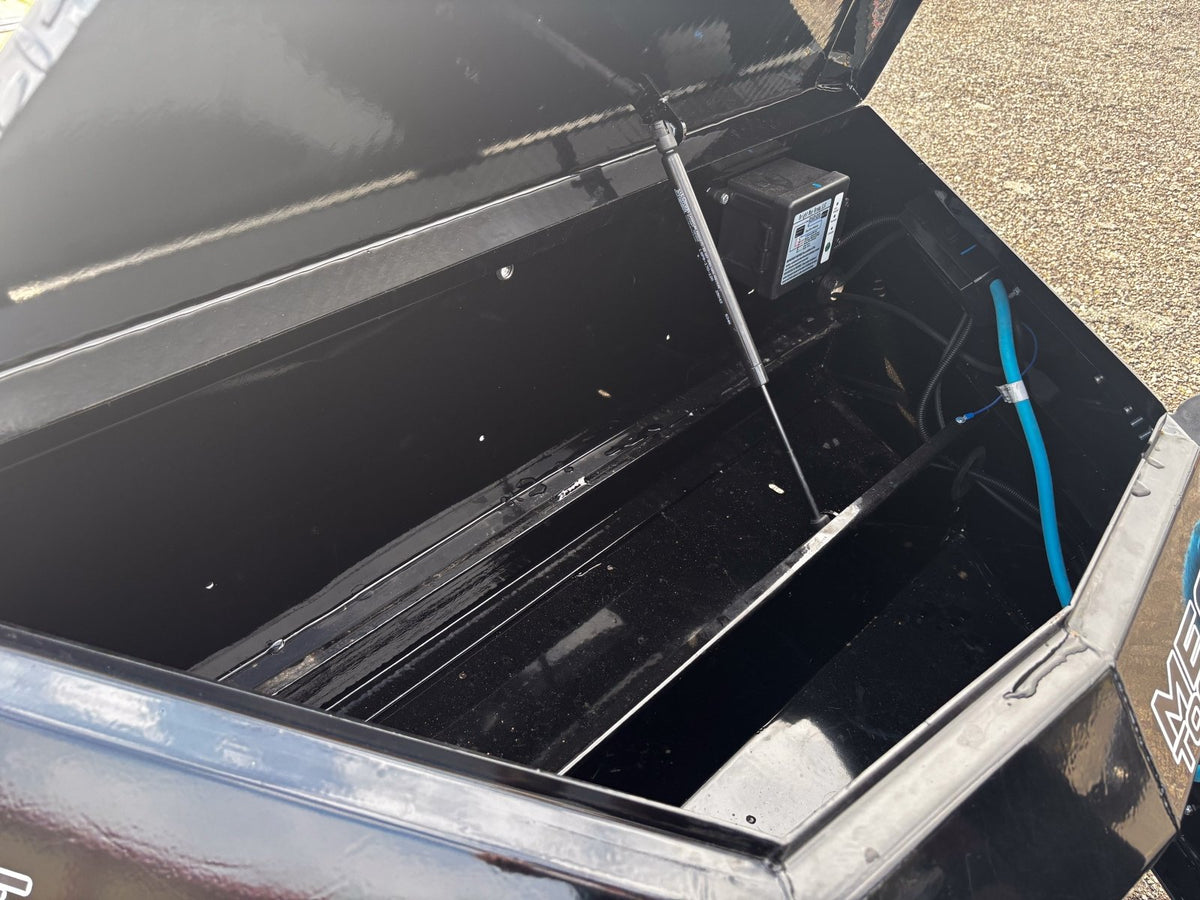

- Toolbox: Mega Lockable Toolbox
- Coupler: Adjustable Auto Latch 2-5/16" BP Coupler (21,000 lbs)
- Jack: 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
- Winch Plate: Winch Plate Behind Neck
Chassis
- Main Frame: 10" I-Beam (17 lbs/ft)
Deck
- Deck: 16' Tilt Deck
- Deck Width: 82"
- Width Between Fenders: 102"
- Flooring: Pine Lumber Floor
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 2 - D-Rings In Between Fenders
- Sides: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
- Tie Down Slots: Slots for Latch On Tie Down Fittings Front End Of Deck

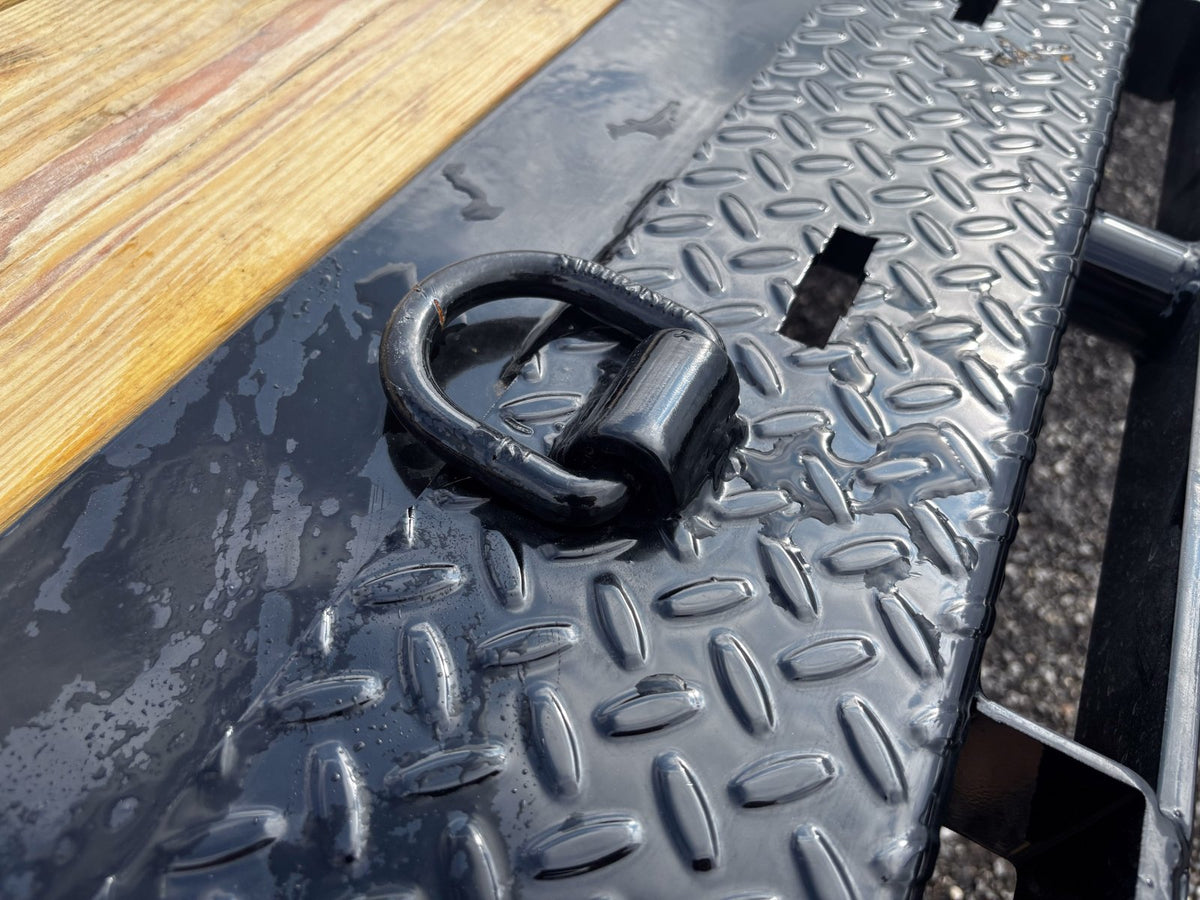

- Bolt On Swivel D-Rings: 2 - Flush Mount Galvanized Swivel D-Rings Front Of Trailer
- Fenders: 102" Wide With 1/4" Thick Drive Over Fenders (2,500 lbs p/fender) when weight Distributed cross length of Fender
- Front: Front Guard Rail

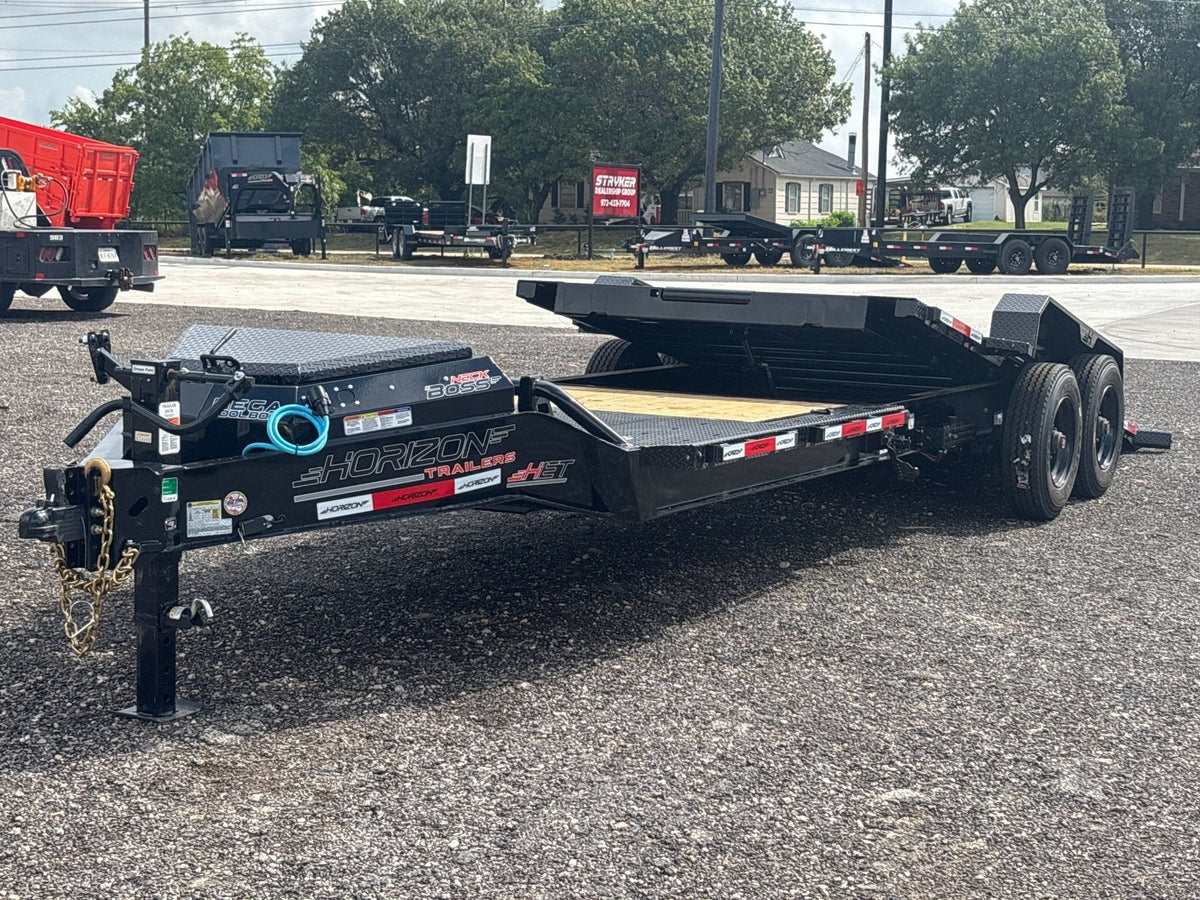

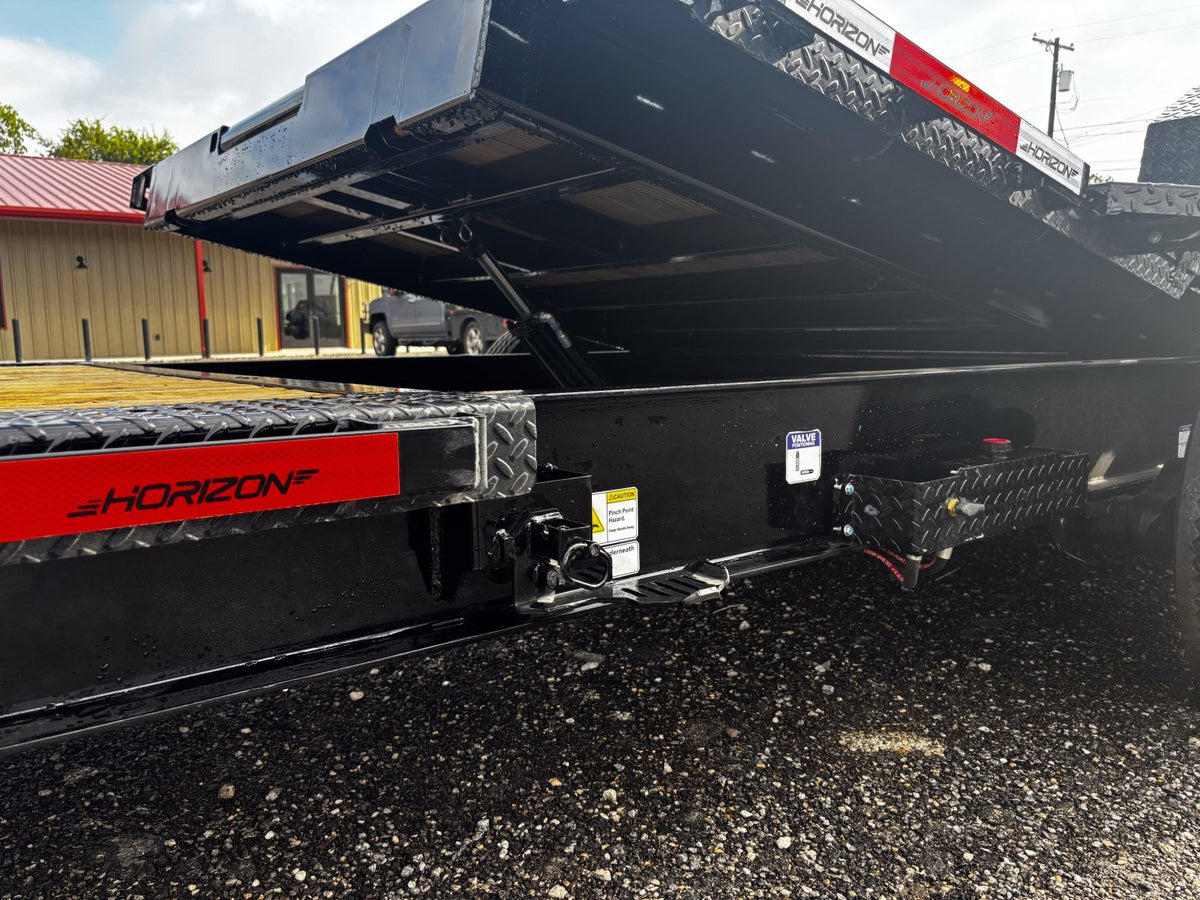

Tilt System
- Frame: 2" x 8" x 7ga. Tubing Bed Frame (Tilt)
- System: Gravity Up / Down

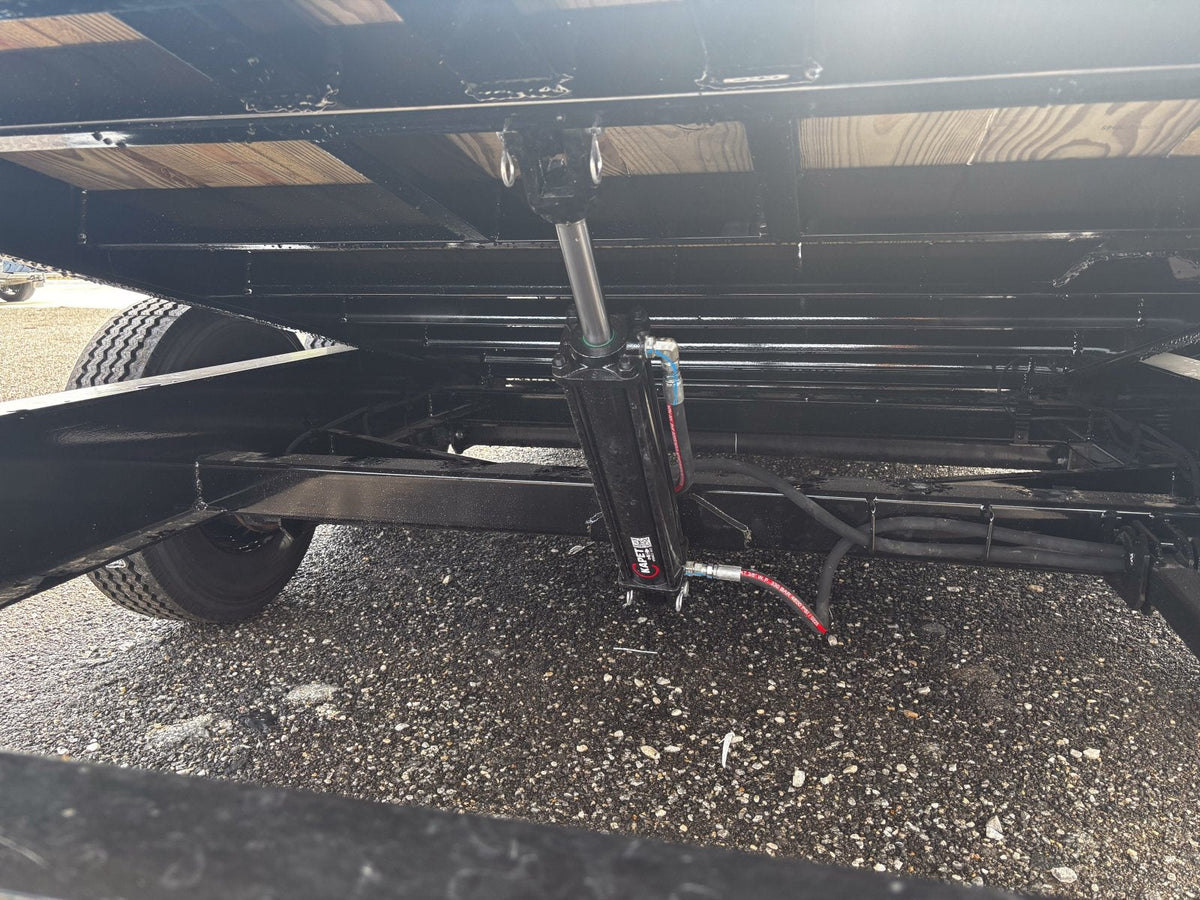

- Cylinder: 1 - 3" x 16" Cylinder
- Tank: Large Reservoir
- Valve: 3 Way Valve

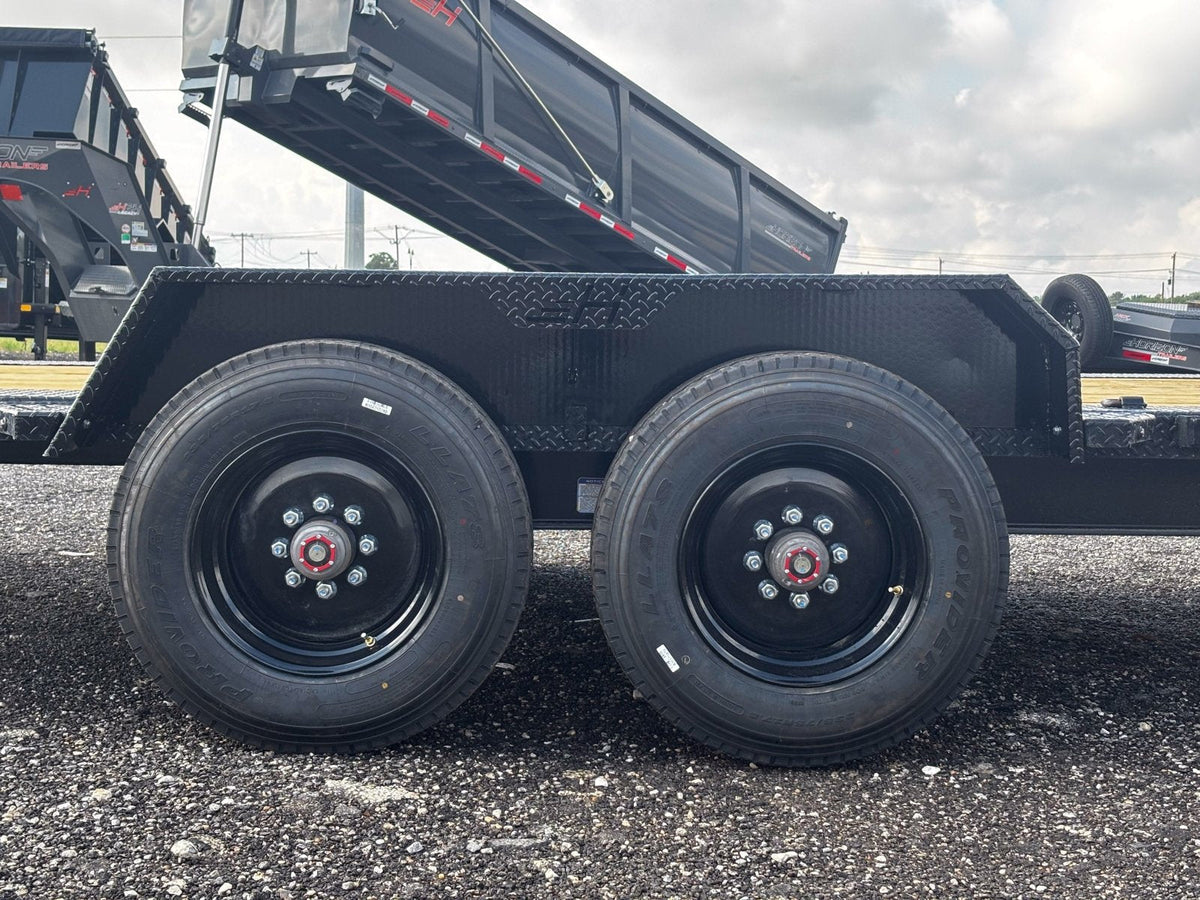

Running Gear
- Tires: ST235/75R17.5 18 Ply Tires Super Single (6,005 lbs)
- Rims: 17.5" Black Mod Wheels
- Axles: 2 - 10k Electric Brake Super Single Oil Bath Torsion Axles
- Suspension: Torsion
Electrical and Lighting

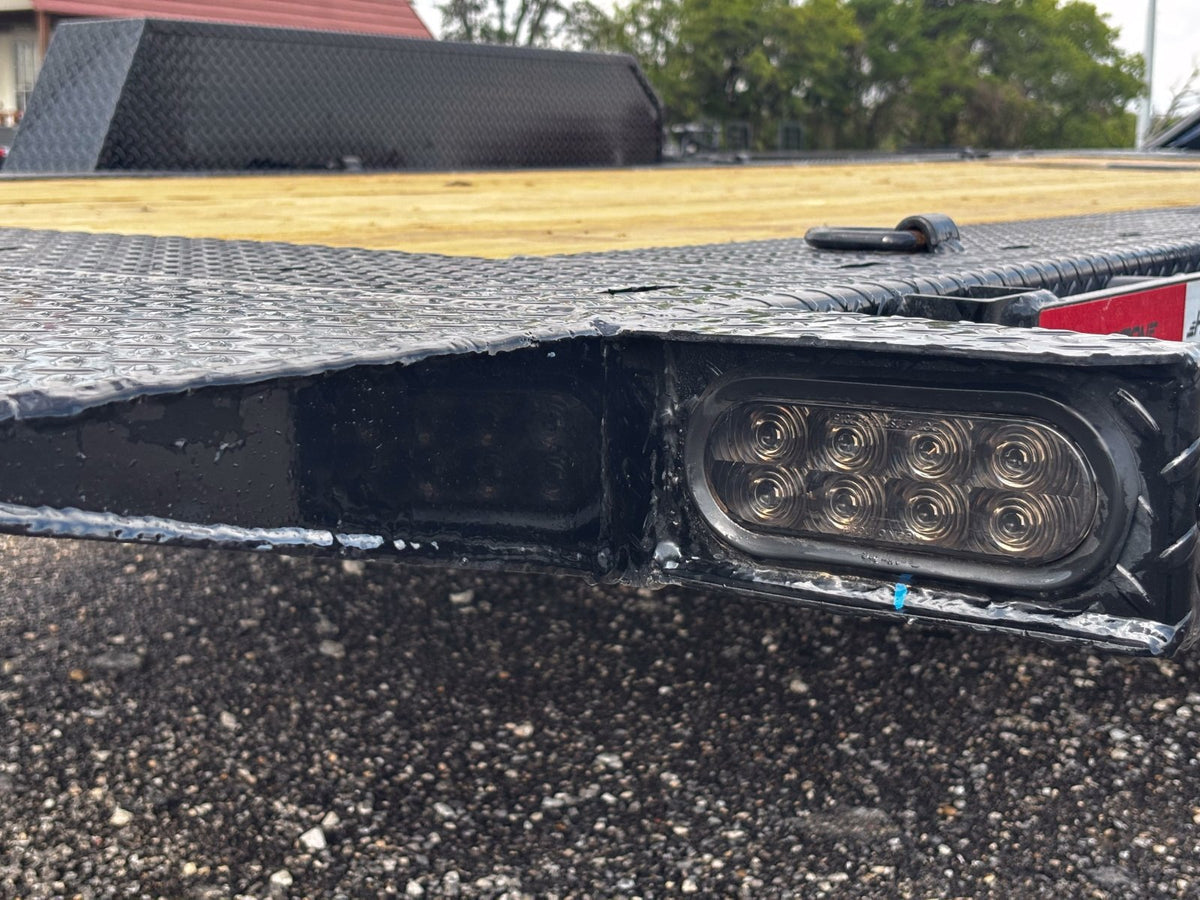

- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Tongue, jacks & toolbox (3): 12k Ram 2 Speed Jack; 12k Hydraulic Jack; 12k Hydraulic Jack w/ Low Temperature Hydraulic Oil
- Deck, tie-downs & ramps (9): 12" Crossmember Spacing; Full Deck Blackwood "Classic" Rubber Infused Lumber; 12ga. Diamond Plate Steel Deck; 4 - D-Rings (1/2" - 12,000 lbs) Welded Across Deck…
- Remotes & winch (6): Tuff Wireless 2 Button Remote (Hydraulic Jacks); Tuff Wireless 4 Button Remote (Hydraulic Jacks - Winch); 13.5k Steel Cable Winchmax Winch; 13.5k Synthetic Rope Winchmax Winch…
- Axles, suspension & tires (1): ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)
- Electrical & lighting (1): 7.5 Watt Solar Panel
- Paint & finish (3): 18ft Zinc Primer Undercoat; 20ft & Up Zinc Primer Undercoat; Fenders Painted Black
