PRODUCT DETAILS
Description

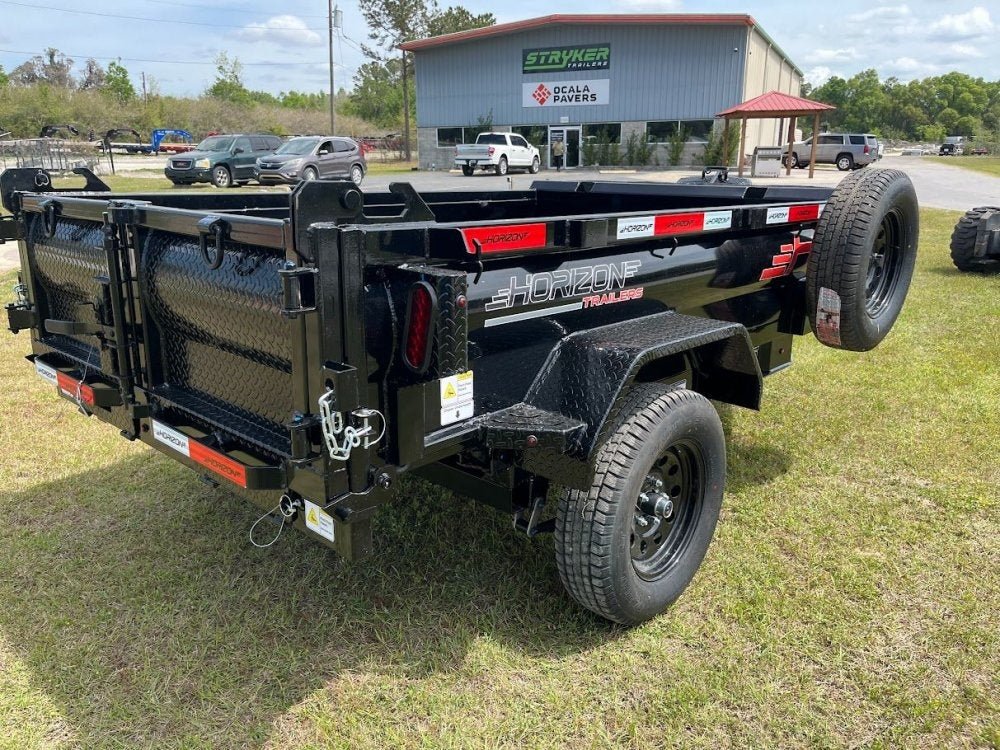

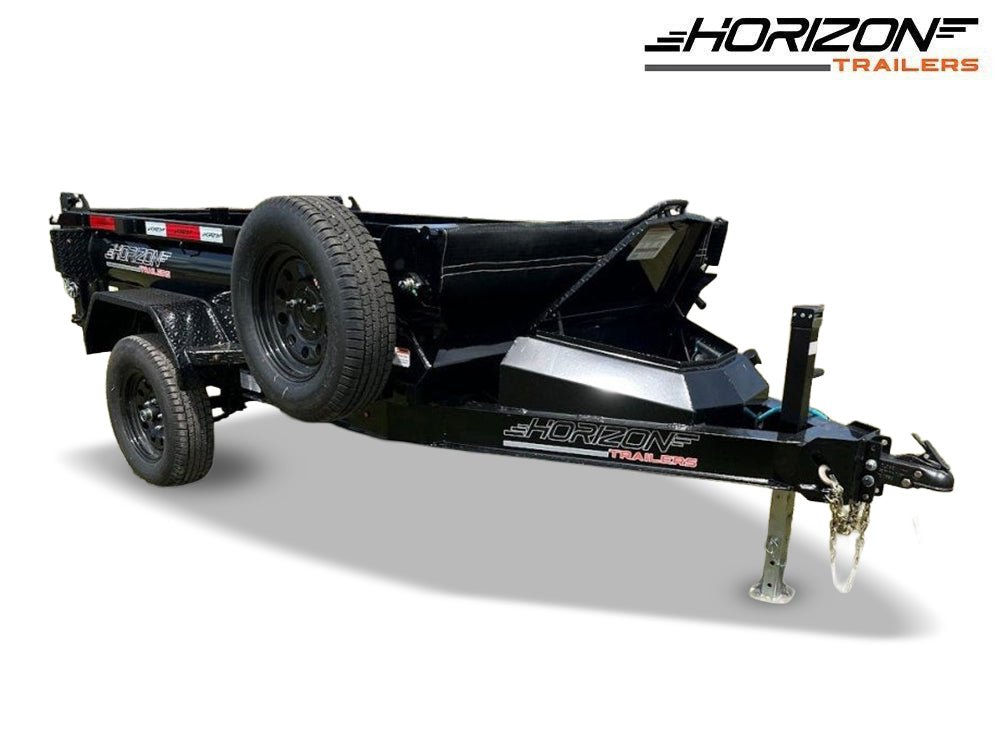

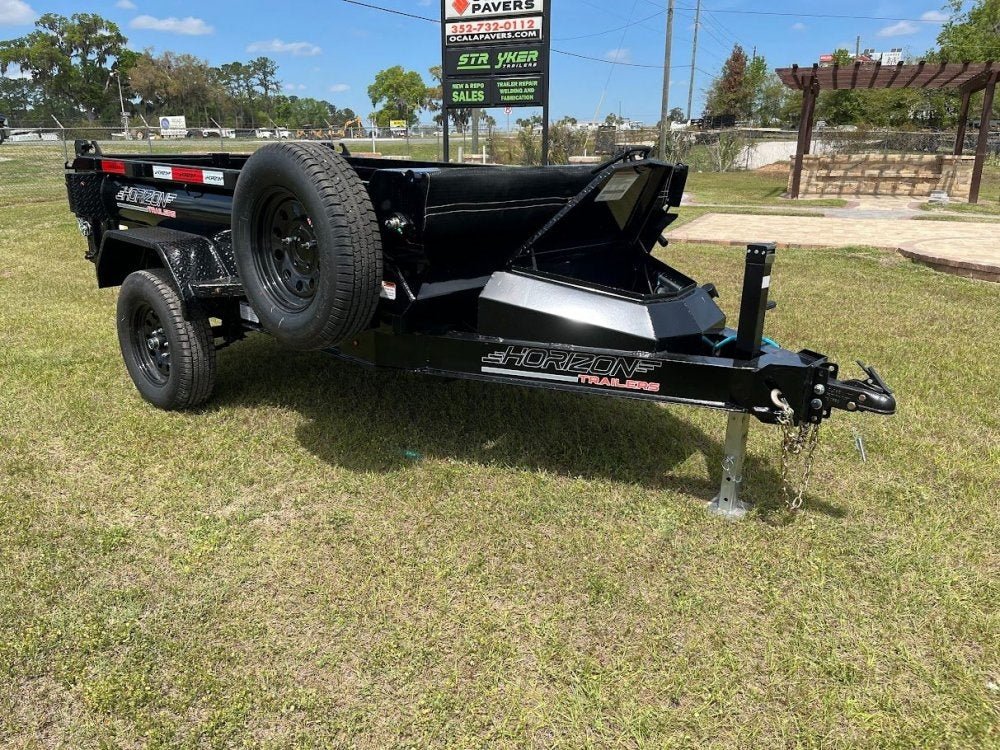

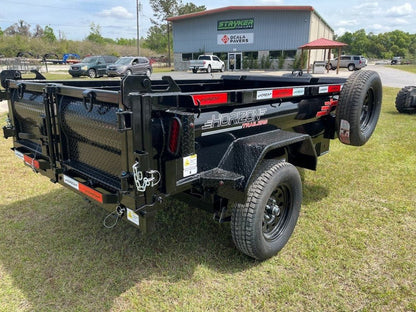

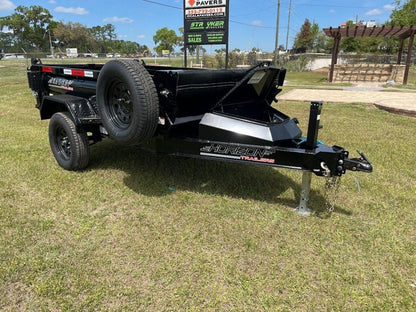

Build your Horizon HZ5 Bumper Pull Dump Trailer to order in 2 configurations from 8' to 10'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 8' (3.8K GVWR): $8,075
- 10' (7.6K GVWR): $9,057
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 8' to 10'
- GVWR: 3,800 lbs (8' Dump 1 Axle) 7,600 lbs(10' Dump 2 Axles)
- Axles: (1 Axle 8 ft Dump) 3.5k Electric Brake EZ Lube Spring Axle (2 Axles 10 ft Dump) 3.5k Electric Brake EZ Lube Spring Axles
- Tires: ST205/75R15 8 Ply Tires (2,150 lbs)
- Coupler: Adjustable Auto Latch 2,5/16" BP Coupler (17,000 lbs)
- Bed Width: 60"
- Sides: 18" High, 12ga Rounded Steel
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 3,800 lbs (8' Dump 1 Axle) 7,600 lbs(10' Dump 2 Axles)
Tongue
- Tongue: 6" I-Beam (8.5 lbs/ft)

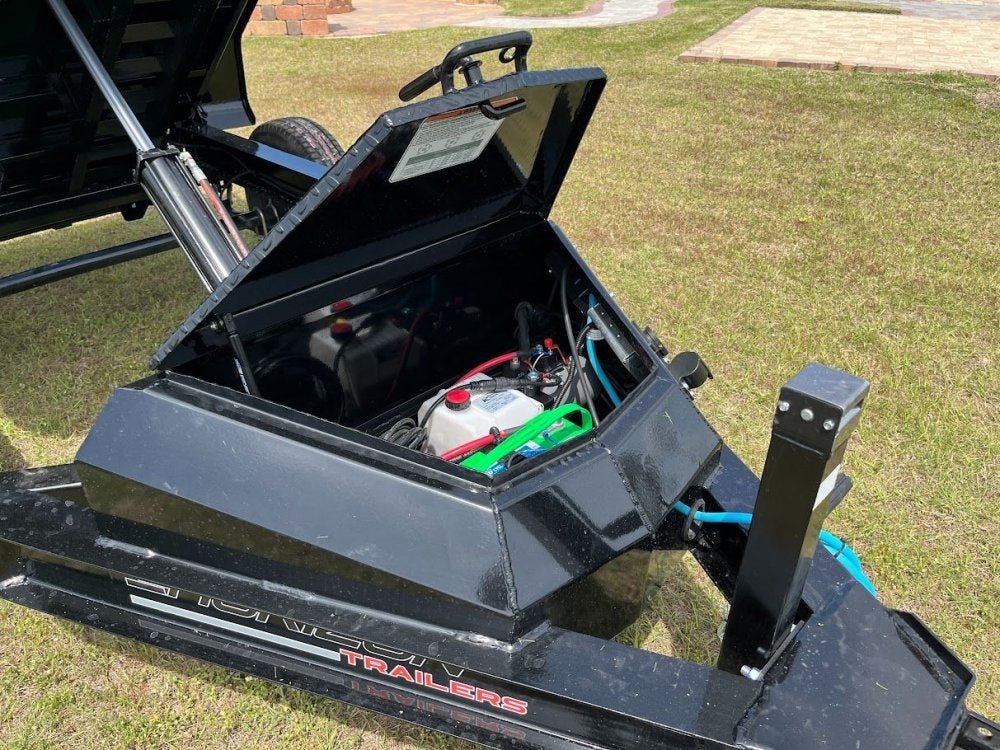

- Toolbox: Lockable Toolbox (Houses Battery and Pump)

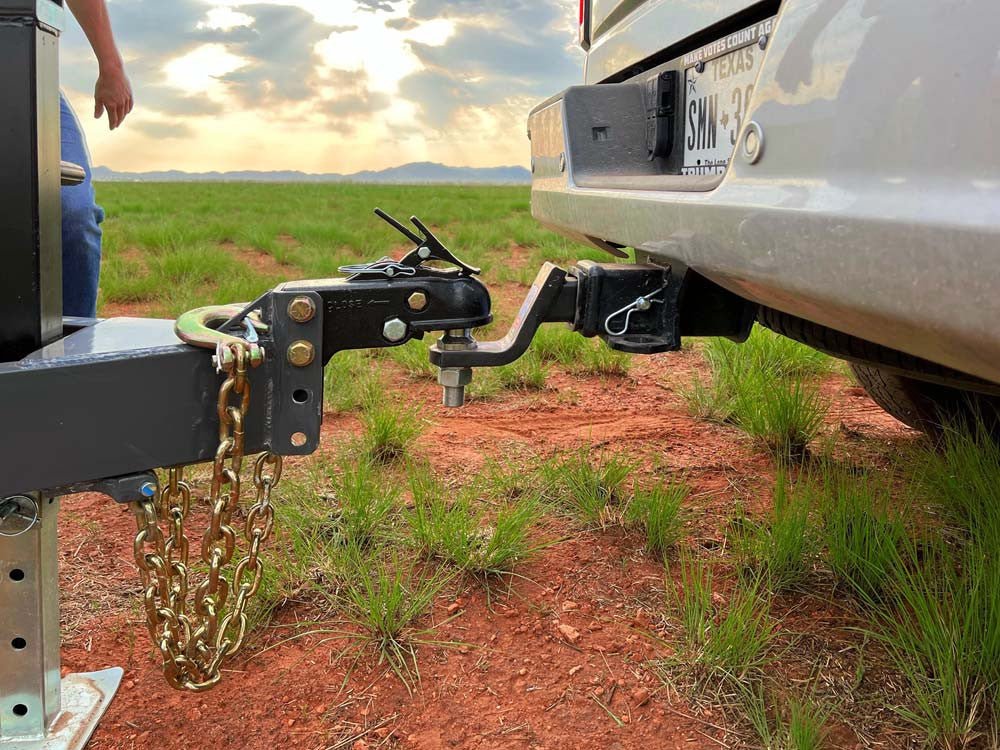

- Coupler: Adjustable Auto Latch 2,5/16" BP Coupler (17,000 lbs)
- Jack: 1 Side Wind Drop Jack Leg (7000 lbs)
- Safety Chains: 1/4" Grade 70 Safety Chain w/Clevis Hook (2 each)
Chassis
- Main Frame: 6" I-Beam (8.5 lbs/ft)
Dump
- Bed Width: 60"
- Top Rail Width: 60"
- Flooring: 9ga. Steel Bed
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 4 D-Rings Welded Inside Box
- Sides: 18" High, 12ga Rounded Steel

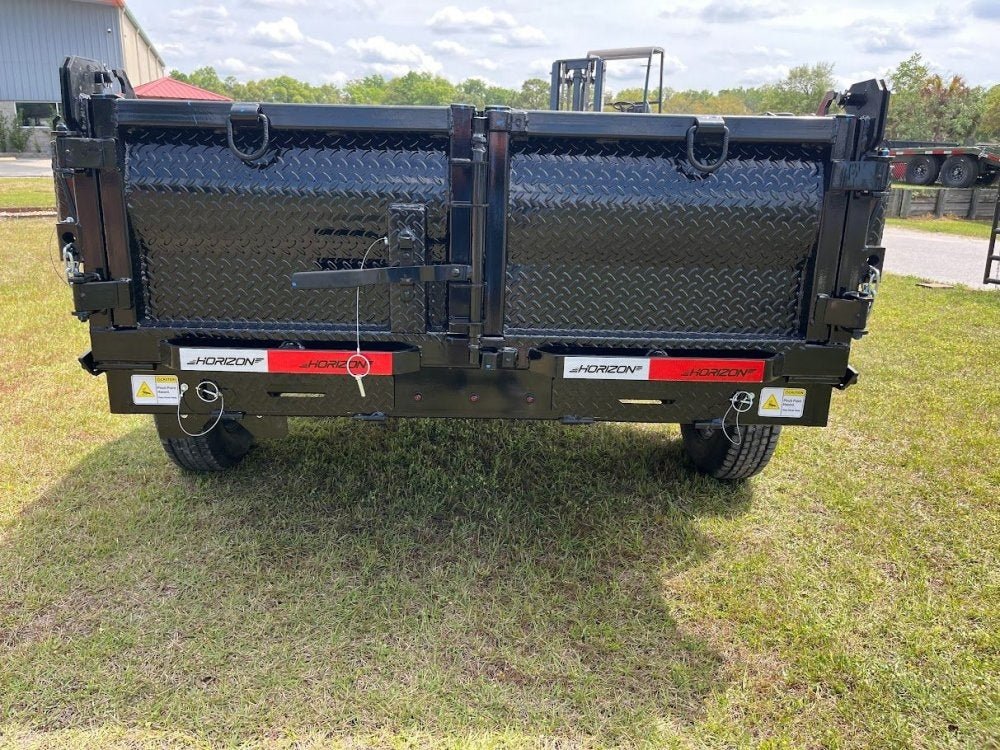

- Gate: 3 Way Door - Spreader Gate

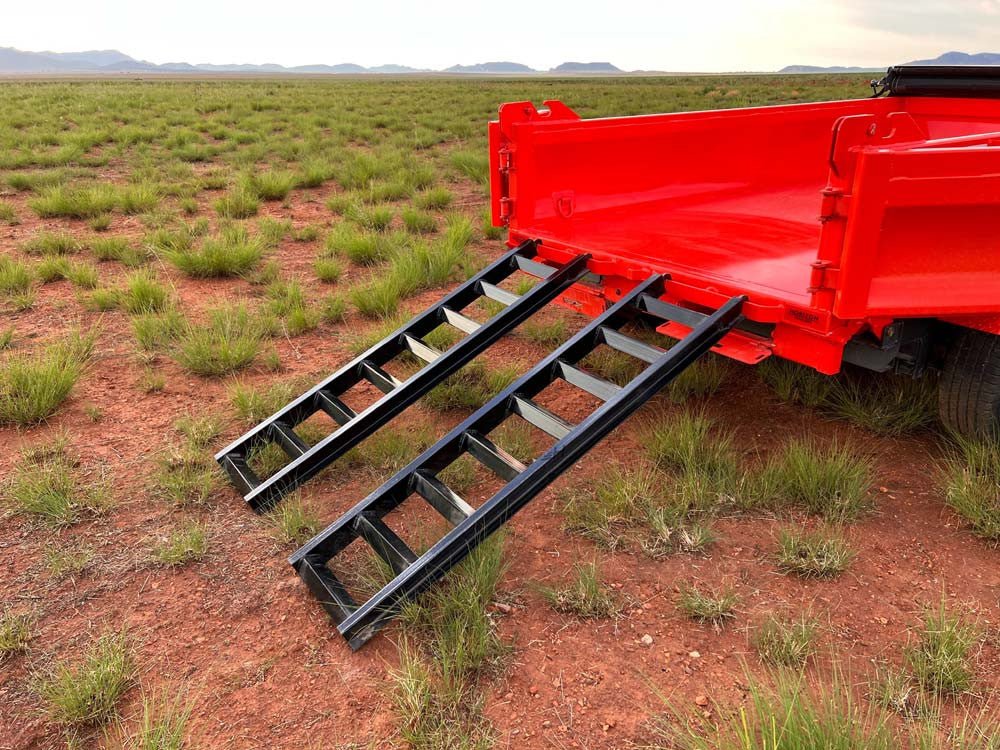

- Ramps: Ramp Pockets w/ 5' Long Slide In 3" Channel Ramps (4,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
- Spare: Weld On Spare Tire Mount
- Tarp: Manual Tarp Kit

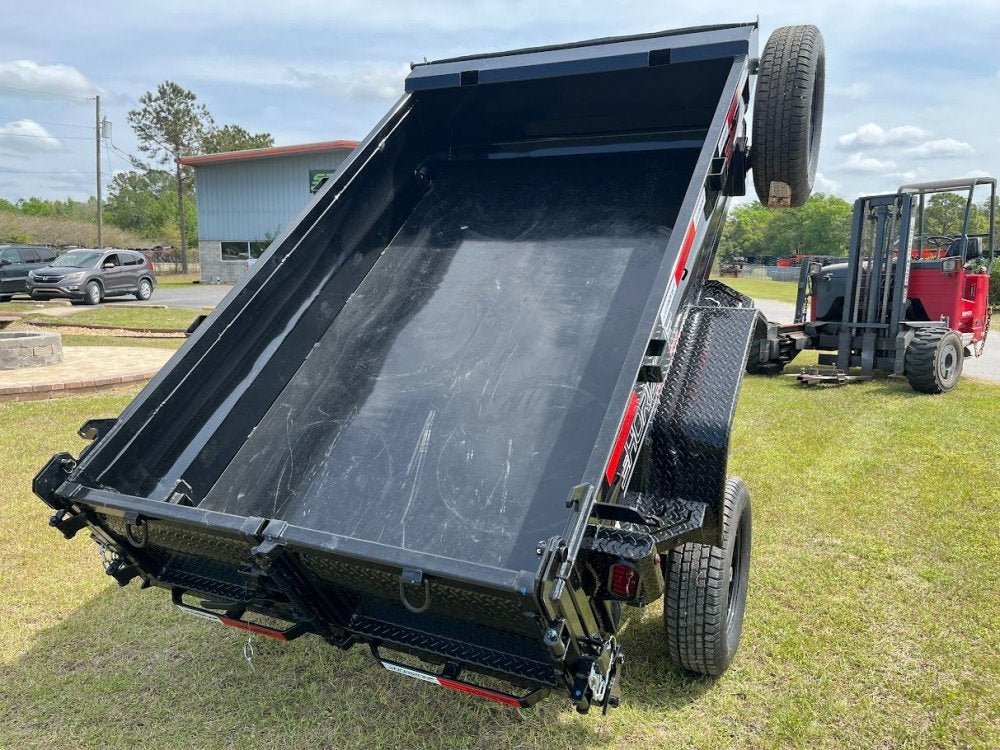

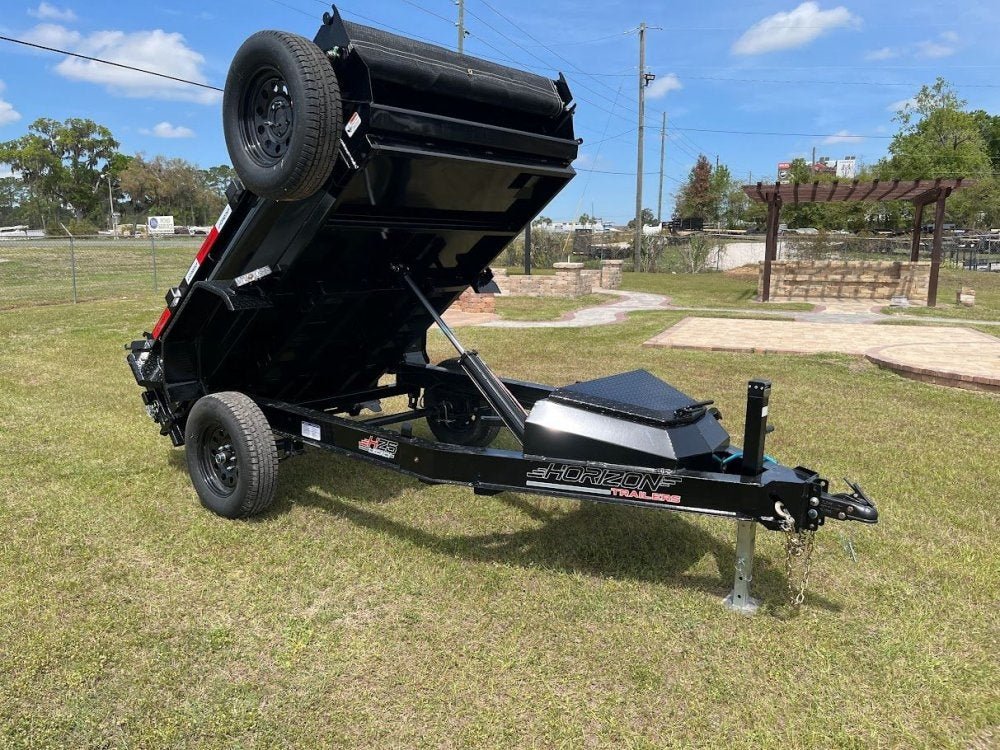

Lift System
- Single Cylinder: (8 ft) 3" x 24" Single Push Cylinder (7,000 lbs)
- Single Cylinder: (10 ft) 3" x 24" Single Push Cylinder (7,000 lbs)
- KTI 12V Hydraulic Pump: 2 Button Hydraulic - Power Up / Power Down
Running Gear
- Tires: ST205/75R15 8 Ply Tires (2,150 lbs)
- Rims: 15" Black Mod Wheels
- Axles: (1 Axle 8 ft Dump) 3.5k Electric Brake EZ Lube Spring Axle (2 Axles 10 ft Dump) 3.5k Electric Brake EZ Lube Spring Axles
- Suspension: Slipper Spring
Electrical and Lighting
- Battery: 1 - Interstate 27 Deep Cycle Battery
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Dump body (3): 2' High Sides; 3' High Sides (10ga.); 4' High Sides (10ga.)
- Lift & remotes (6): Tuff Wireless 2 Button Remote (Hoist or Telescopic); Hoist With 5" x 10" Single Push Cylinder (10,000 lbs) w/ Side Mounts w/ 5' Long 3" Channel Ramps; Telescopic Cylinder 8' Dump; Telescopic Cylinder 10' Dump…
- Axles, suspension & tires (7): ST225/75R15 10 Ply Tires (2,830 lbs); 1 - 5.2k Electric Brake EZ Lube Spring Axle (15"-10 Ply Tires Included); 2 - 5.2k Electric Brake EZ Lube Spring Axles (15"-10 Ply Tires Included); ST205/75R15 8 Ply Tires (2,150 lbs)…
- Electrical & lighting (1): 7.5 Watt Solar Panel
- Paint & finish (2): 2 - Tone Colors Chassis / Dump - Deck; Zinc Primer Undercoat
