PRODUCT DETAILS
Description

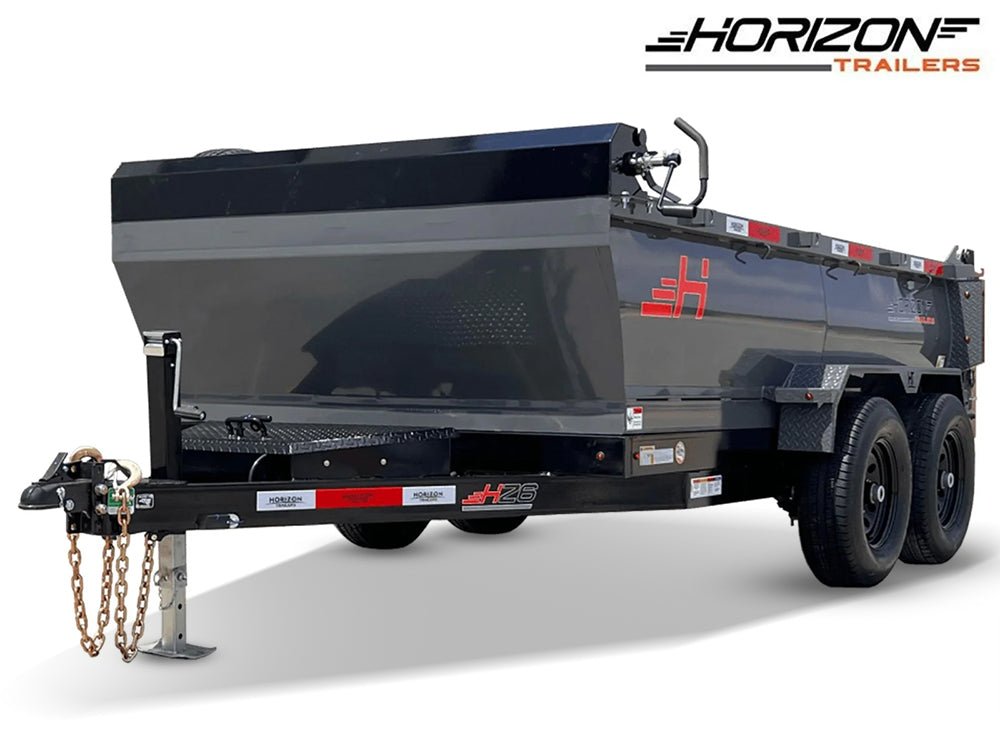

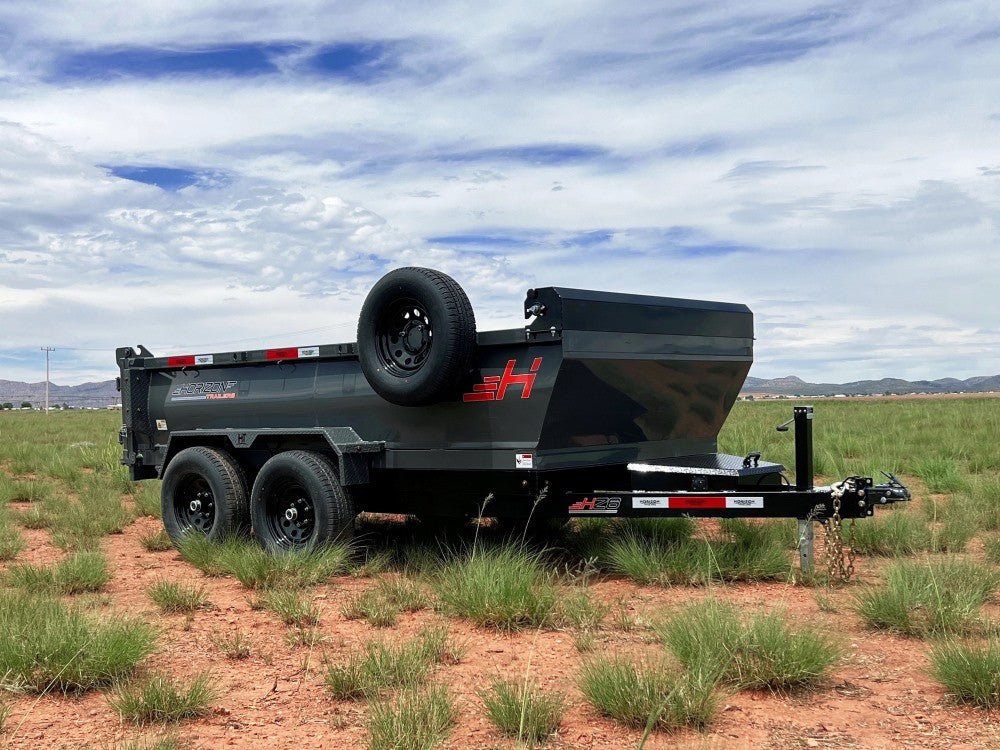

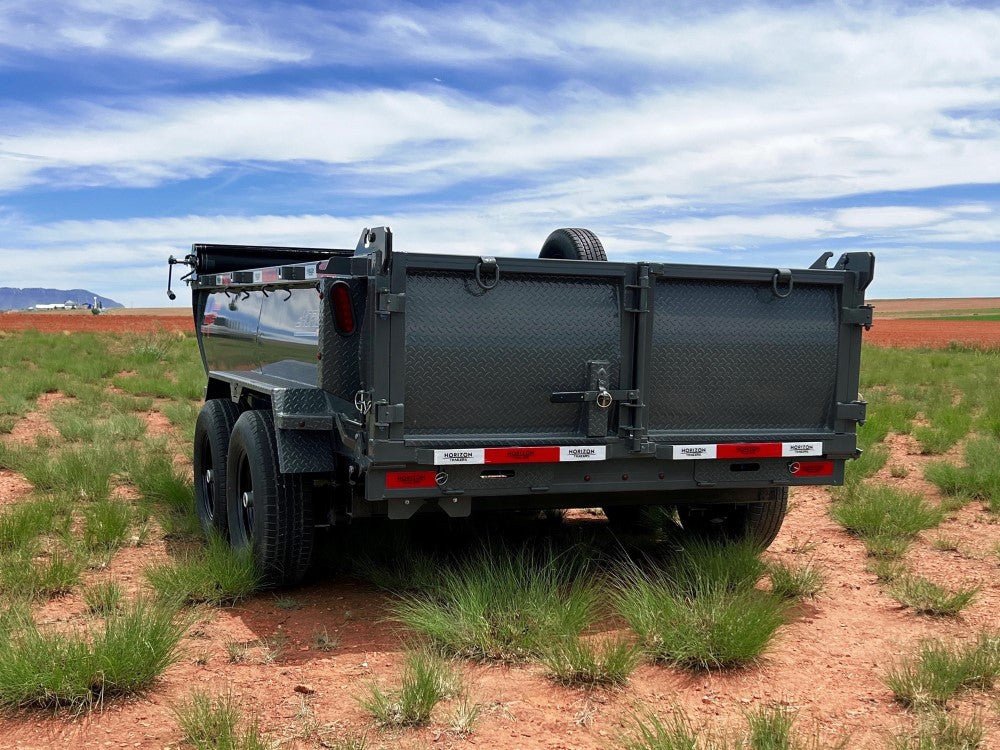

Build your Horizon HZ6 Bumper Pull Dump Trailer to order at 12'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 12' (11.3K GVWR): $11,240
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 12'
- GVWR: 11,300 lbs
- Axles: 2 - 5.2k Electric Brake EZ Lube Spring Axles
- Tires: ST225/75R15 10 Ply Tires (2,830 lbs)
- Coupler: Adjustable Auto Latch 2,5/16" BP Coupler (17,000 lbs)
- Bed Width: 77"
- Sides: 2' High, 12ga Rounded Steel
- Hoist: 5" x 16" Single Push Cylinder Hoist (10,000 lbs)
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 11,300 lbs
Tongue
- Tongue: 6" I-Beam (8.5 lbs/ft)

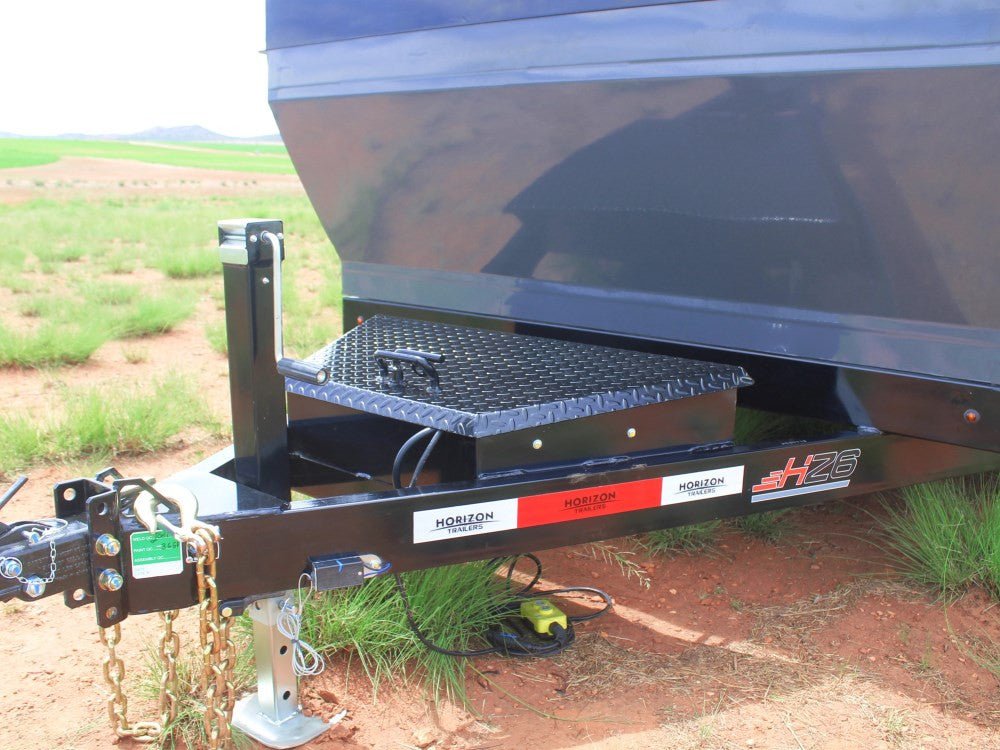

- Toolbox: Lockable Toolbox (Houses Battery and Pump)

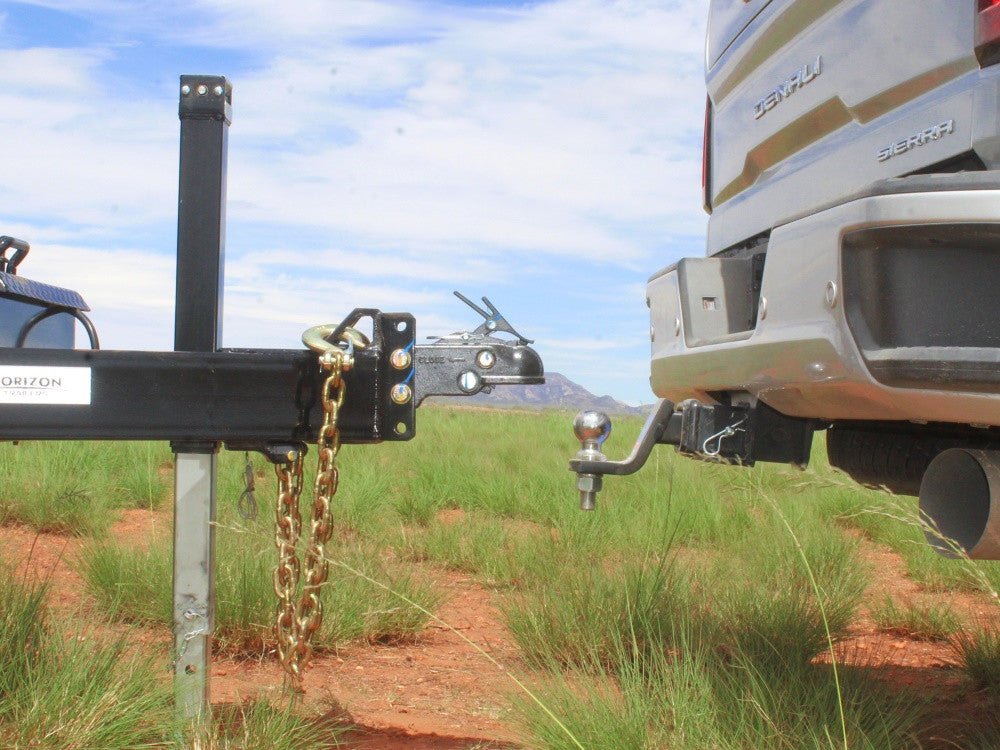

- Coupler: Adjustable Auto Latch 2,5/16" BP Coupler (17,000 lbs)
- Jack: 1 Side Wind Drop Jack Leg (7000 lbs)
- Safety Chains: 1/4" Grade 70 Safety Chain w/Clevis Hook (2 each)
Chassis
- Main Frame: 6" I-Beam (8.5 lbs/ft)
Dump
- Bed Width: 77"
- Top Rail Width: 77"
- Flooring: 9ga. Steel Bed
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 4 D-Rings Welded Inside Box
- Sides: 2' High, 12ga Rounded Steel

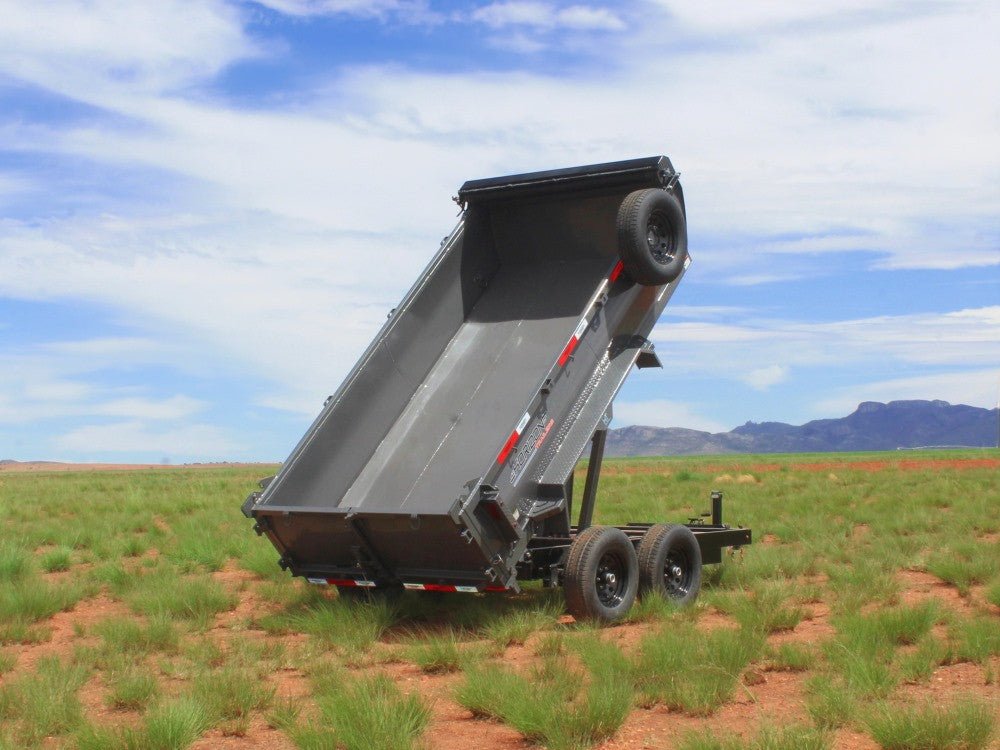

- Gate: 3 Way Door - Spreader Gate
- Ramps: Ramp Pockets w/ 5' Long Slide In 3" Channel Ramps (4,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
- Spare: Weld On Spare Tire Mount

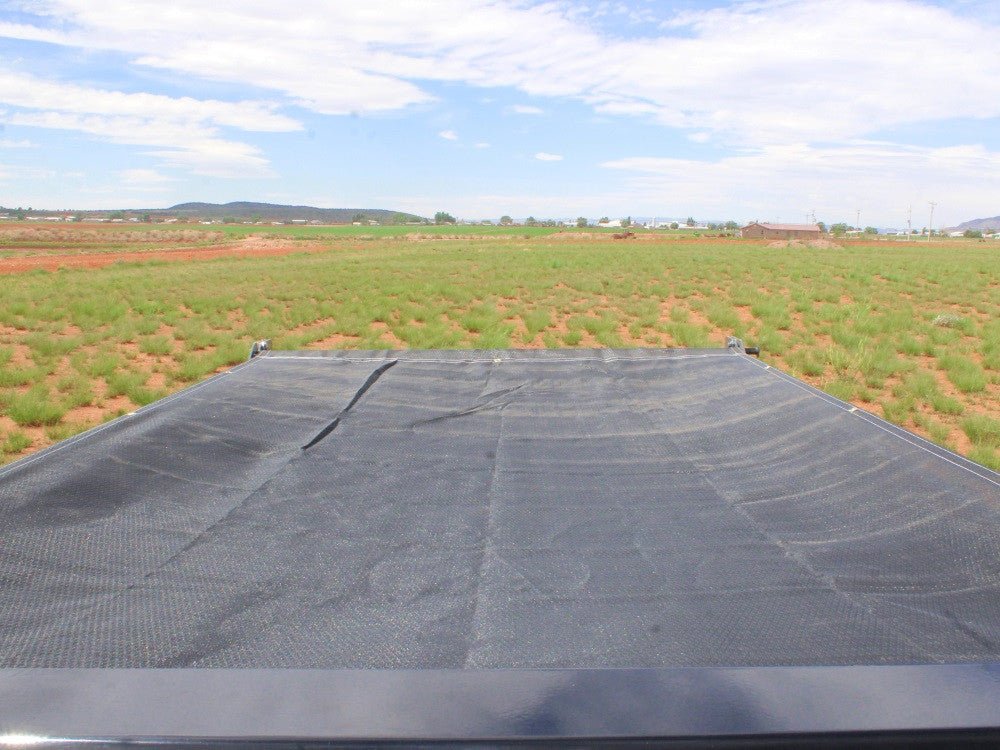

- Tarp: Manual Tarp Kit
Lift System

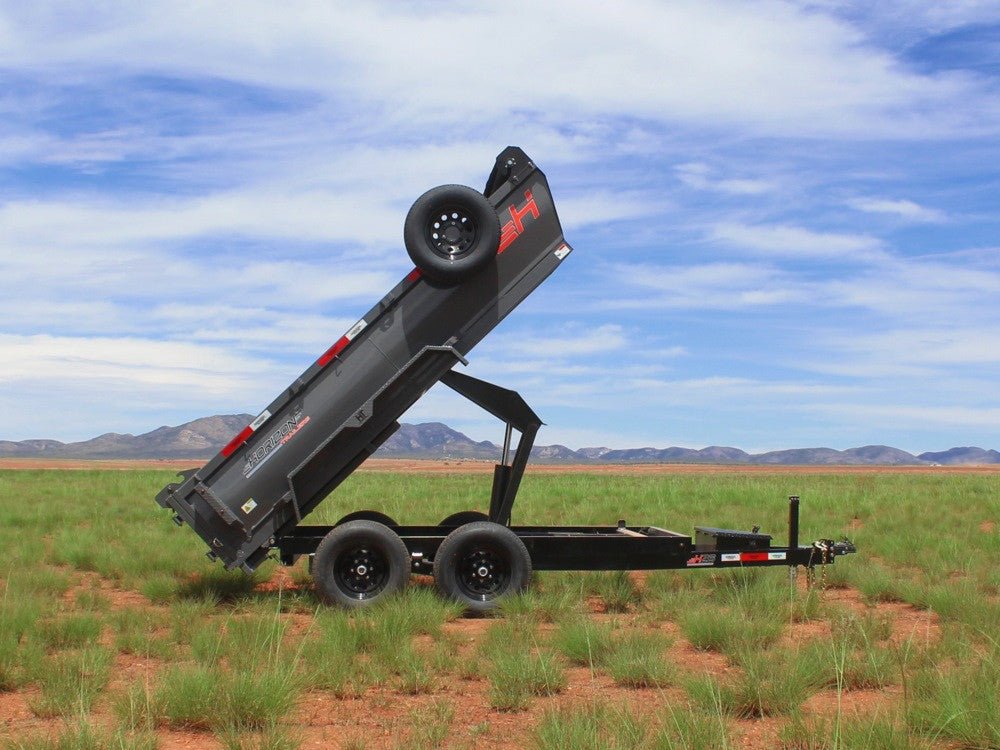

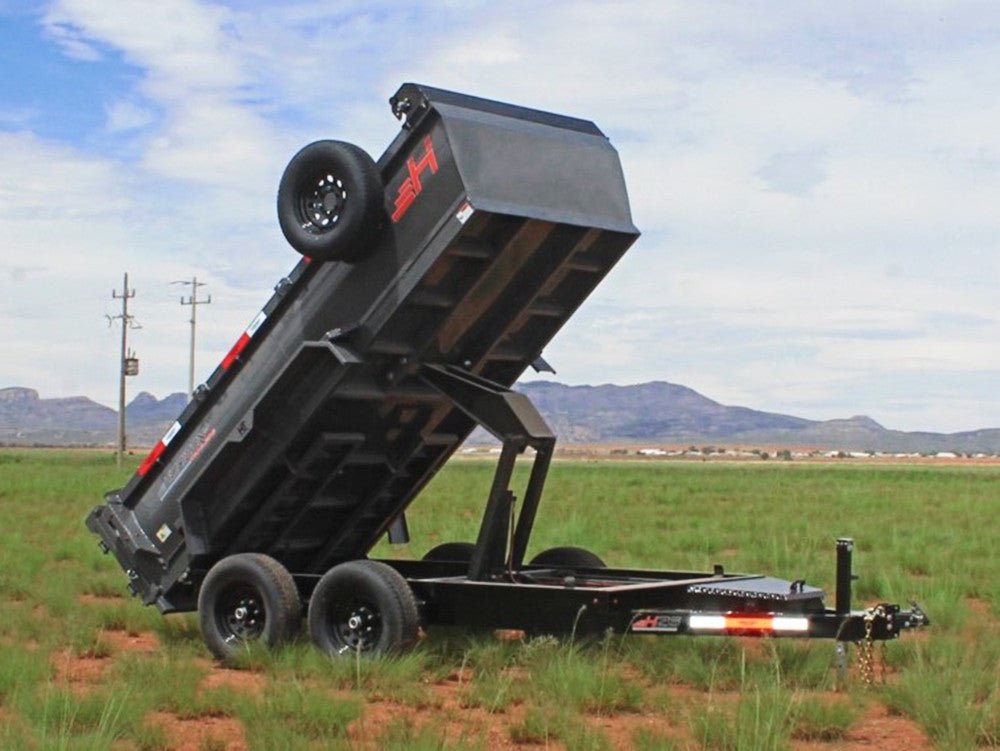

- Hoist: 5" x 16" Single Push Cylinder Hoist (10,000 lbs)
- KTI 12V Hydraulic Pump: 2 Button Hydraulic - Power Up / Power Down
Running Gear
- Tires: ST225/75R15 10 Ply Tires (2,830 lbs)
- Rims: 15" Black Mod Wheels
- Axles: 2 - 5.2k Electric Brake EZ Lube Spring Axles
- Suspension: Slipper Spring
Electrical and Lighting
- Battery: 1 - Interstate 27 Deep Cycle Battery
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Dump body (2): 3' High Sides (10ga.); 4' High Sides (10ga.)
- Lift & remotes (4): Tuff Wireless 2 Button Remote (Hoist or Telescopic); Telescopic Cylinder 12' Dump; Low Temperature Hydraulic Oil; Low Temperature Hydraulic Oil (Telescopic)
- Axles, suspension & tires (1): ST225/75R15 10 Ply Tire (2,830 lbs)
- Electrical & lighting (1): 7.5 Watt Solar Panel
- Paint & finish (2): 2 - Tone Colors Chassis / Dump - Deck; Zinc Primer Undercoat
