PRODUCT DETAILS
Description

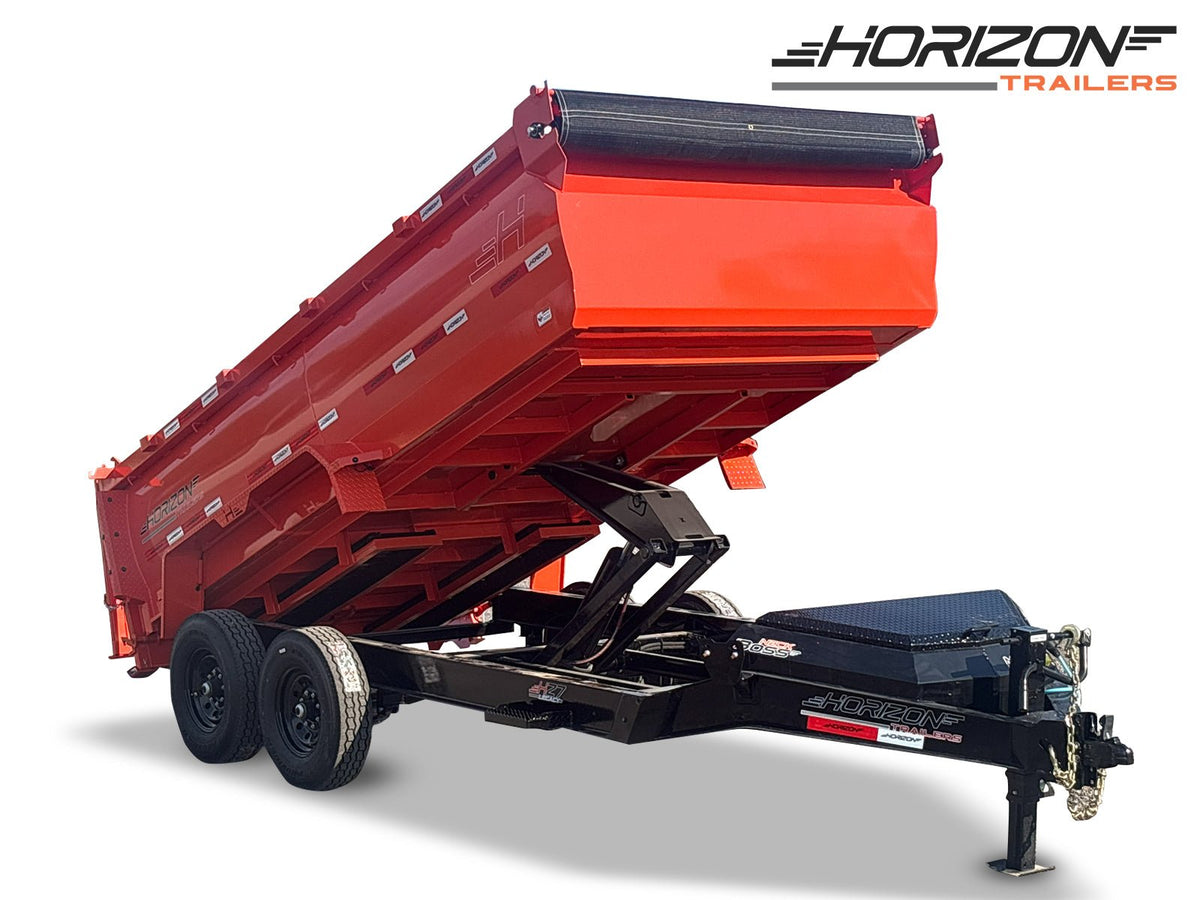

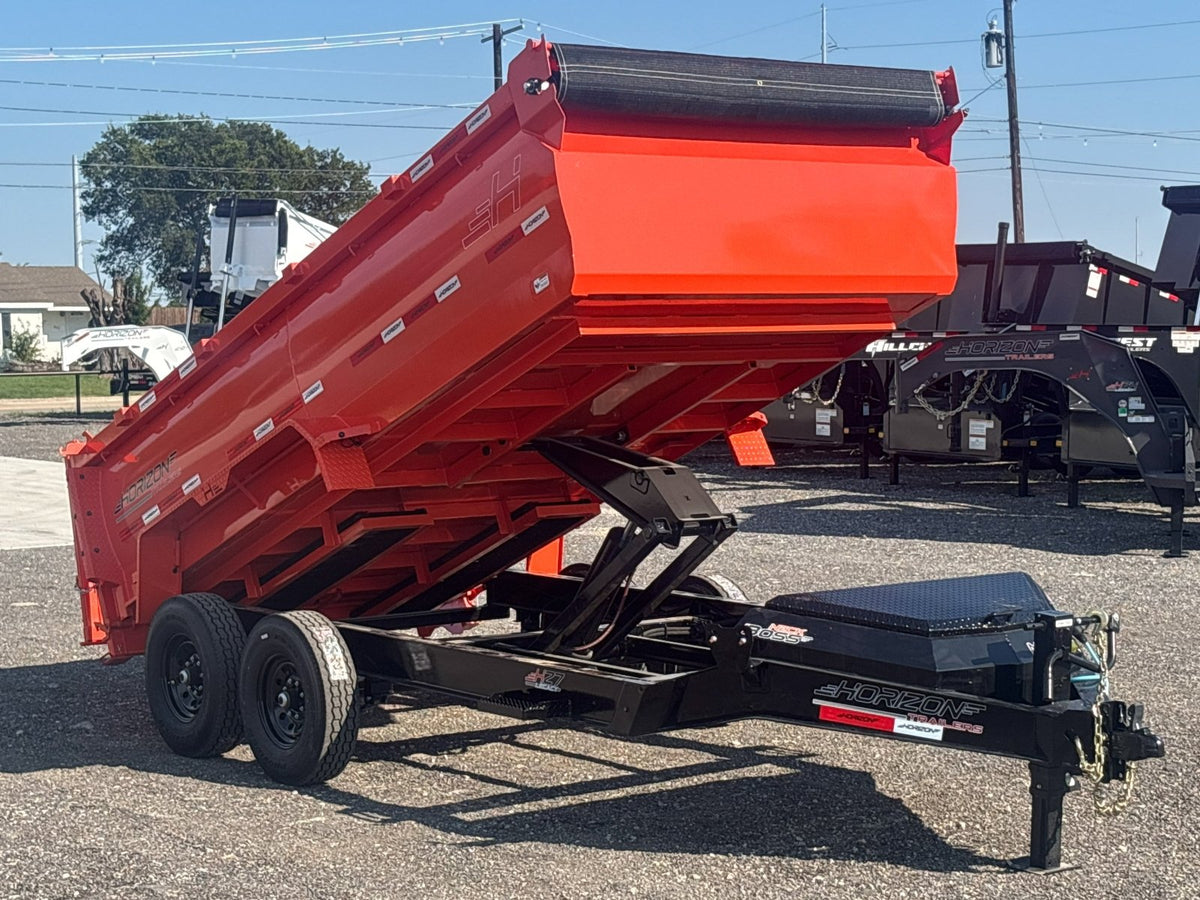

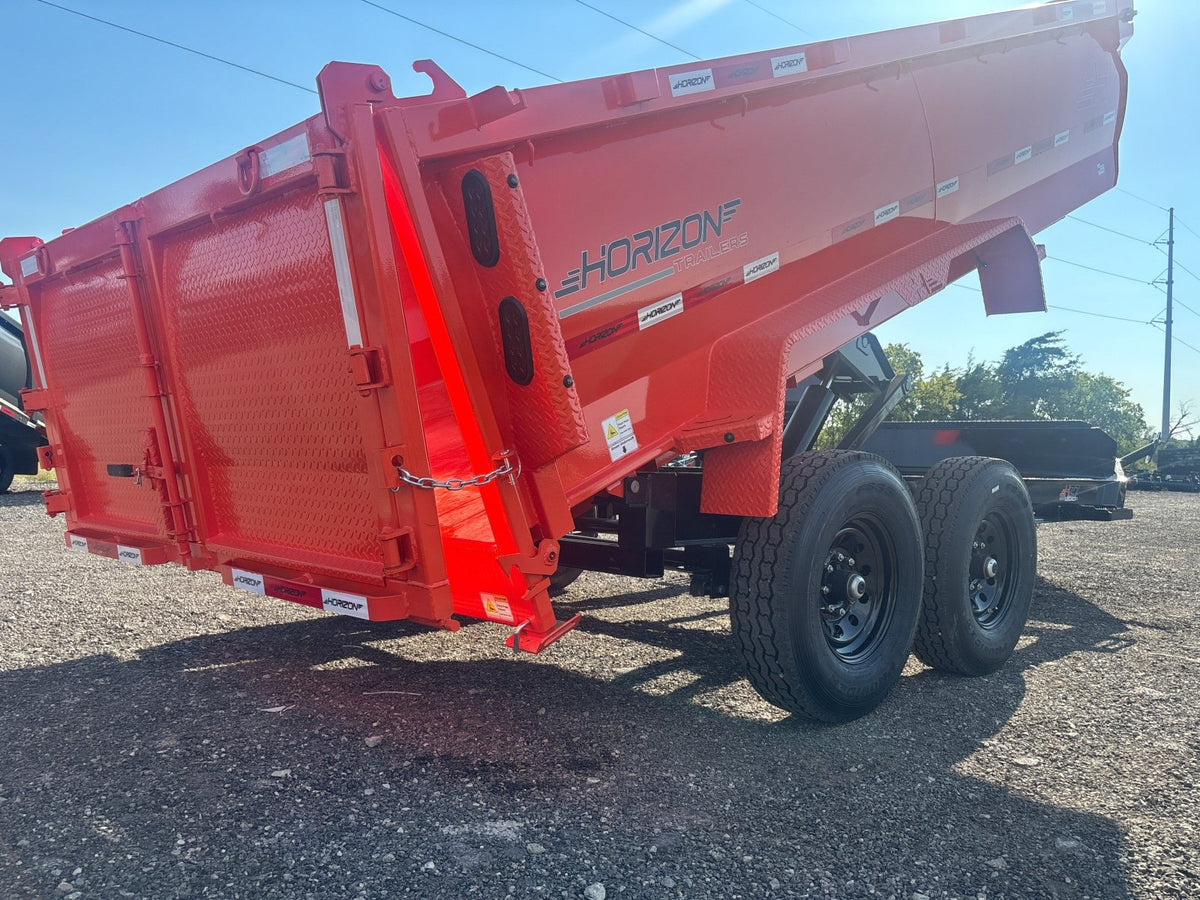

Build your Horizon HZ7 Bumper Pull Dump Trailer to order in 3 configurations from 12' to 16'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 12': $14,143
- 14': $14,790
- 16': $15,350
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 12' to 16'
- GVWR: 15,200 lbs
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Bed Width: 83"
- Sides: Side Step On Both Sides
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 15,200 lbs

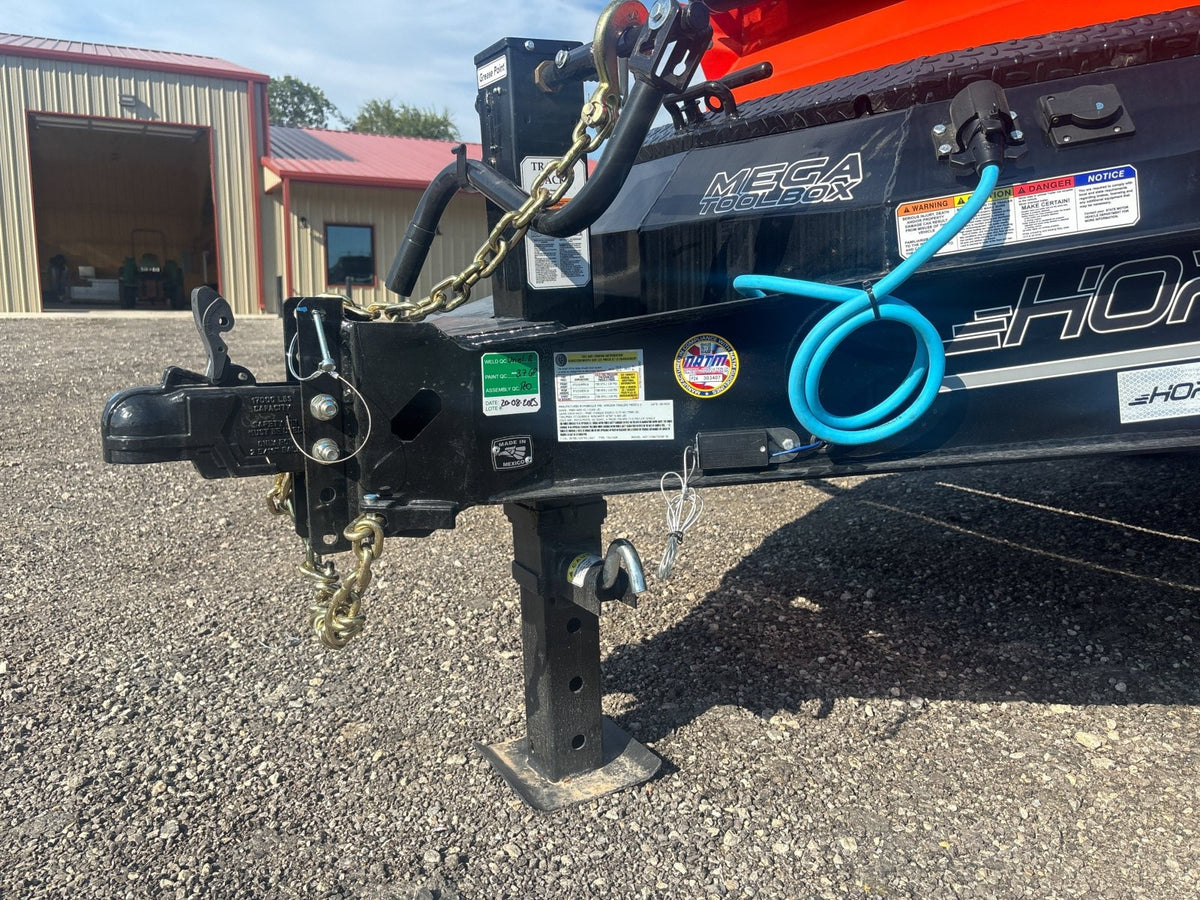

Tongue
- Tongue: Neckboss 8" Tapered Engineered I-Beam

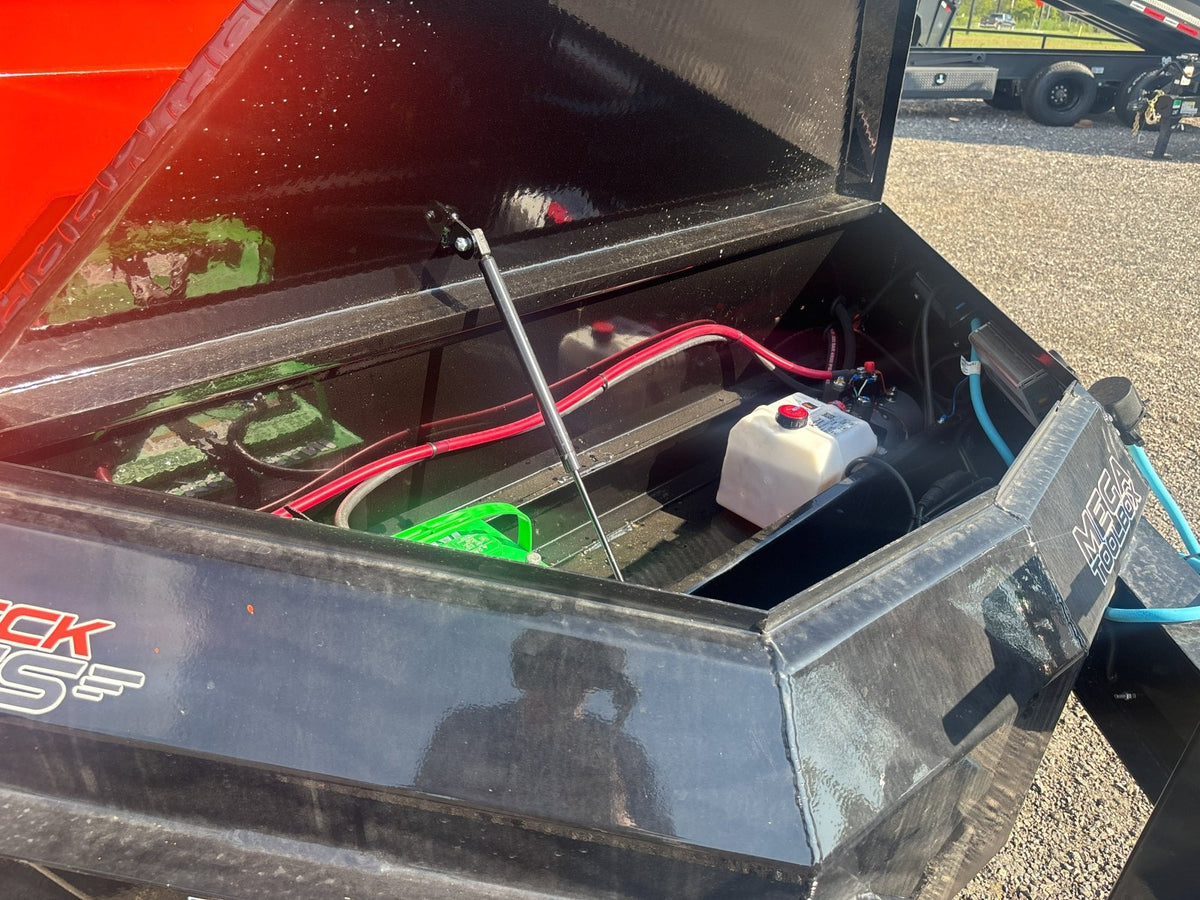

- Toolbox: Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)
- 15.2K - 17K GVWR Standard Coupler: Adjustable Auto Latch 2-5/16" Bp Coupler (17,000 lbs)
- 21K GVWR Standard Coupler: Adjustable Auto Latch 2-5/16" Bp Coupler (21,000 lbs)
- Jack: 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
Chassis
- Main Frame: 8" I-Beam (13 lbs/ft)

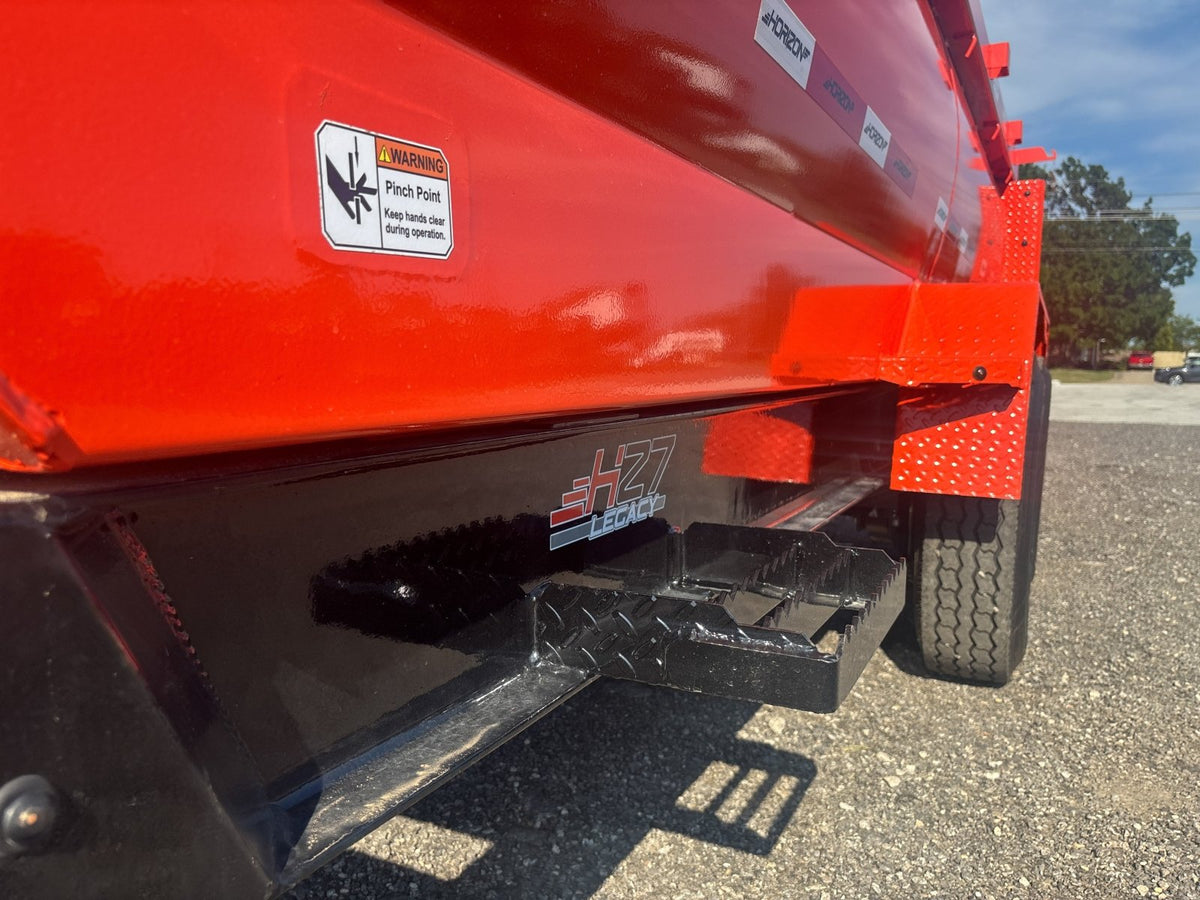

- Sides: Side Step On Both Sides
Dump
- Bed Width: 83"
- Top Rail Width: 83"
- Flooring: 7ga. Steel Bed
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 4 D-Rings Welded Inside Box
- Sides: 2' High, 10ga. Rounded Steel

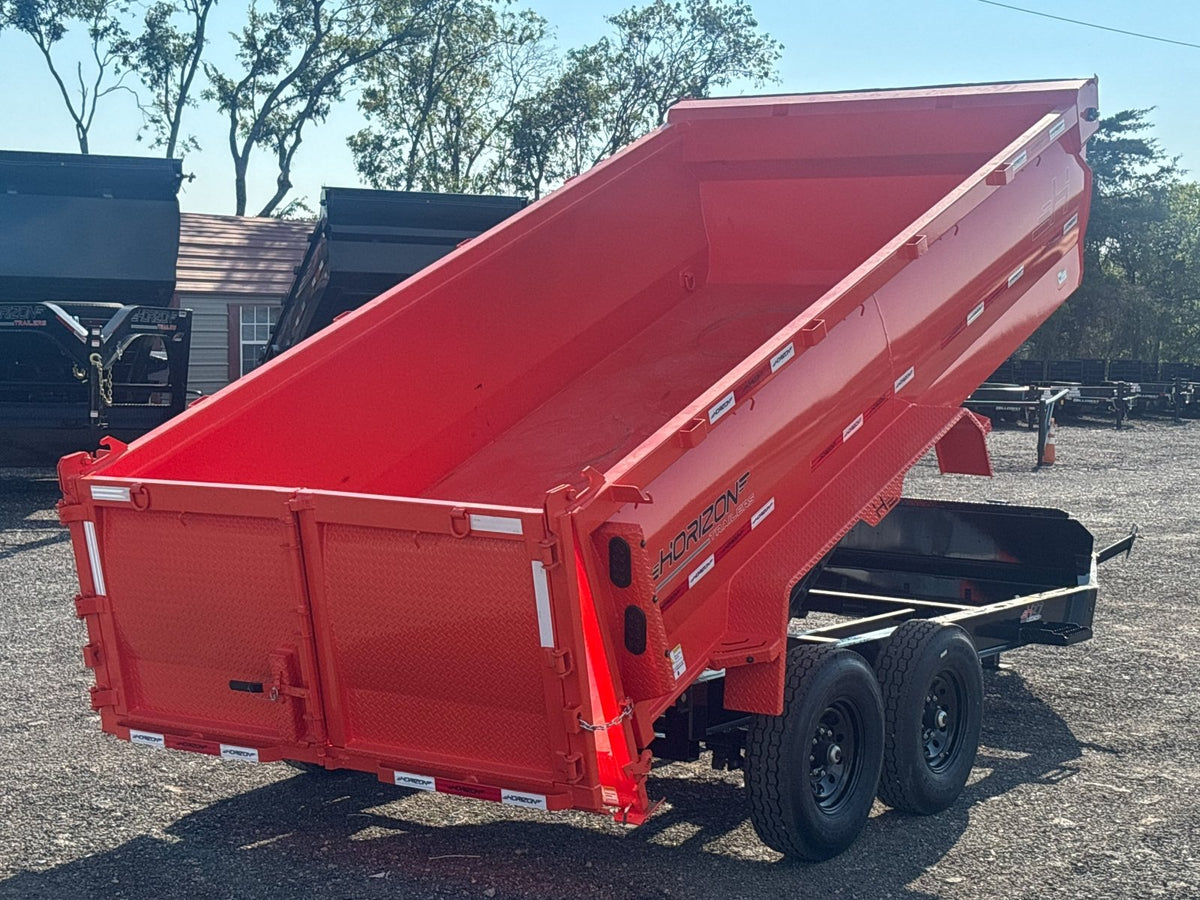

- Gate: 3 Way Door - Spreader Gate

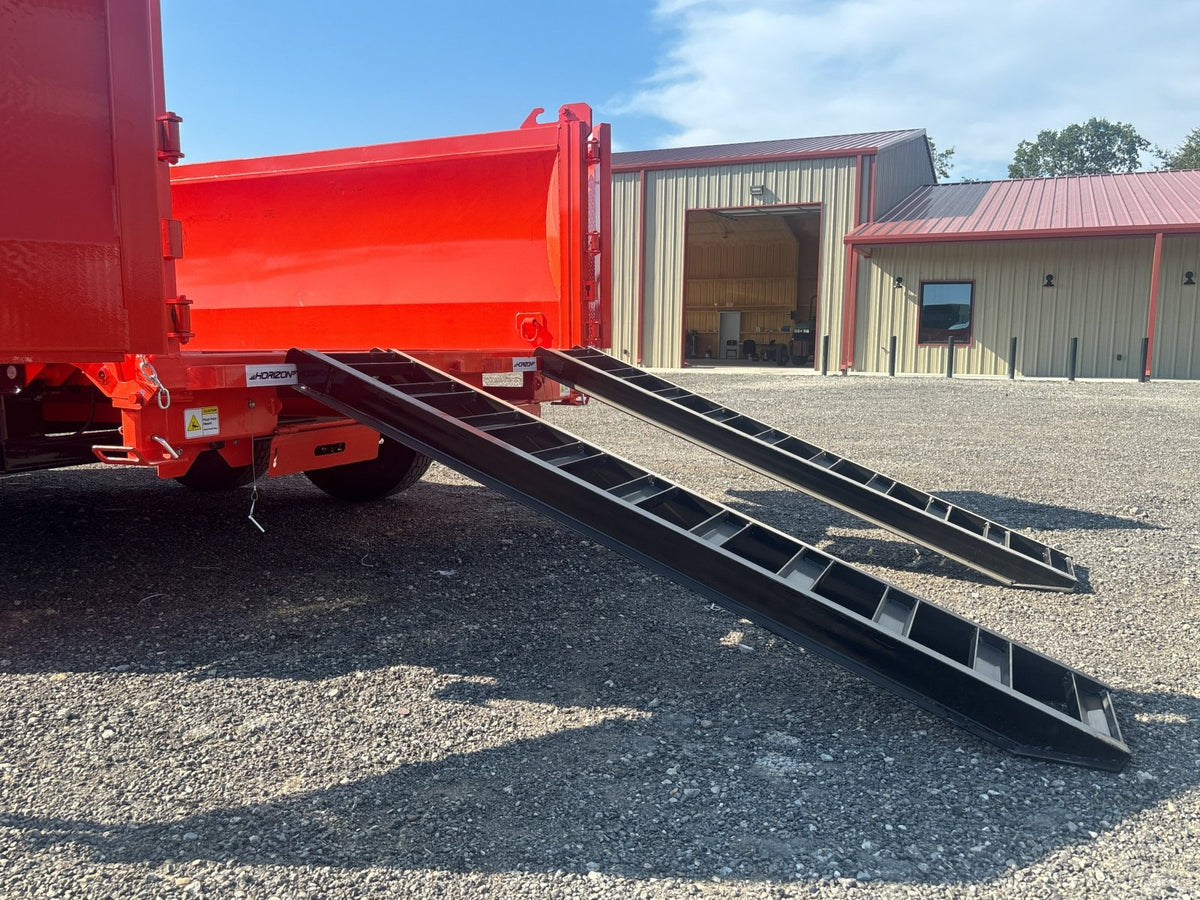

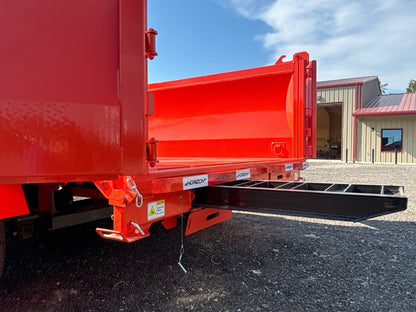

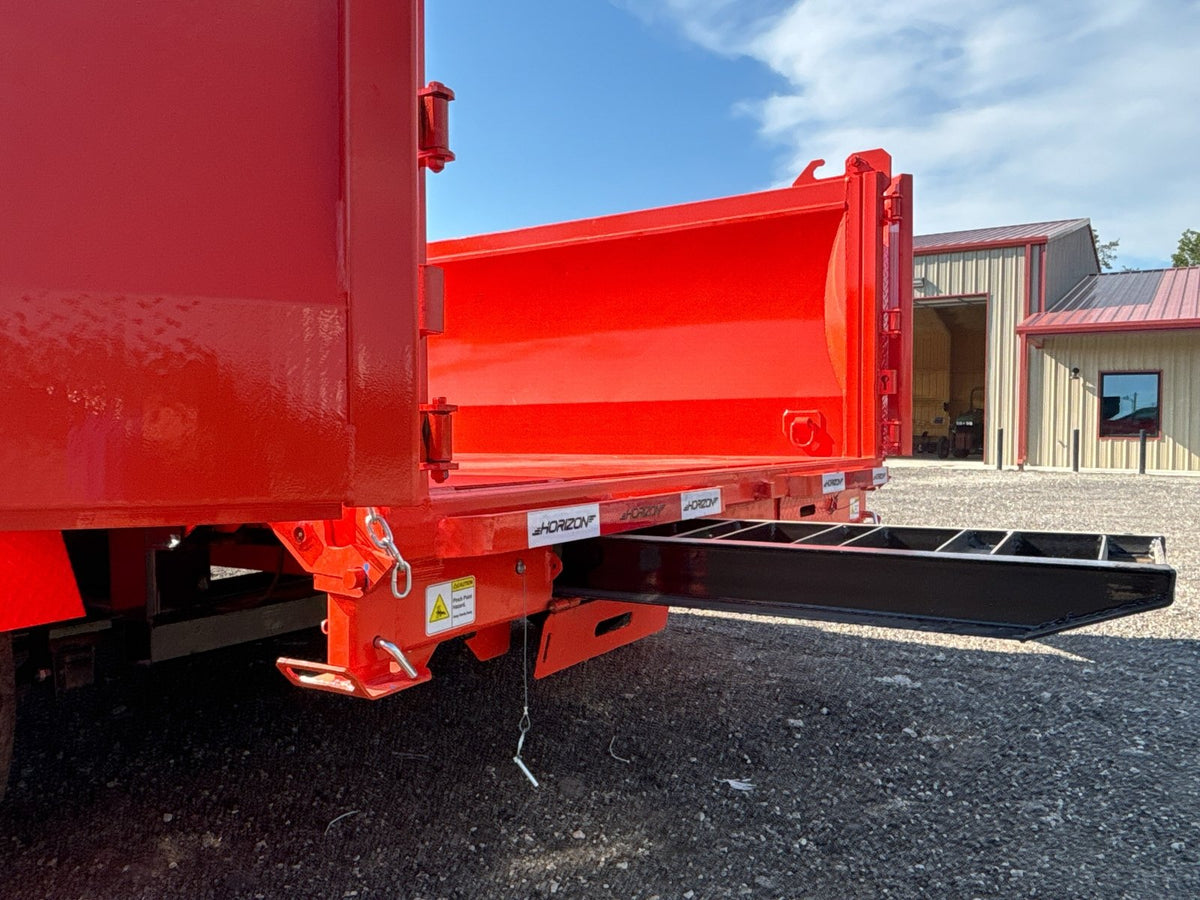

- Ramps: Ramp Pockets w/ 6' 4" Long Heavy Duty Slide In 4" Channel Ramps (7,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)

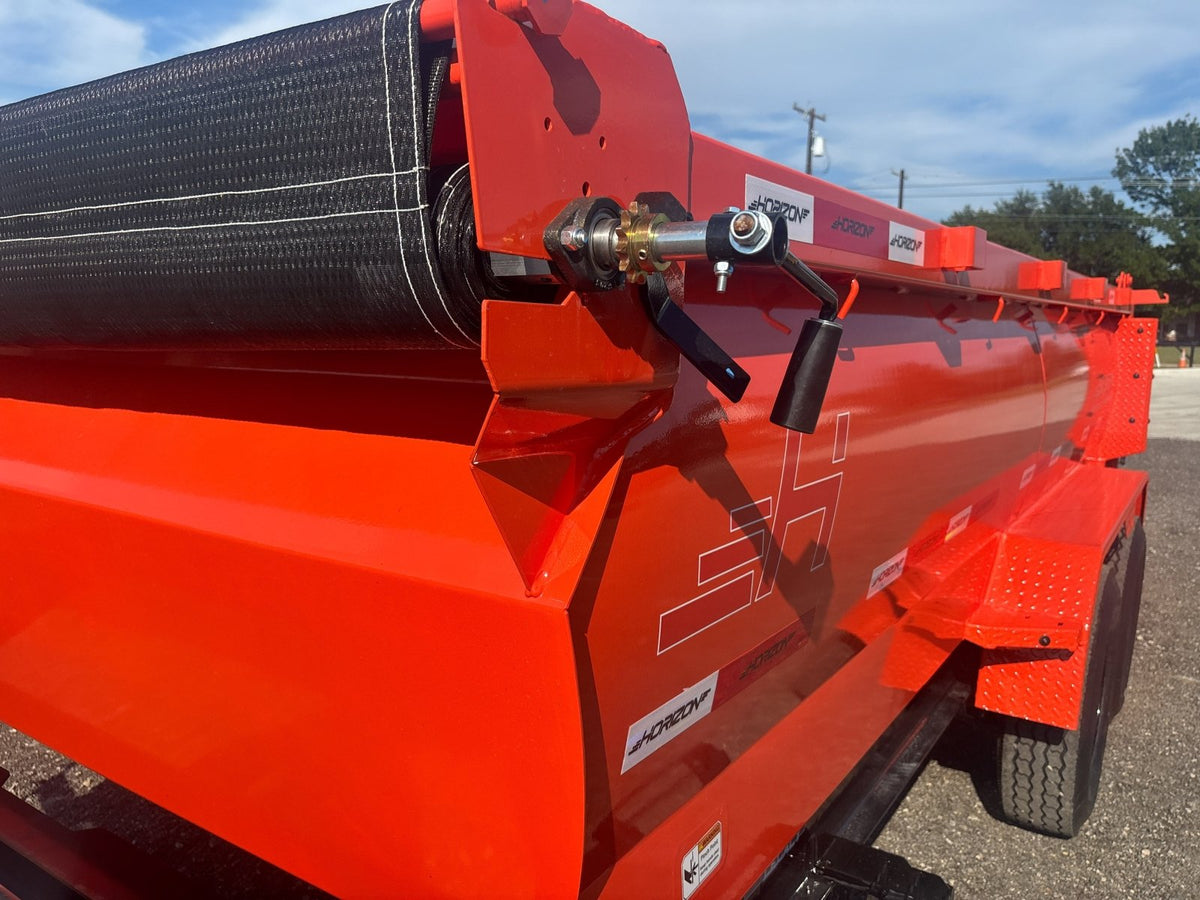

- Tarp: Manual Tarp Kit
Lift System
- Hoist 12' Dump: 5" x 16" Single Push Cylinder Hoist (15,000 lbs)
- Hoist 14', 16' Dump: 6" x 21" Single Push Cylinder Hoist 20,000 lbs
- KTI 12V Hydraulic Pump: 2 Button Hydraulic - Power Up / Power Down

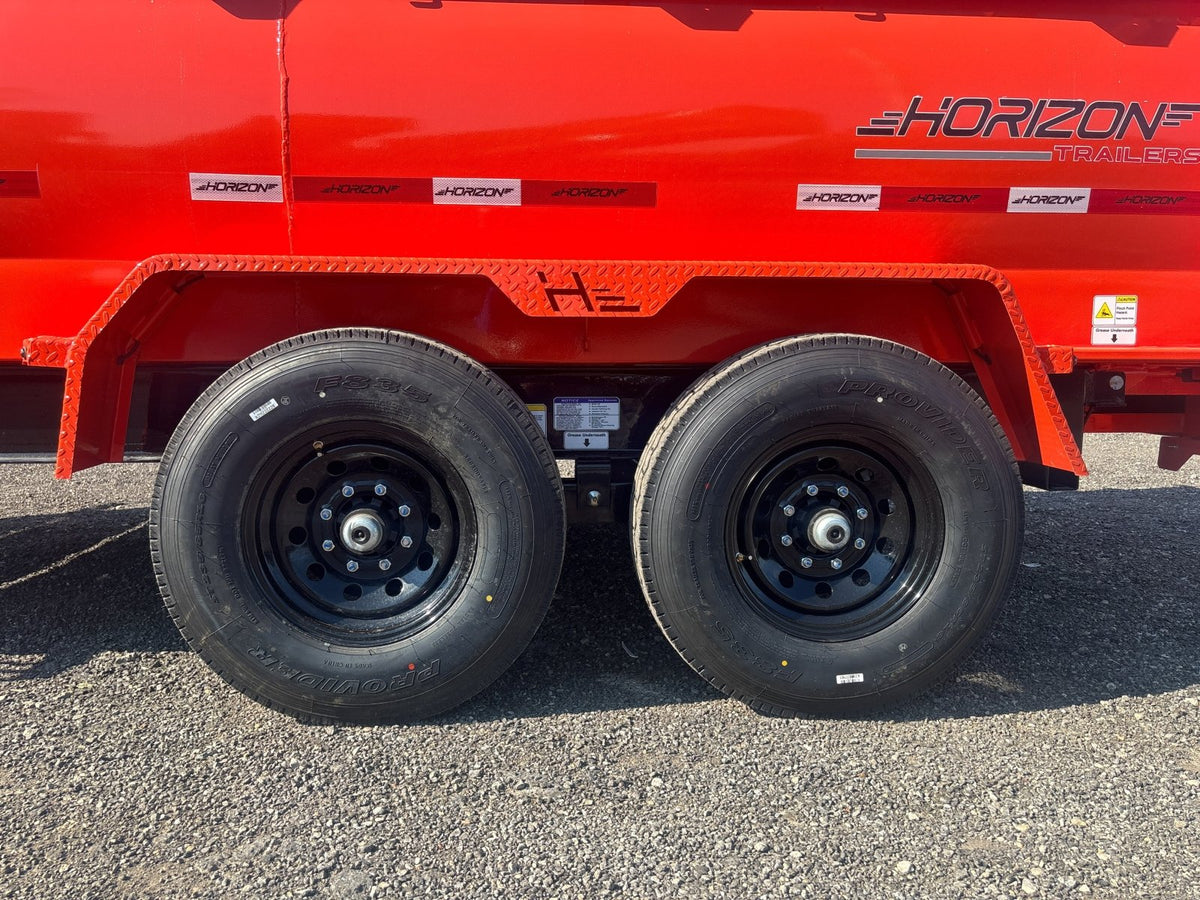

Running Gear
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Rims: 16" Black Mod Wheels
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Suspension: Spring
Electrical and Lighting
- Battery: 1 - Interstate 27 Deep Cycle Battery

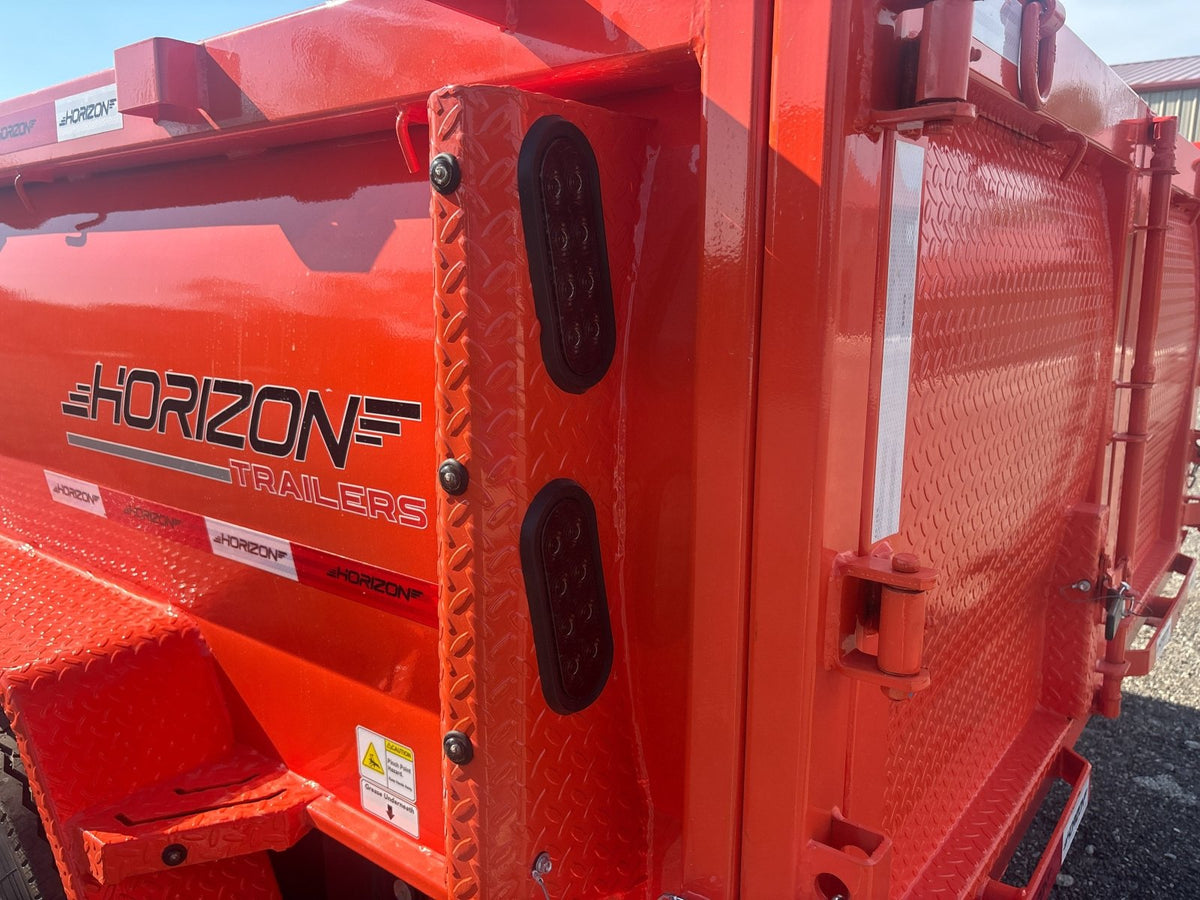

- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Tongue, jacks & toolbox (4): 12k Ram 2 Speed Jack; 12k Hydraulic Jack; 12k Hydraulic Jack w/ Low Temperature Hydraulic Oil; 12k Hydraulic Jack w/ Low Temperature Hydraulic Oil (Telescopic)
- Frame & undercarriage (2): 8" I-Beam (15 lbs/ft) Frame Upgrade; Fork Pockets
- Dump body (9): 3' High Sides; 4' High Sides; 8" Extensions Boards; 8" Integrated Wood Extension Brackets…
- Lift & remotes (8): Tuff Wireless 2 Button Remote (Hoist or Telescopic); Tuff Wireless 2 Button Remote (Hoist - Hydraulic Jacks); Tuff Wireless 4 Button Remote (Telescopic - Hydraulic Jacks); Telescopic Cylinder 12' Dump…
- Axles, suspension & tires (15): ST235/85R16 14 Ply Tires Singles (4,400 lbs); Aluminum Rims w/ ST235/80R16 10 Ply Tires (3,520 lbs); Aluminum Rims w/ ST235/85R16 14 Ply Tires (4,400 lbs); 3 - 7k Electric Brake EZ Lube Spring Axles (8" I-Beam (15 LBS/FT) Frame Upgrade / 16"-10 PLY Tires Included)…
- Electrical & lighting (1): 7.5 Watt Solar Panel
- Paint & finish (3): 2 - Tone Colors Chassis / Dump - Deck; 12ft-14ft Zinc Primer Undercoat; 16ft Zinc Primer Undercoat
