PRODUCT DETAILS
Description

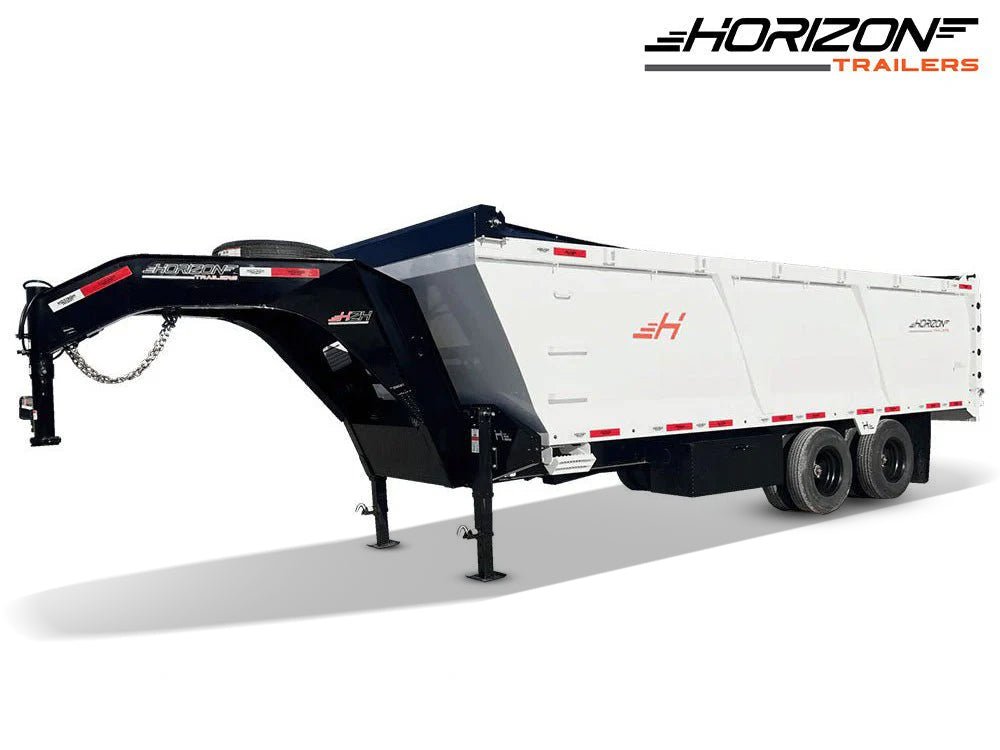

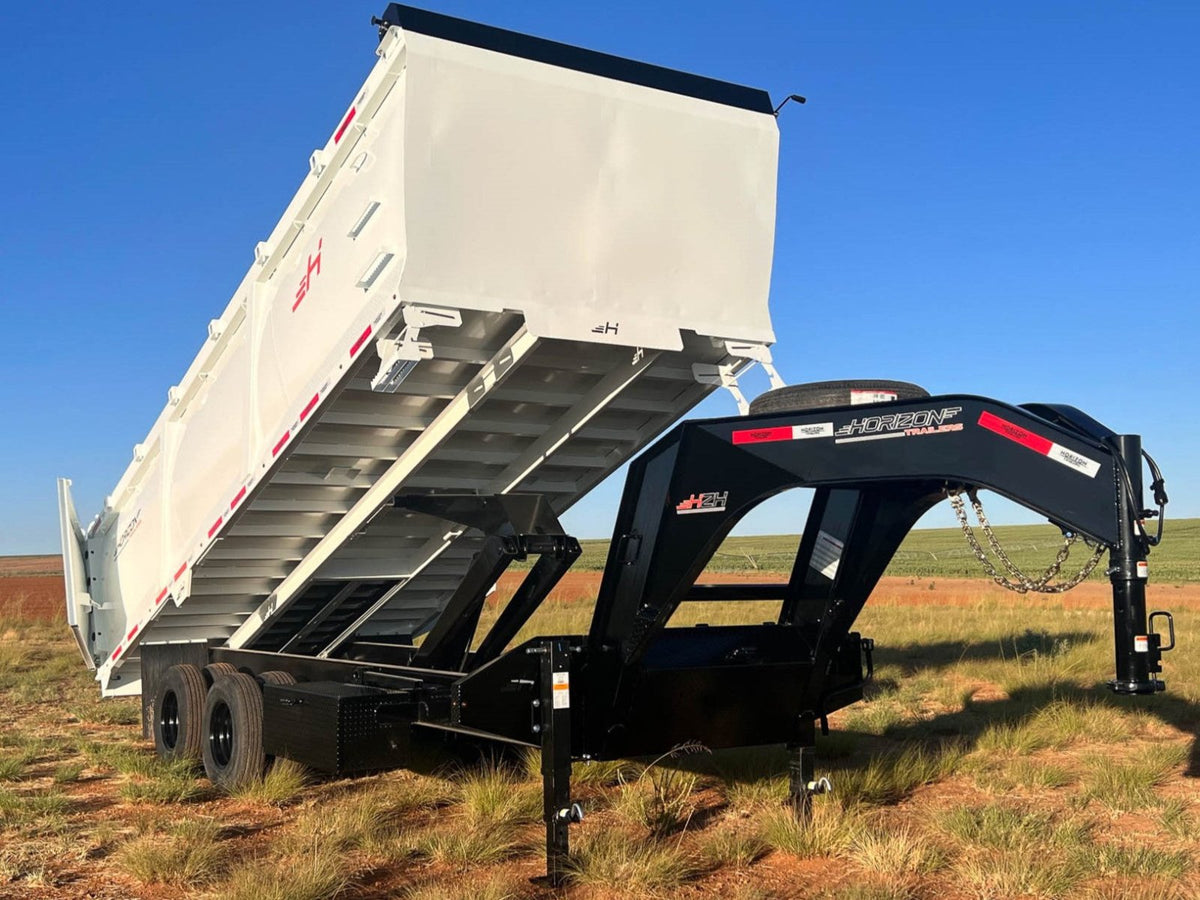

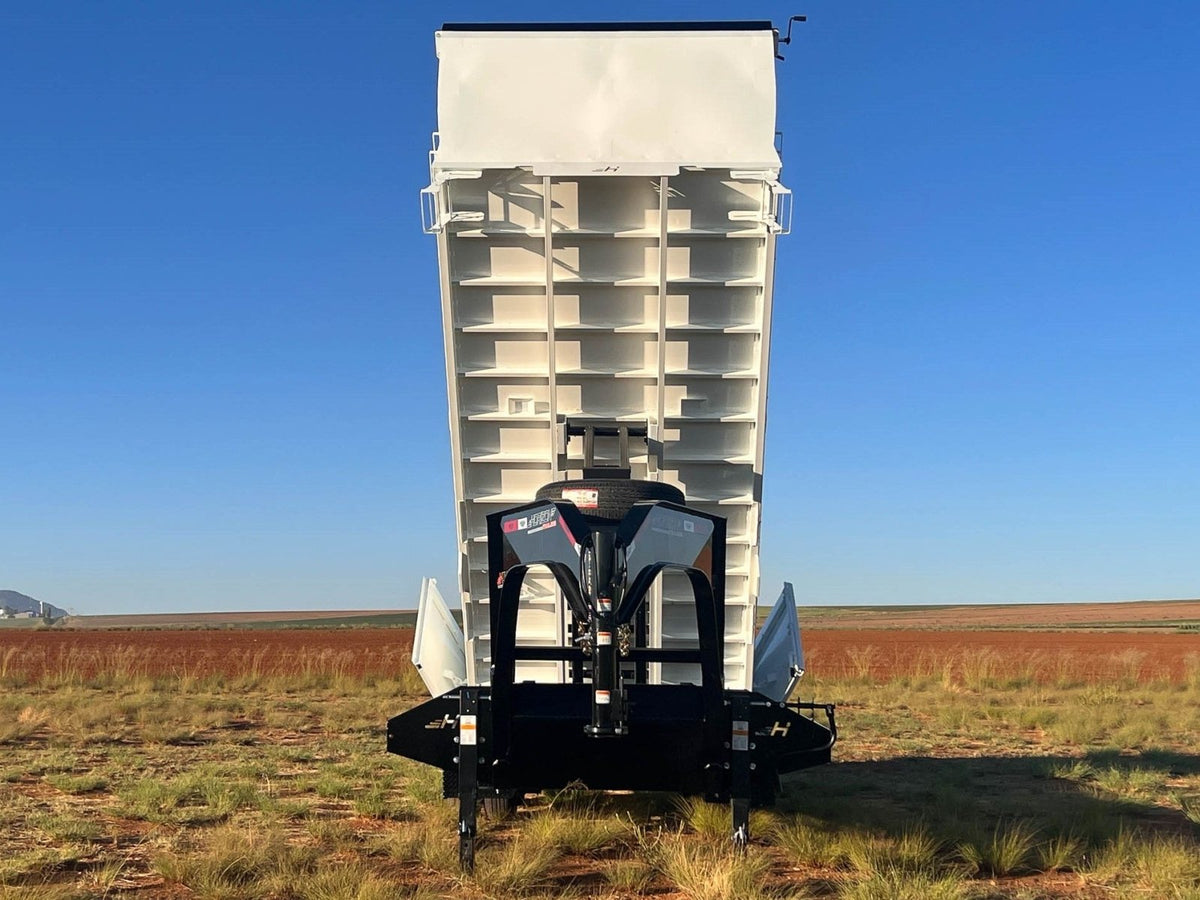

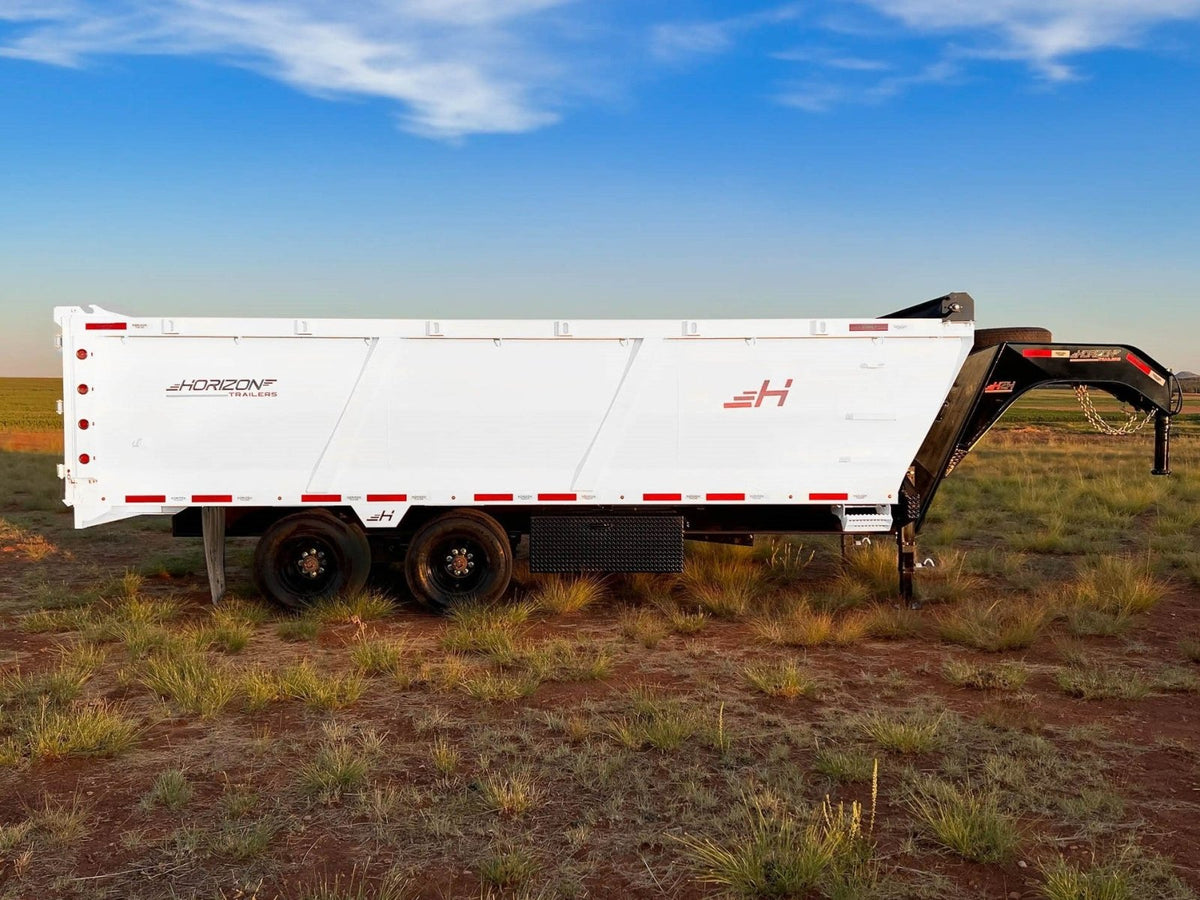

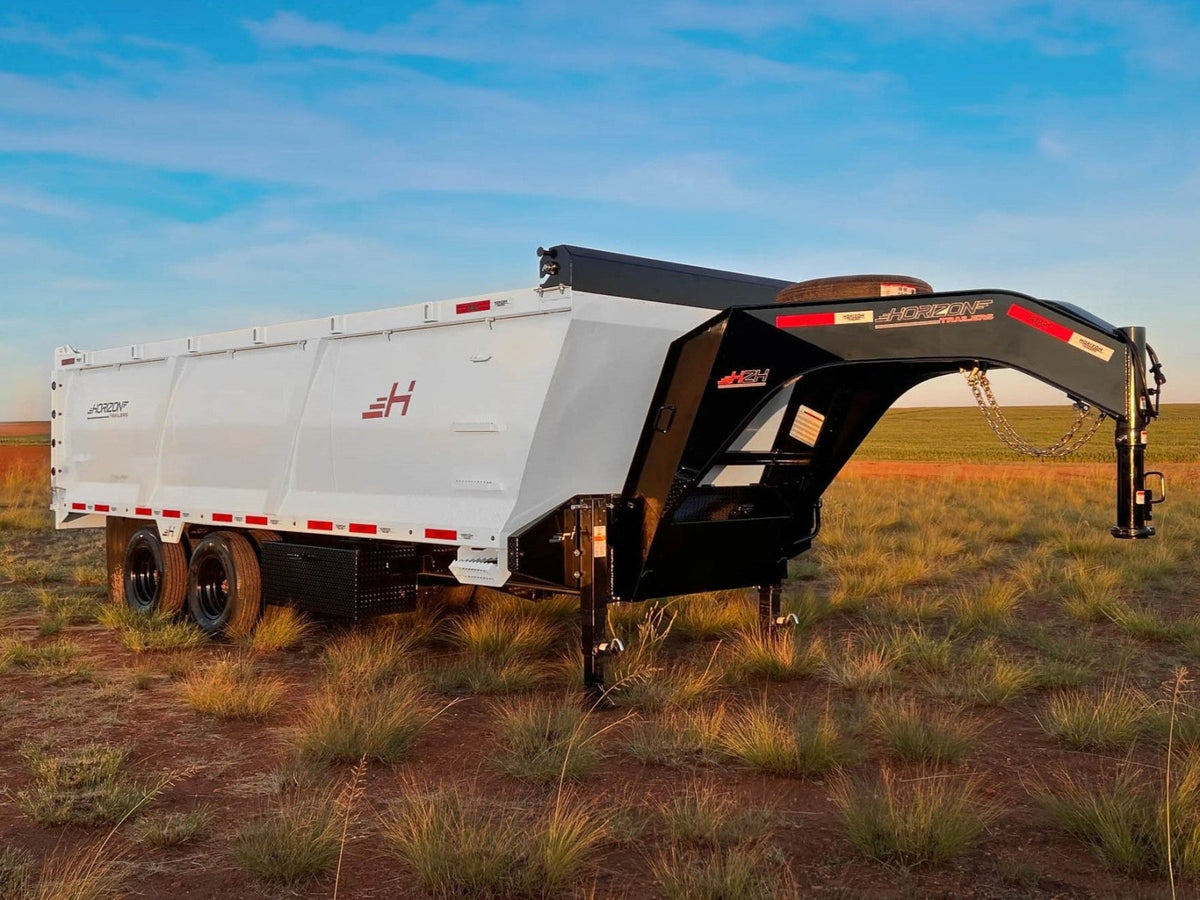

Build your Horizon HZH Gooseneck Heavy Duty Dump Trailer to order in 3 configurations from 16' to 20'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 16': $25,441
- 18': $25,768
- 20': $26,918
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 16' to 20'
- GVWR: 25,000 lbs
- Axles: 2 - 10k Electric Brake Dual Oil Bath Spring Axles
- Tires: ST235/80R16 10 Ply Tires Dual (3,080 lbs)
- Coupler: Adjustable 2-5/16" Gn Coupler (30,000 lbs)
- Bed Width: 96"
- Sides: Slide In Side Step On Both Sides
- Dump Lift: 12 Ton Telescopic Cylinder
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 25,000 lbs
Tongue
- Tongue: Neckboss 12" Engineered I-Beam
- Toolbox: Mega Lockable Toolbox
- Coupler: Adjustable 2-5/16" Gn Coupler (30,000 lbs)
- Jacks: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
Chassis
- Main Frame: 12" I-Beam (19 lbs/ft)
- Torque Tube 20' Only: 4,1/2" Tube
- Sides: Slide In Side Step On Both Sides

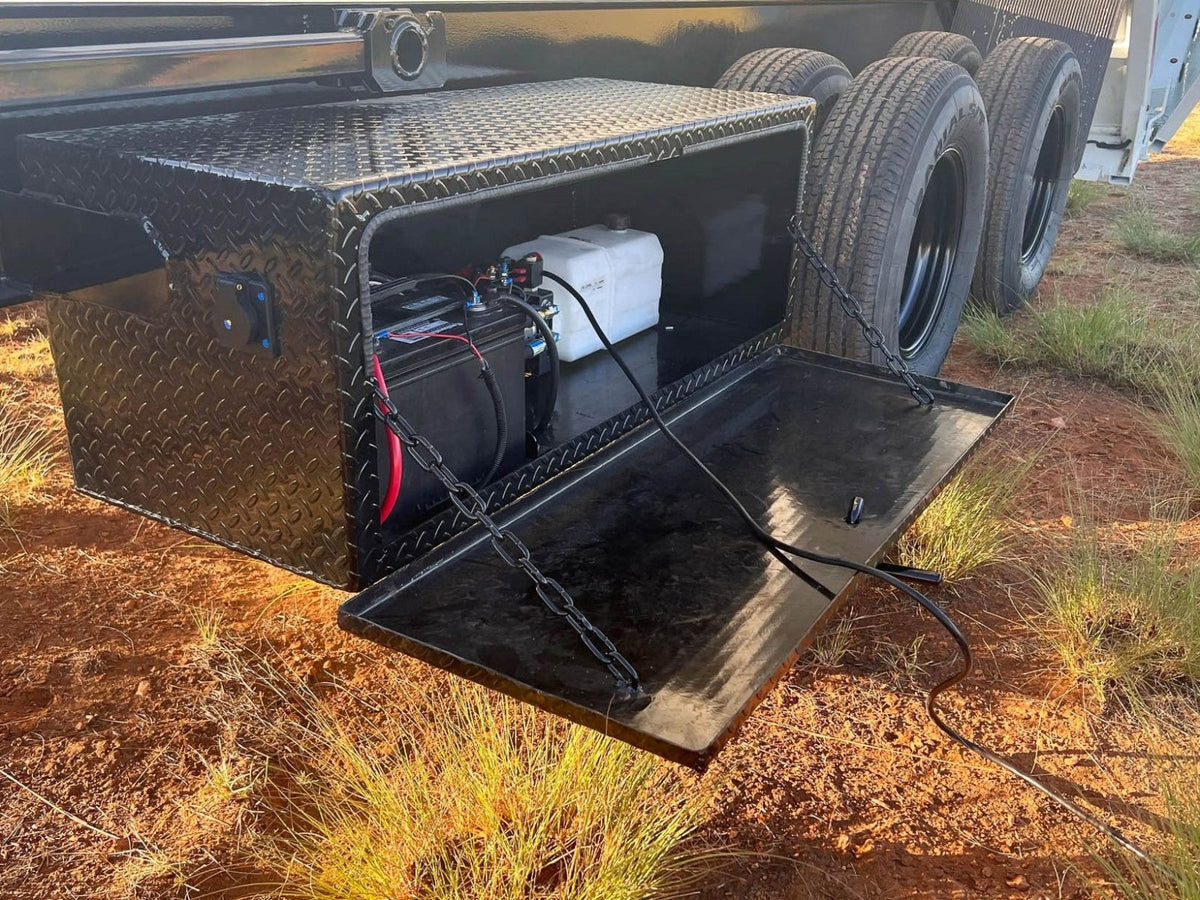

- Left Side: Lockable Toolbox (Houses Batteries And Pump)
Dump
- Bed Width: 96"
- Top Rail Width: 96"
- Flooring: 7ga. Steel Bed
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 4 D-Rings Welded Inside Box
- Sides: 2' High, 10ga. Rounded Steel

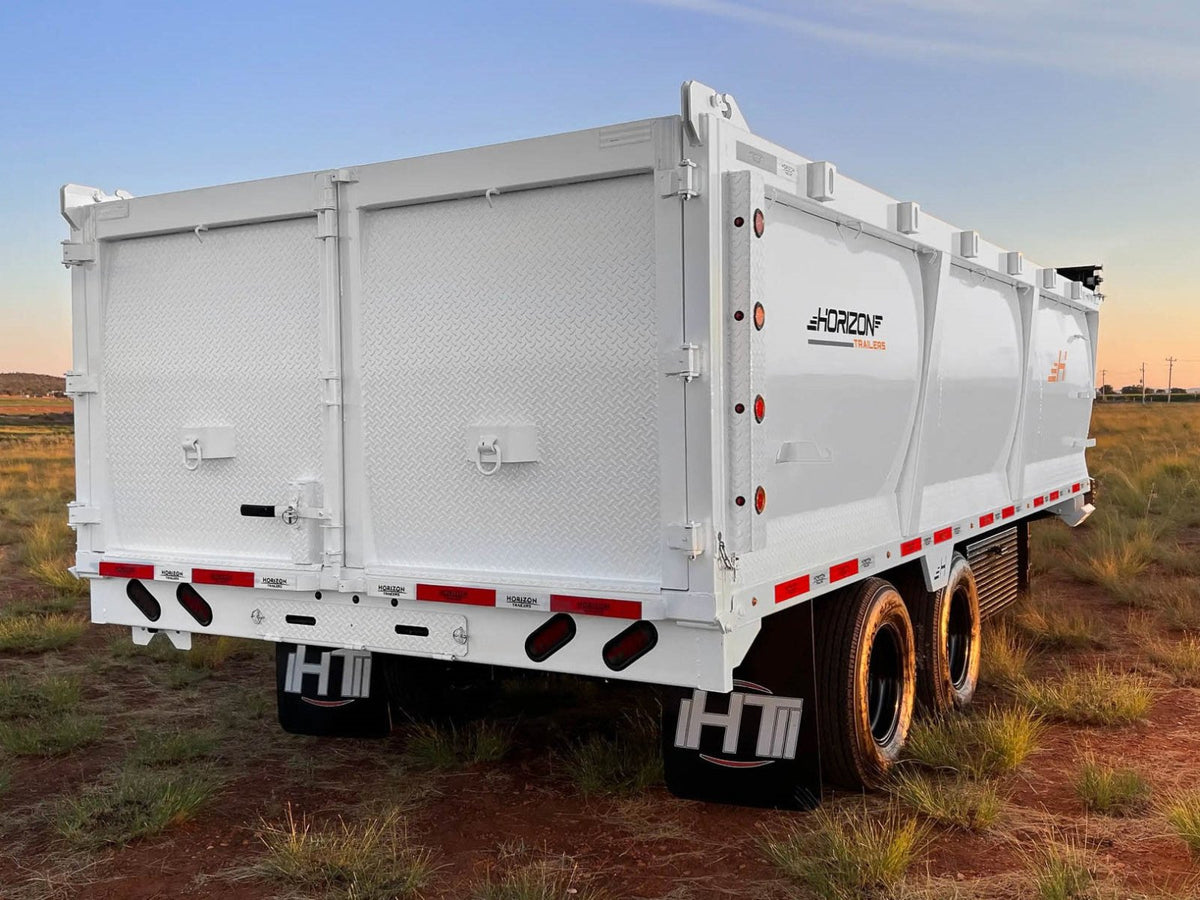

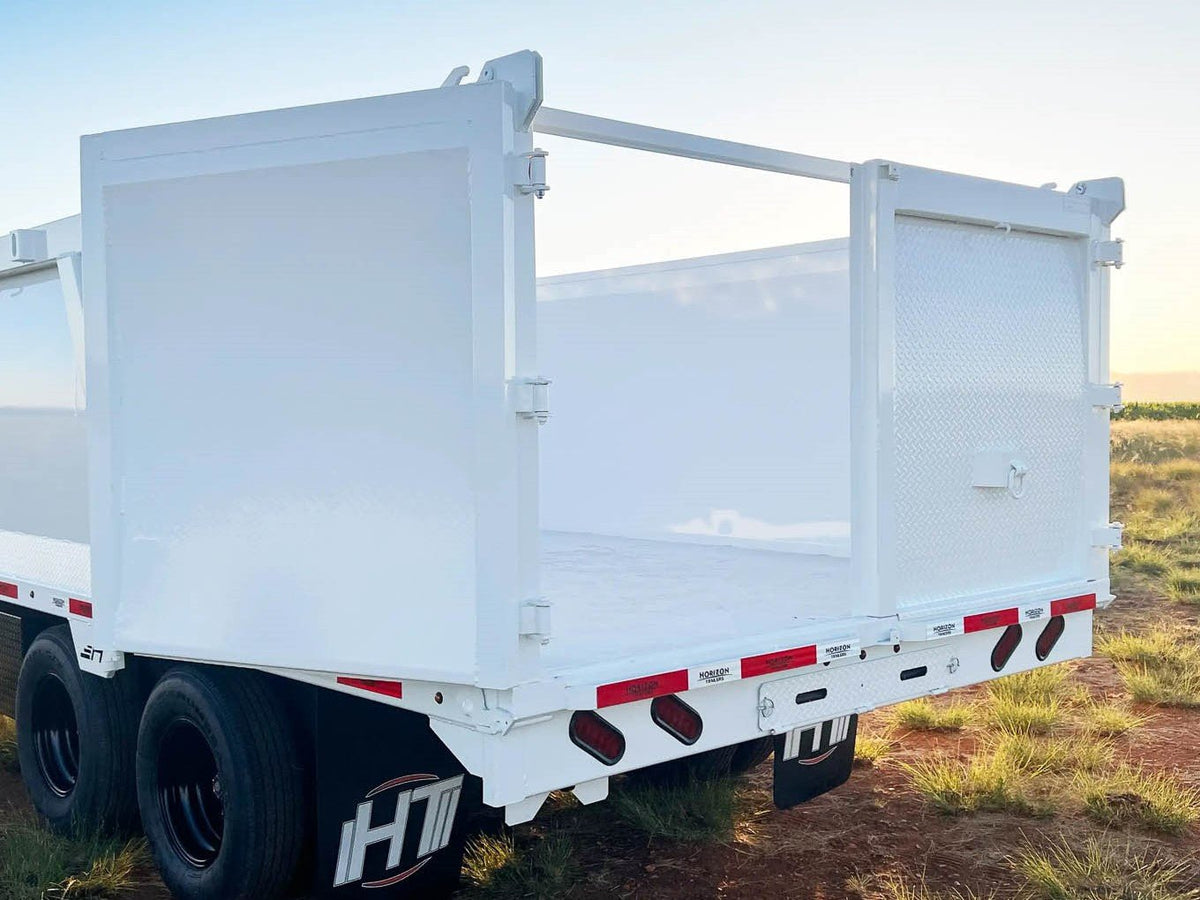

- Gate: 3 Way Door - Spreader Gate
- Ramps: Ramp Pockets w/ 8' Long Heavy Duty Slide In 4" Channel Ramps (5,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
- Tarp: Ground Level Crank Over Tarp Kit *NEW STANDARD FEATURE!*
Lift System

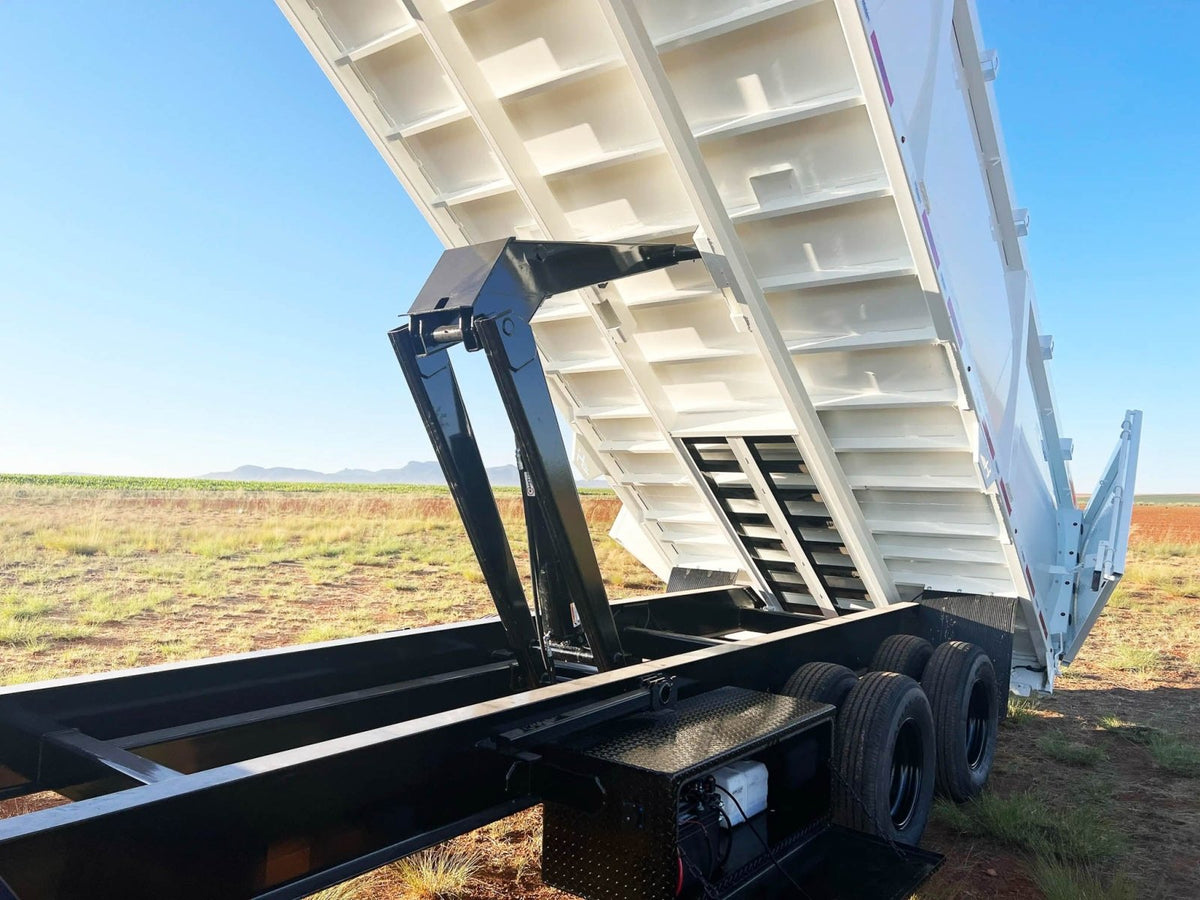

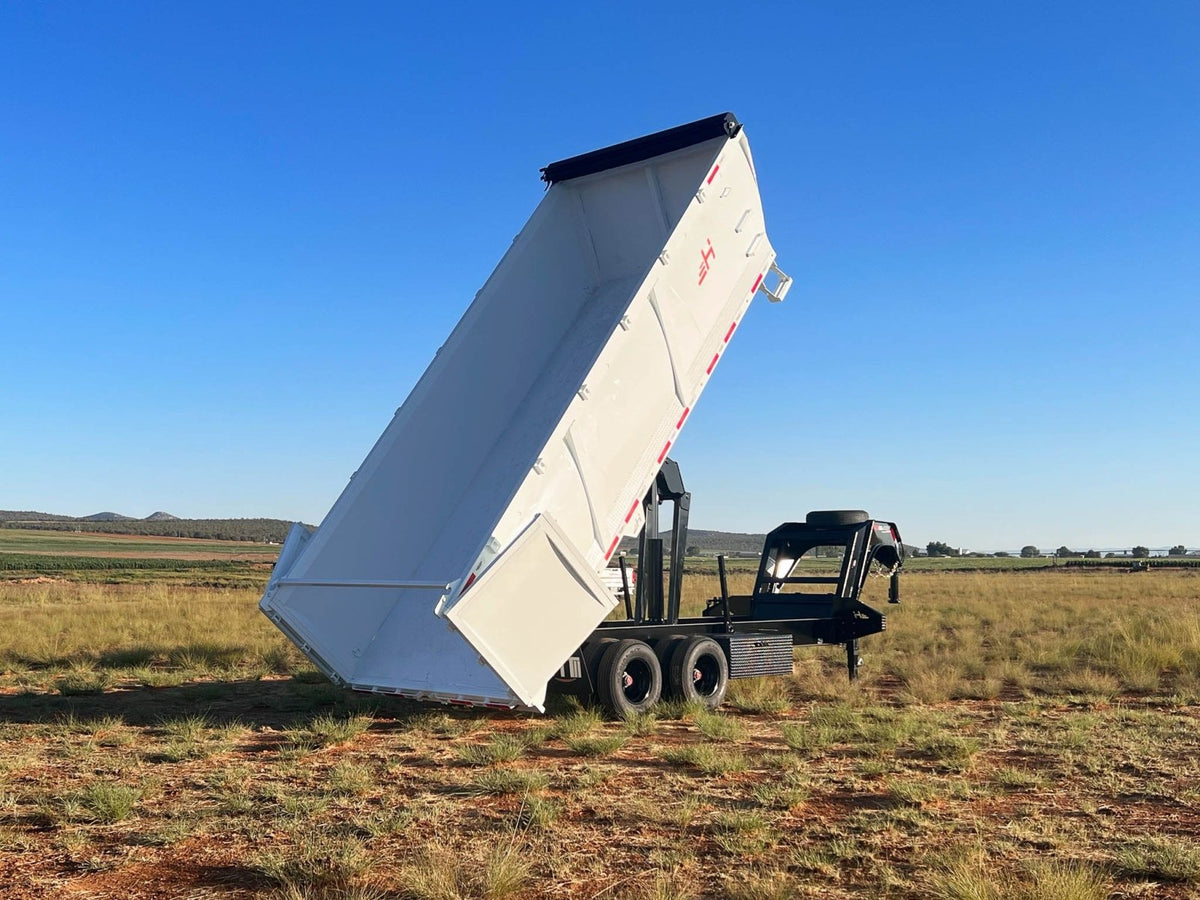

- Dump Lift: 12 Ton Telescopic Cylinder
- KTI 12V Hydraulic Pump: 2 Button Hydraulic - Power Up / Gravity Down
Running Gear

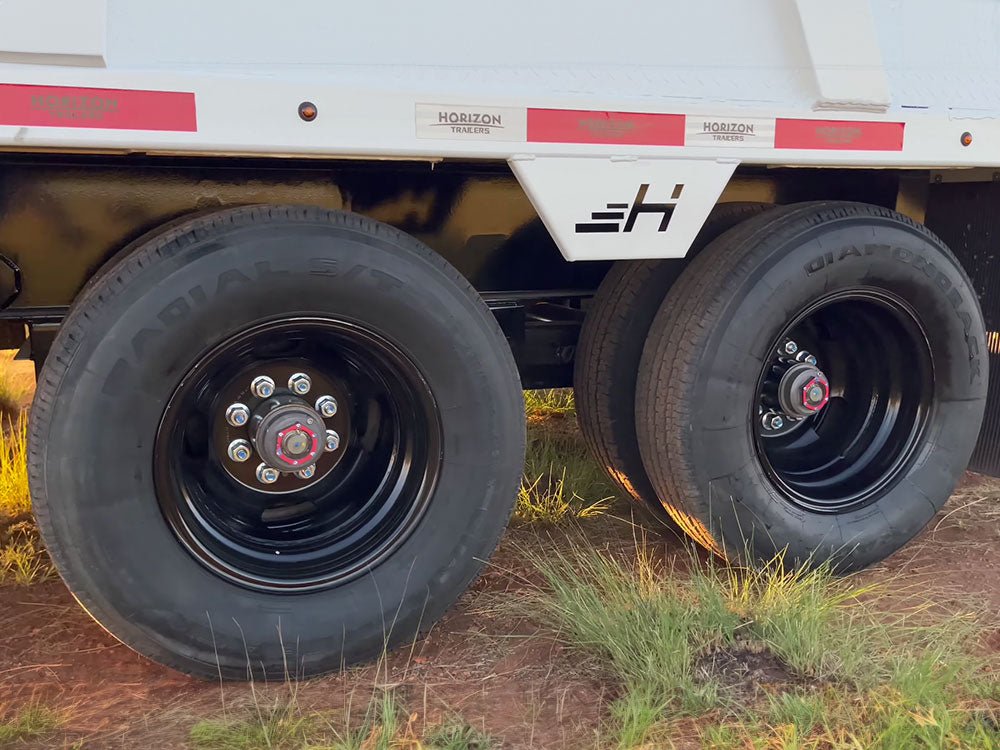

- Tires: ST235/80R16 10 Ply Tires Dual (3,080 lbs)
- Rims: 16" Black Mod Wheels
- Axles: 2 - 10k Electric Brake Dual Oil Bath Spring Axles
- Suspension: Heavy Duty Double Slipper Mechanical Suspension
Electrical and Lighting
- Battery: 2 - Interstate 27 Deep Cycle Battery
- Solar: 7.5 Watt Solar Panel
- Charging System: 110V Integrated Trickle Charger
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Gooseneck, jacks & toolbox (8): 12k Ram 2 Speed Jacks; 12k Hydraulic Jacks; 12k Hydraulic Jacks w/ Low Temperature Hydraulic Oil (Telescopic); 6" Gn Riser Increase…
- Frame & undercarriage (2): 12" I-Beam (22 lbs/ft) Frame Upgrade; 1 - Side Mount Undercarriage Toolbox (44"L x 17"W x 14"H)
- Dump body (5): 3' High Sides; 4' High Sides; 12" Crossmember Spacing; Electric Tarp Kit 16' Dump…
- Remotes (5): Tuff Wireless 2 Button Remote (Telescopic); Tuff Wireless 4 Button Remote (Telescopic - Hydraulic Jacks); Tuff Wireless 4 Button Remote (Telescopic - Tarp); Tuff Wireless 8 Button Remote (Telescopic - Hydraulic Jacks - Tarp)…
- Axles, suspension & tires (15): 2 - 10k Elec / Hydraulic Disc Brake Dual Oil Bath Spring Axles w/ Hydrastar CAM; 2 - 12k Electric Brake Dual Oil Bath Spring Axles; 2 - 12k Elec / Hydraulic Disc Brake Dual Oil Bath Spring Axles w/ Hydrastar CAM; 2 - 16k Electric Brake Dual Oil Bath Axles (12" I-Beam (22 LBS/FT) Frame Upgrade / 17.5" - 18 Ply Tires Included)…
- Paint & finish (4): 2 - Tone Colors Chassis / Dump - Deck; 16ft-18ft Zinc Primer Undercoat; 20ft & Up Zinc Primer Undercoat; Side Mount Undercarriage Toolboxes Painted Black
