PRODUCT DETAILS
Description

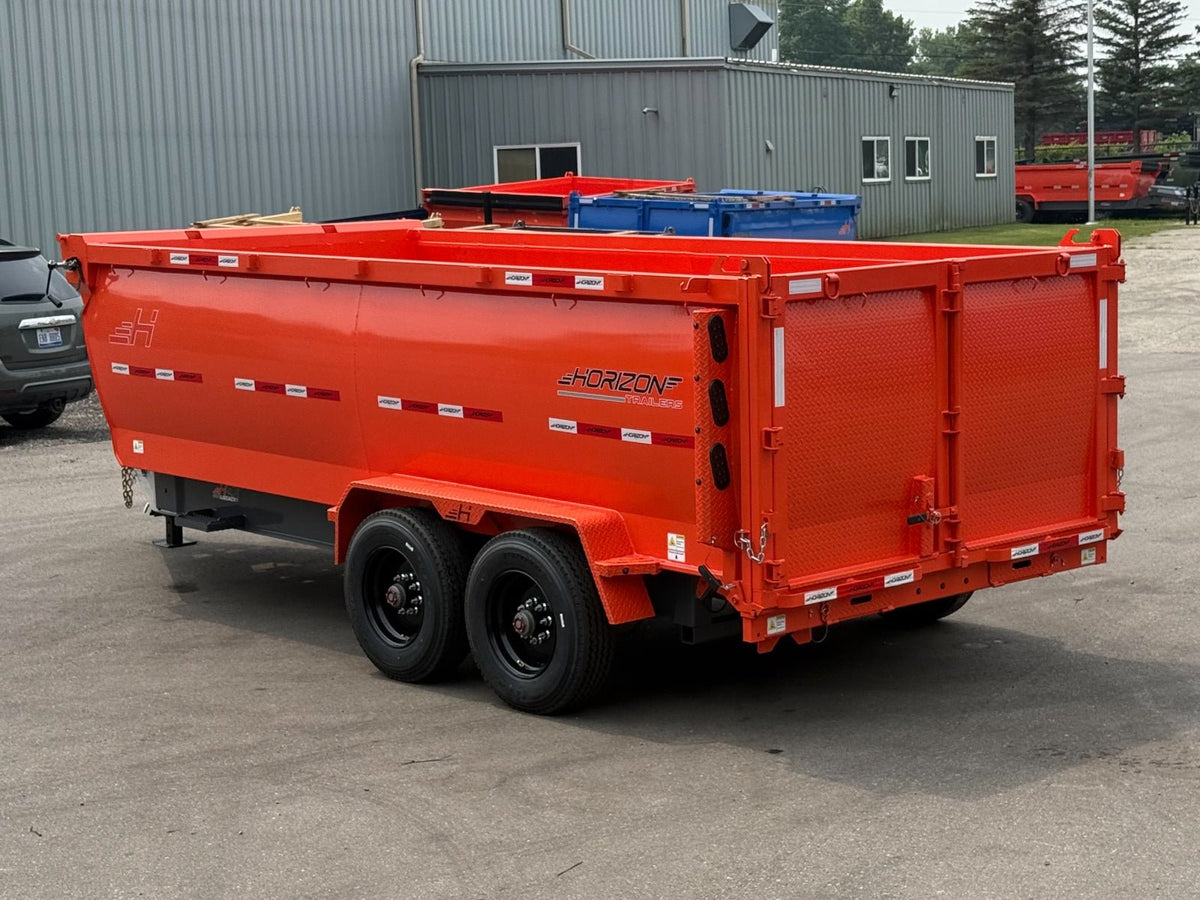

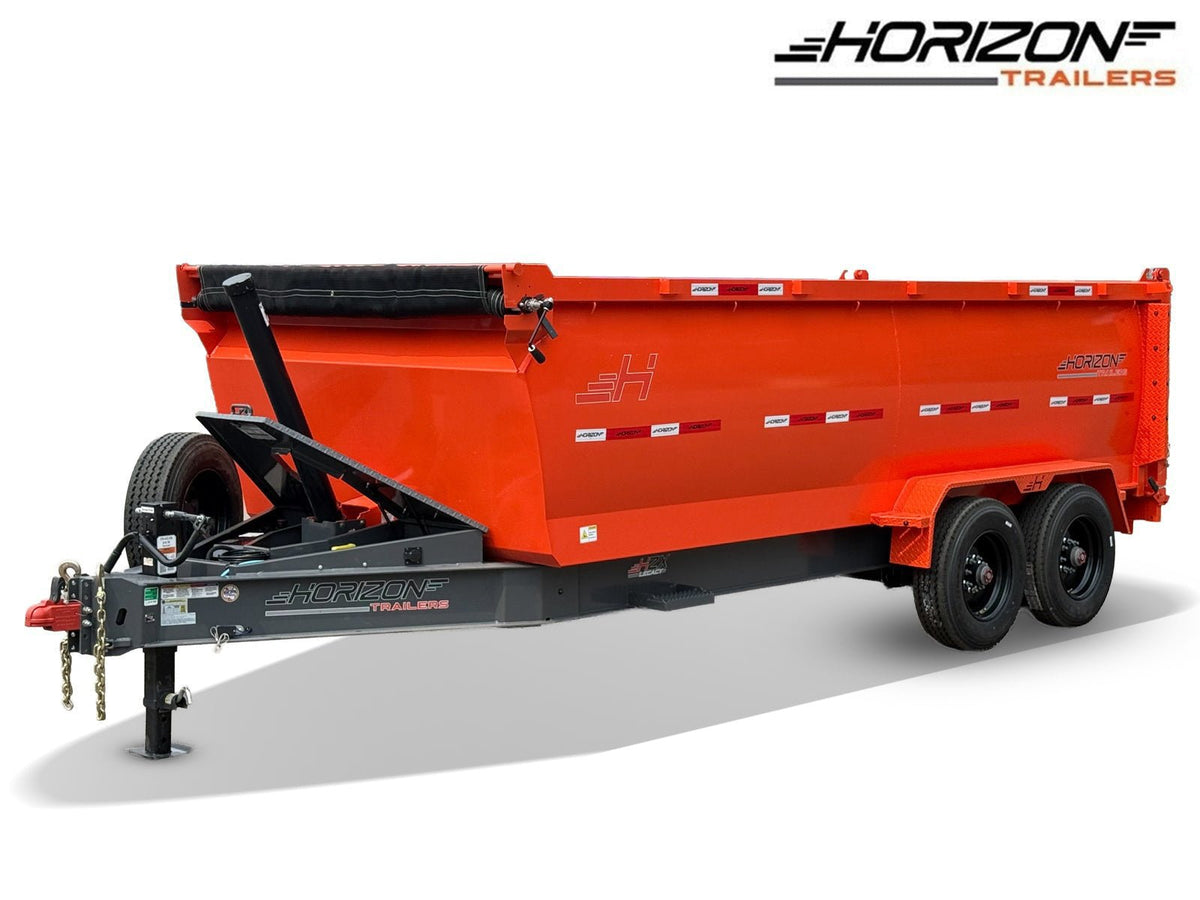

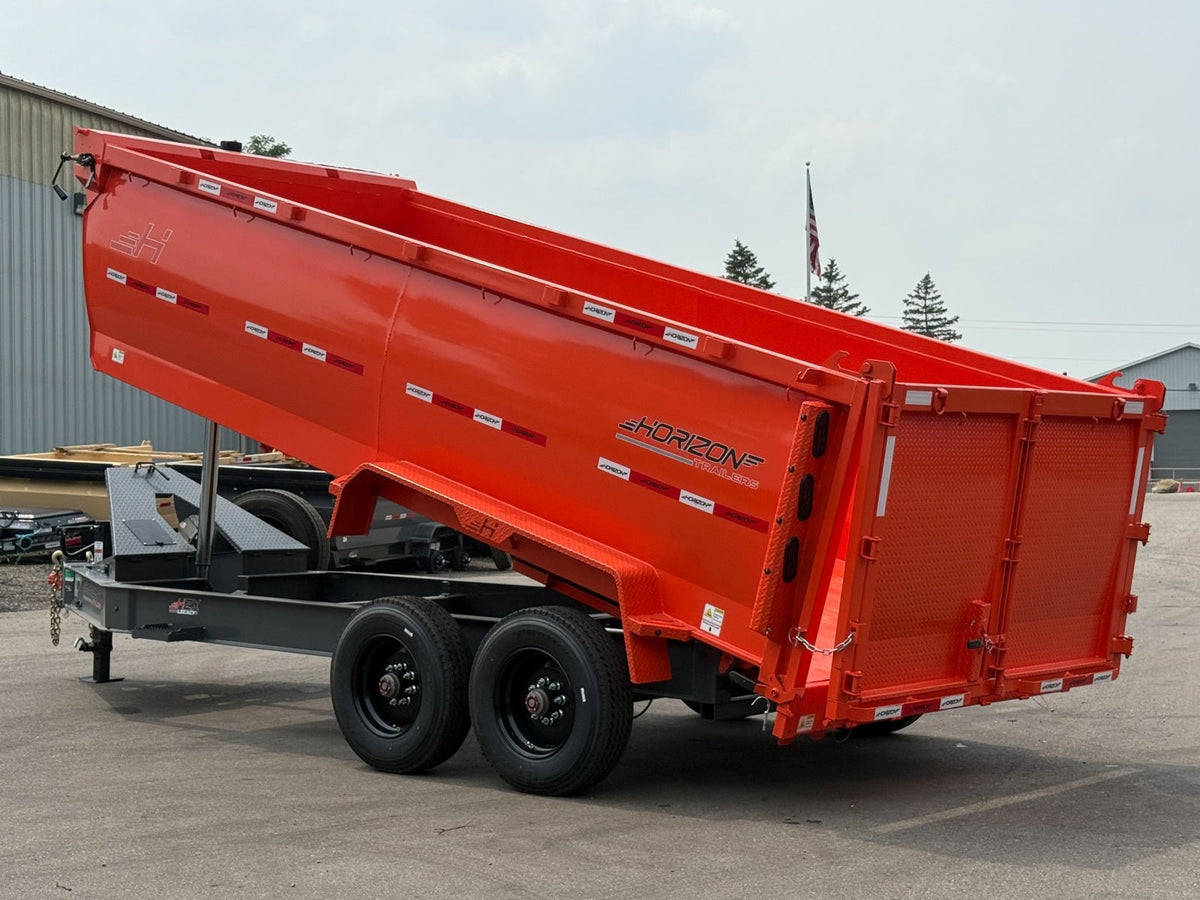

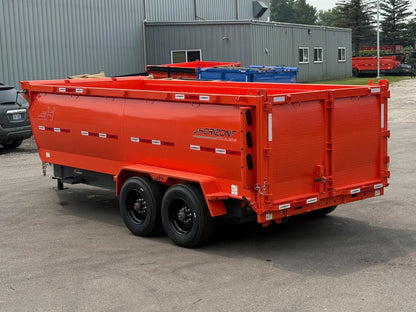

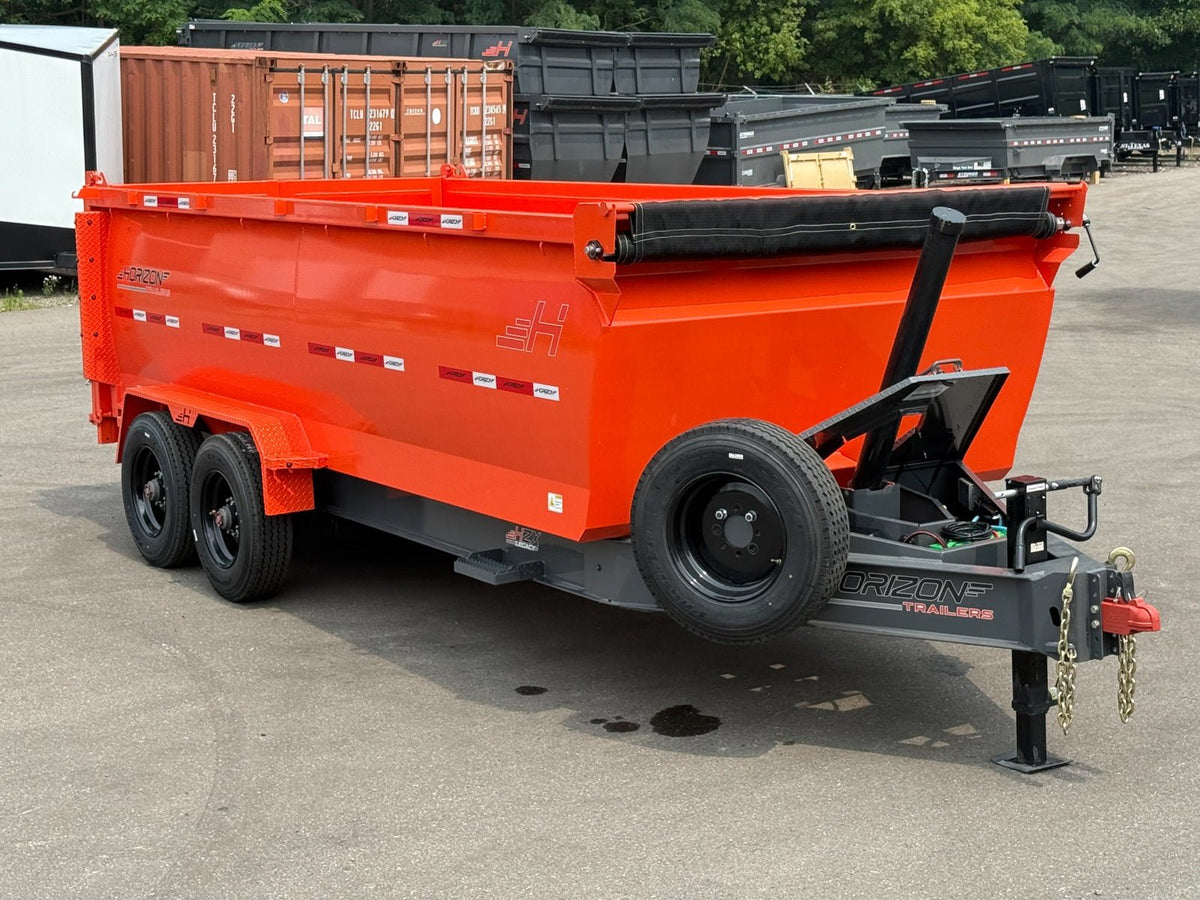

Build your Horizon HZX Bumper Pull 10K Axle Dump Trailer to order in 4 configurations from 14' to 20'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 14': $23,215
- 16': $23,978
- 18': $24,633
- 20': $25,695
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 14' to 20'
- GVWR: 21,000 lbs
- Axles: 2 - 10k Electric Brake Super Single Oil Bath Torsion Axles
- Tires: ST235/75R17.5 18 Ply Tires Super Singles (6,005 lbs)
- Coupler: Adjustable Auto Latch 2-5/16" Bp Coupler (21,000 lbs)
- Bed Width: 83"
- Sides: Side Step On Both Sides
- Dump Lift: 12 Ton Telescopic Cylinder
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 21,000 lbs
Tongue
- Tongue: Neckboss 10" Tapered Engineered I-Beam

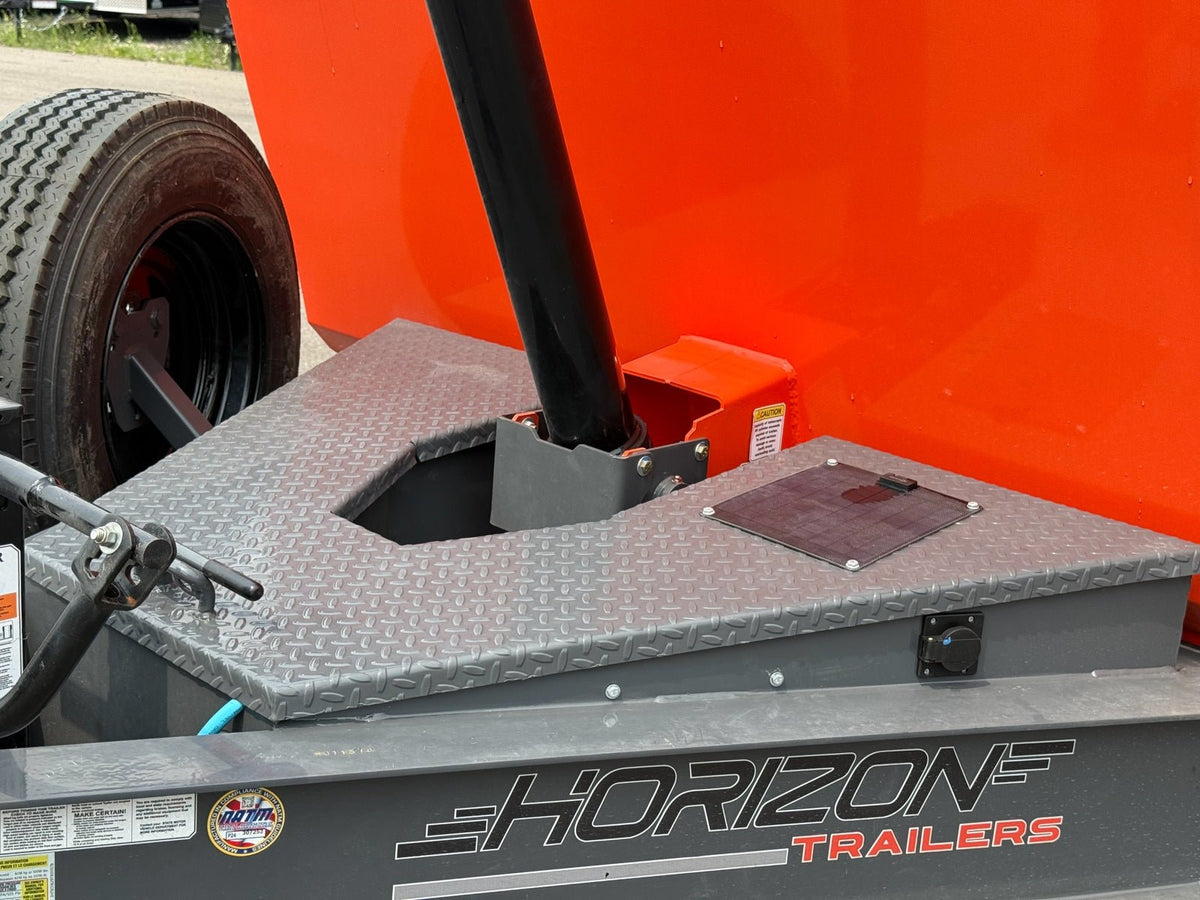

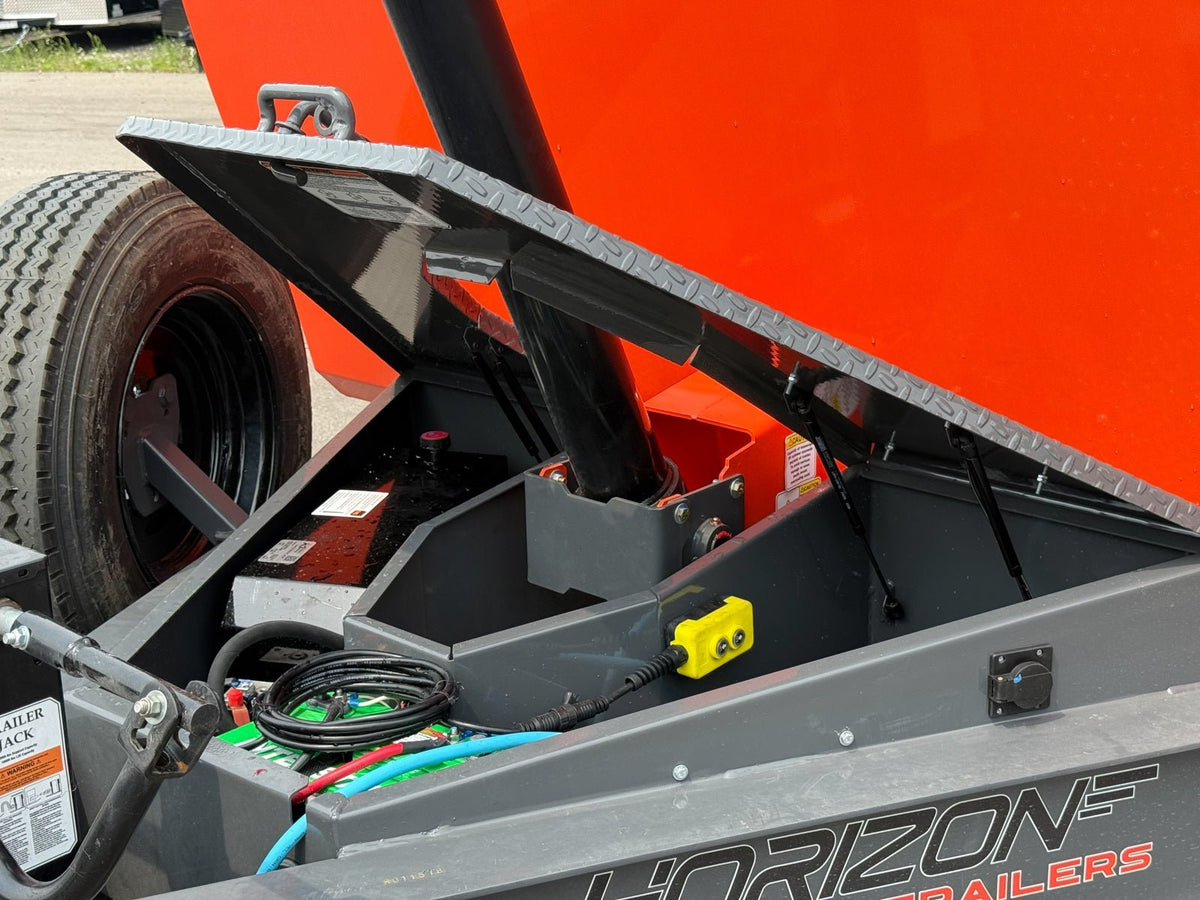

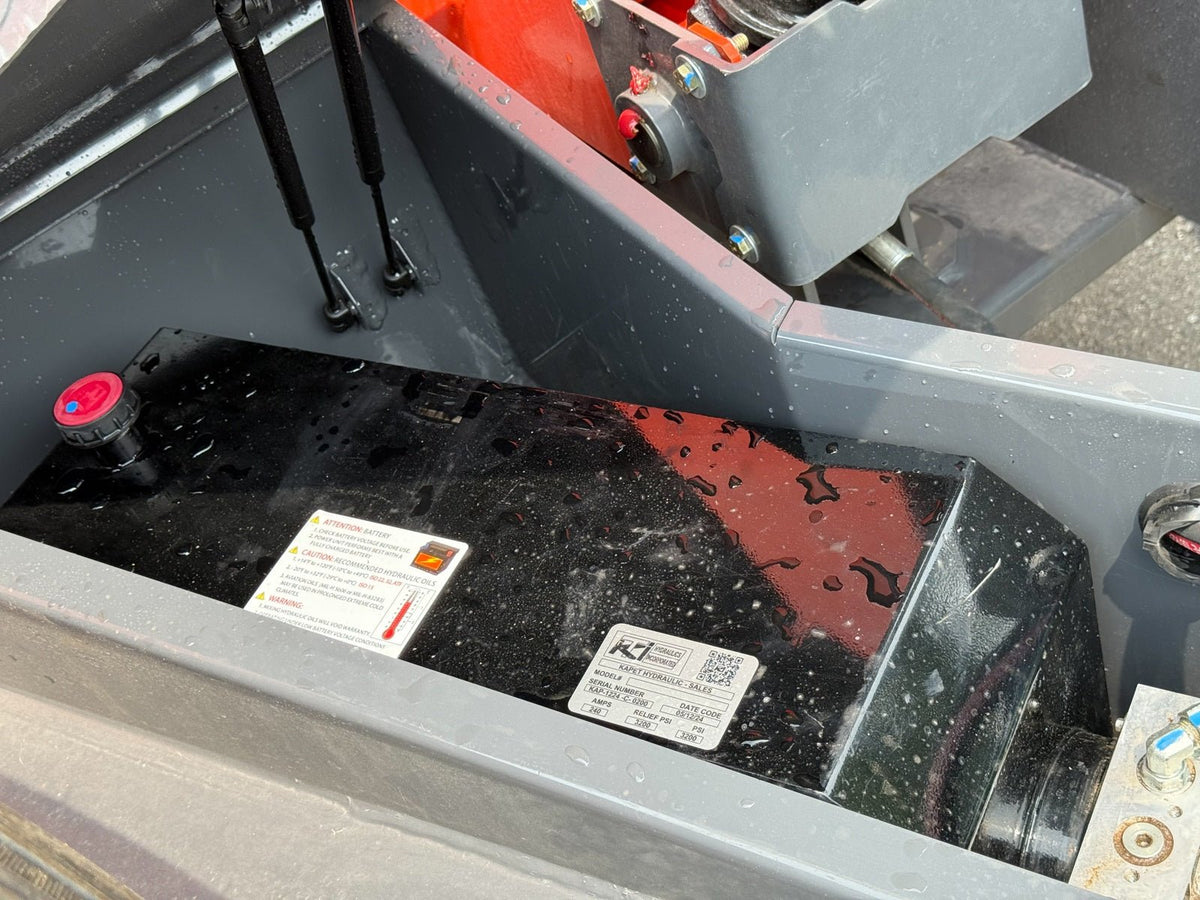

- Toolbox: Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)
- Coupler: Adjustable Auto Latch 2-5/16" Bp Coupler (21,000 lbs)
- Jack: 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
Chassis
- Main Frame: 10" I-Beam (17 lbs/ft)
- Sides: Side Step On Both Sides
Dump
- Bed Width: 83"
- Top Rail Width: 83"
- Flooring: 7ga. Steel Bed
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 4 D-Rings Welded Inside Box
- Sides: 2' High, 10ga. Rounded Steel
- Gate: 3 Way Door - Spreader Gate

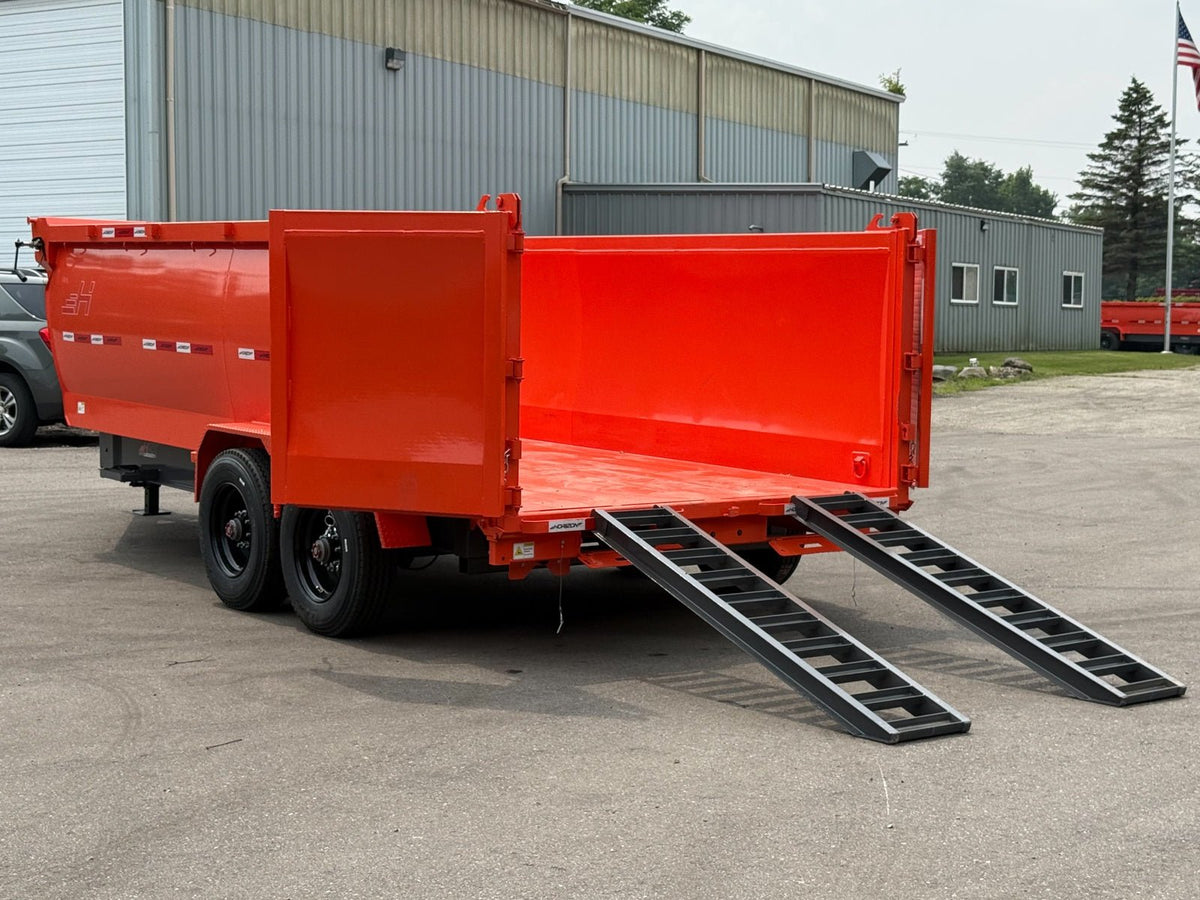

- Ramps: Ramp Pockets w/ 6' 4" Long Heavy Duty Slide In 4" Channel Ramps (7,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
- Tarp: Manual Tarp Kit
Lift System

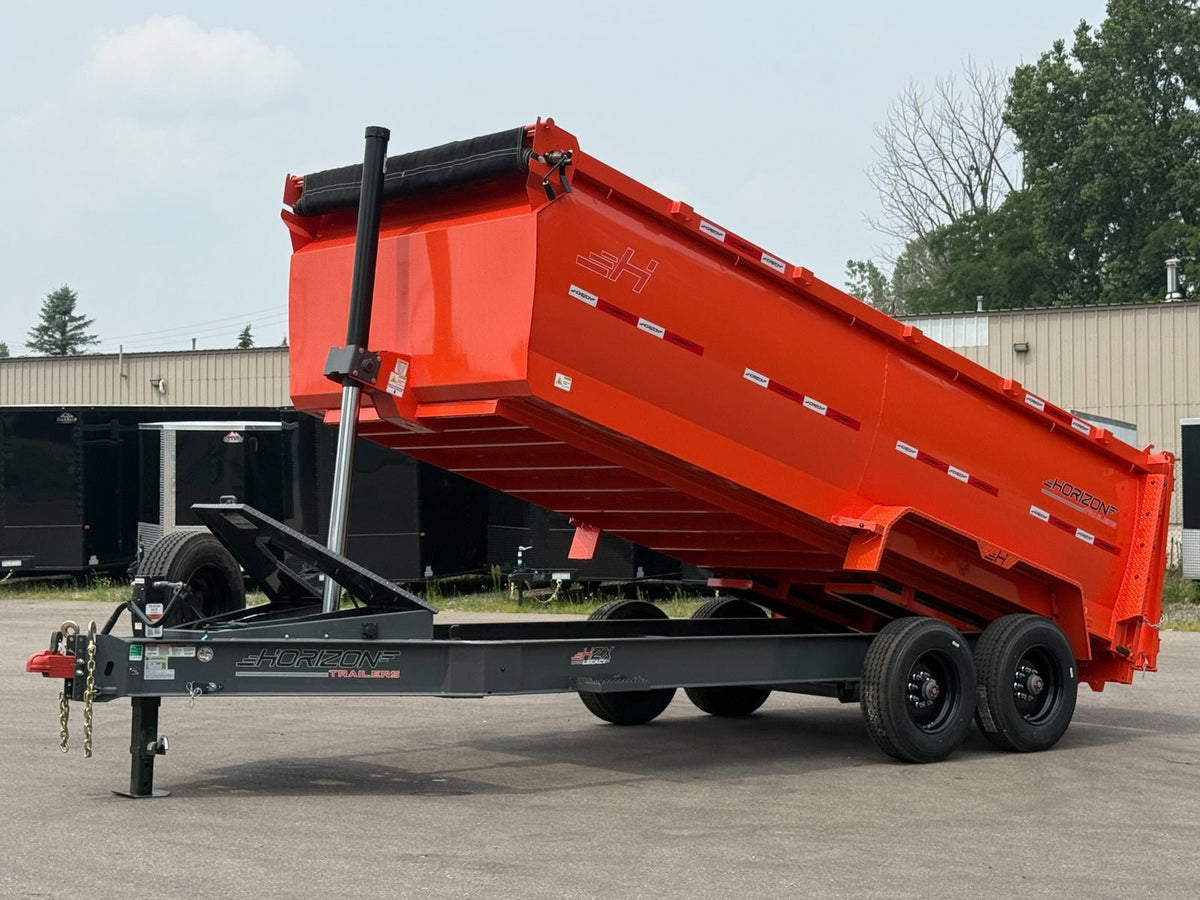

- Dump Lift: 12 Ton Telescopic Cylinder
- KTI 12V Hydraulic Pump: 2 Button Hydraulic - Power Up / Gravity Down
Running Gear

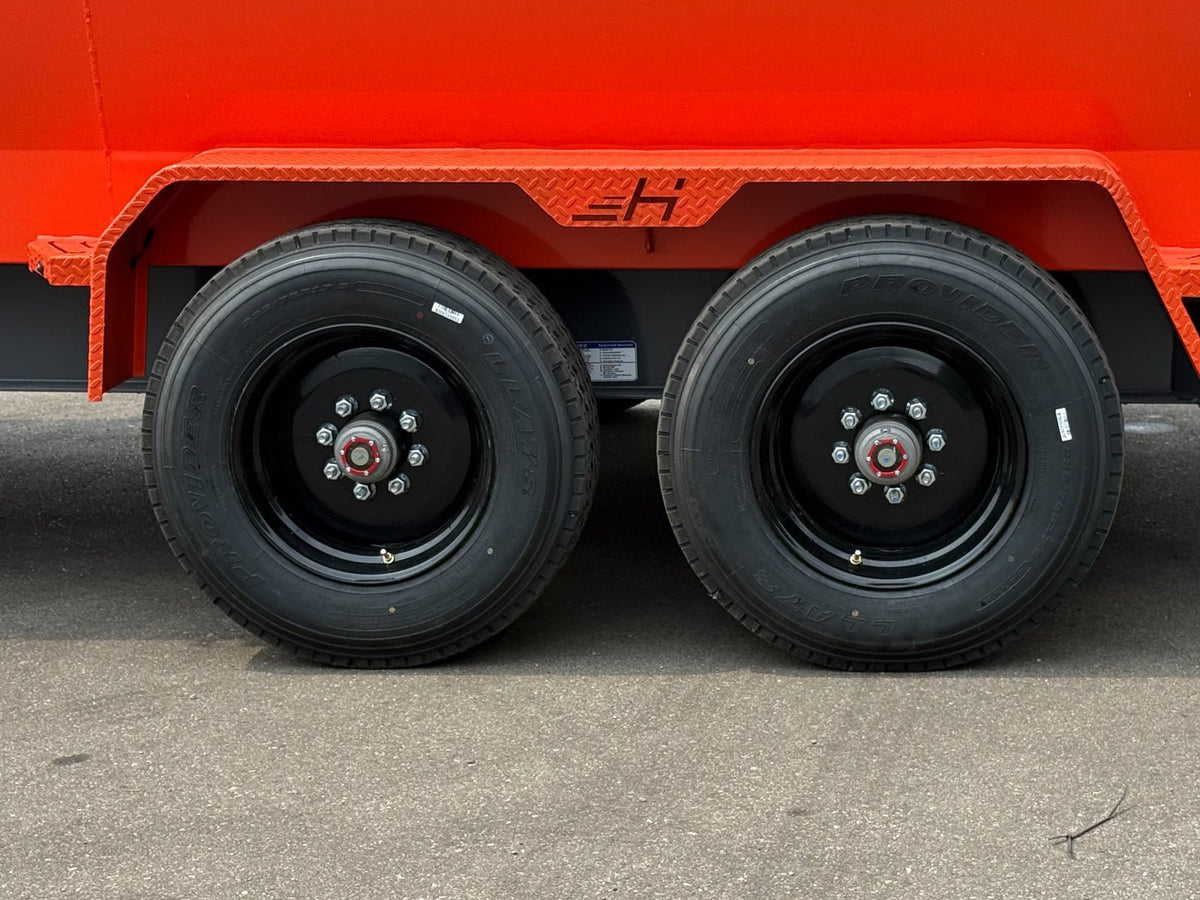

- Tires: ST235/75R17.5 18 Ply Tires Super Singles (6,005 lbs)
- Rims: 17.5" Black Mod Wheels
- Axles: 2 - 10k Electric Brake Super Single Oil Bath Torsion Axles
- Suspension: Torsion
Electrical and Lighting

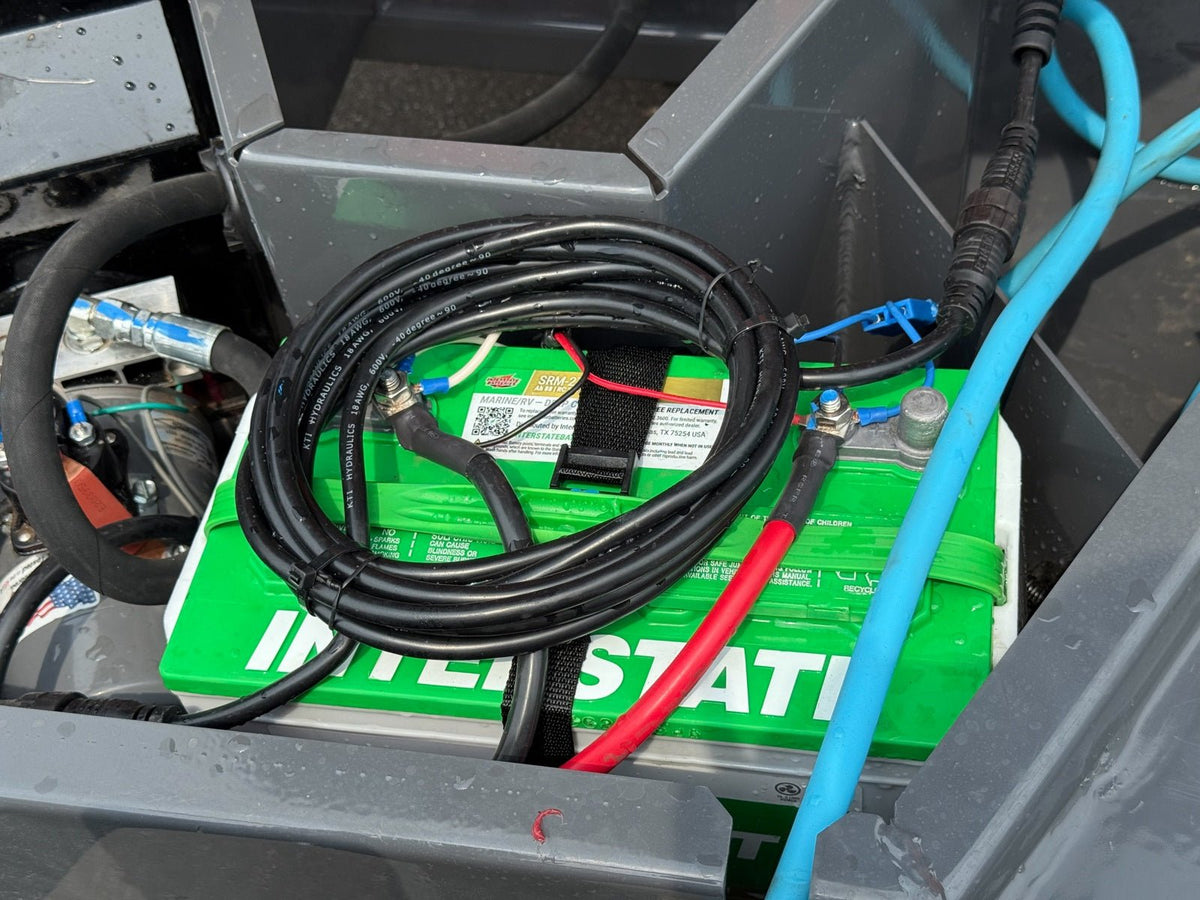

- Battery: 1 - Interstate 27 Deep Cycle Battery
- Solar: 7.5 Watt Solar Panel
- Charging System: 110V Integrated Trickle Charger
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Tongue, jacks & toolbox (3): 12k Ram 2 Speed Jack; 12k Hydraulic Jack; 12k Hydraulic Jack w/ Low Temperature Hydraulic Oil (Telescopic)
- Frame & undercarriage (1): Fork Pockets
- Dump body (8): 3' High Sides; 4' High Sides; 8" Extensions Boards; 8" Integrated Wood Extension Brackets…
- Remotes (3): Tuff Wireless 2 Button Remote (Telescopic); Tuff Wireless 4 Button Remote (Telescopic - Hydraulic Jacks); Low Temperature Hydraulic Oil (Telescopic)
- Axles, suspension & tires (1): ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)
- Paint & finish (4): 2 - Tone Colors Chassis / Dump - Deck; 14ft Zinc Primer Undercoat; 16ft-18ft Zinc Primer Undercoat; 20ft & Up Zinc Primer Undercoat
