Build & price yours
Pick a deck length, color and the options you need. Your list price updates as you go.
1
Deck length
List price includes all standard features2
Color
Powder coat color is included. Swatches are approximate; ask to see a sample.
3
Options
Open a section to add options. Where only one choice makes sense, picking one replaces the other.
·
Loading options…
PRODUCT DETAILS
Description

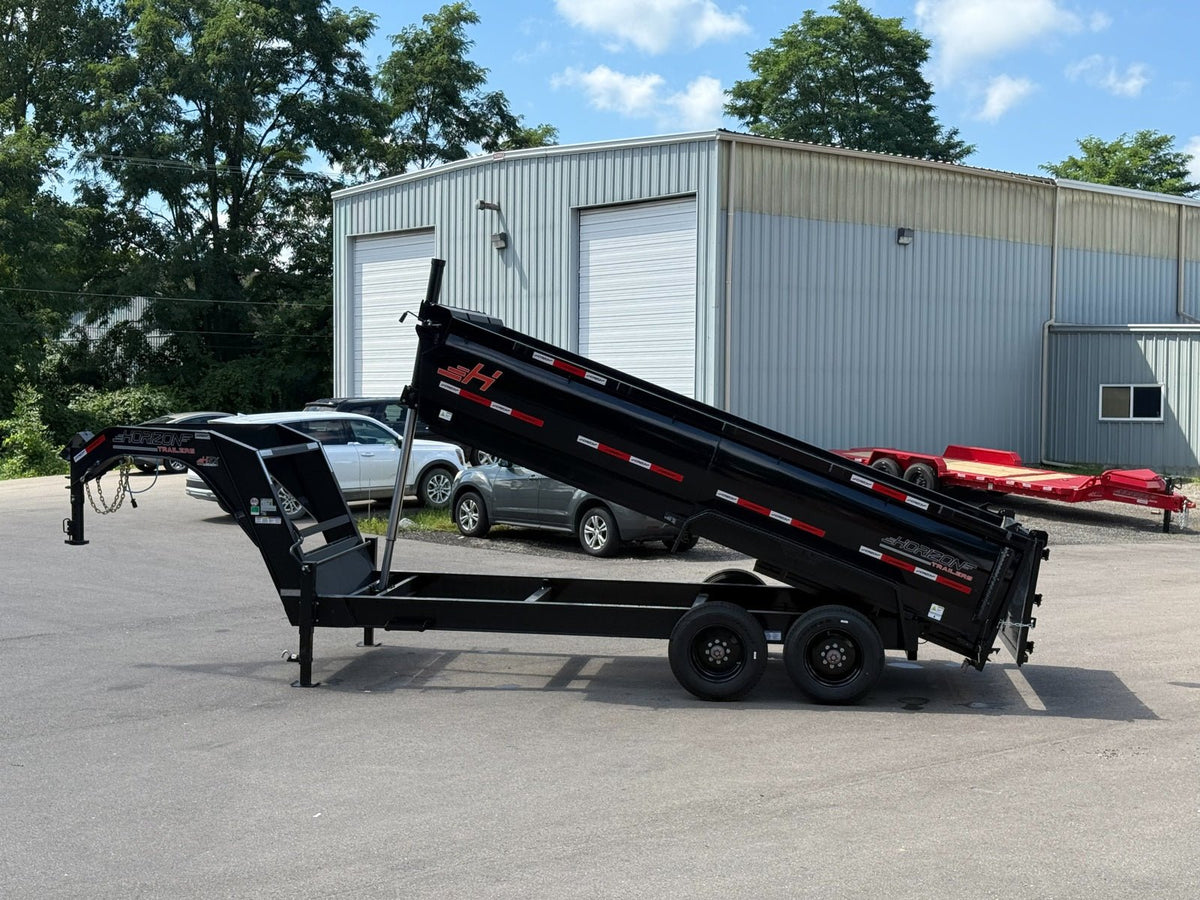

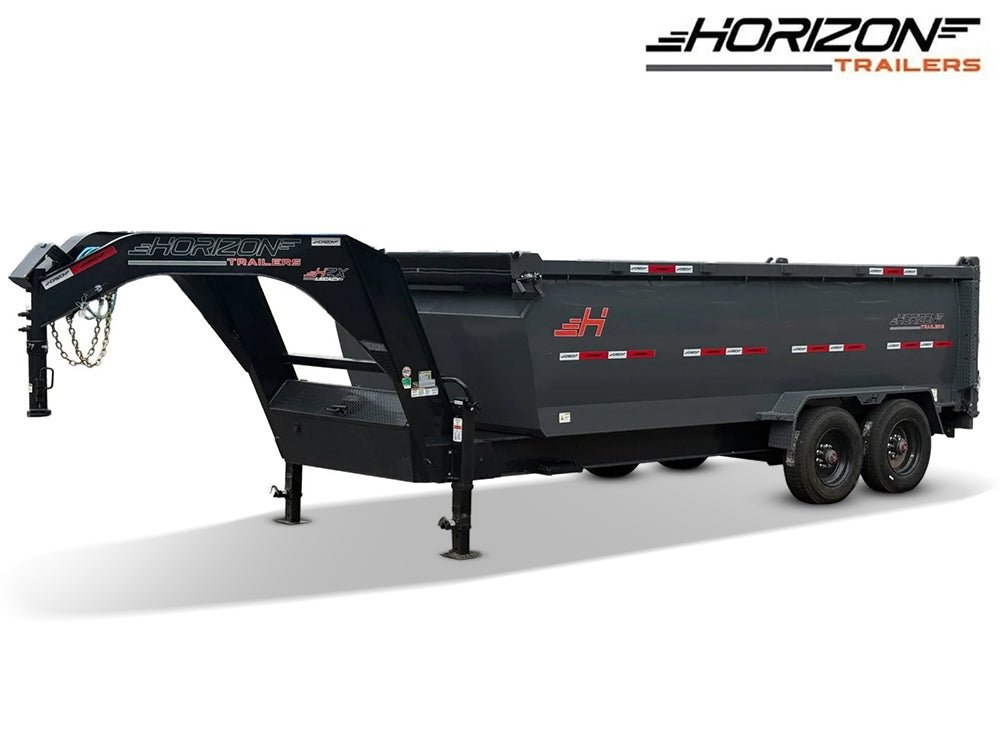

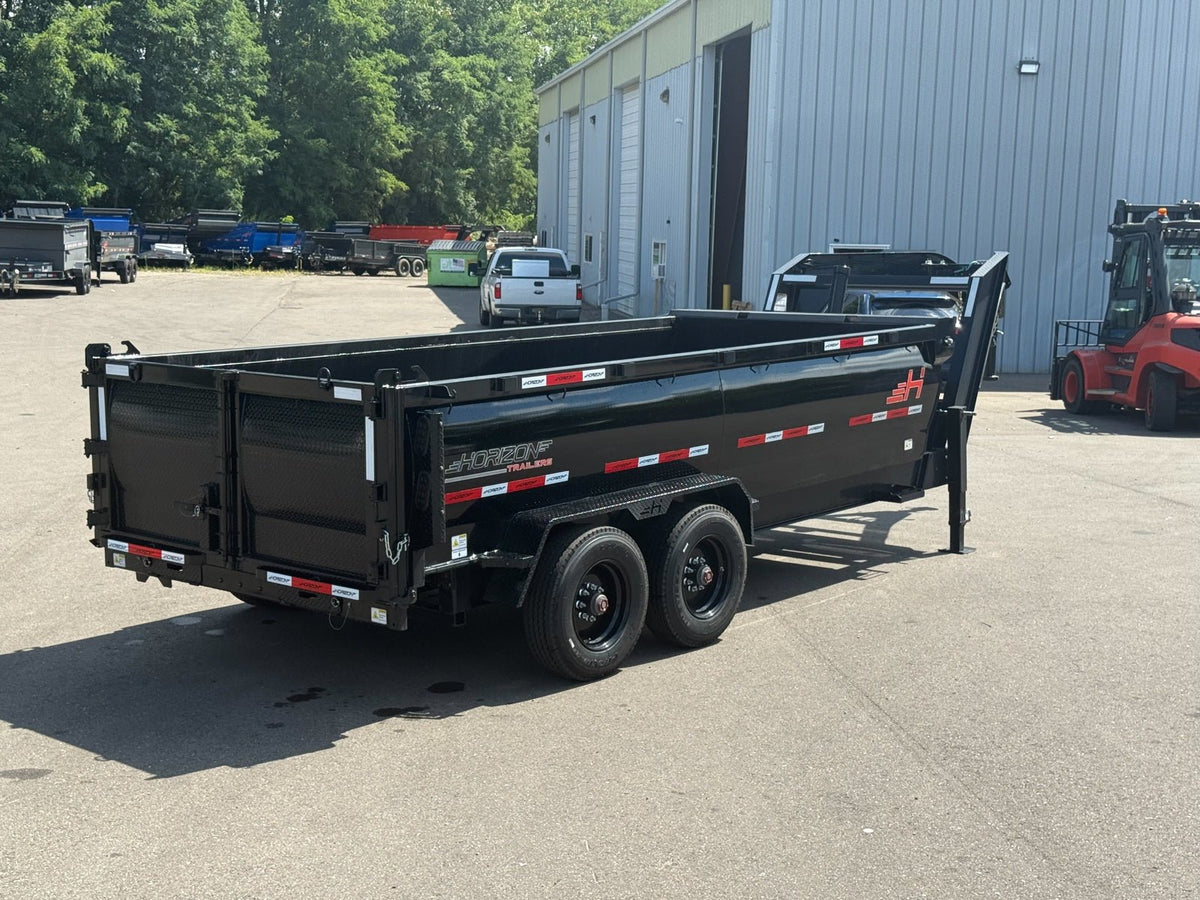

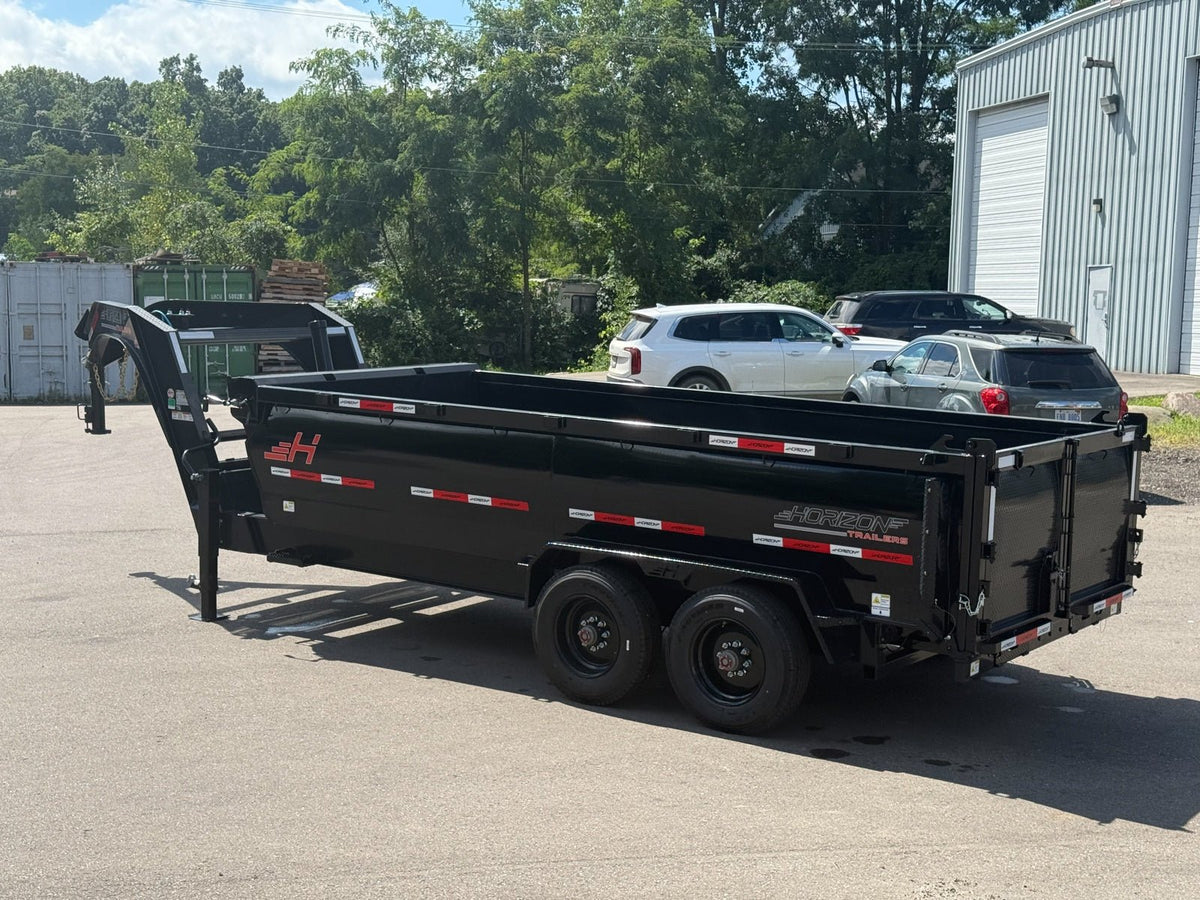

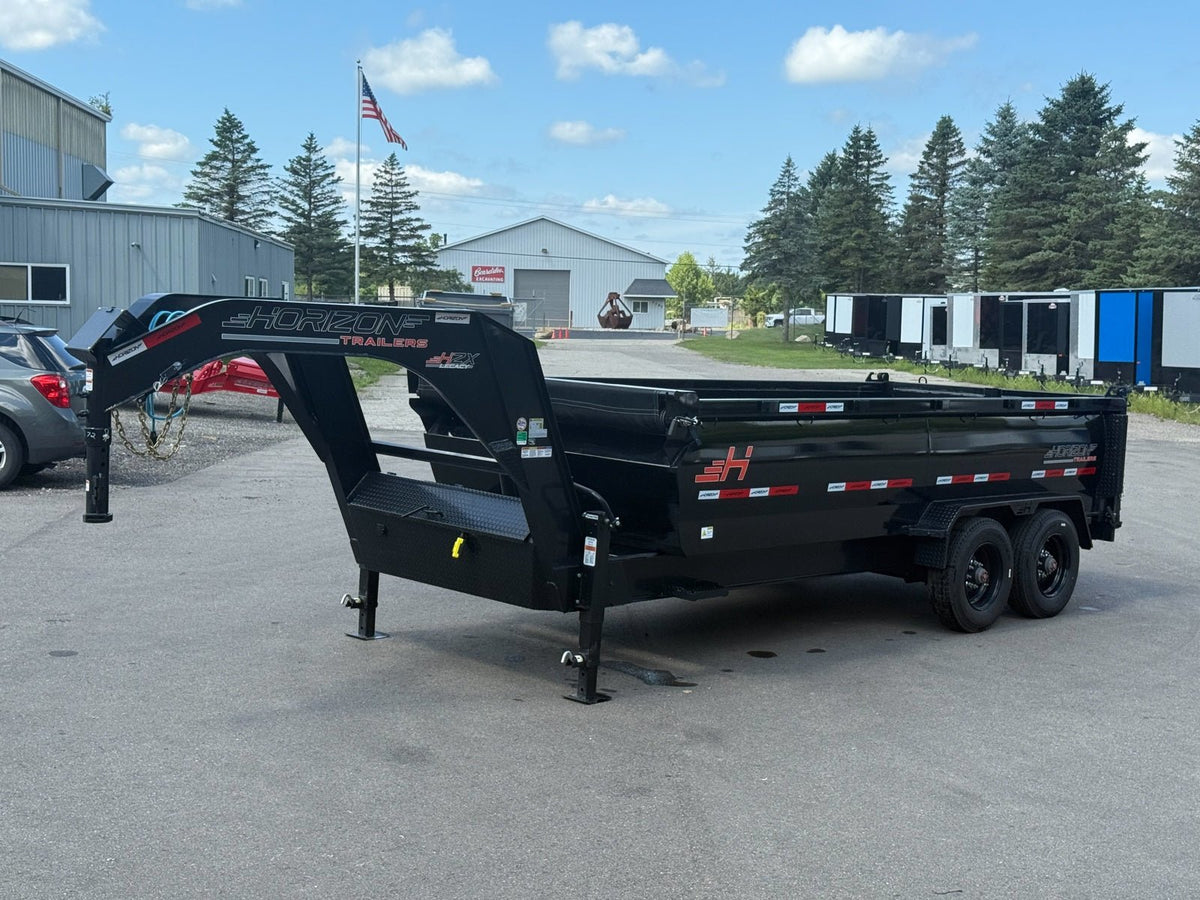

Build your Horizon HZX Gooseneck 10K Axle Dump Trailer to order in 4 configurations from 14' to 20'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 14': $24,495
- 16': $24,924
- 18': $25,157
- 20': $26,197
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 14' to 20'
- GVWR: 22,400 lbs
- Axles: 2 - 10k Electric Brake Super Single Oil Bath Torsion Axles
- Tires: ST235/75R17.5 18 Ply Tires Super Singles (6,005 lbs)
- Coupler: Adjustable 2-5/16" Gn Coupler (30,000 lbs)
- Bed Width: 83"
- Sides: Side Step On Both Sides
- Dump Lift: 12 Ton Telescopic Cylinder
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Standard features
Weight Ratings
- GVWR: 22,400 lbs
Tongue
- Tongue: Neckboss 10" Engineered I-Beam

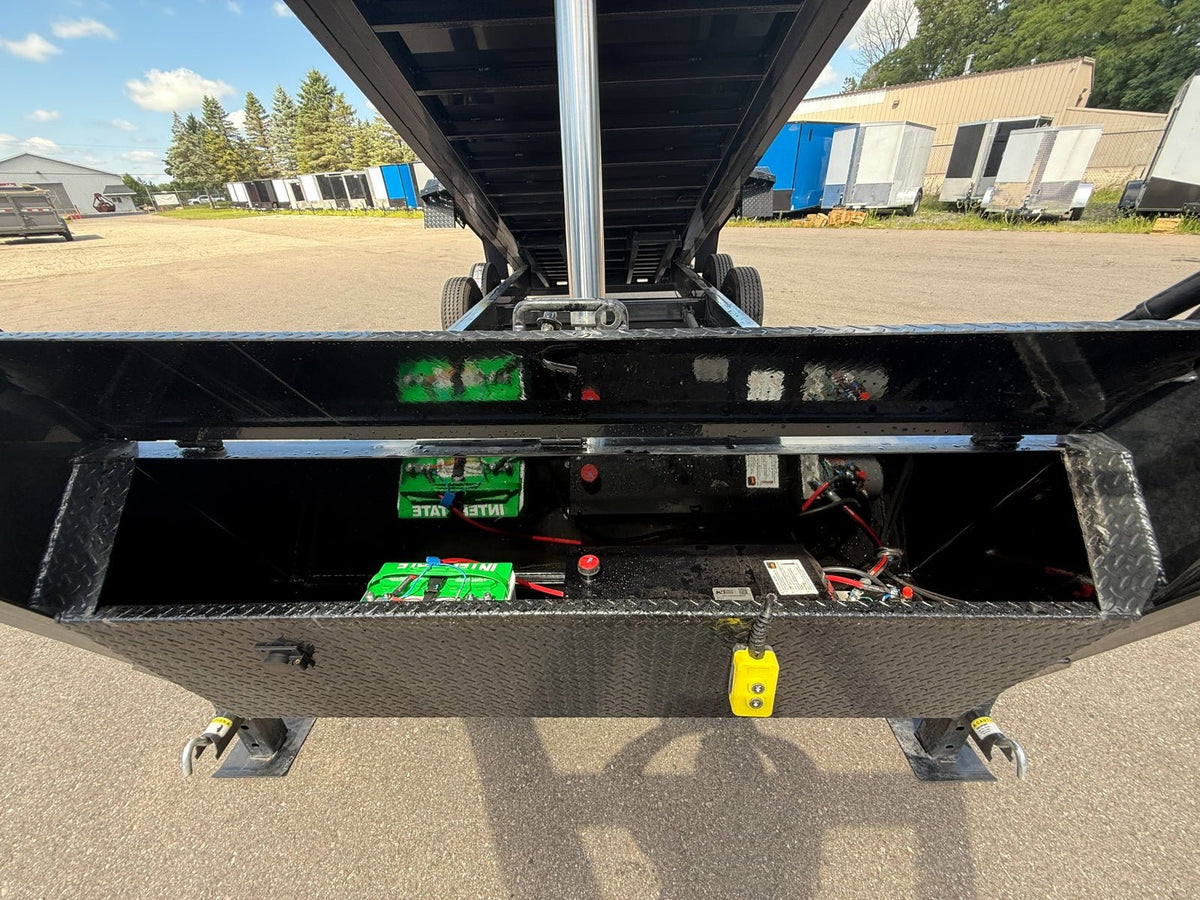

- Toolbox: Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)
- Coupler: Adjustable 2-5/16" Gn Coupler (30,000 lbs)
- Jack: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
Chassis
- Main Frame: 10" I-Beam (17 lbs/ft)
- Sides: Side Step On Both Sides
Dump
- Bed Width: 83"
- Top Rail Width: 83"
- Flooring: 7ga. Steel Bed
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 4 D-Rings Welded Inside Box
- Sides: 2' High, 10ga. Rounded Steel
- Gate: 3 Way Door - Spreader Gate

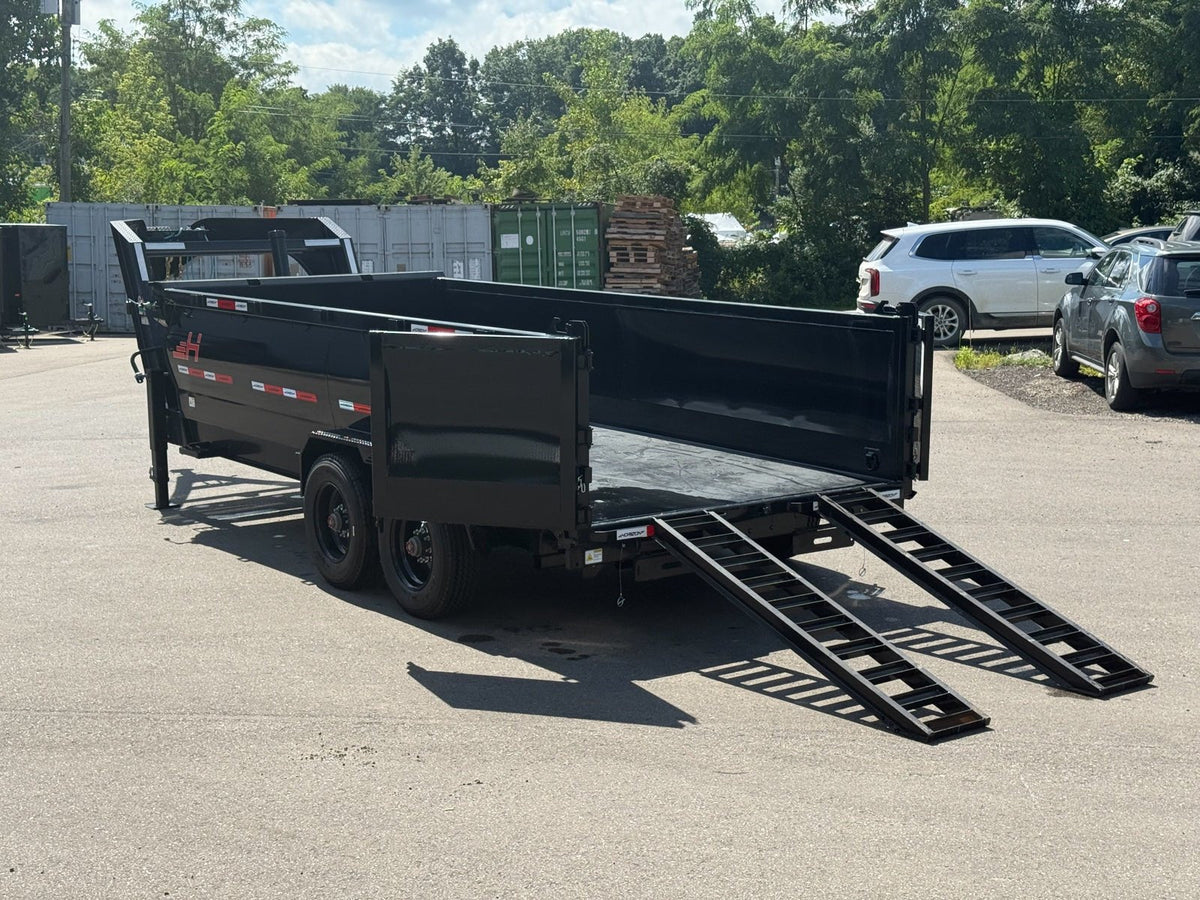

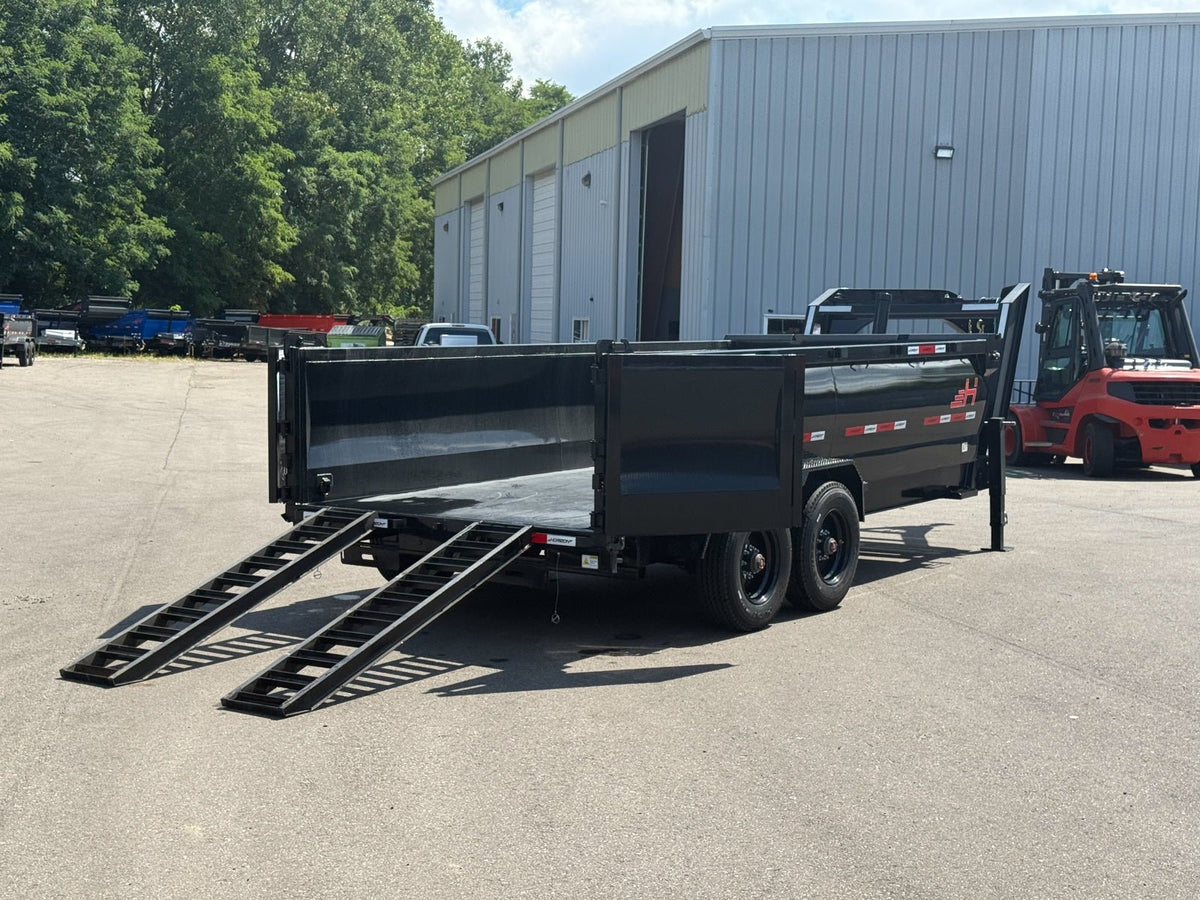

- Ramps: Ramp Pockets w/ 6' 4" Long Heavy Duty Slide In 4" Channel Ramps (7,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
- Tarp: Manual Tarp Kit
Lift System

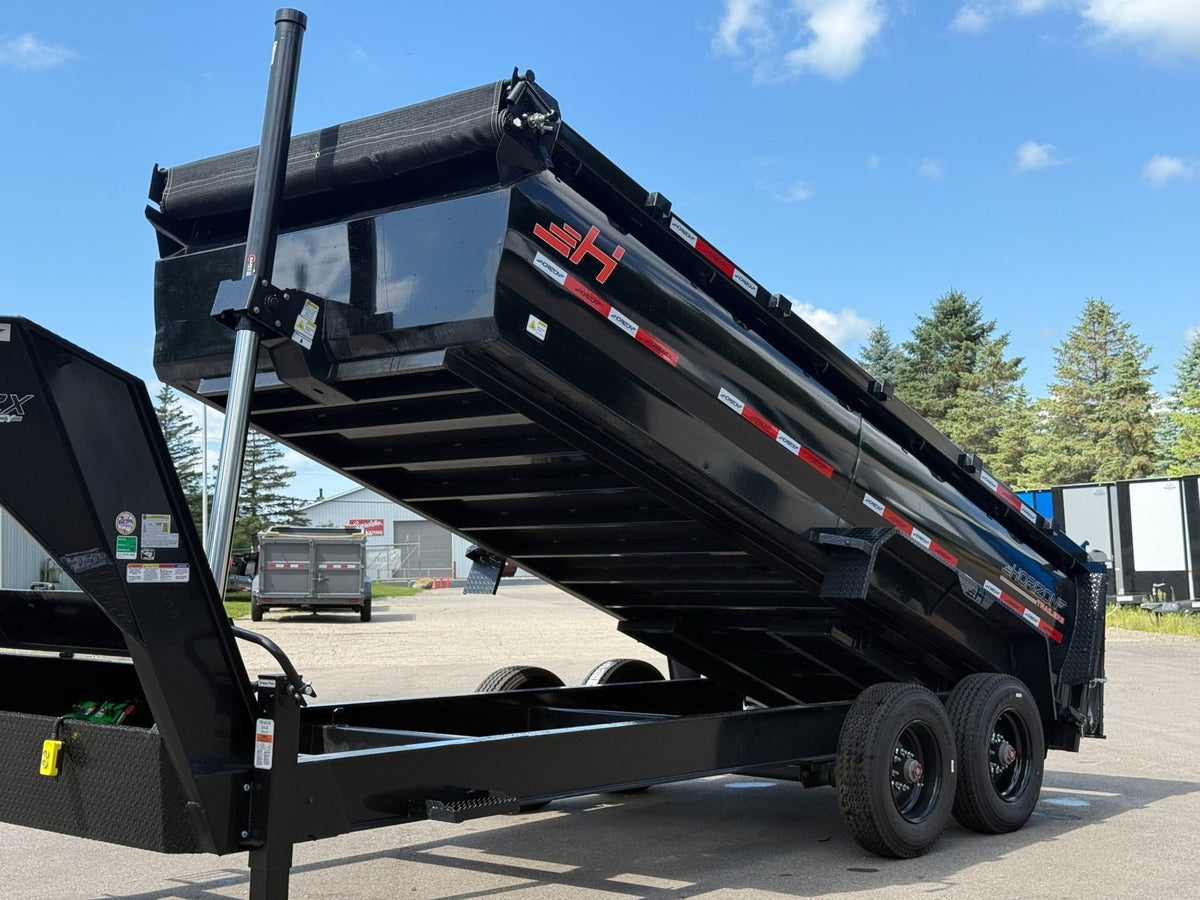

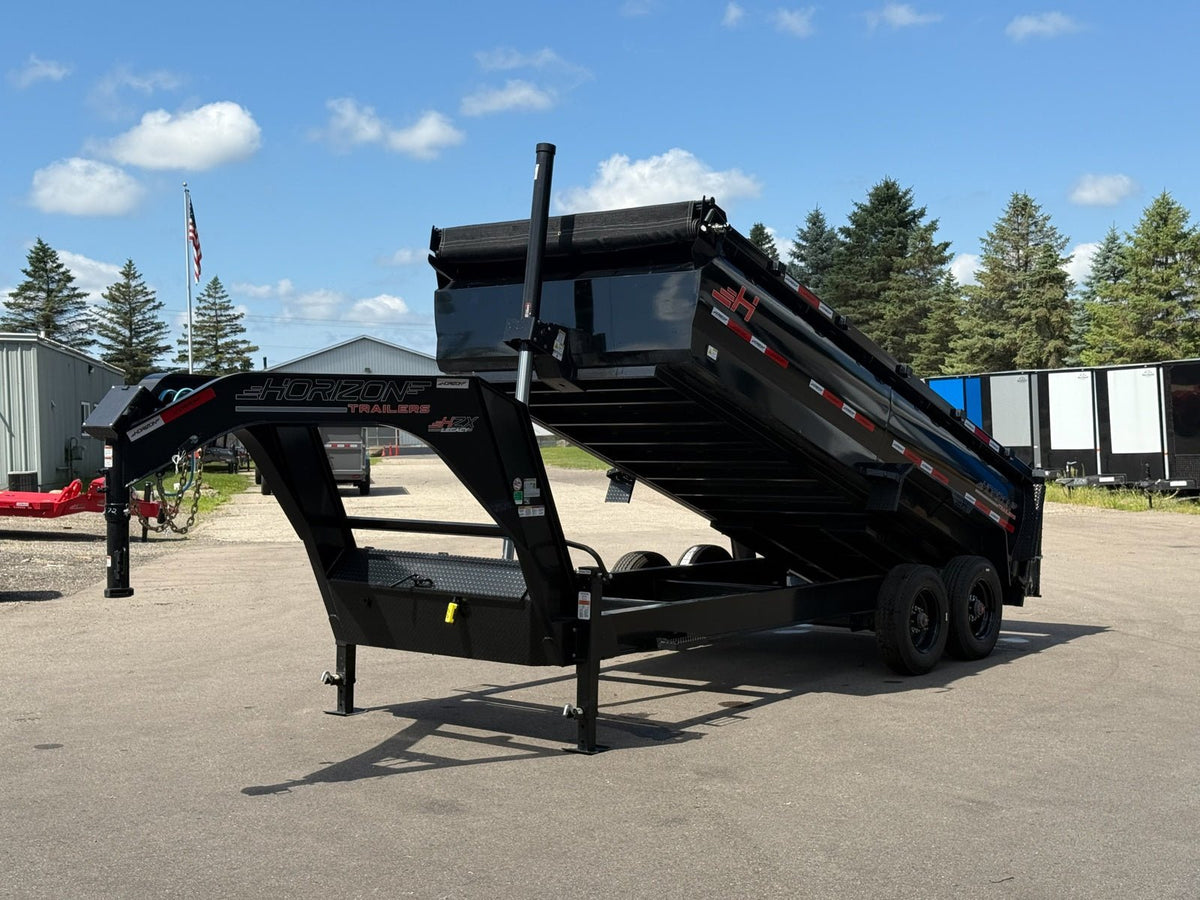

- Dump Lift: 12 Ton Telescopic Cylinder
- KTI 12V Hydraulic Pump: 2 Button Hydraulic - Power Up / Gravity Down
Running Gear

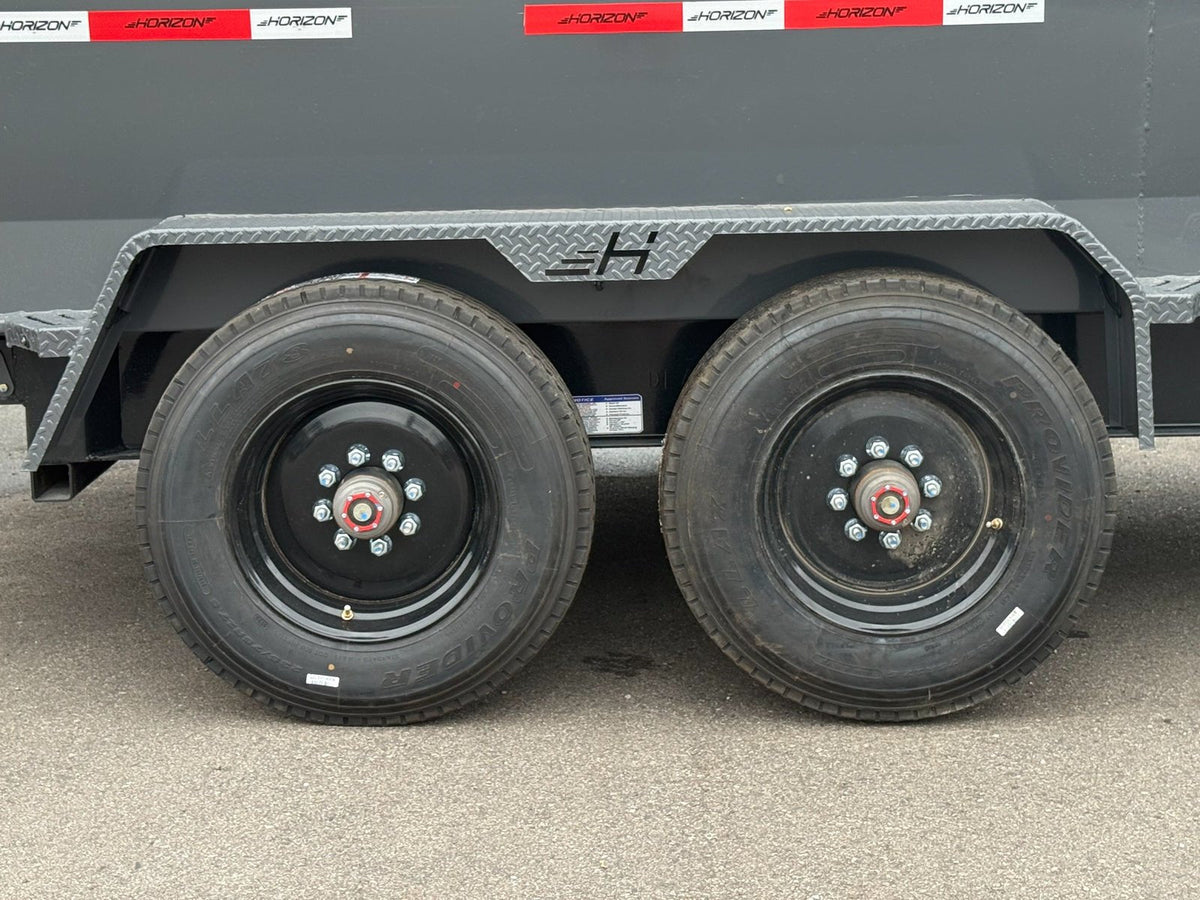

- Tires: ST235/75R17.5 18 Ply Tires Super Singles (6,005 lbs)
- Rims: 17.5" Black Mod Wheels
- Axles: 2 - 10k Electric Brake Super Single Oil Bath Torsion Axles
- Suspension: Torsion
Electrical and Lighting
- Battery: 1 - Interstate 27 Deep Cycle Battery
- Solar: 7.5 Watt Solar Panel
- Charging System: 110V Integrated Trickle Charger
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Gooseneck, jacks & toolbox (8): 12k Ram 2 Speed Jacks; 12k Hydraulic Jacks; 12k Hydraulic Jacks w/ Low Temperature Hydraulic Oil (Telescopic); 6" Gn Riser Increase…
- Frame & undercarriage (1): Fork Pockets
- Dump body (8): 3' High Sides; 4' High Sides; 8" Extensions Boards; 8" Integrated Wood Extension Brackets…
- Remotes (2): Tuff Wireless 2 Button Remote (Telescopic); Tuff Wireless 4 Button Remote (Telescopic - Hydraulic Jacks)
- Axles, suspension & tires (1): ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)
- Paint & finish (4): 2 - Tone Colors Chassis / Dump - Deck; 14ft Zinc Primer Undercoat; 16ft-18ft Zinc Primer Undercoat; 20ft & Up Zinc Primer Undercoat
