PRODUCT DETAILS
Description

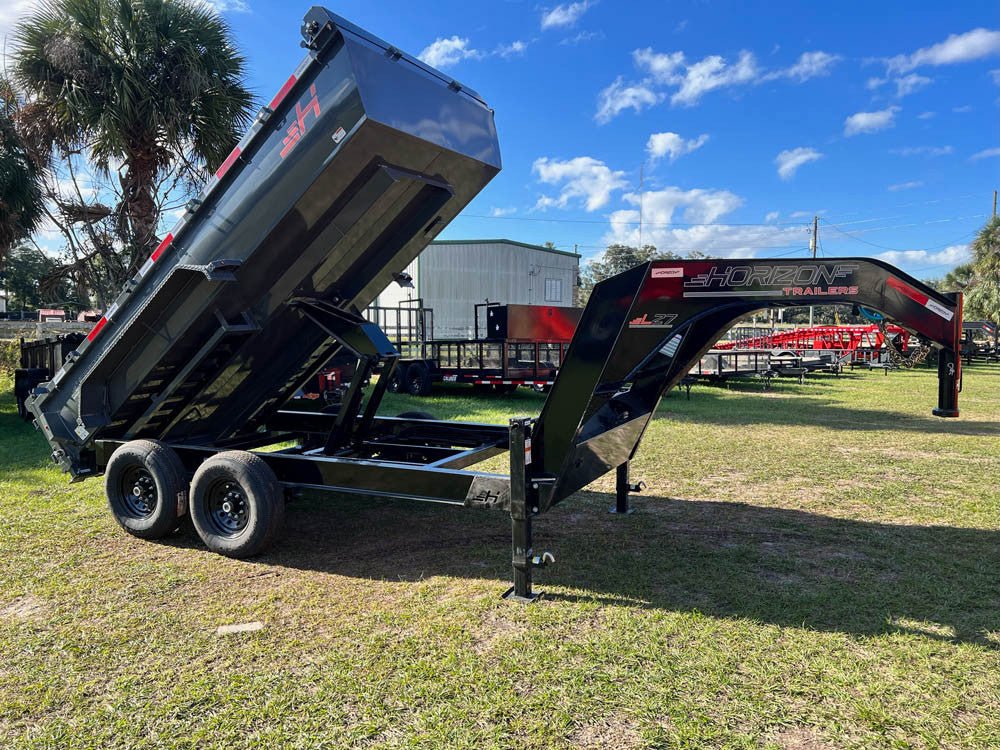

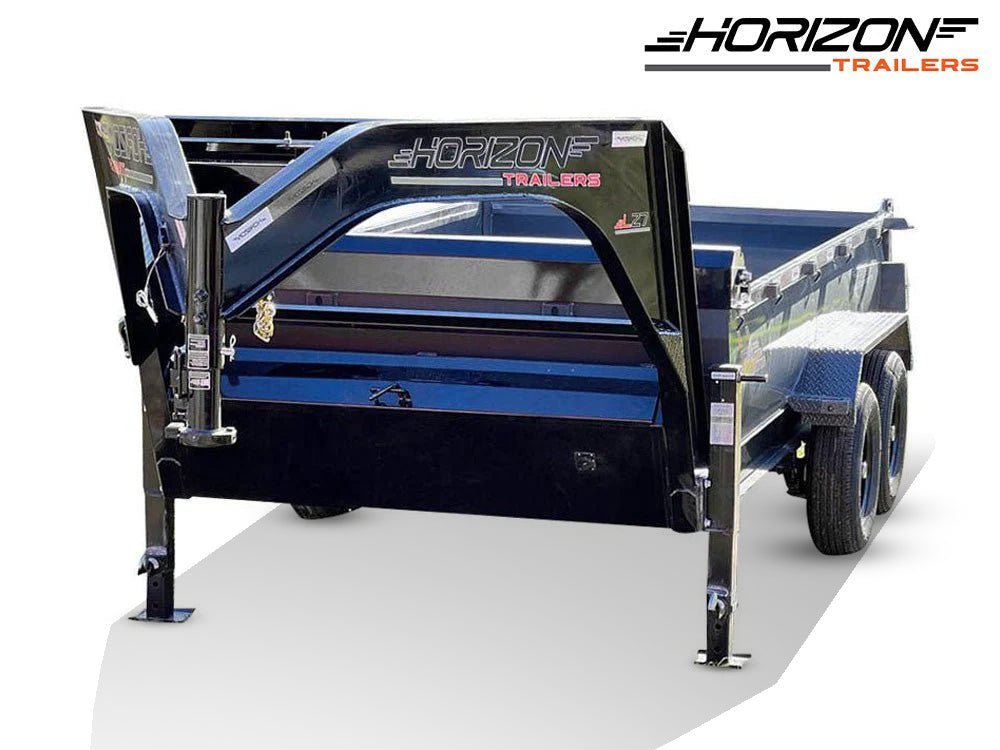

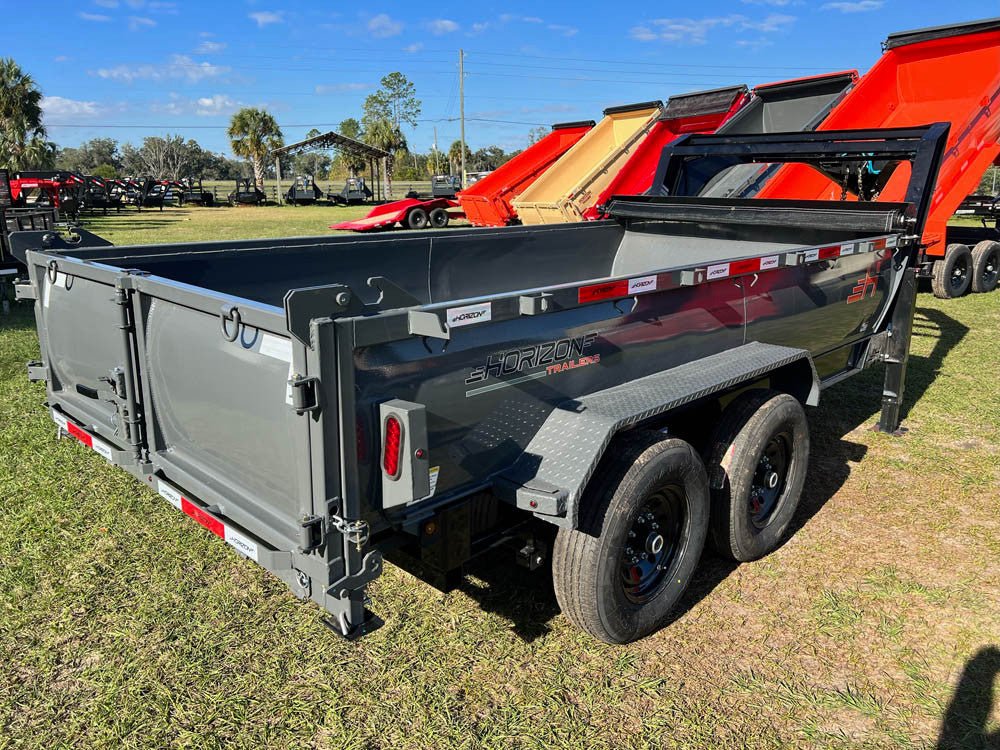

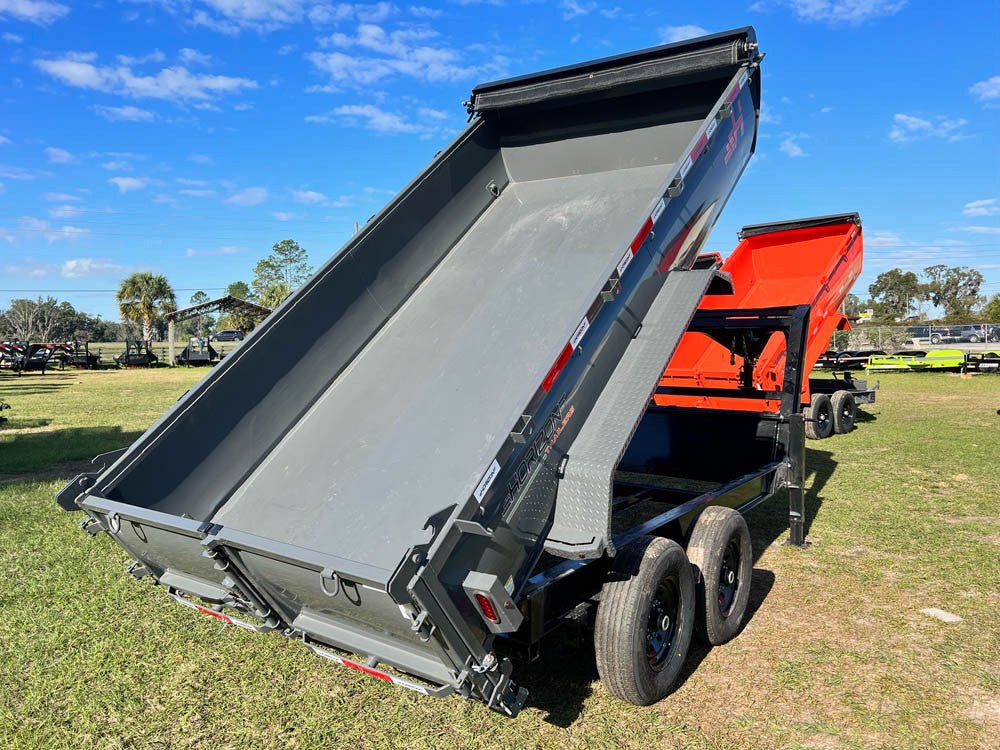

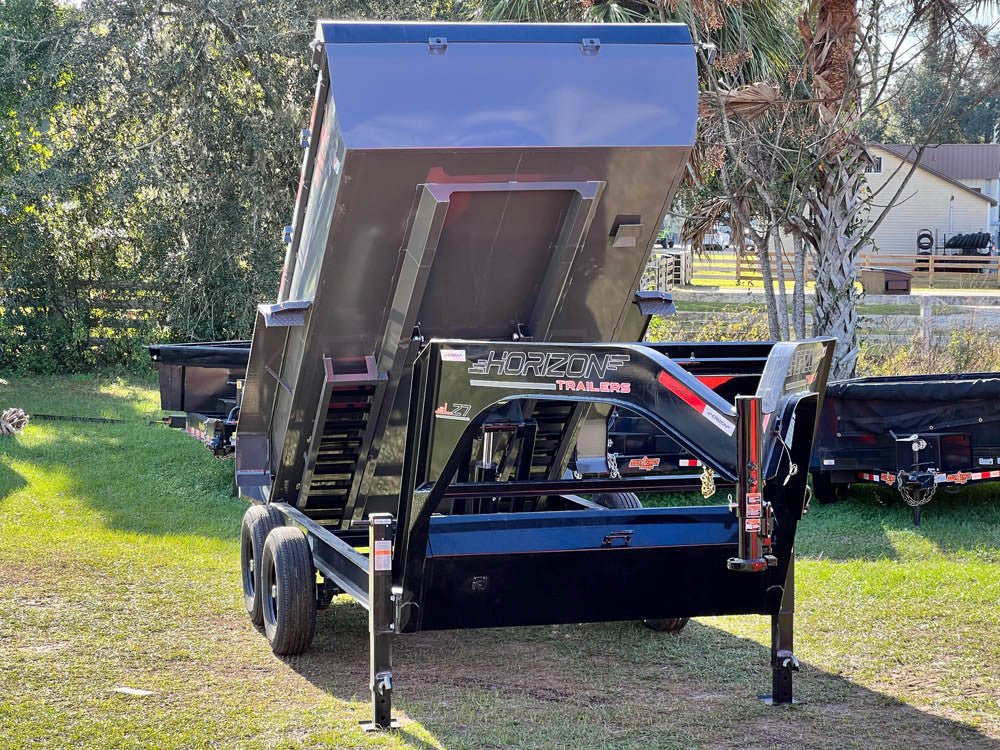

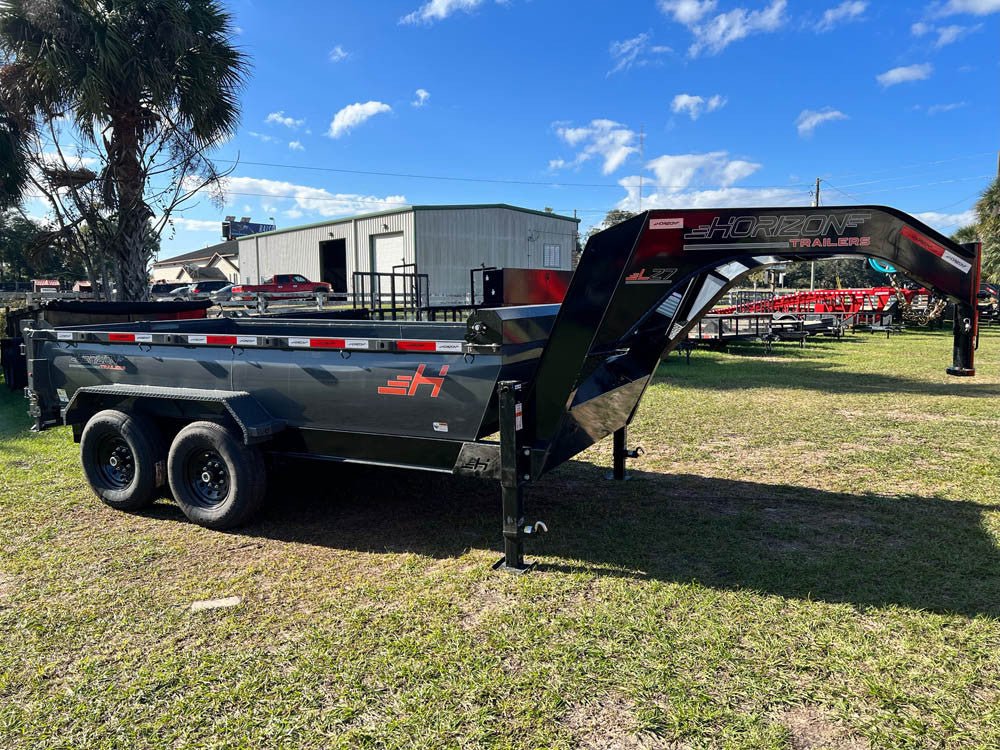

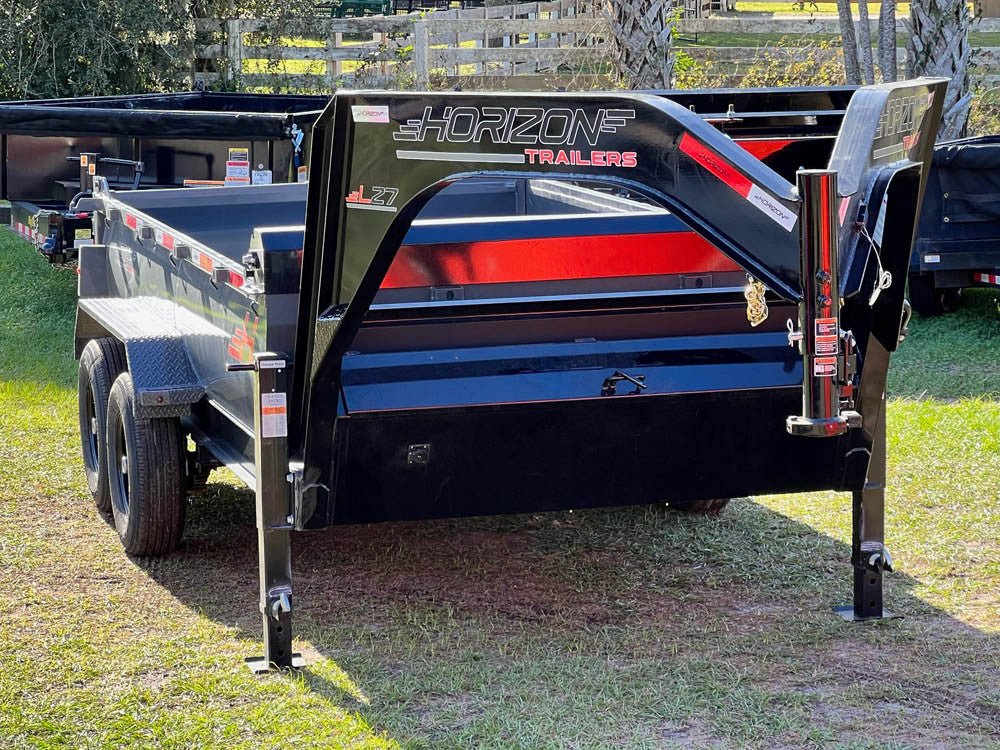

Build your Horizon LZ7 Gooseneck Lightweight Dump Trailer to order in 3 configurations from 12' to 16'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 12': $14,375
- 14': $14,696
- 16': $15,321
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 12' to 16'
- GVWR: 14,000 lbs
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Coupler: Adjustable 2-5/16" Gn Coupler (30,000 lbs)
- Bed Width: 83"
- Sides: 24" High, 12ga Rounded Steel
- Colors: Desert Tan, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey (this model's available colors)
Standard features
Weight Ratings
- GVWR: 14,000 lbs
Tongue
- Tongue: Neckboss 10" Engineered I-Beam

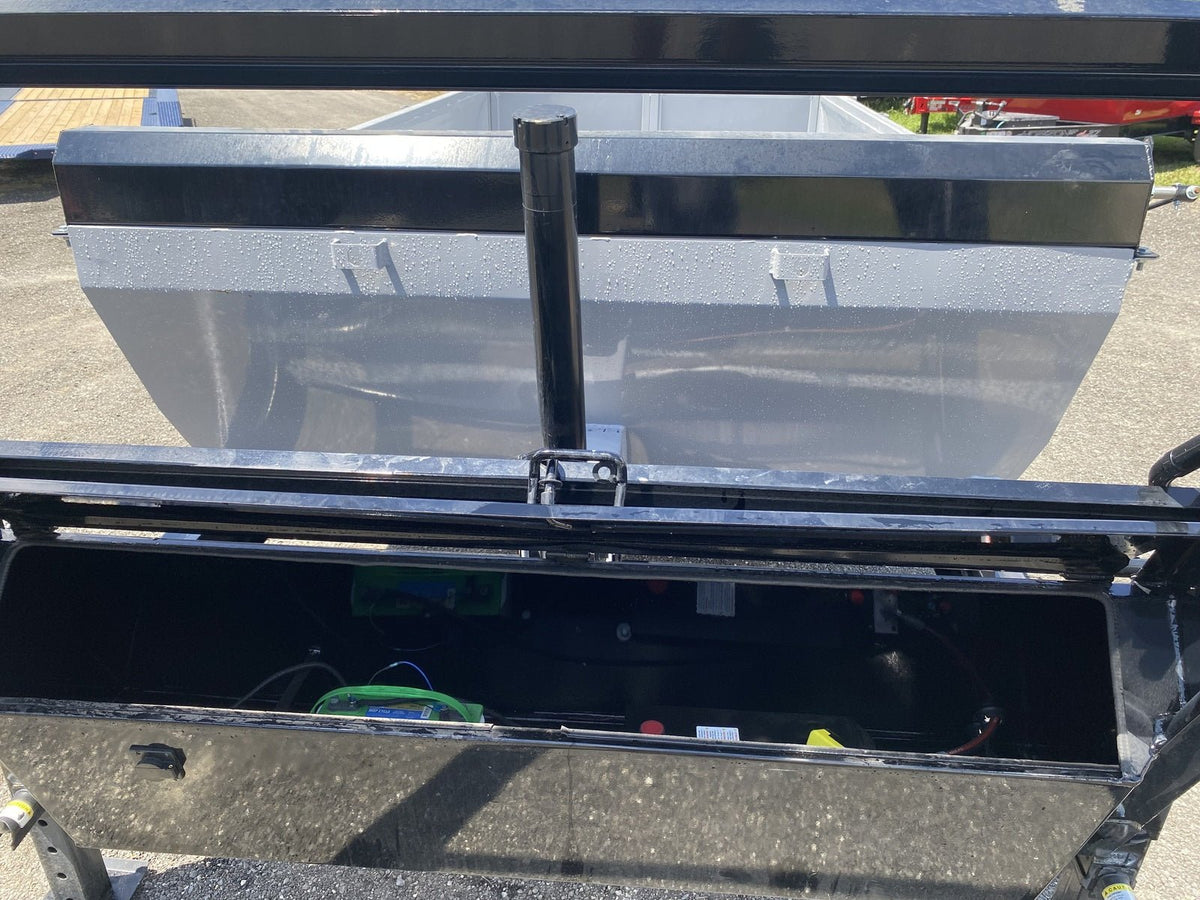

- Toolbox: Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)
- Coupler: Adjustable 2-5/16" Gn Coupler (30,000 lbs)
- Jacks: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
Chassis
- Main Frame: 8" I-Beam (13 lbs/ft)
Dump
- Bed Width: 83"
- Top Rail Width: 83"
- Flooring: 9ga. Steel Bed
- Frame: 2" x 4" x 11ga. Tubing
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 4 D-Rings Welded Inside Box
- Sides: 24" High, 12ga Rounded Steel
- Gate: 3 Way Door - Spreader Gate
- Ramps: Ramp Pockets w/ 6' 4" Long Slide In 3" Channel Ramps (4,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
- Tarp: Manual Tarp Kit
Lift System
- Hoist 12', 14' Dump: 5" x 16" Single Push Cylinder Hoist (15,000 lbs)
- Hoist 16' Dump: 5" x 21" Single Push Cylinder Hoist (15,000 lbs)
- KTI 12V Hydraulic Pump: 2 Button Hydraulic - Power Up / Power Down

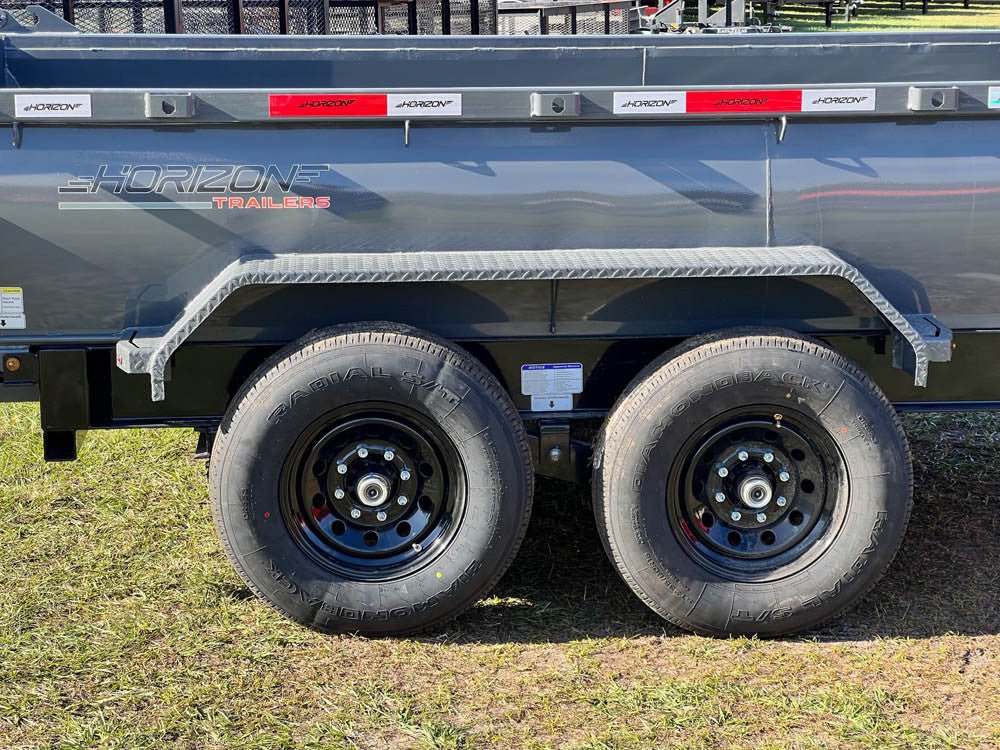

Running Gear
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Rims: 16" Black Mod Wheels
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Suspension: Spring
Electrical and Lighting
- Battery: 1 - Interstate 27 Deep Cycle Battery
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Gooseneck, jacks & toolbox (3): 12k Hydraulic Jacks; 12k Hydraulic Jacks w/ Low Temperature Hydraulic Oil; 12k Hydraulic Jacks w/ Low Temperature Hydraulic Oil (Telescopic)
- Frame & undercarriage (1): Side Step On Both Sides
- Dump body (7): 30" High Sides (10ga.); 42" High Sides (10ga.); 8" Extensions Boards; 8" Integrated Wood Extension Brackets…
- Lift & remotes (8): Tuff Wireless 2 Button Remote (Hoist or Telescopic); Tuff Wireless 2 Button Remote (Hoist - Hydraulic Jacks); Tuff Wireless 4 Button Remote (Telescopic - Hydraulic Jacks); Telescopic Cylinder 12' Dump…
- Axles, suspension & tires (3): ST235/85R16 14 Ply Tires Singles (4,400 lbs); ST235/80R16 10 Ply Tire Single (3,520 lbs); ST235/85R16 14 Ply Tire Single (4,400 lbs)
- Electrical & lighting (1): 7.5 Watt Solar Panel
- Paint & finish (3): 2 - Tone Colors Chassis / Dump - Deck; 12ft-14ft Zinc Primer Undercoat; 16ft Zinc Primer Undercoat
