If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your door!
Build & price yours
Pick a deck length, color and the options you need. Your list price updates as you go.
1
Deck length
List price includes all standard features2
Color
Powder coat color is included. Swatches are approximate; ask to see a sample.
3
Options
Open a section to add options. Where only one choice makes sense, picking one replaces the other.
·
Loading options…
PRODUCT DETAILS
Description

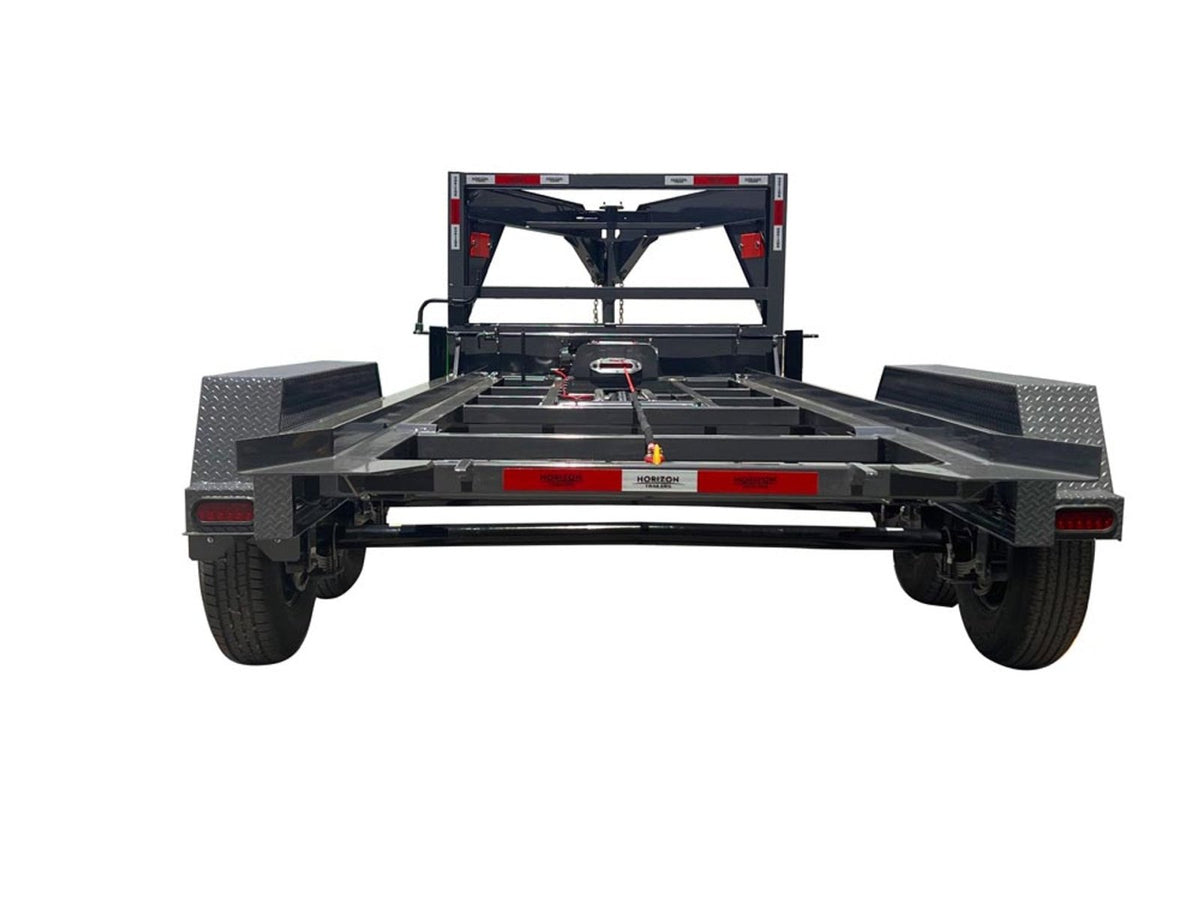

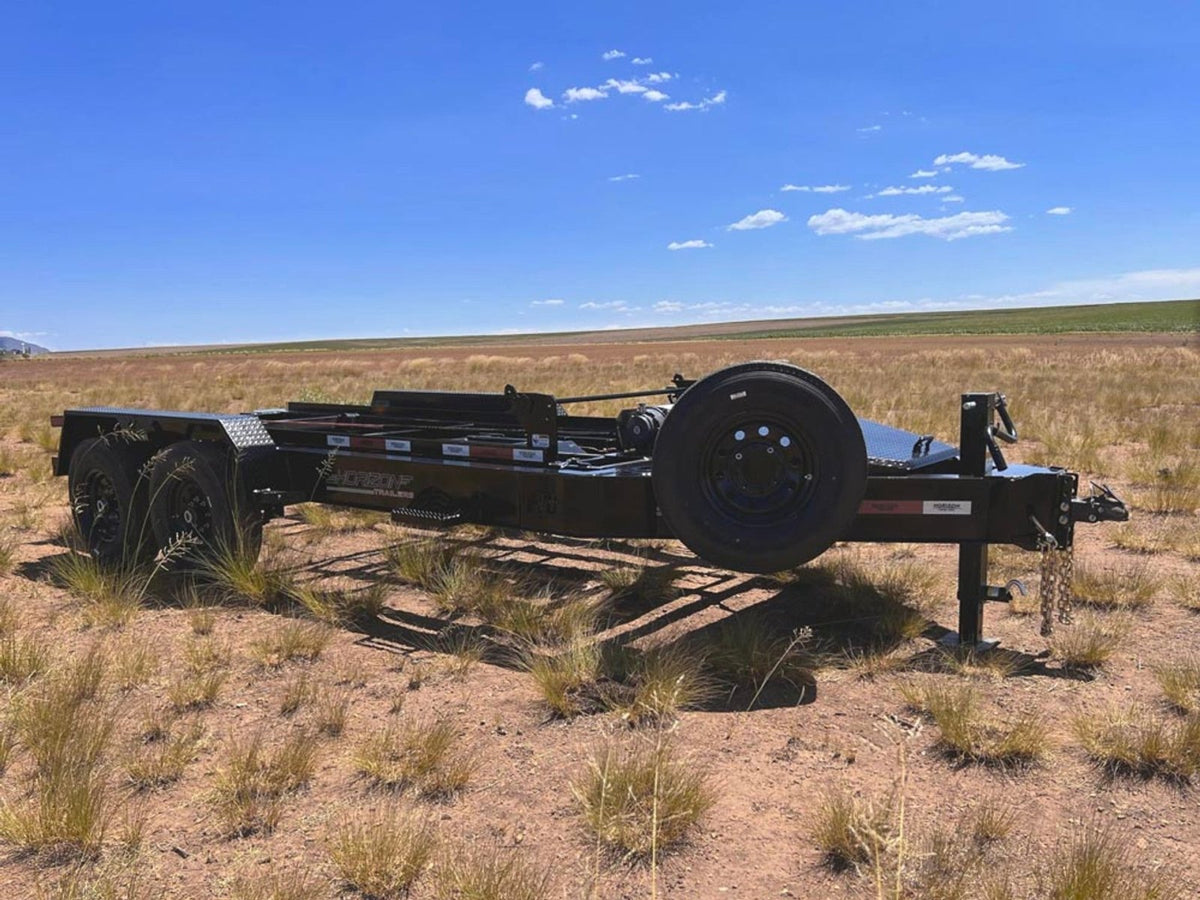

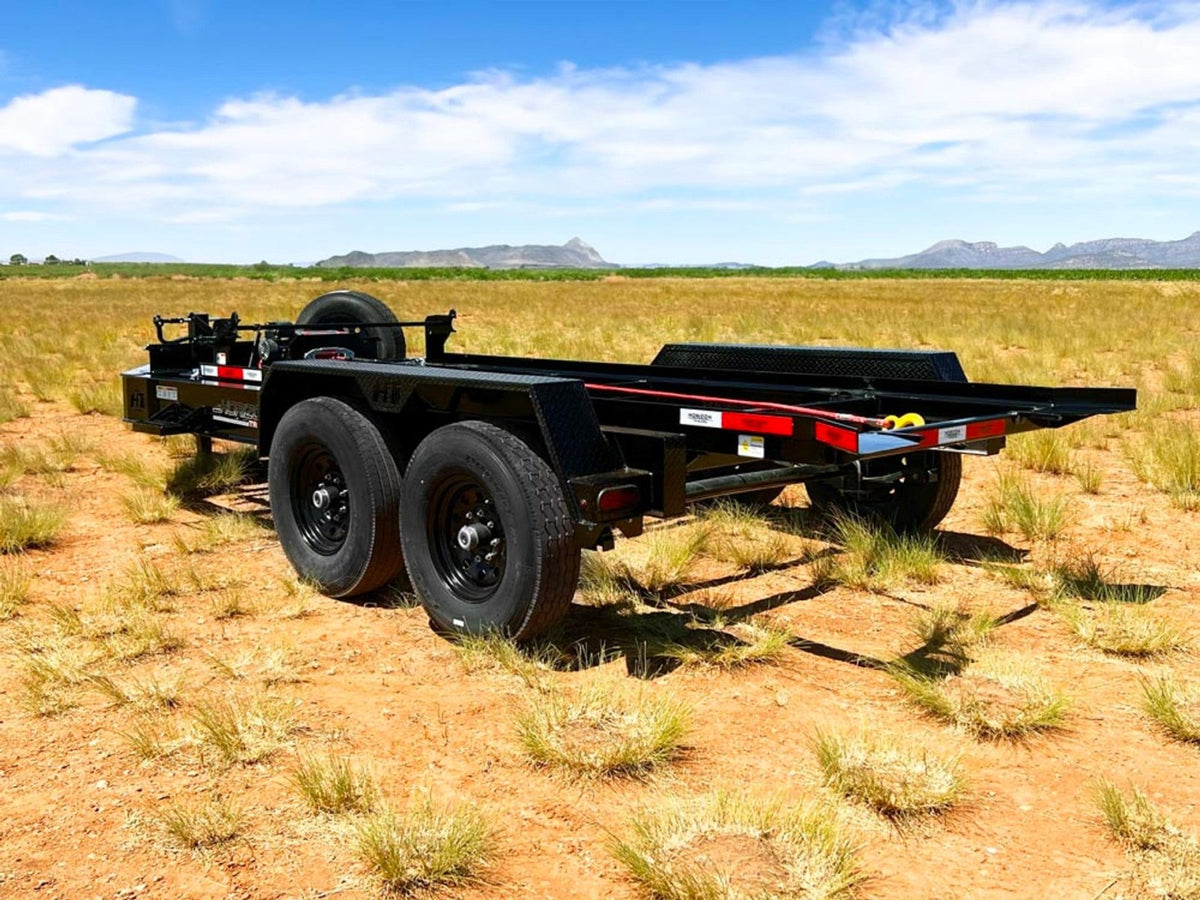

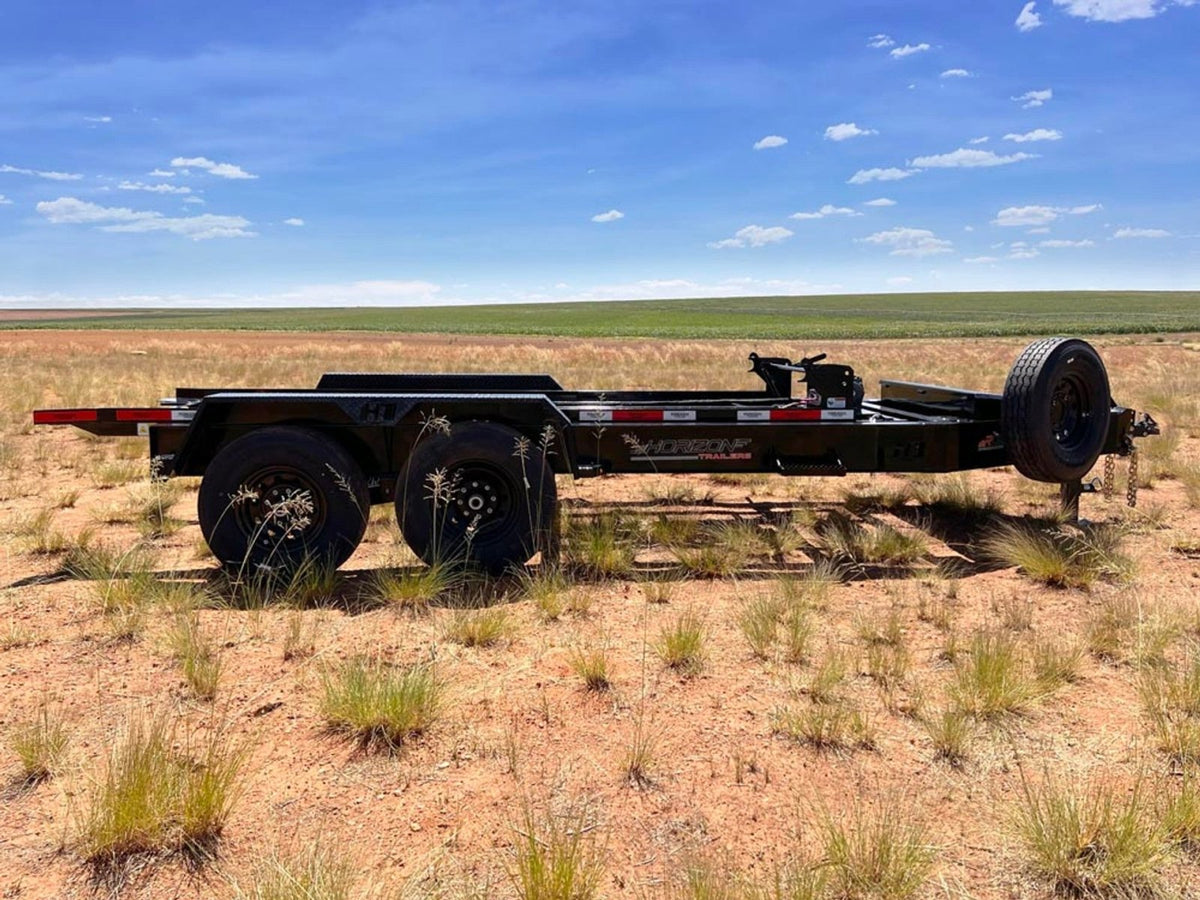

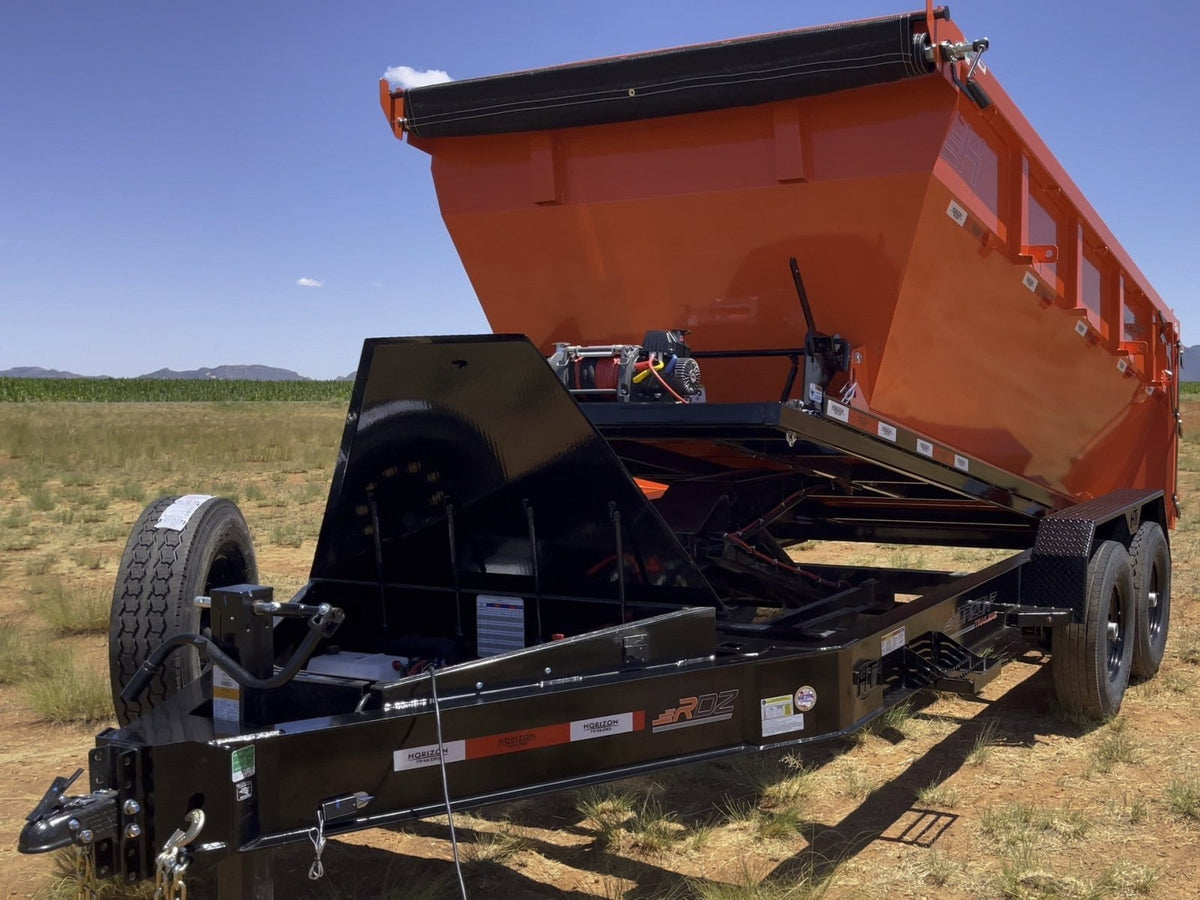

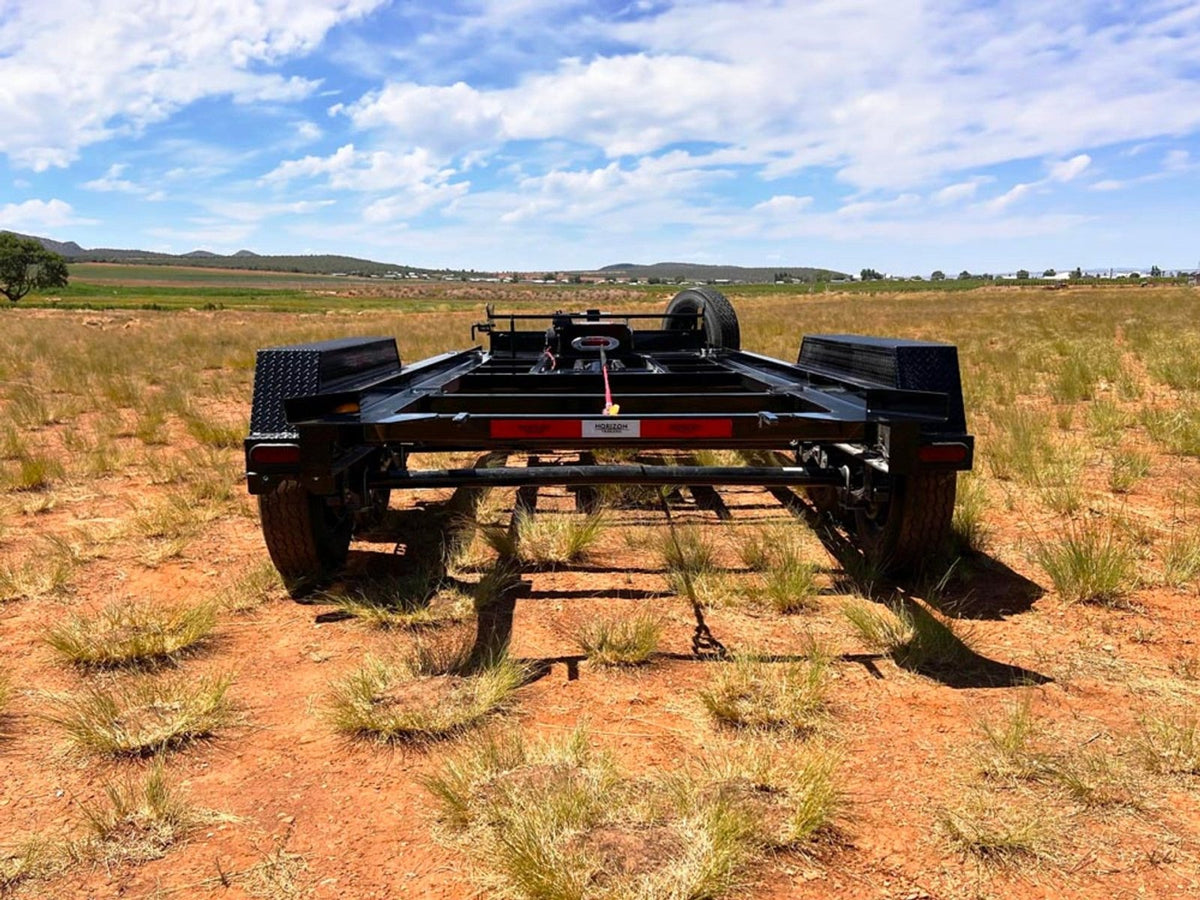

Build your Horizon RDZ Bumper Pull Roll Off Trailer to order in 2 configurations from 14' to 16'. Pick your model to see its list price, then choose your color and options and request your final price: dealer discount, delivery and tax/tag/registration, or an out-the-door delivered price.
List price by model
- 14': $13,241
- 16': $13,612
List prices are for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 14' to 16'
- GVWR: 15,200 lbs
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Coupler: Adjustable Auto Latch 2-5/16" Bp Coupler (17,000 lbs)
- Sides: Side Step On Both Sides
- Colors: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
Payload note: before operating, weigh the empty trailer and roll off unit together and deduct that from the GVWR (see the VIN/serial tag) to find your actual payload.
Standard features
Weight Ratings
- GVWR: 15,200 lbs
Tongue
- Tongue: Neckboss 10" Tapered Engineered I-Beam
- Toolbox: Mega Lockable Toolbox Houses Battery & Pump
- Coupler: Adjustable Auto Latch 2-5/16" Bp Coupler (17,000 lbs)
- Jack: 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- Spare: Weld On Spare Tire Mount
Chassis
- Main Frame: 10" I-Beam (12 lbs/ft)
- Sides: Side Step On Both Sides
Deck
- Frame: 2" x 4" x 7ga. Tubing Bed Frame
- Crossmembers: 2" x 4" x 7ga. Crossmembers
- Sides: 3" x 4" x 1/4" Angle Iron
- Bottom Rail Deck Width: 61"
Lift System
- Hoist 14', 16' Deck: 6" x 21" Single Push Cylinder Hoist 20,000 lbs
- KTI 12V Hydraulic Pump: 2 Button Hydraulic - Power Up / Power Down
- Winch: 17.5k Steel Cable Winchmax Winch
Running Gear
- Tires: ST235/80R16 10 Ply Tires Single (3,520 lbs)
- Rims: 16" Black Mod Wheels
- Axles: 2 - 7k Electric Brake EZ Lube Spring Axles
- Suspension: Spring
Electrical and Lighting
- Battery: 2 - Interstate 27 Deep Cycle Batteries
- Solar: 7.5 Watt Solar Panel
- Charging System: 110V Integrated Trickle Charger
- Lights: DOT Approved Tecniq LED Lights
Finish
- Paint: 6 Stage Powdercoat
Available options
- Accessories (2): 2' Extension Bars; Adjustable Rails (14'-16' Roll Off Bin)
- Tongue, jacks & toolbox (4): 12k Ram 2 Speed Jack; 12k Hydraulic Jack; Bracket For Electric Tarp Kit Bp (contains pair of fender brackets); 12k Hydraulic Jacks w/ Low Temperature Hydraulic Oil
- Frame & undercarriage (1): 10" I-Beam (15 lbs/ft) Frame Upgrade
- Dump body (1): Electric Tarp Kit 14', 16' Dump
- Lift, remotes & winch (19): Tuff Wireless 2 Button Remote (Hoist or Telescopic); Tuff Wireless 2 Button Remote (Hoist - Hydraulic Jacks); Tuff Wireless 4 Button Remote (Hoist - Winch); Tuff Wireless 4 Button Remote (Hoist - Hydraulic Jacks - Winch)…
- Axles, suspension & tires (11): ST235/85R16 14 Ply Tires Singles (4,400 lbs); Aluminum Rims w/ ST235/80R16 10 Ply Tires (3,520 lbs); Aluminum Rims w/ ST235/85R16 14 Ply Tires (4,400 lbs); ST235/80R16 10 Ply Tire Single (3,520 lbs)…
- Paint & finish (2): 14ft Zinc Primer Undercoat; 16ft Zinc Primer Undercoat
