PRODUCT DETAILS
Description

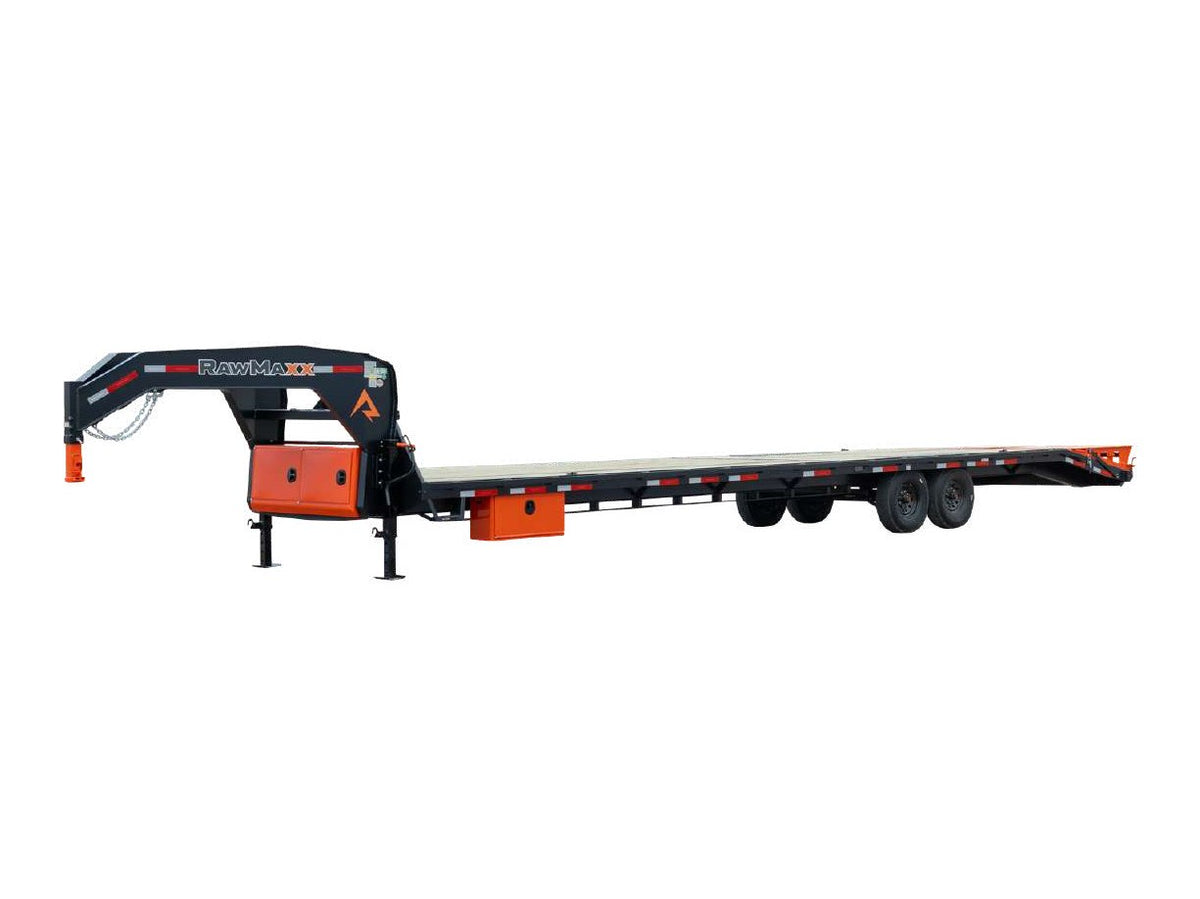

Build your RawMaxx FDX Gooseneck Single Wheel Deckover to order in 8 configurations from 28' to 40'. Pick your length and model to see its list price, choose your color and options, then send us your build for your final price.
List price by model
- 28' 16,000 lbs GVWR: $16,062
- 28' 20,000 lbs GVWR: $18,615
- 32' 16,000 lbs GVWR: $16,795
- 32' 20,000 lbs GVWR: $19,351
- 36' 16,000 lbs GVWR: $17,633
- 36' 20,000 lbs GVWR: $20,185
- 40' 16,000 lbs GVWR: $18,418
- 40' 20,000 lbs GVWR: $20,971
List prices are RawMaxx MSRP for the base trailer with standard features. Options, dealer discount, delivery, tax, tag and registration are extra.
At a glance
- Length: 28' to 40'
- GVWR: 16,000 lbs, 20,000 lbs
- Axles: Tandem
- Hitch: Gooseneck
- Colors: Jet Black, Midnight Black, Shadow Grey, Lava Grey, Cobalt Blue, Army Green, Sunny Beige, Desert Tan, Ruby Red, Classic Orange; premium colors (Chalk White, Ghost White, Minion Yellow, Limon Green) add $386
Standard features
16,000 lbs GVWR
- 2-5/16” Ball 25,000 lbs Square Coupler
- 12" x 14 lbs I-Beam Main Frame
- Cross-Members: 3" Channel/16" OC
- 6" Channel Outer Deck Frame
- Rub Rail: 2" x 3/8" Flat Bar
- 3-7/8" x 1-13/16" (ID) Stake Pockets
- Chain Spool: 1 5/8" OD
- 2 Side Wind Drop Leg Jacks - 10,000 lbs
- Straight deck: 7.5' Slide-In Channel Ramps
- Flooring: 2" Treated Lumber Deck
- 4 D-Rings
- Front Tool Box: Between Risers
- Bridge Frame + Torque Tube ( 30' or longer )
- Grade 50, One-Piece Gooseneck
- Winch Plate
- Chain Rack
- 4 - 14 Ply ST235/85R16 Tires
- Spring Suspension
- 2 - 8,000 lbs Axles With Brakes
- 3/8" G70 Safety Chains
- 3M DOT Compliant Reflective Tape
- All Weather Wiring Harness
- Powder Coat Paint
- 5 Year Dexter Axle Warranty
- 3 Year Structural/1 Year Paint
20,000 lbs GVWR
- 2-5/16” Ball 25,000 lbs Square Coupler
- 12" x 19 lbs I-Beam Main Frame
- Cross-Members: 3" Channel/16" OC
- 6" Channel Outer Deck Frame
- Rub Rail: 2" x 3/8" Flat Bar
- 3-7/8" x 1-13/16" (ID) Stake Pockets
- Chain Spool: 1 5/8" OD
- 2 Side Wind Drop Leg Jacks - 10,000 lbs
- Straight deck: 7.5' Slide-In Channel Ramps
- Flooring: 2" Treated Lumber Deck
- 4 D-Rings
- Front Tool Box: Between Risers
- Bridge Frame + Torque Tube ( 30' or longer )
- Grade 50, One-Piece Gooseneck
- Winch Plate
- Chain Rack
- 4 - 18 Ply ST235/75R17.5 Tires
- Spring Suspension
- 2 - 10,000 lbs Axles With Brakes
- 3/8" G70 Safety Chains
- 3M DOT Compliant Reflective Tape
- All Weather Wiring Harness
- Powder Coat Paint
- 5 Year Dexter Axle Warranty
- 3 Year Structural/1 Year Paint
Available options
- Deck (4): 12" Center Cross-members Per Ft; Deck On Neck; Pro Wood Per Ft; G12 Tread Plate Deck Per Ft
- Ramp (1): Maxx Ramps
- Load Management (5): Weld on D-Rings; Slide Track For Ratchets Per Ft; Slide Ratchets; Weld On Ratchets…
- Jack (1): Dual 12,000 Lbs. Hydraulic Jacks - Includes Pump
- Other (1): 6" Gooseneck Riser
- Electrical Add Ons (8): 12,000 lbs Electric Winch (Includes Battery & Charger); 17,500 Lbs. Electric Winch (Includes Battery & Charger); Wireless Remote on a KTI Pump; 1 - Top LED Light Bar…
- Toolboxes (2): Underbody Toolbox; Dunnage Rack
- Tire (3): Spare - 14 Ply Tire 235/85/R16 - Single Wheel; 4 - 18 Ply Tires 235/75/R17.5 - Single Wheel; Spare - 18 Ply Tire 235/75/R17.5 - Single Wheel
